15" industrial embedded Computer Capacitive touch screen J1900 CPU TPM 2.0 6*RS-232/422/485 DC9~36V input

0.0 (1 votes) | 1 orders
Price: US $1531.26 - 1571.26 / piece
Discount Price:
US $ 1317.36 - 1351.36 / piece
-14%
Size
Quantity

System

CPU:Intel Celeron Quad Core J1900 2.0GHz

L2 Cache:2MB

Chipsets:Intel Bay Trail SOC

Memory:DDR3L 1333MHz 4GB, Up to 8GB

Harddisk:1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional

Graphics:Intel HD Graphics

Network:Intel® I211-AT GbE LAN

Audio:Realtek ACL662 Audio controller


TPM:TPM 2.0

Ps:TPM standards ensure secure data storage, as well as platform
authentication and integrity auditing.

TPM 2.0’s three hierarchies
permit multiple root keys for improved security over TPM 1.2 standards.
This provides better resistance to malware and rogue applications
affecting legitimate processes.

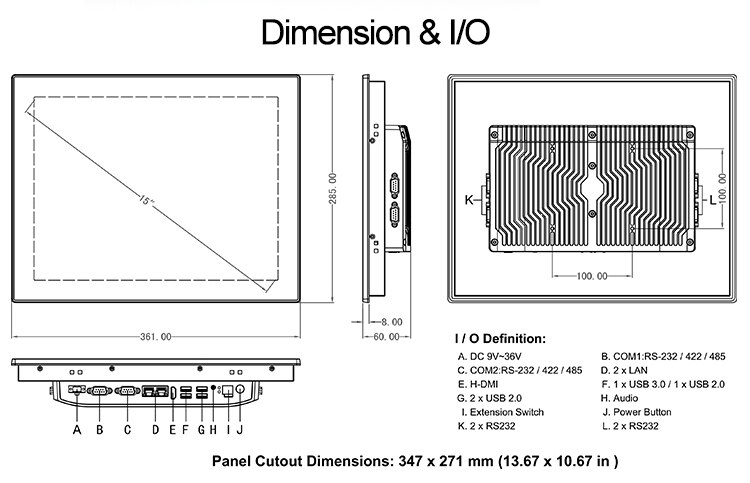

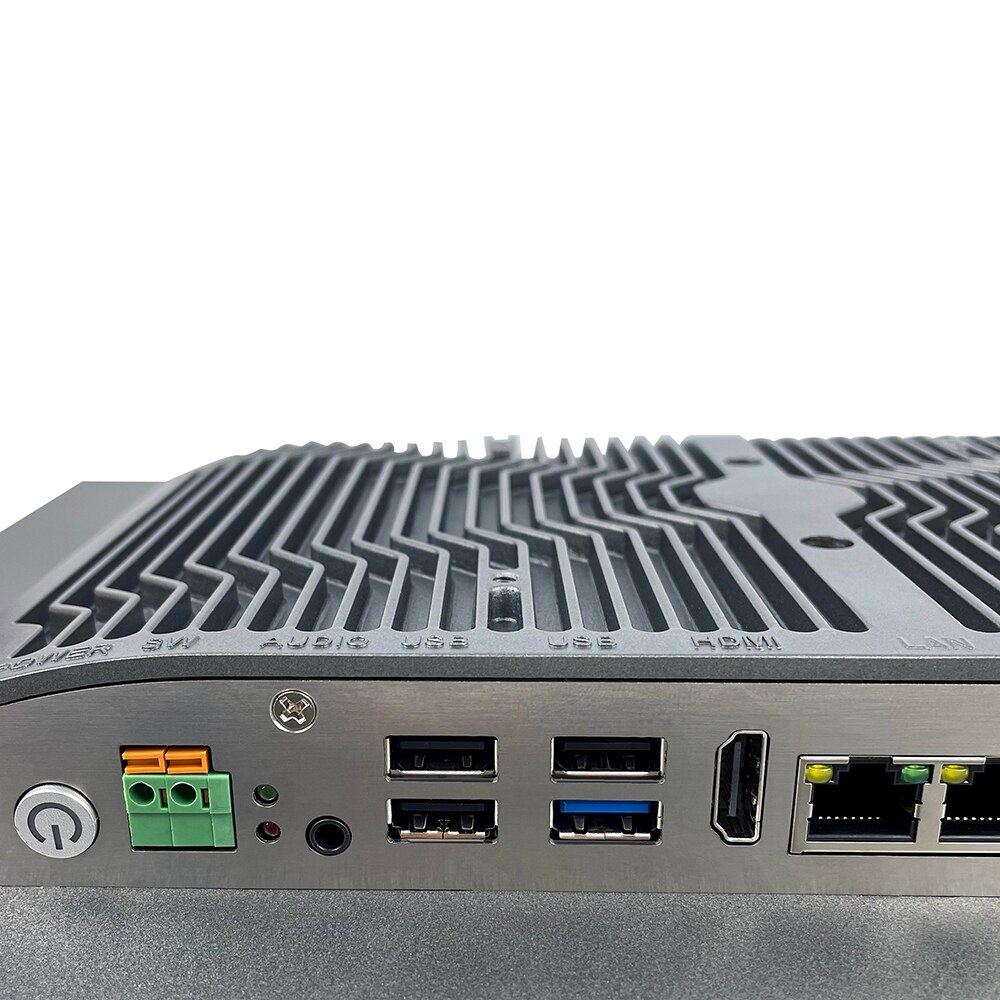

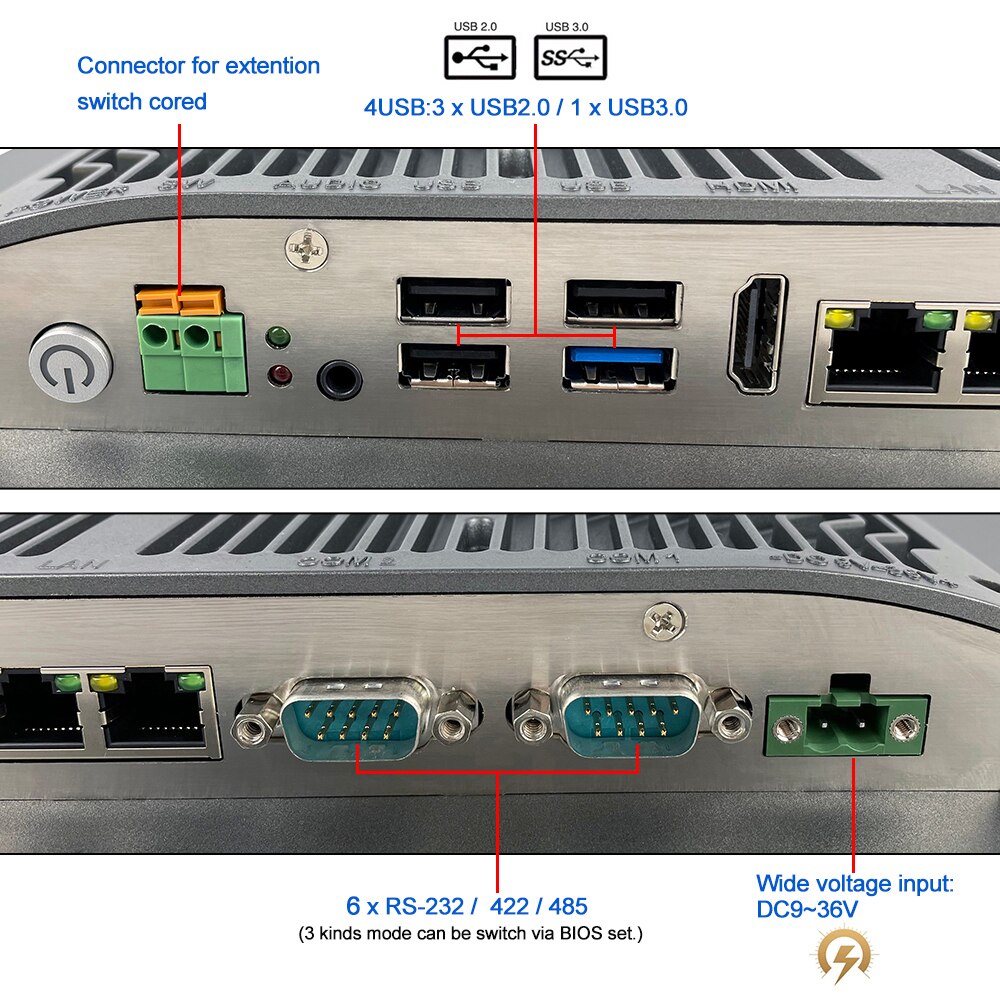

I / O

1 x H-DMI

2 x LAN(Intel I211-AT GbE LAN,support Wol and Pex)

4xUSB(3 x USB2.0 / 1 x USB3.0 )

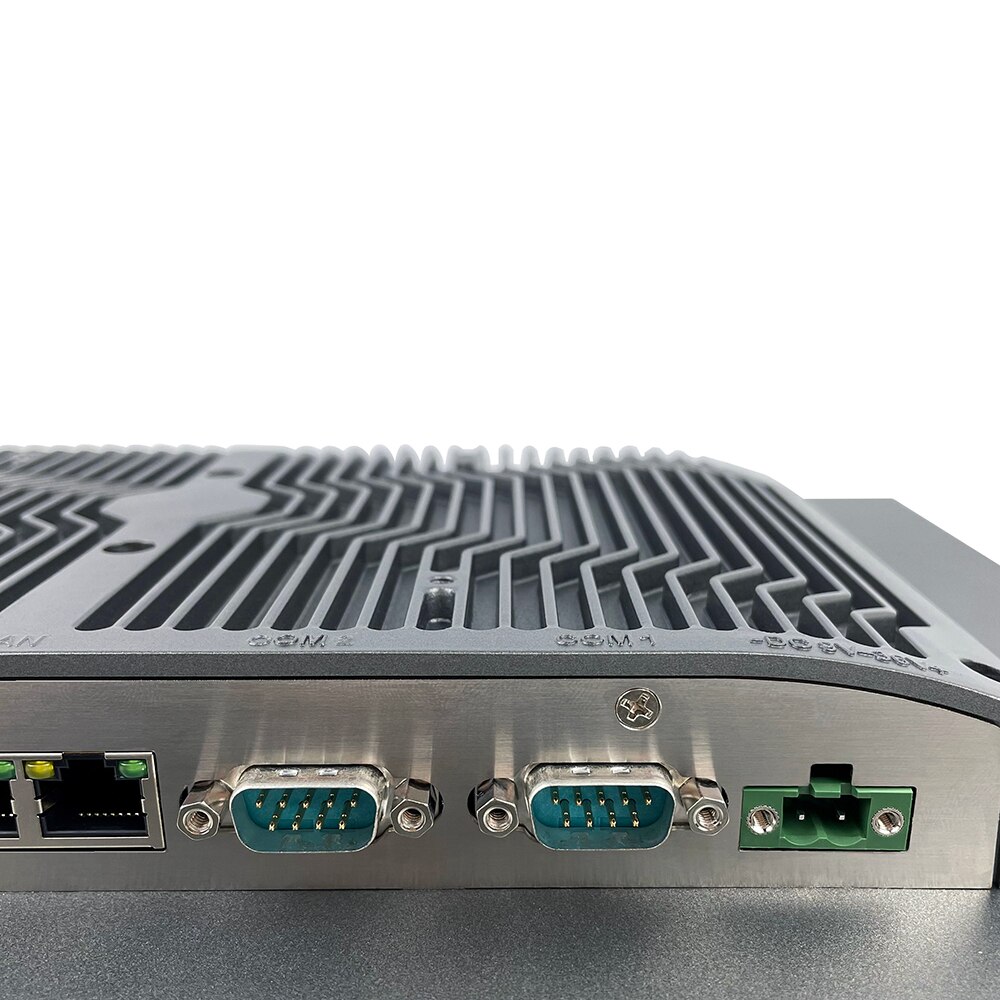

6 xCOM:4 xRS-232 /2 x(RS-232 / 422 / 485) can be switch via BIOS set

1x audio_out and Mic_in 2 in 1 port

PS:Customize I/O ports:USB can be add 6 ports ,also can be add GPIO,4G ect.

LCD Panel

Panel Size:15" LED

Resolution:1024 x 768

Aspect Ratio:4:3

Display Brightness:350 cd/m2((customize high brightness (1000+ nits),visible under the sun is available.))

Contrast Ratio:1000:1

Backlight Lifetime:50000 Hr (min.)

Viewing Angle:89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

Touch Screen Type:Multi-Touch PCAP

Transmittance:>90%

Response Time:<5ms

Surface Hardness:≥7H

Supply Voltage:5.0V DC

Institutional

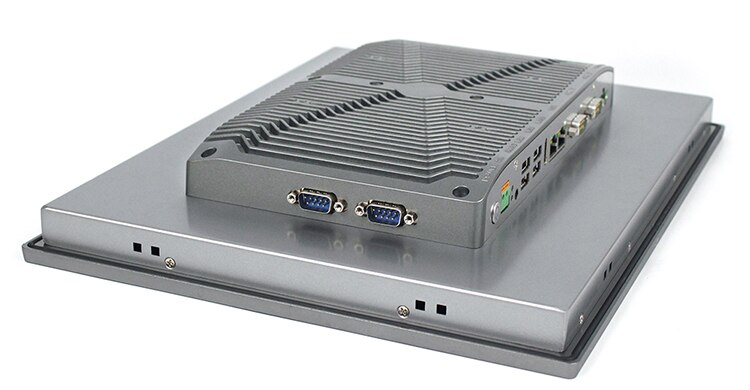

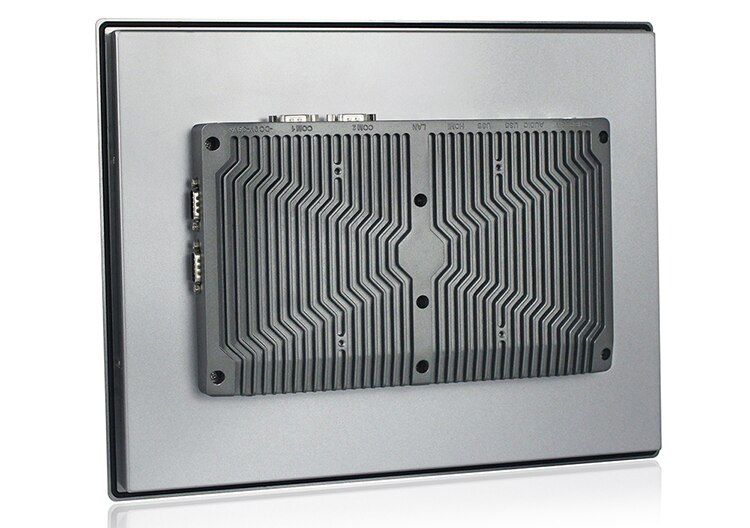

Material:High-strength Al-alloy

Mounting:

VESA: 100 x 100 mm(wall/desktop mounting);

Embedded installation:include 8pcs buckl, Cut-out Size:347 x271mm

Waterproof Rate:IP65

Product Dimension:361 x 285 x 60 mm

Packing Size:460x180x400 mm

Power and Environment

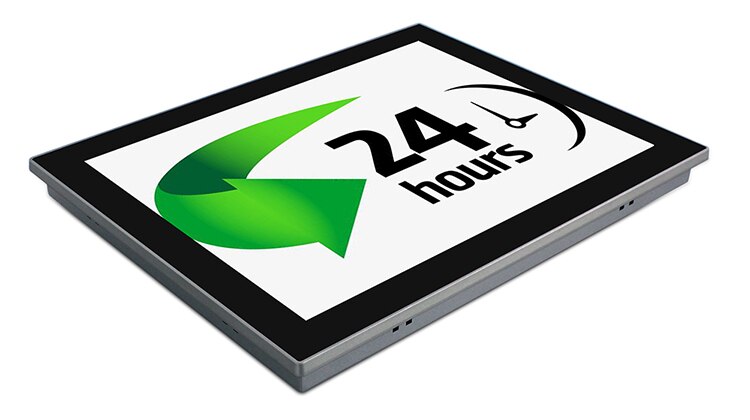

-20~70°C wide Operating Temperature,continued work in 7x24 hours.

Storage Temperature:-30~80°C(-22~176°F)

Relative Humidity:5%~95%@40°C, non-condensing

Motherboard set with Anti-static chip, which with 6KV(touch), 8kv(non touch) , 600W Surge.

Vibration Range:5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

External Power Supply:AC 100 - 240V~50/60Hz,1.5A

DC9~36V Working Voltage,over voltage,over current,reverse protect.

Power Consumption:≦30W

Application

The industrial touch panel PC is a slim design made for
standard industrial applications with thin client terminal.Multi-Touch
PCAP Touch Screen Type, for easy control and manage production
processes.industrial PC is the most robust available designed for heavy
industry application such as dairy farms and automotive plants.food and
beverage,pharmaceutical,cleanrooms,kiosk and retail,factory
automation,intelligent transportation.


Package list

1x PPC-J015SAC Series Industrial Panel PC
1x Utility DVD Driver
8x Embedded Buckles
1x Power Adaptor



Packaging Details

  • Unit Type: piece
  • Package Weight: 7.0kg (15.43lb.)
  • Package Size: 46cm x 35cm x 33cm (18.11in x 13.78in x 12.99in)

  • Brand Name: QI YU TAI
  • Origin: CN(Origin)
  • Type: Embedded Computer
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Model Number: PPC-J015SAC-6COM
  • Package: Yes
  • Plug Type: EU plug
  • Color: gray
  • CPU: Intel Celeron Quad Core J1900 2.0GHz
  • Memory: DDR3L 1333MHz 4GB
  • Harddisk: 1 x mSATA 64G SSD
  • TPM: TPM 2.0
  • Operation System: Windows7/8/10,Linux,Ubuntu,Debian
  • I / O: HD-MI/LAN/USB/COM/
  • Panel Size: 15" LED
  • Resolution: 1024 x 768
  • Touch Screen Type: Multi-Touch PCAP
  • Mounting: VESA,embedded
  • Waterproof Rate: IP65
  • Operating Temperature: -20~70°C
  • Working Voltage: DC IN 9V~36V
