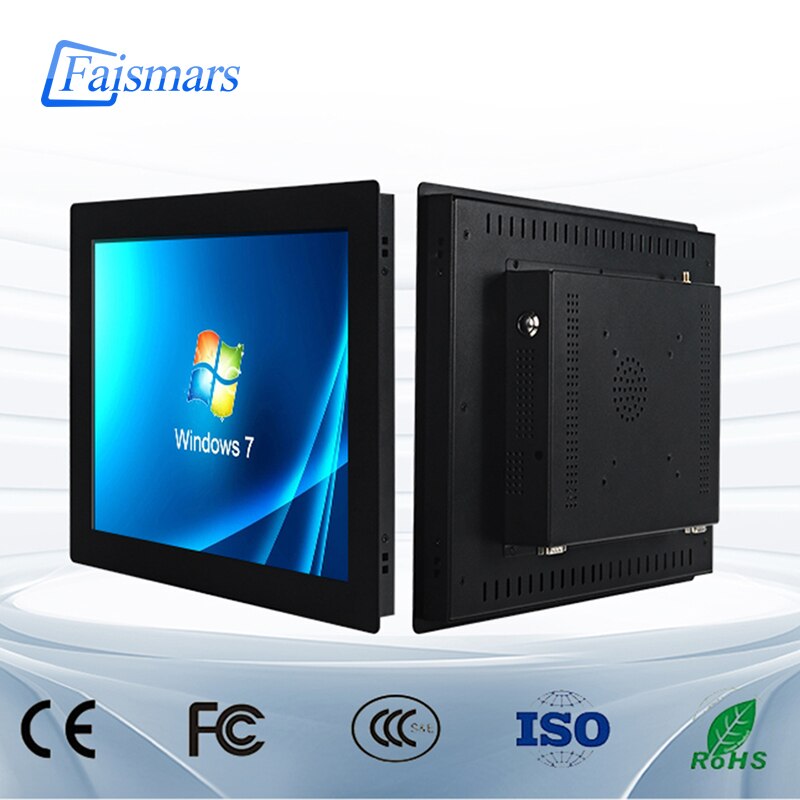

10.4 Inch Industrial Computer All in One PC With i3 4120U 4G 64G Resistance Touch Embedded Installation
870.00 $
SALE
ID: 73030
Quantity
15.6" 17“19 inch industries Computer Tablet PC Core i3 i5 i7 with Resistive Touch Screen Windows 10 Pro WiFi All In One PC
0.0 (1 votes) | 1 orders
Price:
US $716.70 - 2087.16
/ piece
Discount Price:
US $
531.08 -
1586.24
/ piece
-26%
More details:
System Data
CIf you choose " Only LCD Monitor", it means that it's just industrial/LCD Monitor with VGA+USB, Resistive touch.
CPU:Intel Celeron Processor J1900(Quad cores, 2M Cache, up to 2.41 GHz,10w)
CPU:Intel Celeron Processor J4125(Quad cores, 4M Cache, 2.00GHZ-2.70 GHz,10w)
CPU:Intel Core Processor i3-3217U(Dual cores, 3M Cache, 1.80GHZ,17w)
CPU:Intel Core Processor i5-3210M(Dual cores, 3M Cache,18w)
CPU:Intel Core Processor i3-4120U(Dual cores, 3M Cache,2.0GHZ,15w)
CPU:Intel Core Processor i5-4300U(Dual cores, 3M Cache,1.90GHZ,15w)
CPU:Intel Core Processor i7-4600U(Dual cores, 4M Cache,2.0GHZ-3.3GHZ,15w)
CPU:Intel Core Processor i5-6360U(Dual cores, 4M Cache, up to 3.1GHz,15w)
CPU:Intel Core Processor i7-6660U(Dual cores, 4M Cache, up to 3.6GHz,15w)
CPU:Intel Core Processor i5-8265U(Quad cores, 6M Cache, up to 3.9GHz,15w)
CPU:Intel Core Processor i7-8565U(Quad cores, 8M Cache, up to 4.6GHz,15w)
CPU:Intel Core Processor i5-10210U(Quad cores, 8M Cache, 1.6GHZ- 4.2GHz,15w)
CPU:Intel Core Processor i5-1135G7U(Quad cores, 8M 8Cache, 2.4GHZ- 4.2GHz,28w)
More details:
Products number | Industrial Computer-AIO156/170/190R |
Display | |
Panel Type | Industrial TFT LCD panel A grade |
Max. Resolution | 17/19 inch(1280 x 024), 15.6 inch(1920*1080) |
Max. Colors | 16.7M(8-bit) |
Contrast | 800:1 |
Luminance(cd/m2) | 300nits, custom up to 1000nits |
Backlight lifetime | 50,000 hrs |
Touch Screen | Resistive touch(Single point touch) |
PC Configuration | |
CPU | Onboard Intel celeron J1900/J4125 processor, Intel Core i3/i5/i7 |
Graphic Card | Integrated Intel HD Graphics |
Memory(RAM) | 2GB/4GB/8GB/16GB DDR3L SODIMM(Socketed) |
Storage | 64GB SSD (32GB/128gb/256gb SSD, 500gb HDD customized) |
Expansion Slot | 2 x Mini-PCIE slot, support SSD, WIFI, 3G module |
Internet | 1 x RTL811E Gigabit network card |
Operating System | Windows 7/8/10 pro, Linux, Windows 10 IoT ENT LTSB |

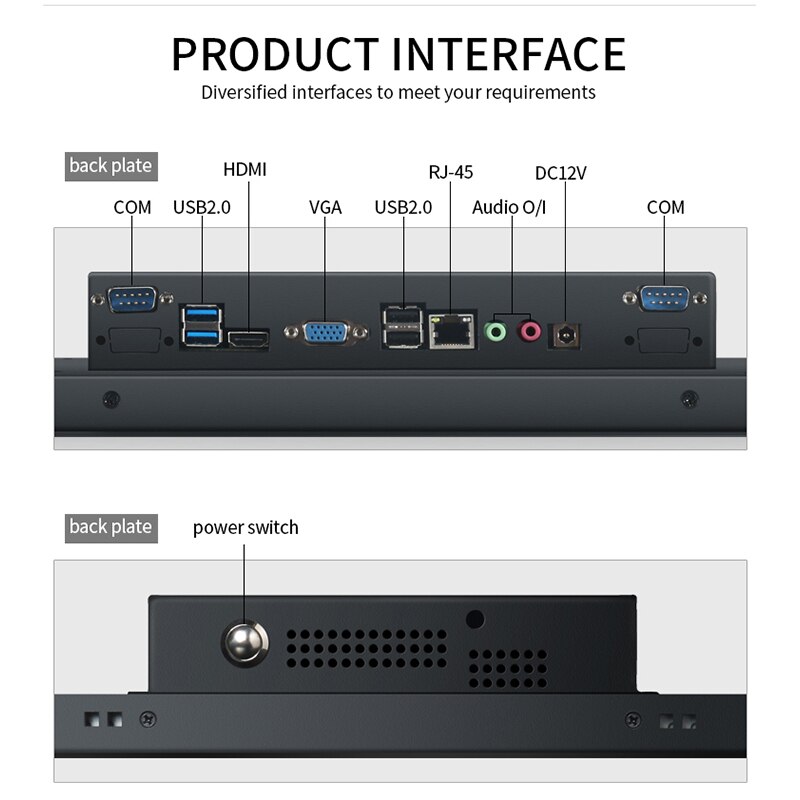

l/O Ports | |
USB | 2 x USB 2.0 Type A |
Serial/ Parallel | 1 x RS-232/422/485 DB-9, default RS-232(COM1) |
1 x RS-232 DB-9(COM2) | |
LAN | 1 x GbE LAN RJ-45 (2*LAN optional) |
Audio | 1 x Realtek HD Line Ͳ Out |
Power | 1 x 3-pin DC Power input terminal |
1 x 2-pin connector for power on/off button | |
Power Input | 12V DC-IN (24V optional) |
Mechanical | |
Construction | Metal Iron frame |
Mounting | Panel Mount, VESA mount 75 x 75 |
Net Weight | 5 kg |
Operating/StorageTemperature | -10°C-60°C / -30°C-60°C |
Operating/Storage Humidity | 10%-80%/ 10%-90% |

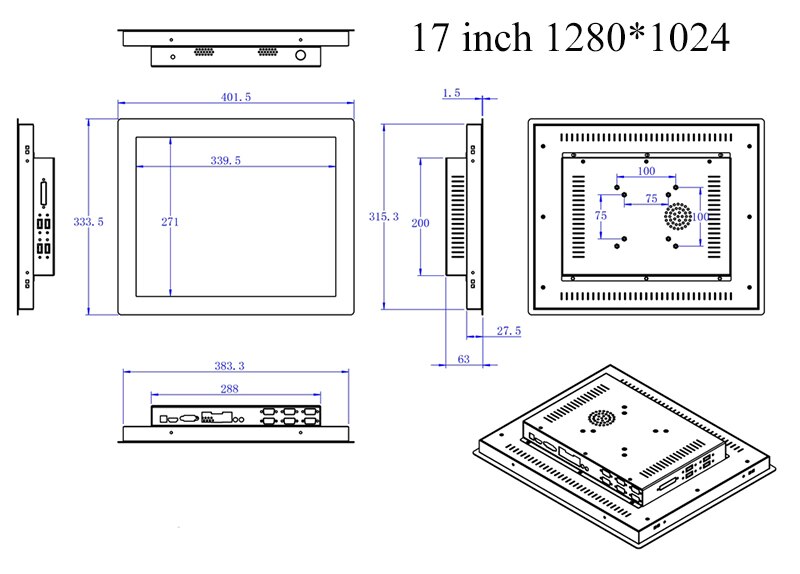

Dimensions of Rack Panel Mount Industrial/LCD Monitor With Resistive Touch Screen

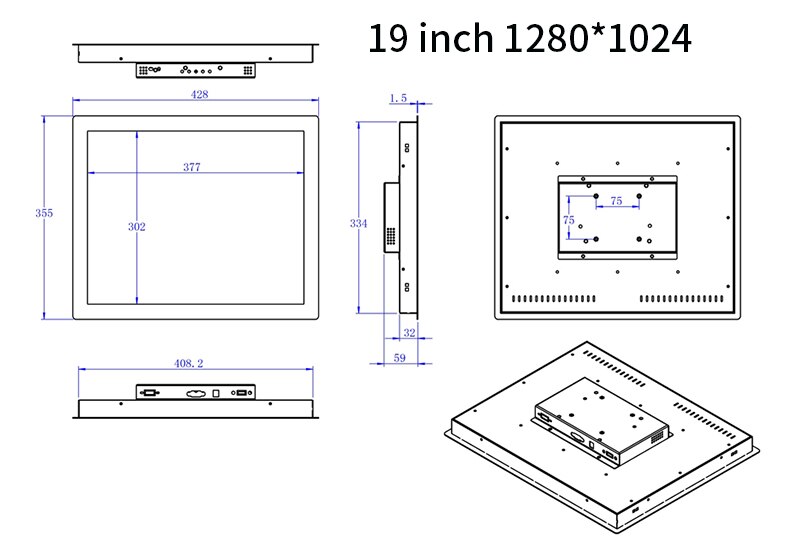

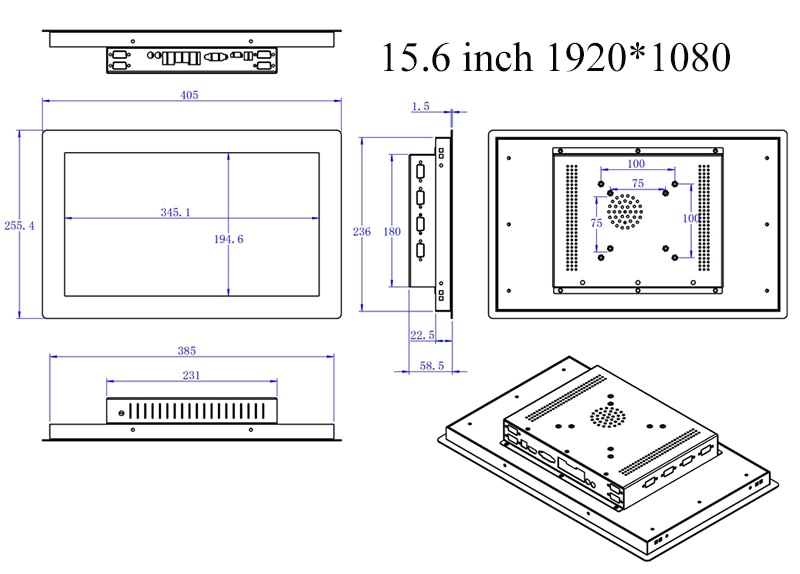

Dimensions of Rack Panel Mount Industrial Resistive Touch Screen All In One PC

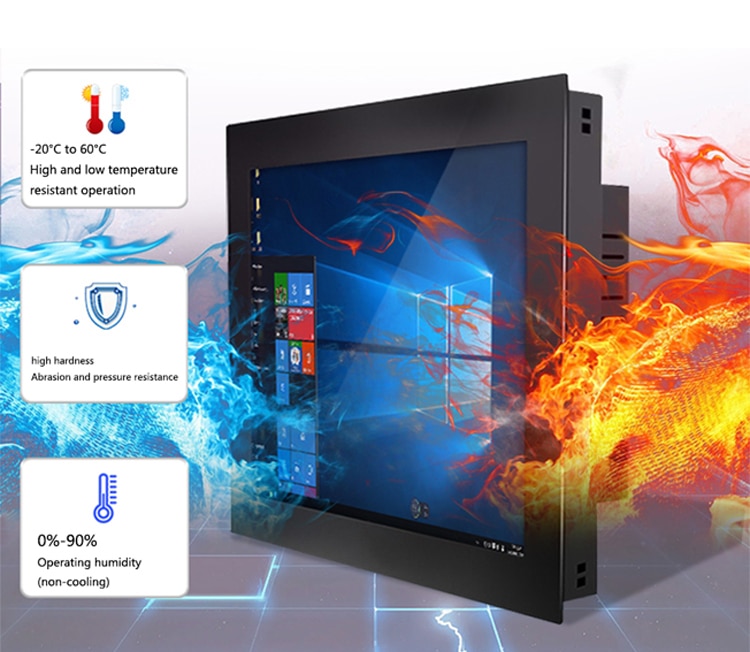

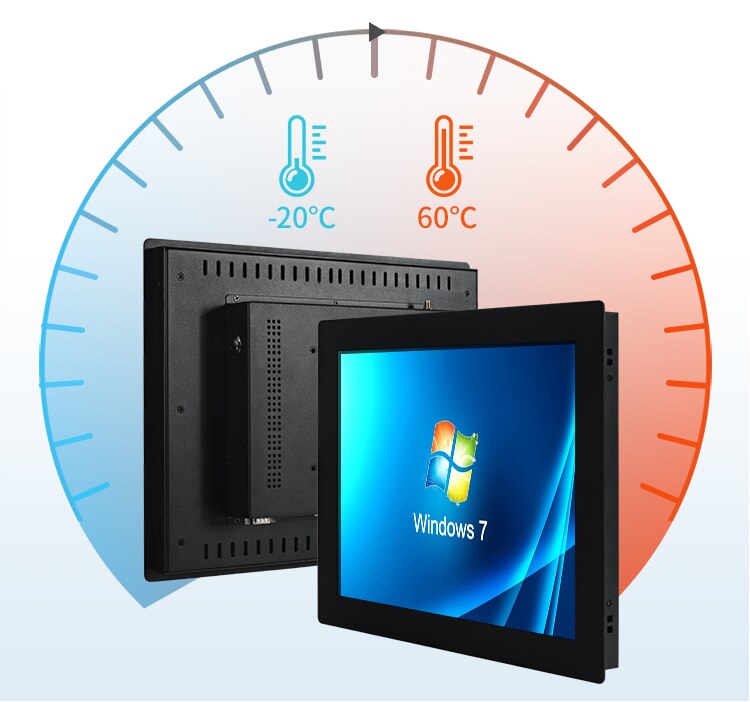

High and low temperature resistant design
The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences.
Our installation method is default Embedded, if you prefer other method, please contact our customer service. Thanks.

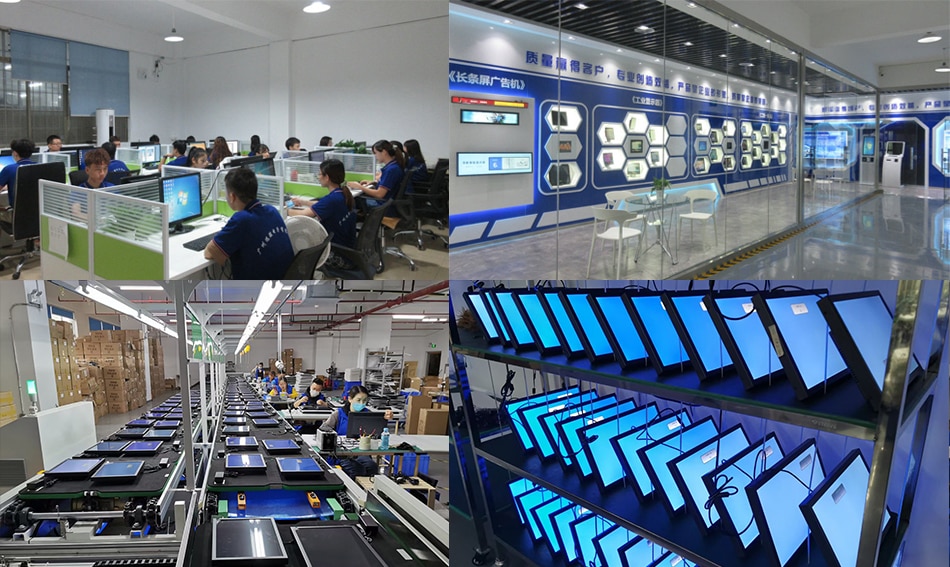

Faismars is professional manufacturer in Touch All in one PC, Industrial Computer, LCD display, MINI PC and so on. We have many years industry experience and own professional R&D, experienced sales team, with well-equipped testing facilities and strong technical force. It has won the praise and support of many customers with excellent quality and perfect after-sales service. Providing high quality,produscts, reasonable price and best service to all partners is our promise. Faismars is committed to building the world's leading industrial intelligent touch control equipment brand.
Visiting our factory is warmly welcomed at any time. We look forward to cooperating with you and supporting your growth in your market.
Free Operating System: Default installed our trial OEM windows 10/8/7 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux Ubuntu etc if you need. Seller is not responsible for trial OEM system.
Accessories as RAM, SSD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison, Longsys etc, What brand we use depends on our test and our stock.
1. We send to the Buyer's address specified on Cntronic. Please check your address/city/ post code, making sure it's matched with your shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If the parcel has not arrived within expected time, please contact us, we will extend the delivery date before opening dispute.

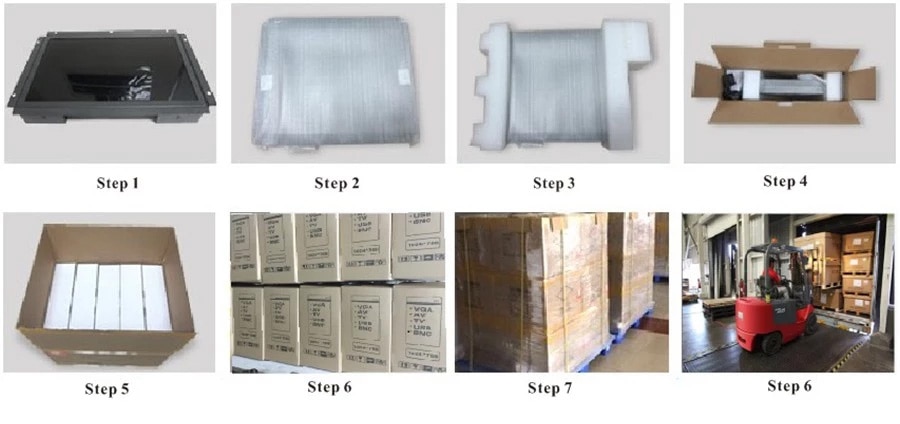

3. Normally we ship for free by faster delivery mode such as DHL, EMS, Fedex, our express agent special line, etc. It depends on different countries and different cases. But for those remote areas, we have to ship for free by registered postal mail, it will be slower than EMS, DHL, Fedex, etc. You can also add extra fees for DHL, EMS, Fedex, etc. faster shipment ways, thanks for understanding. All goods will be packed well to make sure they arrive in high condition.
1. Normally we declare item as "ALL IN ONE PC" or "PANEL PC" with real value, the Buyers are fully responsible for paying fees involving such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value, please leave a message to us after you make order.
3. Due to the tax problem, the Buyer refuse to receive the goods, the Buyer need to be fully responsible for the freight back and forth.Thank you for your cooperation.
- Weight: 6KG
- Bundle: Bundle 1
- Mouse & Keyboard: No
- Video Memory Type: GDDR3
- Display resolution: 1280*1024
- Processor Core: Quad Core
- RAM Type: DDR3
- Power: 15w
- Operating System: Windows7/8/10
- Memory Capacity: 4GB
- HDD Rotation Speed: SSD
- Graphics Card Chipset: HD Graphics
- Drive Type: No CD ROM
- Dispaly Ratio: 5:4
- Processor Main Frequency: 2.00 GHz
- Display Size: 19"
- Graphics Card Type: Integrated Card
- Display Type: Touch Screen
- Model Number: Industrial Computer AIO190R
- Port: VGA RJ-45 COM USB HDMI
- Processor Model Number: Intel Core i3-4120U
- Type: All-In-One
- Memory Capacity: 4GB
- Hard Drive Capacity: 120GB
- Brand Name: Faismars
- Origin: Mainland China
- Certification: CE
- Name: 19 inch All in one Touch screen PC
- Working temperature: -10~70 ℃
- Advantage: Cheap price/new parts/OEM
- Installation: desktop/wall hanging/embedded/ Rack Mount
- Availability of product: Stocked
- Packing: individual package
- Feature: dustproof,, single point touch screen, wifi
- Material: Metal Frame
- Touch type: Resistive Touch
- Warranty: 1 year
