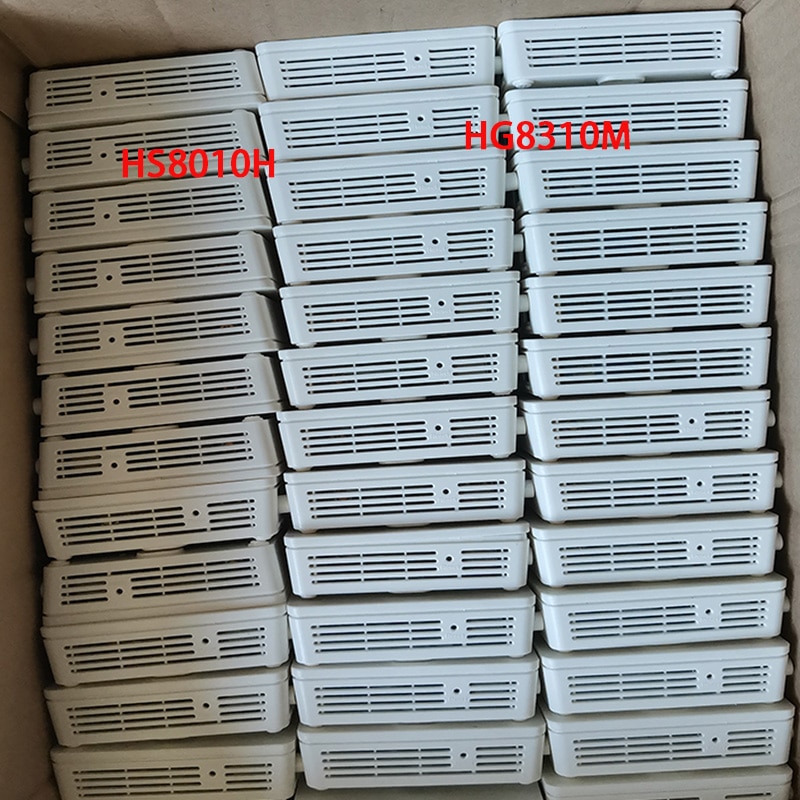

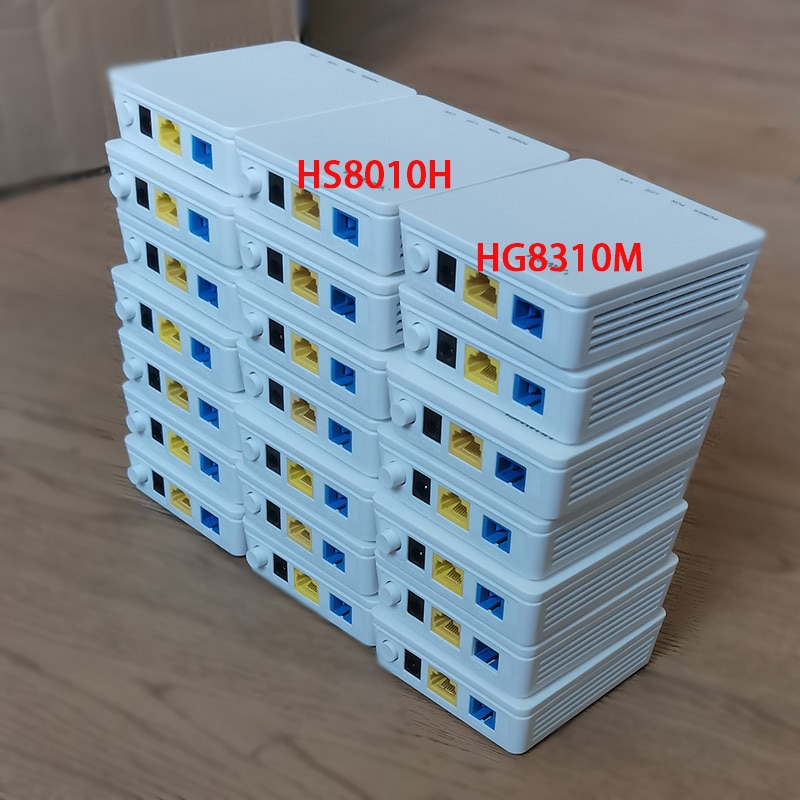

10pcs Onu Epon Gpon Ont FTTH Fiberhome Modem Second Hand Hg8310m Hg8010H HG8010C XPON Hybrid Free Shipping

4.6 (21 votes) | 43 orders
Price: US $167.07 - 215.04 / 10 Pieces
Discount Price:
US $ 133.66 - 167.50 / 10 Pieces
-20%
Color
Quantity

10pcs Onu Epon Epon Ont FTTH Fiberhome Modem Second Hand Hg8310m Hg8010H HG8010C XPON Hybrid Free Shipping

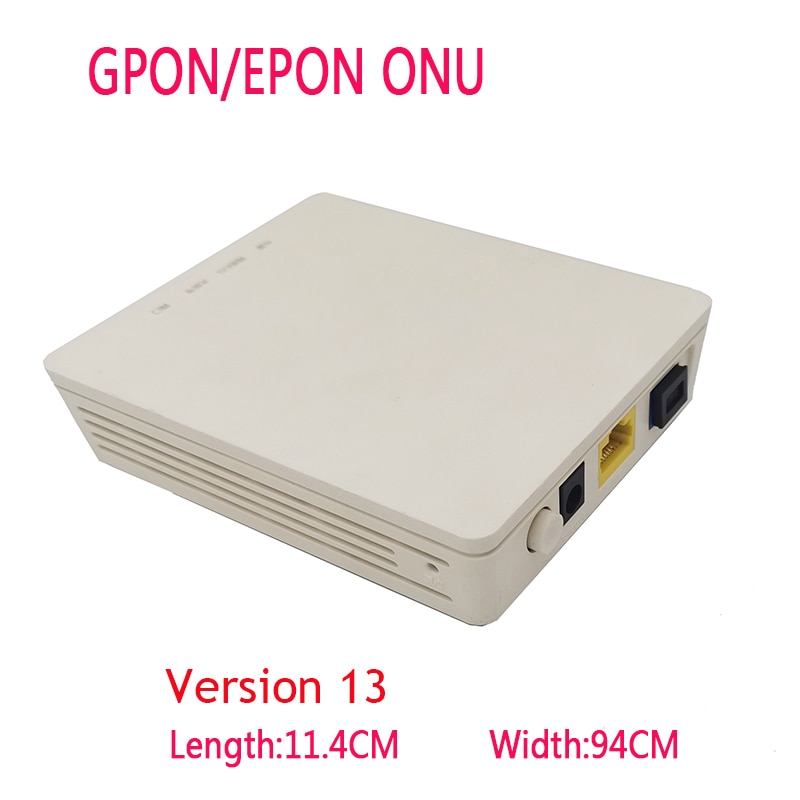

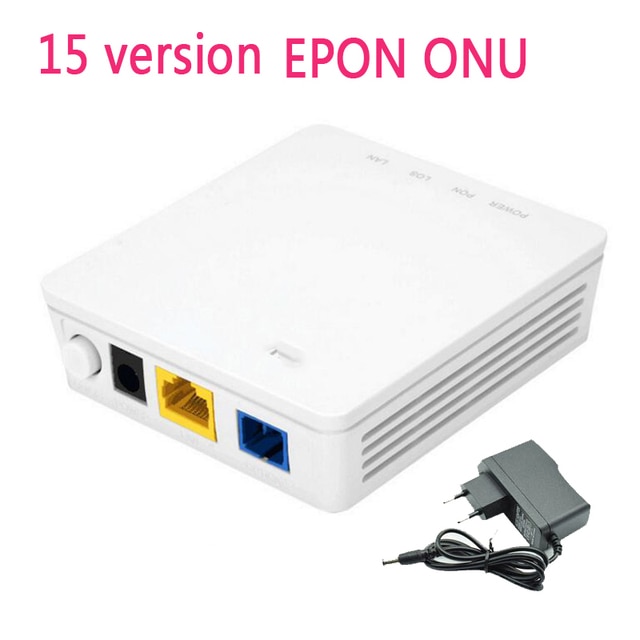

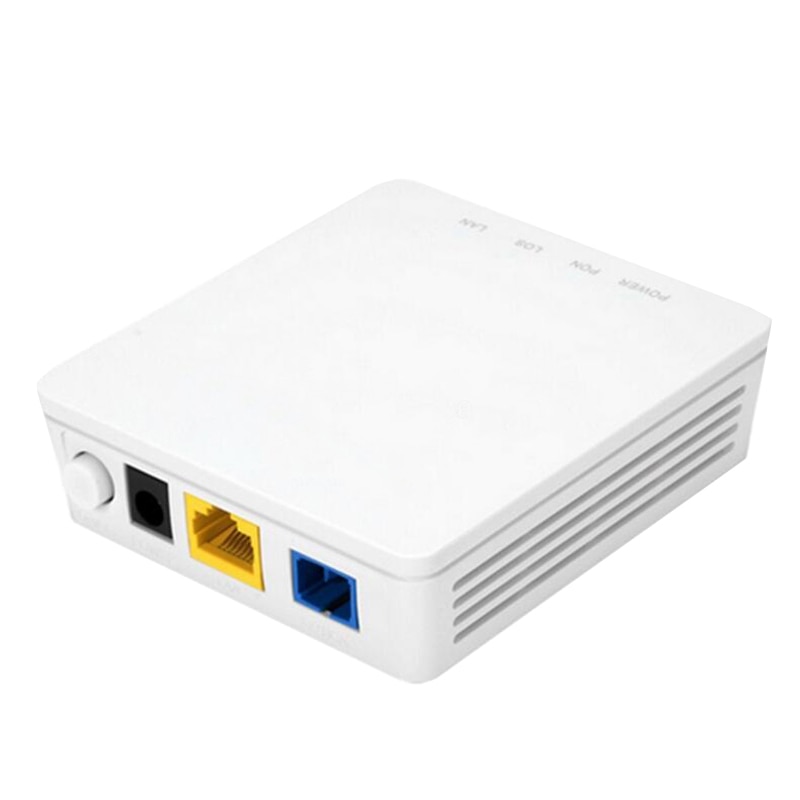

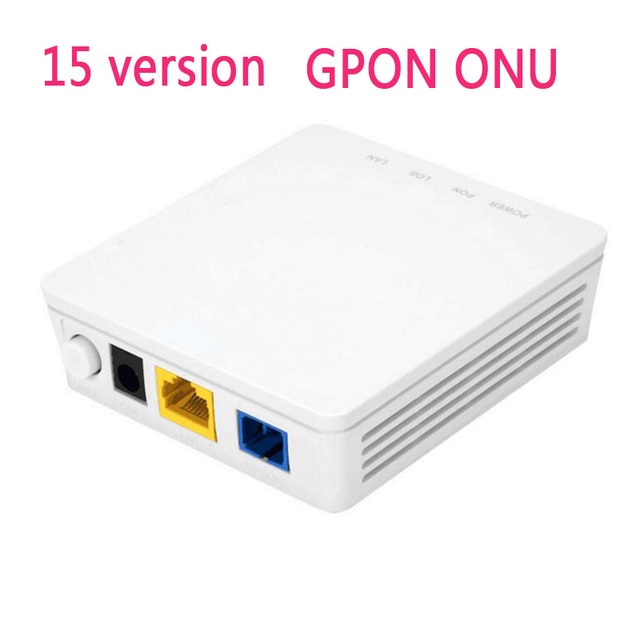

Overview

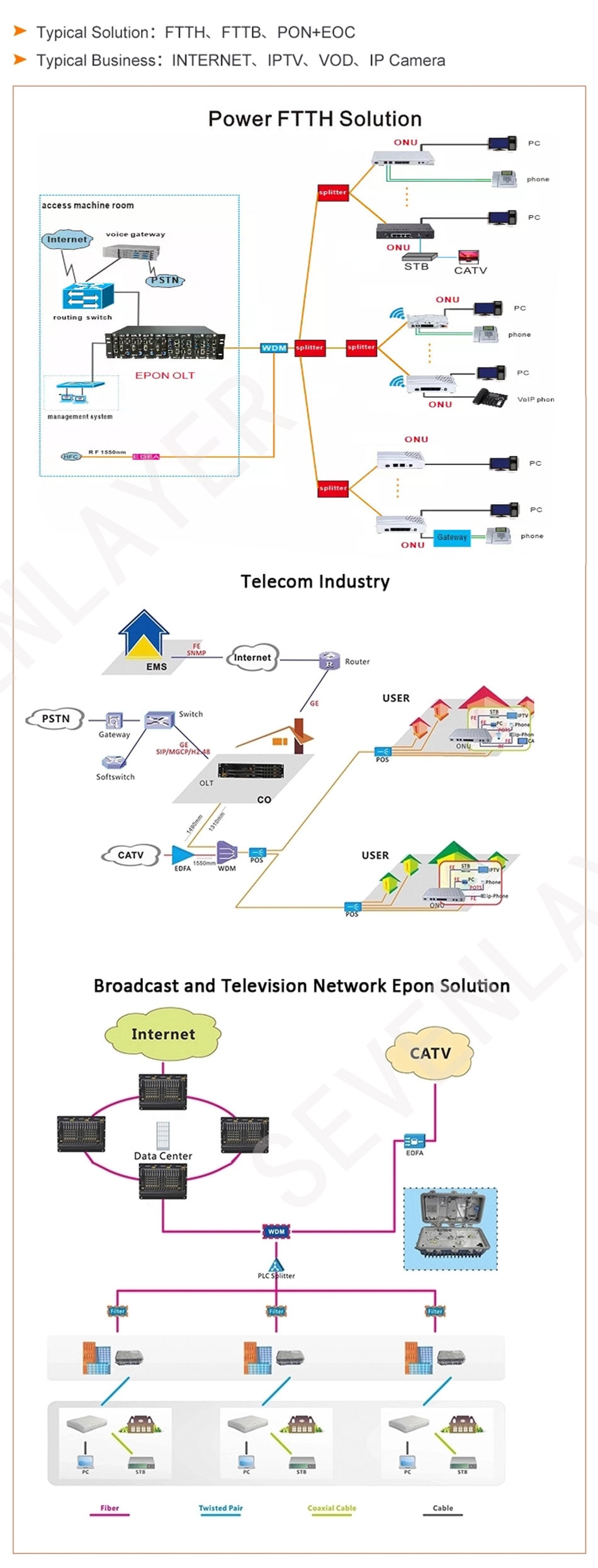

GPON-ONU single-user ONU is designed for ONU in deferent FTTH solutions by sevenlayer.The carrier-class FTTH application provides date service access.GPON-ONU adopts high-performance and low-consumption chips, and supports CTC 3.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.



Functional Feature



1. Bandwidth control;


2.In compliant with ITU-T G.984 Standard,Up to 20KM transmission Distance


3.Support data encryption, group broadcasting, port Vlan separation,etc.


4.Support Dynamic Bandwidth Allocation (DBA),Support broadcasting storm resistance function


5.Support ONU auto-discovery/Link detection/remote upgrade of software;


6.Support division and user separation to avoid broadcast storm;Support power-off alarm function ,easy for link problem detection


7.Support ACL and SNMP to configure data packet filter flexibly





Item





Parameter





Interface





PON Interface





1 GPON optical interface




Meet Class B+ standard




Upstream 1.244Gbps;




downstream its 2.488Gbps

SC single-mode fiber




split ratio:1:64




Transmission distance 20KM









User Ethernet

Interface





1*10/100/1000Mauto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X

100m distance









Power Interface





12V DC Power supply





Performance Parameters





PON




Optical




Parameter





Wavelength: Tx 1310nm, Rx1490nm




Tx Optical Power:0.5~+5dBm




Rx Sensitivity: -27dBm




Saturation Optical Power: -8dBm




Connector Type: SC




Optical Fiber: 9/125ɥm single-mode fiber









Data Transmission

Parameter





PON Throughput: Downstream 2300Mbps; Upstream 1110Mbps,




Packet Loss Ratio:<1*10E-12

latency: <1.5ms









Business

Capability





Layer 2 wire speed switching




Support VLAN TAG/UNTAG,VLAN conversion




Support Port-based speed limitation




Support Priority classification




Support storm control of broadcast





Network Management





Management




Mode





Support ITU-T G.984 QAM, ONU can be remotely managed by OLT




Support Remote management through SNMP and Telnet




Local management









Management

Function





Status monitor, Configuration management, Alarm management,

Log management





Indicator





LED Indicator





PWR: Power up or down




SYS: System instructions




LOS: Optical Link Status




PON:ONU Registered




LINK/ACT: Link Status of Ethernet Interface





Physical Features





Shell





Plastic casing









Power





External 12V 0.5A AC/DC power supply adapter




Power consumption: <2W(FD101HC),<2.3W(FD111HC)









Physical

Specifications





Item Dimension:120mm(L) x 80mm(W) x 26mm (H)




Item weight:0.1kg









Environmental

Specifications





Operating temperature:  0 to 50 ºC




Storage temperature: -40 to 85 ºC




Operating humidity: 10% to 90% (Non-condensing)




Storage humidity: 10% to 90% (Non-condensing)






  • Fiber Type: Single Mode

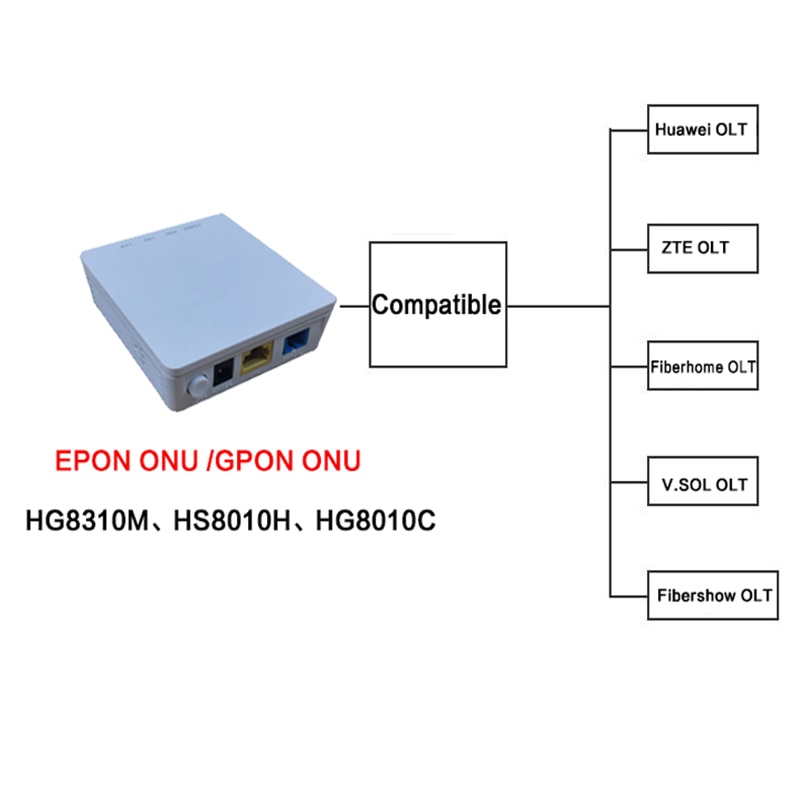

  • Compatible: Huawei
  • Connector Type: SC/UPC
  • Model Number: HG8310M
  • Brand Name: tapirapeco
  • Origin: Mainland China
  • Certification: CE
  • Firmware: English version
  • module: HG8010M\HG8010H
  • condition: second hand
