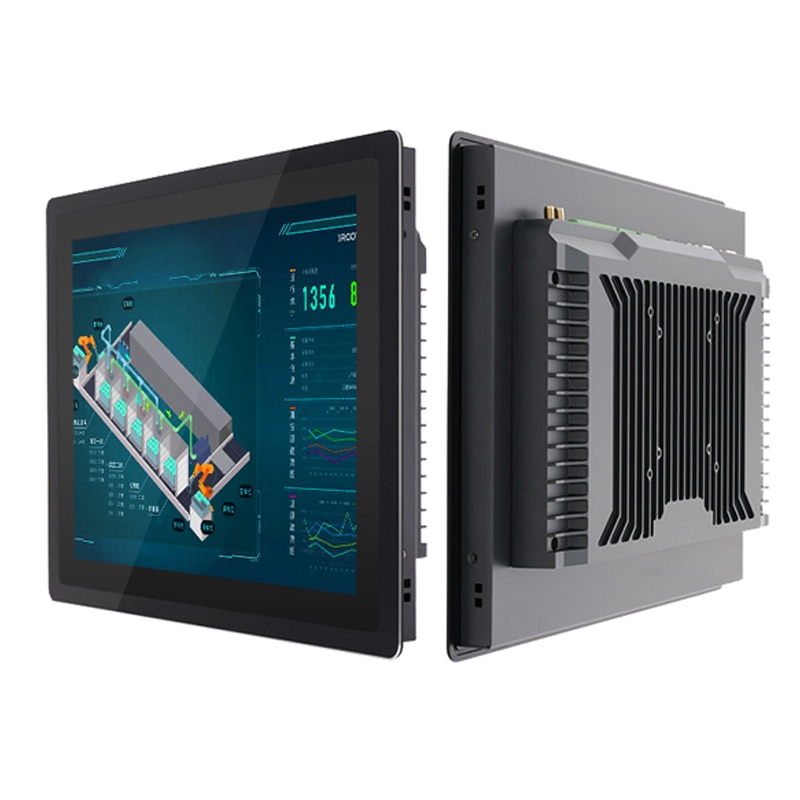

10" 15 inch industrial computer 12" Tablet pc all in one pc With Capacitive Touch Screen Embedded Fully enclosed fanless cooling

5.0 (1 votes) | 6 orders
Price: US $1083.22 / piece
Discount Price:
US $ 812.42 / piece
-25%
Color
Size
Quantity

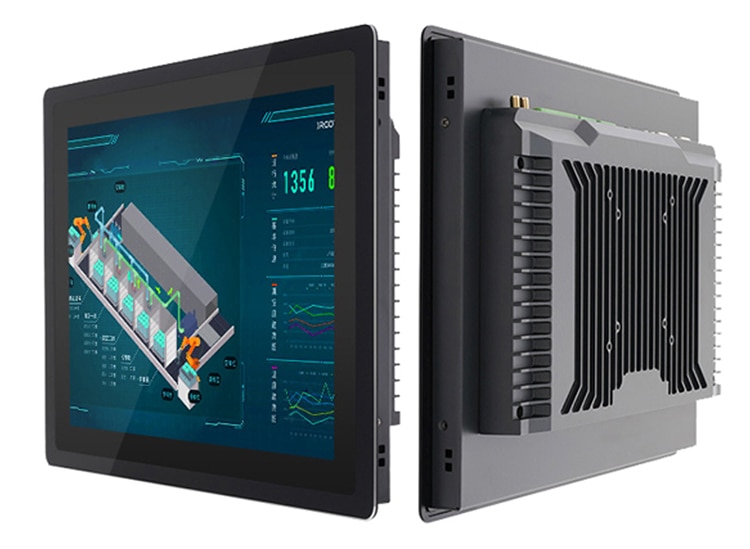

Industrial Fully enclosed fanless cooling touch all-in-one PC

industrial computer parameters

Brand:Balahome
Memory: optional 2Gb/4Gb/8Gb DDR3 System Memory
Storage : optional 32Gb/64Gb/128Gb /256Gb /512GbSDD
System: WIN10 pro
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 4-7Kgs

System Parameter:

Please contact us if you need the following or other CPUs, thank you.

1.Celeron Processor J1900(4 cores, 2m cache, up to 2.00 ≤ 2.41 GHz,TDP power consumption:10w)

2.Intel Core i3-3217U(Dual core, 3MB cache, 1.80 GHz,TDP power consumption:17w)

3.Intel Core i5-3337U(Dual core, 3MB cache, 1.80 GHz,TDP power consumption:17w)

4.Core i7-3537U(Dual core, 4MB cache, 2.00 GHz,TDP power consumption:17w)

5.Intel Core i3-4120U(Dual-core, 3MB cache, 2.0 GHz,TDP power consumption:15w)

6.Intel Core i3-5010U(Dual-core, 3MB cache, 2.1 GHz,TDP power consumption:15w)

7.Intel Core i5-5200U(Dual-core, 3MB cache, 2.2-2.7 GHz,TDP power consumption:15w)

8.Intel Core i7-5500U(Dual-core, 4MB cache, 2.4-3.0 GHz,TDP power consumption:15w)

9.Intel Core i3-6100U(Dual-core, 3MB cache, 2.3 GHz,TDP power consumption:15w)

10.Intel Core i5-6200U(Dual-core, 3MB cache, 2.3-2.8 GHz,TDP power consumption:15w)

11.Intel Core i7-6500U(Dual-core,4MB cache, 2.5-3.1 GHz,TDP power consumption:15w)

Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,
1*RJ-45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 12V power
interface
Operating system: Windows 7, Windows 10, Linux
Motherboard size: 170mm*170mm

Parameters of LCD Touch screen:

Touch screen parameters
Touch technology: capacitive technology (ten points)
Effective touch recognition: >1.5mm
Communication method: Full-speed USB 2.0, 3.0
Theoretical clicks: more than 50 million times
Touch principle: current sensing
Surface hardness: Physically toughened, Mohs grade 7 explosion-proof glass

Brightness:250-350cd/m2
Contrast Ratio:1000:1
Viewing Angle:Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time:30 (Typ.)(Tr+Td) (ms)
Frame Rate:60Hz
Color system:PAL/ NTSC
Interface:1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system:+ 12V DC power input
Power adapter:input:100〜250VAC,50 / 60Hz
output:60W Adapter(12V 5A)
Working temperature:-20°C〜60°C
Relative humidity:0%〜90%relative humidity, no condensatio
Plug:AU,EU,USA,UK plug available
Menu Languages:English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance:75*75mm

Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days

★★★ SPECIAL REMINDER ★★★

LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

Features

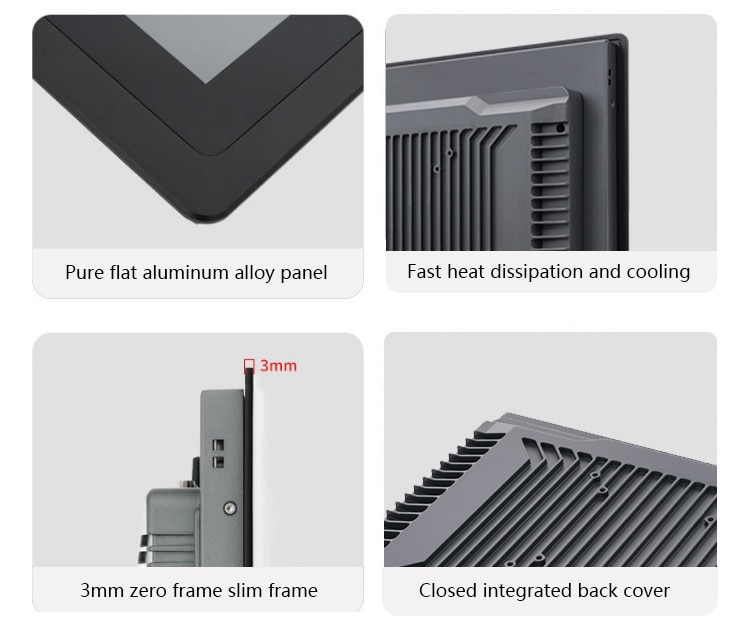

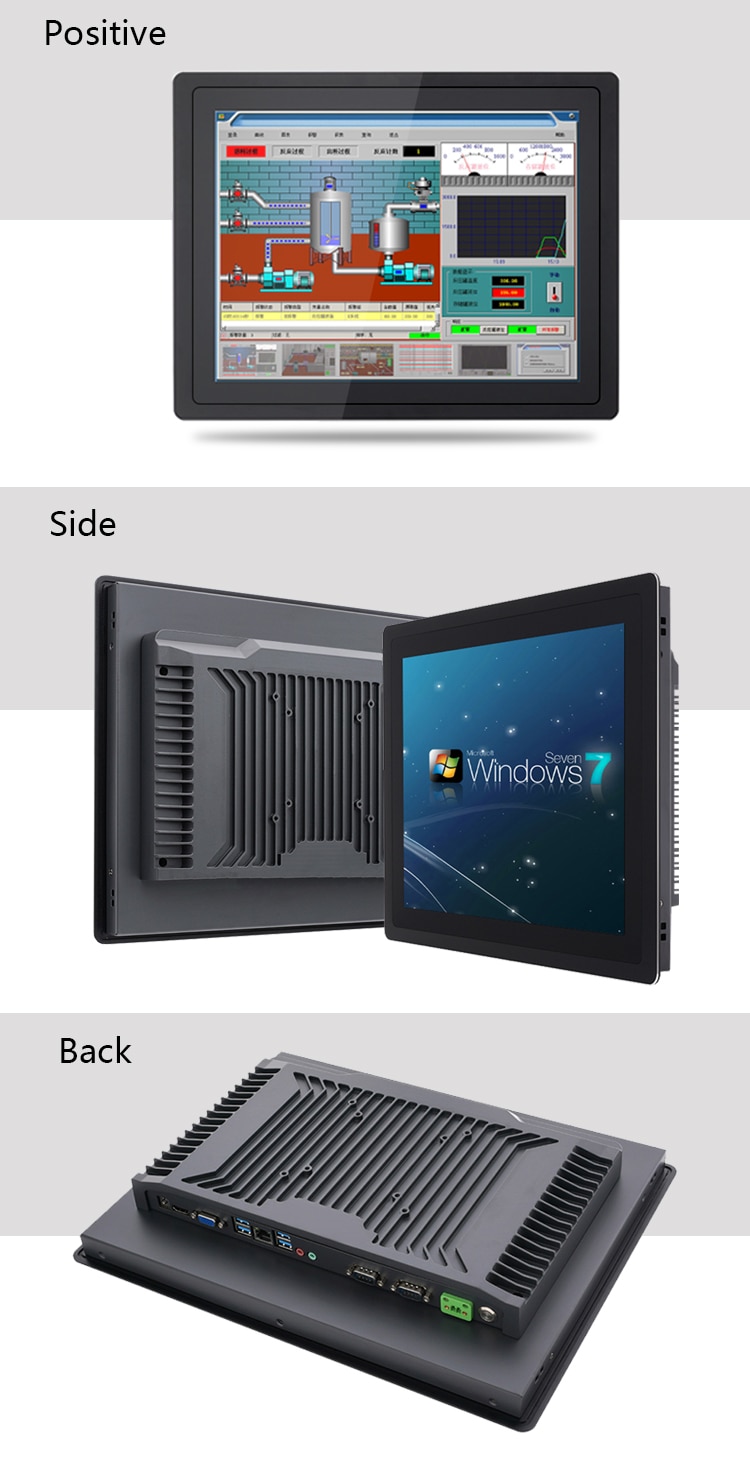

Aluminum alloy pure plane board, seamless design, the frame is made of high-quality aluminum alloy,
The back panel adopts the sheet metal baking varnish process, the whole machine looks suitable and elegant, and the quality is reliable, sturdy and durable

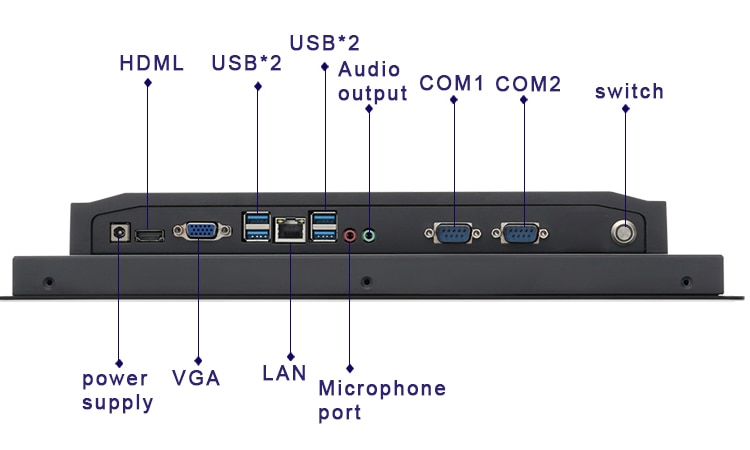

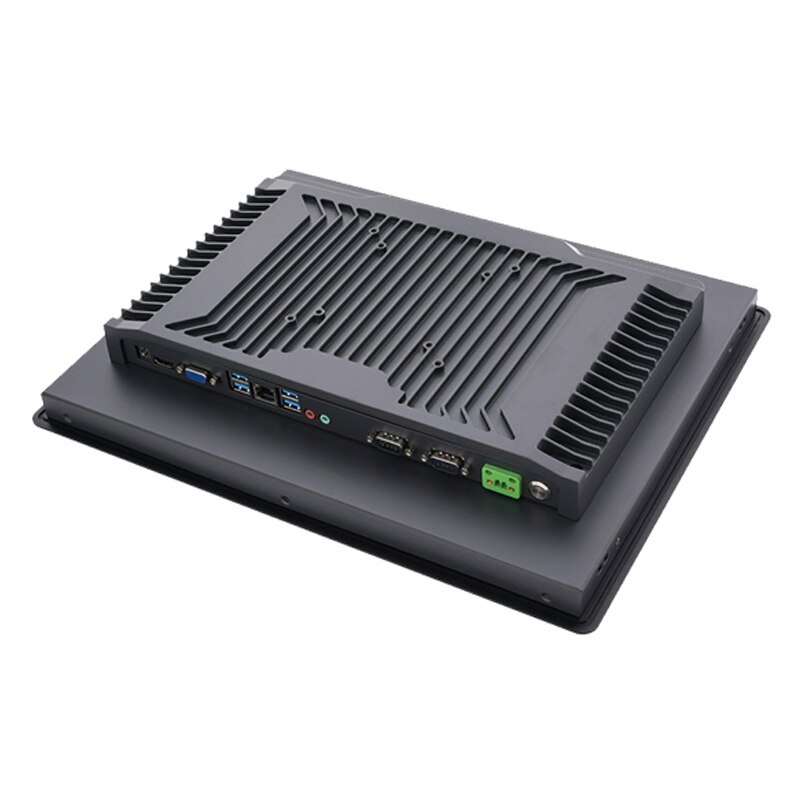

Product interface (support customization)

1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

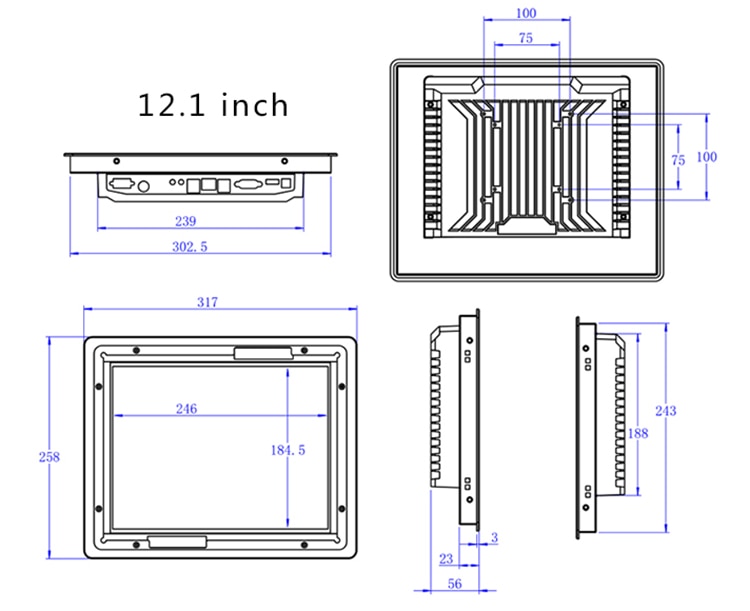

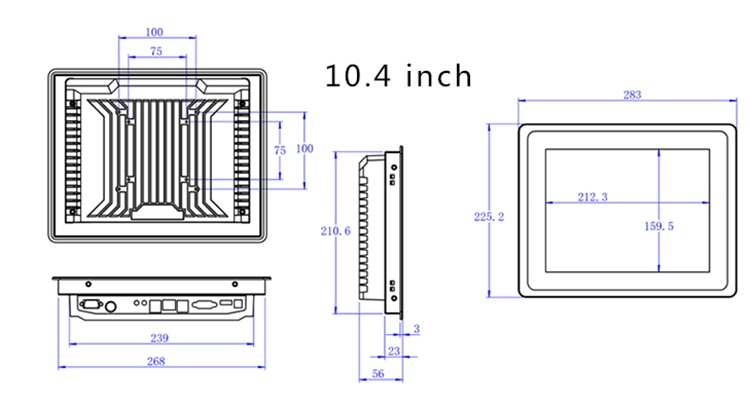

Monitor size

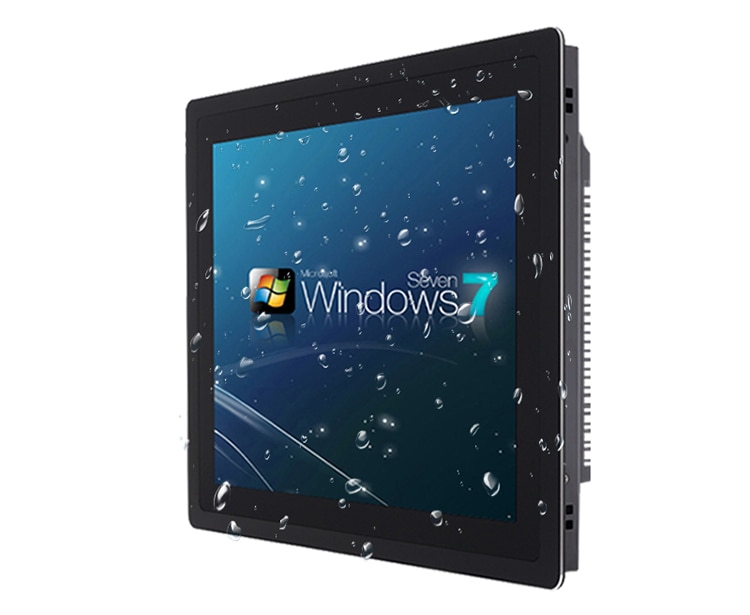

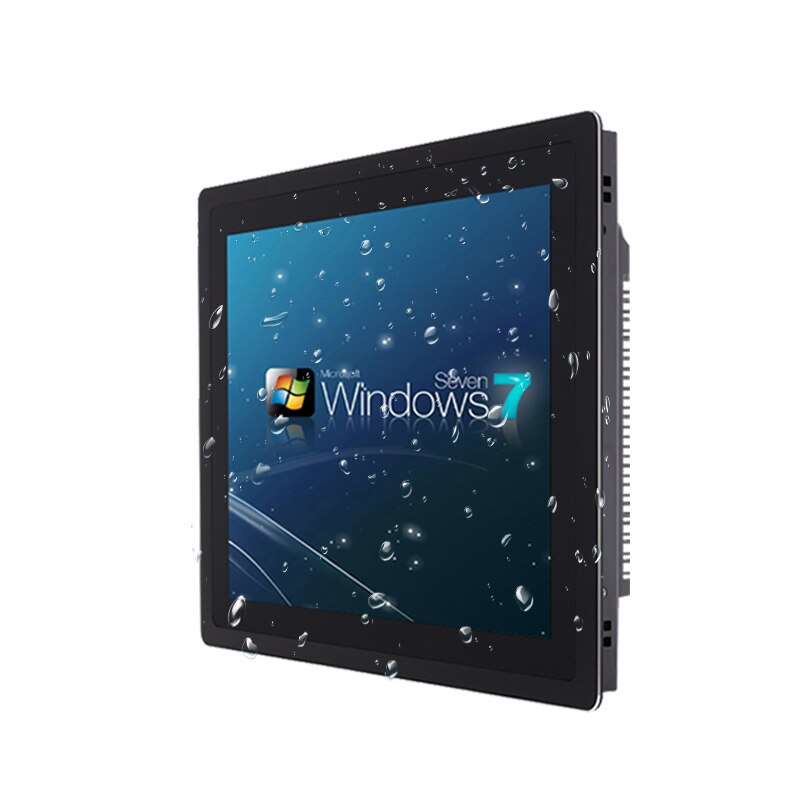

The flat front panel is dustproof and waterproof

Aluminum alloy front frame is durable, dustproof and waterproof

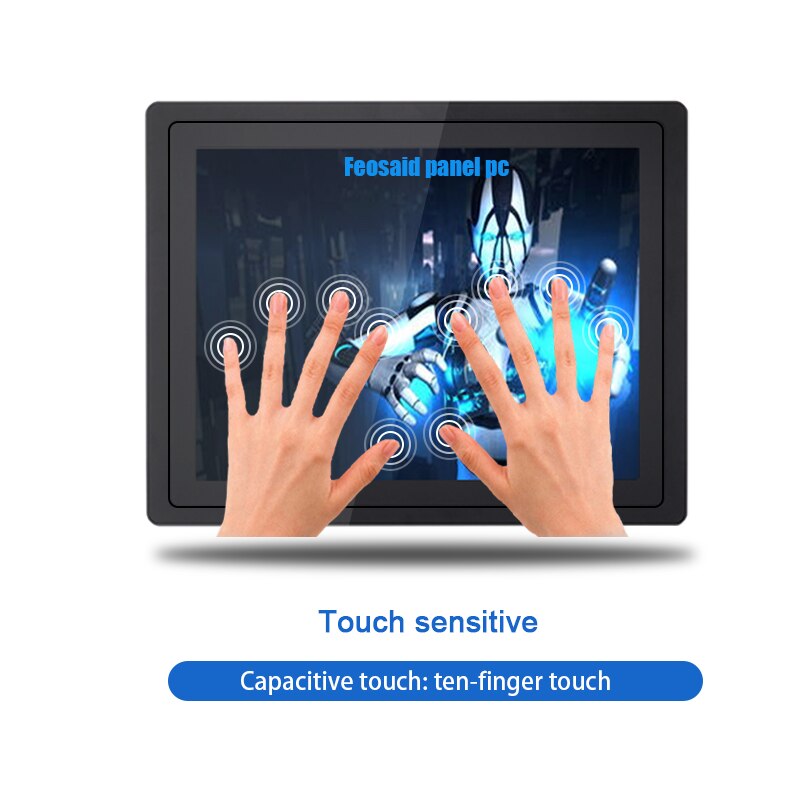

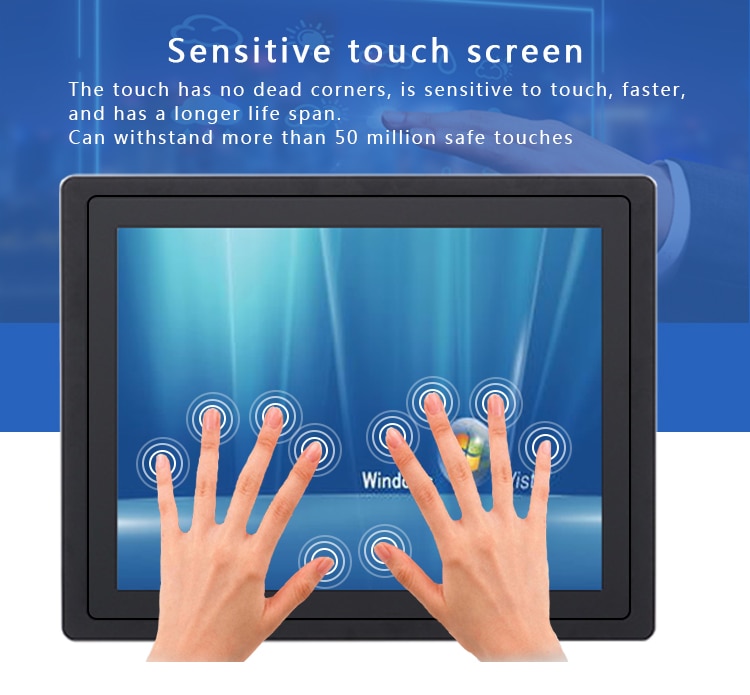

Capacitive touch (ten-point touch)

Support a variety of gesture touch, sensitive response, stable touch.
Sensitive touch makes it easier to use.
The sensing accuracy is higher, the response speed is faster, and the surface has a smooth or matte surface treatment.
Support more refined industrial operation touch, no blind spots.

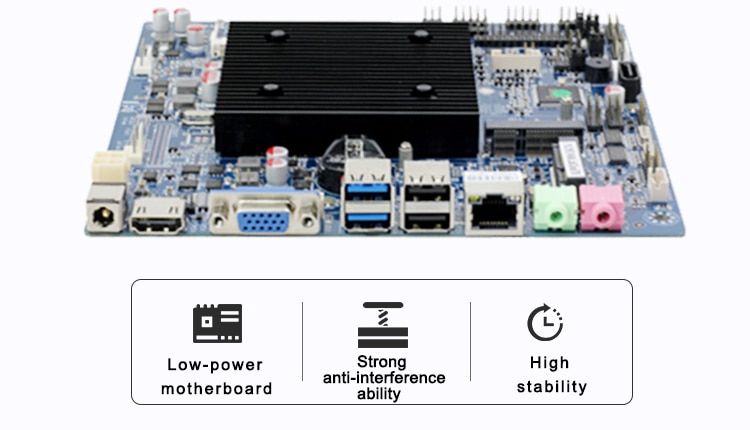

Industrial-grade custom motherboard

A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.

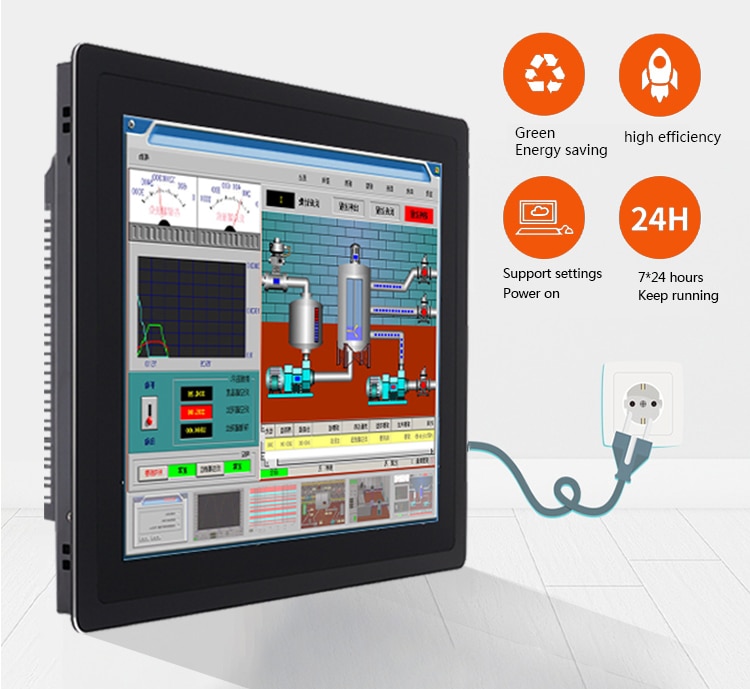

Capable of working 24 hours a day

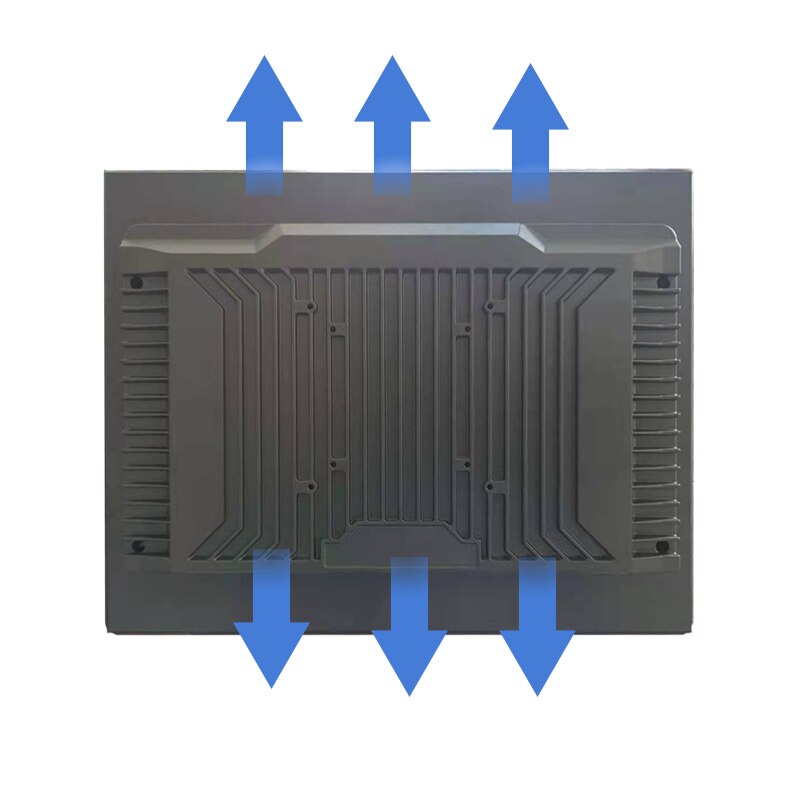

Industrial-grade heat dissipation design

Industrial-grade heat dissipation design with high standard technology, metal cold-rolled plate body design, multi-row heat dissipation hole design, bring better industrial use experience, fast heat dissipation, and quiet

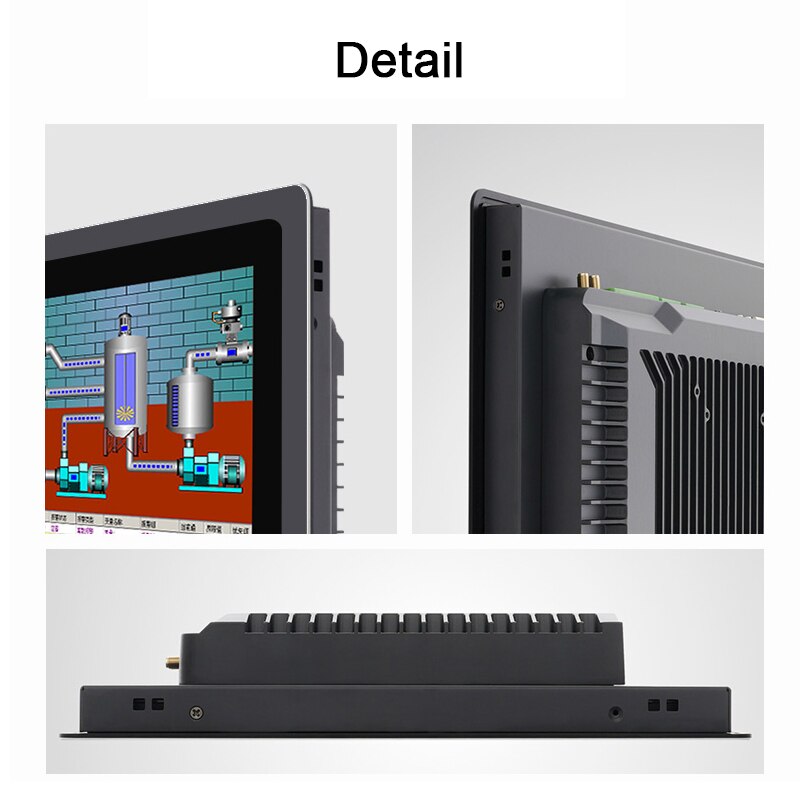

Aluminum body is more resistant to high and low temperatures

Oxidized brushed aluminum alloy front panel, steel body is forged by cold rolling process,
Greatly increase the rigidity and compression resistance of the fuselage. After strict temperature control box test, it runs stably in harsh environment with large temperature difference, standard industrial temperature difference is -20℃ to 60℃

Installation method

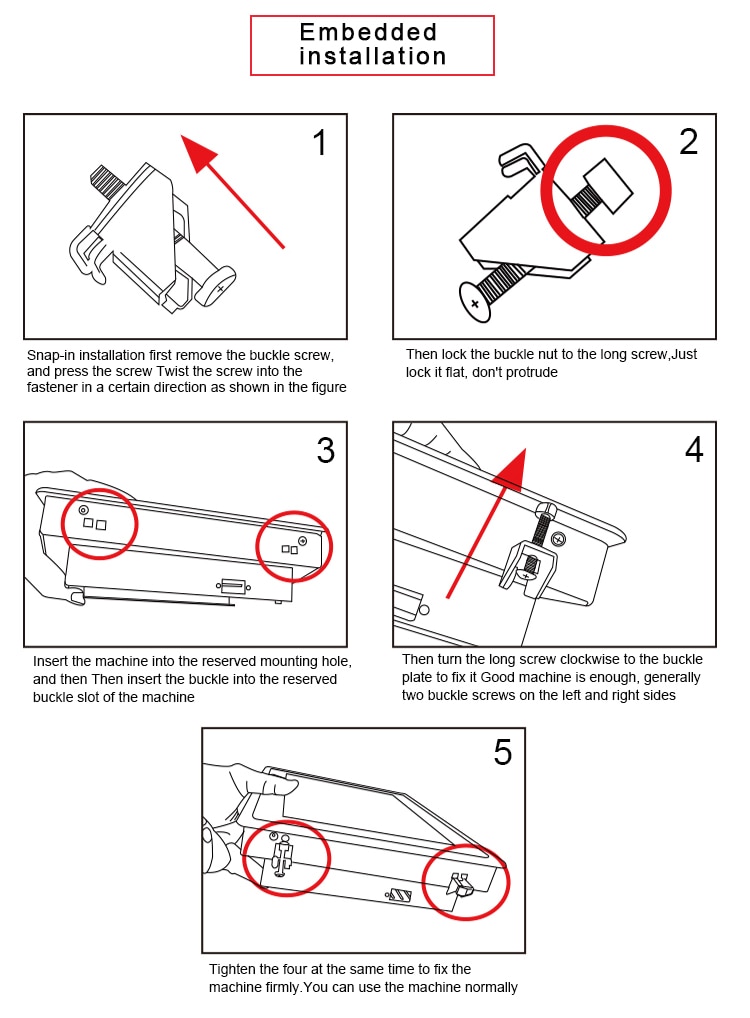

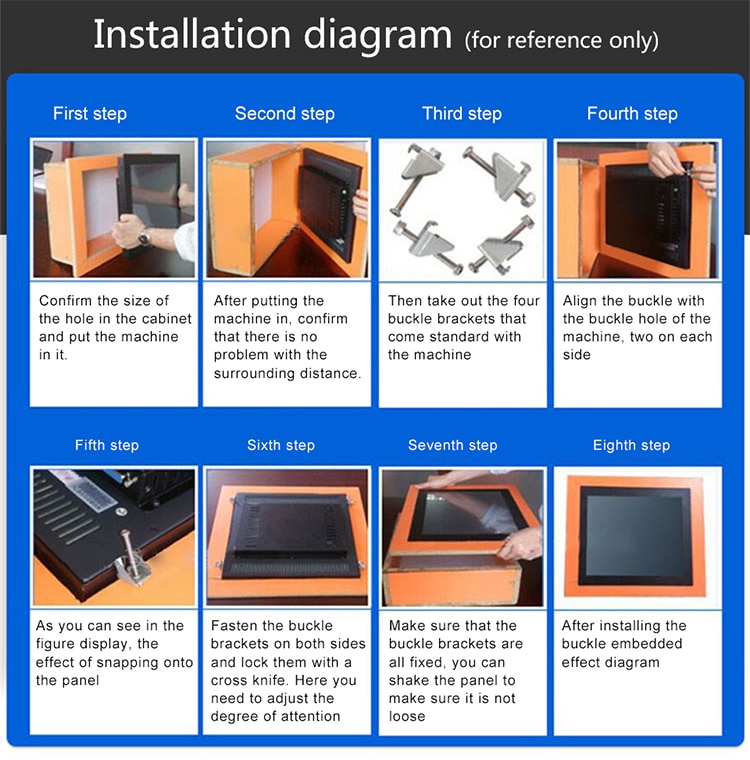

1. Embedded installation
①The cabinet needs to be opened before installation, and the opening size should be slightly larger than the opening size specified by the product.

②Place the product in the embedded installation opening reserved on the installation panel.

③There are two square holes on both sides of the equipment. When installing, use one end of the buckle to buckle the square hole, and the screw head on the buckle to hold the cabinet.
Then tighten the screws, the installation method of the other three prescription holes is the same, and the embedded installation can be completed.

2. Wall-mounted installation

① Fix the wall bracket A on the wall with expansion screws.

②The wall bracket B is installed on the back of the all-in-one with screws.

③The back bracket of the all-in-one is inserted into the wall bracket to complete the installation.

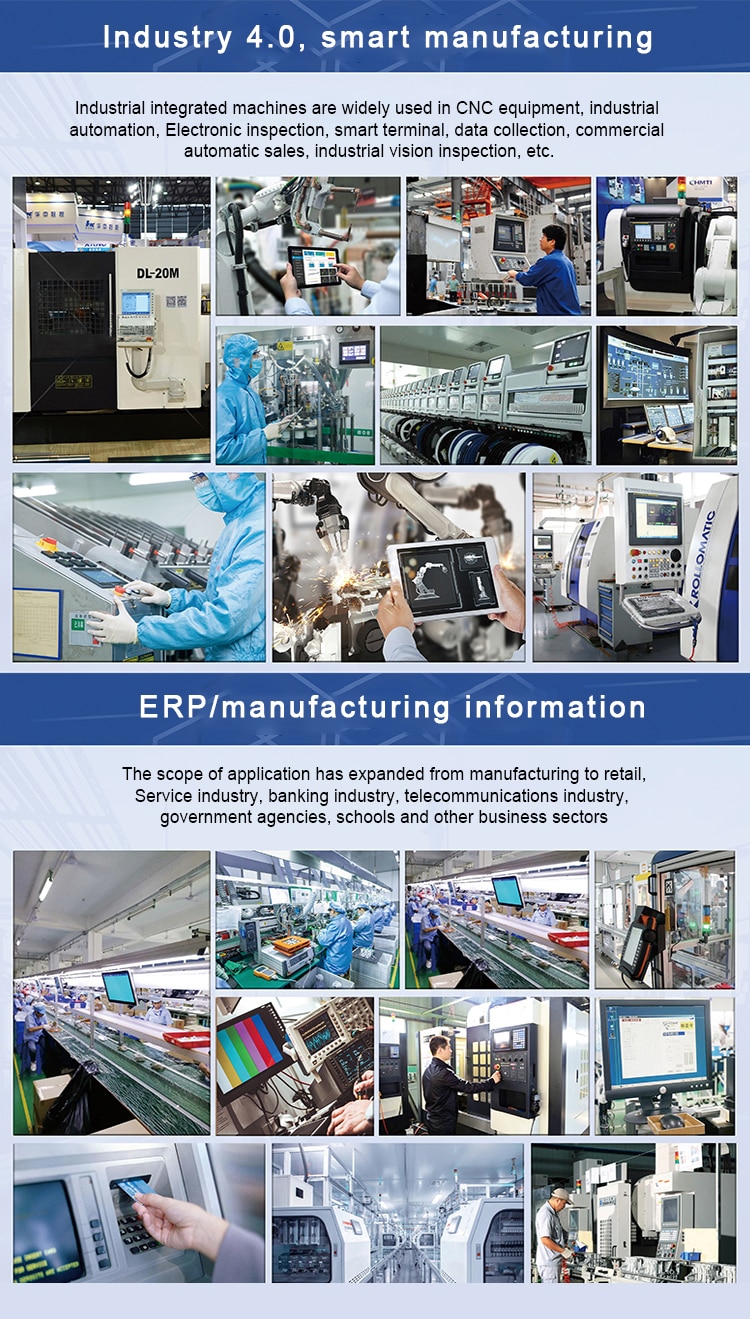

Wide range of applications

Applied to Smart City/Smart Education/
Smart transportation/smart parts/smart medical/industry 4.0

We can research and develop scenarios that require an all-in-one machine



  • Brand Name: Balahome
  • Port: VGA COM USB HDMI LAN
  • Hard Drive Capacity: 64G
  • Memory Capacity: 4GB
  • Certification: CE
  • Weight: 6
  • Memory Capacity: integrated
  • Model Number: JD1015CP
  • Origin: CN(Origin)
  • Processor Model Number: Intel Celeron
  • Graphics Card Chipset: HD2500
  • Type: All-In-One
  • Mouse & Keyboard: No
  • Graphics Card Type: Integrated Card
  • Dispaly Ratio: 4:3
  • Processor Core: Dual Core
  • RAM Type: DDR3
  • Display Type: Touch Screen
