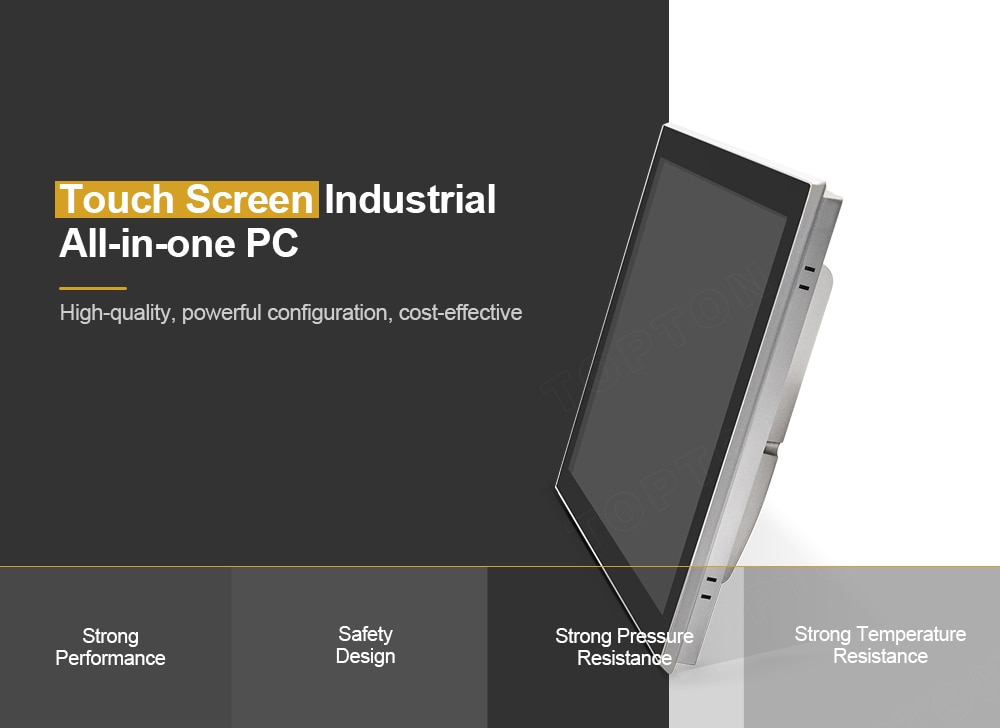

10/15/17/21.5 Inch Fanless Industrial Tablet PC Intel i7 4500U J1900 All In One Metal Computer IP65 Sensitive Touch Screen Win10
0.0 ( votes) | 1 orders
Price:
US $1474.78 - 2456.14
/ piece
Discount Price:
US $
1179.82 -
1964.92
/ piece
-20%
Processor parameter for referance:
1. Intel Celeron J1900, 2M Cache, 4 cores 4 threads, 2.00 GHz up to 2.42GHz;
2. Intel Core i5-4200U, 3M Cache, 2 cores 4 threads, 1.60 GHz up to 2.60GHz;
3. Intel Core i7-4500U, 4M Cache, 2 cores 4 threads, 1.80 GHz up to 3.00GHz;
Resolution
10 inch-1280x800
15 inch-1024x768
17 inch-1280x1024
21.5 inch-1920x1080
Highlight

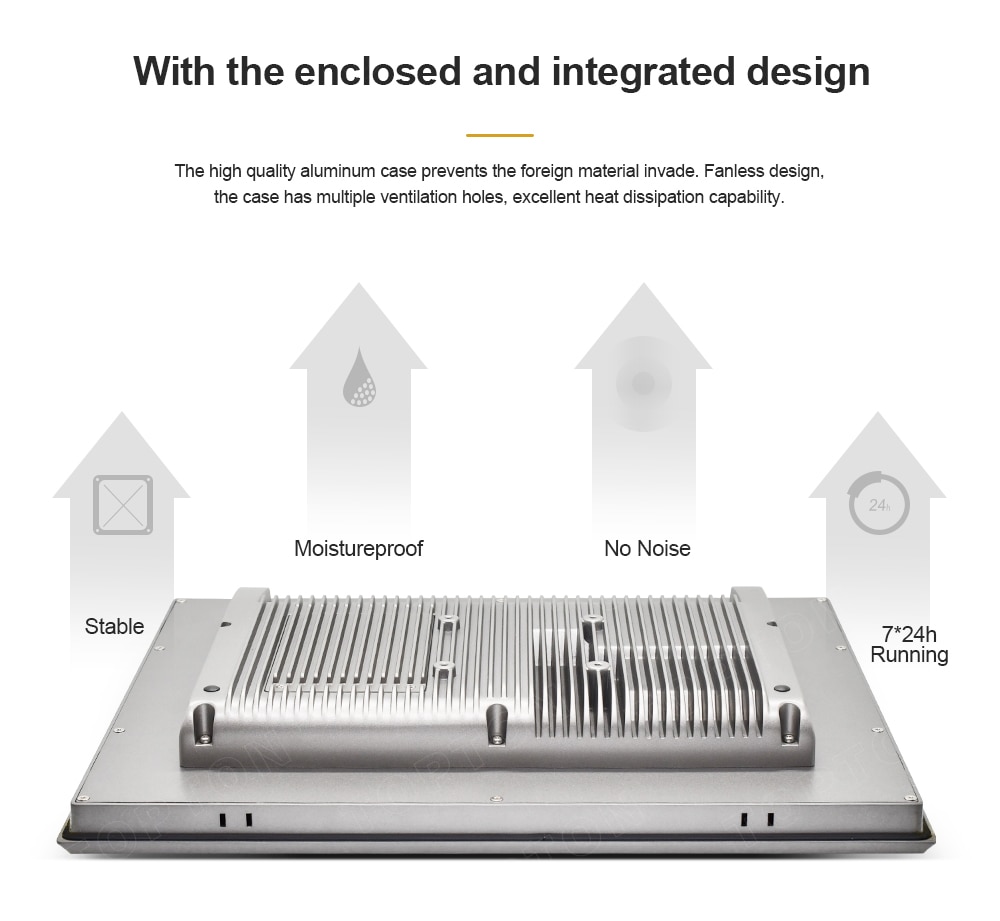

- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably;

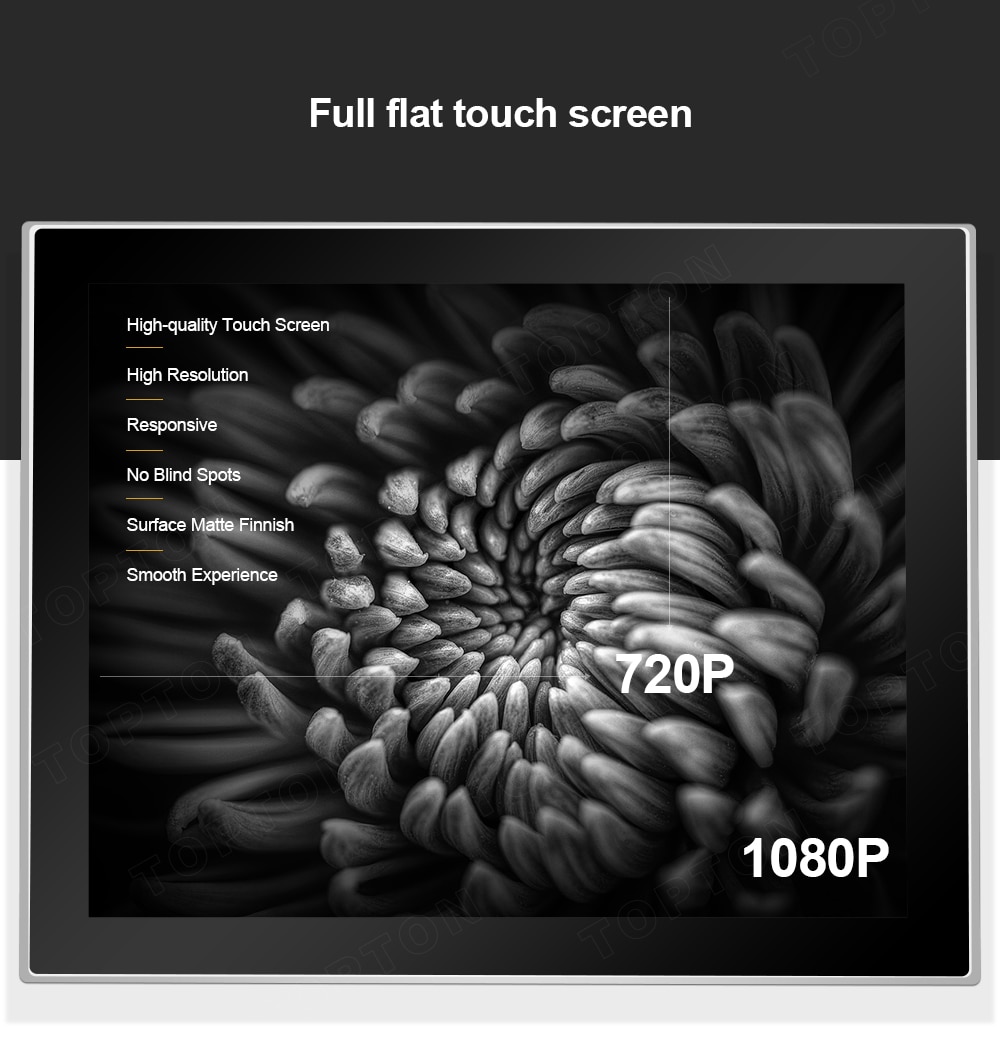

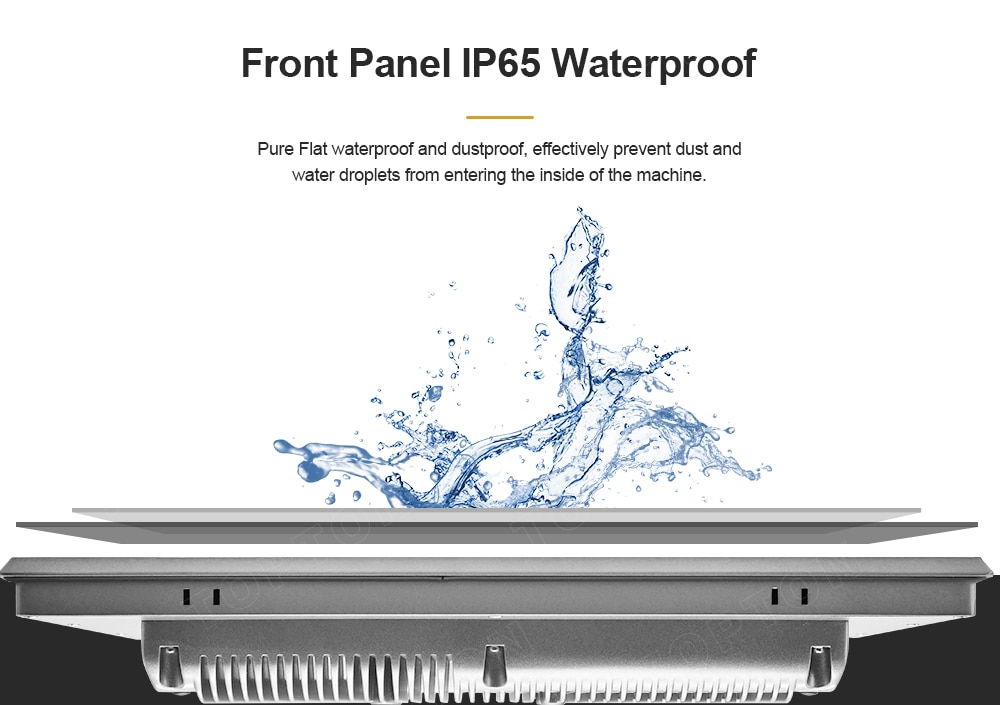

- Touch Screen IP65 level waterproof;

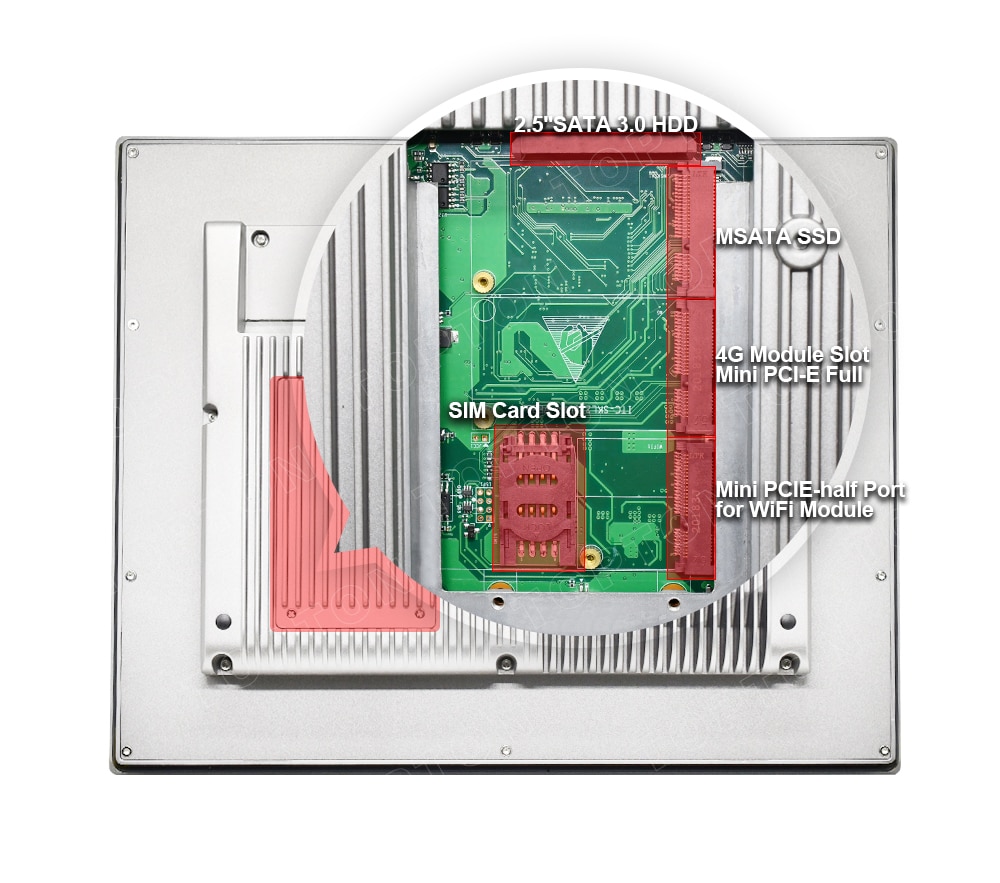

- 1*MSATA SSD+1*2.5''SATA SSD/HDD installation supported;
- One embedded SIM card slot onboard, 3G/4G/WiFi optional;
- 9-36V Wide voltage input;
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.

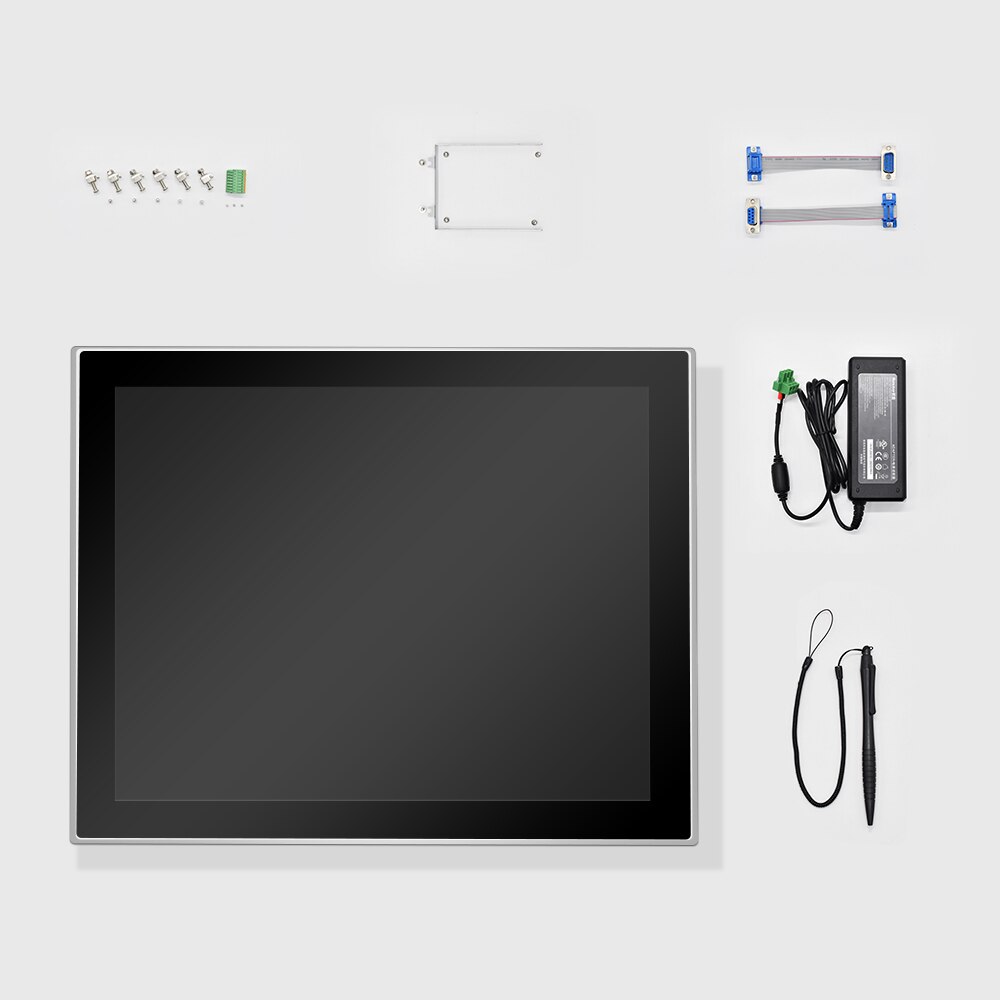

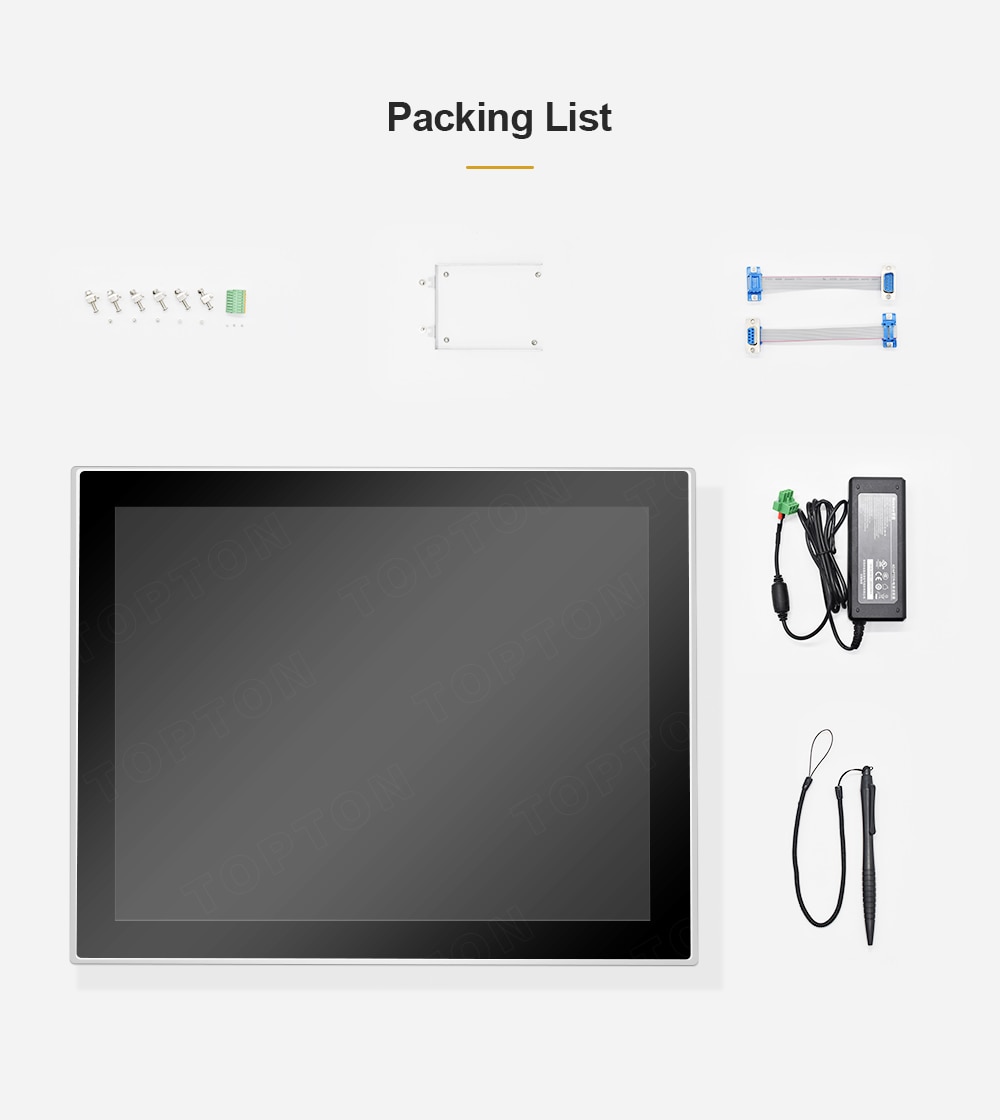

Package List
1xIndustrial tablet pc,
1xPower Adapter,
1xPower Cord,( we ship correct power plug base on buyer's address )
1xScrews Bag,
1xTouch Pen
All bundles on sale DO NOT include WiFi/3G/4G module, WiFi module cost US $10, 3G module cost US $50, 4G module cost US $70.500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.If you need, pay at .
Basic Information: | |
CPU | Intel® Celeron J1900 / Intel® Core i5-4200U / Intel® Core i7-4500U |
TDP | 15W |
Chipset | Refer to CPU |
Memory | Onboard 4GB DDR3L RAM |
OS | Windows 7/Windows 8/Windows 10/Linux/ WES7 |
Watchdogtimer | 1 ~ 255 seconds programmable |
Videocard | Refer to CPU |

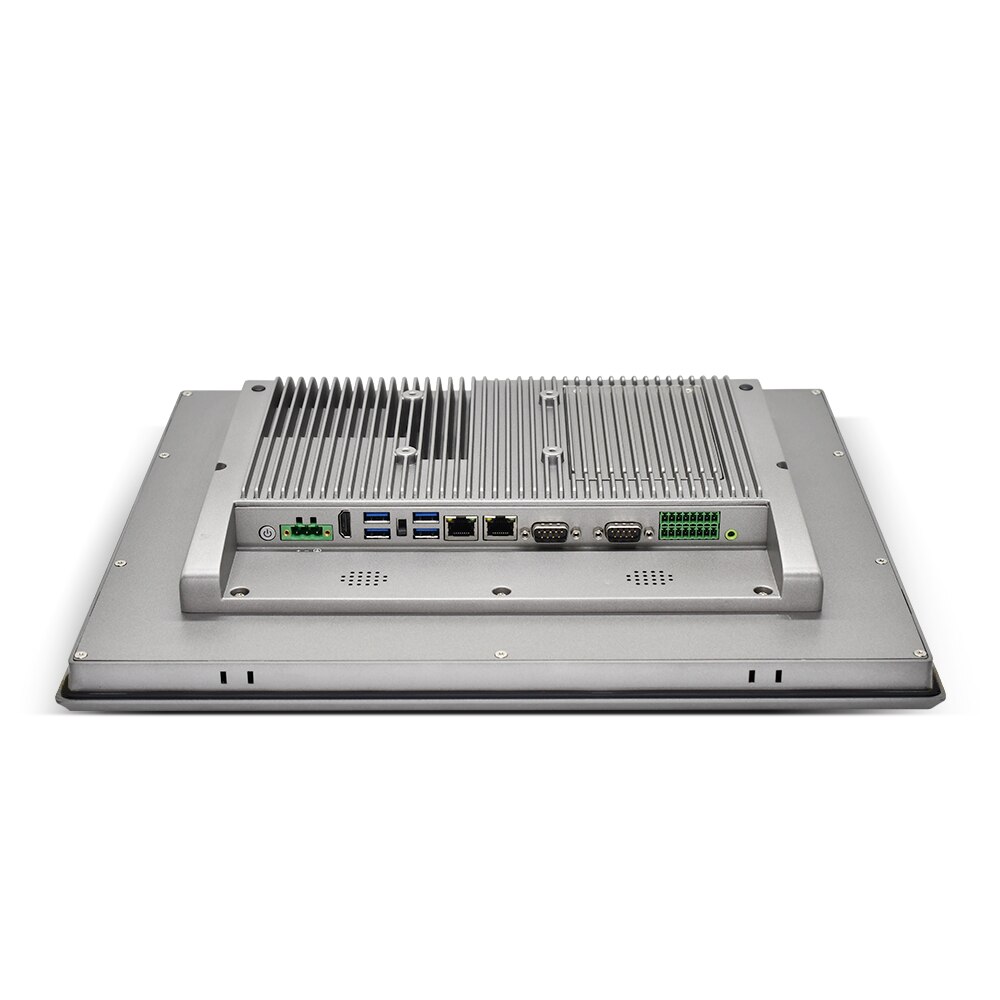

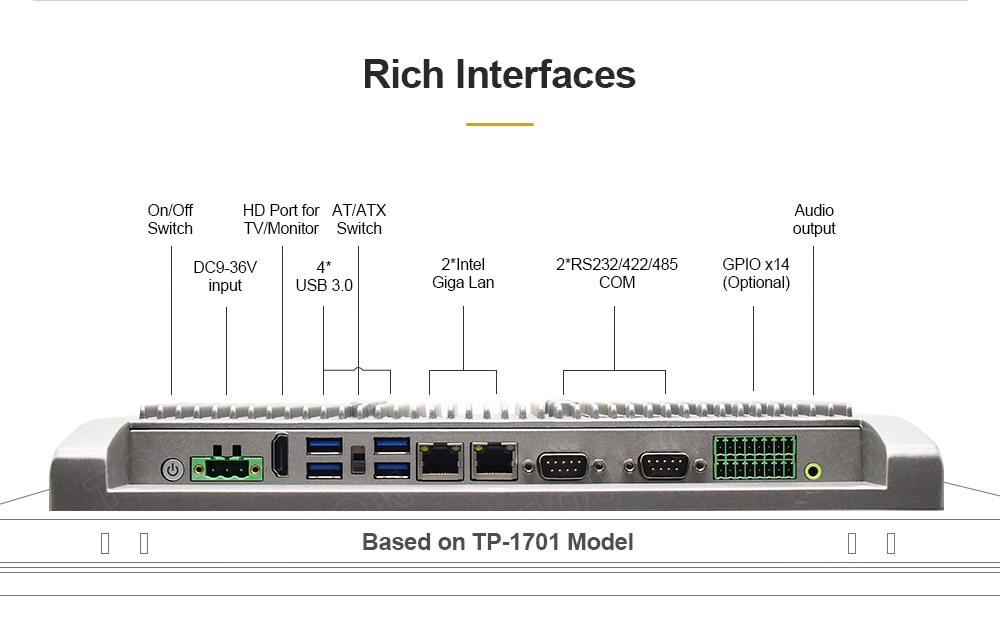

Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x DC 9 ~ 36V 3-pin Phoenix Terminal |
Amplifier | 2 x 8Ω 1W Amplifier output (Optional) |
USB | 4x USB3.0(3xUSB2.0, 1xUSB3.0 for J1900), Built-in 1xUSB2.0 Dongles Port |
Display | 1 x HD |
LAN | 2x Gigabit Ethernet RJ45 Intel i211-AT |
Audio | 1 x Audio Line-out |
COM | 2 x DB-9 COM1&COM2,RS-232/422/485 |
GPIO | 1 x 14bit GPIO (Optional) |
Others | 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal 2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal 1x Phoenix terminal remote switch interface |
Storage | |
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi | |
Module | 1x Mini PCIE Half port for WiFi module 1x Mini PCIE Full port for 3G/4G module |
Antenna | 2 x inner RF cables without external antennas |
Power and Working Environment | |
Input | DC 9 ~ 36V 3-pin Phoenix Terminal |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -30°C ~ 70°C |
Storage Humidity | 10~90% @30°C, non-condensing |
Display Information | |
LCD Type | TFT-LCD |
Resolution | Refer to screen size |
Max color | 16.2M |
Brightness | 500 cd/m² |
Perspective (CR>=10) | -85~85° (H), -85~85° (V) |
Backlight | LED |
Backlight life (hour) | 30,000 |

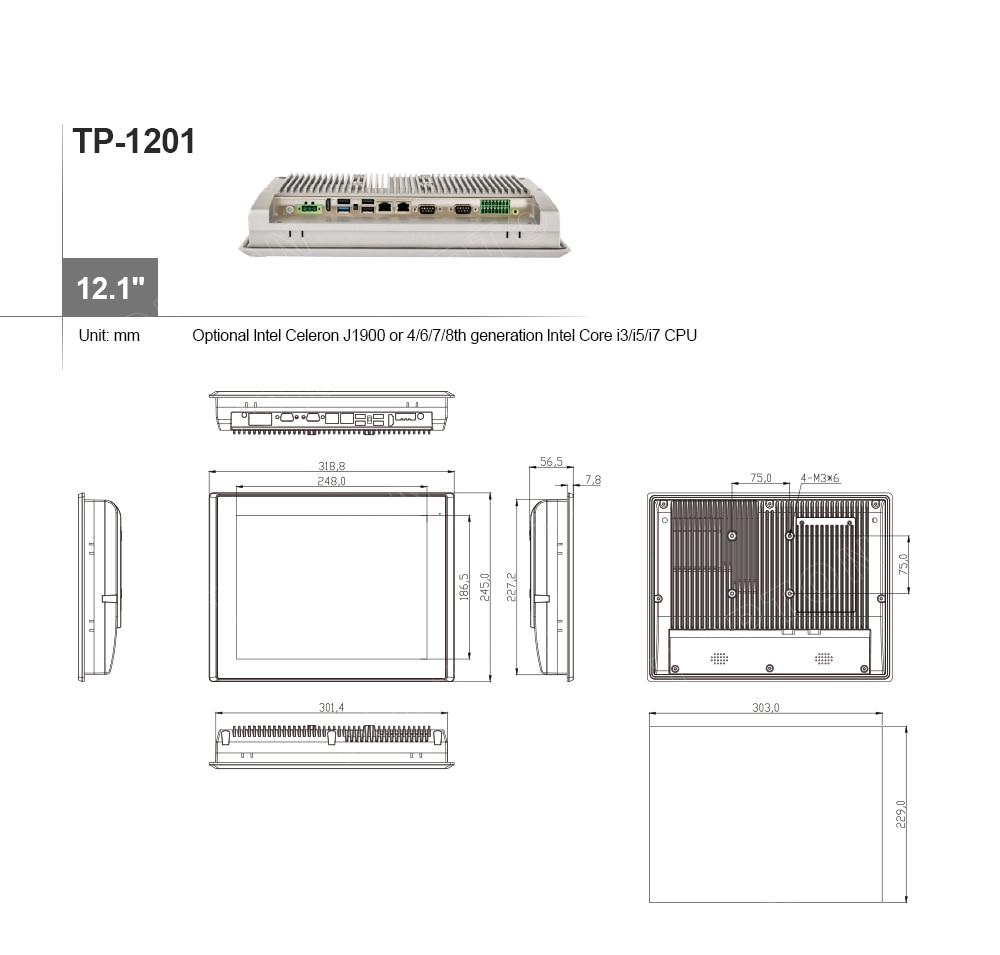

Product Dimension & Details | |

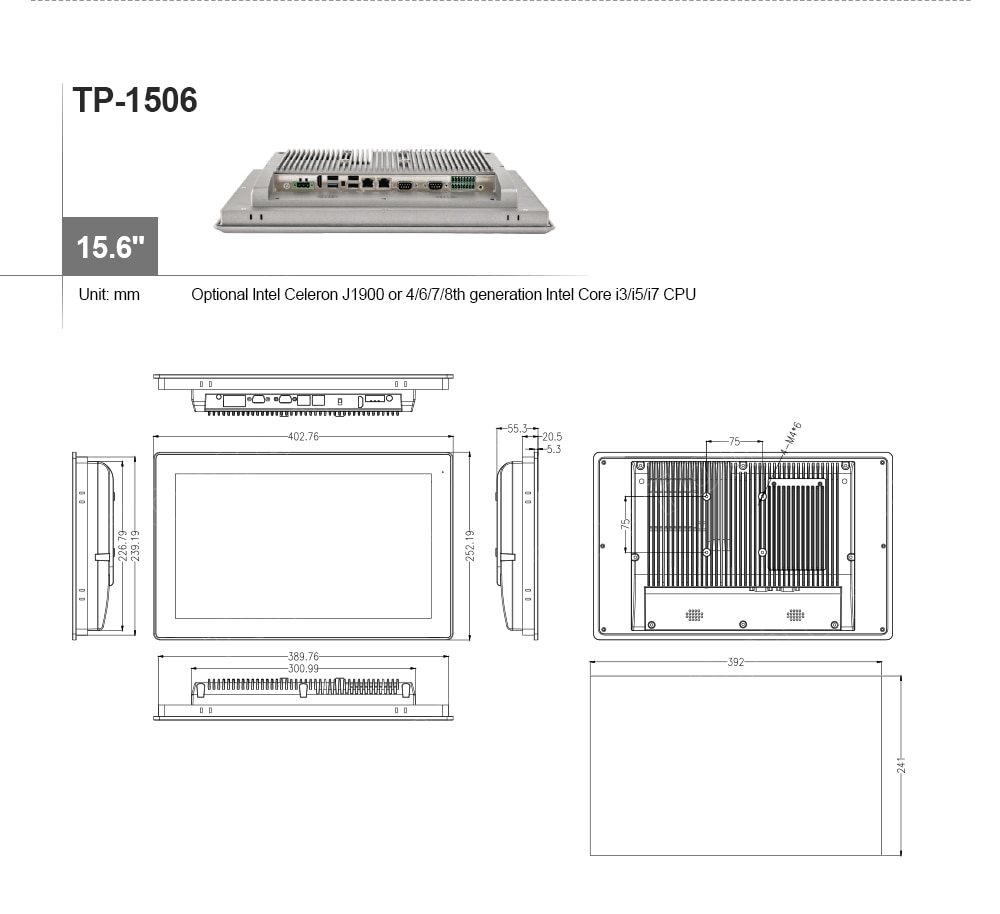

Size | Refer to screen size |
Weight | Refer to screen size |
Shell | Silver color aluminum alloy(any customized color for bulk order) |
Installation method | VESA 75/ Panel mounting |

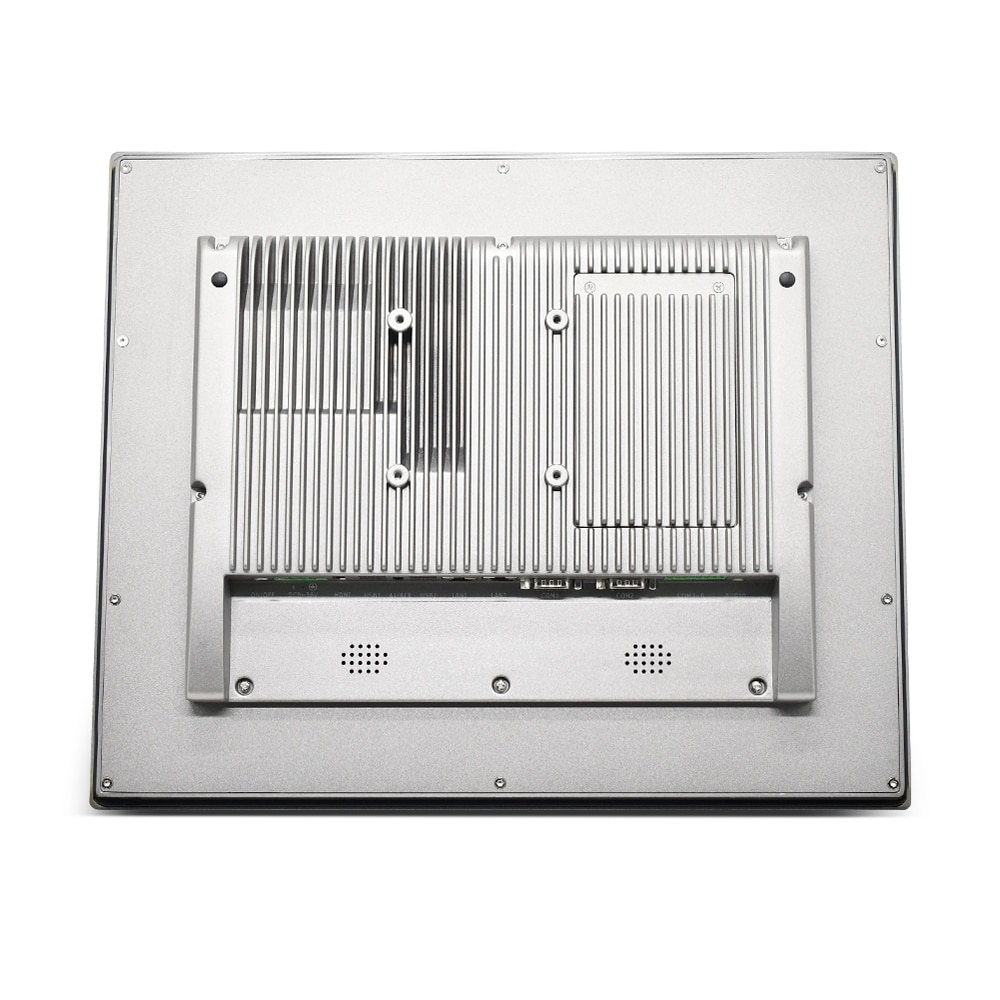

Cooling Mode | Fanless |
Package Content | |
Standard | 1xIndustrial tablet PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xTouch pen |
Touch Screen Information | |
Type | Resistive/Capacitive optional |
Transmitiance | 78% |
Lifetime | 250g clicks 10 milliontimes |
- Weight: 6-10kg
- Mouse & Keyboard: No
- Video Memory Type: With the main memory
- Processor Core: Dual Core
- RAM Type: DDR3
- Operating System: Windows 10
- Memory Capacity: 4GB
- Graphics Card Chipset: HD Graphics
- Processor Main Frequency: Depends on CPU
- Graphics Card Type: Integrated Card
- Display Type: Touch Screen
- Model Number: ITPC
- Port: 2*Lan, 2*DB9 COM, 4*USB3.0, 1*HD
- Processor Model Number: Intel Core i7-4500U
- Type: All-In-One
- Memory Capacity: 4GB
- Hard Drive Capacity: 250GB
- Brand Name: Topton
- Certification: CE
- Origin: Mainland China
- Operating System: Window7/8/10, linux, ubuntu
- Feature: Fanless System 0.00dB
- Memory Type: 1*DDR3L non-ecc SODIMM
- Storage Type: 1*MSATA SSD+1*2.5'' SATA SSD/HDD
- Touch Screen Type: Resistive/Capacitive Optional
- Wireless: MPCIE For 3G/4G/WiFi Optional
- Material: Aluminum
