10/100M Fast Ethernet Fiber Optical Media Converter Single Mode switch Converter 20KM 2 RJ45 and 6 SC fiber Port
5.0 (3 votes) | 83 orders
Price:
US $68.78 - 70.45
/ piece
Discount Price:
US $
55.49 -
56.81
/ piece
-19%
please note:

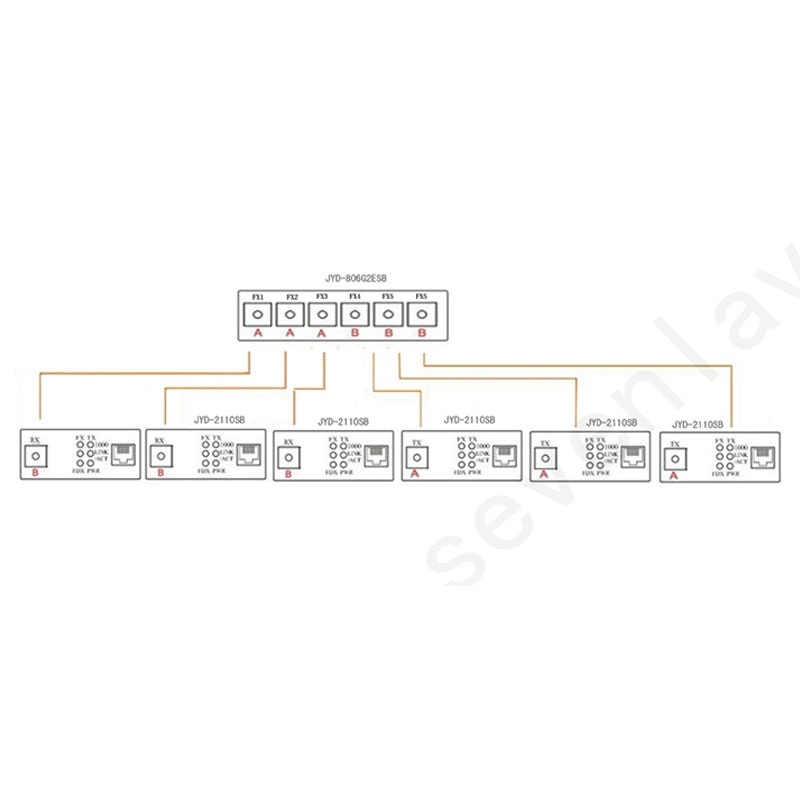

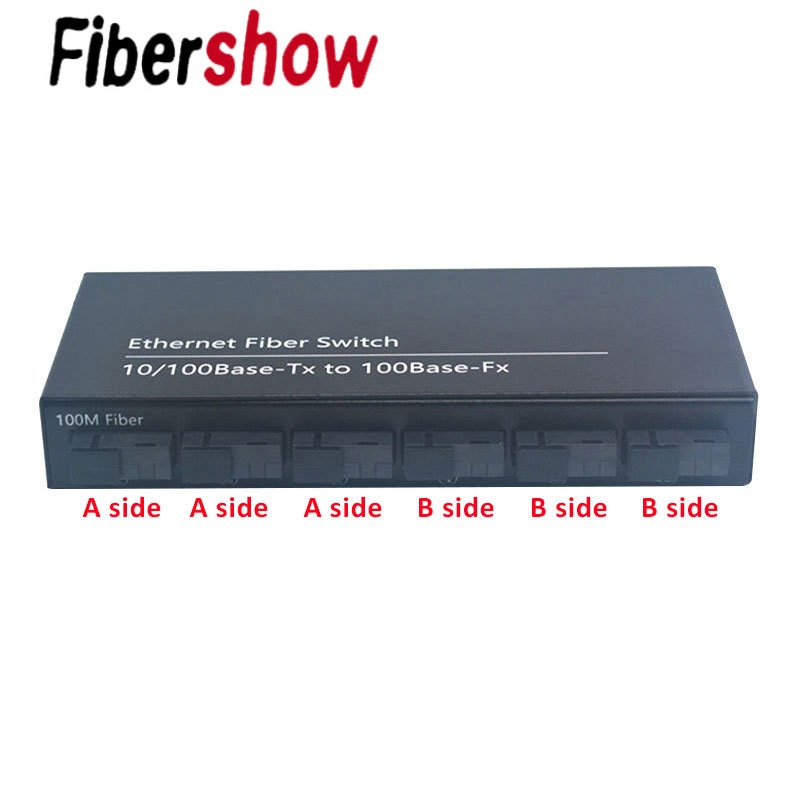

Default with 3pcs 1310nm A side Fiber module and 3pcs 1550nmB side, 6pcs 1550nm B Side or 6pcs 1310nm A side can be provided as request.

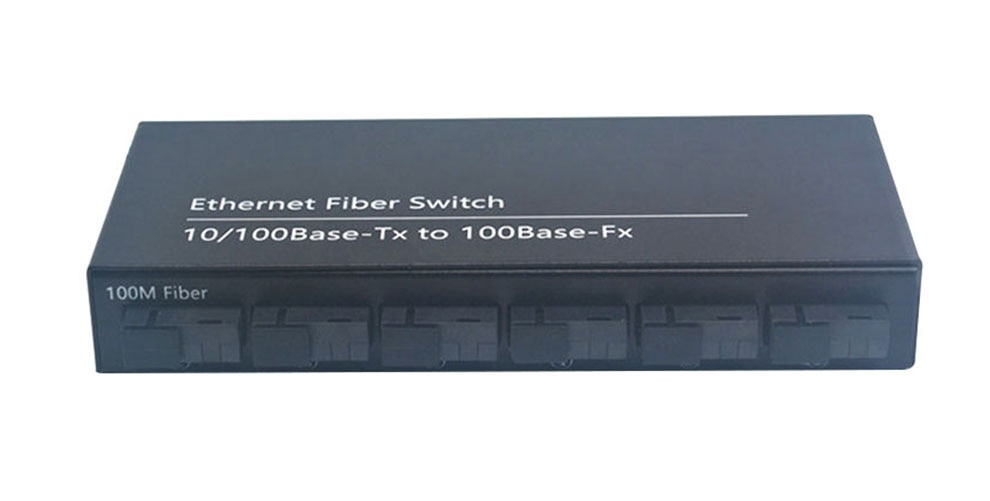

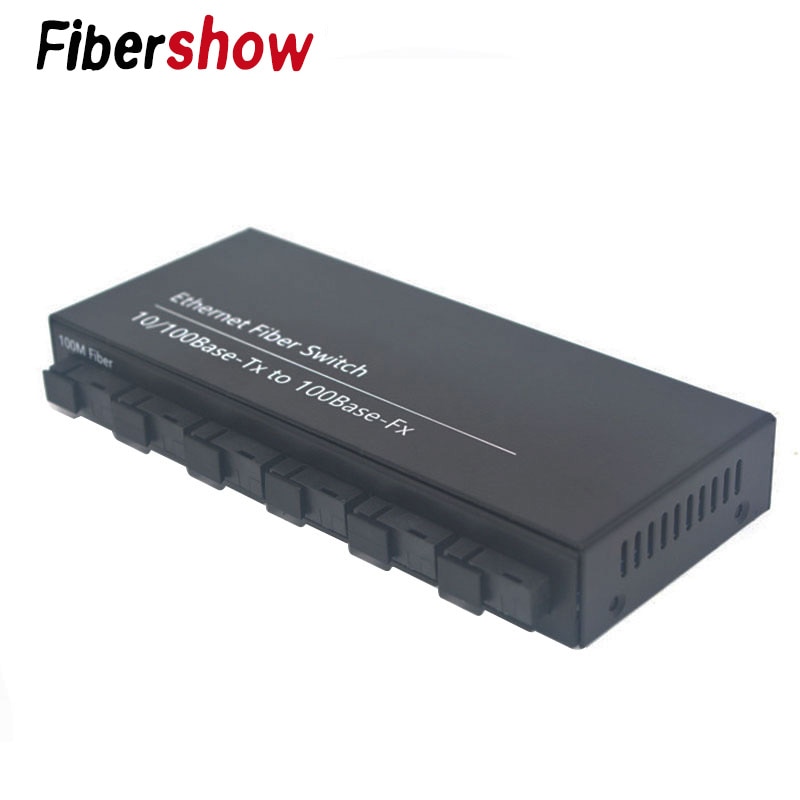

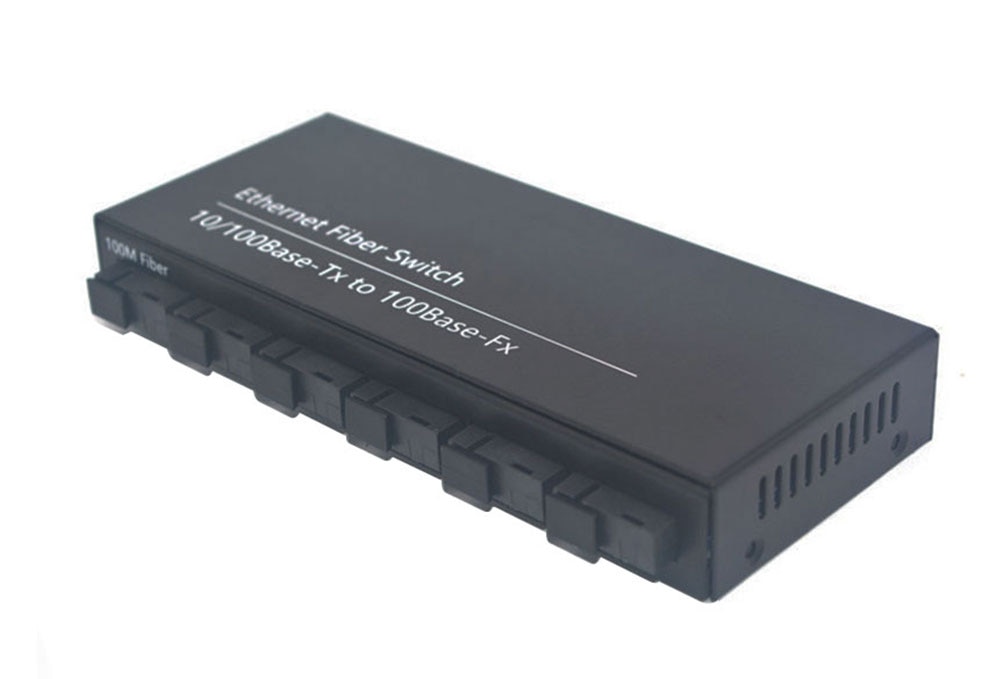

Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch
The Fast Ethernet Switch is an Ethernet Fiber Switch which is specially designed for network monitoring. It
has 2*10/100Mbps Ethernet ports and 6*155Mbps fiber ports. It adopts RTL8309N chips to ensure
low power consumption and high stability. It extends the transmission distance of a network from
100m to 120km via copper cables. It can extend the transmission distance; there are also many other
advantages such as isolation protection, good data security, working stability and easy maintenance
Main Features:
1.Support the switch between 10/100Base-TX and 100Base-FX
2.6*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function
3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

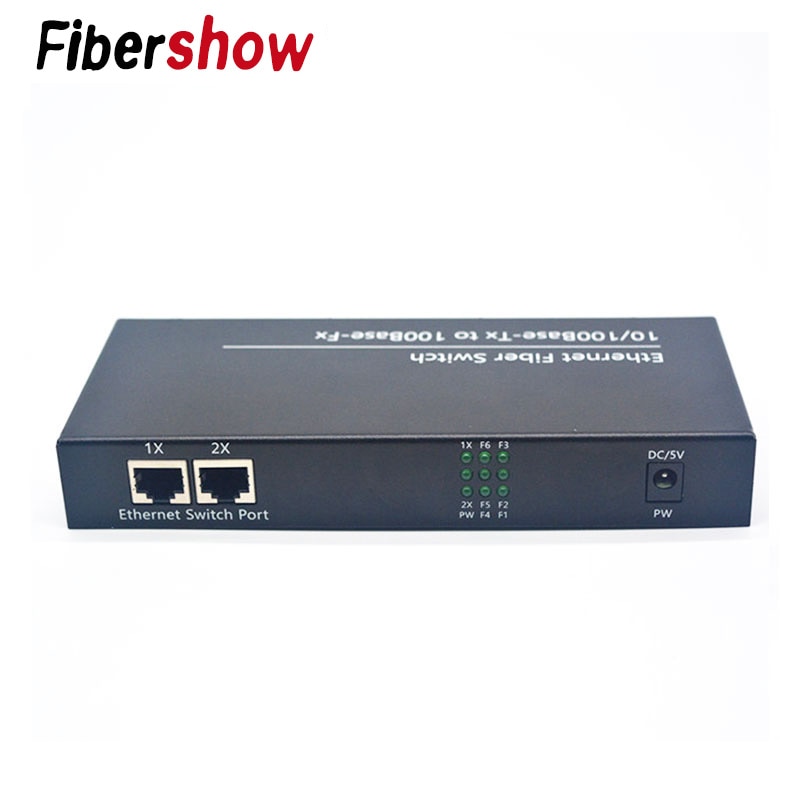

4.Each port has the complete LED Indicator light

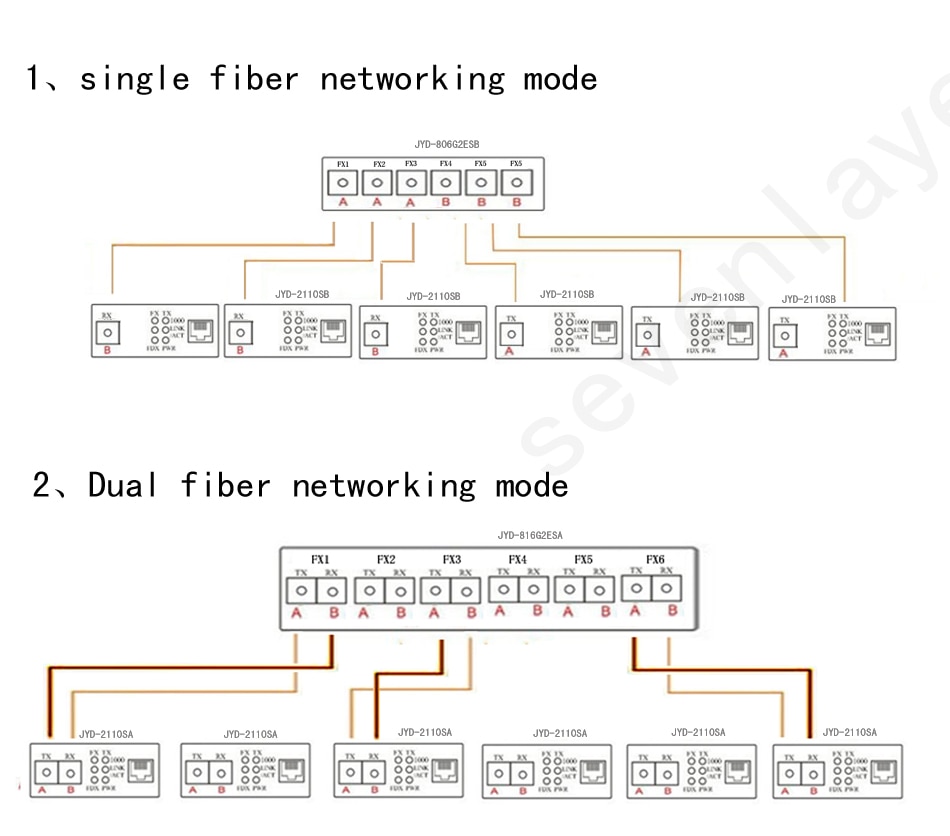

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6.Support IEEE802.1d Spanning Tree
7.Support high performance QoS function on each port
8.Support 12V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10.Require no configuration and will instantly operate as soon as you power it up
11.Low power consumption chip with heat sink built in to ensure longtime efficient operation
Specifications:
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Connector: RJ45 Data Rate:10/100M or 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate: 155M or 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km fiber port:SC/UPC |
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space: 500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth: 3.8G/5.6G/7.2G Time Delay: ＜150μs |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 12V Power Consumption: 2.2W～3.5W |
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 3/20/40/60/80/100km |
MTBF | 100, 000 hours |
Warranty | 1 year |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board |
OEM&ODM | Supportive |
- Fiber Type: Single Mode
- Compatible: Ubiquiti,QSFPTEK,Mikrotik,Transition Networks,Zyxel,Cisco,TP-link,Juniper,D-Link,Linksys,HP,IBM,Supermicro,Finisar,H3C,Huawei
- Connector Type: SC/UPC
- Item Length: 20m
- Model Number: JYD-6SC2RJ45
- Brand Name: tapirapeco
- Origin: Mainland China
- Certification: CE
- Product Name: Fiber Switch
- Switch Type: 10/100M Swtich
- Fbier Port: 6 fiber port 155M
- Ethernet Port: 2 RJ45 port 10/100M
- Wavelength: 1310/1550nm
- communication Mode: Full-Duplex&Half-Duplex
- Power Supply: DC12V 2A AC100V-240V(50-60HZ)
