WeAct SY8205 Step-down module 3.3V 5V 9V 12V High-current power module Steering gear power drive
5.0 (26 votes) | 234 orders
Price:
US $11.41
/ piece
Discount Price:
US $
10.78
/ piece
-6%
WeAct Studio Store
A studio dedicated to designing unique electronic modules.Technical support, quality assurance

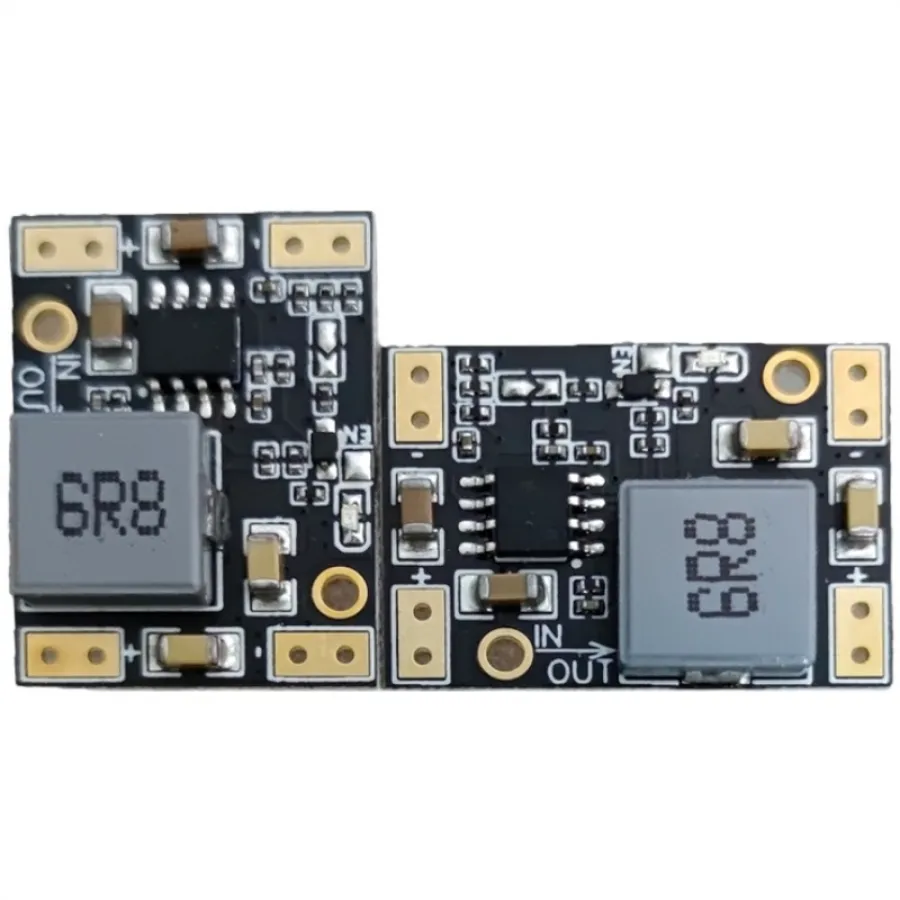

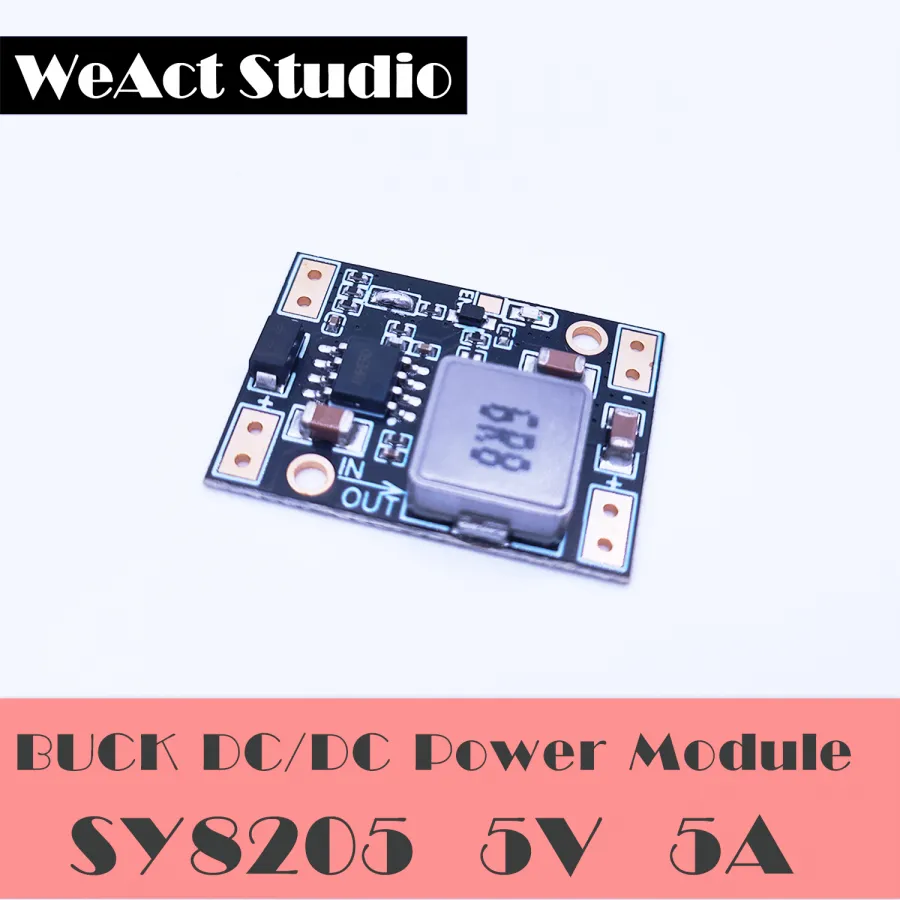

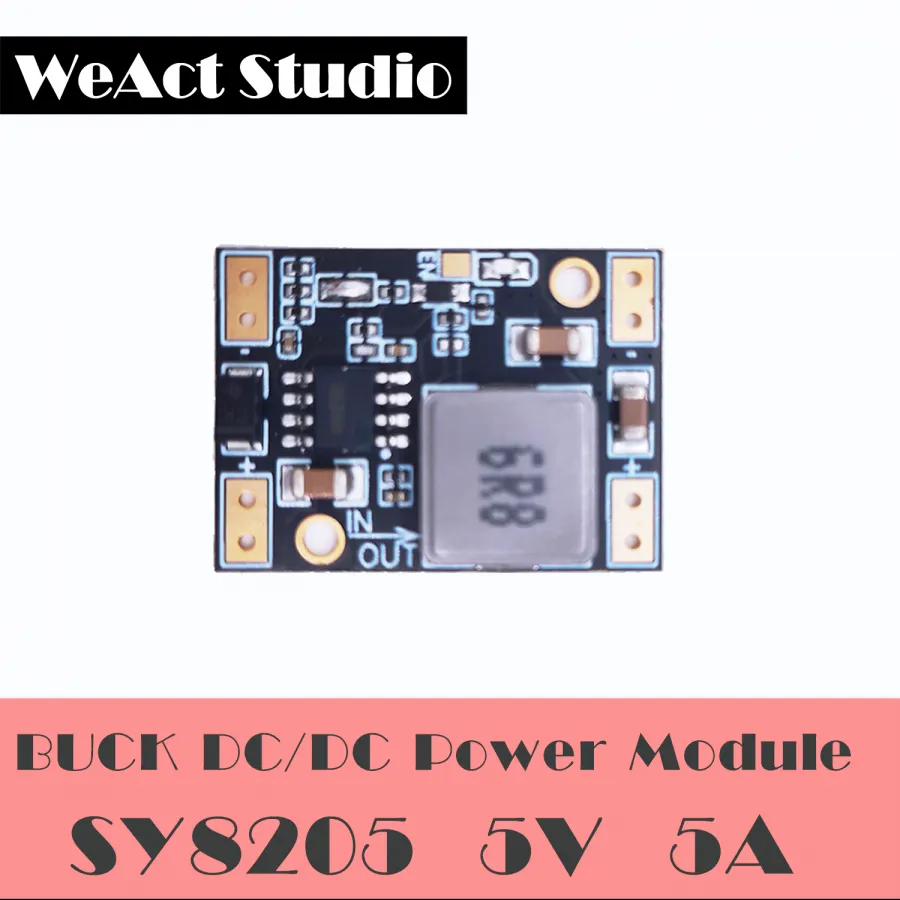

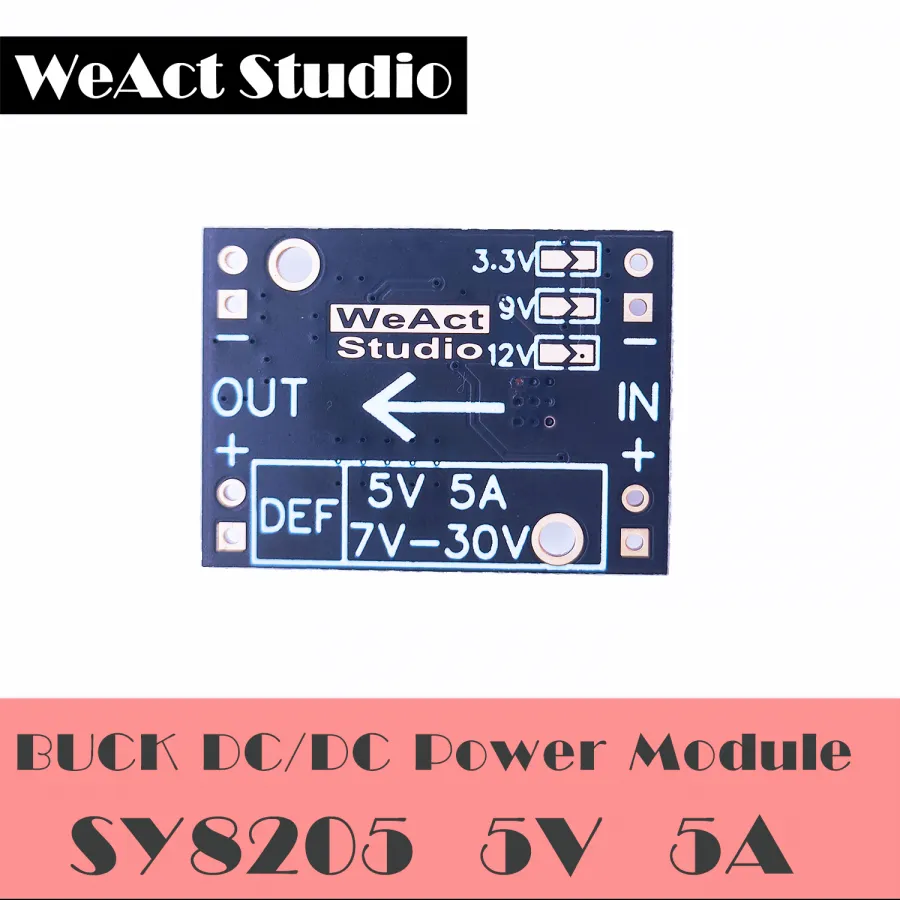

WeAct SY8205 Gold
Parameter
Input voltage: 7V~30V, recommended below 24V
Output voltage: 3.3V / 5V / 9V / 12V, variable multi-voltage, default 5V
Output current: 5A.Max
Characteristic
(1) Default output of 5V, voltage can be achieved by short back welding plate 3.3V / 9V / 12V output.
(2) Input voltage: 7V-30V
(3) Synchronous rectification is adopted to achieve higher efficiency
(4) The capacitor adopts large capacity ceramic chip capacitor, which has a small area, is not easy to damage and has low heating
(5) Using large current power inductance, low calorific value, with strong load capacity
(6) Low temperature drift resistance is adopted as sampling resistance to improve module stability

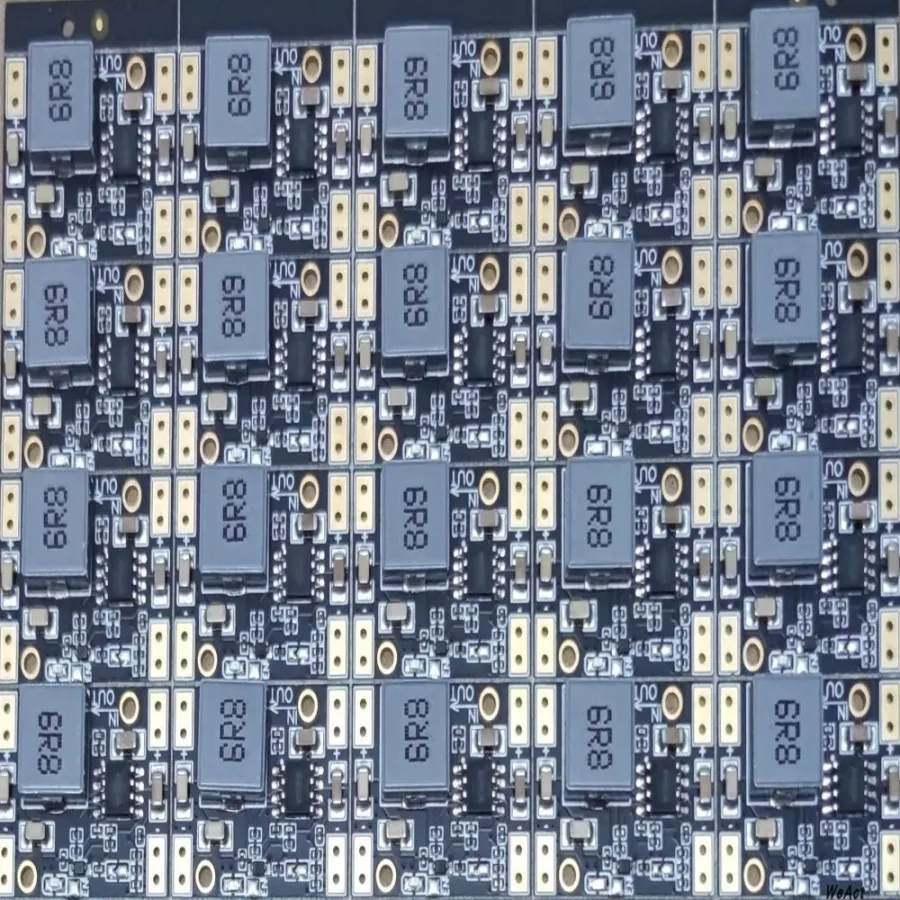

(7) Gold sinking process is adopted
Output parameters
3.3V/5A (use soldering iron, disconnect default 5V solder pad, short back 3.3V solder pad)
5V/5A (default: 5V)
9V/ 2.4a (use soldering iron, disconnect default 5V soldering pen, short back 9V soldering pen)
12V/ 1.5a (with soldering iron, disconnect default 5V solder pad, short back 12V solder pad)
Note: Please add fan heat for continuous large current (just add fin)

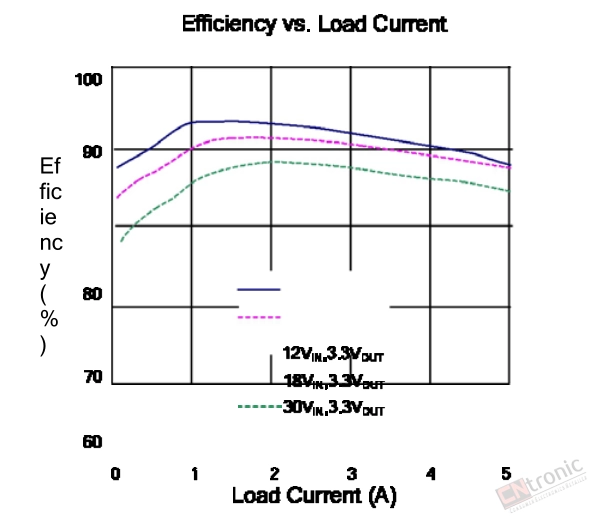

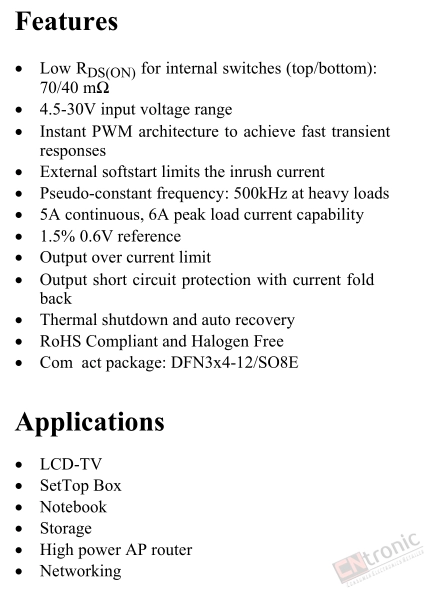

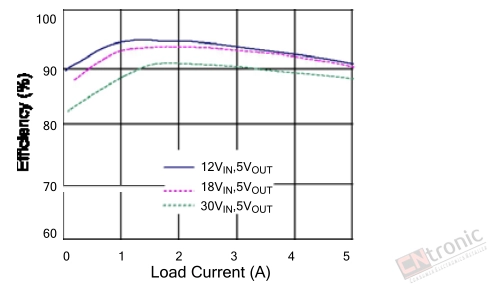

Some data manual parameters:
Application Scenario
Power supply for robot control system, UAV control system, steering gear and small power motor, LED lamp, etc
Packaging Details
- Unit Type: piece
- Package Weight: 0.011
- Package Size: 2x2x2
- Brand Name: WeAct Studio
- Accessory Type: Power Adapter
- Battery Included: No
- Origin: Mainland China
- Hign-concerned Chemical: None
- Compatible With: STM32
- Voltage: 7-30V
- Circuit: 5A Max.
- Output: 3.3V / 5V / 9V / 12V
- Process: Zedoary process
- Low ripple: 30mV
- Choice: yes
- semi_Choice: yes
