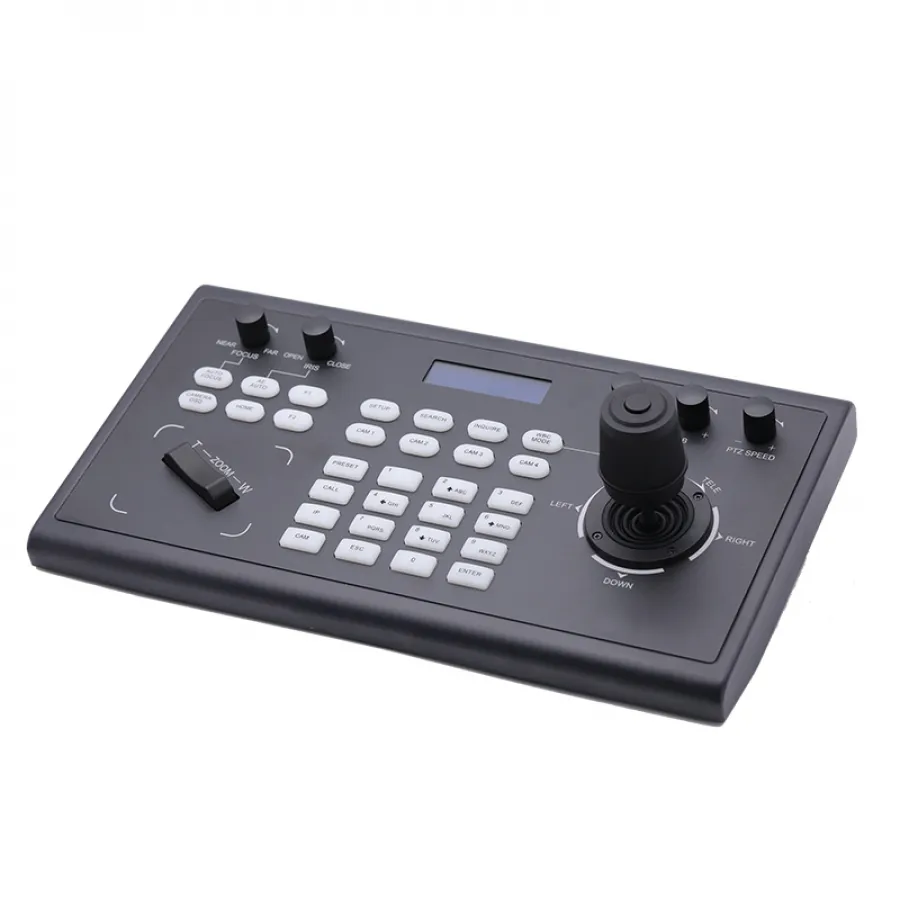

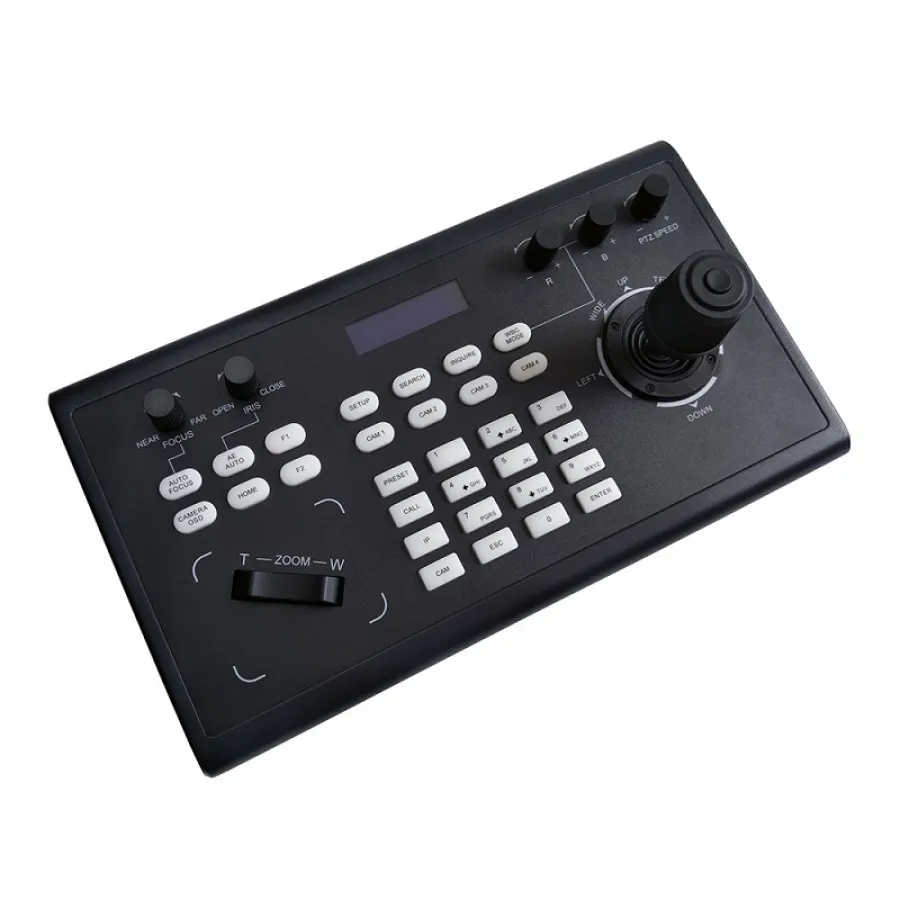

3.49” Inch Display IP Joystick Controller NDI Control Panel Camera Decode Controller PTZ Camera Control Keyboard 3D Rocker IPC
772.76 $
Selling Points of IP PTZ Camera Controller:

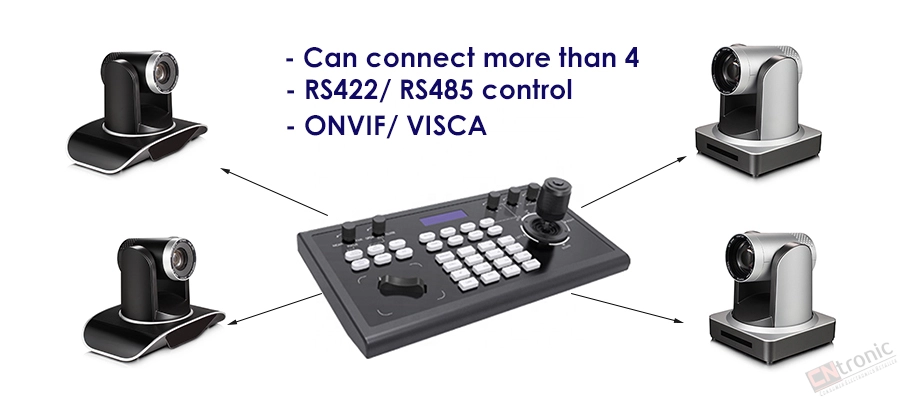

Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
Unique control code learning function allows customers to modify the control code instructions.
Any device on the RS485 bus can be individually configured with different protocols and baud rates.
All camera parameters can be set through the button operation.
Metal shell, silicone key design.

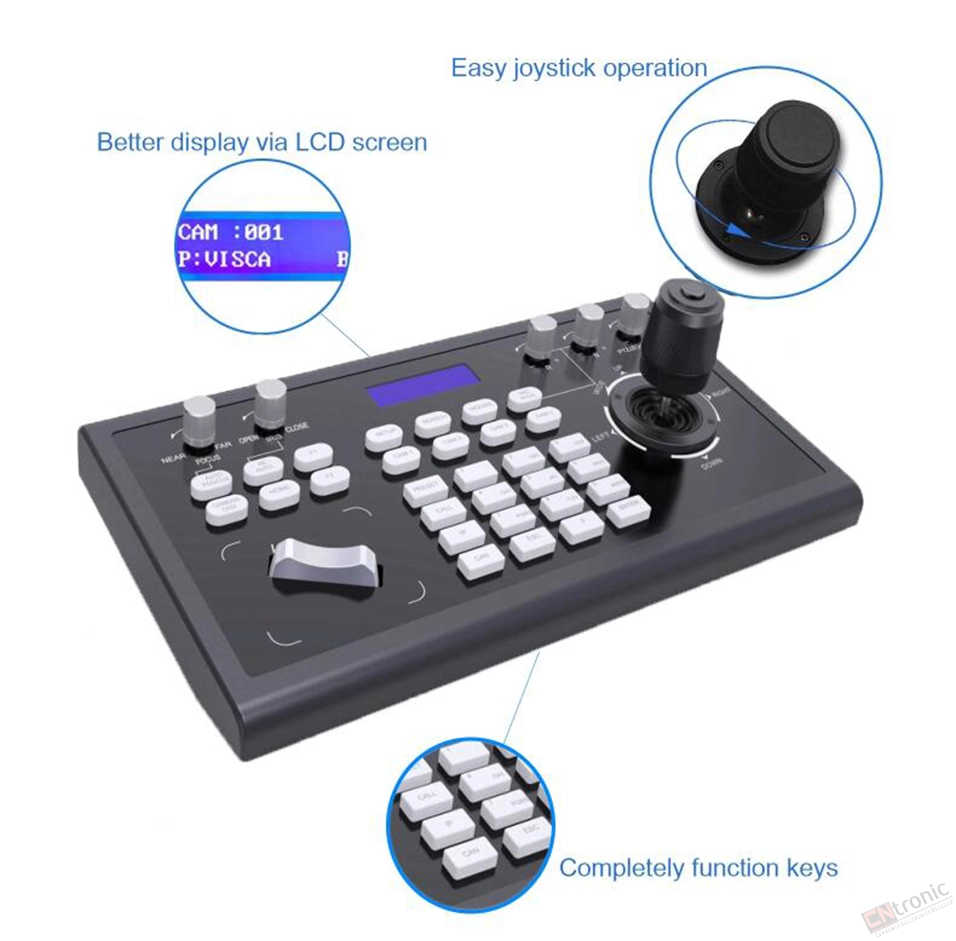

LCD display, keypad sound prompt, real-time display decoder and matrix working status.

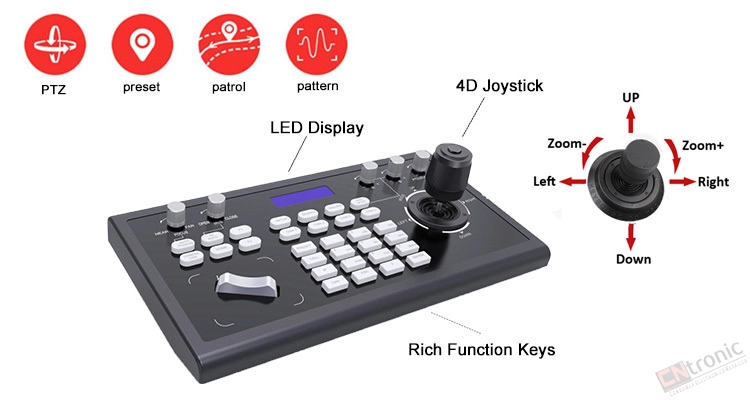

4D joystick allows variable speed control to cameras
- Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)

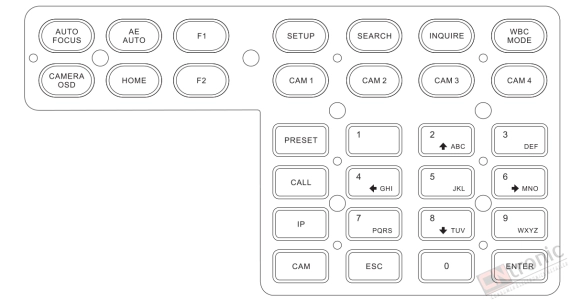

Function Description1) Contains auto focus, auto aperture, WBC mode, quickly switch device and number keys buttons, etc.

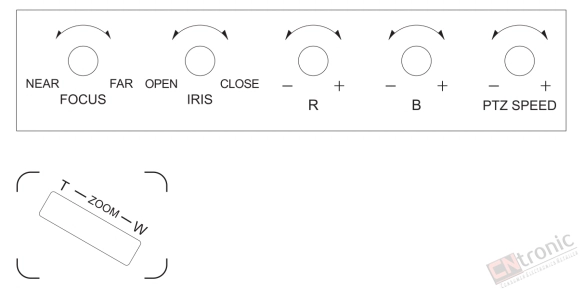

2) Can smoothly adjusts the focal length, aperture, red/ blue gain, ptz speed, zoom.Smoothly adjusts the focal length, aperture, red/ blue gain, ptz speed, zoom.

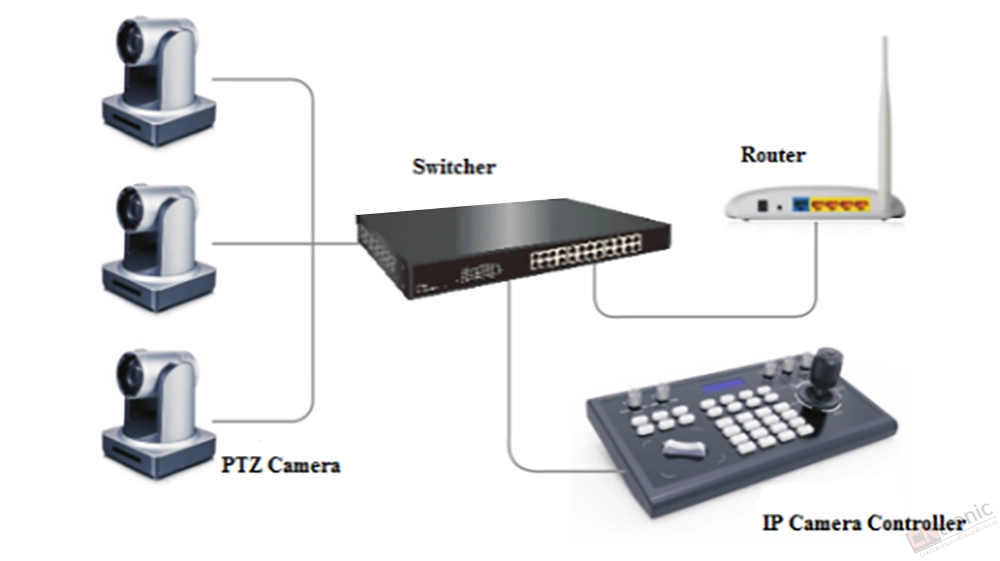

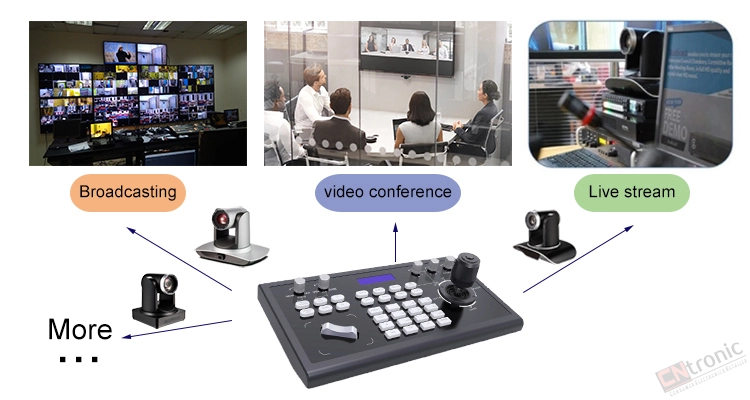

Widely Applications of PTZ Camera Controller
SpecificationsParameter / Model
VK6 PTZ IP Joystick Controller

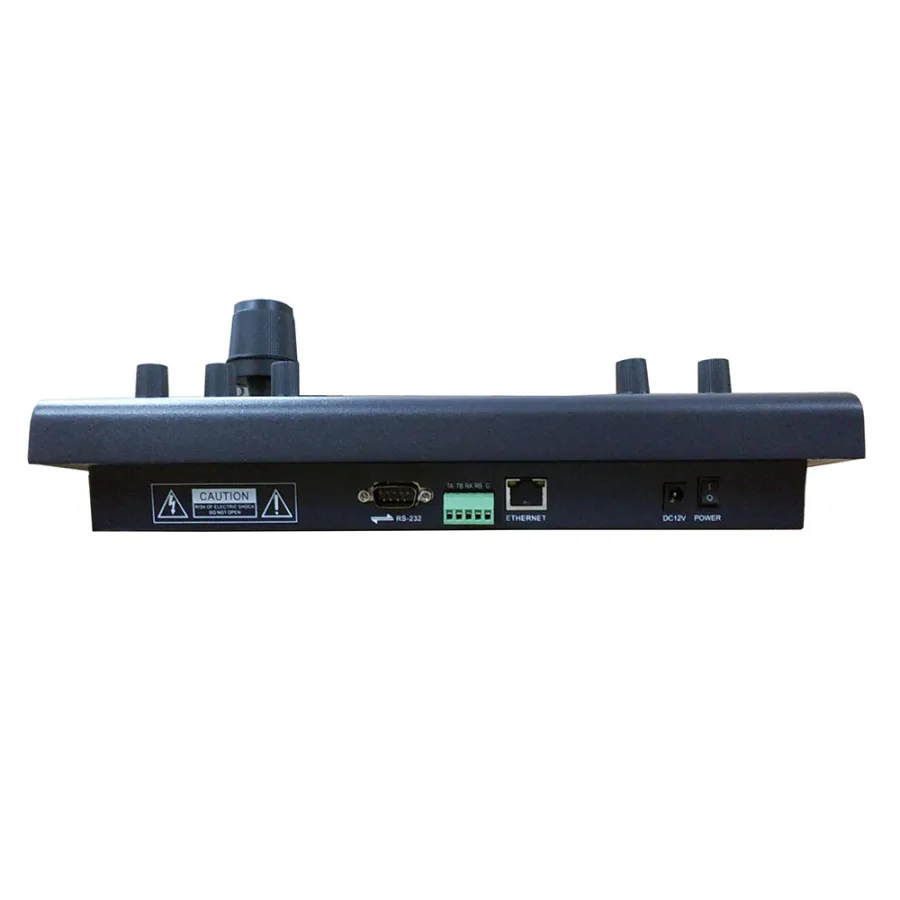

Port
Network: RJ45.
Serial Port: RS422, RS232
Protocol
Network: ONVIF, VISCA
Serial Port: VISCA, PELCO-D, PELCO-P
Communication BPS
2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200
Interface
5PIN, RS232, RJ45
Joystick
4D(up, down, left, right, zoom, lock)
Display
LCD Blue Screen
prompt tone
ON/OFF
Power Supply
DC12V±10%
Power Consumption
6W MAX
Working Temperature
-10℃~50℃
Storage Temperature
-20℃~70℃
Environment humidity
90%RH (nodew)
Dimensions(mm)
320mm(L)X179.3mm(W)X109.9mm(H)
Upgrade
WEB Upgrading
Packaging Details
- Unit Type:
- Package Weight: 4.000
- Package Size: 22x26x44
- Brand Name: AVINEER
- Hign-concerned Chemical: None
- Signal Connection Type: None
- Origin: Mainland China
- Simultaneous Interpretation: No
- Function: Voting
- Model Number: VK6
- Type: Network Conference System
