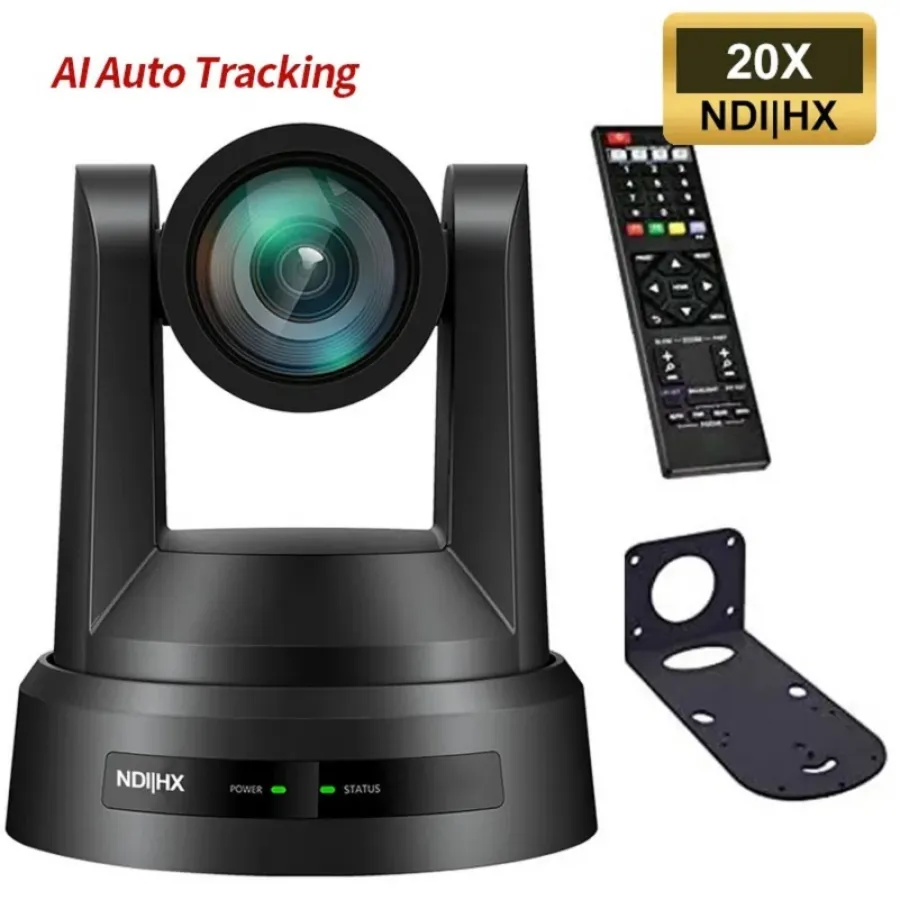

1080P60 20X NDI Camera HDMI SDI USB Webcam Live Streaming Camera PTZ vMix OBS Camera Video Conference Zoom
0.0 ( votes)
Price:
US $1236.40
Discount Price:
US $
989.12
-20%
Connectivity, creativity, and control of your video are easier than ever using your existing network infrastructure when you implement NDI. Software, computers, and networks are changing the way video is produced, making NDI the most widely adopted and used IP standard in the world. Today, you have compelling new opportunities to engage in visual storytelling within practically any environment.. with Avineer NDI PTZ Camera.

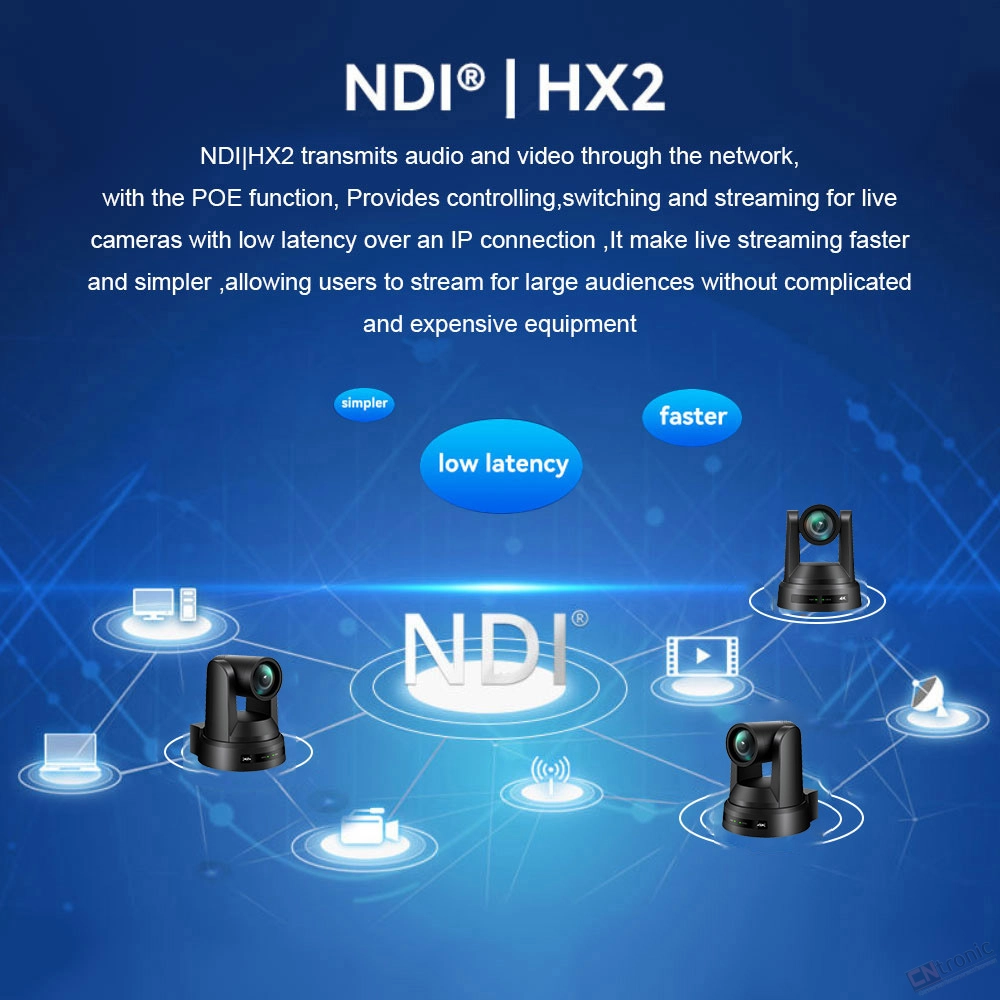

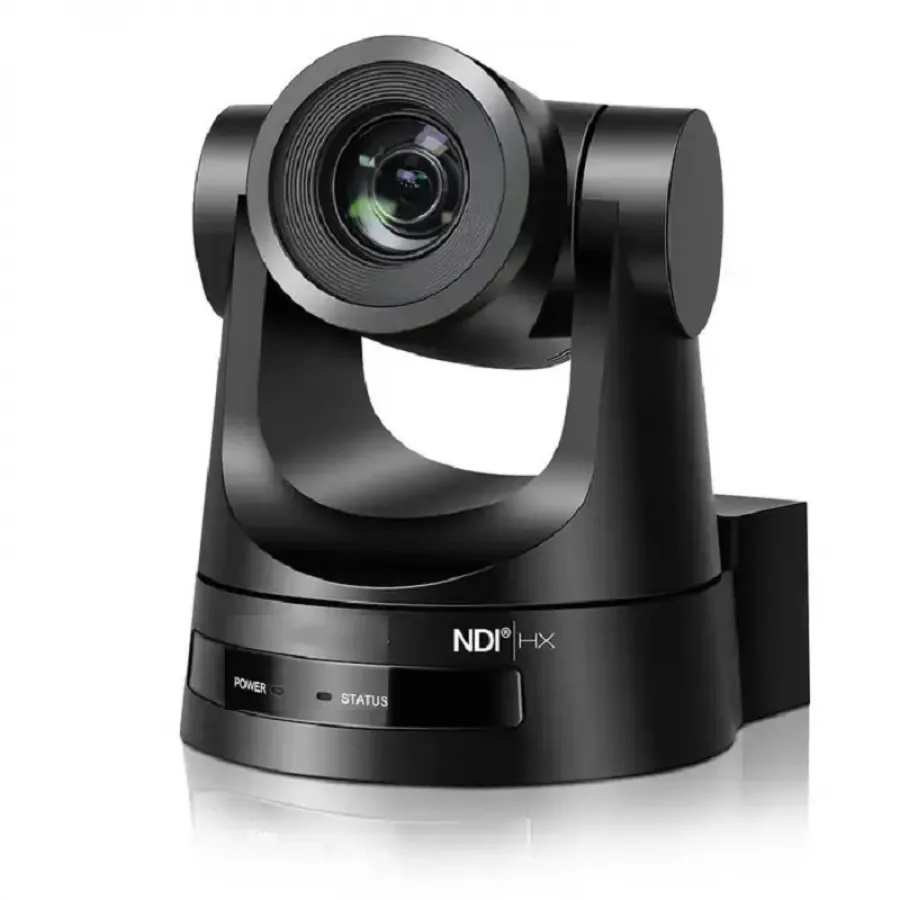

Avineer NDI Camera built-in NewTek NDI license streaming capable of low latency video streaming and PTZ control over NDI|HX Protocol. Simultaneous stream 3G-SDI, HDMI, IP, USB3.0, and NDI outputs complete the camera as a comprehensive solution, you can control it via your NDI workflow, IP web control, or integrate RS-485 and RS-232 serial control.
Full 1080P video output up to 60fps, Progressive COMS sensor captures the sharp and vivid color under different light conditions even in low light. Designed for even the smallest of spaces making it's ideal for houses of Worship, Classrooms, Corporate Training, Church Live Streaming, and Live productions and Events.

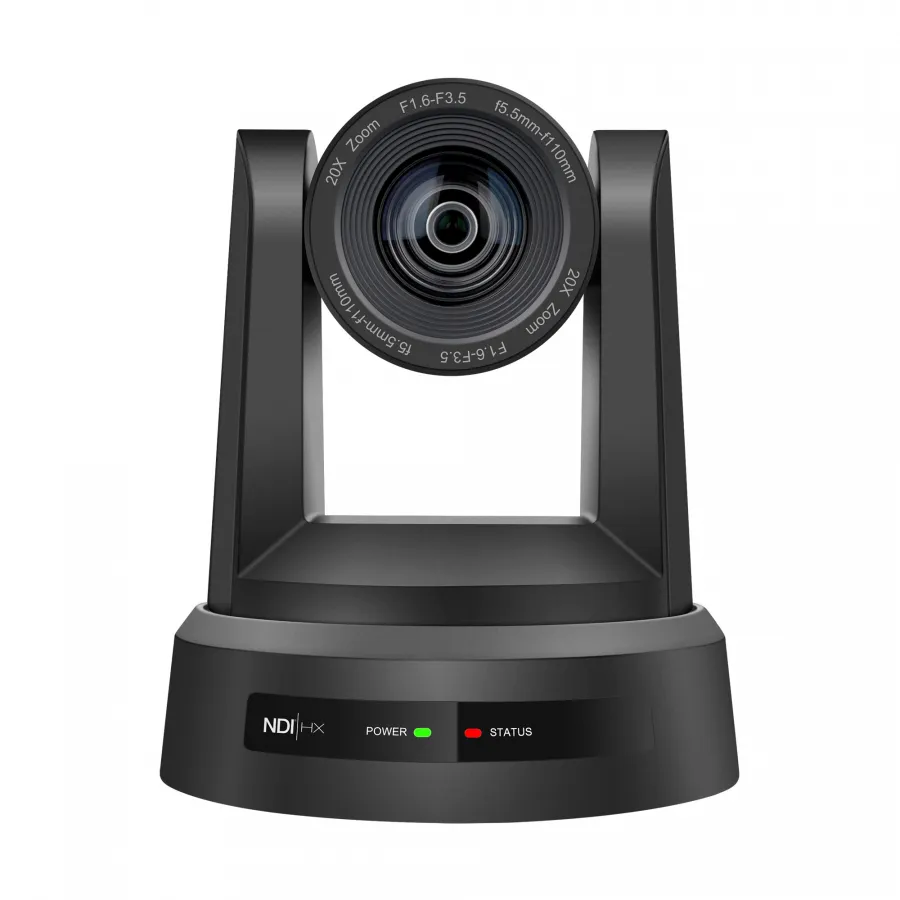

12X/20X optical PTZ camera features effective Pixel CMOS high speed and high precision autofocus technology providing accurate focus vital in 1080P capture. Great focus capture in the largest 30X zoom and better than other brands in the market.
The camera has multiple interfaces to support connection and expandability with various devices used in the field of video production and broadcasting, well compatible with Blackmagic ATEM MINI/PRO, IP Switcher(POE+Hub), IP/Vmix Controller, Monitor, and more. PoE 802.3AF enabled(48V), supports 12-15 watts.
The NDI Camera POE PTZ Camera offers perfect functions, superior performance, and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less-than-ideal bandwidth conditions. The NDI camera for Church, education, Live Streaming, Broadcast, and houses of worship.
NDI Camera with HDMI. Compatible with Blackmagic and PTZ IP controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and Facebook.
Auto Tracking POE Camera also with USB3.0, Compatible with Zoom, Webex, Skype, Hangout, etc. software and hardware, Plug and Play, it's very convenient to use.
1. Superb High-definition Image
It employs a 1/2.7″ high-quality CMOS, with efective Pixels: 2.38M. The resolution is up to 1920x1080 with a frame rate of up to 60fps. 12X optical zoom with 72.5 deg. wide angle lens.
2. Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), and automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect and perfect trinity image automatic adjustment.
3. Low Noise and High SNR
Low noise CMOS ensures a super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.

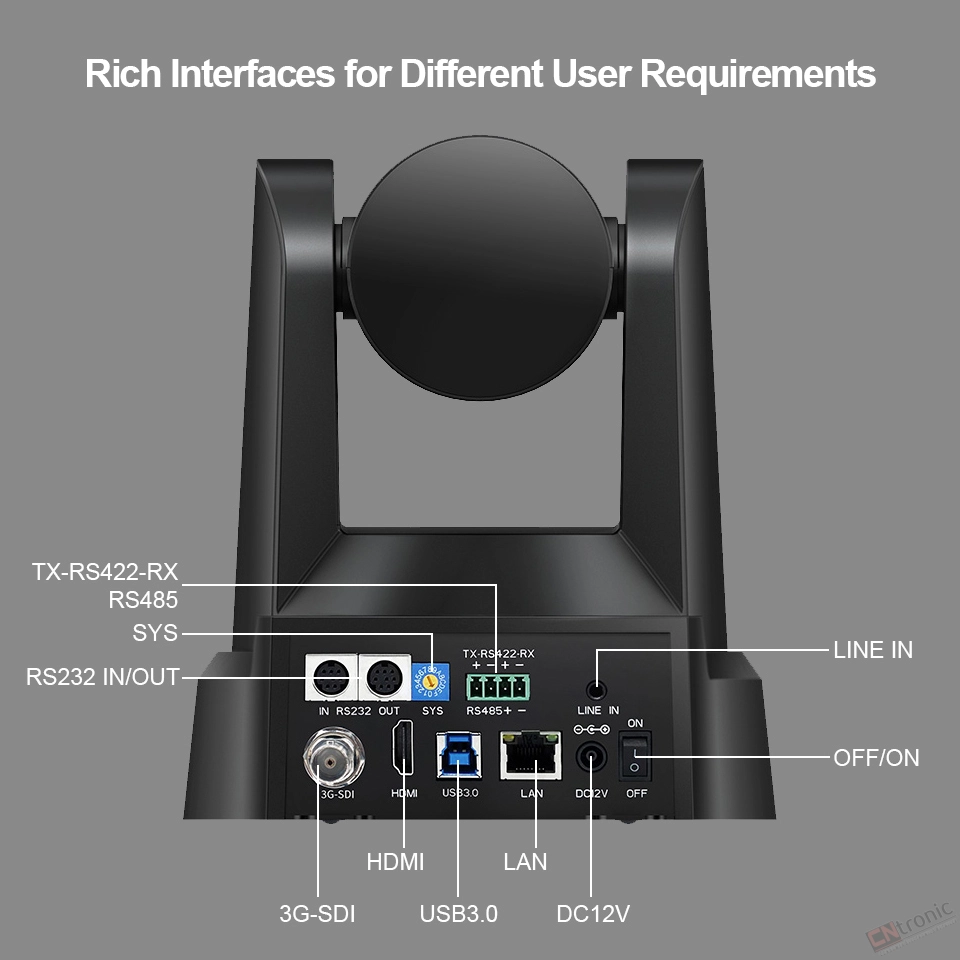

4. Multiple Video Output Interfaces
HDMI, 3G-SDI, USB 3.0, and LAN ports for video output. Both video and audio can be output from HDMI, 3G-SDI, LAN, and USB at the same time. The transmission distance of 3G-SDI 1080p60 is up to 100 meters.
5. Multiple Audio/Video Compression
LAN support H.264/H.265 video compression. Support 8000, 16000, 32000, 44100, and 48000 sampling frequency and AAC, MP3, G.711A audio coding.
6. Built-in gravity sensor
Built-in gravity sensor supports PTZ auto-flip function and is easy to install.
7. Multiple Network Protocol

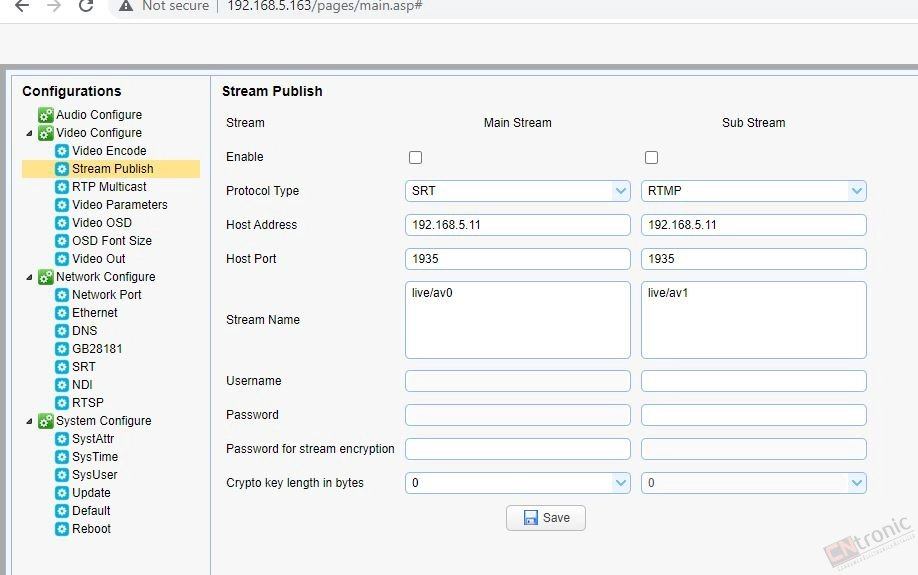

Supports ONVIF, GB/T28181, RTSP, and RTMP protocols; RTMP push mode, easy to connect to the streaming server (Wowza, FMS); supports RTP multicast mode and VISCA control protocol.
8. Multiple Control protocol
RS422 (compatible with RS485); RS232 in & out; RS232 supports cascade function
9. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision to ensure PTZ works smoothly and with no noise.
10. Multiple Preset
Support 255 preset positions (the remote controller is set to 10 preset positions).
11. Multiple Remote Controller
Users can choose to use an IR remoter or wireless remoter according to the working environment. The 2.4G wireless remoter will not be affected by angle, distance, or infrared interface. Support remoter signal pass-through function, which is convenient for back-end use.

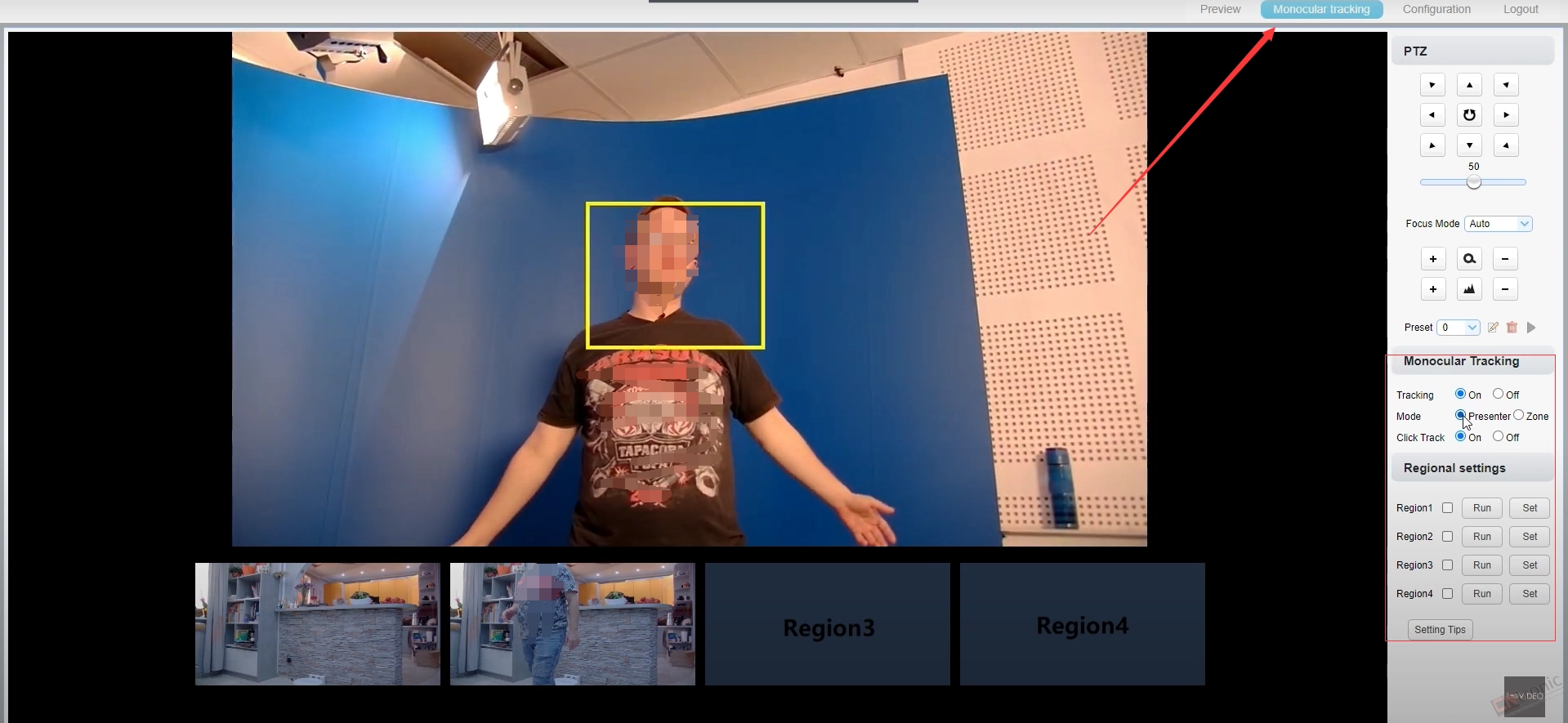

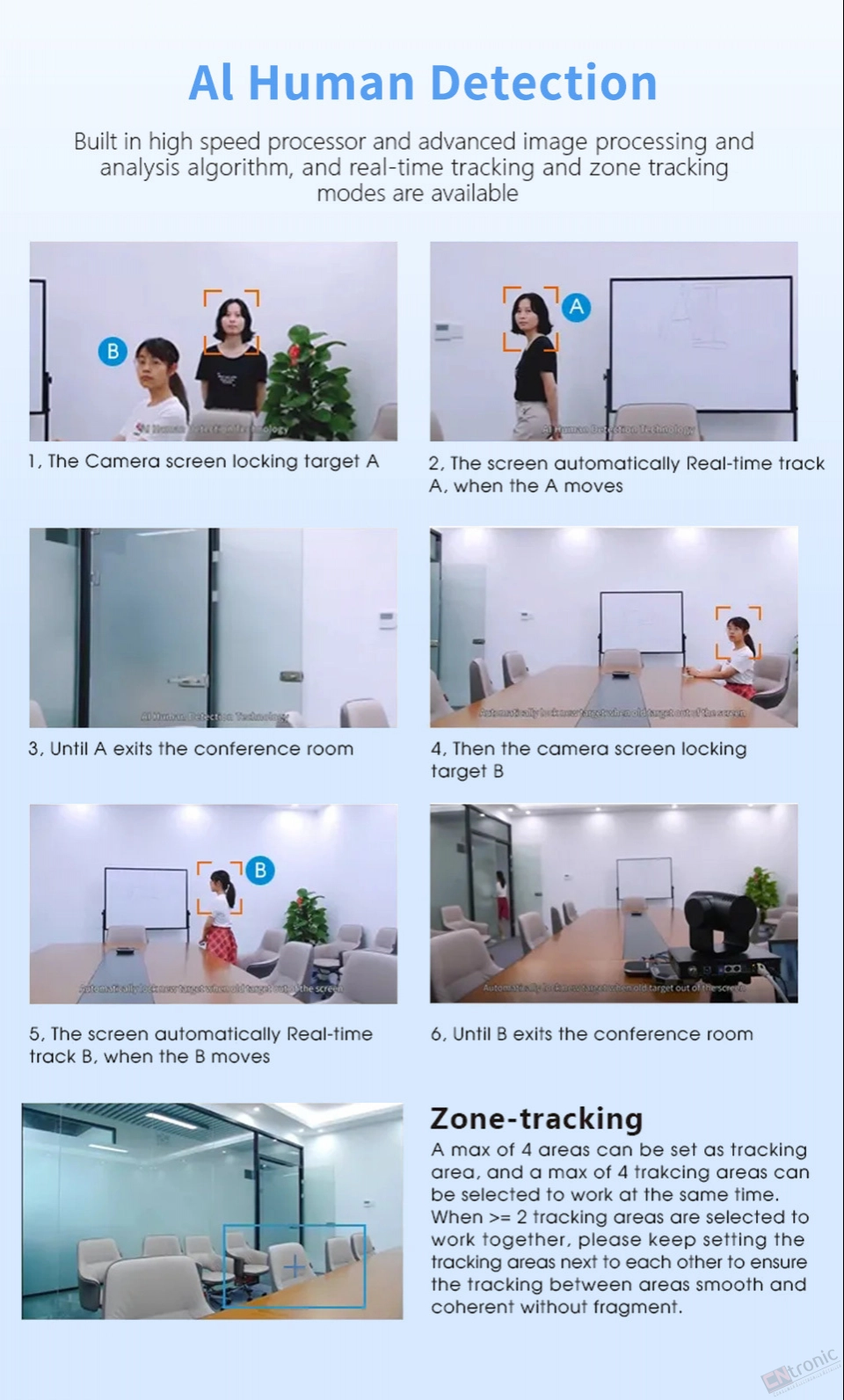

12. AI Tracking

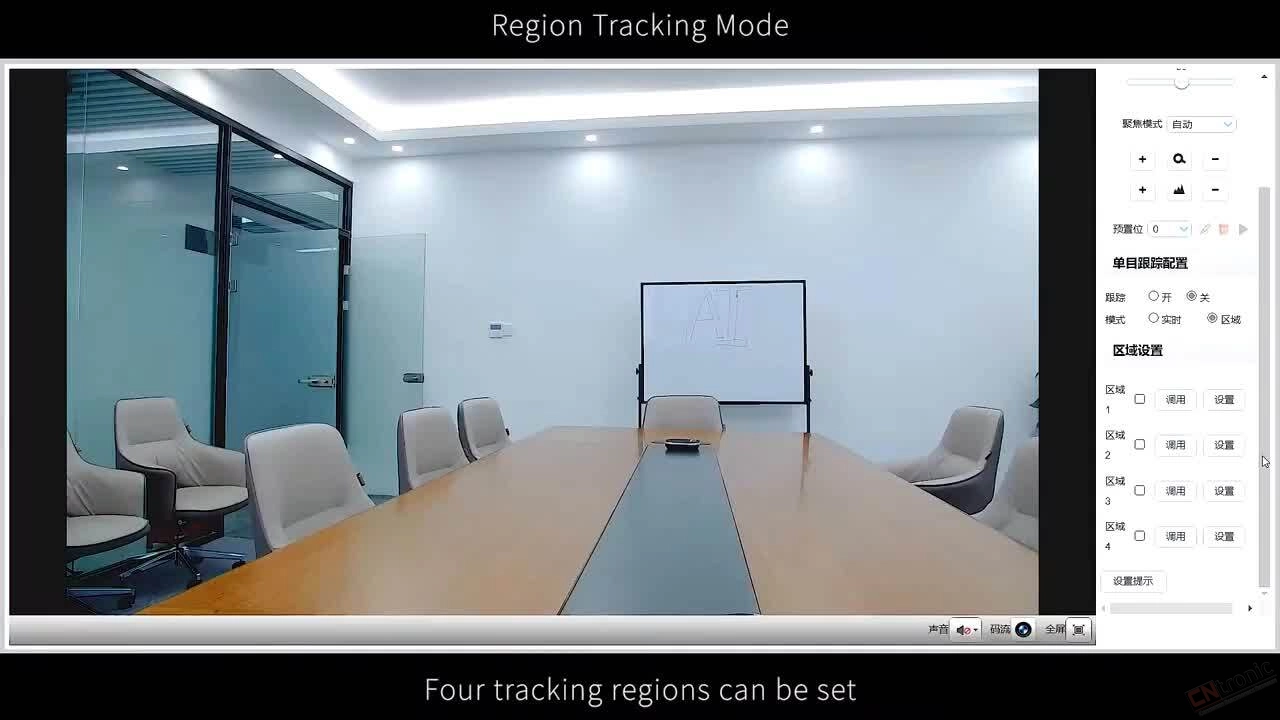

Built-in high-speed processor and the use of advanced image processing and analysis algorithms. Real-time Tracking and Zone Tracking modes are available.
13. Multiple Applications

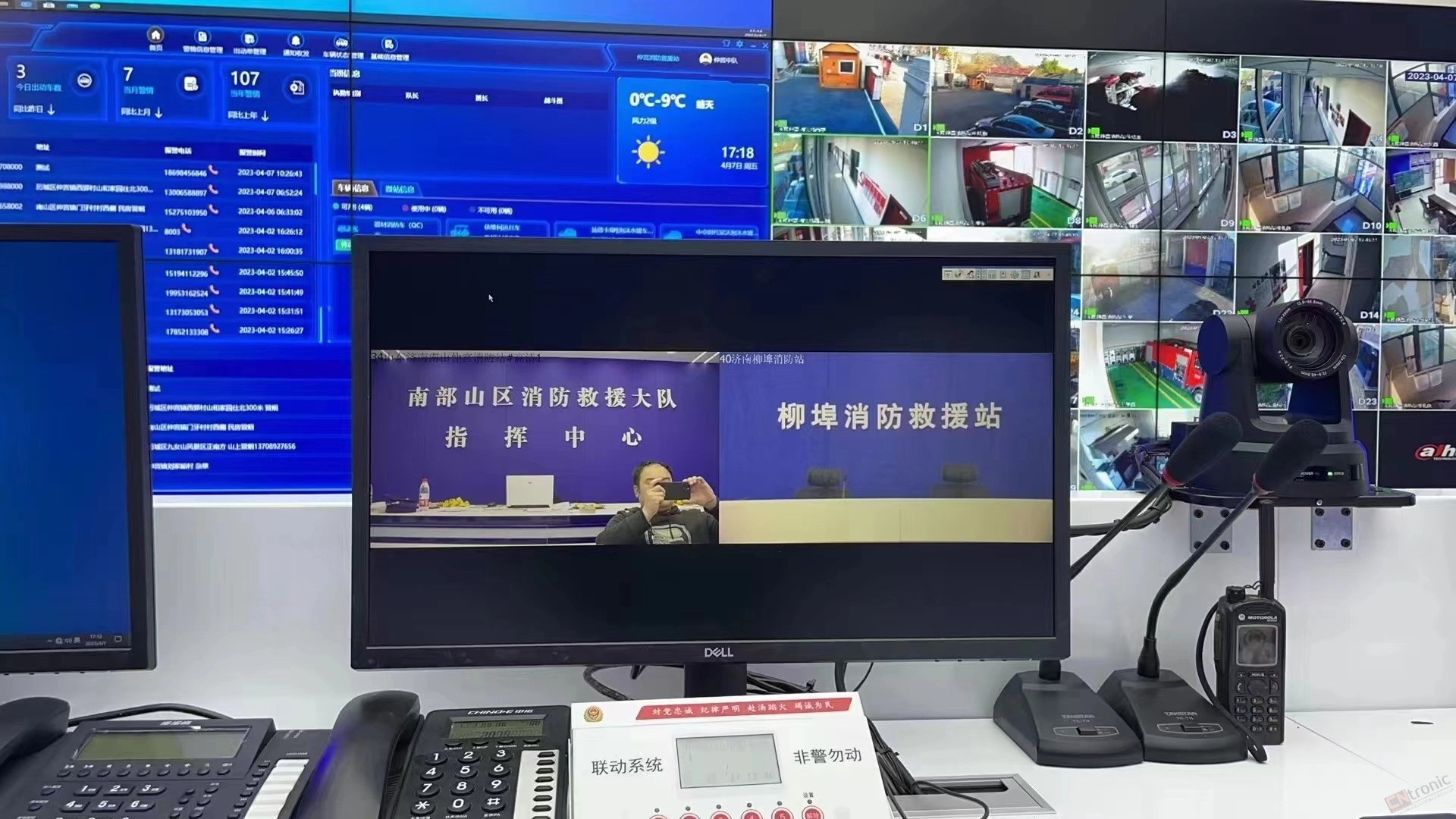

Online education, Lecture Capture, Broadcasting, Video conferencing, Telemedicine, Unified Communication, Emergency command and control systems, etc.
- Specifications:
Model
12X
20X
Camera Parameter
Optical Zoom
12X
4.1～49.2mm
20X
5.05～91.49mm
Sensor
1/2.7″EXMOR CMOS
Effective Pixels
16: 9, 2.38 Megapixel
Video Format
HDMI/SDI:
1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50,
1080P59.94, 1080P29.97, 720P59.94；
USB3.0:
Main Stream：YUY2/NV12:
1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×
180@30/25/20/15/10/5fps;
MJPG/H264:
1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720
×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
Sub Stream：YUY2/NV12:
1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×
180@30/25/20/15/10/5fps;
MJPG/H264:
1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720
×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
View Angle
72.5°(W)
6.57°(T)
58.6° (W)
3.6°(T)
AV
F1.8 – F2.68
F1.8～ F2.9
Digital Zoom
16X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ Specify color temperature
Focus
Auto/Manual/One Push Focus
Exposure mode
Auto/Manual/Shutter priority/ Aperture priority/Brightness priority
Aperture
F1.8 ～ F11 CLOSE
Shutter Speed
1/25～1/10000
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
≥50 dB
Input/Output Interface
Video Interfaces
HDMI, SDI, LAN (POE), USB3.0( Type B compatible with USB2.0),A-IN，RS232-IN/OUT, RS422 (compatible with RS485);
Video Compression Format
LAN Interface: H.265, H.264, Dual stream output
USB3.0 Interface: Both main stream and sub stream supports YUY2,MJPEG,H.264,NV12,H.265
Audio Input Interface
Double track 3.5mm linear input
Audio Output Interface
HDMI, SDI, LAN,USB3.0
Audio Compression Format
AAC/MP3/G.711A
Network interface
10m/100M/1000M adaptive Ethernet port, support POE and audio/video output
Network Protocol
RTSP, RTMP, ONVIF, GB/T28181;
Support Network VISCA control protocol；
Support remote upgrade, reboot, and reset
Control Interface
RS232 (IN/OUT), RS422 compatible with RS485
Serial communication protocol
VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
USB Communication Protocol
UVC（video),UAC（audio）
Power Interface
HEC3800 outlet (DC12V)
Power Adaptor
Input: AC110V-AC220V Output: DC12V/1.5A
Input Voltage
DC12V±10%
Input Current
Maximum: 1A
Power Consumption
Maximum: 12W
PTZ Parameter
Pan/Tilt Rotation
±170°, -30°～+90°
Pan Control Speed
0.1°/s～100°/s
Tilt Control Speed
0.1°/s～45°/s
Preset Speed
Pan:100°/sec, Tilt: 45°/sec
Preset Number
255 presets (10 presets via remote control)
Other Parameter
Stored Temperature
-10℃~+70℃
Stored Humidity
20%~95%
Working Temperature
-10℃~+50℃
Working Humidity
20%~80%
Dimension
143mm×176mm×169mm
Weight
1.3KG
Accessory
Package
Power Supply, RS232 Control Cable, USB3.0 cable, IR Remote Control, User Manual

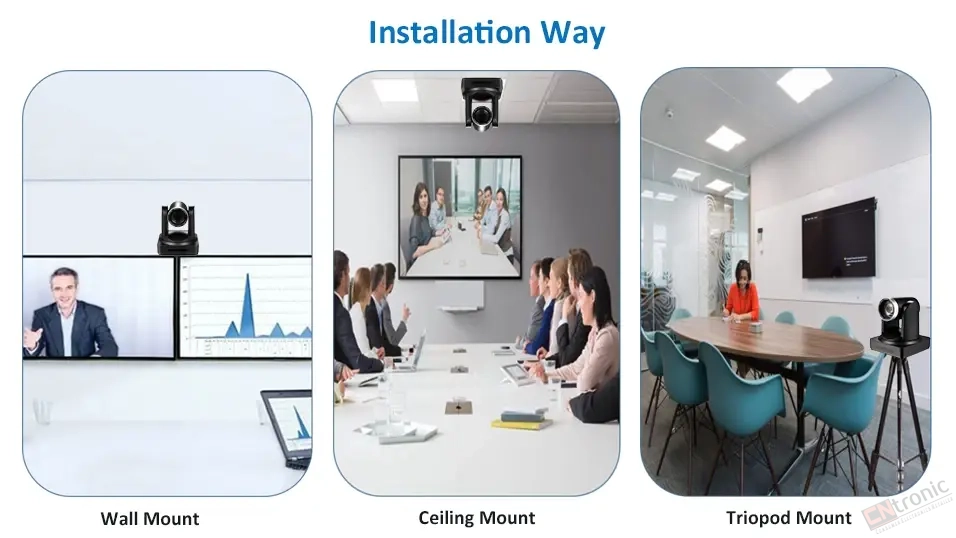

Ceiling/Wall Mount(Optional)
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 25x27x25
- Brand Name: AVINEER
- Hign-concerned Chemical: None
- Signal Connection Type: Infrared Remote Control
- Origin: Mainland China
- Simultaneous Interpretation: Yes
- Function: Translation
- Model Number: VC692N
- Type: Video Conference System
