Video conferencing camera 4k 60fps 12X Zoom AI tracking PTZ Live Streaming NDI 4K Video Camera with 4D Joystick Keyboard Controller

Main Features:

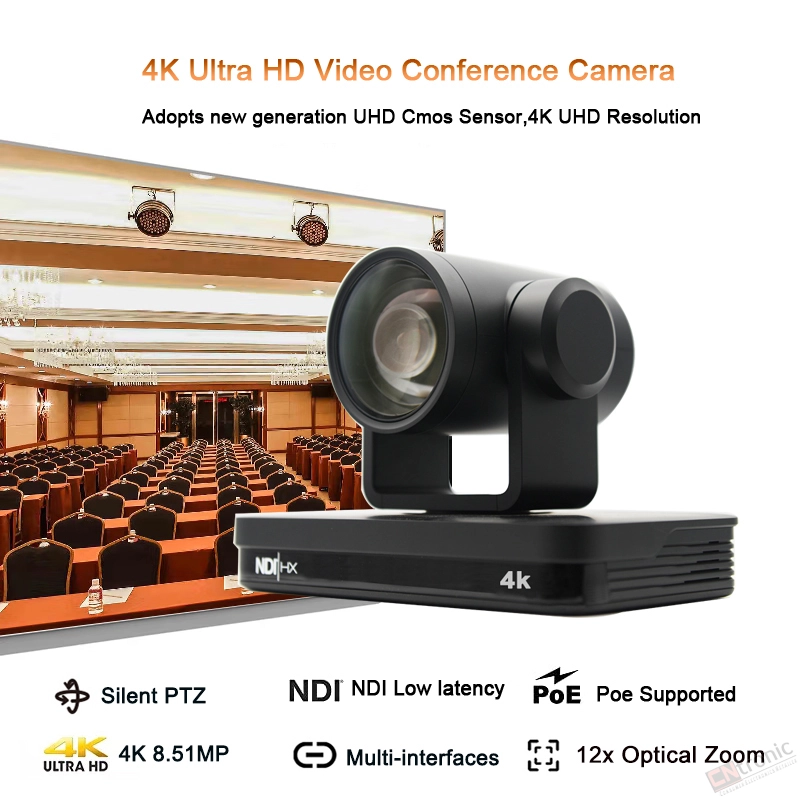

4K Ultra HD:4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840x2160) and compatible

with 1080P, 720P and other resolutions. 4K 60FPS

Dual Stream Output: USB support the main stream and sub stream output at the same time,

and can meet the needs of near-end and far-end.

Optical Zoom Lens: 12X optical zoom 80.4°wide-angle lens.

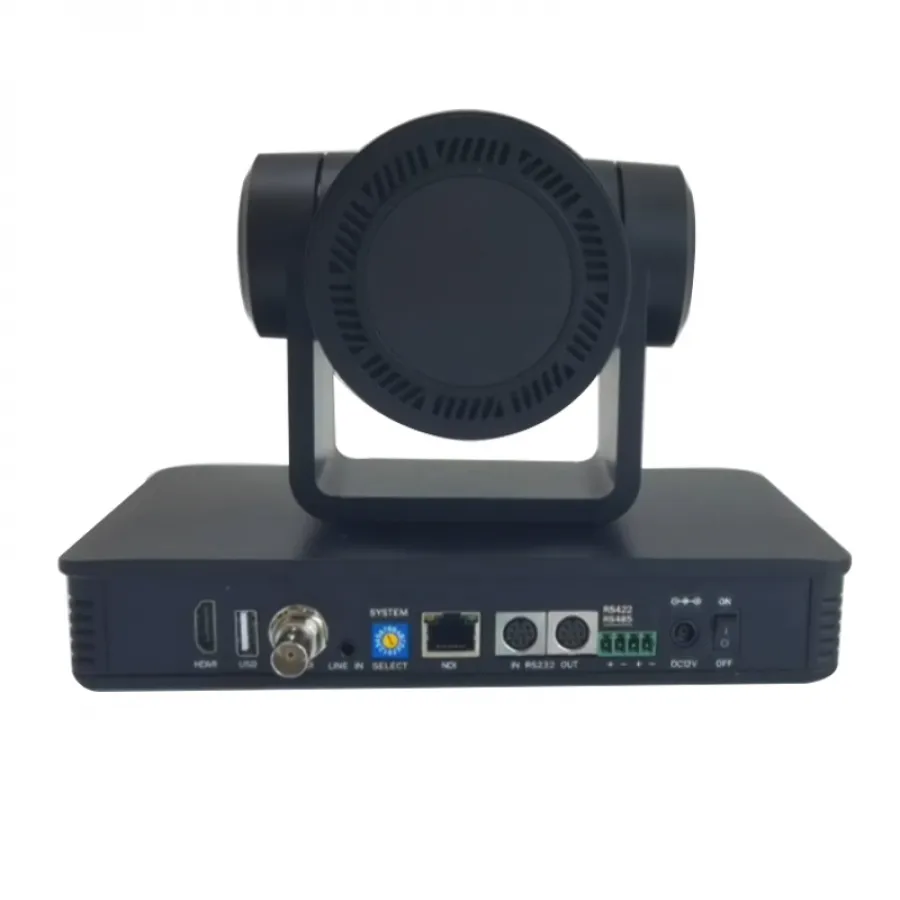

interfaces: Support HDMI, SDI, USB 2.0, LAN, and output 4K audio and video at the same time.

Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video compression,

USB3.0 interface supports MJPG, H264, YUY2, NV12, H265; A-IN interface supports AAC,

G.711A audio compression coding

AI Human Detection: Built in high speed processor and advanced image processing and analysis algorithm,

and real-time tracking and zone tracking modes are available.

Leading Auto Focus Technology

Advanced and leading algorithm enables the camera auto focus fast and accurately.

Low Noise and High SNR

Low noise CMOS ensures super high SNR image.

The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.

Multiple USB Compression Encoding Format:

YUY2,MJPEG,H.264,NV12video encoding formats

Multiple Audio Compression Standard

Audio-in supports AAC, MP3 and G.711A audio compression;

8000,16000,32000,44100,48000 sampling frequency

Multiple network protocol

Supports ONVIF, GB/T28181, RTSP, RTMP protocols;

RTMP push mode, easy to be connected to streaming server (Wowza,FMS);

RTP multicast mode; VISCA control protocol

Control Interface

RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection

Multiple Control Protocol

Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

Multiple preset

Up to 255 presets(10 presets for remote control).

Multiple Applications

Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine,

Unified Communication, Emergency command and control systems, etc.

Technical Parameter:

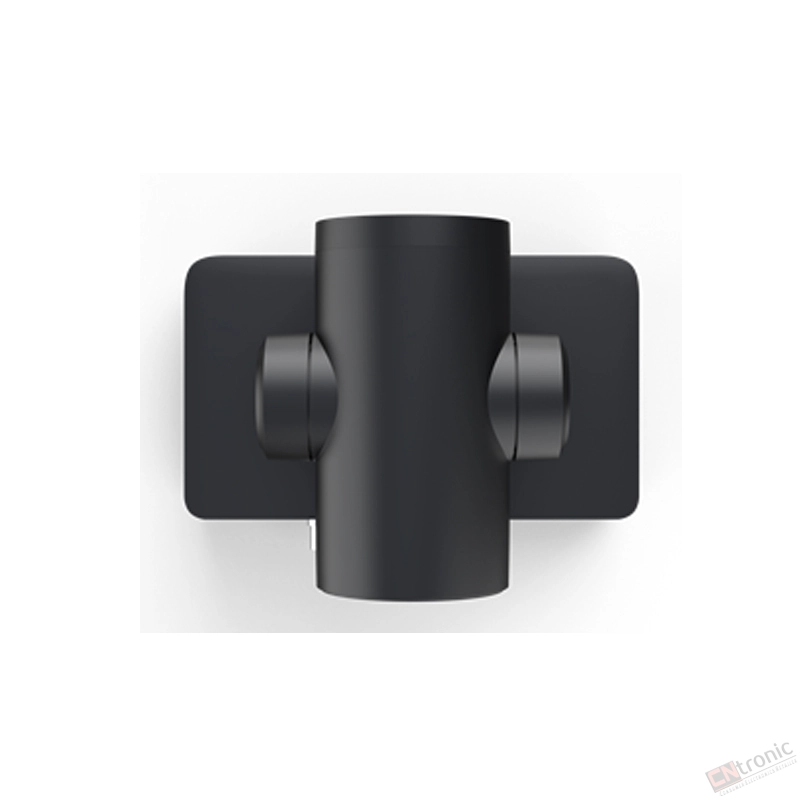

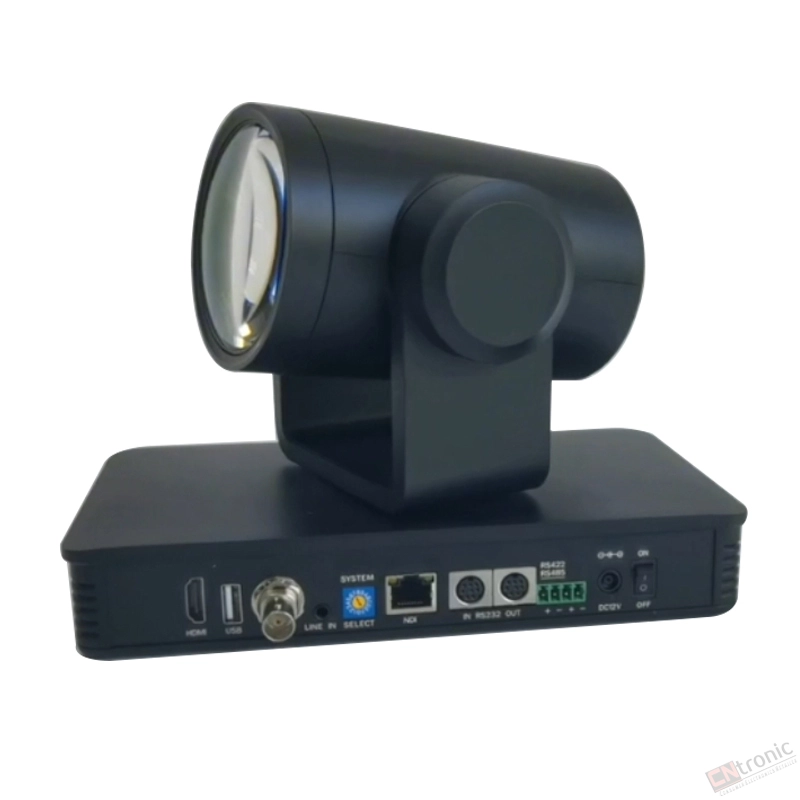

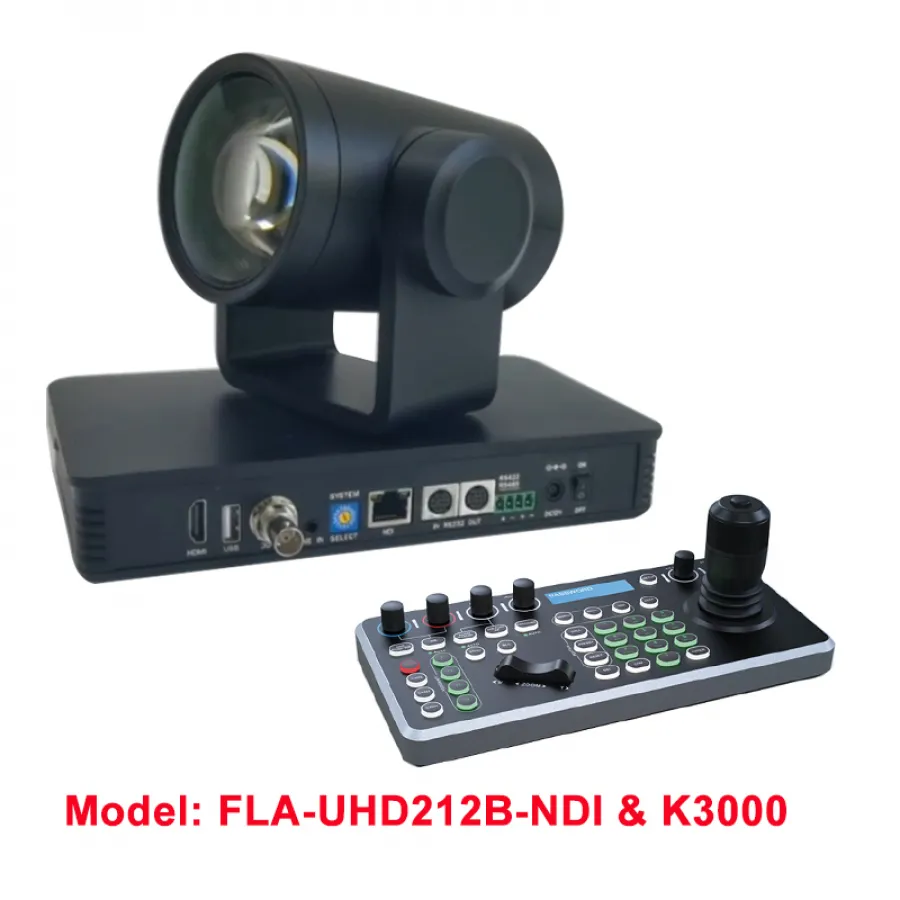

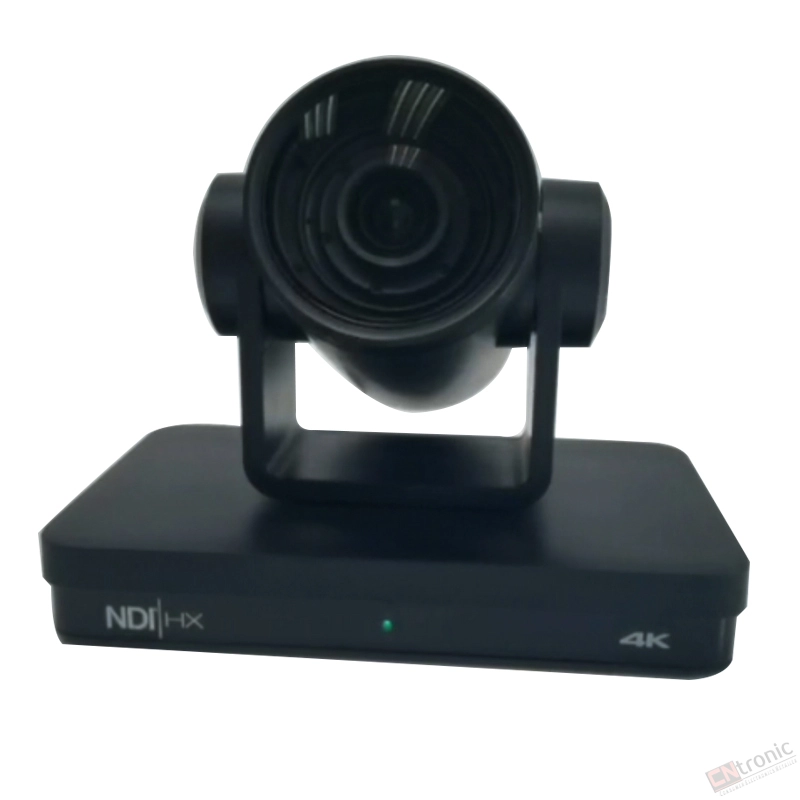

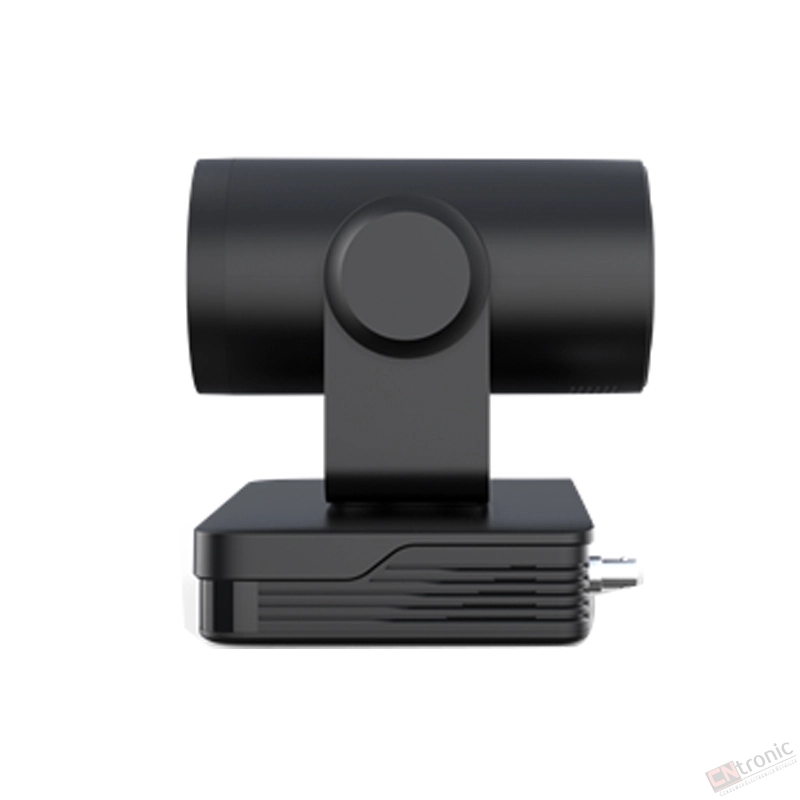

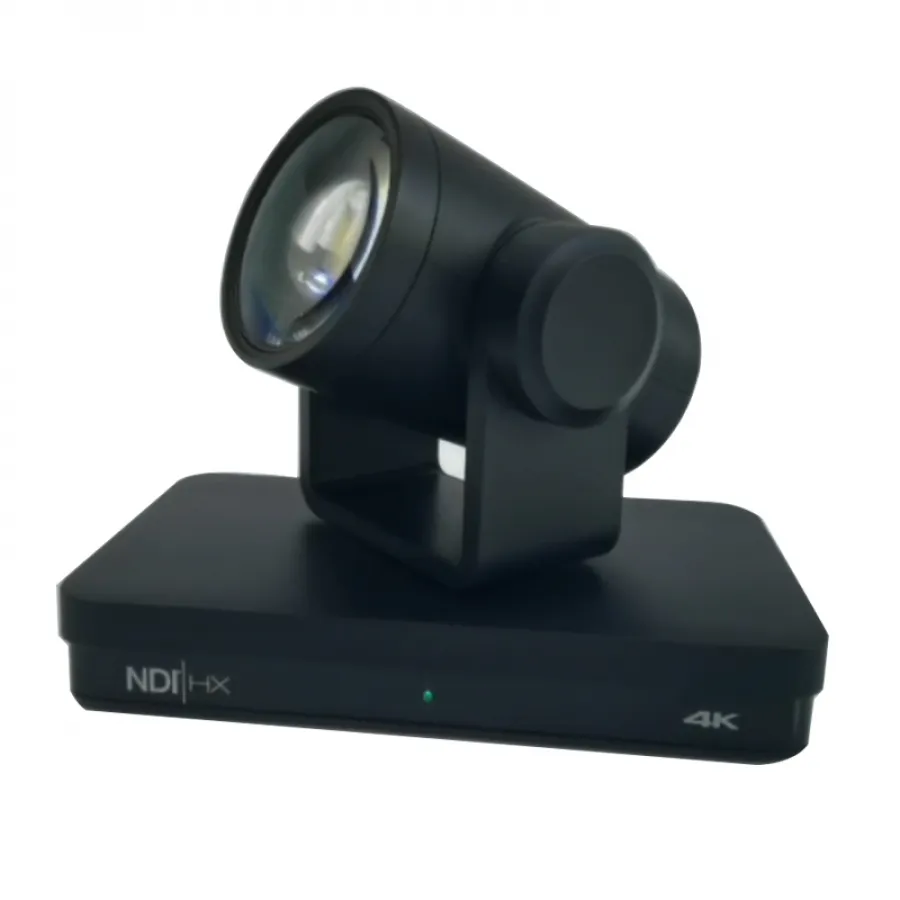

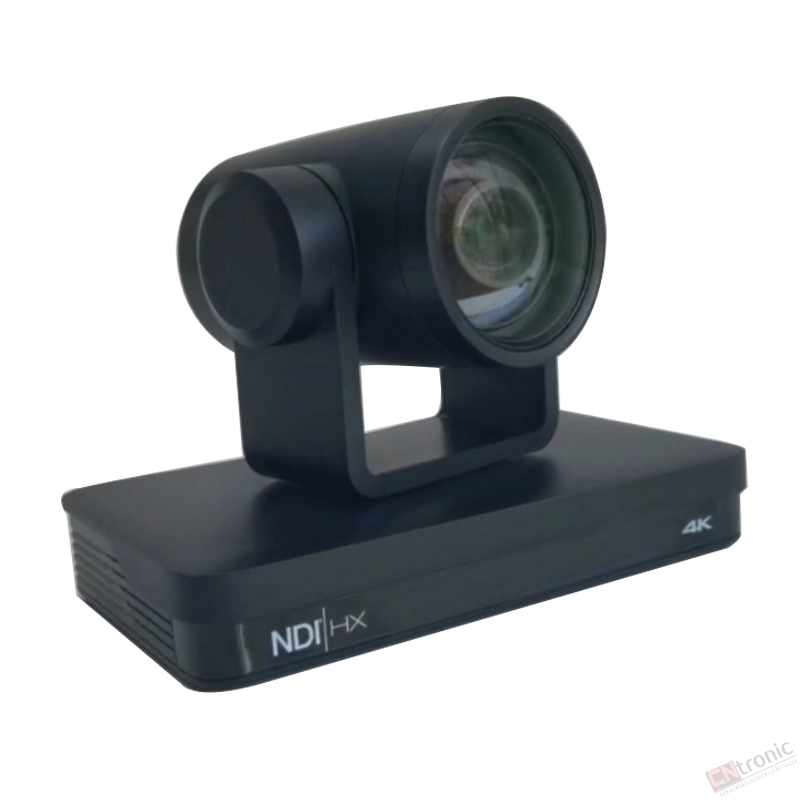

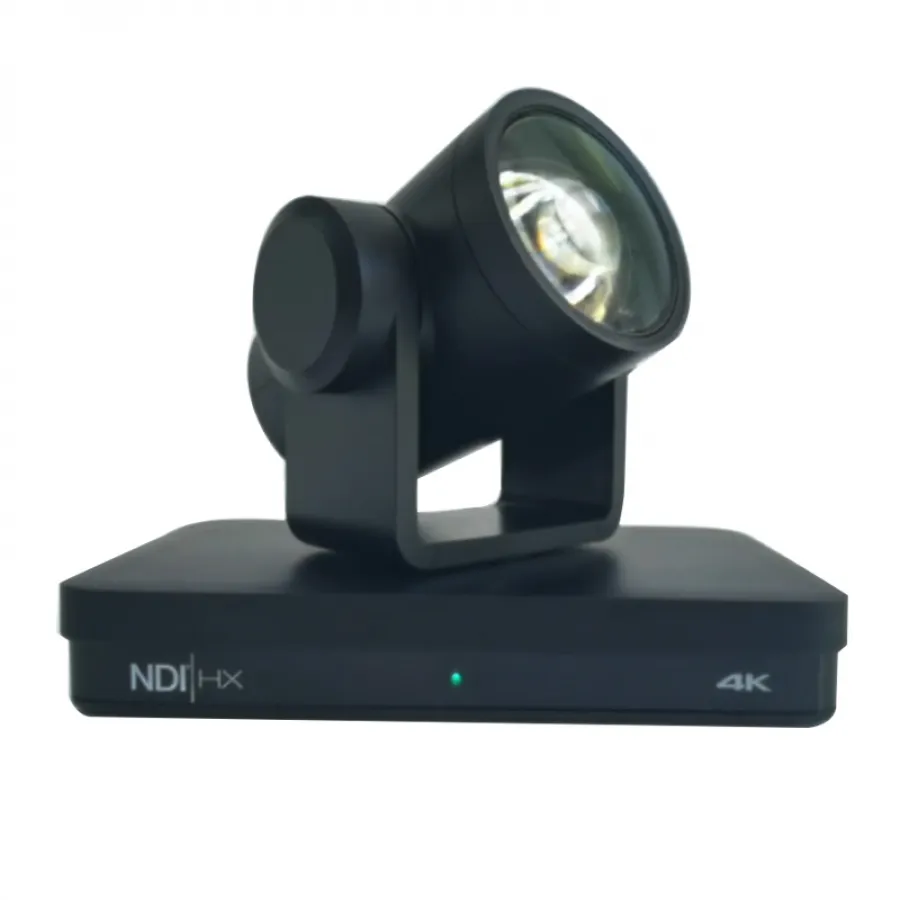

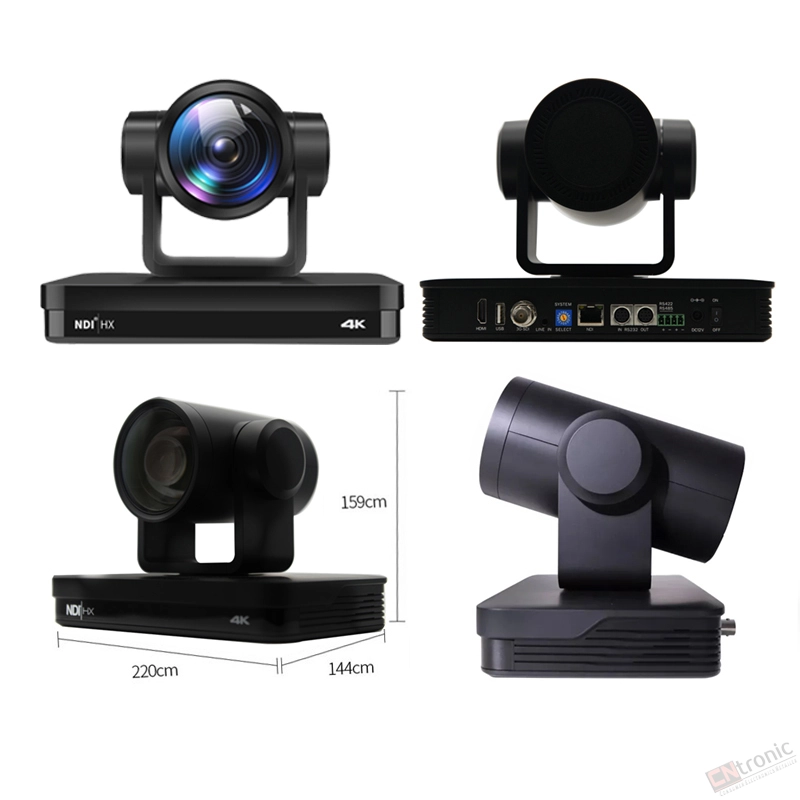

Product Photos:

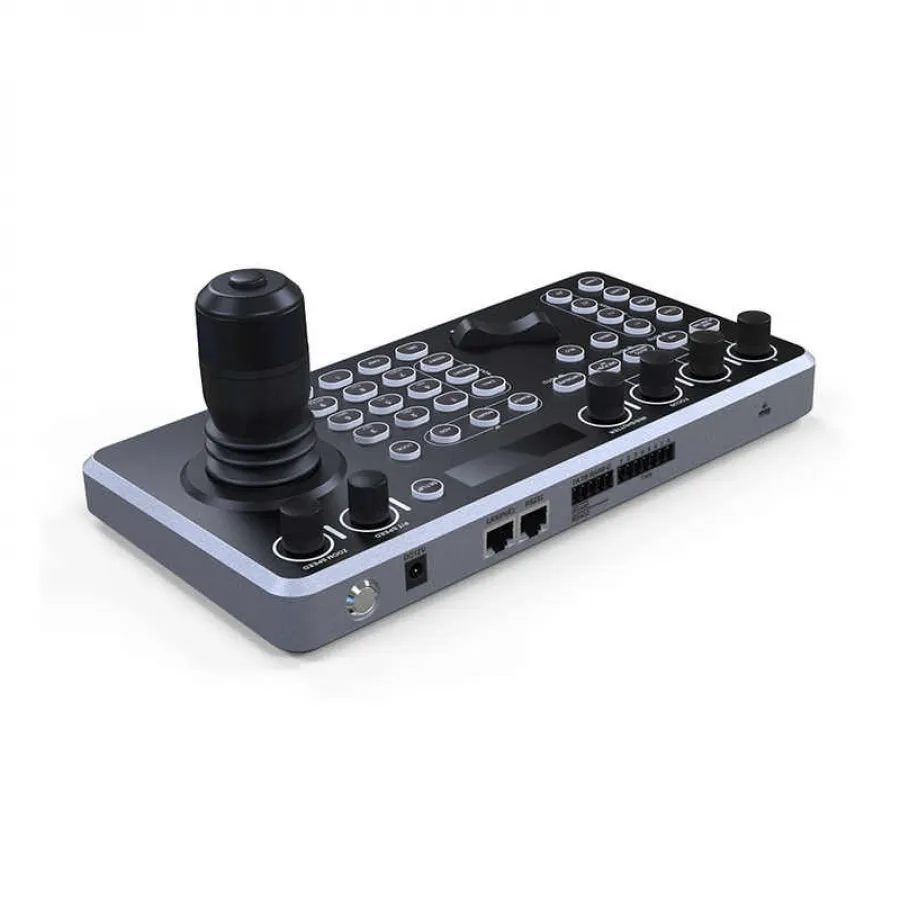

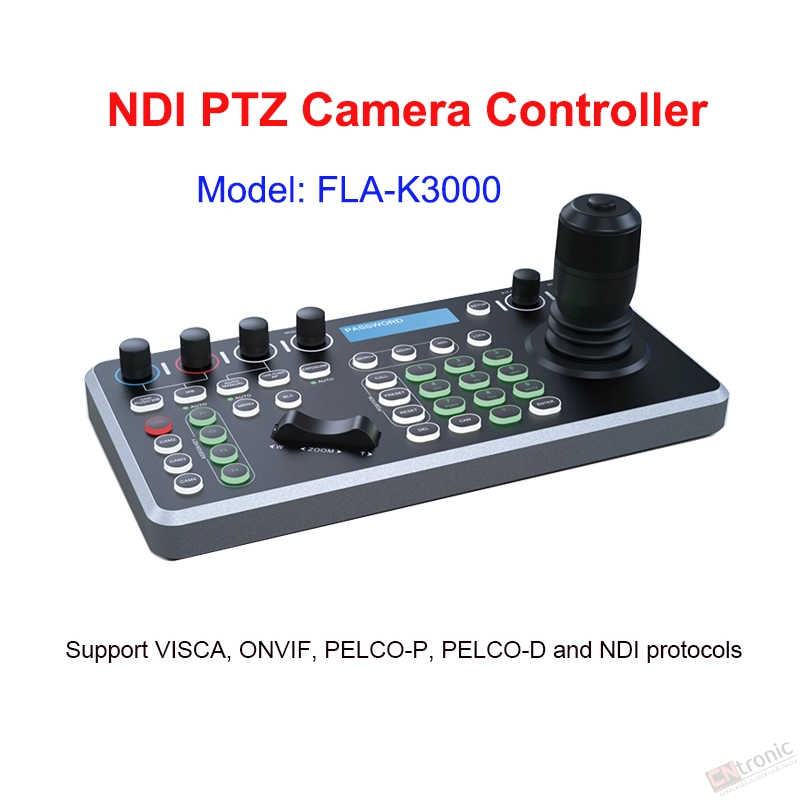

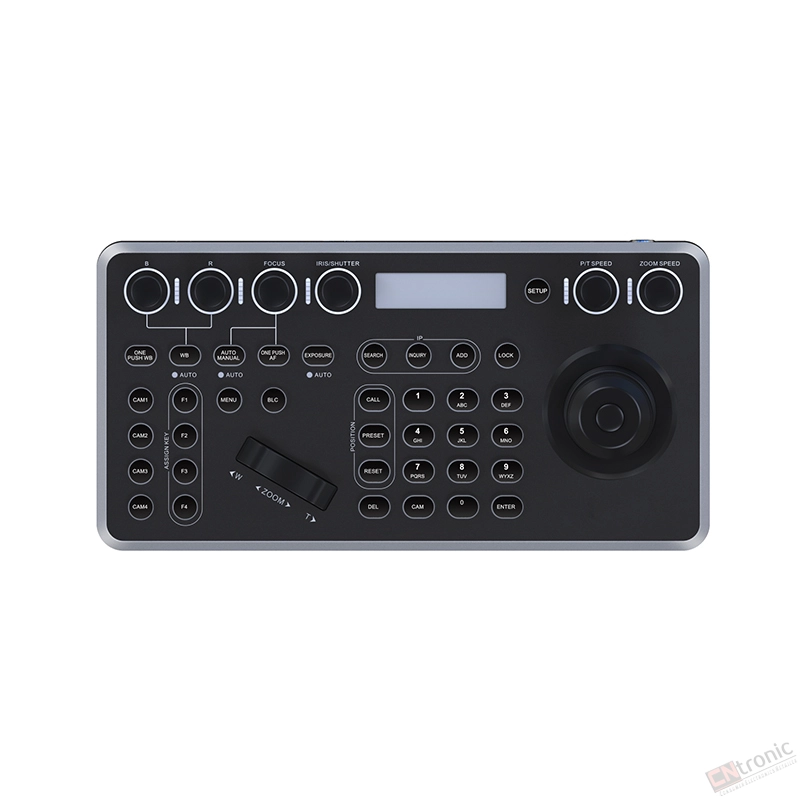

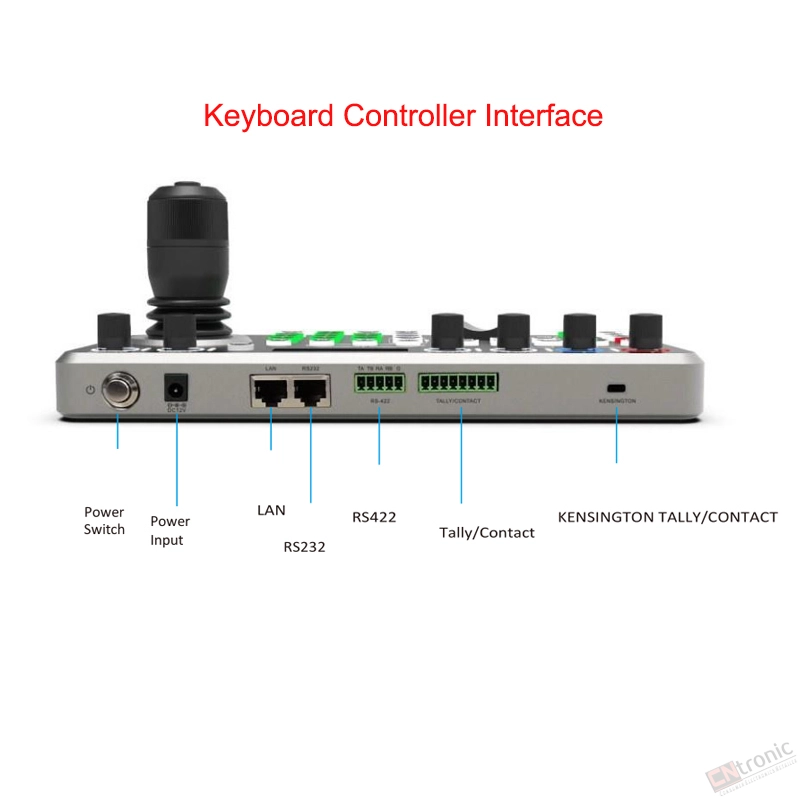

Keyboard Controller Details:

PelcoD Onvif Vmix IPVisca Network 4D Joystick NDI Keyboard Controller RS485 RS232 Control 255 PTZ Cameras

Introduction:

This camera controller has brand new design and adopts metallic panel with frosted film

upper shell and CNC oxidation lower shell. With powerful operation, it solves the troubles

while operating the camera via web. The adoption of industrial-grade LED module make the

display excellent and the character clear. This controller support VISCA, ONVIF, PELCO, and

NDI protocols, it fully compatible with VISCA with powerful extension. The web client terminal

makes the configuration interface simple and clear.

Application:

Video conferencing, conference system, teaching and video broadcasting, Tele-education, Tele-training, etc.

Main Features:

Support network and stimulation control methods. Dependent IP address available in

network mode.

Support VISCA, ONVIF, PELCO-P, PELCO-D and NDI protocols, and fully compatible with

VISCA.

With central control function, this controller can work on cameras’ software.

Adopting four-dimensional rocker, and the texture is comfortable. Twisting the rocker

can directly control the camera in all directions. The lens can be zoomed in and out, and

the strength of joystick control can determine the control speed.

 IE browser can add configuration of front-end equipment

This controller provides four instant access to control cameras and 255 cameras can

be quickly switched through a simple tap.

Support Power over Ethernet

Five control modes available( 3 IP control plus 2 serial port control)

Five control protocols: IP (ONVIF, IPVISCA, NDI) Stimulation (PELCO, VISCA)

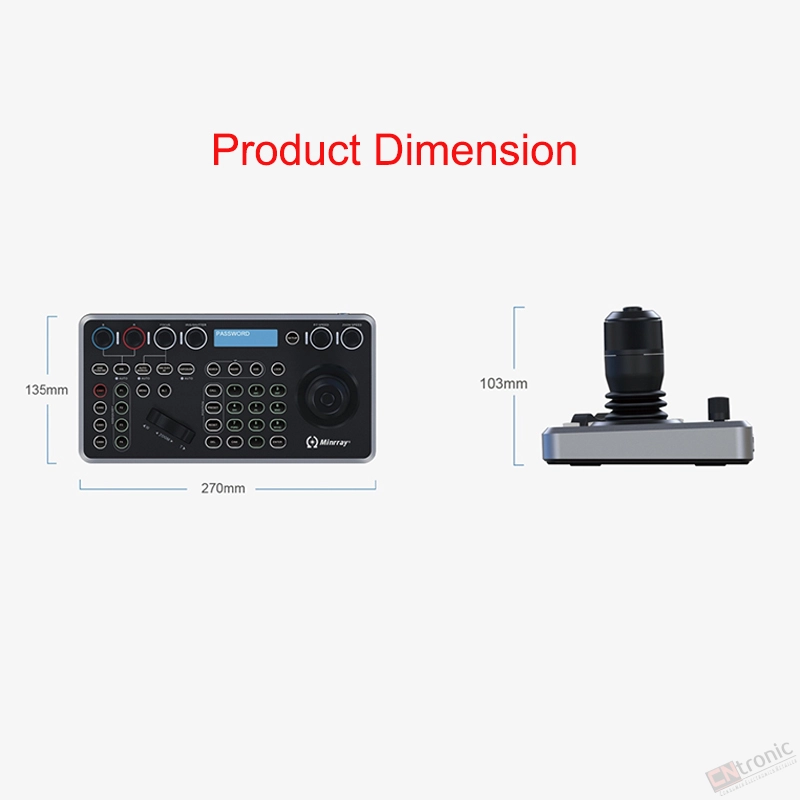

Technical  Parameter:

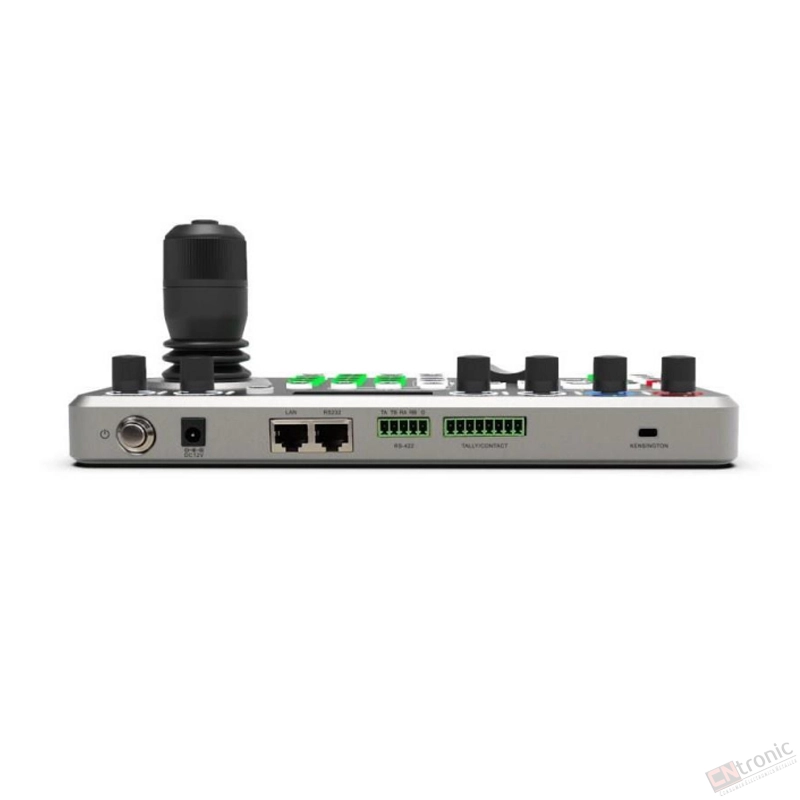

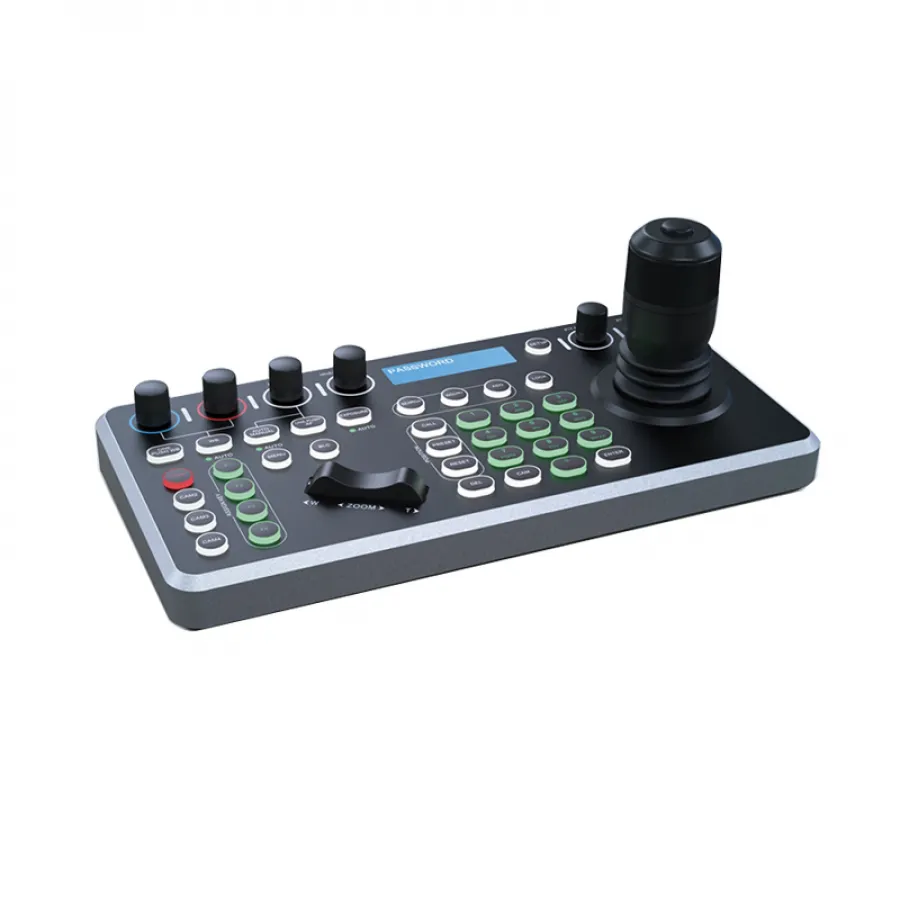

Product  Photos:
