4K 12x Optical Zoom Auto Lecturer Speaker Tracking Voice Locating PTZ Camera with speaker and microphone For Business/Education
2,869.74 1,836.64 $
SALE
ID: 129483
Quantity
Professional 4K@30fps Conference System PTZ Video Camera 12X Zoom HDMI SDI IP USB3.0 Output for Education Class Training Meeting
0.0 ( votes)
Price:
US $2784.32
Discount Price:
US $
1670.60
-40%
Professional 4K@30fps Conference System PTZ Video Camera 12X Zoom HDMI SDI IP USB3.0 Output for Education Class Training Meeting

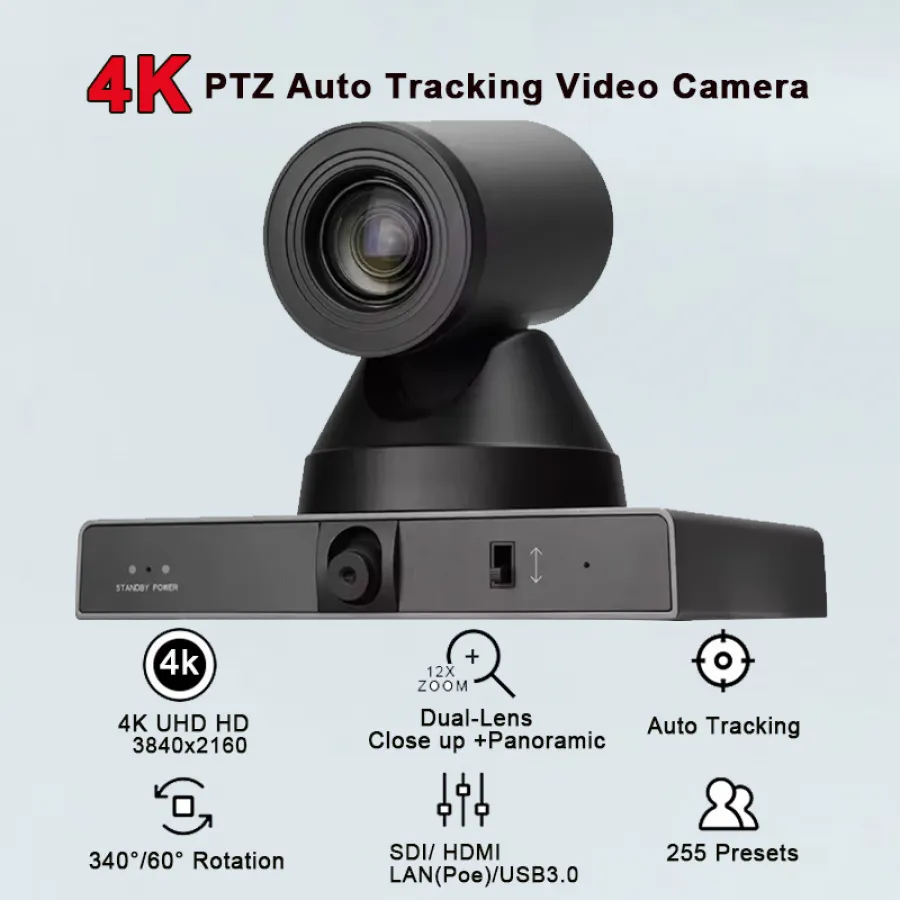

Main Features:
All-in-One Design
Integrated design, can output panoramic and close-up multi-channel HD video at the same time.

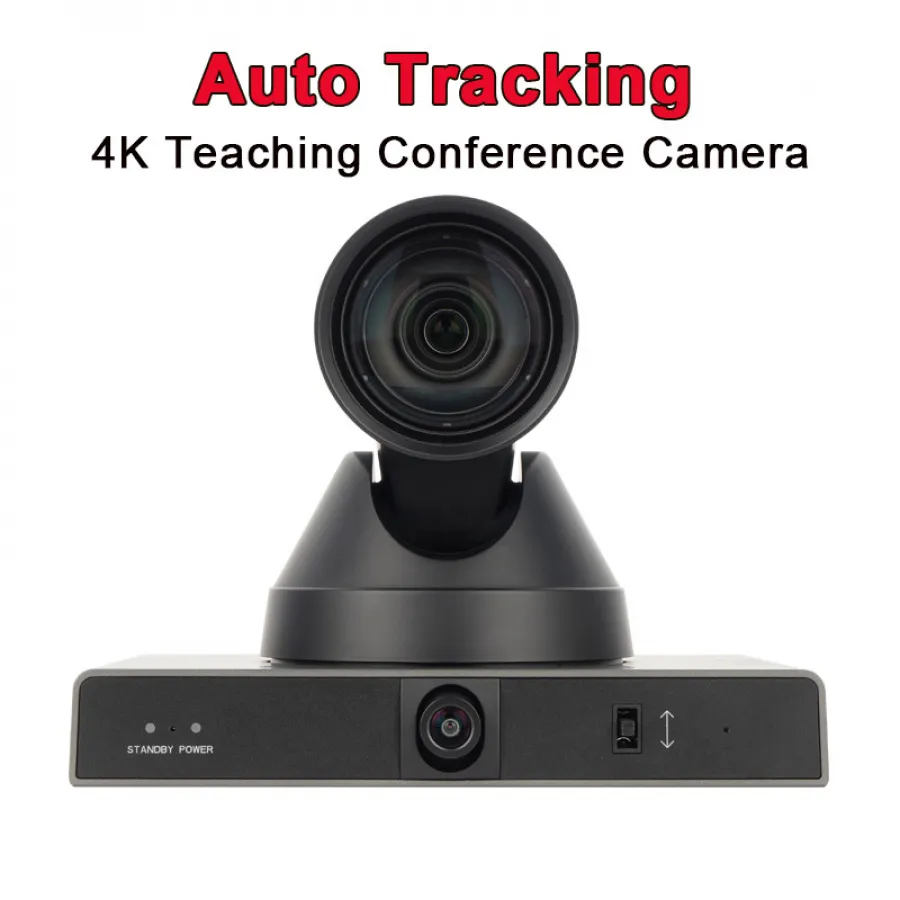

AI Intelligent Tracking
Built-in leading image recognition and tracking algorithms, without any auxiliary positioning camera or tracking host, to achieve smooth and natural tracking effect, different cameras are assembled before production, thus realizing tracking requirements in various scenarios.
4K UHD
Using a 1 / 2.5 inch high-quality UHD CMOS sensor with a maximum size of 8.51 million pixels, it can achieve 4K (3840x2160) high-resolution high-quality images. And backward compatible with multiple resolutions such as 1080P, 720P
Adjustable Viewing Angle

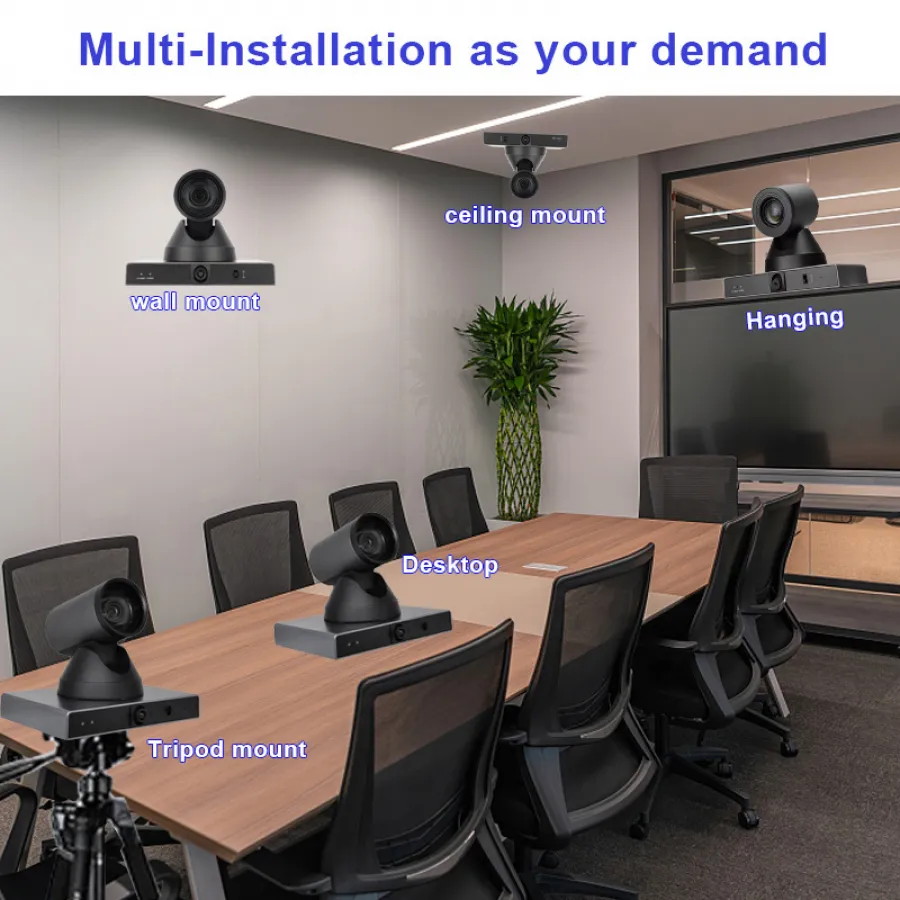

Panorama camera can adjust viewing angle in vertical(-15°~ +15°), so as to convenient for installation and debugging.
71 ° wide-angle lens + 12x optical zoom
Exclusive custom high-quality true 8 million ultra-high-resolution 4K ultra-wide-angle lens with 12x optical zoom and horizontal field of view up to 71 °.
Multiple interfaces
Support hdmi2 0 HD output, equipped with 3g-sdi interface, with an effective transmission distance of up to 150m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time.
Built-in microphone
Built-in microphone array, omnidirectional pickup, pickup distance up to 6 meters, unique noise suppression algorithm, perfect speech presentation
Built-in G-sensor（optional）
Support automatic image flip function, convenient for engineering installation
Technical Parameters:
Model Number | FLA-UH812B |
Close-up camera | |
Resolution | HDMI：4K@30fps, 4K@25fps, 4K@29.97fps1080P@30fps,1080P@25fps SDI：1080P@30fps,1080P@25fps |
Sensor | 1/2.5 inch, CMOS, 8.51 million effective pixels |
Lens | 12x, f=4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
Digital Zoom | 16x |
Low illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/30s~1/10000s |
White Balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature |
BLC | Support |
DNR | 2D & 3D DNR, ≥55dB |
Horizontal field of view | 71° ~ 8.2° |
Vertical field of view | 42.7° ~ 4.5° |
Pan Rotation | ±170° (speed: 1.61° ~ 75.56° /s) |
Tilt Rotation | ±30° (speed: 0.44° ~ 15° /s) |
Qty of preset positions | 255 |
Accuracy of Preset | 0.1° |
Image Freeze | Support |
Horizontal/vertical Flip | support |
Panoramic camera | |
Resolution | HDMI：4K@30fps, 4K@25fps, 4K@29.97fps1080P@30fps,1080P@25fps SDI：1080P@30fps,1080P@25fps |
Sensor | 1/2.5 inch, CMOS, 8.51 million effective pixels |
Scanning Method | Progressive scanning |
HD Output | 1xHDMI 2.0 |
Lens interface | M12 |
Lens Type 1 | f=8mm, H FOV 48° |
Lens Type 2 | f=1.97mm, H FOV 107° |
Low illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter speed | 1/30s~1/10000s |
White balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature |
DNR | 2D & 3D DNR, ≥55dB |
BLC | support |
Image Freeze | support |
Horizontal/Vertical Flip | support |
Network characteristics | |
Video coding standard | MJPEG / H.264/H.265 |
Video stream | The first stream, the second stream |
Resolution of 1ststream | 3840x2160, 1920x1080, 1280x720, 1024x576 |
Resolution of 2ndstream | 3840x2160, 1920x1080, 1280x720, 1024x576 |
Video bit rate | 32Kbps ~ 51200Kbps |
Rate control | Variable bit rate, fixed bit rate |
Frame rate | 50Hz: 1fps-25fps 60Hz: 1fps-30fps |
Audio compression standard | AAC, G711A |
Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
Supporting agreement | TCP/IP, HTTP, RTSP, RTMP/RTMPS, Onvif, DHCP, SRT, GB/T28181 |
USB Features | |

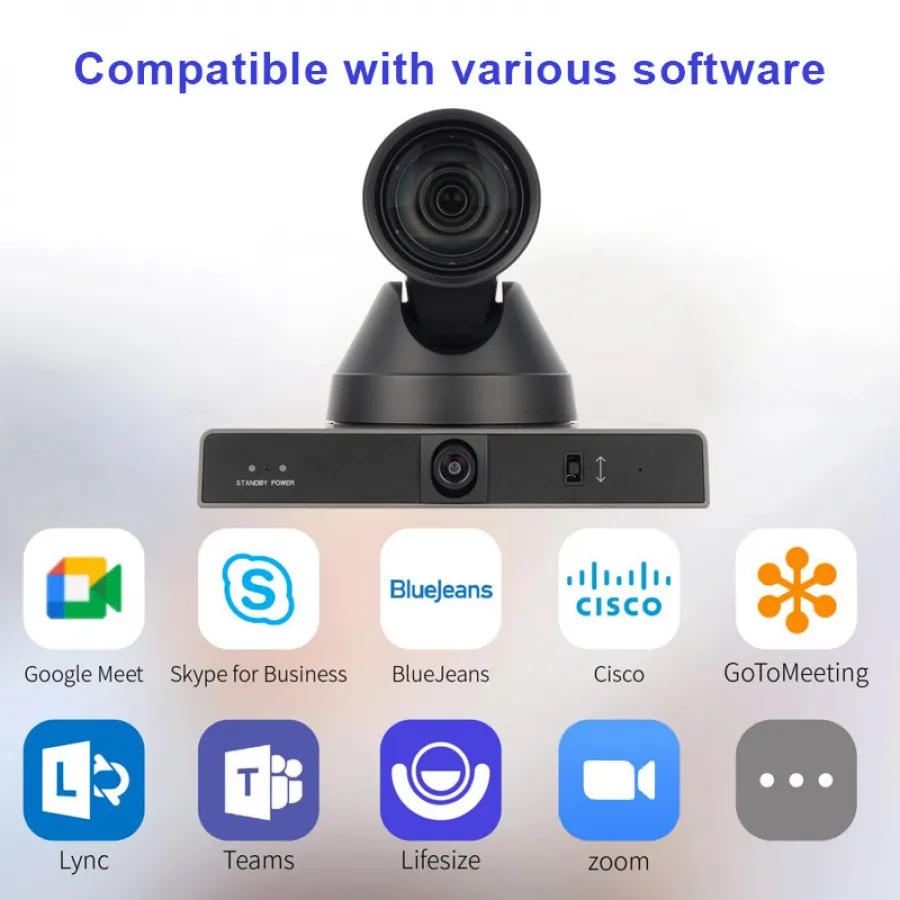

Support system | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux |
Color space | YUV / H.264 / MJPEG / H.265 / NV12 |
Video format | YUY2 : 1080P@30fps max. H.264 AVC: 2160P@30fps max. H.264 SVC: 2160P@30fps max. MJPEG: 2160P@30fps max. H.265: 2160P@30fps max. |
USB Audio | support |
USB Video communication protocol | UVC 1.1 ~ UVC 1.5 |

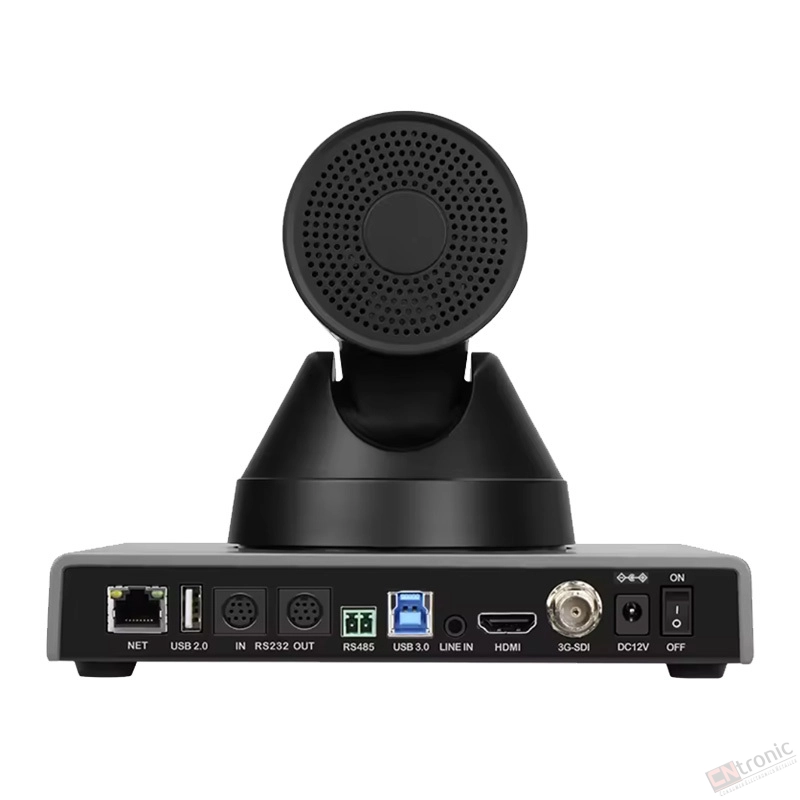

Input/Output interfaces | |
HD Output | 1xHDMI 2.0 1x3G-SDI: BNC type, 800mVp-p, 75Ω, follow SMPTE 424M standard |
Audio interface | 1xLine In, 3.5mm DC Jack |
Network interface | 1xRJ45: 10M/100M/1000M Ethernet interface |
USB Interface | 1xUSB3.0, type B 1xUSB2.0, type A |
Communication interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
Power Jack | 1xDC-005/Φ2.0 type（DC IN 12V） |
General Specification | |
Input voltage | DC 12V/PoE+(802.3at) |
Input Current | 2.0A |
Power Consumption | 12W (max.) |
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
MTBF | >30000hours |
Size | 200mm x 150mm x 165mm |
Weight | 1.76KG |

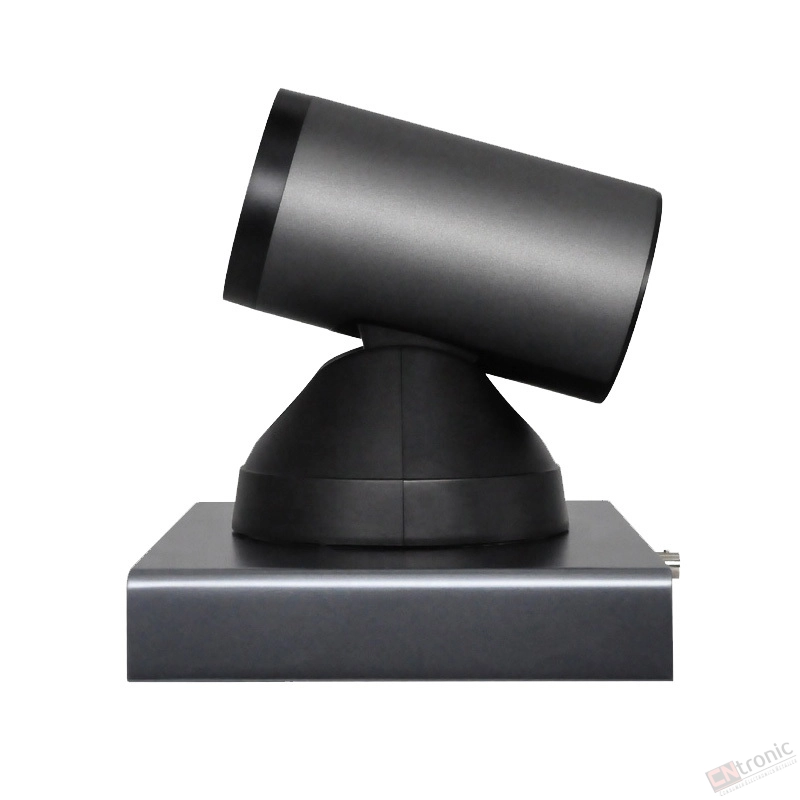

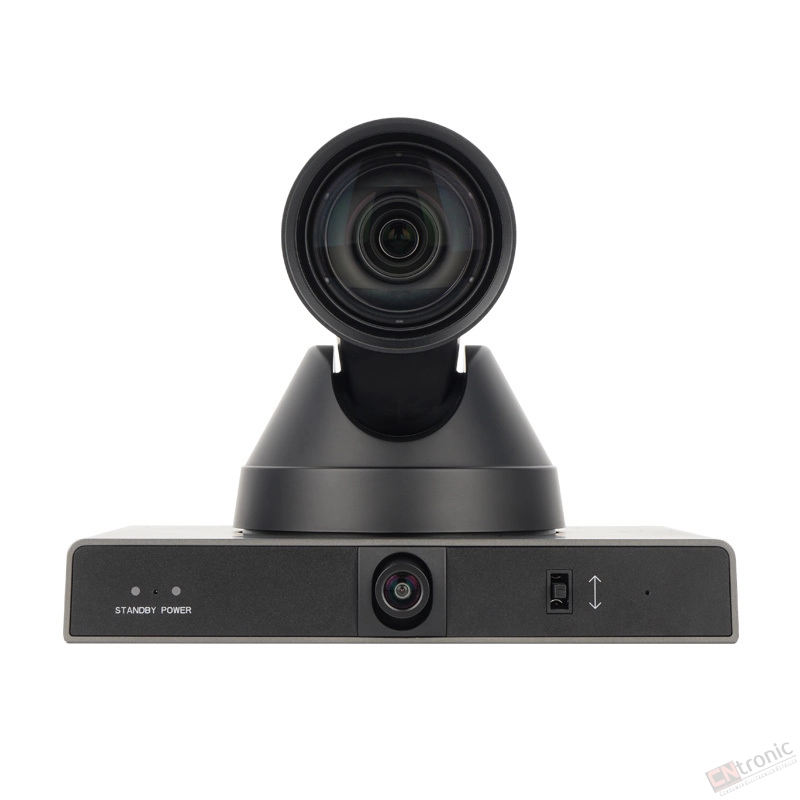

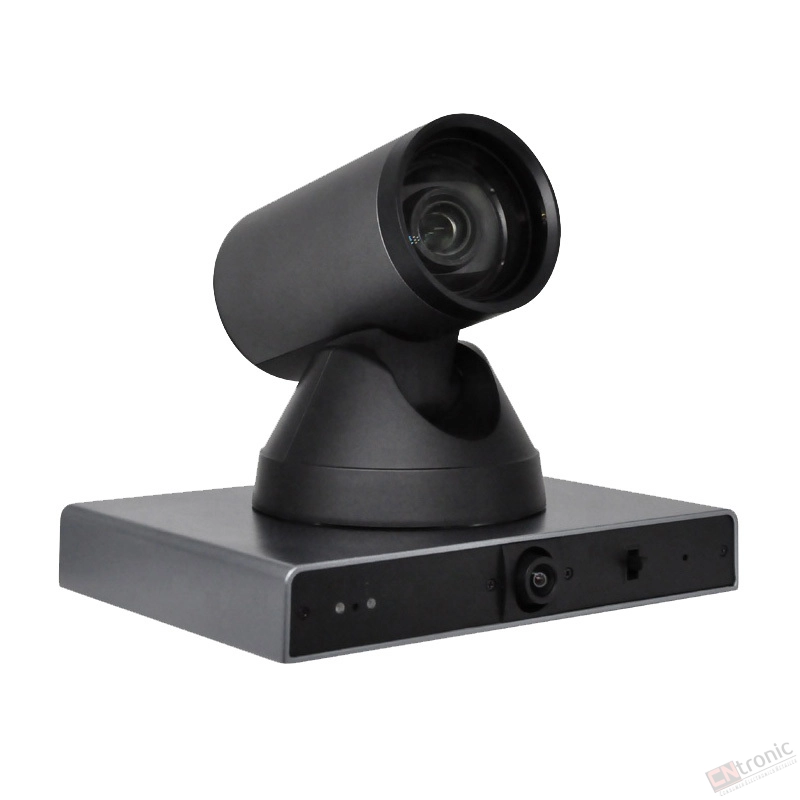

Product Photos:
The Product Warranty of our products is ONE year.
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly ways:
1. If it is quality problem, buyer must provide photos or video or other evidences to seller for evaluation and identification.
2. Man-made damaged, buyers should take full responsibility.
3. Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
Remarks
1. Please contact us before leaving any negative or neutral feedback. We will reply with you to solve problems as sooner as possible.
2.Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
3. Any import charges or fees are the buyer's responsibility.
4. Seller is not responsible for delays caused by the customs department in buyer's country.
5. Additional costs or delays may occur during international trade. We sincerely hope that you do not use additional import costs or customs clearance delays as a reason for requesting refunds or leaving negative feedback.
If you are satisfied, please give us a five-star review⭐⭐⭐⭐⭐
If you have any doubts, please contact us~
Contact us
Sales Manager: 0086 13530601567 Jenia Liu
Skype: jenia_liu
WhatsApp: +0086 13530601567
QQ: 3778090113
WeChat: +0086 13530601567
Packaging Details
- Unit Type:
- Package Weight: 5.000
- Package Size: 29x27x36
- Brand Name: FLA
- Hign-concerned Chemical: None
- Signal Connection Type: Infrared Remote Control
- Origin: Mainland China
- Model Number: FLA-UH812B
- Type: Video Conference System
- Product Name: Ultra Full HD Video 4K Video Conference Camera with Microphone
- Sensor: 1/2.5 inch, CMOS, 8.51M pixels
- DNR: 2D & 3D
- White Balance: Manual Automatic One Key
- Lens: 12x Zoom
- Resolution: 4K30fps, 4K25fps, 4K29.97fps,1080P30fps,1080P25fps
- Wide Angle: 71 degrees
- Multiple interfaces: SDI/HDMI/USB/IP/Line-in
- Built-in microphone: Voice pick-up 6 meters
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

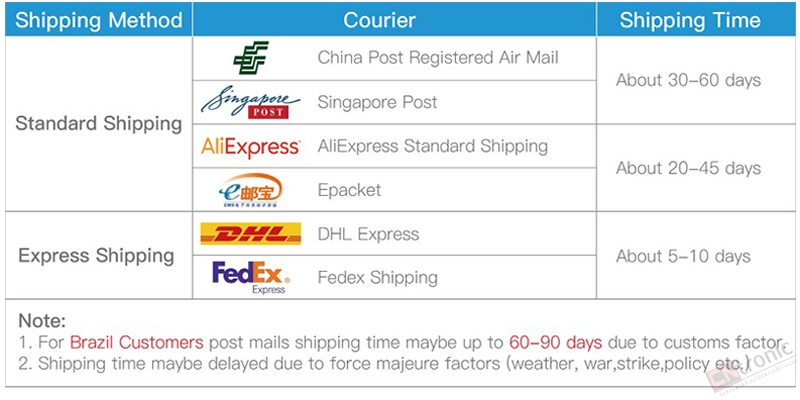

How long does shipping take?
