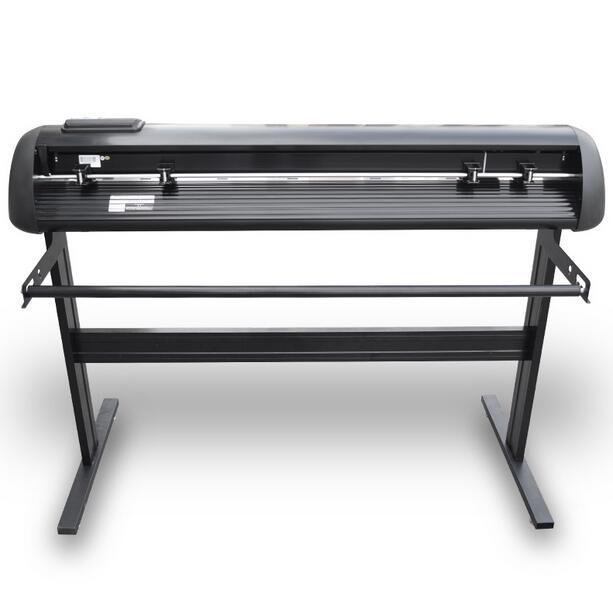

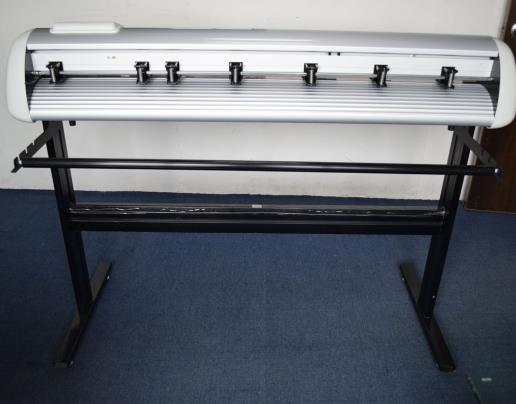

Vicsign HSQ1200 48" Cutting Plotters Machine With Servo Motor/Automatic Contour Cutting Self Adhesive Vinyl Cutter+Roland Blade
5.0 (1 votes)
Price:
US $
4336.06
/ piece
- color
-
-

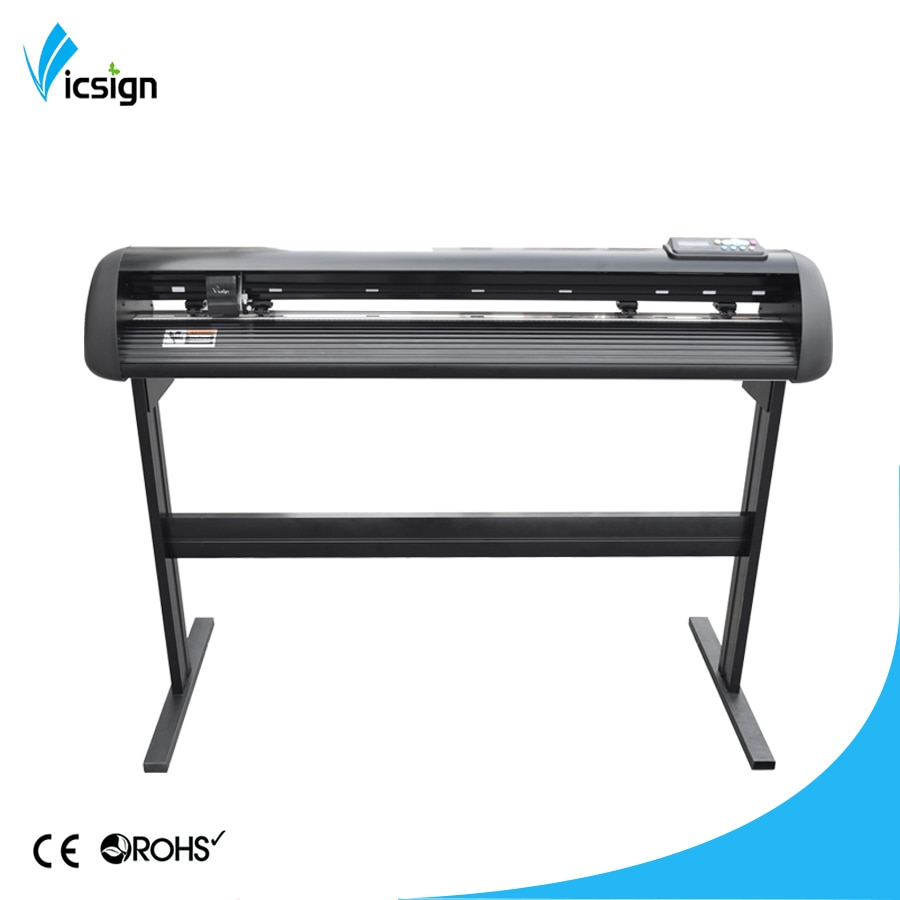

Vicsign HSQ1200 48" Cutting Plotters Machine With Servo Motor/Automatic Contour Cutting Self Adhesive Vinyl Cutter+Roland Blade
SPECIFICATION ADVANTAGE:
1.The specification and data sheet may vary with different materials used.
2.In order to obtain the best output quality,
3.please maintain the machine regularly and properly.
4.VICSIGN reserves the right to change the specifications at any time without notice.
5.The above listed specification values are effective only when operated with media certified by VICSIGN.
6.Support Coreldraw Software X2 X3 X4 X5 X6 X7 X8 image output
7.Compatible with WINDOWS 10 software
It is also a High-precision cutter, able to cut small words and intricate details 2mm thick.
The form factor and features make it ideal for contour cutting around stickers/decals, t-shirt transfers, craft card, and more.
The HSQ is equipped with ARMS (Automatic Registration Mark Sensor) technology which allows for automatic contour cutting.
In conjunction with proper software this allows the machine to scan media, align with registration marks automatically,
and then contour cut around the design.,hereby list picture for your clear fully understand this function:
|

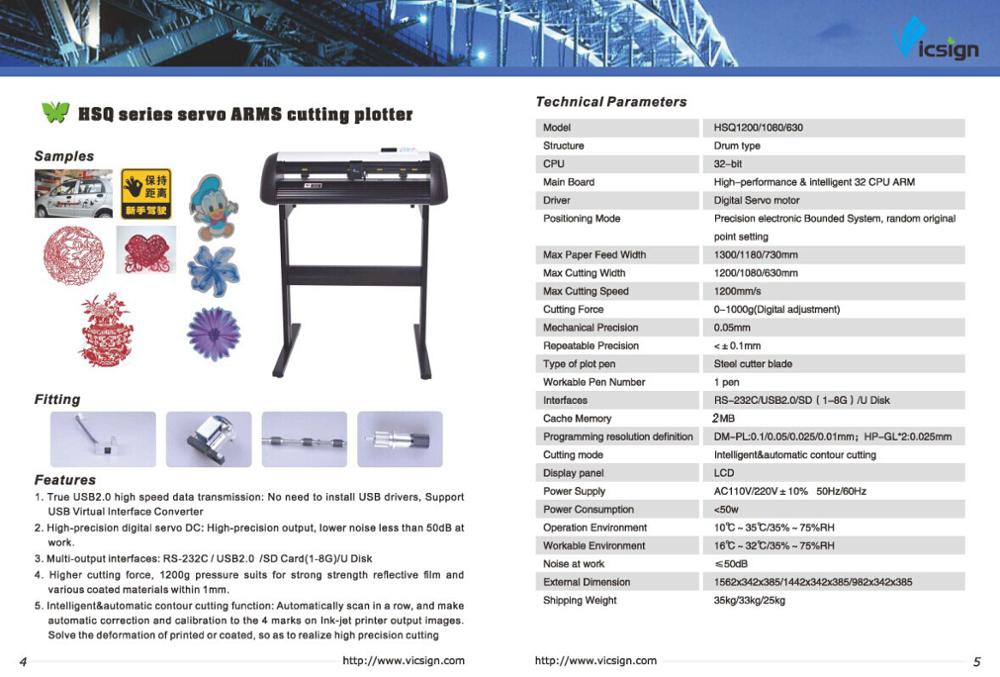

Model |
HSQ1200 |
|
Operation Method |
Roller-Type |
|
Max.Cutting Width |
1100mm |
|
Max Feeding Width |
1200mm |
|
Max.Cutting Length |
20meter-79inch |
|
Number of Pinch Rollers |
4Piece |
|
Acceptable Material Thickness |
0.8mm (0.03" - Paper and cardboard 350g) |
|
Drive Motor |
servo motor |
|
Cutting Force |
10-1000g adjustable |
|
Max.Cutting Speed |
850mm/sec |
|
Offset |
1.00mm(with an increase of 0.025mm) |
|
Memory Buffer |
2MB |
|

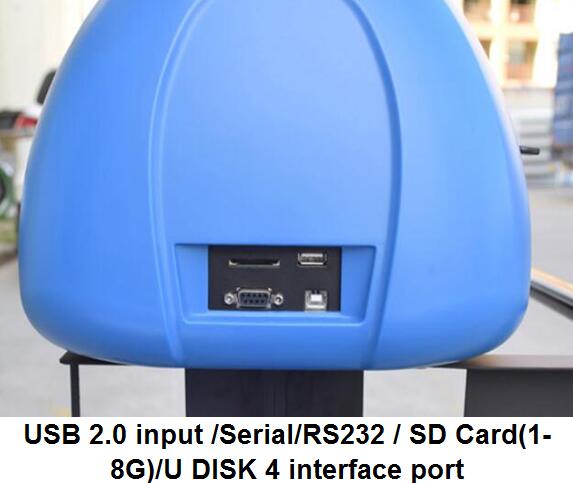

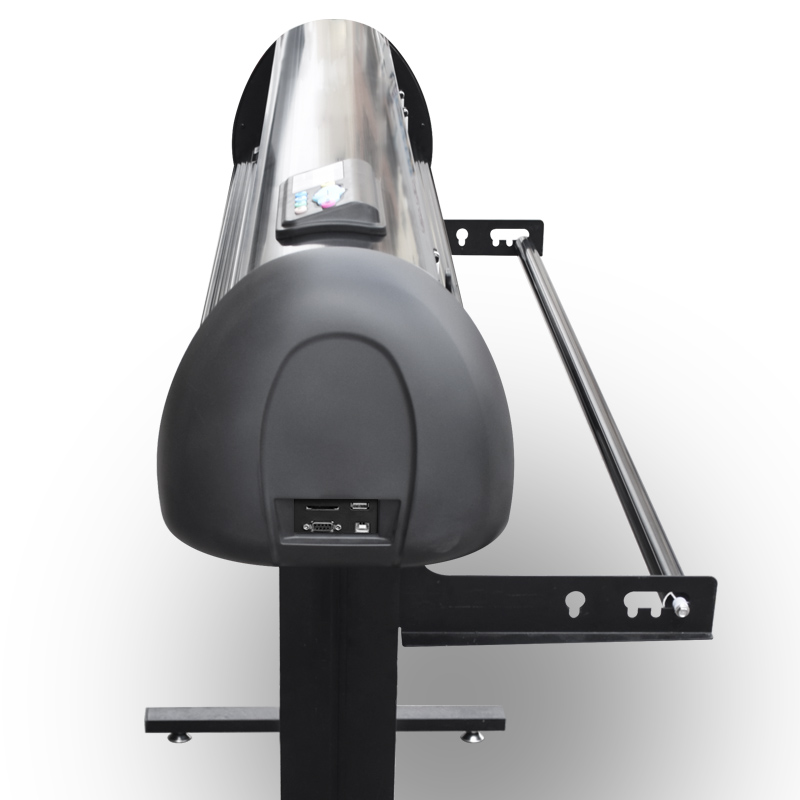

Interfaces |
USB 2.0 input /Serial/RS232 / SD Card(1-8G)/U Disk |
|
Type of Command |
HP-GL HP-GL/2 |
|
Mechnical Resolution |
0.05mm |
|
Software Resolution |
0.025mm |
|
Repeatability |
±0.1mm |
|

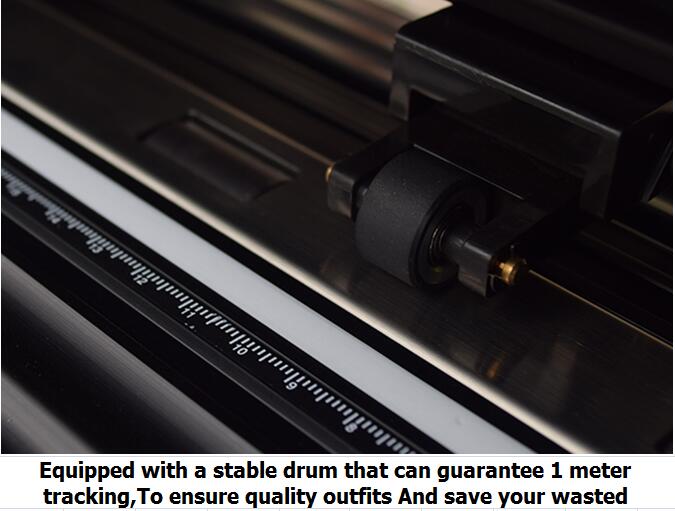

Guaranteed Tracking |
1M |
|
Curve & Arc Smoothing |
Yes |
|
Test Cut capability |
Yes |
|
Diameter of Blade |
2.5 mm |
|

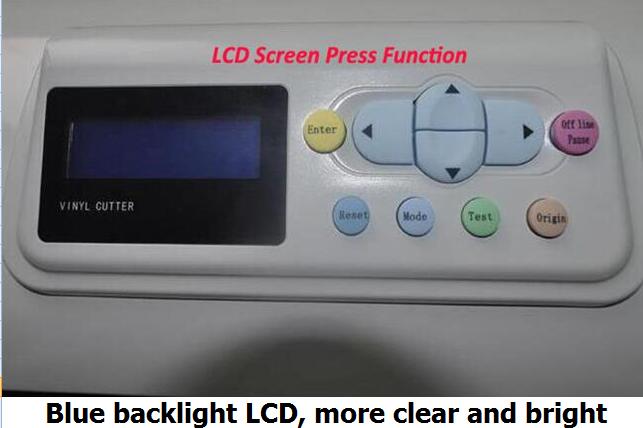

Control Keys |
10 Control keys and 2 LED |
|
Power Supply |
AC110v/220v ±10% 50Hz/60Hz |
|
Power Consumption |
65.5 watts |
\
SOFTWARE
YOUTUBE LINK:
(1) Installation link: https://www.youtube.com/watch?v=USJ6bEWgvNM
(2) Signmaster operation: https://www.youtube.com/watch?v=lLqgu2QTkx4
(3)no need to set original point:https://www.youtube.com/watch?v=KzqSxeIJQ3A
(4) Cut thicker material :https://www.youtube.com/watch?v=-wFIPSiHc88

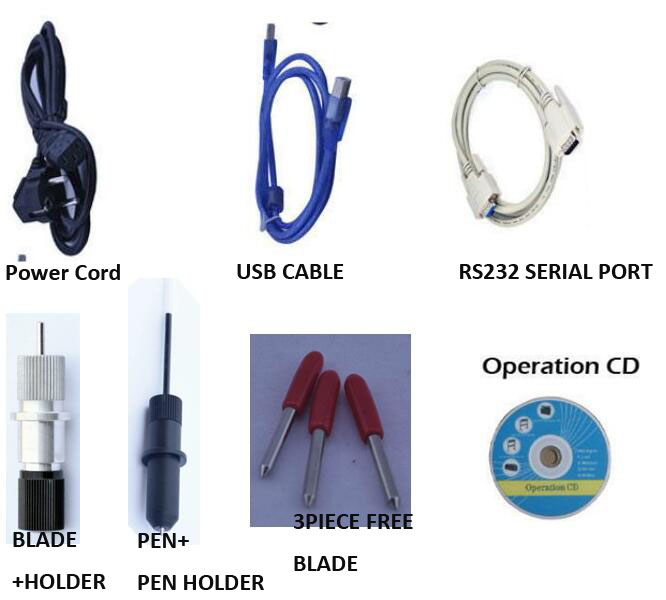

ACCESSORIES:

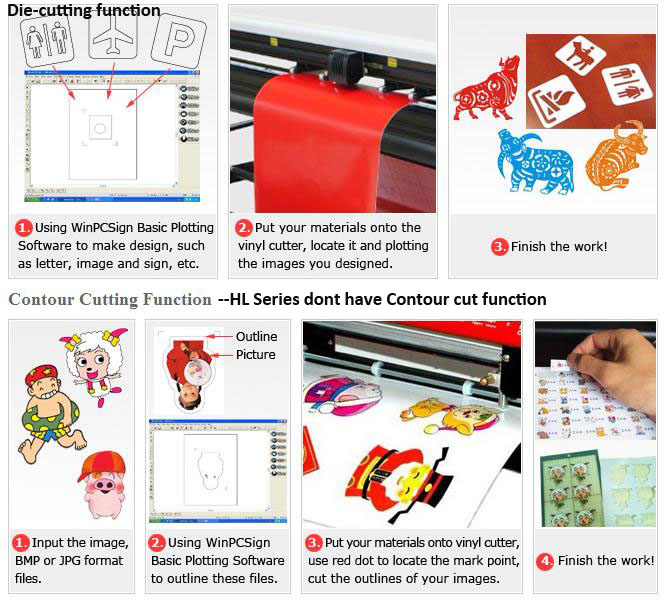

PLOTTER FUNCTION
APPLICATION USAGE:
OUR SERVICES:
(1) two year warranty on whole machine/parts.
(2) Professional service before and after sale.
(3) Supply training video and user's manual in English.
(4) Lifetime detailed technical services (include online training and technology solution)
        |
|
- Paper Feed Width: 1200MM
- Repeat Cutting: Yes
- Driver: digital servo motor
- Cutting Width: 1100MM
- Voltage: AC110V 220V 10% 50HZ/60HZ
- Size: 48"
- Cutting Length: 20000mm
- Cutting Speed: 800mm/second
- Cutter Pressure: 0 to 1000g(digital adjustment)
- Cache Capacity: 2MB
- Max Paper Siz: 1200mm
- Interface Type: USB
- Type: Laser
- Model Number: HSQ1200
- Brand Name: Vicsign
- Vinyl Cutter Main Board: High-performance&intelligent ARM 32 CPU
- Vinyl cutter Mechanical Precision: <+-0.05mm
- Vinyl cutter blade material: steel cutter blade
- Vinyl cutter power consumption: <50w
- Support software: Signmaster
- Contour Cutting: Automatic
- Motor Type: Servo motor
- Conpatible Media Types: Self-adhesive vinyl film, light reflective film(except high-luminosi,
- Conpatible Media Types 2: paint masking film,rhinestone pattern media, heat transfer vinyls:
- Noise at work: less than 50DB
