Tecsun PL-398MP Stereo Radio FM Portable Full Band Digital Tuning ETM ATS DSP Dual Speakers Receiver MP3 Player Support TF Card
SALE
ID: 29608

Tecsun PL-398MP Stereo Radio FM Portable Full Band Digital Tuning ETM ATS DSP Dual Speakers Receiver MP3 Player Support TF Card

4.9 (83 votes) | 162 orders
Price: US $107.26 - 136.86 / piece
Discount Price:
US $ 98.68 - 125.91 / piece
-8%
Ships From
Color
Quantity


TECSUN PL-398MP FM Stereo/SW/MW/LW DSP World Band Radio MP3 Player


Description:

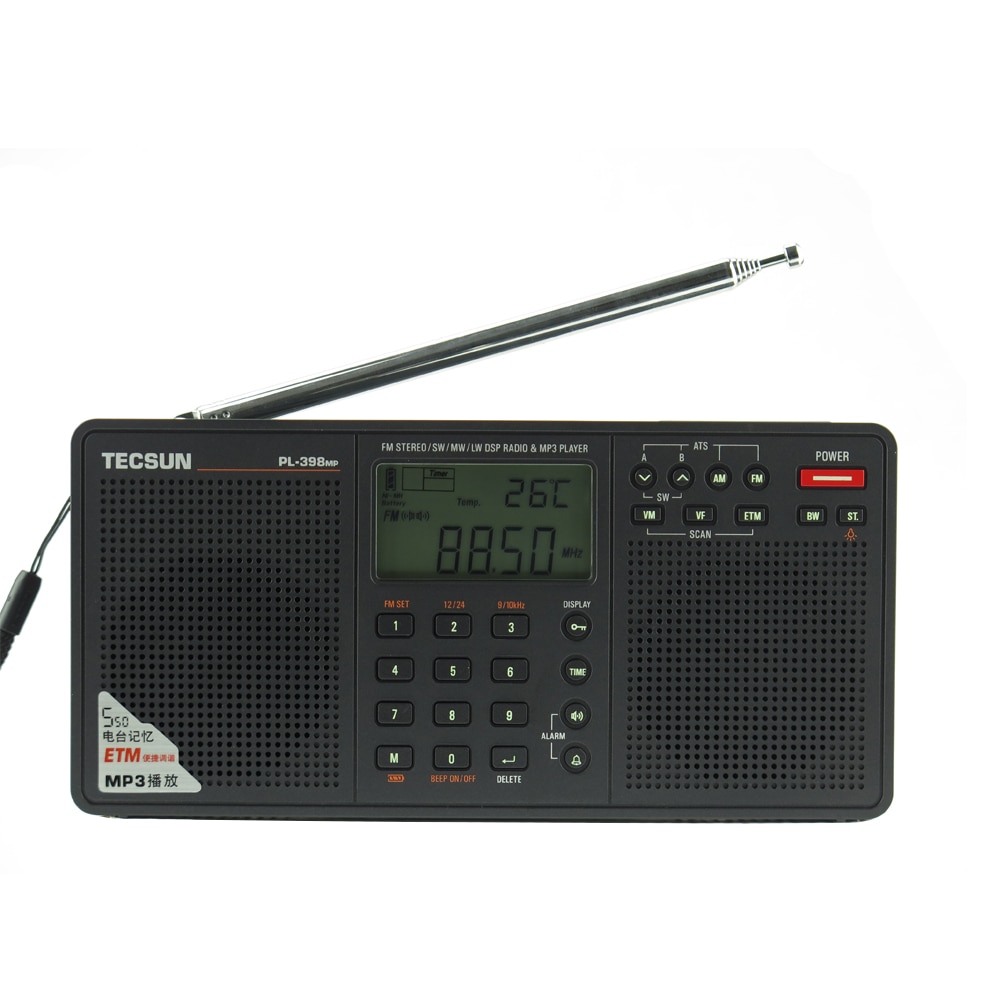

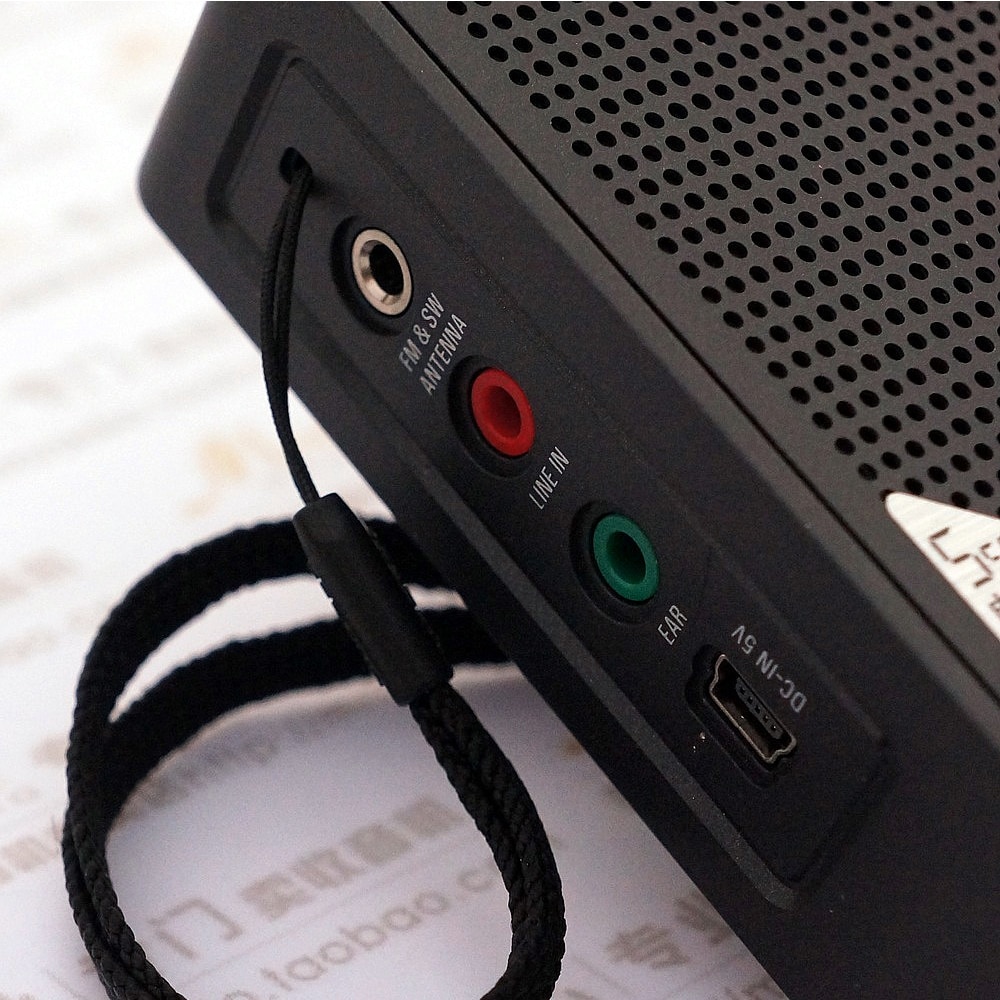

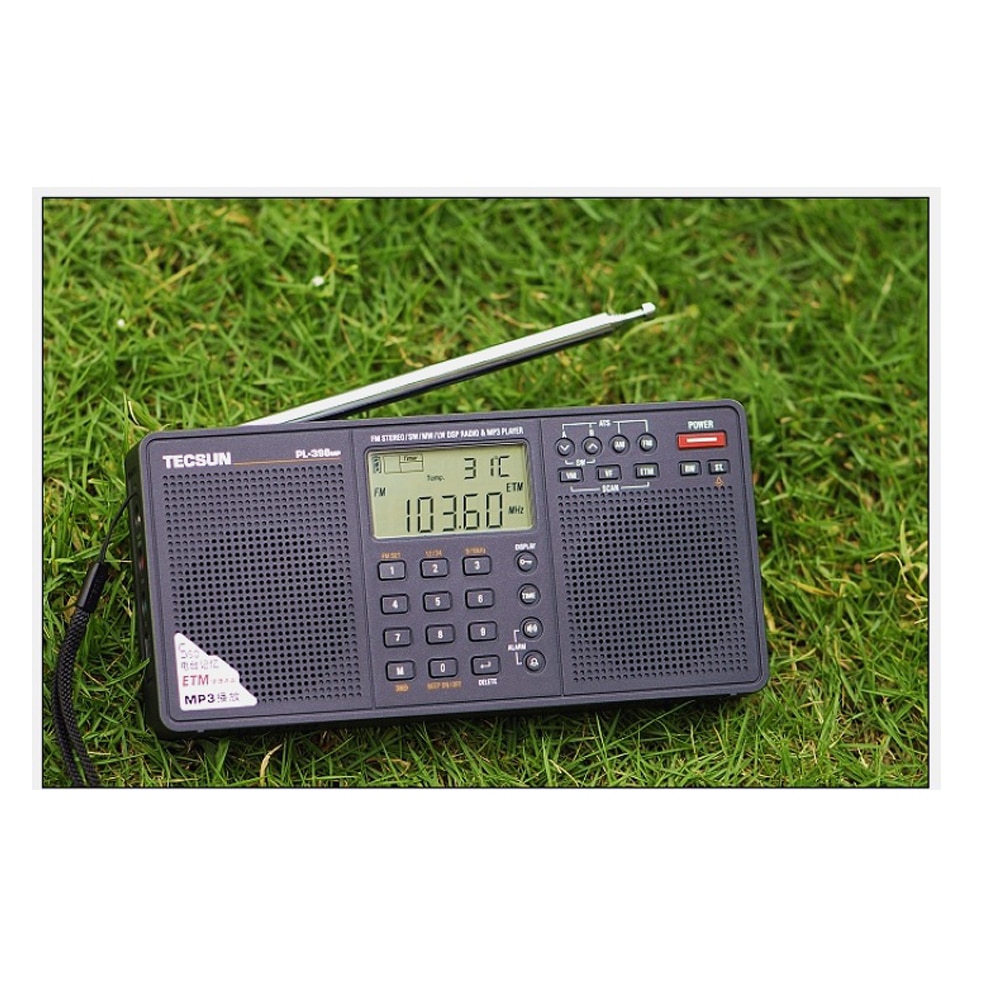

TECSUN PL-398MP is a multi-band stereo portable radio with MP3 playback function (SD card slot). It can listen to FM stereo, short wave, medium wave, long wave broadcast, play MP3 music, and has line input. It can be used as an active small speaker.



1. [Two-channel Dual Speaker Design]:



You can enjoy FM stereo programs without using headphones.

FM stereo, short wave (2300~21950KHz), medium wave, long wave full-band reception, FM receiving frequency range 64 ~ 108MHz, can listen to China, Europe and the United States day FM broadcast frequency, but also listen to part of the campus broadcast.



2. [Digital Signal Processing]:

The SILICON LABS si4734 digital signal processing (DSP) chip is used to digitally convert FM/AM broadcast signals and process them with modern software radio technology, which improves sensitivity, selectivity, signal-to-noise ratio and anti-interference ability.



3. [7 Options for Channel Selection]:

Easy Tuning (ETM), automatic search for radio frequency(ATS), automatic search for stored stations, manual search for station frequency (VF), manual search for stored stations (VM), direct input of frequency numbers, direct Enter the number of saved station addresses.



4. [Smart/Manual LCD and Keypad Backlight]:

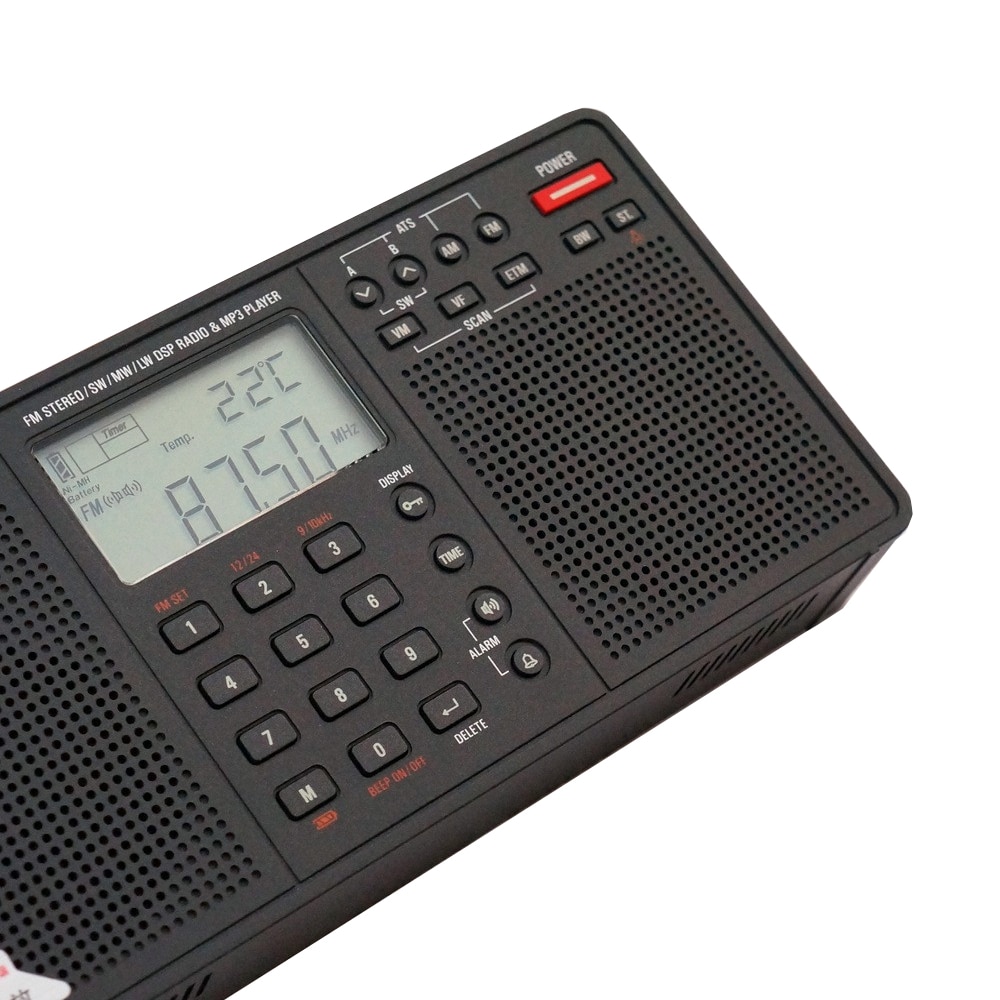

The LCD displays information such as station frequency, signal strength/signal-to-noise ratio, temperature, time, and battery level. The buttons also have a backlight function for intelligent night lighting.



Main Parameters:

Speaker specifications: Diameter 57mm, 8Ω, 250mW paper tray speaker × 2.

Headphone specifications: Φ3.5mm/32Ω stereo headphones.



Output power (distortion 10%): ≥180mW×2

Weight:365g(Battery not included).

Dimension: 187(W)×90(H)×30(D) mm.

PL-398MPBasic Technical Indicators



Optional Frequency Coverage:

Standard: 87-108MHz (suitable for China, Europe and America).

Germany: 87.5-108MHz.

Russia: 64-108MHz (also suitable for receiving most campus broadcasts in China).

Japan: 76-108MHz.

FM:64-108MHz, intelligent stepping 0.01MHz/0.1MHz.

SW: 2300-21950KHz, intelligent stepping 1KHz/5KHz.

MW:522-1620KHz, intelligent stepping 1KHz/9KHz (suitable for Asia, Africa and Europe).

520-1710KHz, intelligent stepping 1KHz/10KHz (suitable for North America).

LW:153-513KHz, intelligent stepping 1KHz/9KHz.



Noise limit sensitivity:

FM: (S/N=30dB) better than 3uV.

SW: (S/N=26dB) better than 20uV.

MW: (S/N=26dB) better than 1mV/m.

LW: (S/N=26dB) better than 10mV/m.


Selectivity:

FM: >60dB (±150KHz).

SW: >60dB (BW=3KHz, ±5KHz).

MW: >60dB (BW=3KHz, ±9KHz).

LW: >60dB (BW=3KHz, ±9KHz).



Quiescent Current:

FM: <25mA.

SW: <30mA.

MW / LW: <30mA.

Shutdown <80uA.



Memory storage: 550 total.

FM: 100.   SW: 250

MW: 100.  LW: 100



Power supply:

Powered by 3 R6 (No. 5) batteries, you can also use Ni-MH rechargeable batteries

Smart charging is possible via the power supply of the USB port.

External power supply (optional): USB specification DC 5V ≥250mA

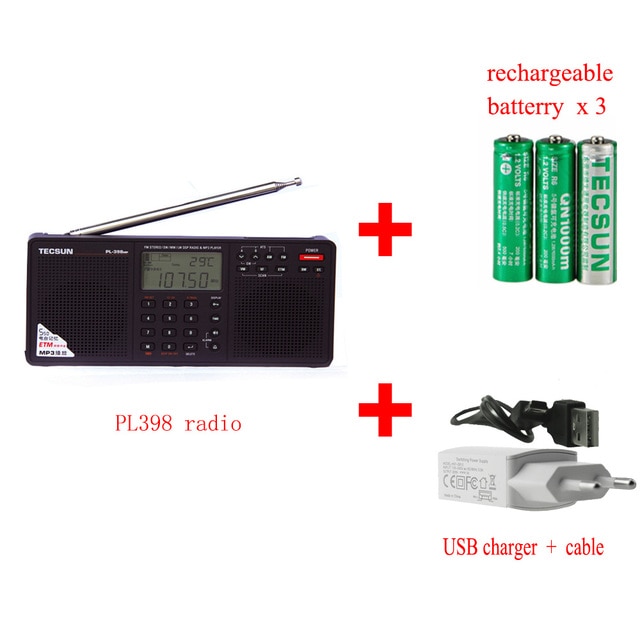

Package list:

1 x TECSUN PL-398 Radio

1 x Stereo Earphone

1 x Audio Cable

1 x Carrying Pouch

1 x User Manual(English, Japanese)





Service & warranty:

Delivery  Service:
Delivery Time:
Fast shipping ; Customer place orders, we ship next day. (Committed within 48 hours delivery)
Delivery ways:  ( Customers can choose the shipping method according to their needs)
Package:
About product packaging issues. Every item we send out has inner and outer packaging, a total of two boxes plus a bubble film to protect the radio. So the radio will not suffer. We check all products before we send them out. So if you receive products with problem, you can contact us when you receive it in first timing.
Customer Service:
Online customer service, answer customer's questions within 24 hours. Try our best to give best service to every customers.Feel free to contact us if you have any questions!

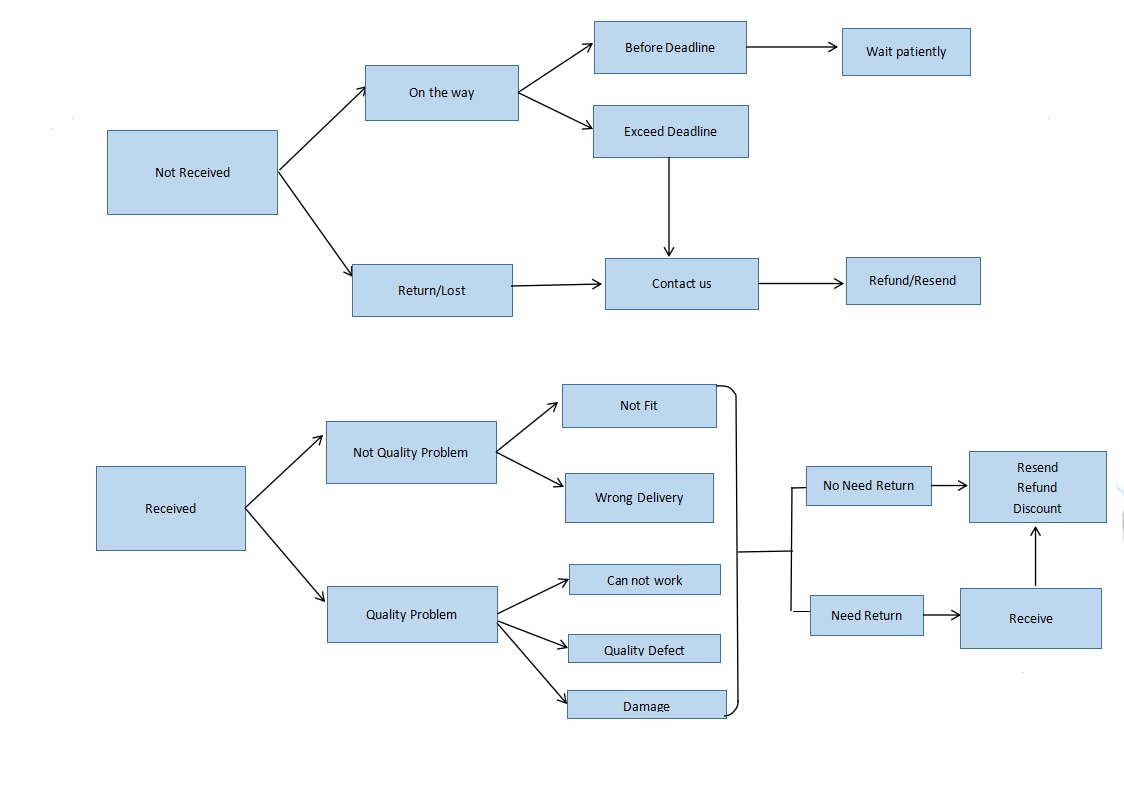

Sellers Guarantee:
Radio quality problem
1.Within 1 month after receipt of the goods, replacement or refund.
2.Within 1-3 months after receipt of the goods, the customer can choose to return to China for repair. The freight seller and the buyer each bear half. Maintenance fee free.
3.Within 1 year after receiving the goods, the buyer bear freight. Maintenance fee free.
4.After 1 year, buyer bear freight and appropriate maintenance fee.
5.External force damage, no  refund and replacement

Leave Star Feedback

If you are satisfied with our products, please light up 5 stars and share your comment.Every comment of yours will inspire us. Please don't give bad reviews easily. If you are not satisfied with our products, please contact our customer service worker firstly, we will serve you satisfied.Thank you!

Item as description:

Service attitude:

Delivery speed:




  • Brand Name: Tecsun
  • Function: Built-In Speaker
  • Function: Clock
  • Style: Portable
  • Certification: CE
  • Origin: CN(Origin)
  • Type: AM / FM
  • Body Material: Plastic
  • Package: Yes
  • Screen: Yes
  • Dimensions (WxHxD): 187 x 90 x 30mm
  • Model Number: PL-398MP
  • Bluetooth: No
  • WIFI: No
  • Color: Black
  • Frequency Range: FM/SW/MW/LM
  • Turning Method: Manual/Automatic tuning
  • Function: Manual/Automatic shutdown
  • Small Speaker: Yes
  • LCD Display: Yes
