GWS LoRa Wireless Module LLCC68 868MHz 915MHz Long Range ETSI ​EN 300 220 FSK GFSK Wireless Transmitter Receiver
SALE
NEW
ID: 133008

GWS LoRa Wireless Module LLCC68 868MHz 915MHz Long Range ETSI ​EN 300 220 FSK GFSK Wireless Transmitter Receiver

4.8 (6 votes) | 47 orders
Price: US $28.79
Discount Price:
US $ 22.15
-23%
Quantity

Chip date code all within one year.




LoRa Wireless Module LLCC68 868MHz 915MHz Long Range ETSI EN 300 220 FSK GFSK Wireless Transmitter Receiver


Logistics:


100% free shipping, for 99% of all countries,

100% return guarantee, for 24 countries,


After-sales service:


Product problem, free return, or re-delivery;


Value damage-added services:


Up to an additional 20% discount for fans;
Send NiceGift from time to time;


Product professionalism:


All products have strict equipment testing,

Professionally make wireless products with high
quality and good price



Notice:we will andom sending in blue or green board, thanks.

If you have specific requirements, please leave us a message

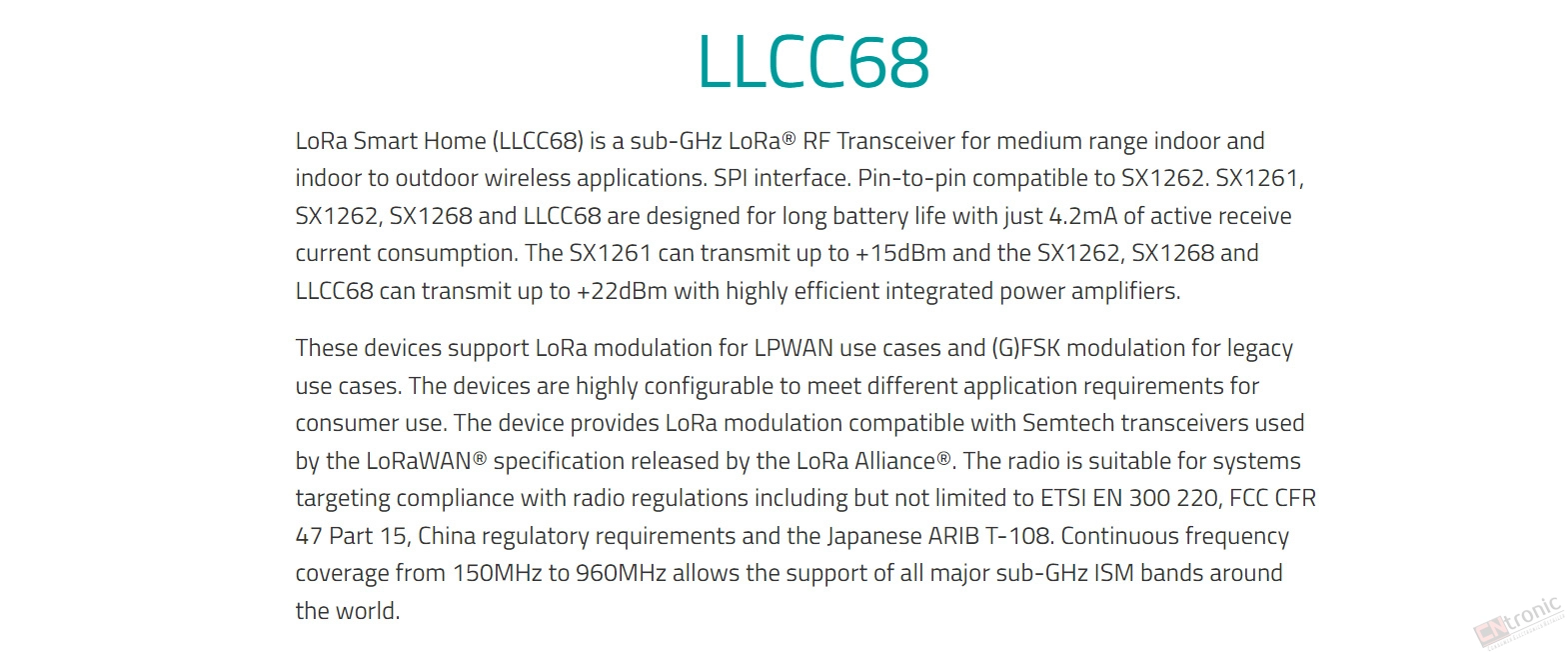

General Description


The LLCC68 sub-GHz radio transceiver Module is ideal
for long range wireless applications. It is designed for long battery

life with just 4.2 mA of active receive current  consumption.

The LLCC68 module can transmit up to +22 dBm with
highly efficient integrated power amplifiers.

The LLCC68 Module supports LoRa® modulation for
LPWAN use cases and (G)FSK modulation for legacy use cases. It
is highly configurable to meet different application

requirements for industry and consumer use.

The device provides LoRa® modulation compatible with

Semtech transceivers used by the LoRaWAN™
specification released by the LoRa Alliance™.

The radio is suitable for systems targeting
compliance with radio regulations including but not limited to ETSI
EN 300 220, FCC CFR 47 Part 15, China regulatory
requirements and the Japanese ARIB T-108. Continuous frequency

coverage from 150 MHz to 960 MHz allows the support
of all major sub-GHz ISM bands around the world.

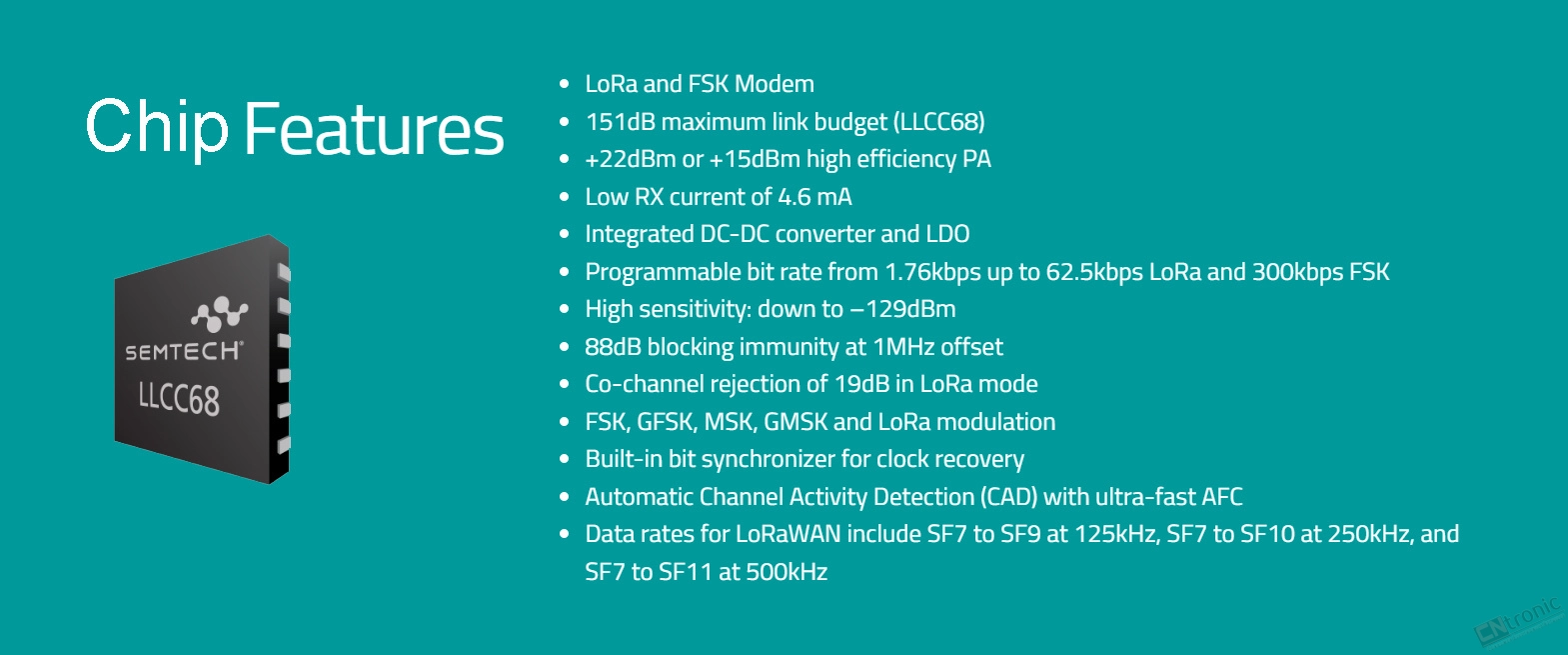

ModuleFeatures


■FSK/GFSK , LoRa(Long
Range) spread spectrum technique


Half-duplexcommunication


Excellent blockingimmunity


Channel rejectionration(ADJ):60dBm


High RX sensitivity :-129dBm


IS multiband, free of charge with no need
to apply forfrequencies


Optional multi-frequency,multiple transmission rate,can be applied in FDMA and FMtechnologies


■Intelligent reset, low
voltage monitor, timing wakeup, low-power mode,sleep mode


Low RX
current: 4.2mA


ISSI channeldetection


Transmission modeFIFO
/ direct mode
recommend FIFO packetmode


ConfigurationAFC/air wakeup/low
power/carrier sense/FEC error correction/AECencryption





Electric Specification

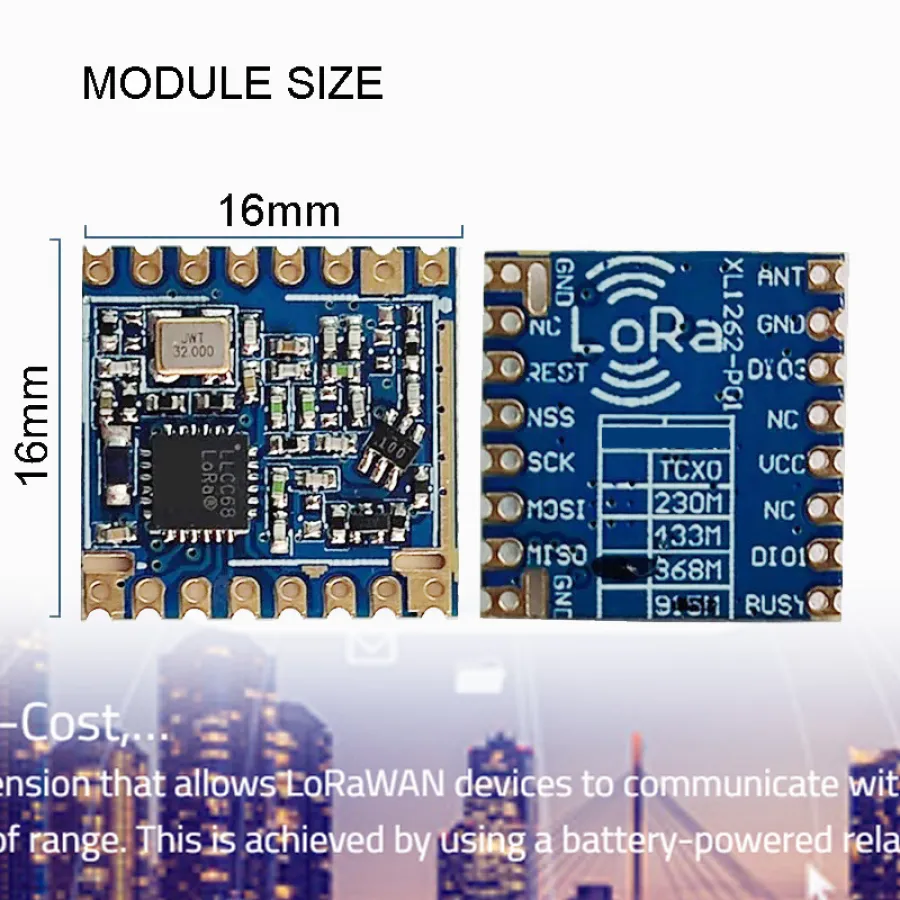

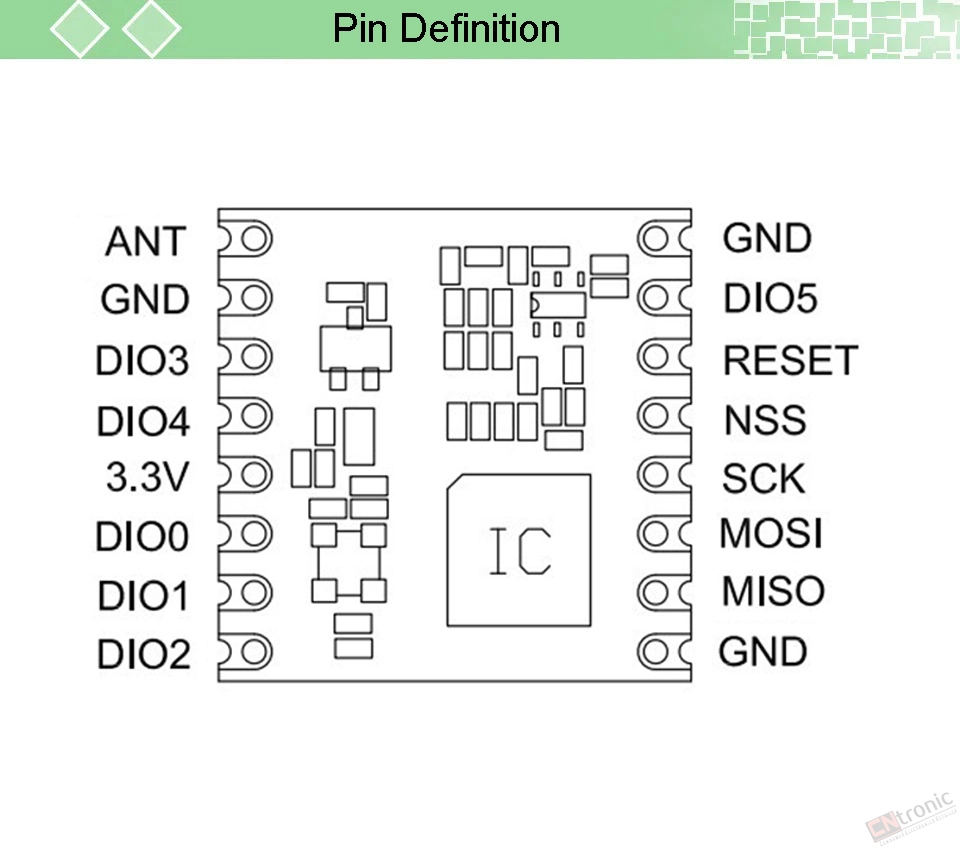

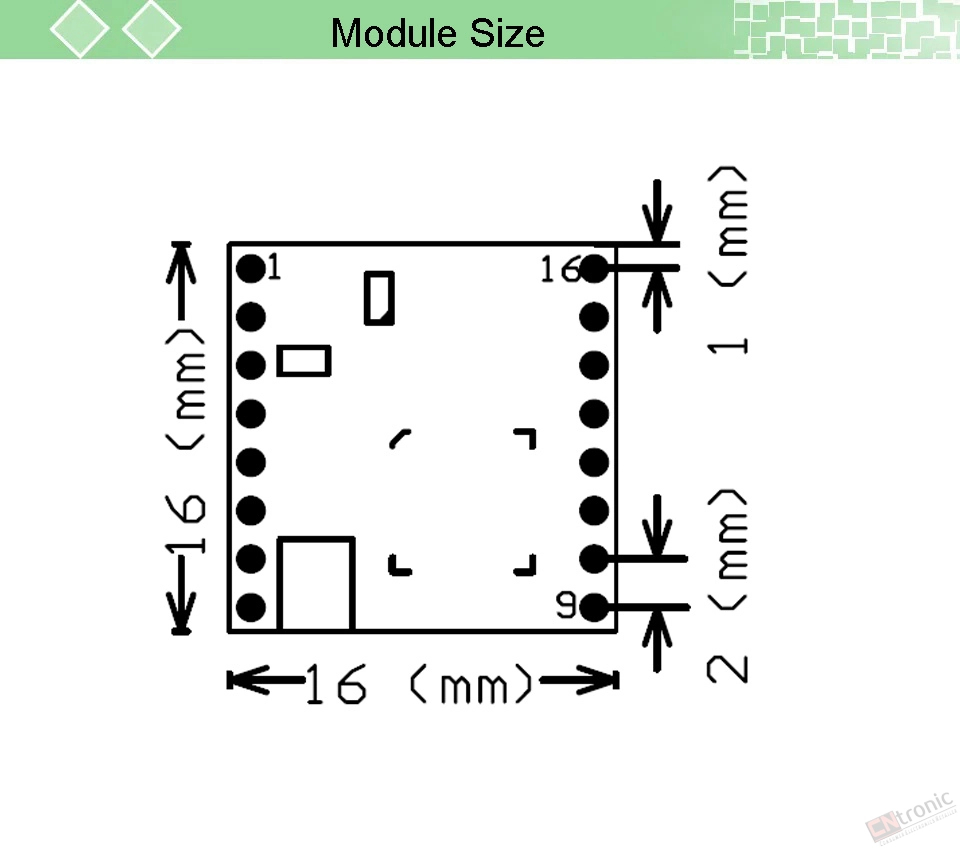

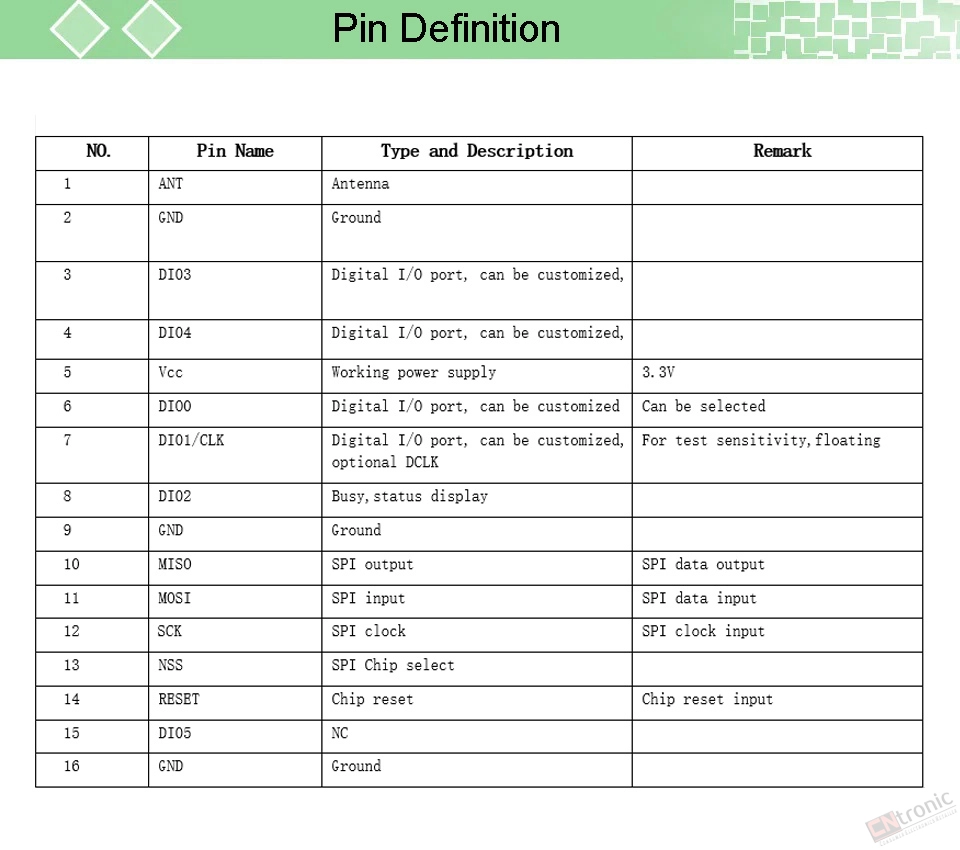

Module Size and Pin Definition


ApplicationNotice

1Voltage cannot be out of the
range of the module’s power supply voltage 1.8 ~ 3.6V, if it is over 3.6V the
chip will burn out. Recommending voltage is 3.3V.

2Module interfaceadopt
semicirclebonding pad, all GNDpin shouldkeep reliableconnectionwithdigital
ground ofcircuit.

         3Antenna should keep away from systemground.

4MCU does not have SPI port single-chip and can imitate SPI time to
carry out theread-writeoperation by using ordinary I/O port. SPI
rate do not over10MHz.

5If the power supply of MCU is 3.3V,it can connect with module without series resistance; ifthe powersupply of MCU is 5V, 3.3V/5V
level switching circuit should beaccessed

6DIOOandDIO2arecommondataI/O,canproduceneededtriggersignalaccordingtoapplication configuration

7Inmultichannelapplication,thechannelspacingis1MHz,iflessthan1MHzit’seasilytocausesame frequencyinterference.

        7.1Remark

1.The communication rate of
module will effect communication distance, the higher the communication rate
is, the shorter the communication distance willbe.

2.The communication rate of
module will effect RX
sensitivity, the
higher the communication rate is,the
lower the RX sensitivity willbe.

3.The power supply voltage will effect transmit power, within
the allowable range of working power supply voltage, the lower the voltage is,
the lower the transmit power willbe.

4.The change of working temperature may cause the migration of
the working
frequency. It has no
influence to the application as long as the temperature is within the working
temperaturerange.

5.Antenna affect much to the communication distance, so should
apply the antenna which matches
module’s
frequency,
standing-wave ratio should be small and impedance is close to50ohm

6.Theinstallpositionandmethodofmodulemayeffectcommunicationdistance.


Important Note

Our company is a professional wireless product development, design and production company.
All modules can be designed and customized in volume.
Welcome to contact us,thank you!

lora,nrf52840,transceiver,nrf52832,radio comunicador de longo alcance,transceiver,landline telephone wireless,gsm fixed wireless phone
,fixed wireless terminal,gsm communication module,Mobile receiver,gsm communication module,emeteur radio module
,cc2530 rf,antenna to transceiver,wireless landlines,wireless gsm module,fixed wireless phone,fixed wireless





Packaging Details

  • Unit Type:
  • Package Weight: 0.100
  • Package Size: 10x5x15

  • Brand Name: GRANDWISDOM
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Certification: CE
  • Working Frequency: 868MHz 915mhz
  • Port Number: 1
  • Model Number: LoRa module
  • Type: Gsm
  • APPLICATION: IOT
  • MAIN CHIP: LLCC68
  • FREQUENCY: 868MHZ
