Superbat UHF PL259 Twist-on Male Straight RF Coaxial Connector for Cable Compatible with RG8 RG213 RG214 LMR400
5.0 (7 votes) | 19 orders
Price:
US $25.29
Discount Price:
US $
24.36
-4%

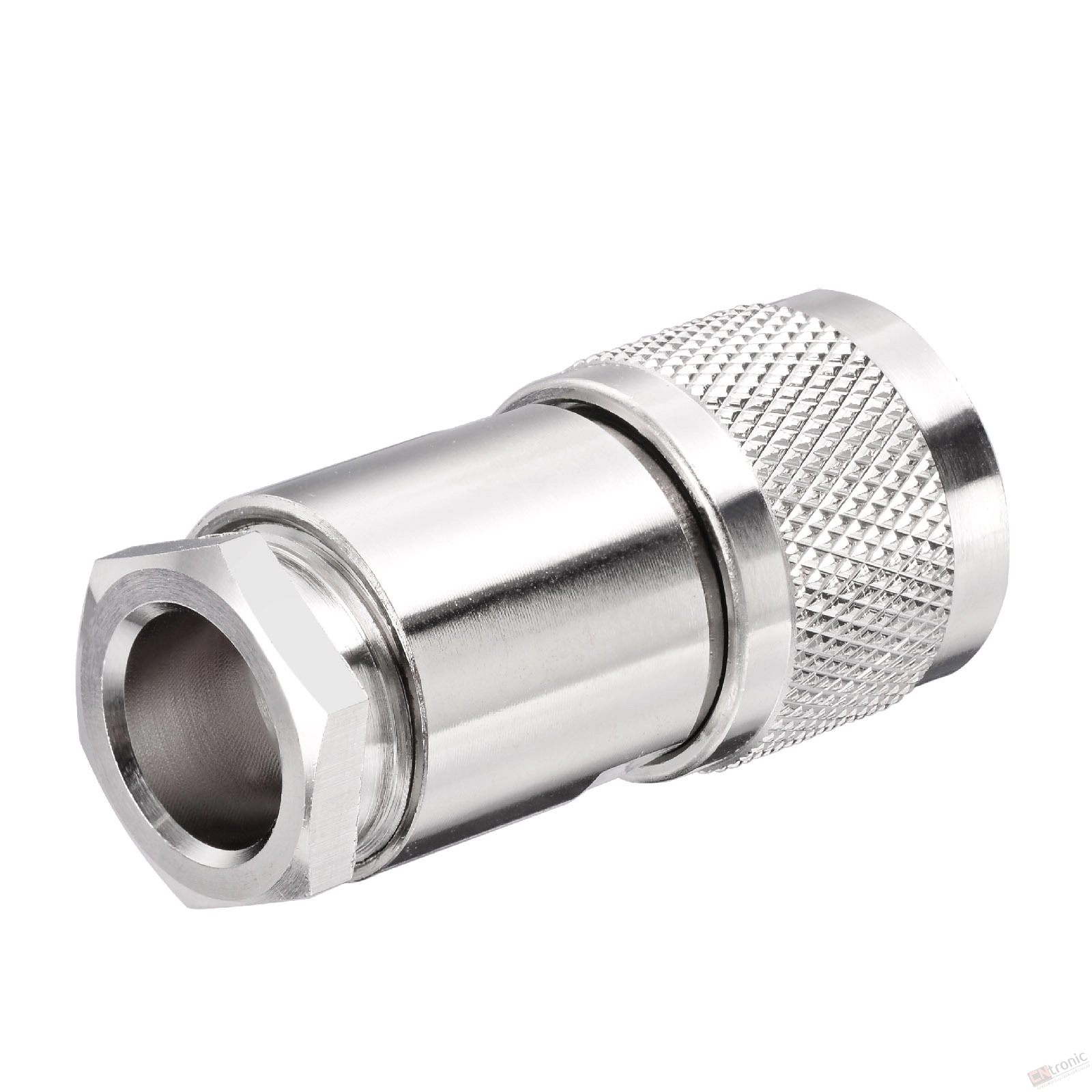

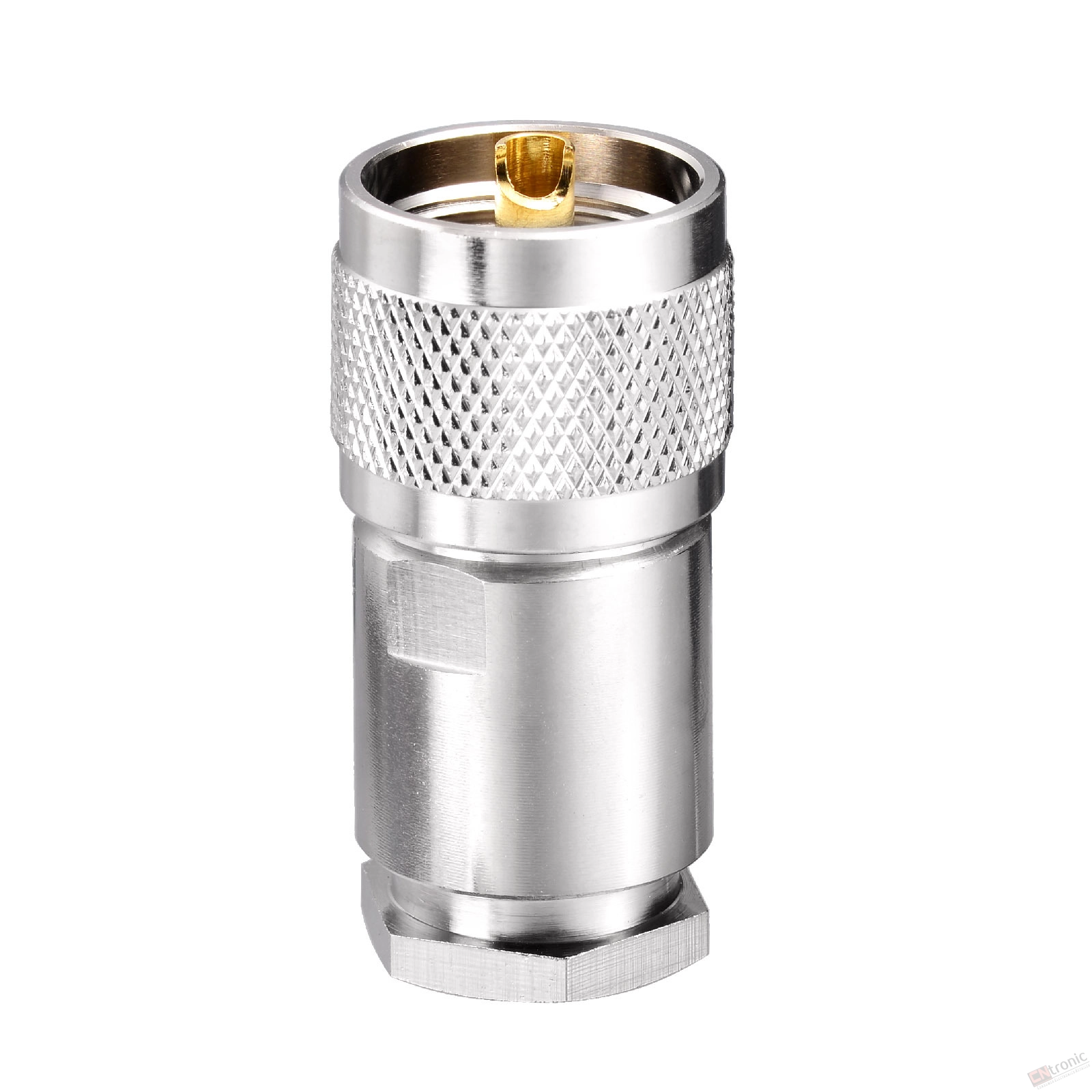

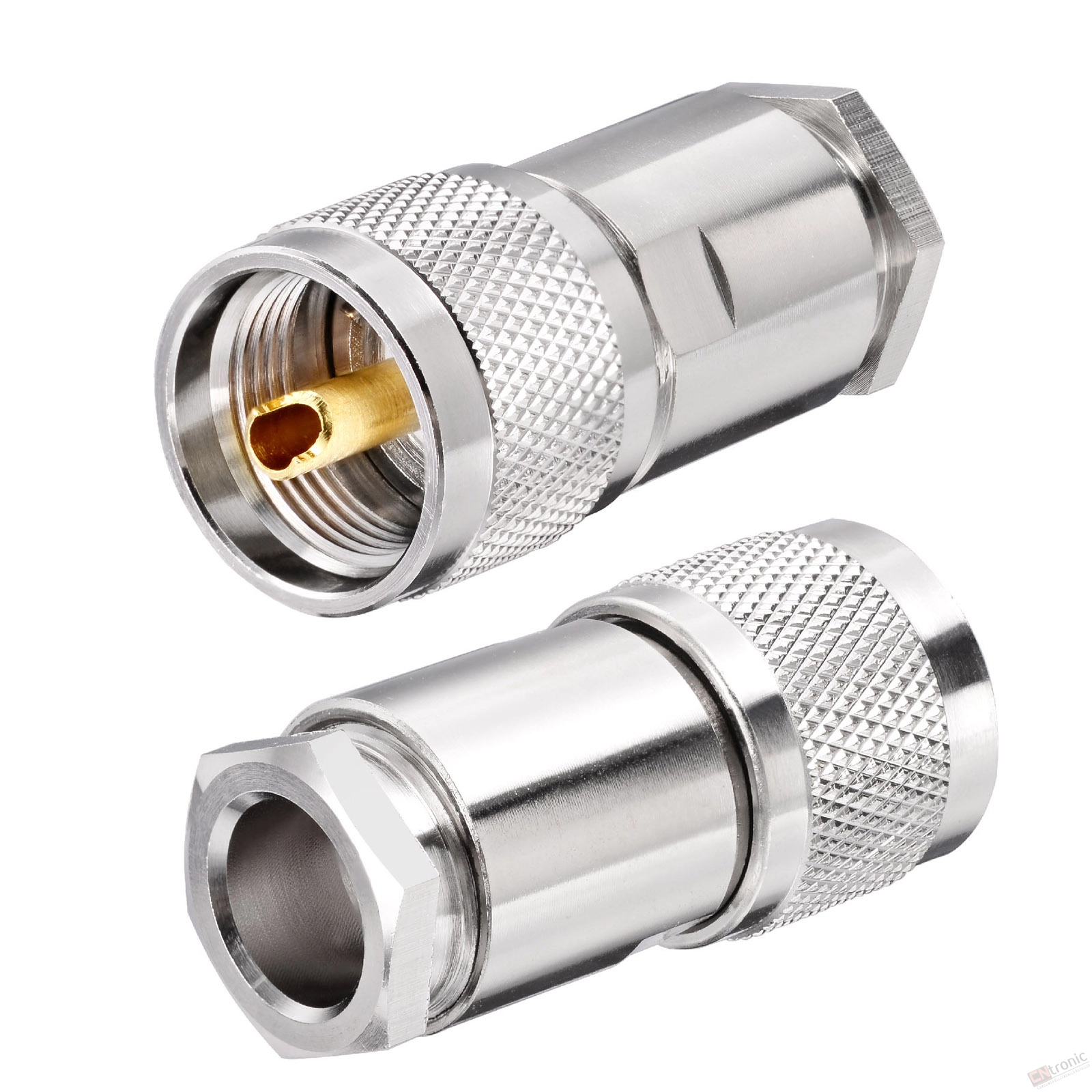

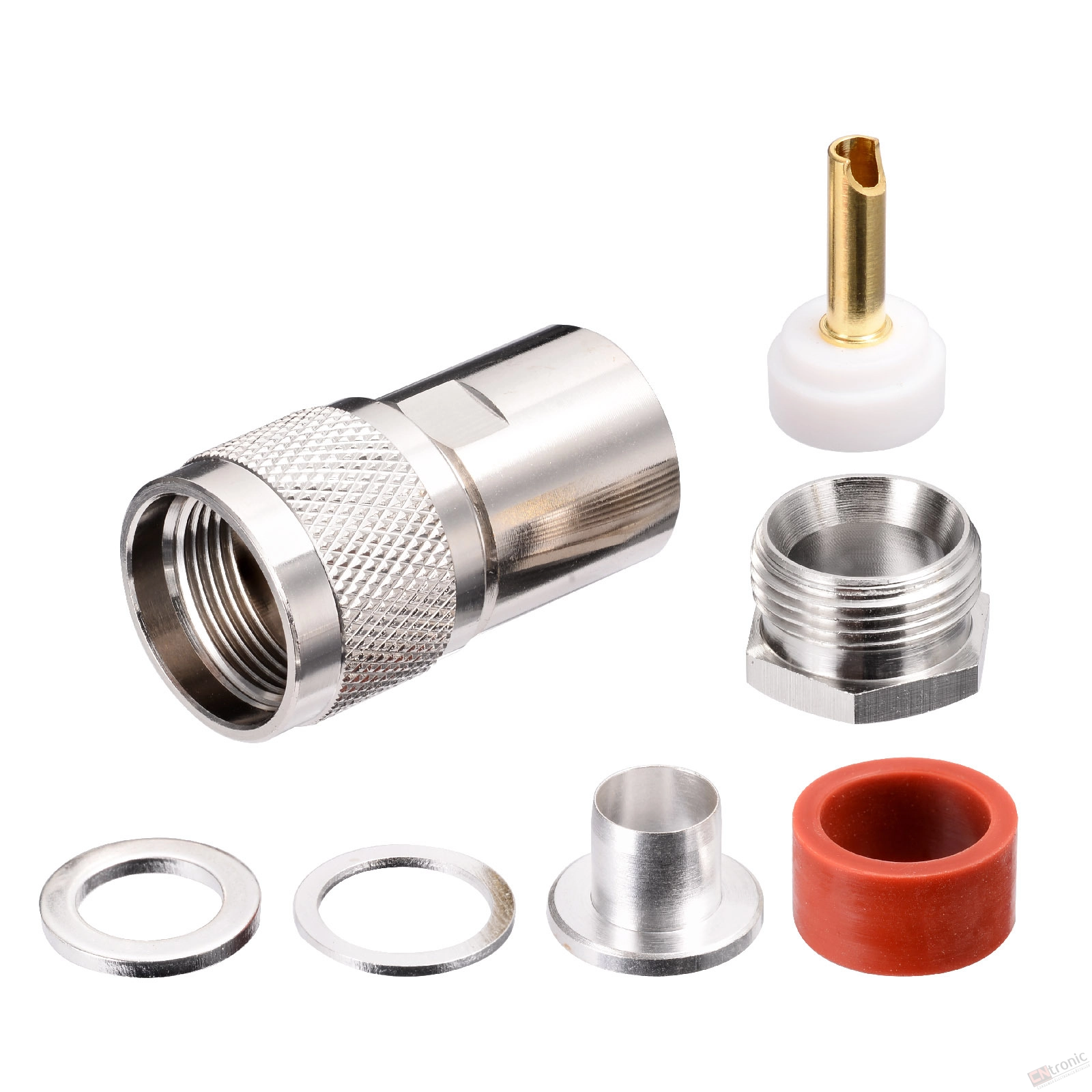

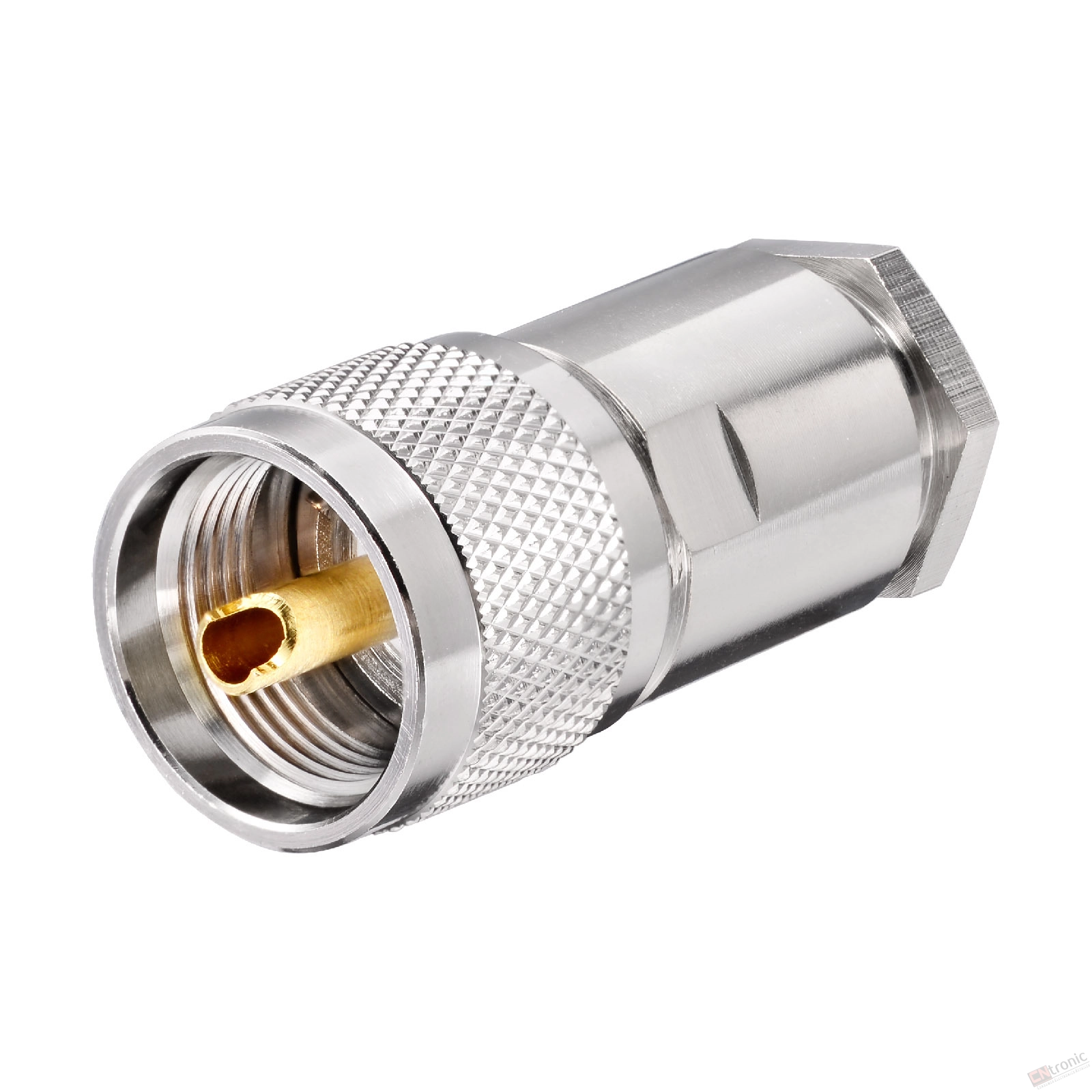

Superbat UHF Twist-on Male RF Coaxial Connector for Cable RG8 RG213 RG214 LMR400
Specification:
Product Series | UHF |
Product Type | Cable mount |
Application | twist-on |
Body Plating | Nickelplated |
Body Termination | twist-on |
Cable Type | RG8, RG213,RG214,LMR400 |
Connector Body Style | Straight |
Connector Material | Brass |
Contact Plating | Nickel |
Contact Termination | Solder |
Gender | Male Plug |
Impedance | 50 Ohm |
Description:
Originally intended for use as a video connector in radar applications, UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 335 MHz was considered high frequency.
UHF connectors feature a threaded coupling. UHF connectors are popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.
Features and Benefits:
Optional reducing adapters accommodate a wide range of popular coaxial cables
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
Applications:
Antennas
Military
Public Address Systems
Low-Frequency Applications
Packaging Details
- Unit Type:
- Package Weight: 0.060
- Package Size: 10x10x15
- Brand Name: Superbat
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: U01-SPL40-41BS02
- Type: Coaxial Cables
- Certification: CE
- Certification: RoHS
- Number of Conductors: 1
- Connector Body Style: Straight
- Gender: Plug/Male
- Cable type: RG8,RG213,RG214,LMR400
- is_customized: Yes
- Application: Audio Video
