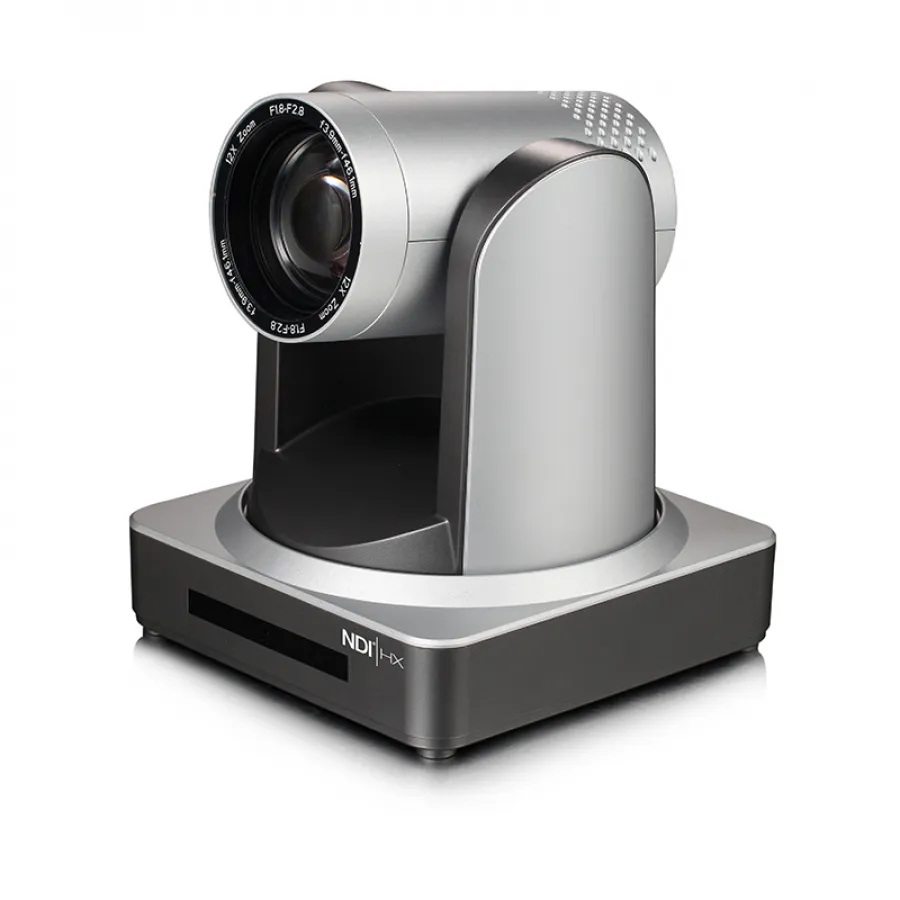

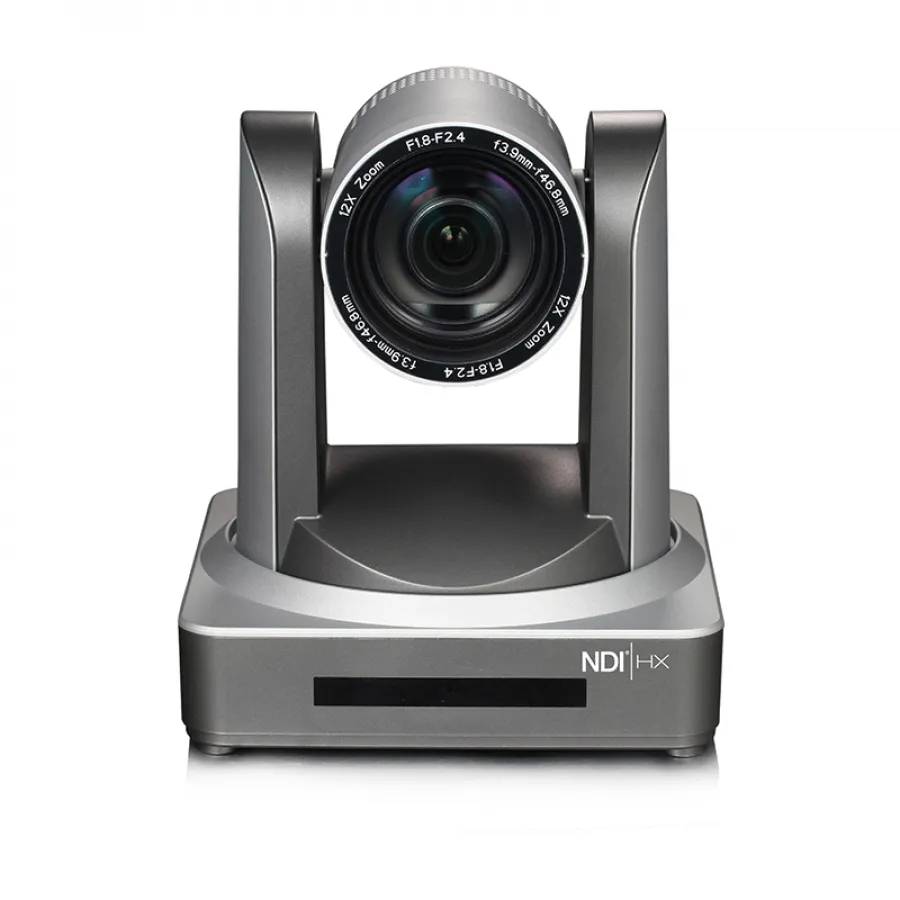

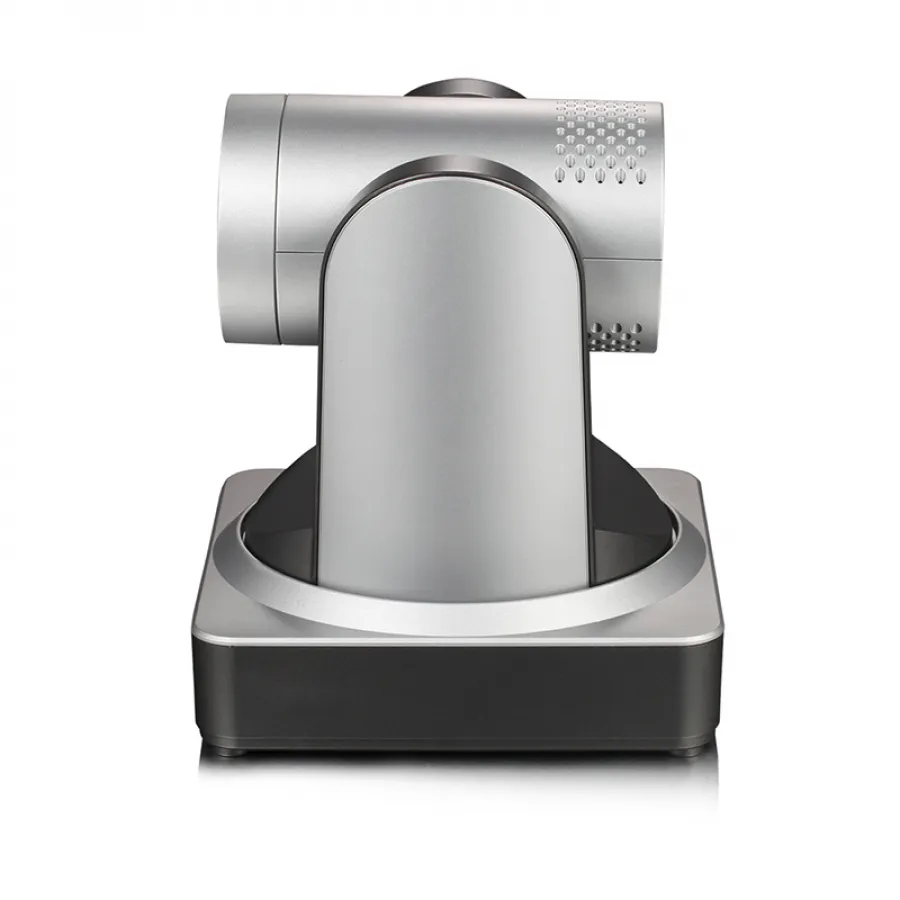

OTV-M10N SY05-ST-IR-NDI H.264 H.265 PTZ conference camera High-definition with 5x distance scaling broadcast video camera
0.0 ( votes)
Price:
US $
2470.02
Overview:
OTV-M10N-05 Series NDI Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include
advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Advantage:
Superb High-definition Image
OTV-M10N-05 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
Optical Zoom Lens
5X optical zoom lens . The lens adopts 83.7° wide angle without distortion.
Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF)
function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the
noise, while ensuring image sharpness.
Multiple Audio Output Interfaces
Support HDMI, SDI. SDI supports to transmit 100 meters under the 1080P60 format.
Audio Input Interface
Support 8000, 16000,32000,44100,48000sampling frequency and AAC,MP3,G.711A audio coding.
Multiple Audio/Video Compression
Support H.264/H.265 video compression;AAC, MP3 and G.711A audio compression; Support compression of resolution up to 1920x1080 with
frame up to 60fps.
Multiple Network Protocol
Support ONVIF,GB/T28181, RTSP, RTMP, NDI protocols and support RTMP push mode,which is easy to link streaming media server (Wowza,FMS),
RTP multicast mode and network full command VISCA control protocol.
Control Interface
RS485, RS232. RS232 supports cascade function, which is convenient for installation.
Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-Pprotocols and automatic identification protocol.
Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and
without noise.
Low-Power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
Multiple Remote Controller
Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote
controller is not affected by the angle, distance, infrared interference.
Wide Application
Tele-education,Lecture Capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
Technical Specifications:
Item | Description |
Model | |
OTV-M10N-05 | |
Camera Parameter | |
Sensor:1/2.8 inch high quality HD CMOS sensor Effective Pixels:16: 9, 2.07 megapixel Video Format:HDMI/SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 Optical Zoom:f＝3.1～15.5mm View Angle:20°(tele)--83.7°(wide) AV:F1.8 – F2.8 Digital Zoom:10X Minimum Illumination:0.5Lux (F1.8, AGC ON) DNR:2D & 3D DNR WhiteBalance: Auto / Manual/ One push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K Focus: Auto/Manual/One push focus Aperture/Electronic Shutter: Auto/Manual BLC:ON/OFF WDR:OFF/Dynamic level adjustment Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve SNR:>55dB | |
Input/Output Interface | |

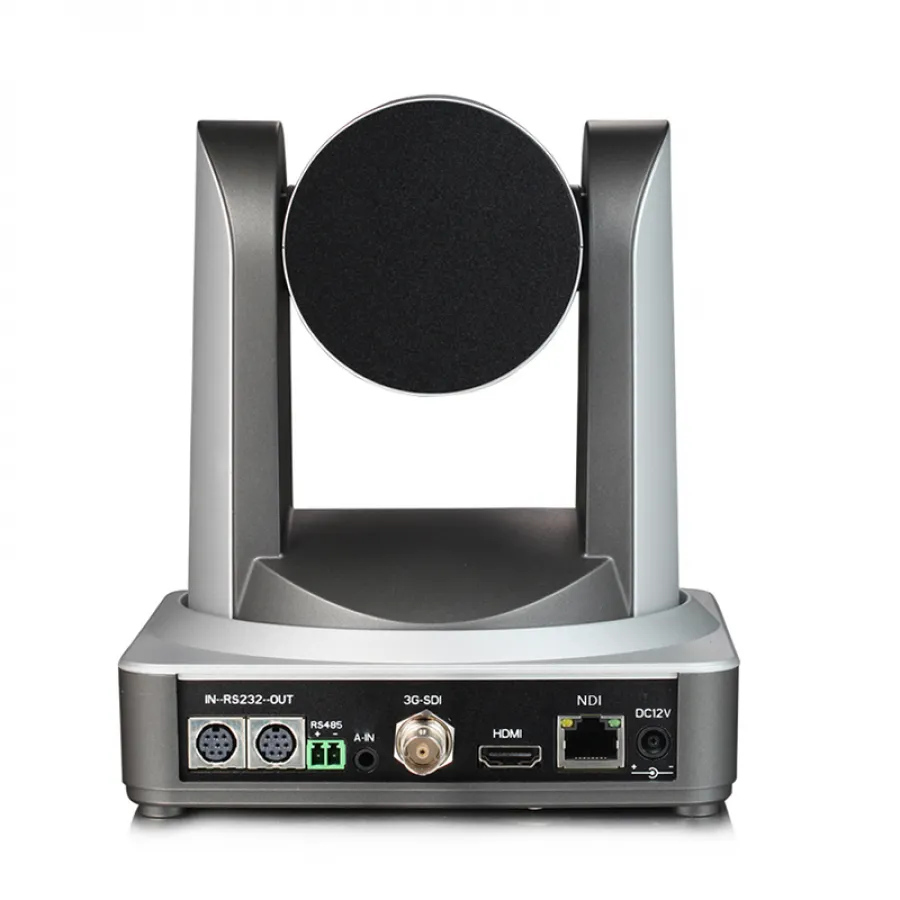

Video Interfaces:OTV-M10N-05 model: SDI, HDMI, NDI, RS232(input & output), RS485,A-IN Video Output Interfaces: HDMI,SDI,NDI Image Stream: Double stream output Video Compression Format:H.264, H.265 Control Protocol: VISCA/ Pelco-D / Pelco-P; Baud Rate:115200/9600/4800/2400bps Audio Input Interface:A-IN: Double track 3.5mm linear input Audio Compression Format: AAC/MP3/G.711A Network Interface:100M IP port(100BASE-TX) Network Protocol:RTMPS, RTSP,RTMP,ONVIF,GB/T28181,NDI,Network VISCA Control Protocol, Support ControlInterface:RS232 (input & output),RS485 Power Interface:HEC3800 outlet (DC12V) Power Adapter: Input:AC110V-AC220V; Output: DC12V/1.5A Input voltage:DC12V±10% Input current:1A(Maximum) Power Consumption:12W(Maximum) | |
RF Parameter | |
Operating frequency range:5.1—5.9 (GHz) Transmit power:17dBm Channel bandwidth:40MHz Modulation mode: OFDM Transmission distance:≤300m (Outdoor without blocking), ≤150m (Indoor without blocking) Transmission data rate: Max 300Mbps (Determined by transmission distance and channel occupancy) Anti-interference mode: Manual/automatic channel mode selection | |
PTZ Parameter | |
Pan/TiltRotation:±170°,-30°～+90° Pan Control Speed:0.1 -60°/sec Tilt Control Speed:0.1-30°/sec Preset Speed:Pan: 60°/sec, Tilt: 30°/sec Preset Number:255 presets (10 presets by remote controller) | |
Other Parameters | |
Stored Temperature:-10℃～+60℃ Stored Humidity:20%～95% Working Temperature:-10℃～+50℃ Working Humidity:20%～80% Dimension:150mm×150mm×167.5mm Weight (around):1.4KG Application: Indoor | |
Accessory | |
Package: Power supply, RS232 control cable, Remote controller, User manual Optional Accessories: Ceiling / Wall Mount (Extra Cost) | |
Packaging Details
- Unit Type:
- Package Weight: 3.000
- Package Size: 40x45x40
- Brand Name: DIBVIEWOLO
- Hign-concerned Chemical: None
- Signal Connection Type: None
- Origin: Mainland China
- Model Number: OTV-M10N-05
- Type: Video Conference System
- Sensor: 1/2.8 inch high quality HD CMOS sensor
- Video Compression Format: H.264, H.265
- Video Output Interfaces: HD-MI,SDI,NDI
- Audio Input Interface: A-IN: Double track 3.5mm linear input
- Keyword: conference camera camera ptz
