PUSR GSM GPRS Serial RS485 4G LTE Cat 1 Cellular Modem Socket Distribution Protocol Europe USR-DR502-E
0.0 ( votes) | 15 orders
Price:
US $207.10
Discount Price:
US $
137.12
-34%
Product Description

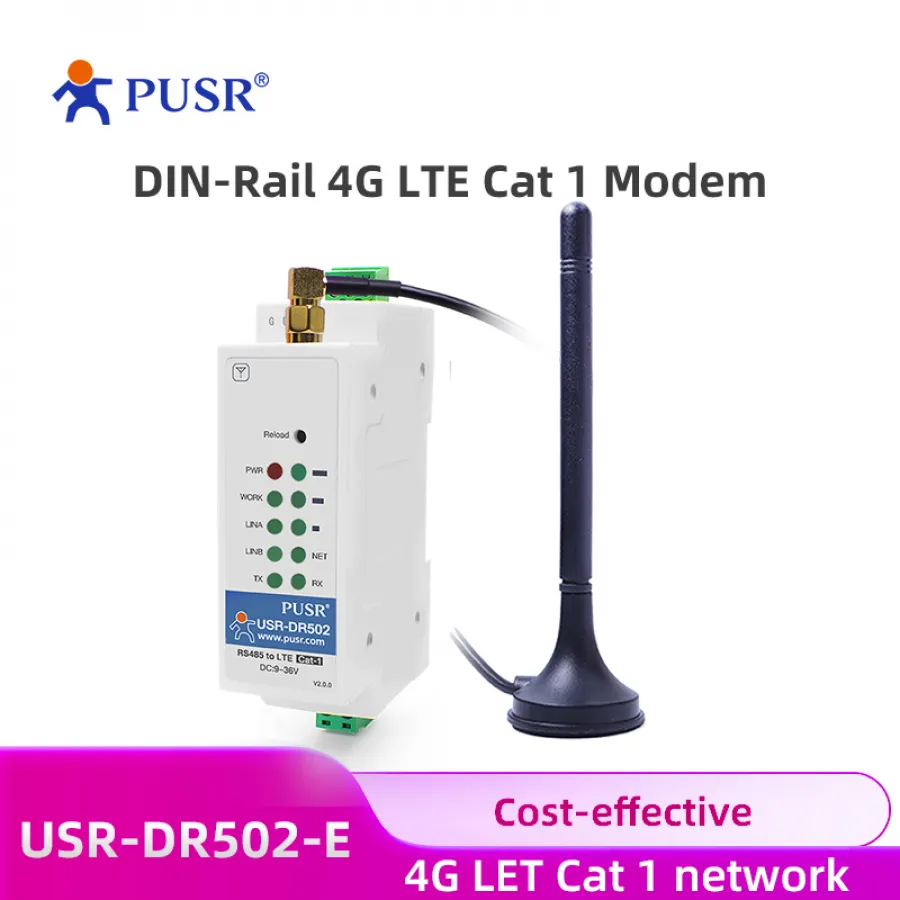

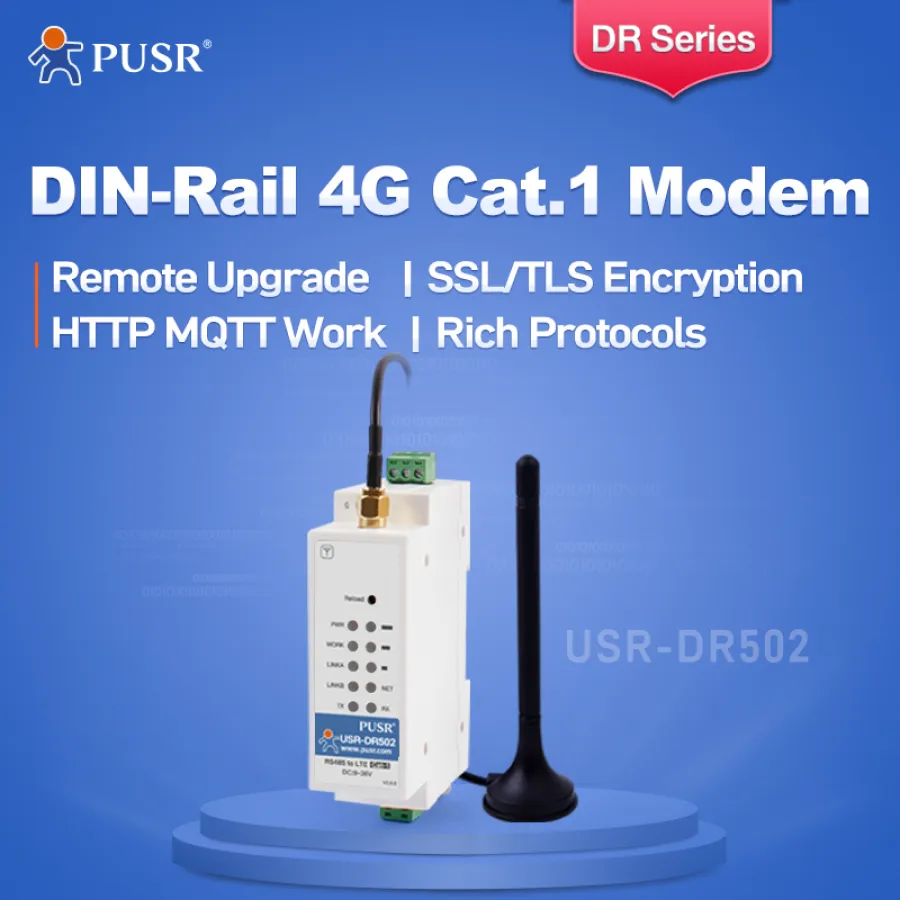

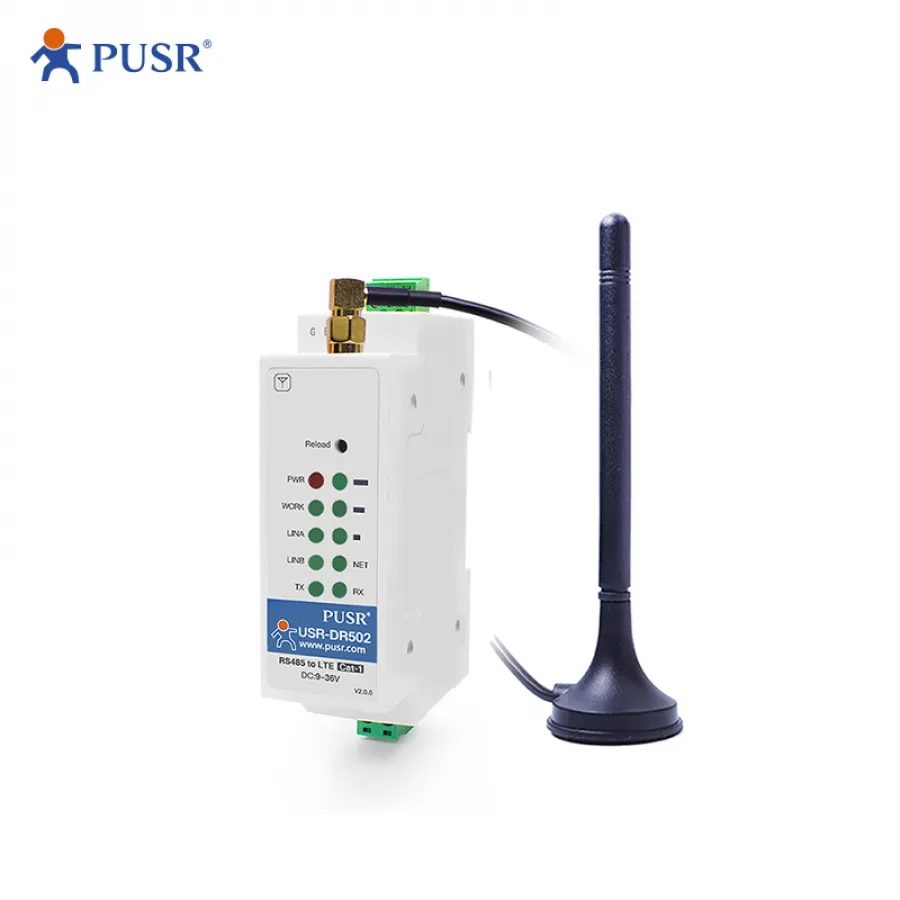

Cost-effective DIN-Rail 4G LTE Cat 1 Modem

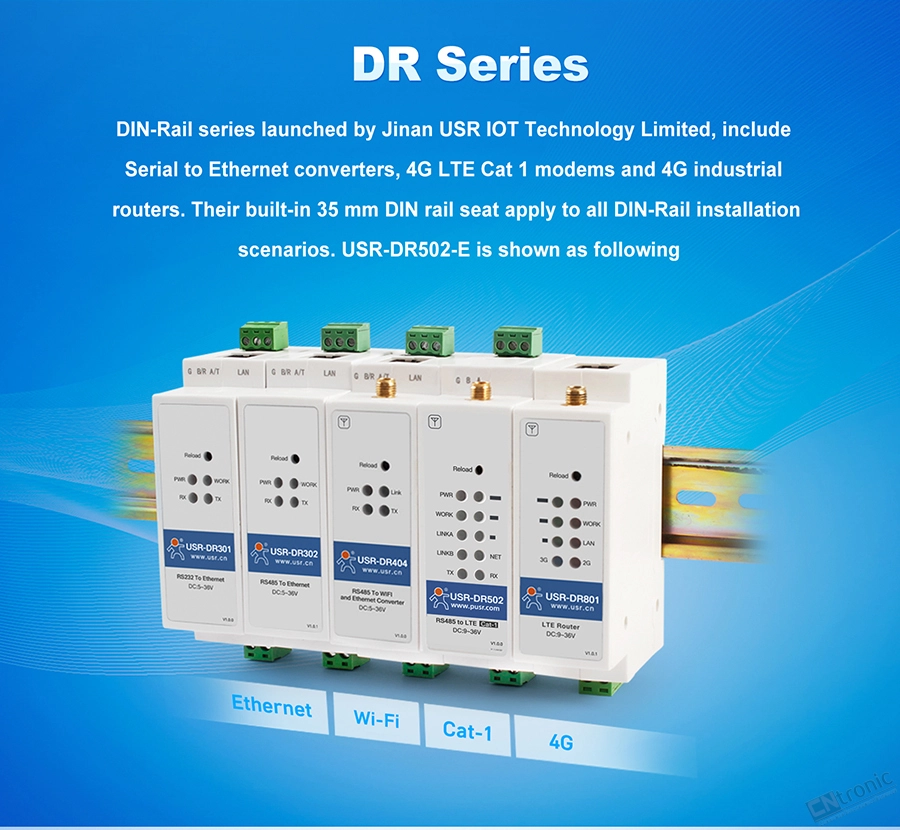

DIN-Rail series launched by Jinan USR IOT Technology Limited, include Serial to
Ethernet converters, 4G LTE Cat 1 modem and 4G industrial routers. Their
built-in 35 mm DIN rail seat applies to all DIN-Rail installation scenarios. USR-DR502-E is shown as following
●9-36V wide power supply range
●LTE Cat 1 & GSM with sim card slot
●Transparent transmission and AT command mode

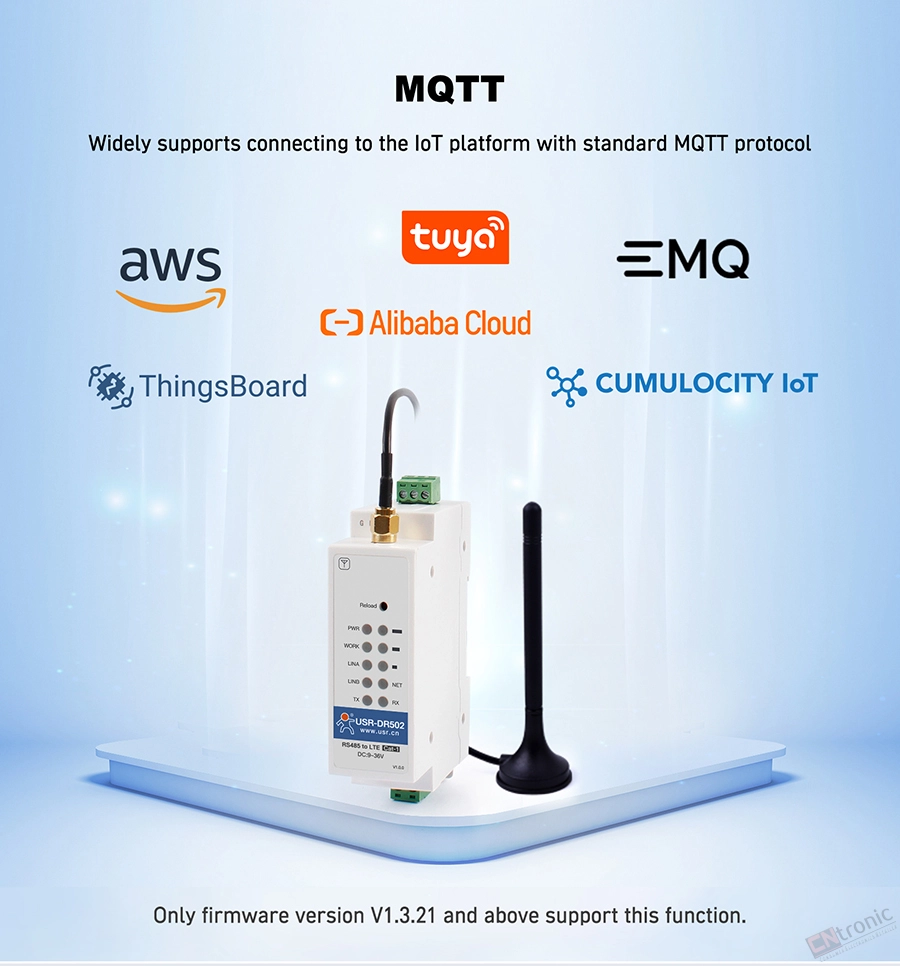

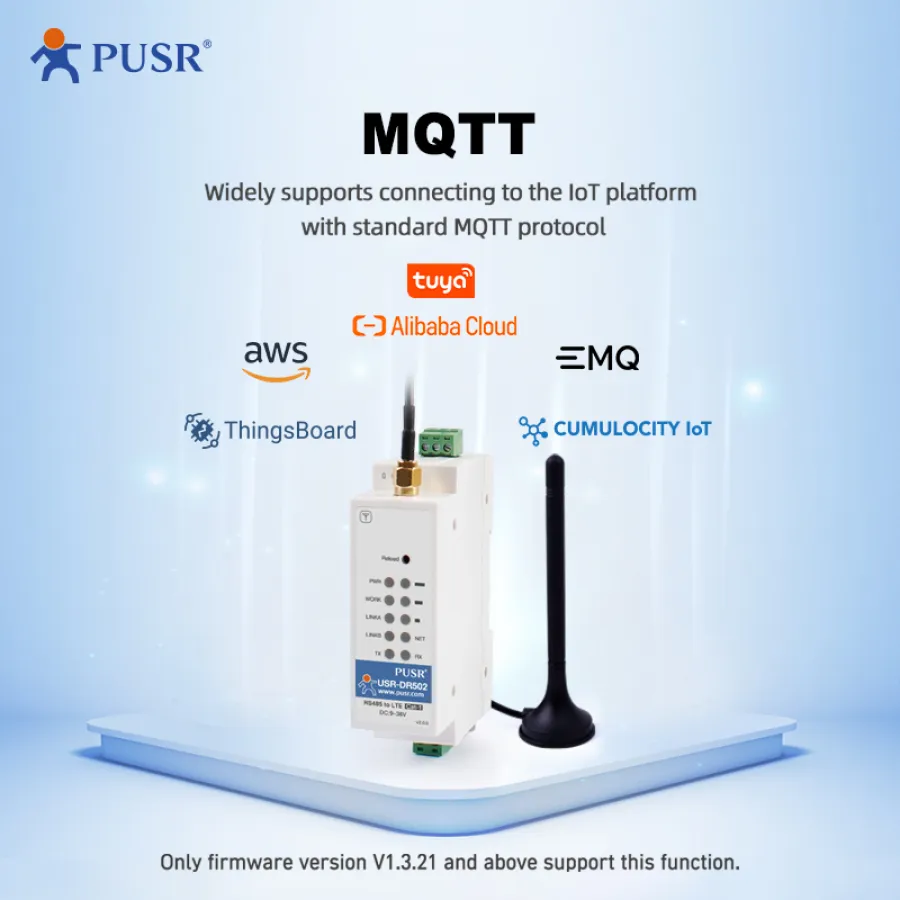

●HTTP,MQTT,SMS
●SMS,NET,Serial AT command configuration
●FTP Upgrade and FOTA self-upgrade
●Socket Distribution Protocol
Ethernet converters, 4G LTE Cat 1 modem and 4G industrial routers. Their
built-in 35 mm DIN rail seat applies to all DIN-Rail installation scenarios. USR-DR502-E is shown as following
●9-36V wide power supply range
●LTE Cat 1 & GSM with sim card slot
●Transparent transmission and AT command mode
●HTTP,MQTT,SMS
●SMS,NET,Serial AT command configuration
●FTP Upgrade and FOTA self-upgrade
●Socket Distribution Protocol
ModelsModels | USR-DR502-EUSR-DR502-E | USR-G77USR-G771-E1-E | WH-LWH-LTE-7S1-ETE-7S1-E | |
LTE Category | LTE Cat.1 | LTE Cat.1 | LTE Cat.1 | |
Frequency Bands | LTE FDD | B1/B3/B7/B8/B20/B28 | B1/B3/B7/B8/B20/B28 | B1/B3/B7/B8/B20/B28 |
GSM/GPRS/EDGE | 900/1800MHz | 900/1800MHz | 900/1800MHz | |
Transmission Speed | LTE FDD Rel.13 | 10MbpsDL/5Mbps UL | 10MbpsDL/5Mbps UL | 10MbpsDL/5Mbps UL |
GPRS | 85.6KbpsDL/85.6Kbps UL | 85.6KbpsDL/85.6Kbps UL | 85.6KbpsDL/85.6Kbps UL | |
TX Power | FDD:B1/3/7/8/20/28 | 23dBm±2dB | 23dBm±2dB | 23dBm±2dB |
GSM:900MHz | 33dBm±2dB | 33dBm±2dB | 33dBm±2dB | |
GSM:1800MHz | 30dBm±2dB | 30dBm±2dB | 30dBm±2dB | |
Rx Sensitivity | GSM:900MHz | -109.5dBm | -109.5dBm | -109.5dBm |
GSM:1800MHz | -108dBm | -108dBm | -108dBm | |
FDD:B1/3/20 | -98dBm | -98dBm | -98dBm | |
FDD:B7 | -97.5dBm | -97.5dBm | -97.5dBm | |
FDD:B8/B28 | -98.5dBm | -98.5dBm | -98.5dBm | |
Serial Parameters | NO. | RS485(Terminal)*1 | RS485(Terminal)*1 RS232(DB9)*1 | TTL(3.0V)*1 |
Data Bits | 8 | 8 | 8 | |
Stop Bits | 1,2 | 1,2 | 1,2 | |
Parity Bits | NONE,ODD,EVEN | NONE,ODD,EVEN | NONE,ODD,EVEN | |
Baud Rate | 1200～230400 | 1200～230400 | 1200～460800 | |
Physical Interfaces | SIM/USIM card | 1.8V/3V(with slot) | 1.8V/3V(with slot) | 1.8V/3V(with slot) |
Antenna | SMA Female | SMA Female | IPEX socket | |
USB | USB 2.0 | USB 2.0 | USB 2.0 | |
Indicators | POWER,WORK,NET,LINK,RSSI | POWER,WORK,NET,LINK | POWER,WORK,NET | |
Reload | Button | Button | Pin,built-in Pull-up Res | |
Reset | / | / | Pin,built-in Pull-up Res | |
Hardware Characteristics | Input Voltage | 9V～36V | 9V～36V | 3.6V～4.2V/5～16V |
Connector | Terminal | DC 5.0 Jack/Terminal | DIP | |
Housing material | ABS Plastic | Metal | / | |
Dimensions(mm) | 44.5×31.8×13.94 (L*W*H) | 82.6×86×25 (L*W*H) | 44.4×41.8×12.5 (L*W*H) | |
Operating temperature | -30℃～+75℃ | -30℃～+75℃ | -30℃～+75℃ | |
Storage Temperature | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ | |
Operating humidity | 5%～95% | 5%～95% | 5%～95% | |
Storage humidity | 5%～95% | 5%～95% | 5%～95% | |
Software | Protocol | TCP/UDP/IPV4/IPV6/ /DNS/HTTP/MQTT | TCP/UDP/IPV4/IPV6/ /DNS/HTTP/MQTT | TCP/UDP/IPV4/IPV6/ /DNS/HTTP/MQTT |
RNDIS | Default Close | Default Close | Default Close | |
Serial to network | 4 sockets, default A | 4 sockets, default A | 4 sockets, default A | |
SMS | PDU/TEXT | PDU/TEXT | PDU/TEXT | |
Command mode | 6 Sockets | 6 Sockets | 6 Sockets | |
Configuration | Serial,Net,SMS AT commands | Serial,Net,SMS AT commands | Serial,Net,SMS AT commands | |
Cache | 20 packets | 20 packets | 20 packets | |
Packaging mechanism | Packaging time(ms) | 10~500,default50 | 10~500,default50 | 10~500,default50 |
Packaging length(byte) | 5～65535,defalut1024 | 5～65535,defalut1024 | 5～65535,defalut1024 | |
Others | Tool | USR-Cat1Configuration Utility | USR-Cat1Configuration Utility | USR-Cat1Configuration Utility |
Certifications | CE,ROSH | CE,ROSH | CE,ROSH | |
If you want to know more or download files, Please lick here:
https://www.pusr.com/products/4G-Cat-1-Modem.html

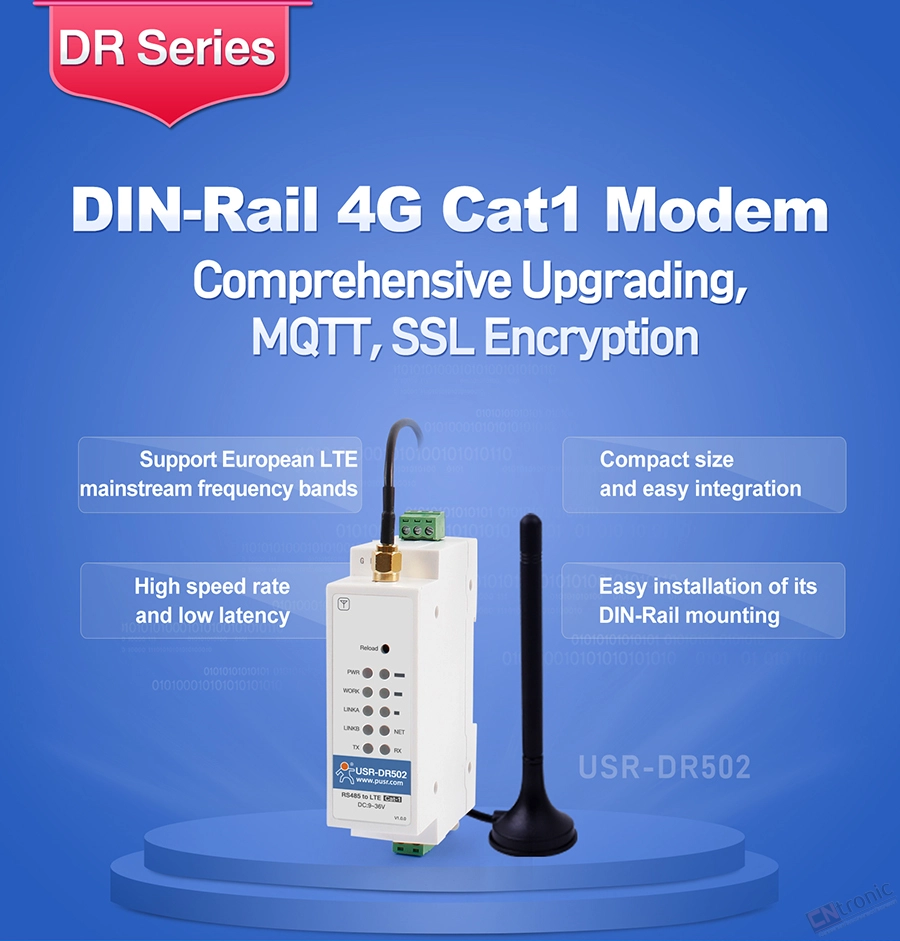

Support European LTE
mainstream frequency bands
Copact size
and easy integration
High speed rate
and low latency
Easy installation of its
DIN-Rail mounting
PC+ABS materials, compact, low cost; flame retardant grade V0,
ensuring the safe use of the product

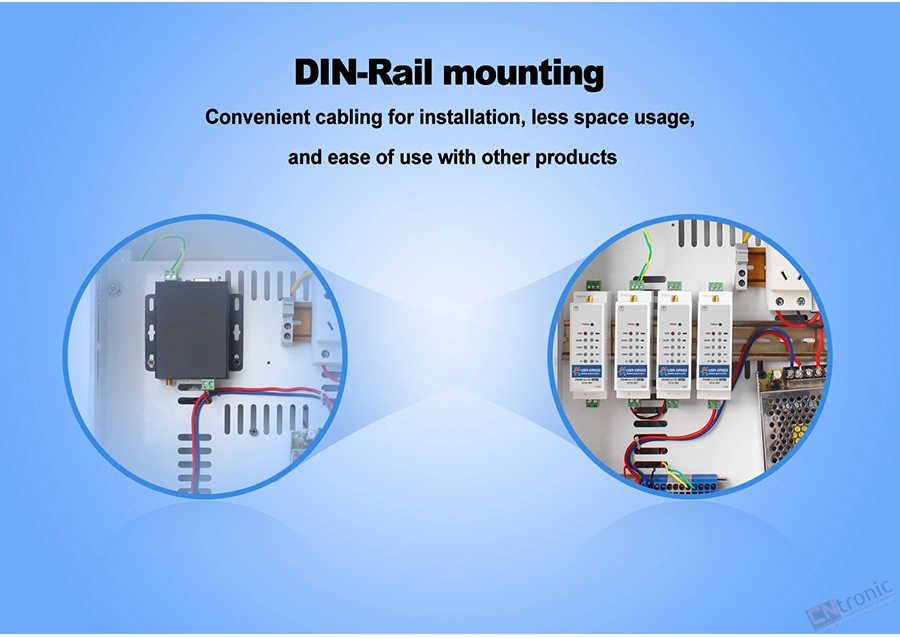

DIN-Rail mounting
Convenient cabling for installation, less space usage,
and ease of use with other products
HTTPD Mode
Support the submission of serial data to the designated server
in HTTP (GET/POST) mode

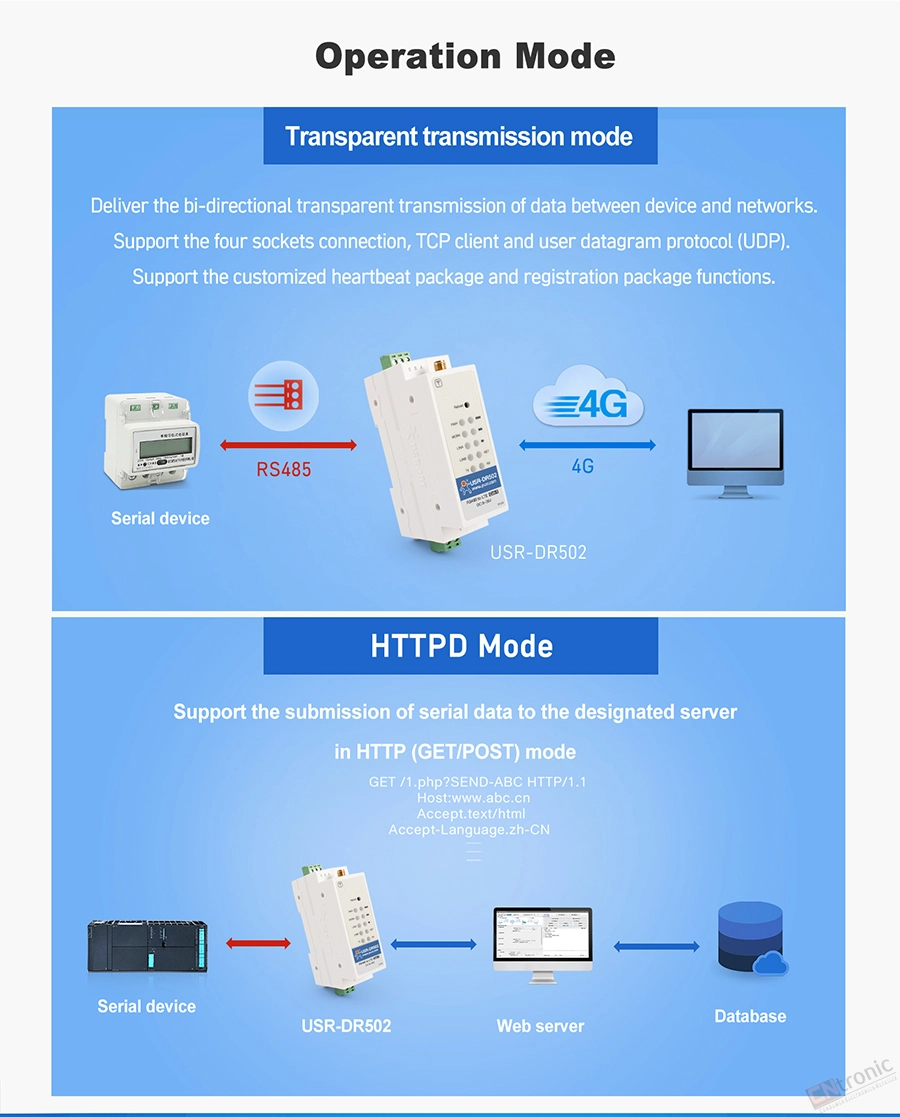

Operation Mode
Transparent transmission mode
Support the four sockets connection, TCP client and user datagram protocol (UDP).
Support the customized heartbeat package and registration package functions.

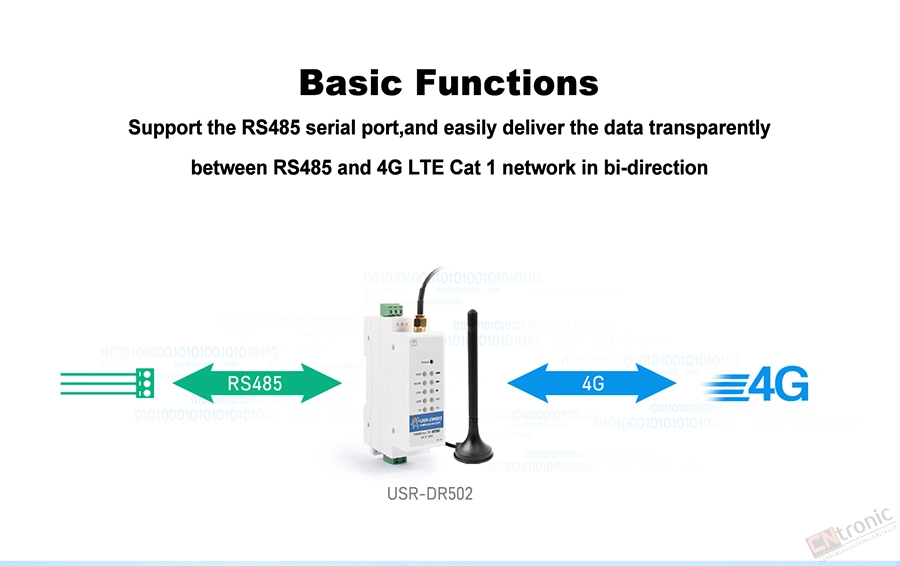

Support the RS485 serial port, and easily deliver the data transparently
between RS485 and 4G LTE Cat 1 network in bi-direction
HTTPD Mode
Support the submission of serial data to the designated server
in HTTP (GET/POST) mode
FOTA Remote Upgrade
With the remote management platform, it can realize the automatic
firmware upgrade The upgrade package of difference algorithm is small,
and the upgrade traffic and time are saved

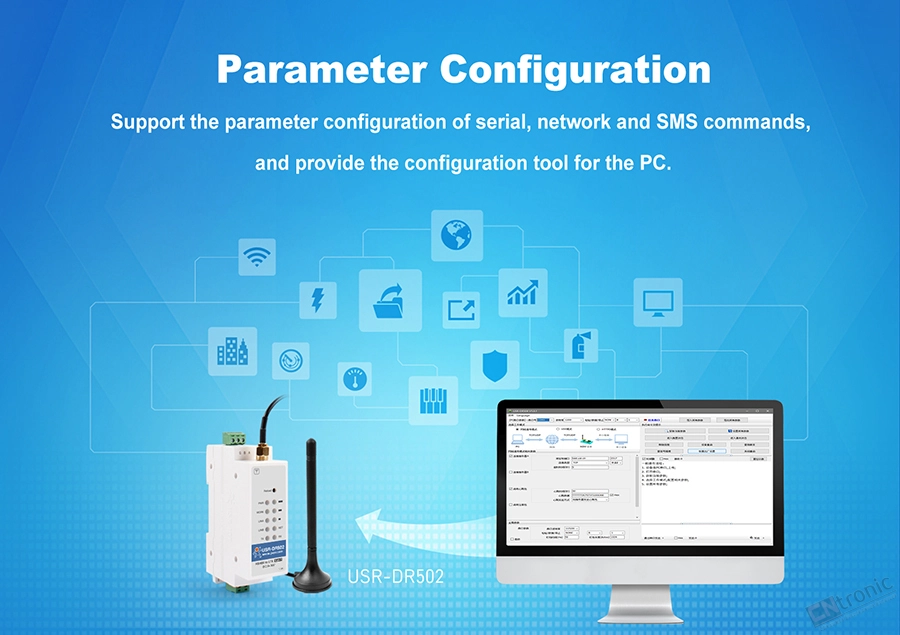

Parameter Configuration
Support the parameter configuration of serial, network and SMS commands,
and provide the configuration tool for the PC.
FOTA Remote Upgrade
With the remote management platform, it can realize the automatic
firmware upgrade The upgrade package of difference algorithm is small,
and the upgrade traffic and time are saved

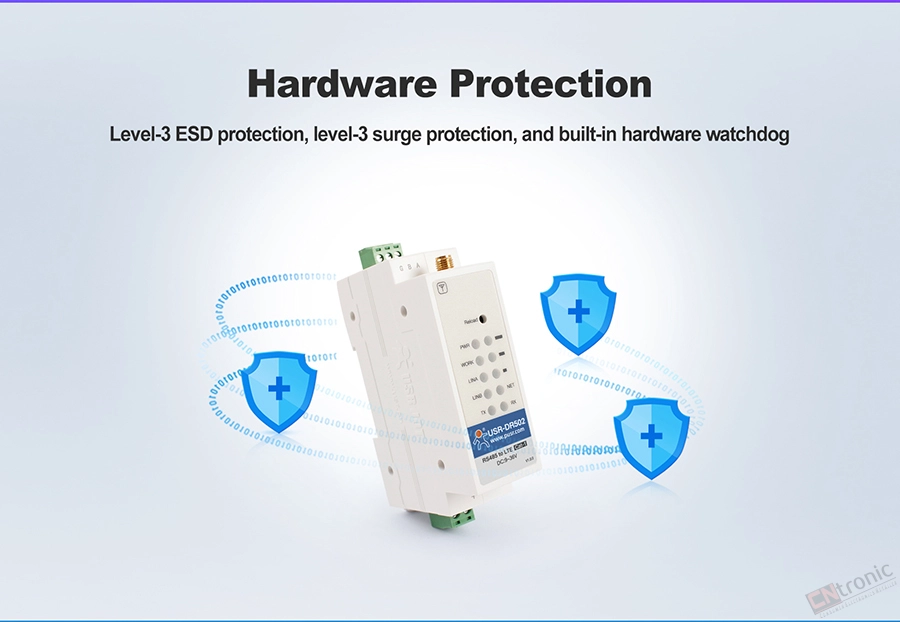

Hardware Protection
Level-3 ESD protection, level-3 surge protection, and built-in hardware watchdog

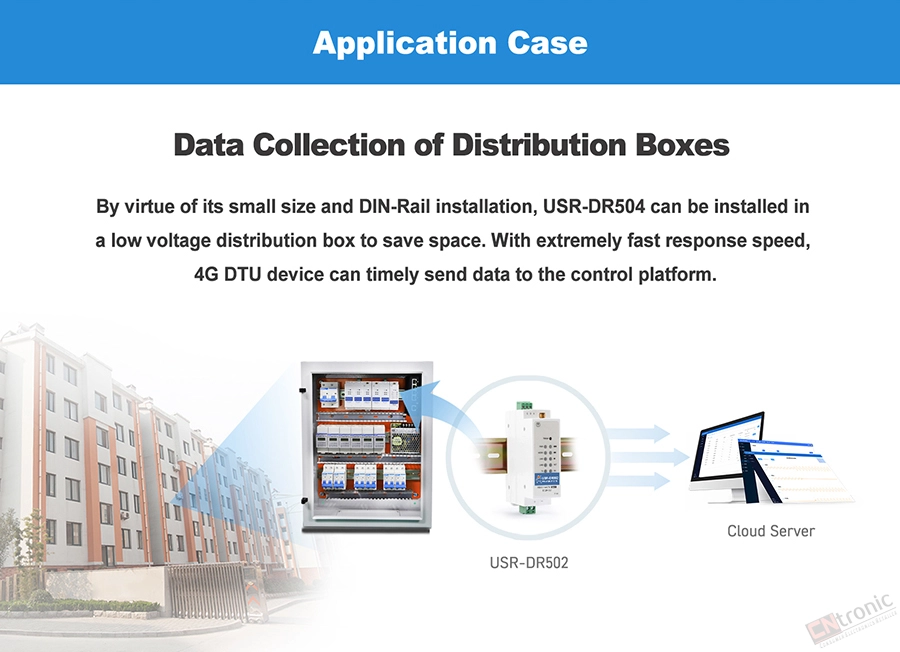

Application Case

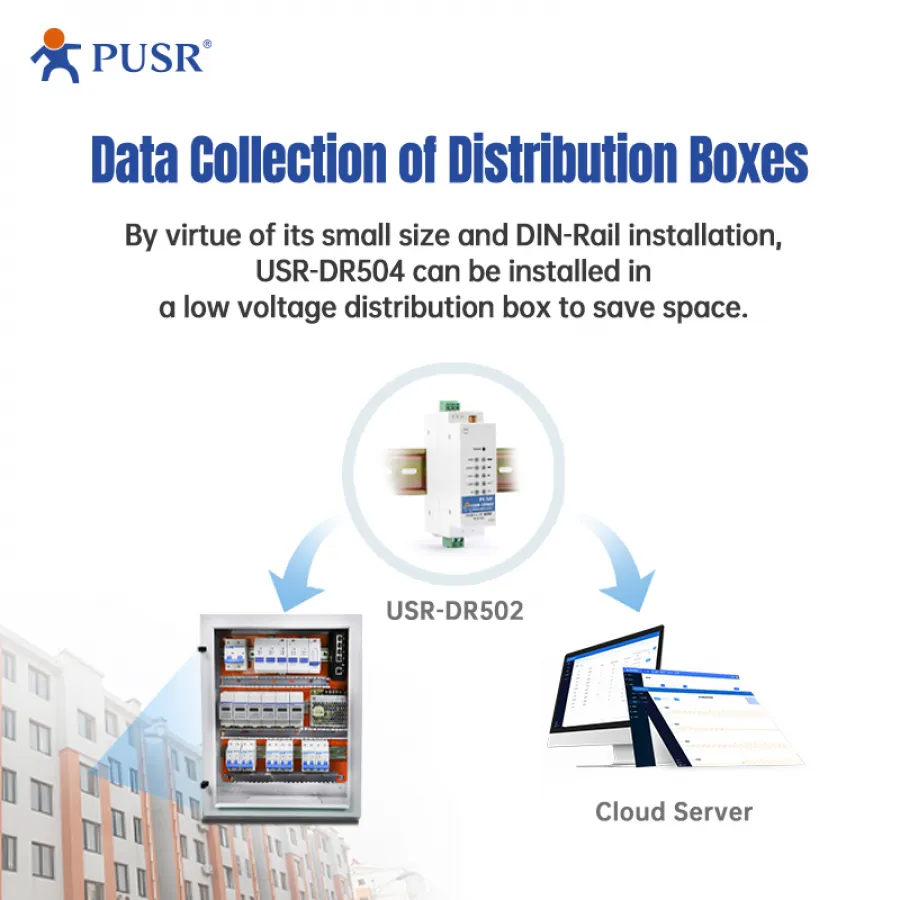

Data Collection of Distribution Boxes
By virtue of its small size and DIN-Rail installation, USR-DR502 can be installed in
a low voltage distribution box to save space. With extremely fast response speed,
4G DTU device can timely send data to the control platform.
If you want to know more or download files, Please lick here:
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 15x5x20
- Brand Name: PUSR
- Hign-concerned Chemical: None
- Type: Wireless
- Origin: Mainland China
- Style: Internal
- Model Number: USR-DR502-E
- Certification: CE
- Certification: FCC
