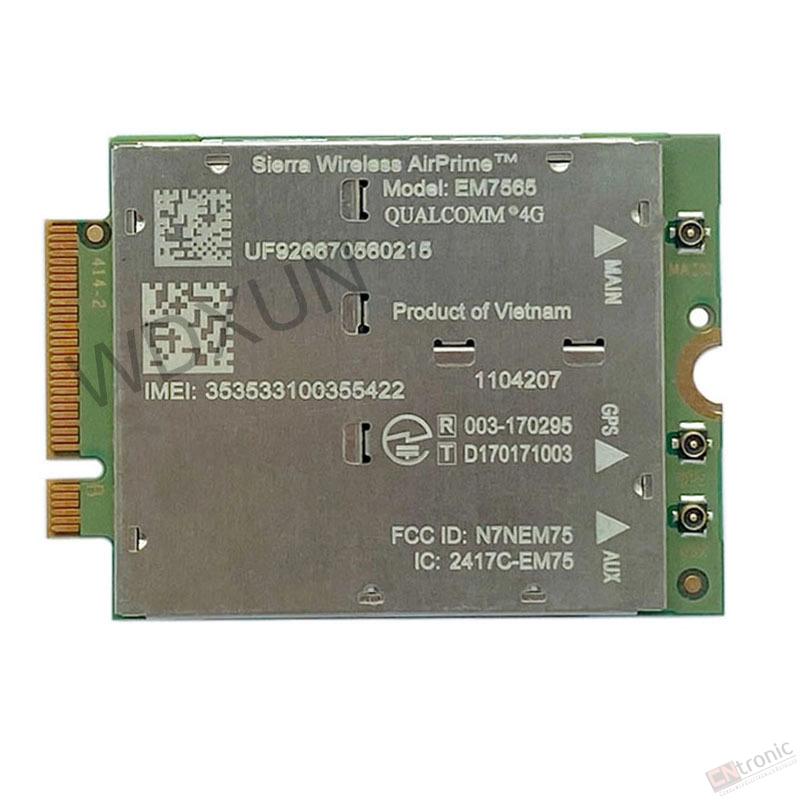

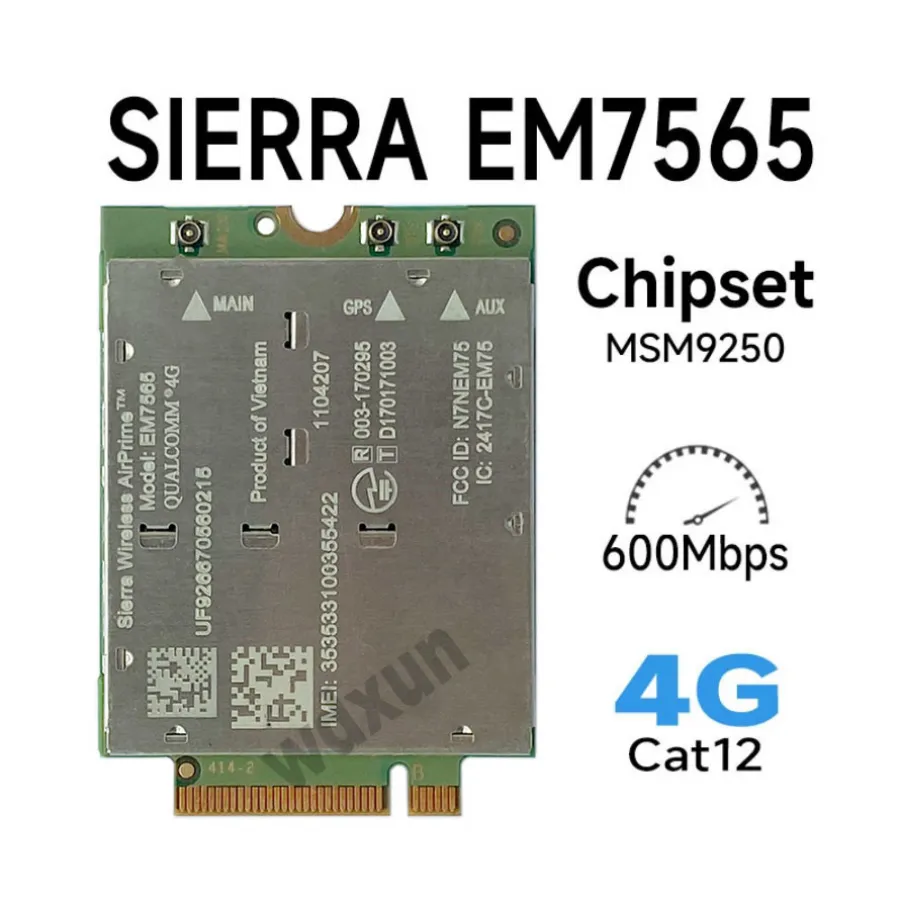

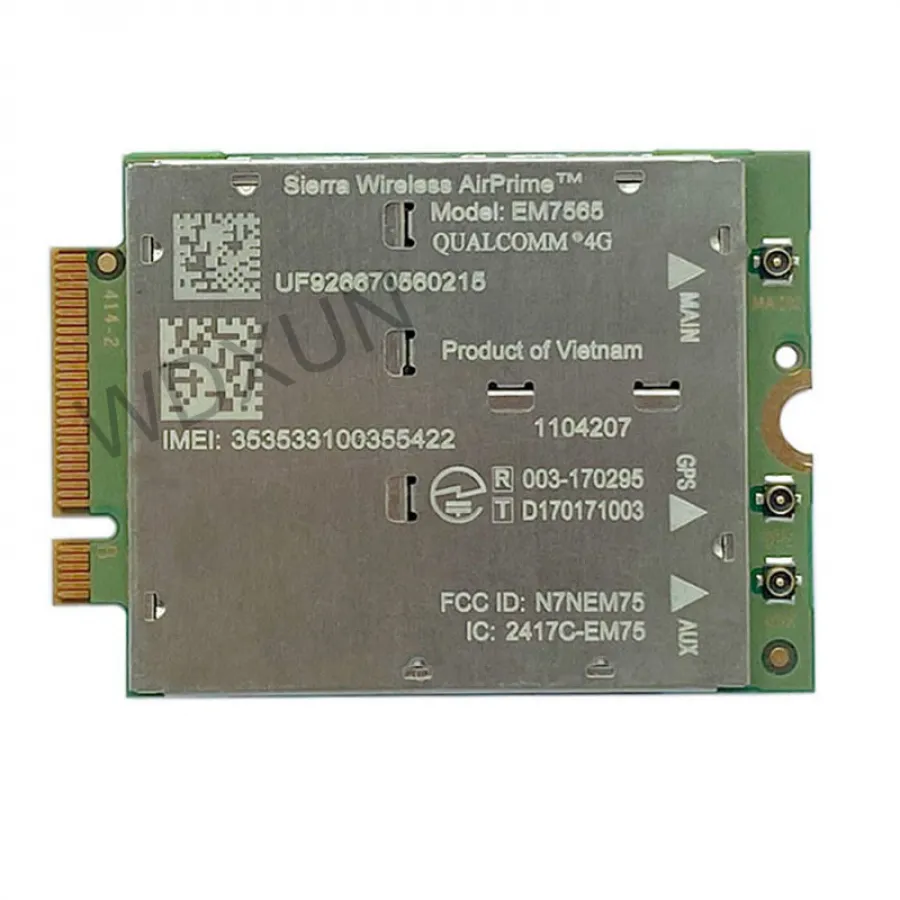

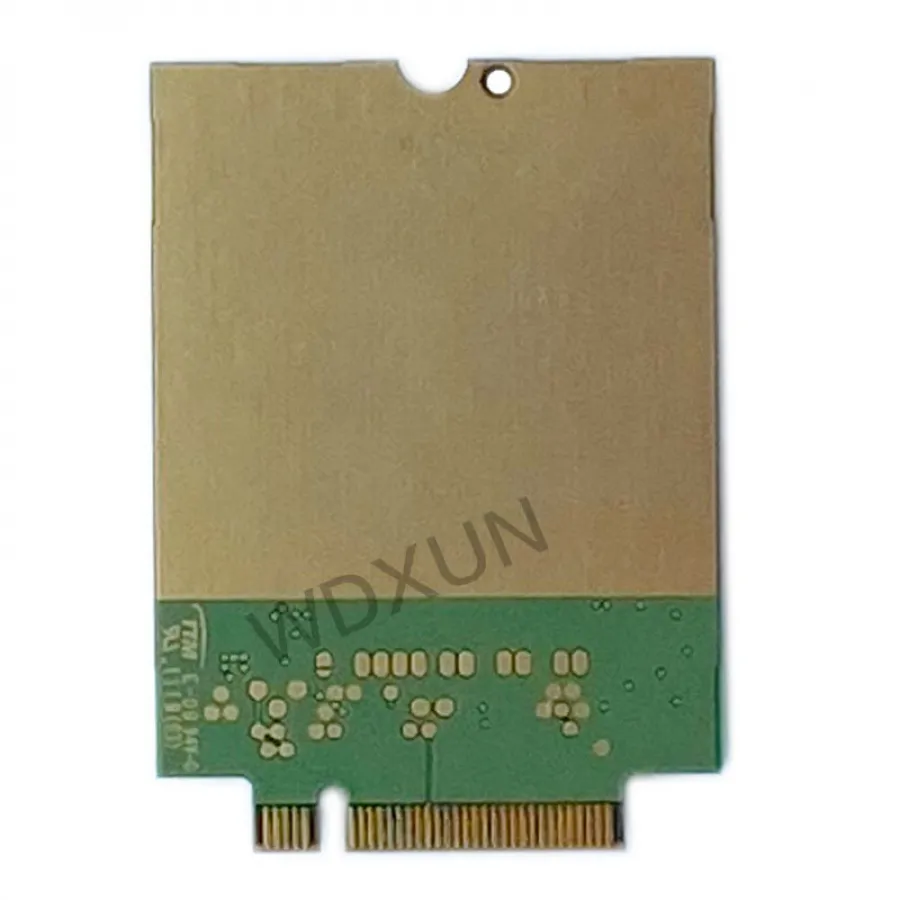

sierra cordless em7565 4g lte cat-12 600mbps ngff cat12 module ngff cat12 module for laptop
5.0 (1 votes) | 28 orders
Price:
US $83.52
Discount Price:
US $
70.99
-15%
Em7565 is the first global lte-advanced professional cellular module, enabling the world's fastest iot applications for mobile computing, networking, and industrial m2m. Leveraging LTE-LAA and unlicensed cbrs ranges and carrier aggregation, this cat-12 embedded pro lte-advanced em7565 module delivers up to 600mbps downlink speed and 150mbps uplink speed, offering 4g global coverage in a single module. With automatic capability for 3g networks and an integrated gnss receiver (gps, glonass, beidou, and galileo satellite systems supported), the em7565 is ideal for industrial mobile computing, networking and m2m applications.
Em7565 supports for bearer aggregation and 256 qam, dramatically improving network performance. The modules provide global lte coverage on 24 lte bands with the most bearer certifications in the industry, so companies can use a module for global 4g networks, simplifying manufacturing and inventory management. The new embedded modules are the fifth generation of sierra wireless lte modules, are offered in pci express m.2 form factor, and support secure, authenticated-over-the-air firmware (fota) updates. Along with most operator certifications on industry and network switching capability, the sierra em7565 allows customers to change their network provider at any time, providing more flexibility in manufacturing.
EM7565 Technical Specifications:
* Form factor: pci express m.2
* Category: lte cat.12
* Chipset/Processor: qualcomm mdm9250
* Support lte frequency ranges: b1, b2, b3, b4, b5, b7, b8, b9, b12, b13, b18, b19, b20, b26, b28, b29, b30, b32, b41, b42, b43, b46 , B48, B66
* Support 3g frequency ranges: b1, b2, b3, b4, b5, b6, b8, b9
* Date rates: maximum transfer rate up to 600mbps/peak upload rate up to 150mbps
* Satellite systems: galileo, glonass, gps, beidou
* Interfaces: usb 3.0, high speed usb 2.0, sim x 1 interface (1.8v/3v)
* Control options: apis, in commands
* Dimensions: 42x30x2.3mm
* Antenna: diversity, mime, gnss bias
* Antenna connectors: main, aux/gnss, gnss
* Temperature range: -30 °c/+ 70 °c '-40 °c/+ 85 °c (tbc)
* Firmware: pre-certified firmware, secure boot
* System drivers: windows®8, windows®8.1, Windows®10, linux driver: standard ecm, android ril
* Planned carrier at&t, docomo, telstra, verizon, vodafone
* Regulatory: ce, fcc, gcf, ic, ncc, ptcrb
* Cloud services: free unlimited photo upgrades, connectivity management option, device management option, application enable option
* Connectivity: optional ready to connect sierra wireless embedded sim
Technical specifications of the em7511 LTE-A module:
* Form factor: pci express m.2
* Category: lte cat.12
* Dimensions: 42x30x2.3mm
Note: This module is not for hp/lenovo portable.
Weight: <6g
Condition: used (tested before shipment)
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 5x5x5
- Brand Name: WDXUN
- Type: Wireless
- Style: Internal
- Origin: Mainland China
- Products Status: STOCK
- Model Number: EM7565
- wirless Modem Type: LTE
- Certification: CE
- Interface Type: M2
