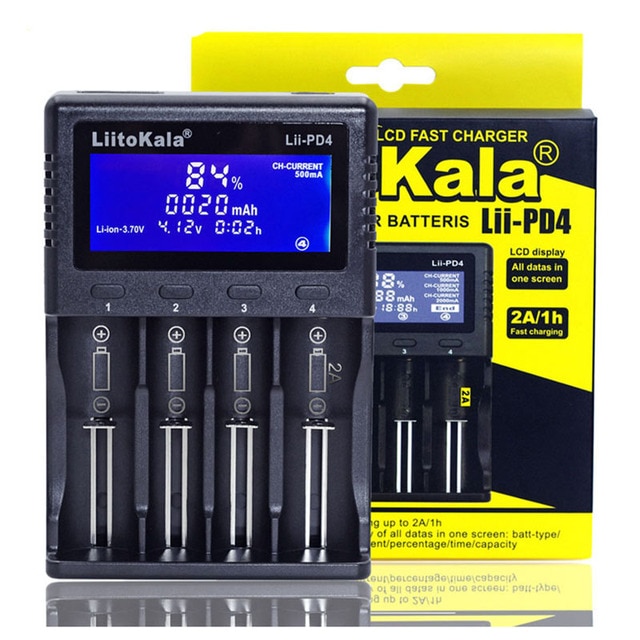

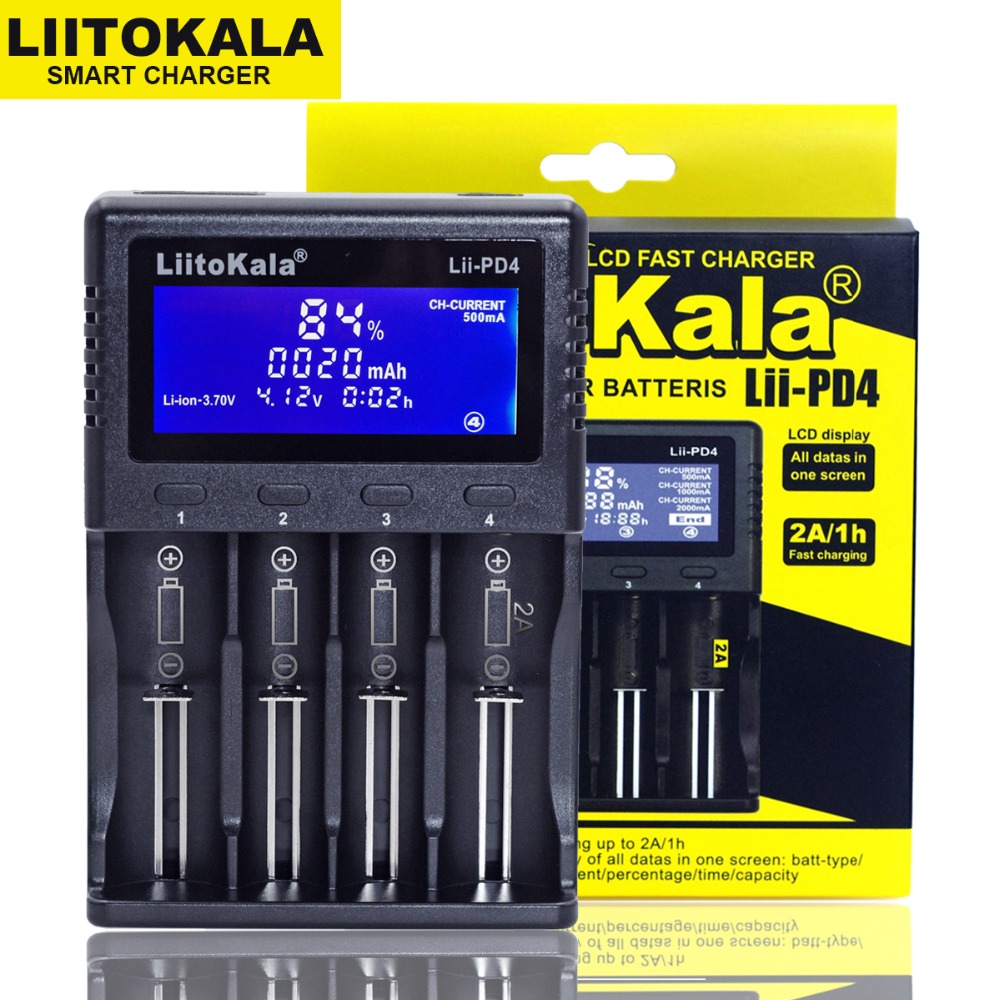

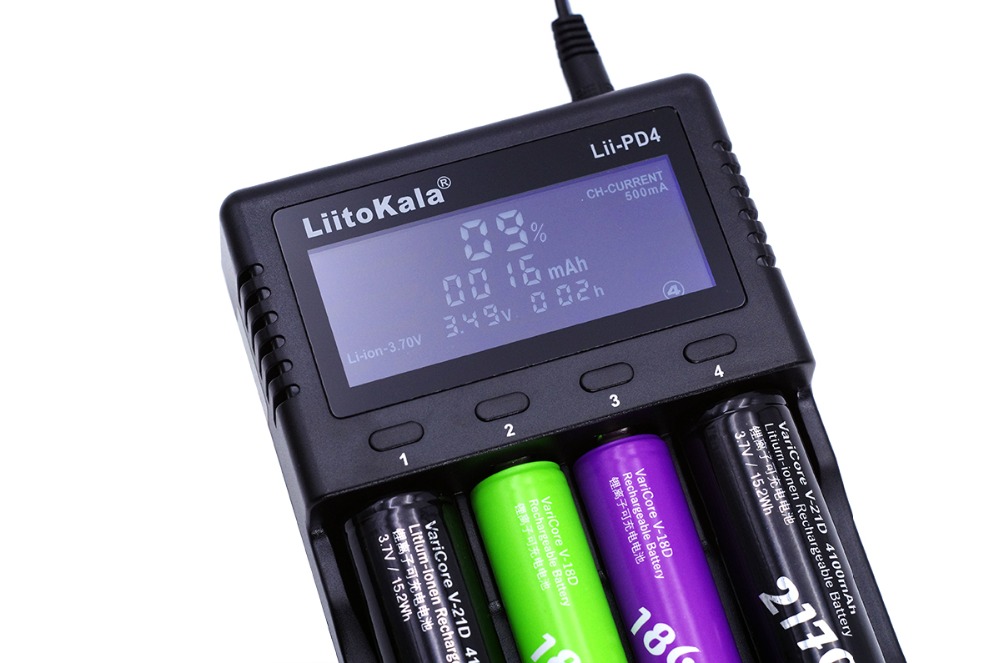

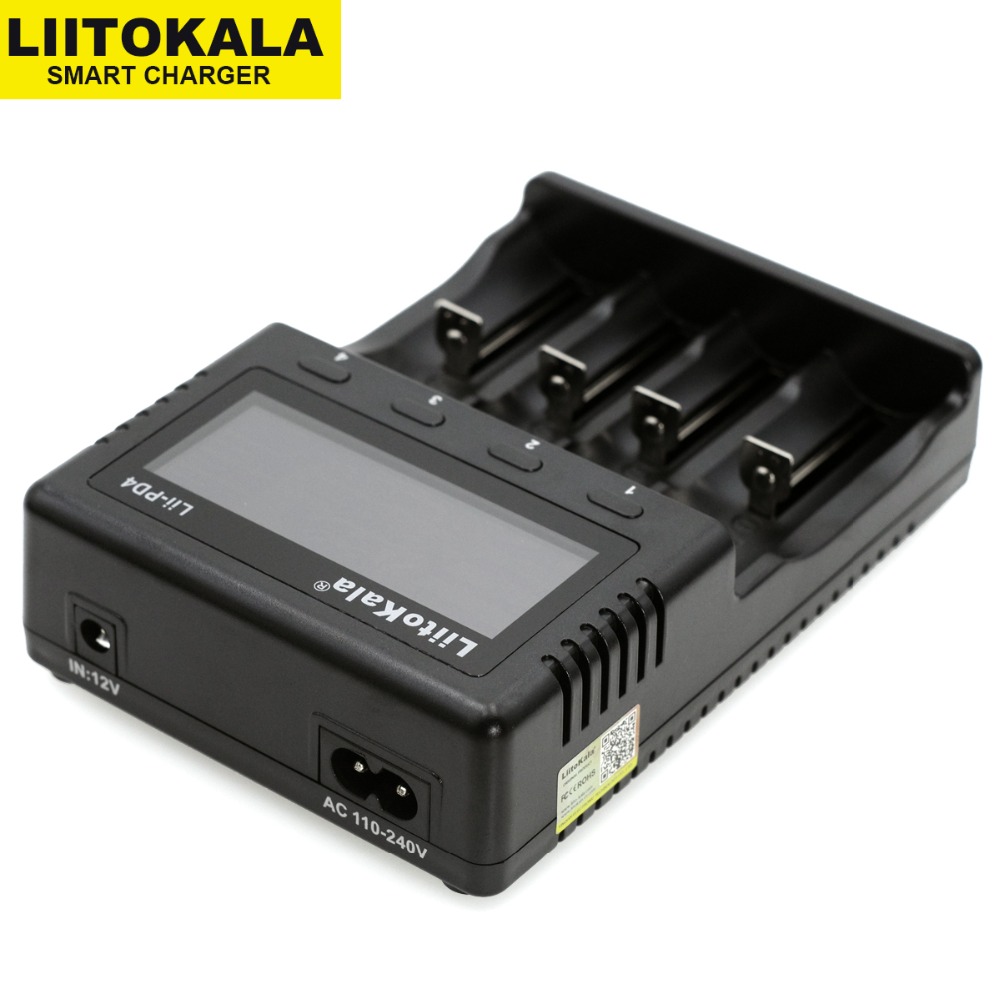

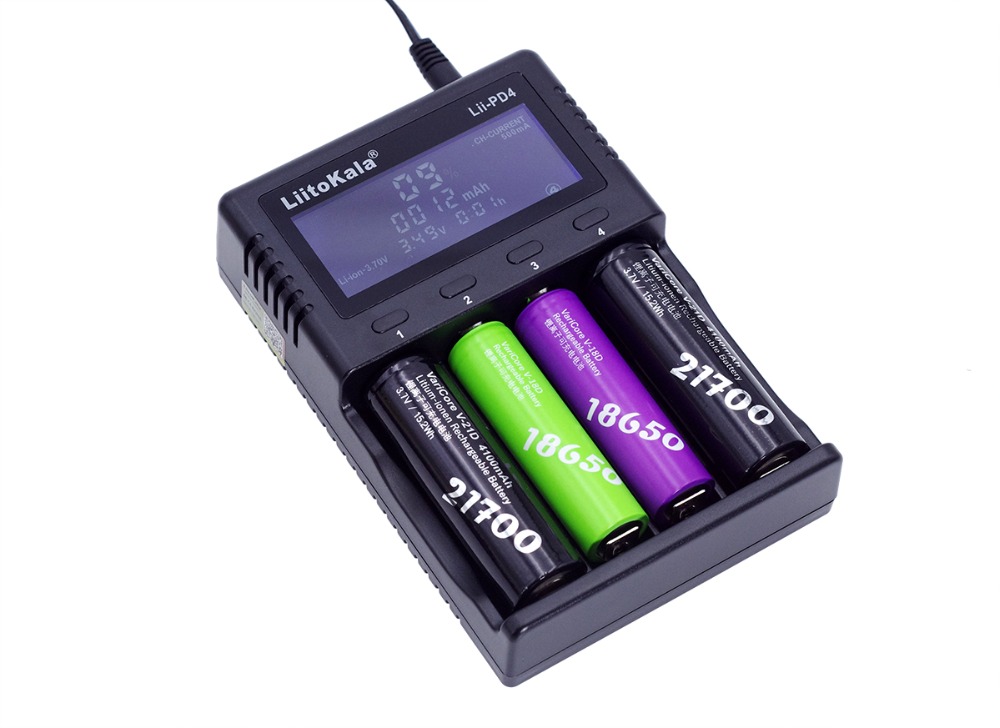

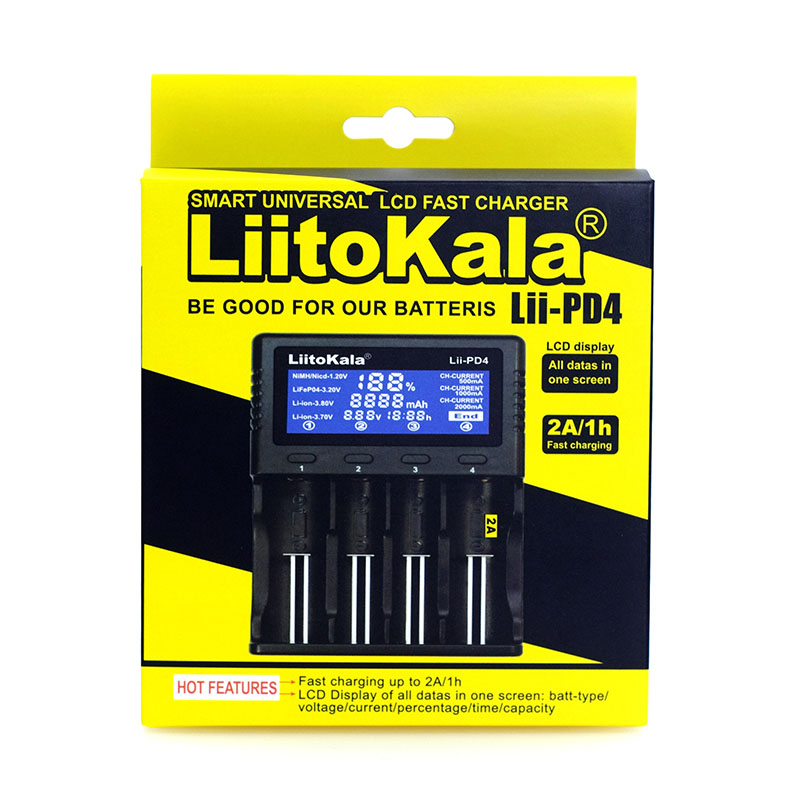

NEW Liitokala Lii-PD4 S4 S2 402 202 100 18650 Battery Charger 1.2V 3.7V 3.2V AA21700 NiMH li-ion battery Smart Charger+ 5V plug

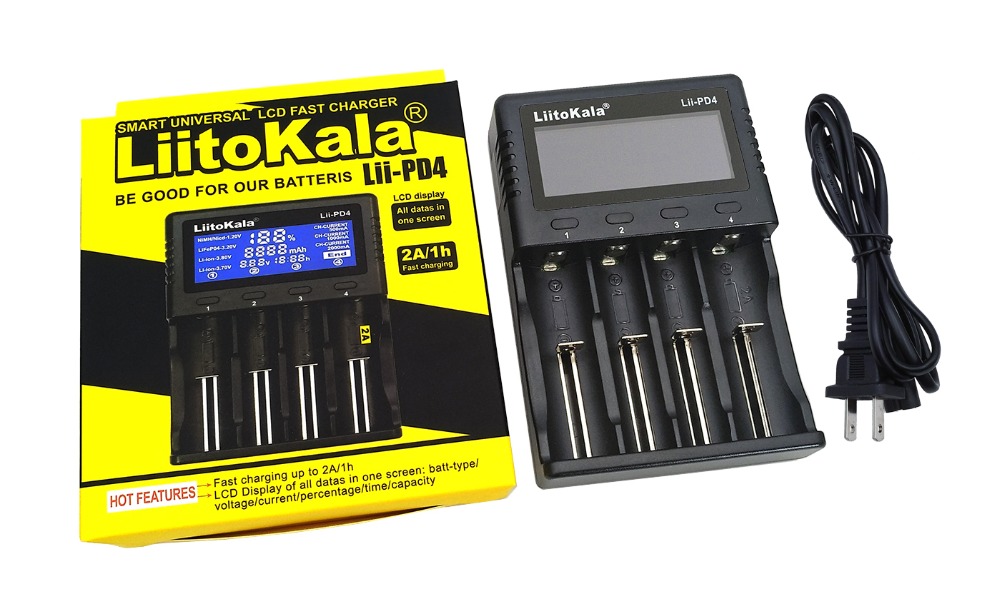

Liitokala Lii-PD4  Chargerx1

AC Cable x1

Manual x1

Cautions:

1. This charger can charge all cylindricalrechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4

2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3. If DC input, only 12V 1Ais recommended

4. Mind heating while charging

5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6. For indoor use only

7. The displaying data only for reference, please refer to professional instrument for more accurate data

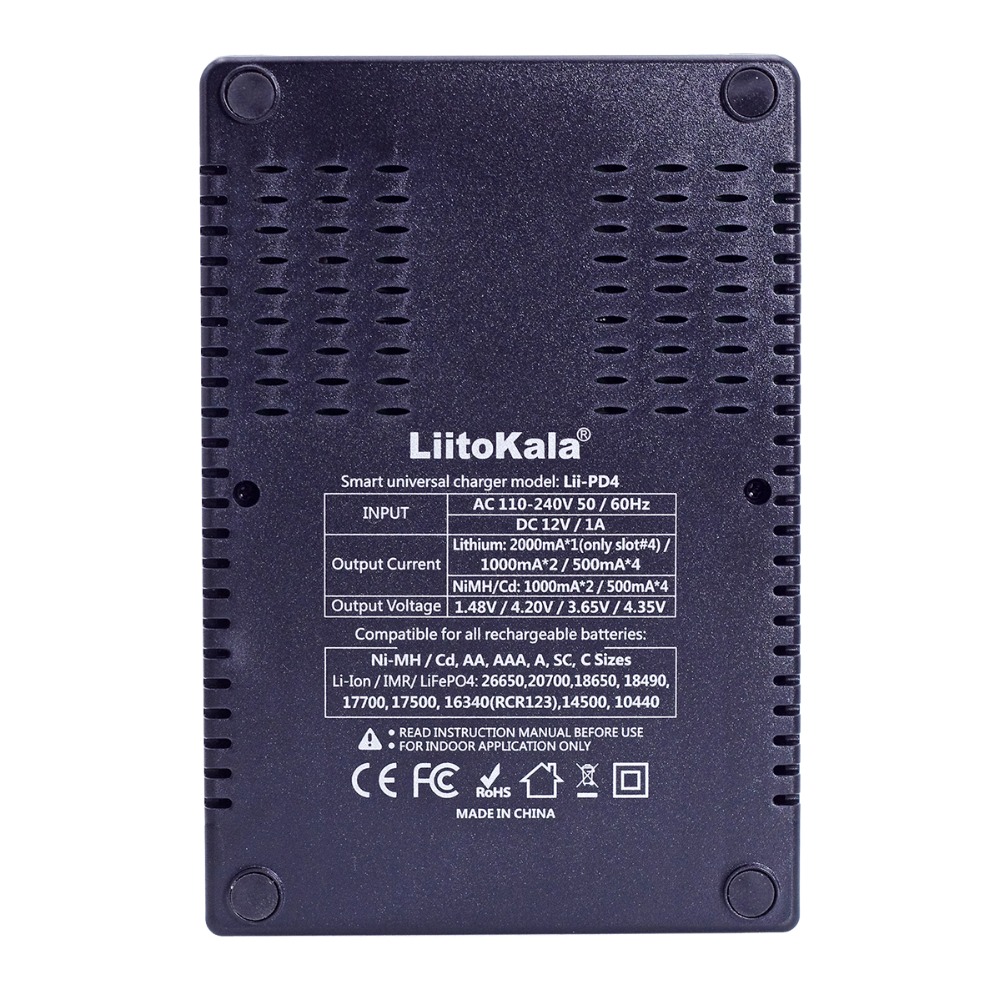

Electrical Parameters:

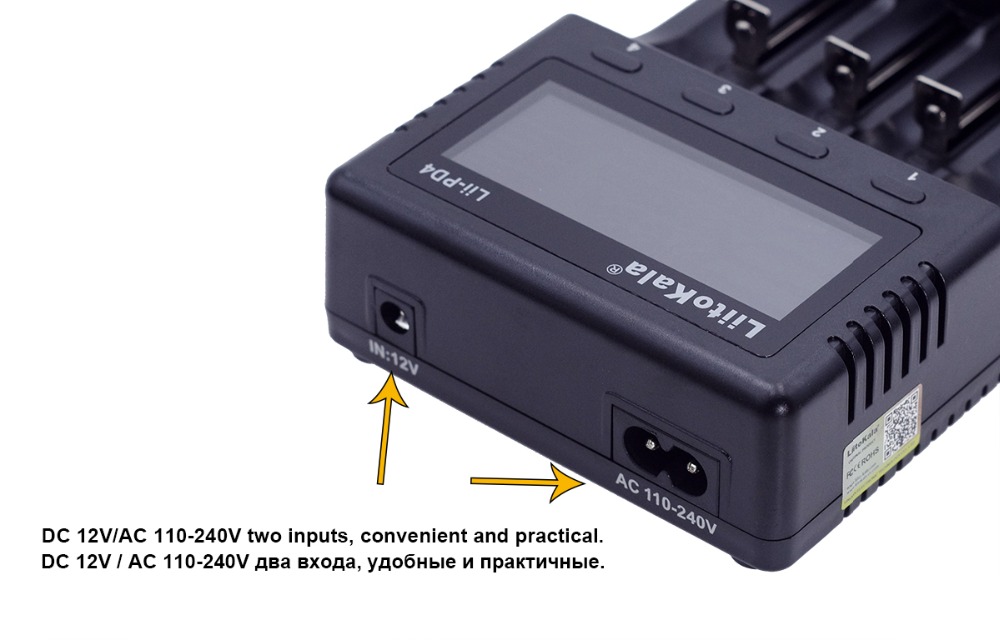

1. Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V

                      DC 4.35V for Li-Ion 3.8V( IMR)

                      DC 3.65V for LiFePO4

                      DC 1.48V for NiMH/NI-Cd

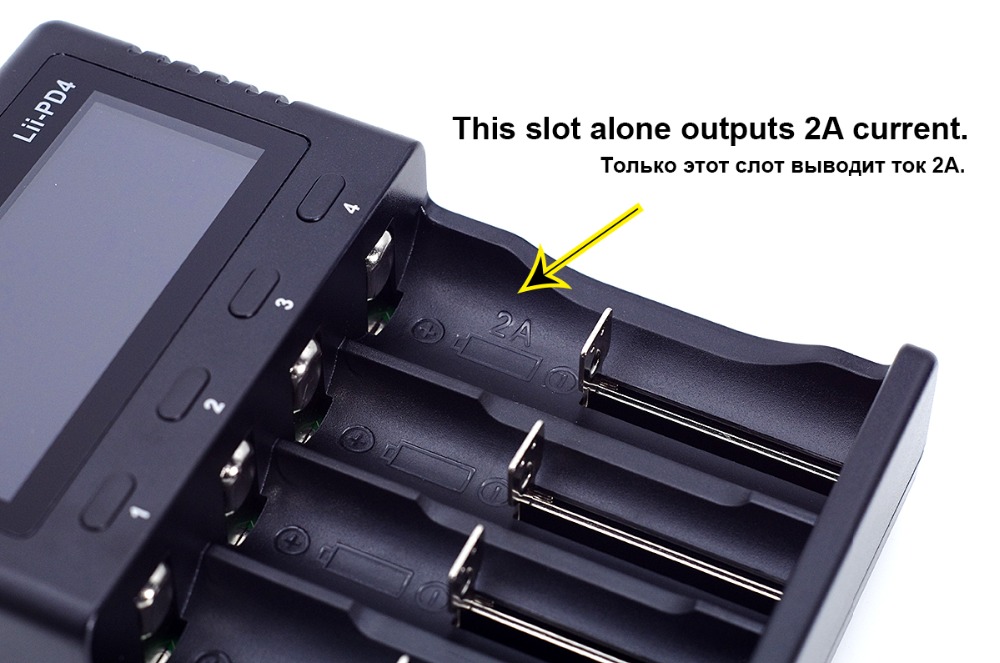

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2, 500mA*3  500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3  500mA*4

4. Constant voltage, cut-off current: less than 100mA

5. Standby current: less than 15mA

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:

133mm x 100mm x 35mm (L x W x H)

Weight:      approx175g (not including AC cable)

Electrical Parameters:

1. Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V

                      DC 4.35V for Li-Ion 3.8V( IMR)

                      DC 3.65V for LiFePO4

                      DC 1.48V for NiMH/NI-Cd

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2, 500mA*3  500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3  500mA*4

4. Constant voltage, cut-off current: less than 100mA

5. Standby current: less than 15mA

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:

133mm x 100mm x 35mm (L x W x H)

Weight:  approx175g (not including AC cable)

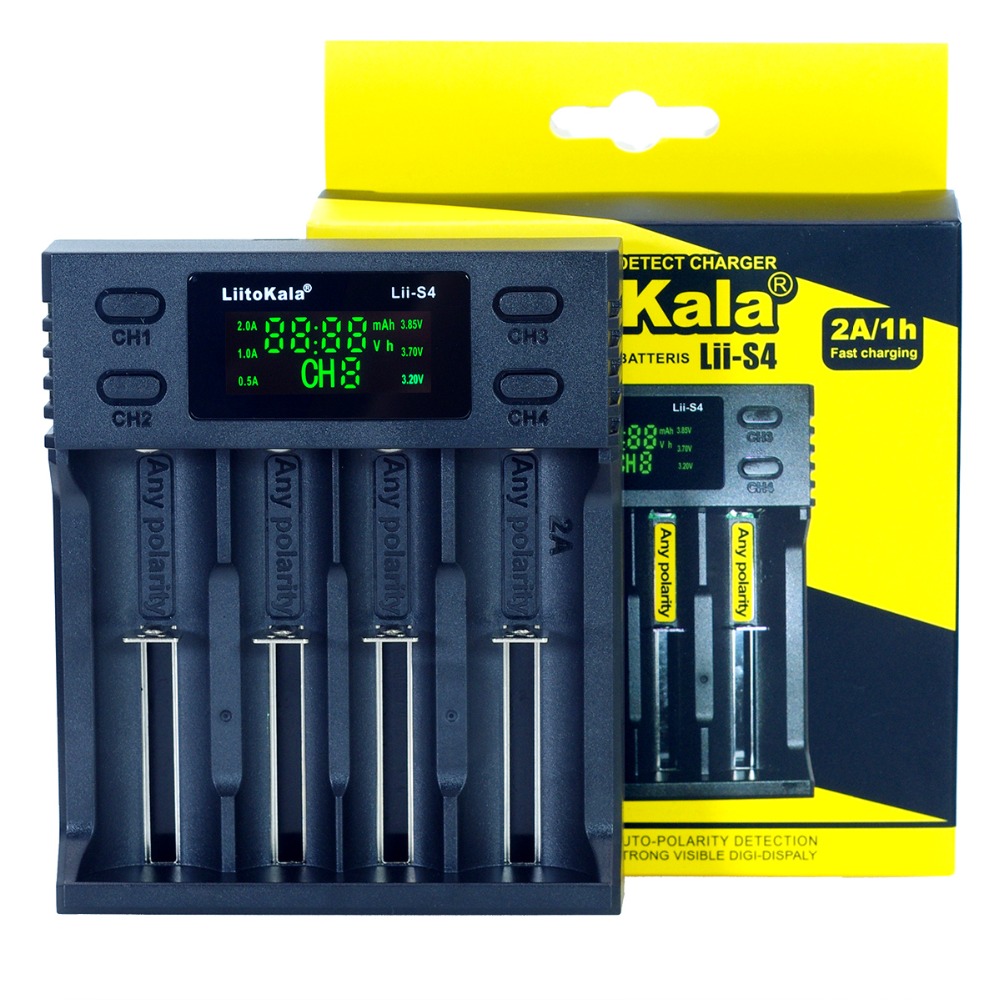

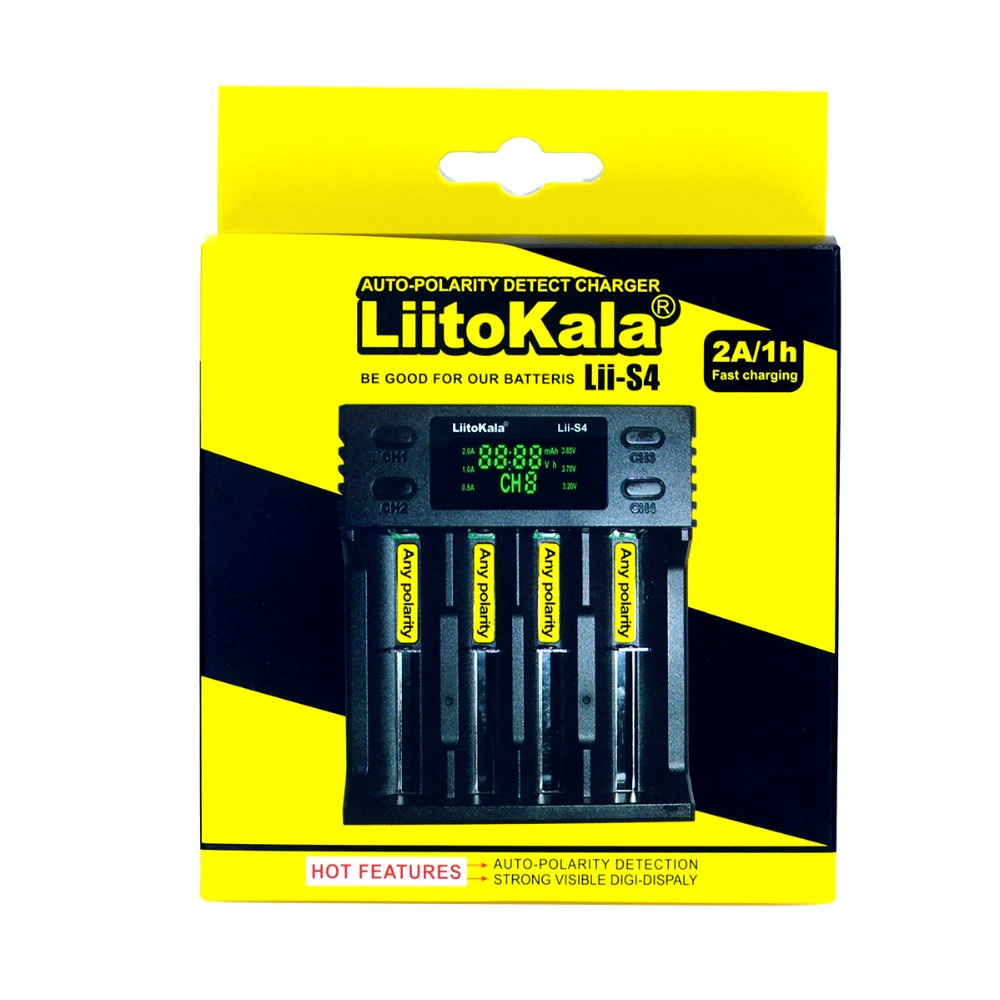

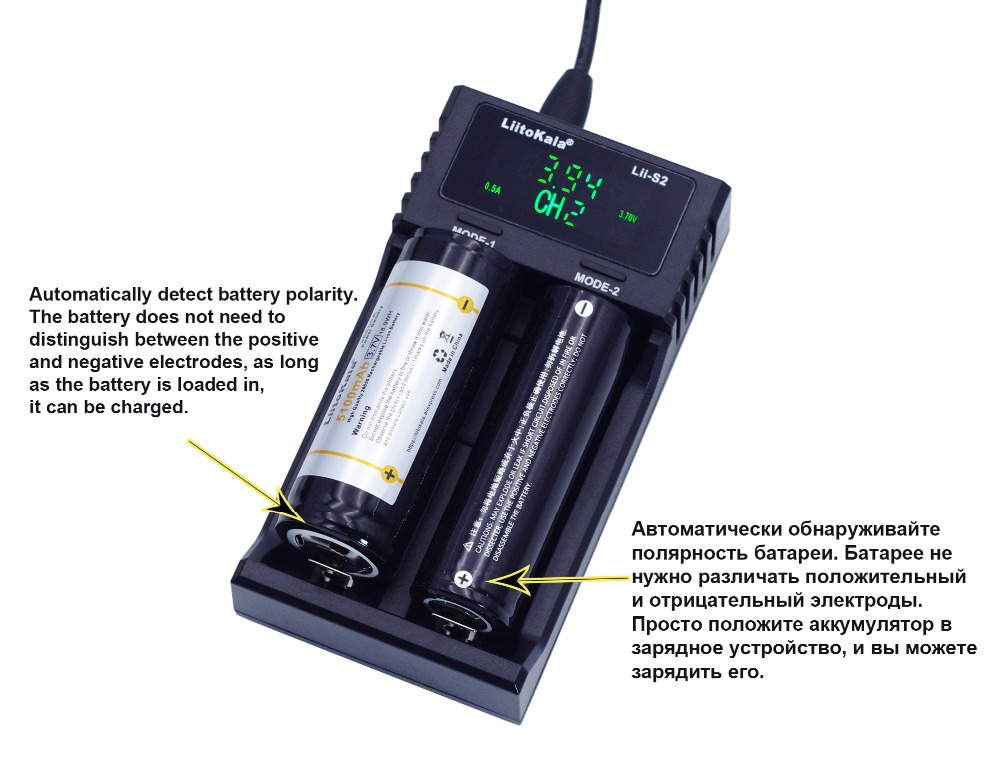

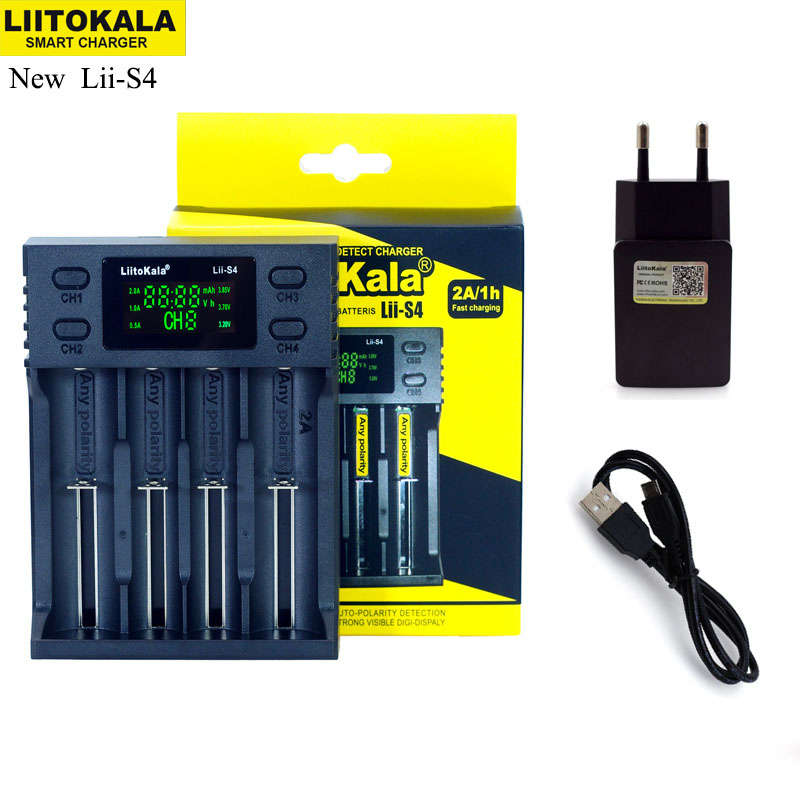

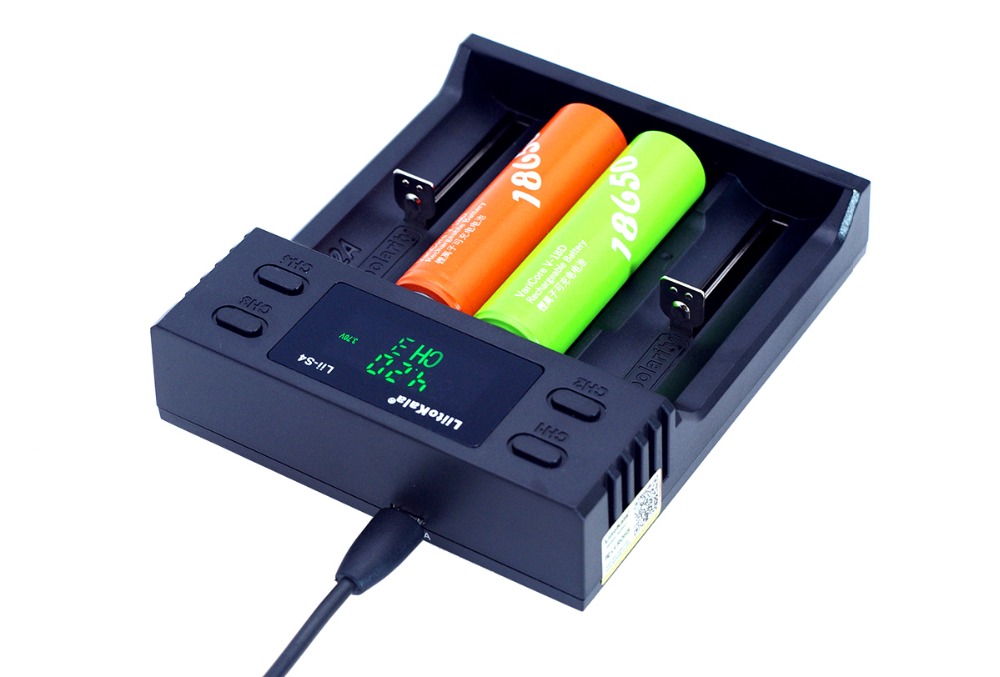

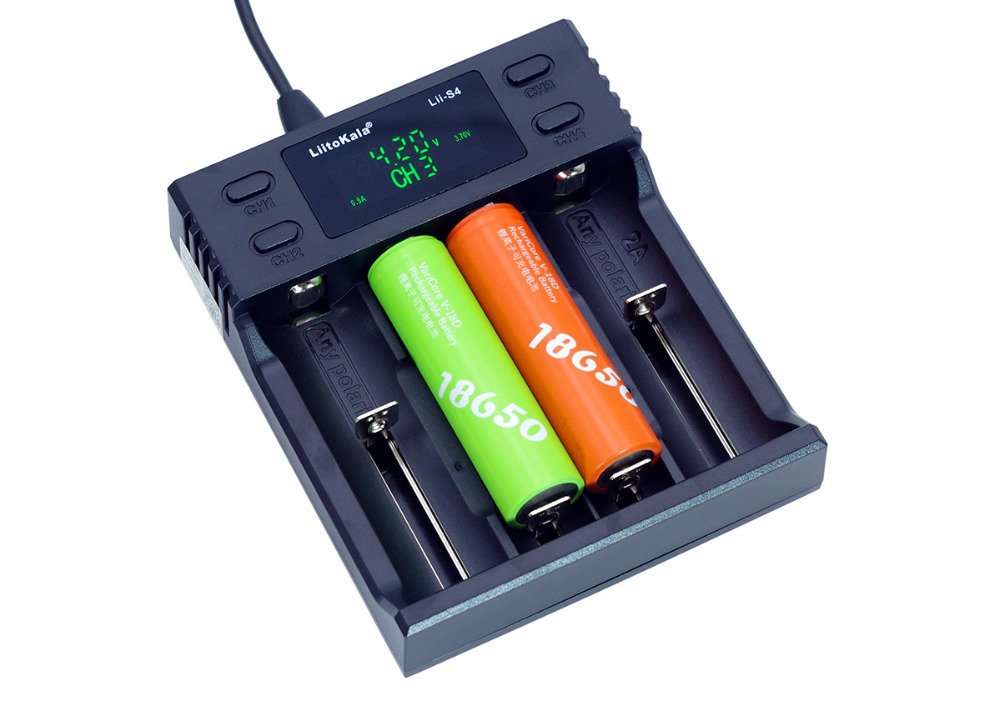

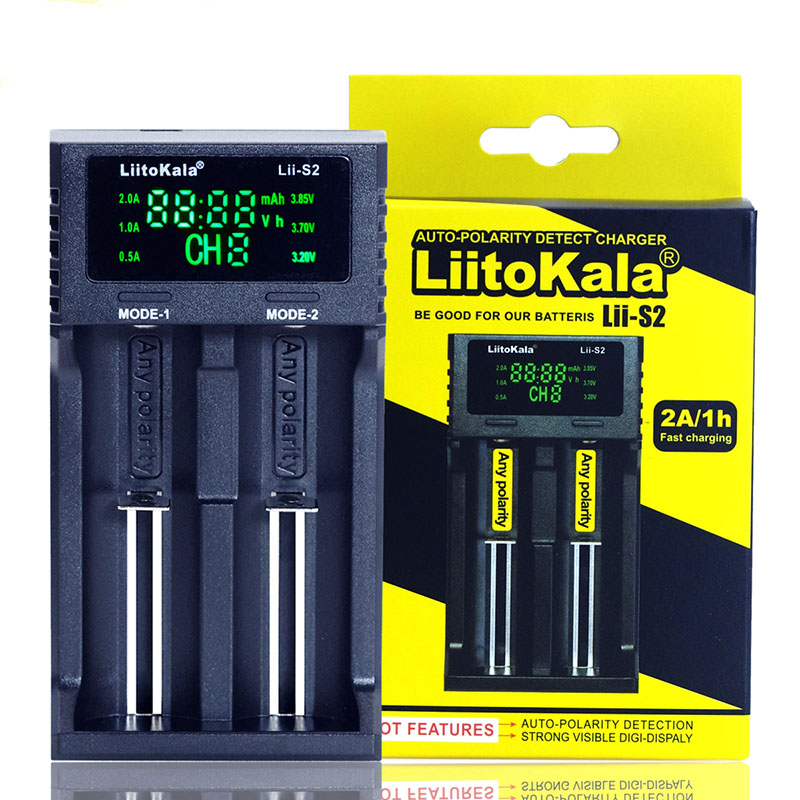

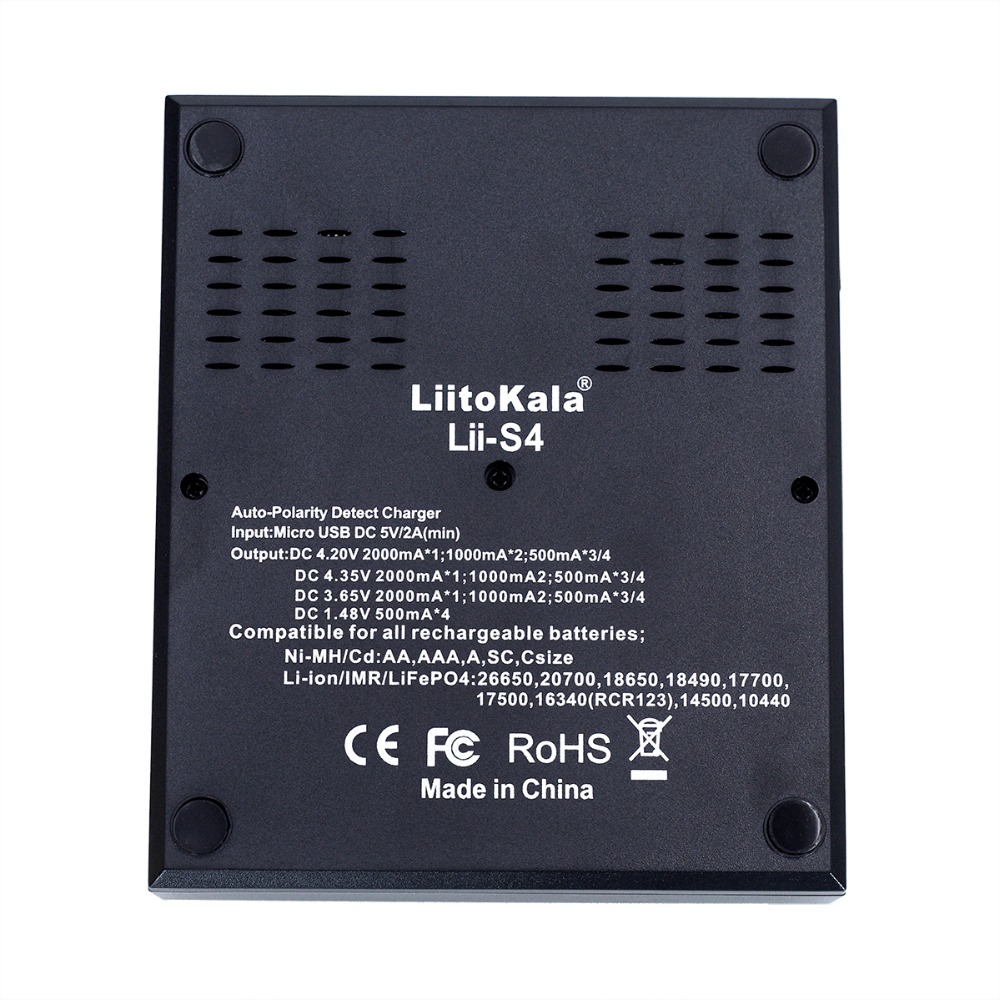

Auto-Polarity Detect Charger

This charger is designed for portable, flexible and multi-types of batteries. It can detect automatically the battery polarity, battery types and charge the battery under your selected charging current. Built-in digital tube indicator to display the charging real-time status

Features:

1. Four-slot independent charging and MCU management system, Micro USB DC 5V input Min.2A

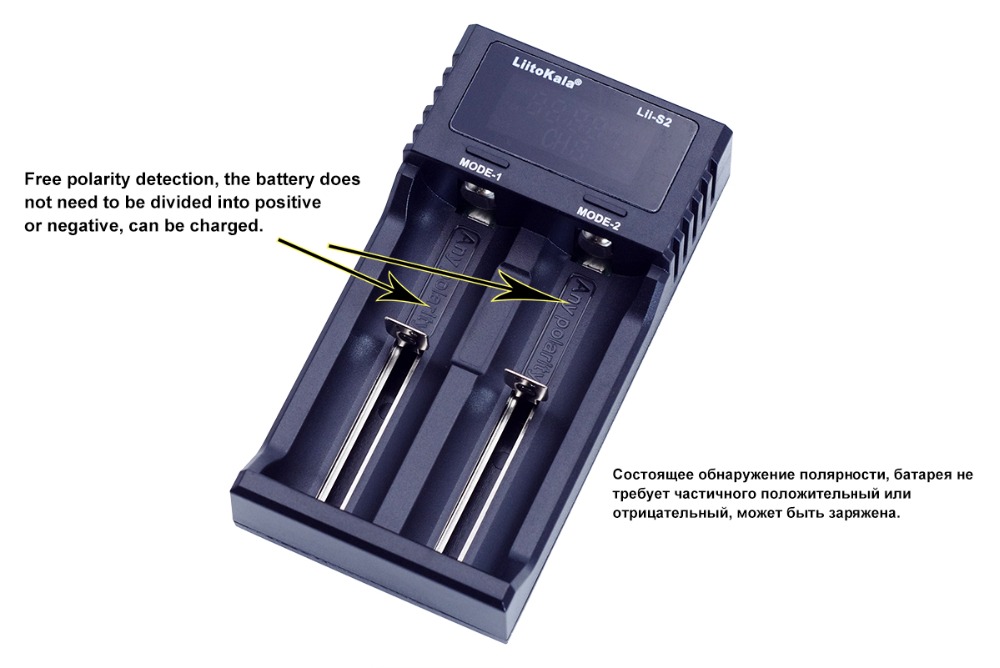

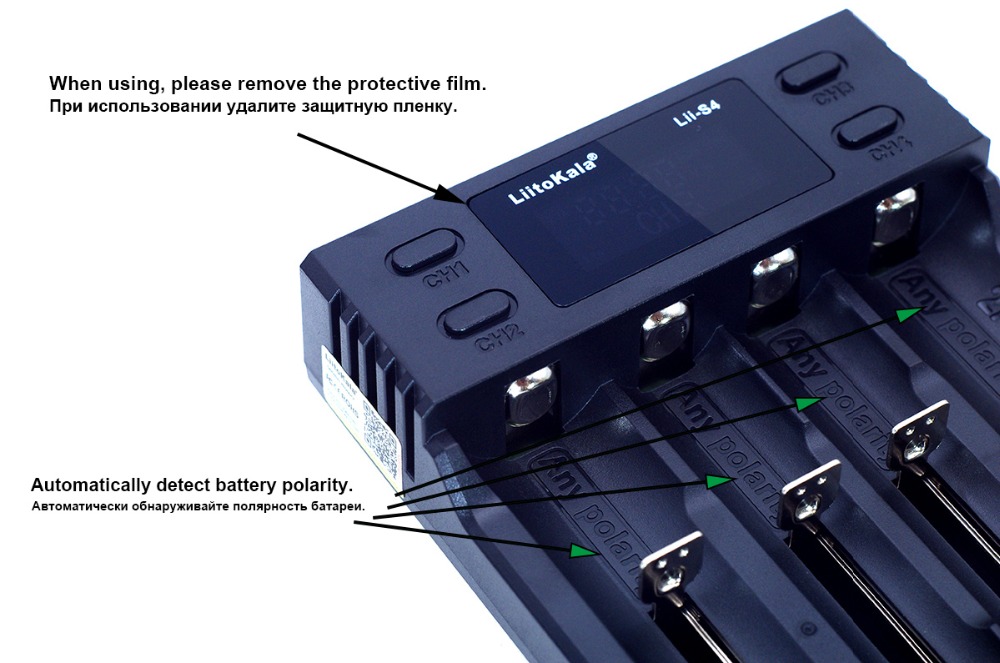

2. The most bright point of this charger with battery polarity auto-detection function( Any Polarity)

3.Selective 0.5A/1A/2A charging currents for Lithium batteries by long press the current button. The defaulted current is 0.5A

4.Built-in digital tube indicator shows the real-time charging status of channel no. (CH), voltage, current, time  capacity and battery type Li-Fe 3.20V / Li-ion 3.70V /Li-ion 3.85V (IMR); When two channels charging, total current will be no more than 2A( when only 1pcs battery inserted, the charging current will be 2A, after the second battery inserted, the current will be automatically lowered to 1A; when charging finish, it shows "FULL";

5.Identify Li-Ion and Ni-MH battery automatically; Select manually by short-press the mode button for IMR battery(3.85V Li-ion )and LiFePO4 battery(3.2V)

6.Activation function for 0V battery of PCM protection.

7. Will not charge batteries with 0.0≤U<0.2V  for NiMH/Cd and 1.65≤U<2.2V for Li-Ion

8. Multi-safety protection functions of over-charging, over-discharge, short-circuited and can automatically Identify broken/defective battery( will not charge bad batteries);

9. Charging under constant voltage and current

Operation instruction:

1. Buttons: There's a 'MODE' button separately for each channel choosing the battery types, charging current

and charging status tracking

u  Long press the 'MODE' button for 3 seconds to change the charging current for lithium batteries, you can change the charging current at any time

u  Short press the 'MODE' button to change the charging types of lithium batteries. If no setting, it will default as 1.2V Ni-MH or 3.7V li-ion battery automatically. You need to change the mode for 3.85V li-ion and 3.2V LiFePO4 battery

u  It begins to charge the battery 5 seconds after your settings

2. Charging display: Connect the 5V input port with USB cable, the digital indicator showing

the whole information for 2S and "null" if no battery inserted;  after it detects with battery inserted showing channel no, battery voltage and current while the battery type symbol is flashing( there will be no battery type symbol flashing function for NiMH/NiCd batteries); then in 5S, it will start to charge with "V" flashing(charge starts). When the battery is fully charged, it shows "Full"

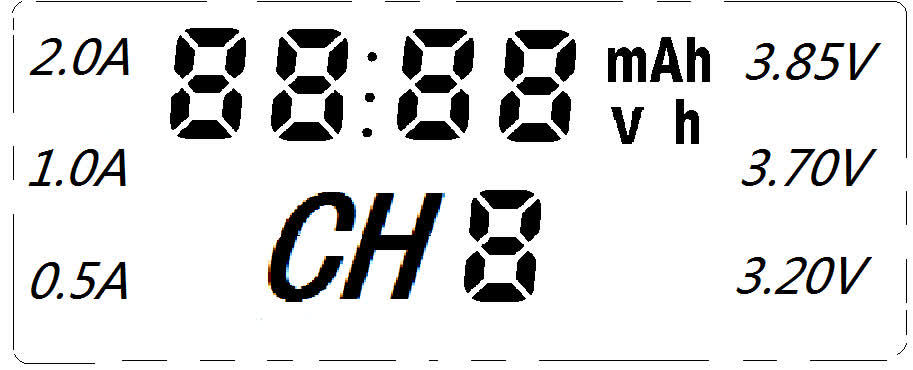

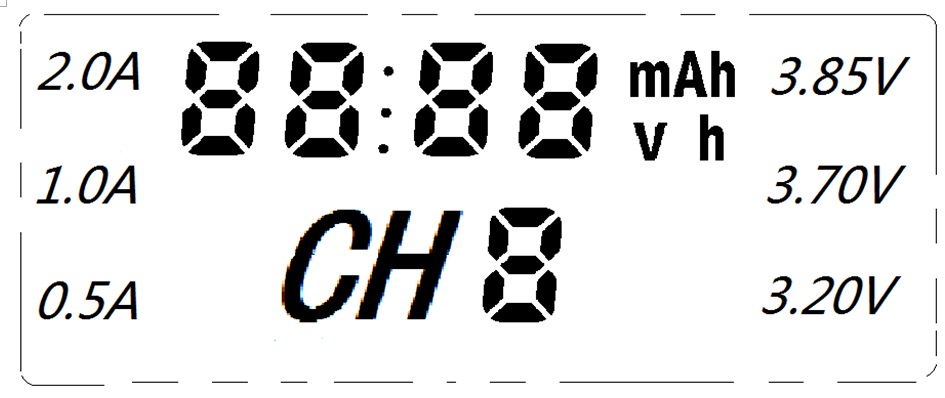

   Digital indicator parameter reference drawing:

Electrical technical parameters:

u  Input: Micro USB DC 5V/2A(min.)

u  Output voltage: DC 4.2V 2A*1pc; 1A*2pcs; 0.5A*4pcs  for Li-Ion

             DC 4.35V  2A*1pc; 1A*2pcs; 0.5A*4pcs for IMR

             DC 3.65V  2A*1pc; 1A*2pcs; 0.5A*4pcs for LeFePO4

             DC 1.48V 500mA for NiMH/NI-Cd

u  Constant voltage charging with cut-off current l ess then 100mA

u  Standby current: No more than 15mA

Compatible for Batteries:

u  Li-ion / IMR/LiFePO4: 26650,20700,18650, 18490, 17700, 17500, 16340(RCR123), 14500, 10440

u  Ni-MH/Cd: AA, AAA, A, SC, C size

Size(mm)/Weight(grams):

u  Length 118mm x Width 100mm x Height 30mm

u  136.4 grams (charger) not included USB cable

Design and made in China

Contact distributor for more information or support

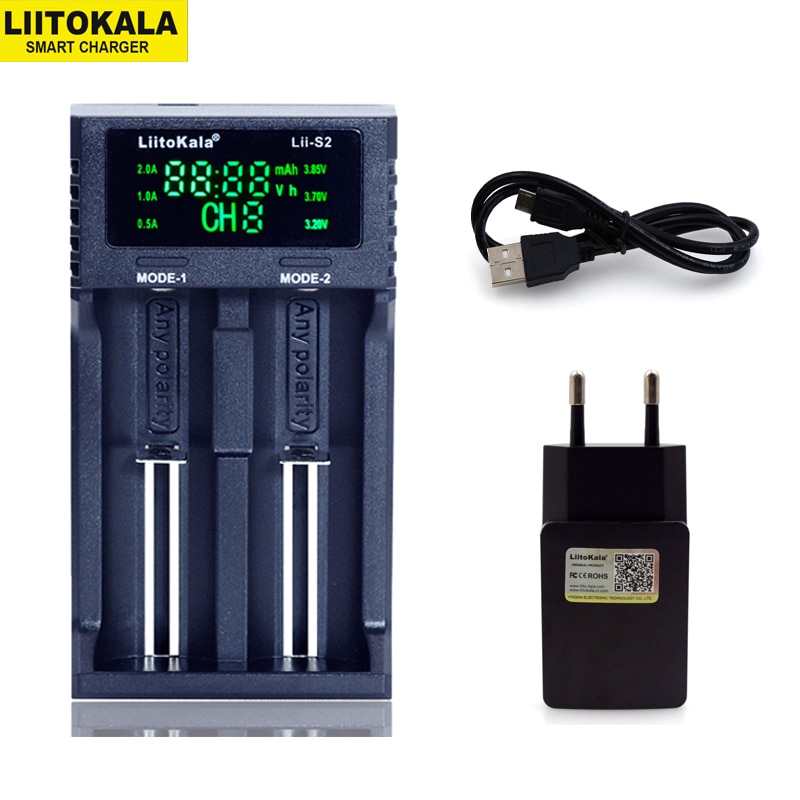

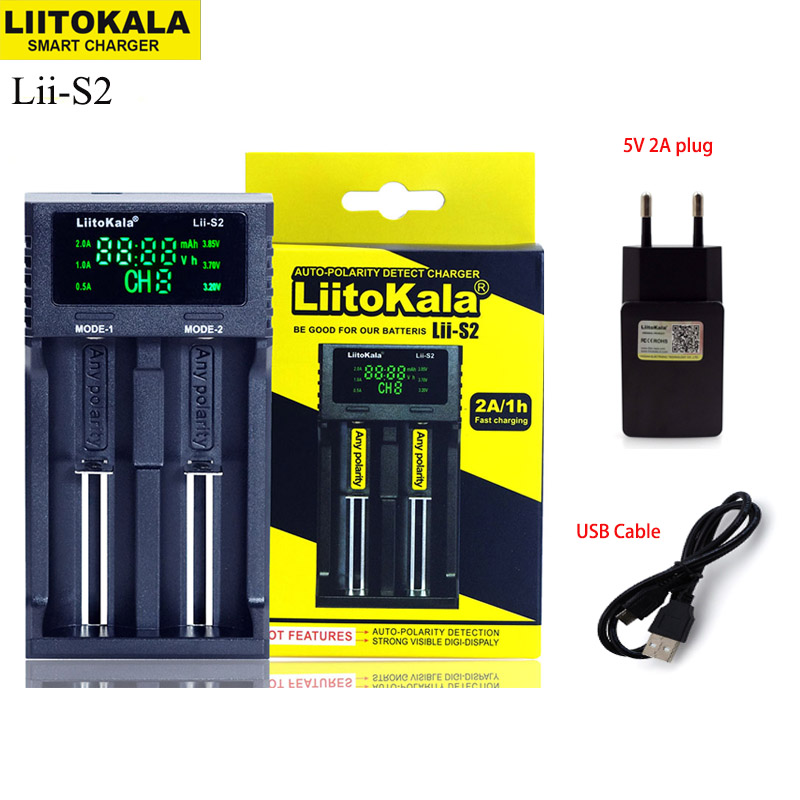

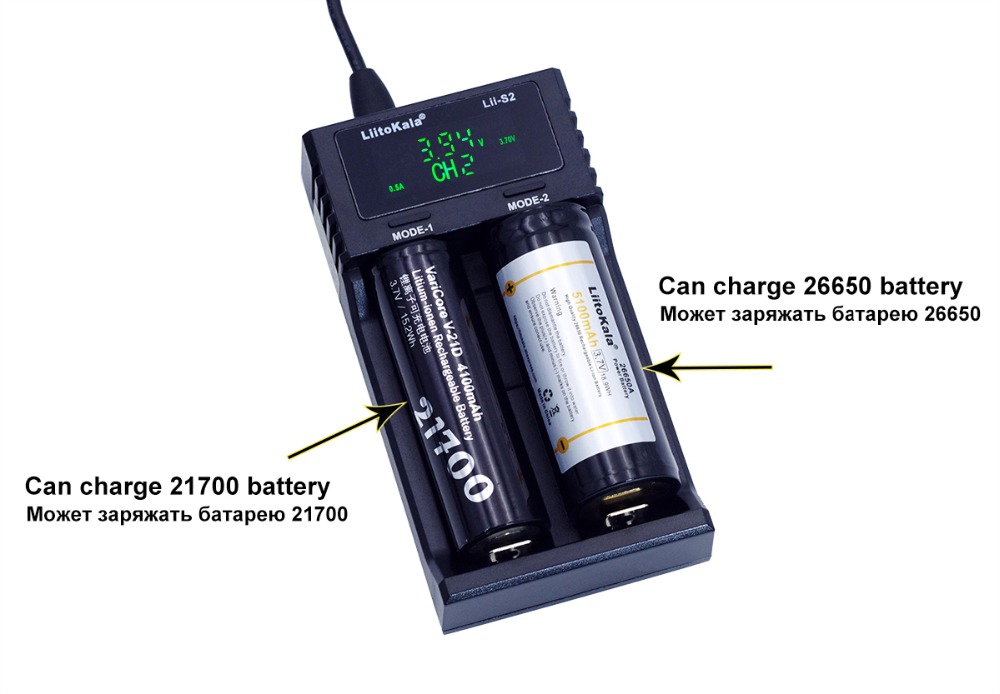

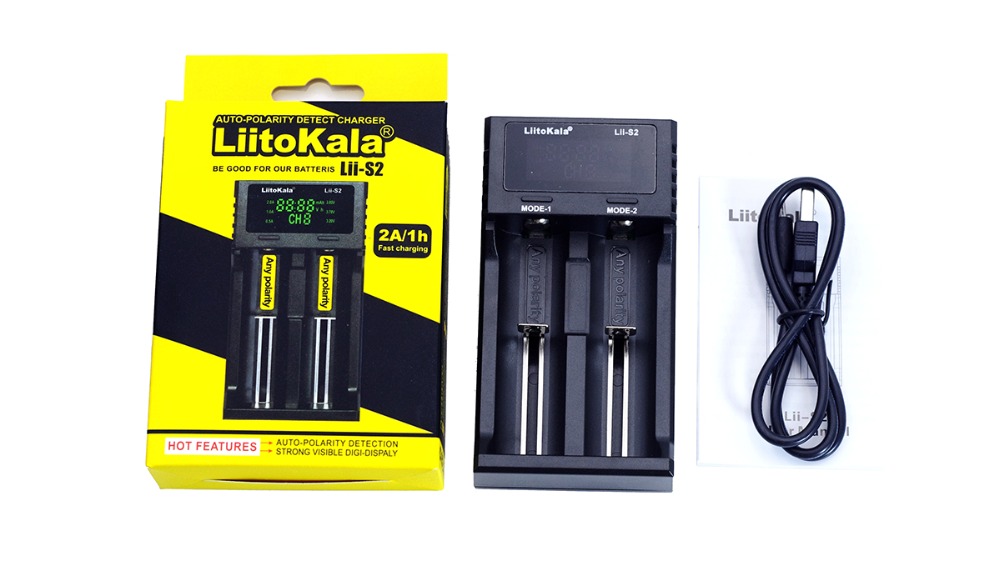

Shipping list:

Lii-S2 Charger*1

USB cable*1

Instruction manual*1( Note: does not include a charging plug)

Cautions:

1. This charger can charge all cylindrical rechargeable batteries 3.7V Li-Ion , 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4

2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3. If DC input, only 12V 1A is recommended

4. Mind heating while charging

5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6. For indoor use only

7. The displaying data only for reference, please refer to professional instrument for more accurate data

Specifications and functions:

1.      Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.

2.      Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4.

3.      Multi-functional LED charging indicators: for charging progress: 25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR) and for charging current: 0.5A/1A/2A

4.      Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

5.      Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)

6.      Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.

7.      Charging  at constant voltage and current

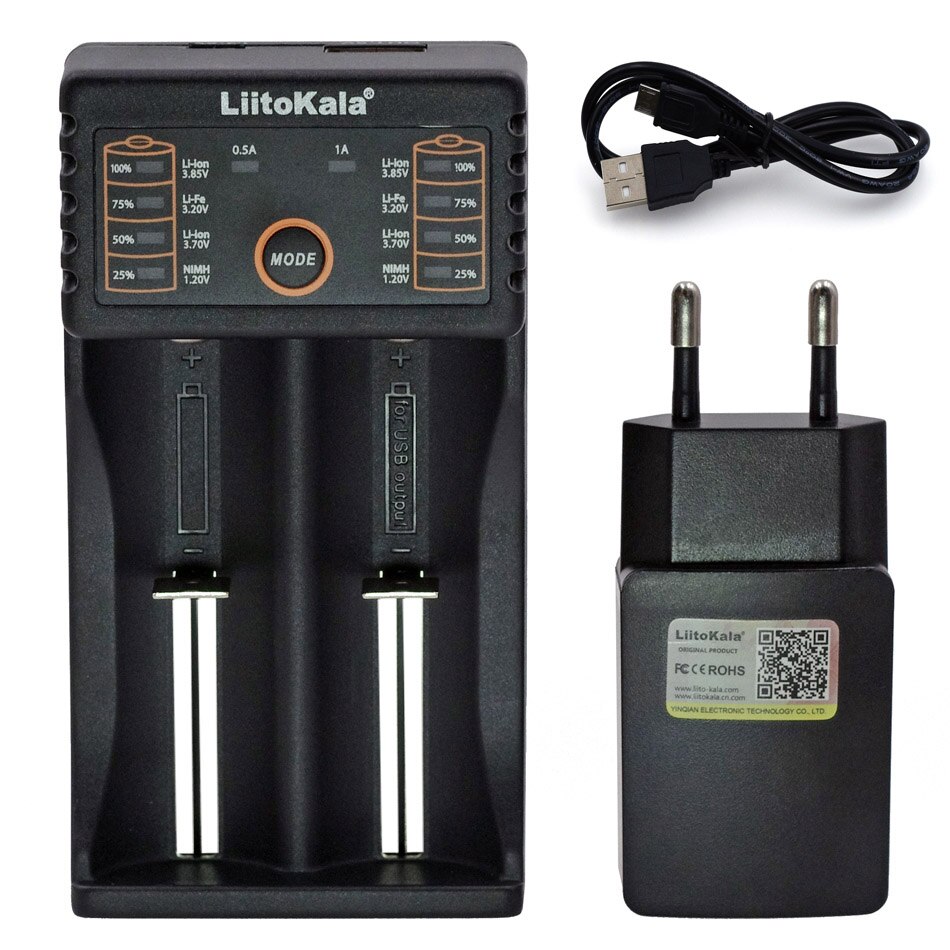

Button and LED :

1.    Button of Mode: While power supply is connected,  1) Short click the mode button to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),  1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries; 2) During charging process, short click the mode button to display battery type.

Note: Battery type can be only selective before charging starts.

2.    LED: While power supply connected, all LEDS light up immediately  1) If no battery is inserted, the 500mAh LED (one of the three current display LEDS ) will keep on and others will be off.  2) When battery is inserted and detected, 4 LED charging indicator for the channel will be on among which 3.7V battery type LED keeps flashing indicating to set the battery type, if no operation in 5 seconds, it begins by automatic detection(Li-Ion 3.7V or NIMH)  then four LED indicators will display the charging status. 3) During charging, short click the Mode button to show the battery type within 5 seconds; 4) If no power supply is connected, inserting a battery, it can quick shows the remaining charger volume of the battery.

*LED display graphic reference:

Electrical Parameters:

1.        Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective);

2.        Output voltage: DC 4.2V for Li-Ion 3.70V

                    DC 4.35V for Li-Ion 3.85V( IMR)

                    DC 3.65V for LiFePO4

                    DC 1.48V for NiMH/NI-Cd

3.        Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2/500mA*2

NiMH/NiCd:  500mA

4.        Constant voltage, cut-off current: less than 100mA;

5.        Standby current: less than 15mA.

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:

133mm x 100mm x 35mm (L x W x H)

Weight:      approx175g

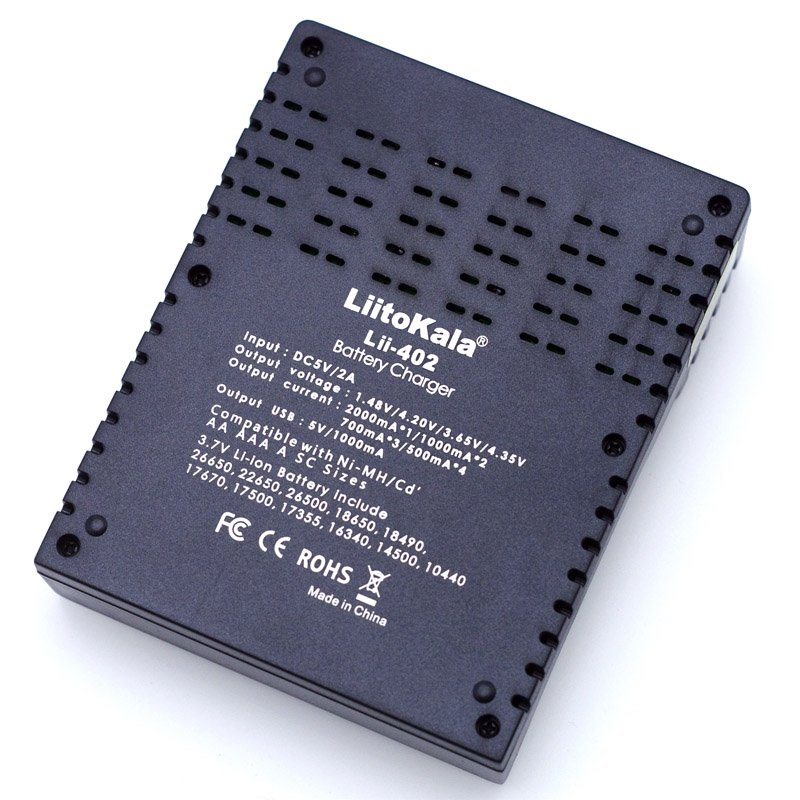

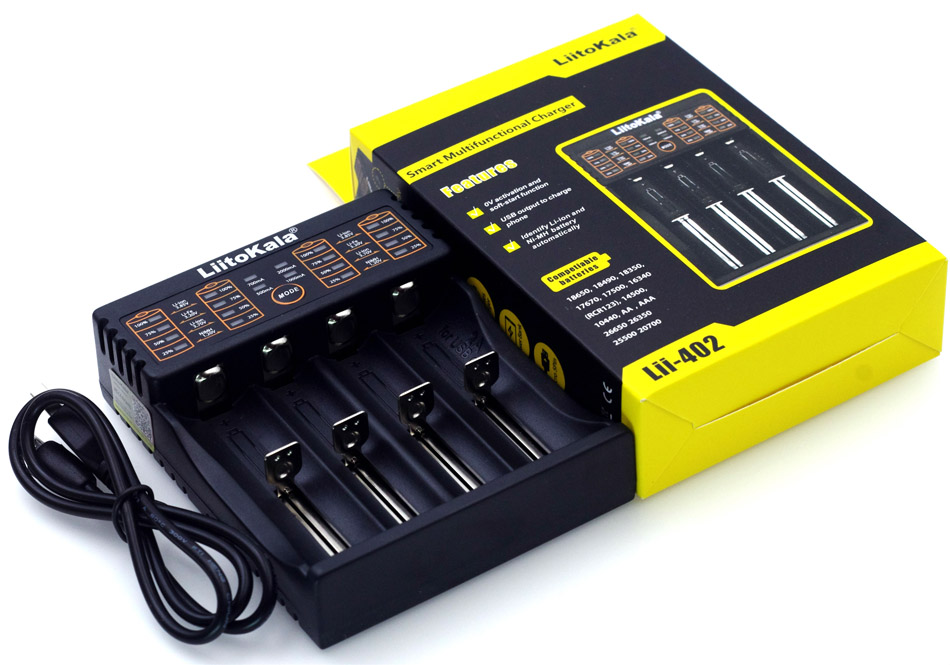

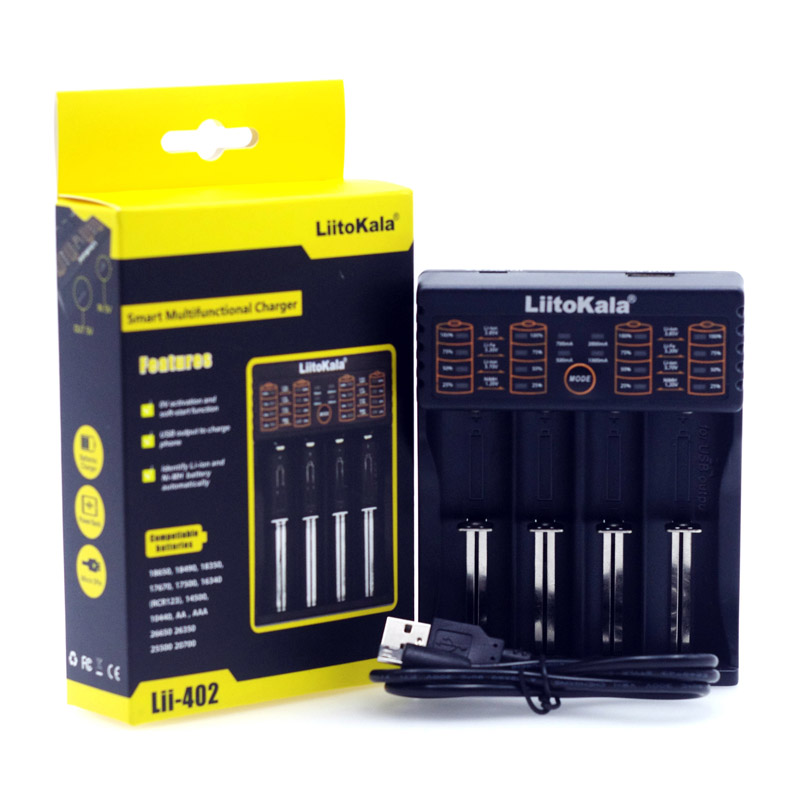

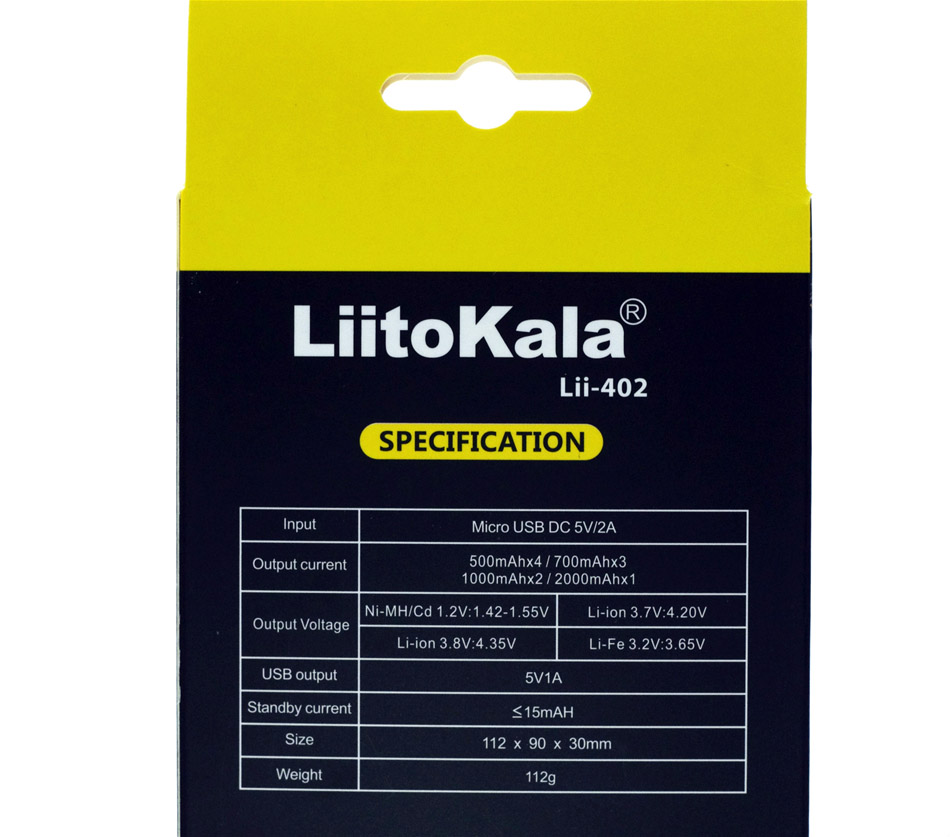

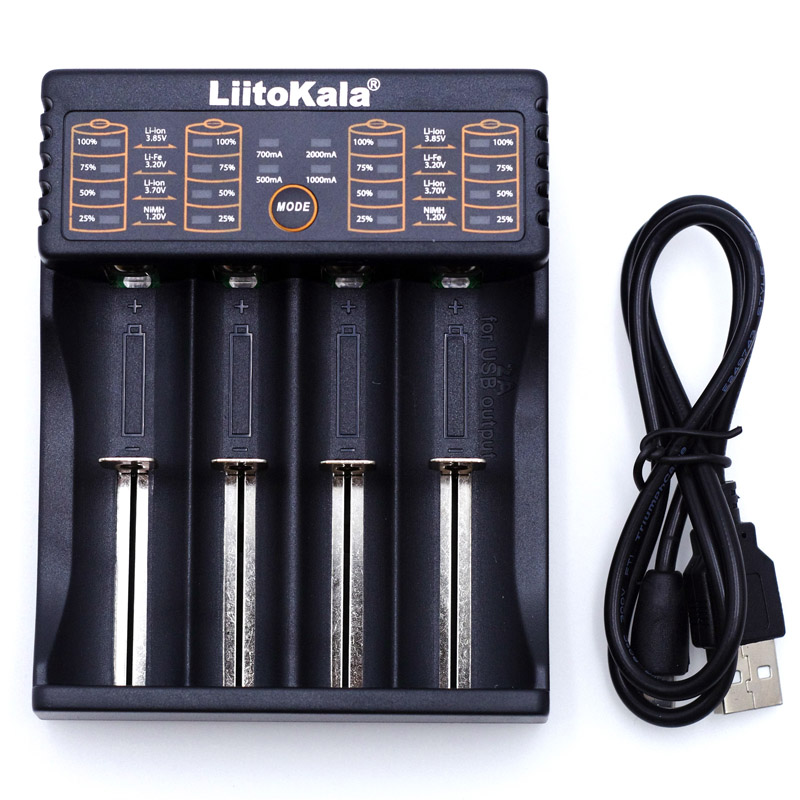

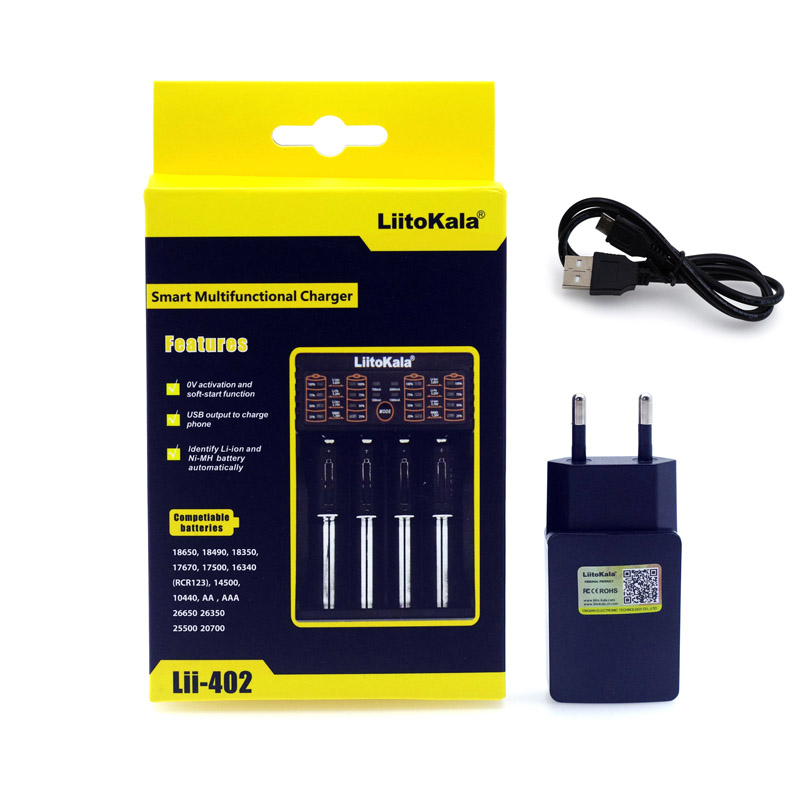

Lii-402 List:



Input: Micro USB DC 5V / 2A

Output: 1.4, 4.2V ± 05, 3.65 ± 05, 4.35 ± 05

Output Current: 500/1000 mAh

constant voltage charging cut-off current: <100 mAh

Standby Current: <15 mAh



5. USB output function



USB output load voltage: 4.90 V-5.30

Output Current: 1000 mAh (1A)

Idle Current: <1 mAh

the output voltage of 4.75 V-5.25 V, when the current 1000 mAh

output over-voltage protection: 3.0 ± 1



6. Compatibility

li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440



7. Size

112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable

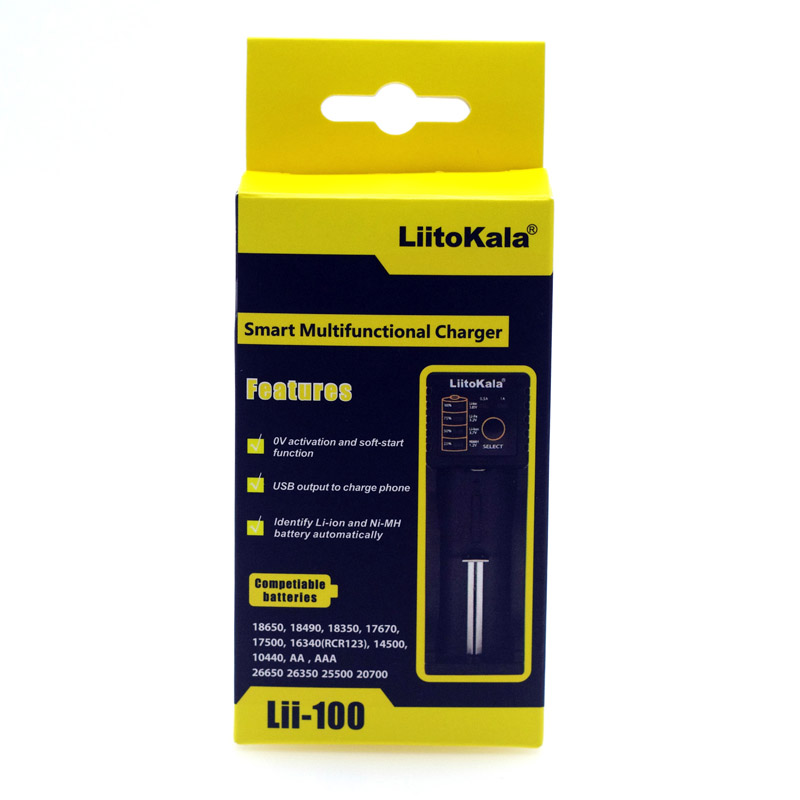

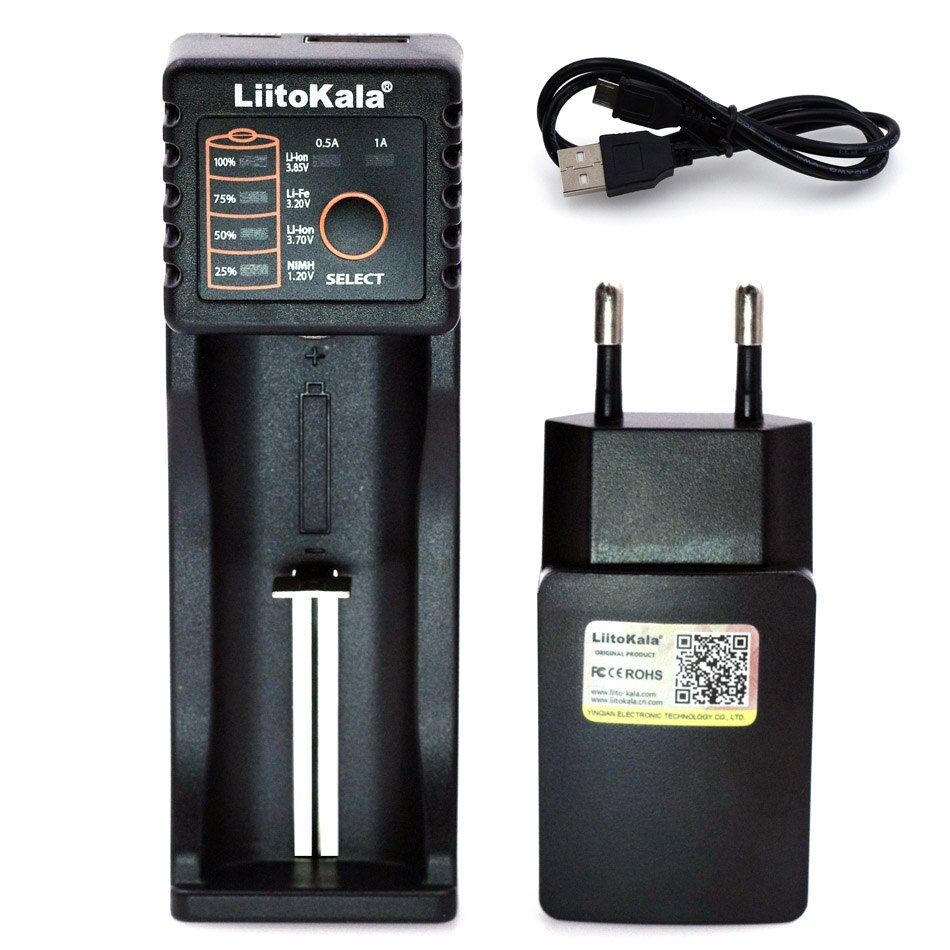

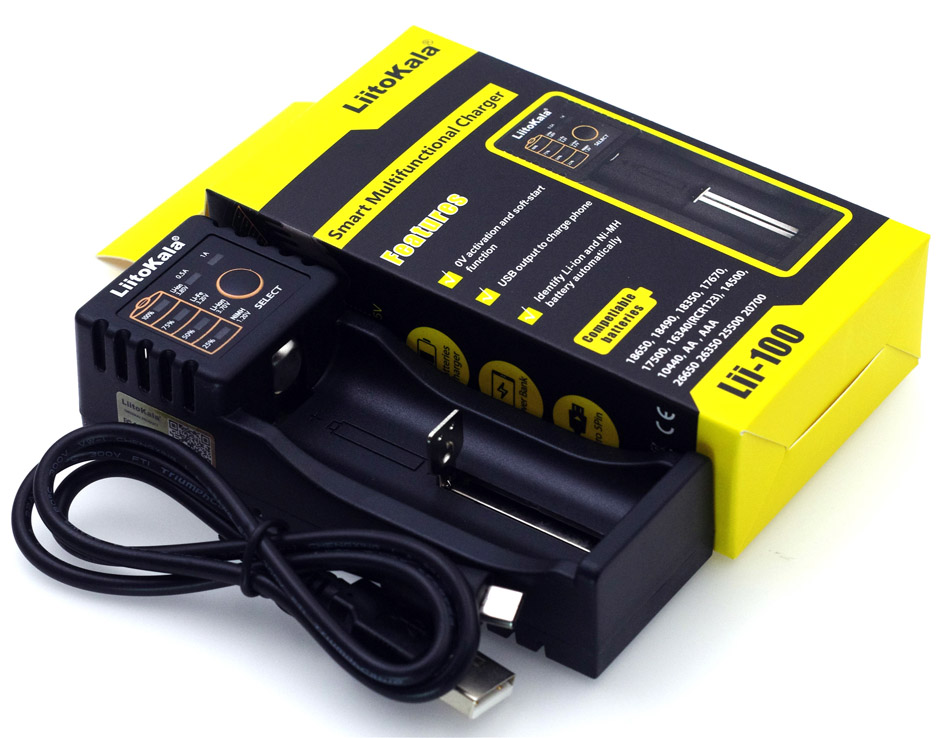

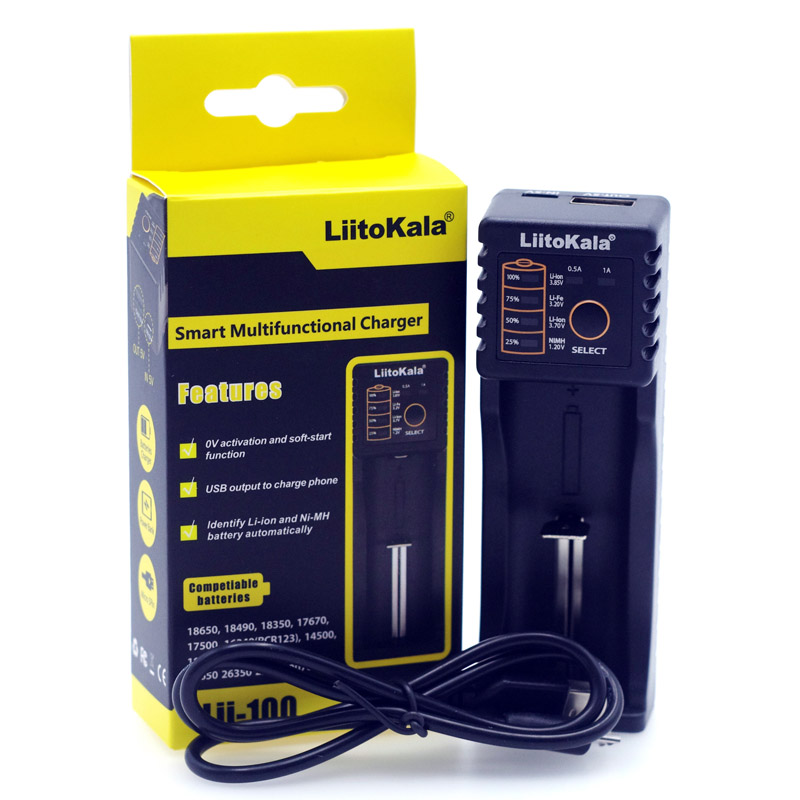

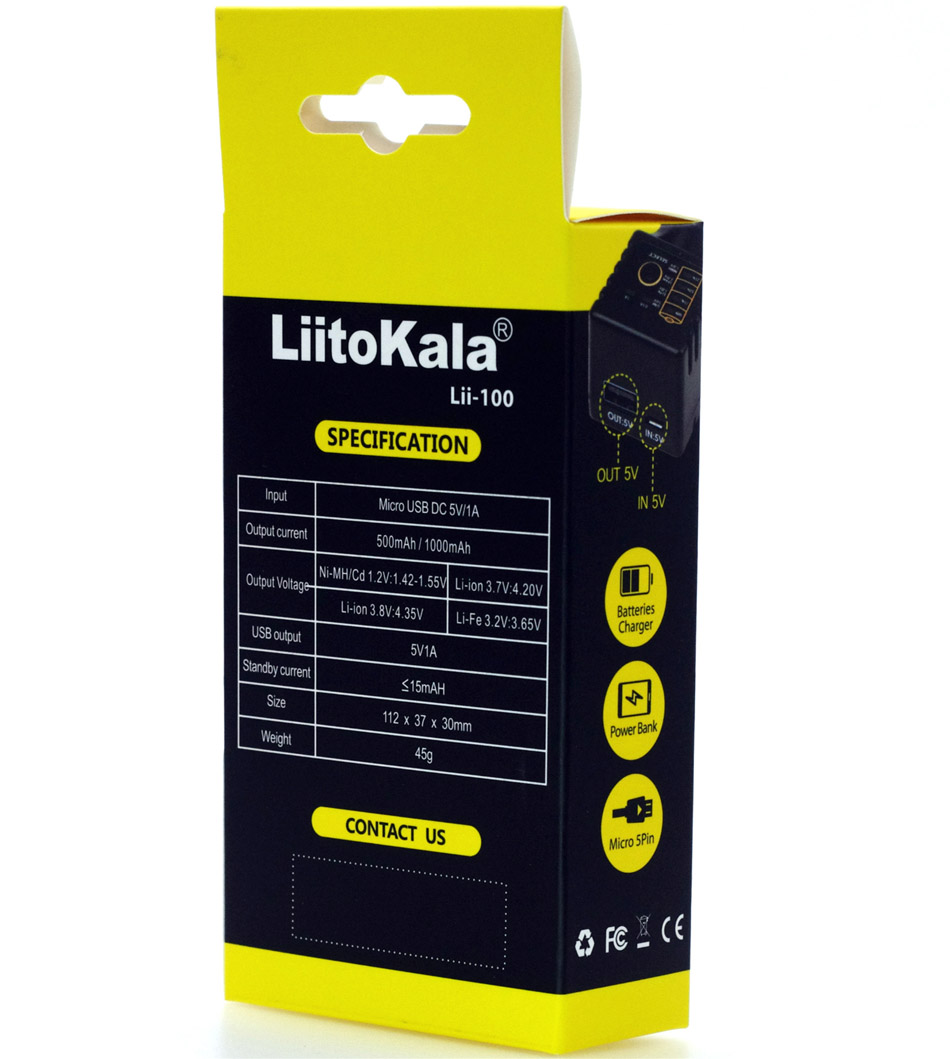

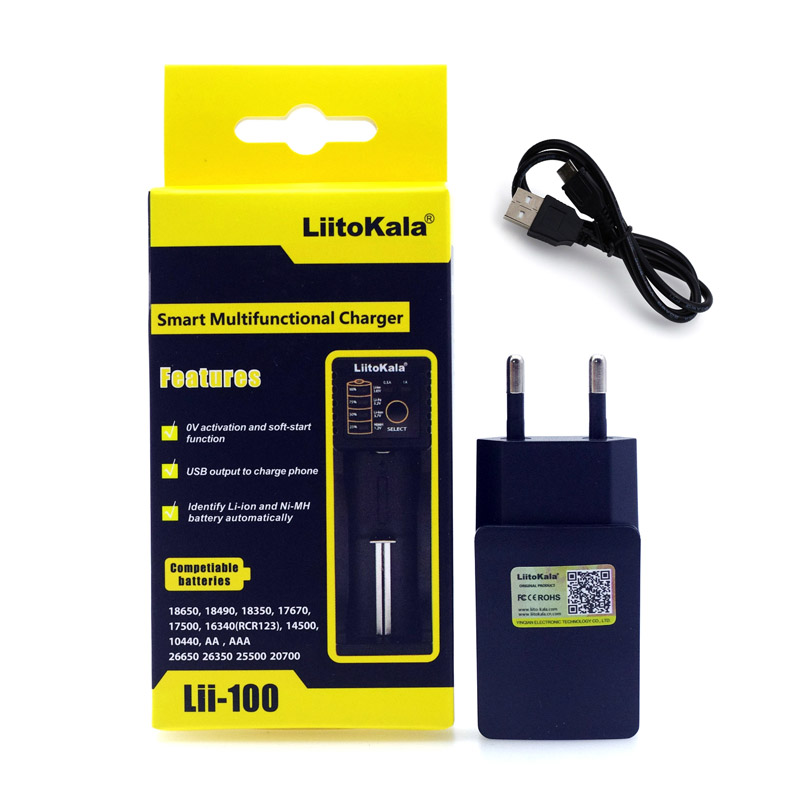

Lii-100 List:

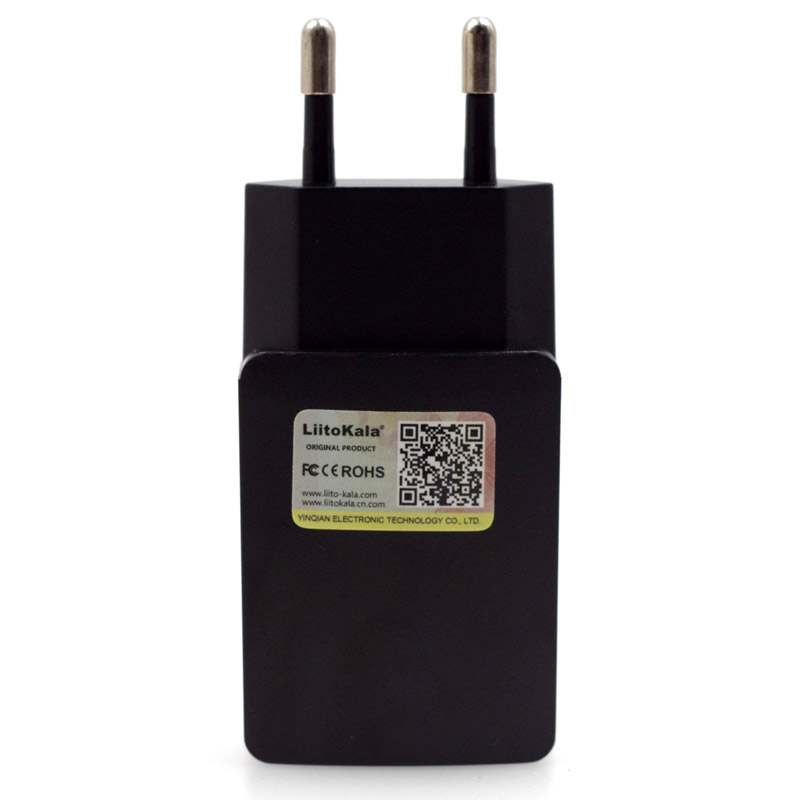

1, Liitokala Lii100 package: Lii100 charger + USB cable + 5V 2A charging plug + manual



four USB output function:

1 voltage output load USB port: 4.90 to 5.30 V;

2, the output current: 1000mA

3 without load current: <1ma;

4, charging current 1,000, the door of the output voltage: 4.75 to 5.25 V;

5, protection voltage shutdown Output: 3.0 ± 0.1 V;

V. Compatible battery:

Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

charger dimensions: 113mm × 38mm × 32mm (length / width / height)

weight ** g (without battery, power cord)
