Liitokala Lii-PD2 Lii-500 Lii-S2 3.7V 18650 18350 18500 16340 21700 20700 26650 1.2V AA AAA NiMH Lithium-Battery Charger
4.9 (1049 votes)
Price:
US $30.36 - 89.96
/ piece
Discount Price:
US $
19.48 -
47.48
/ piece
-36%
- Ships From
- Color
-
-

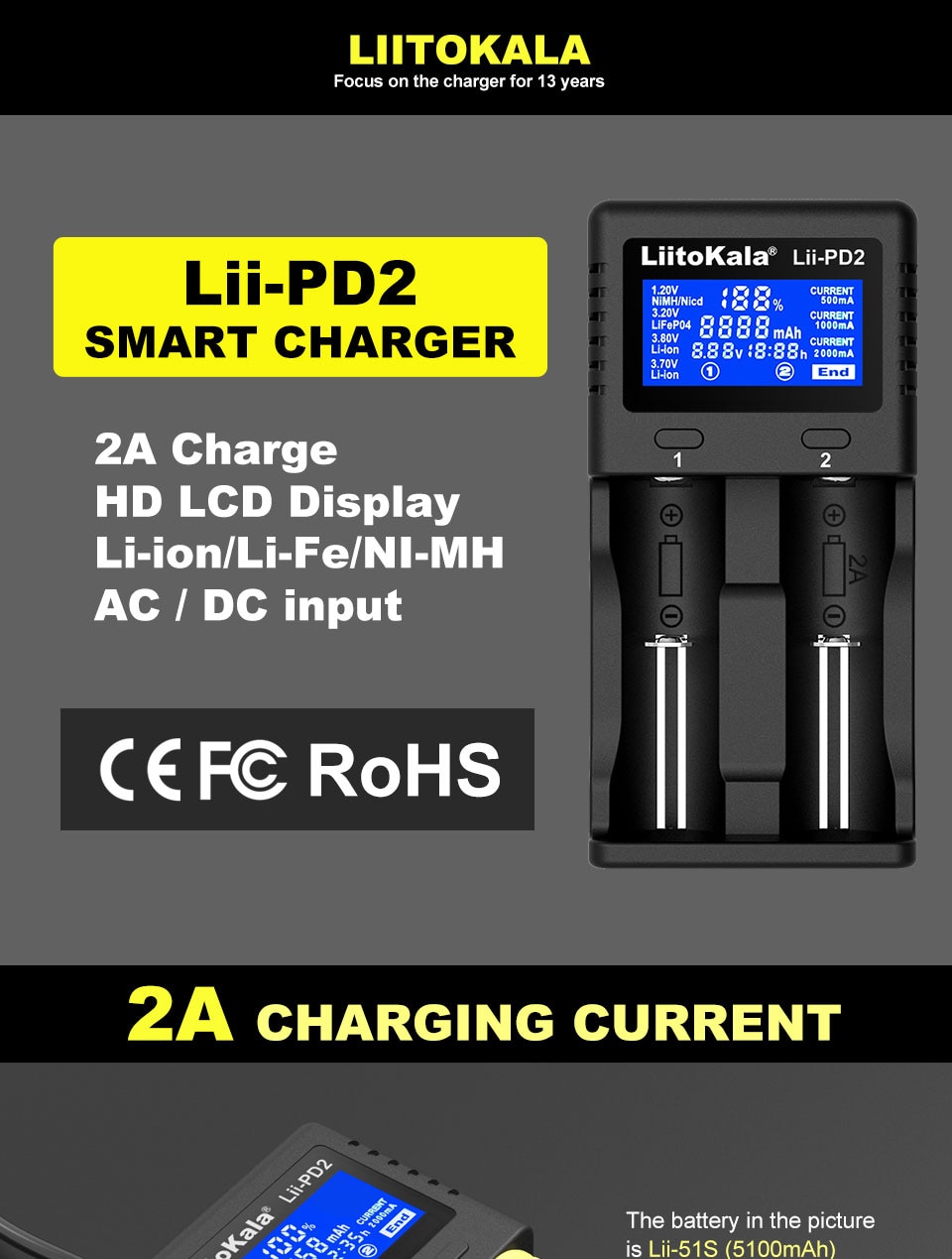

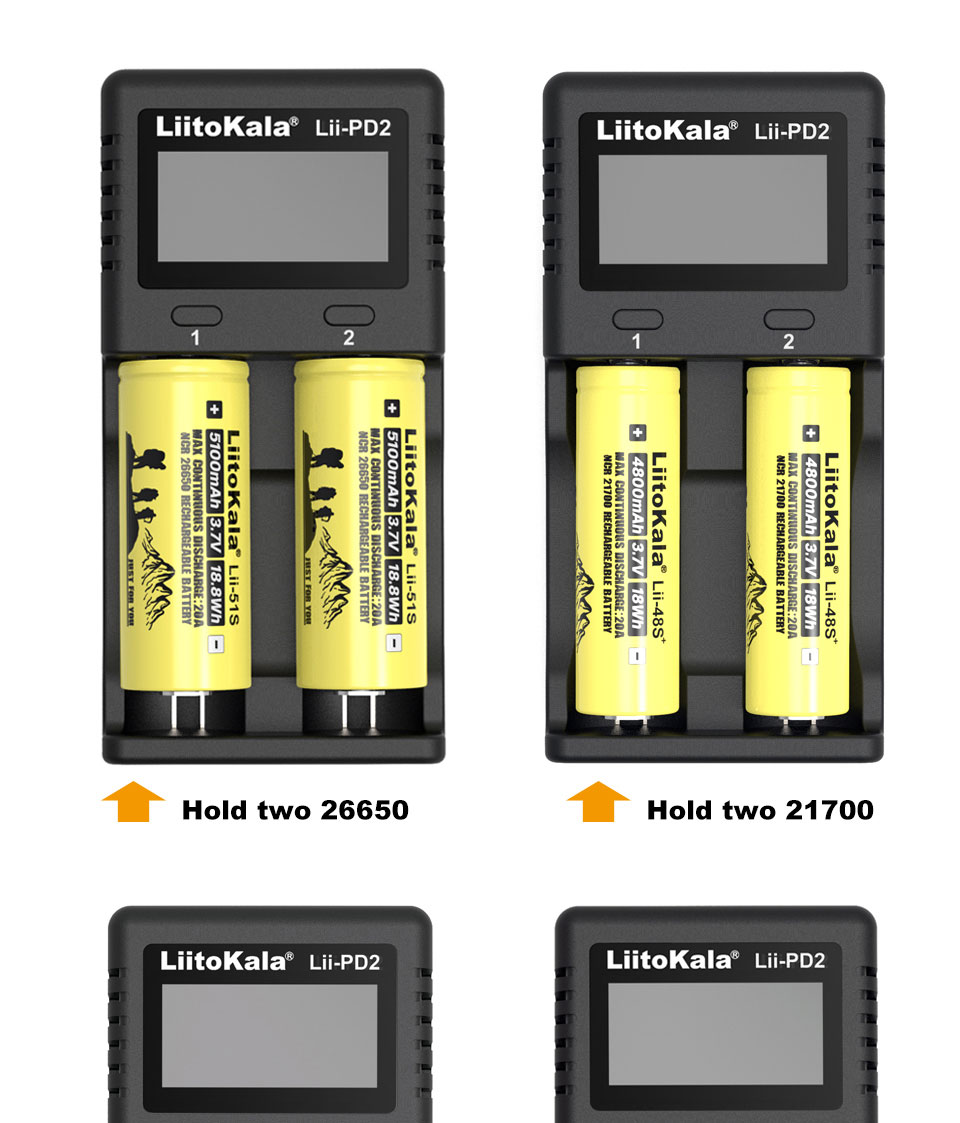

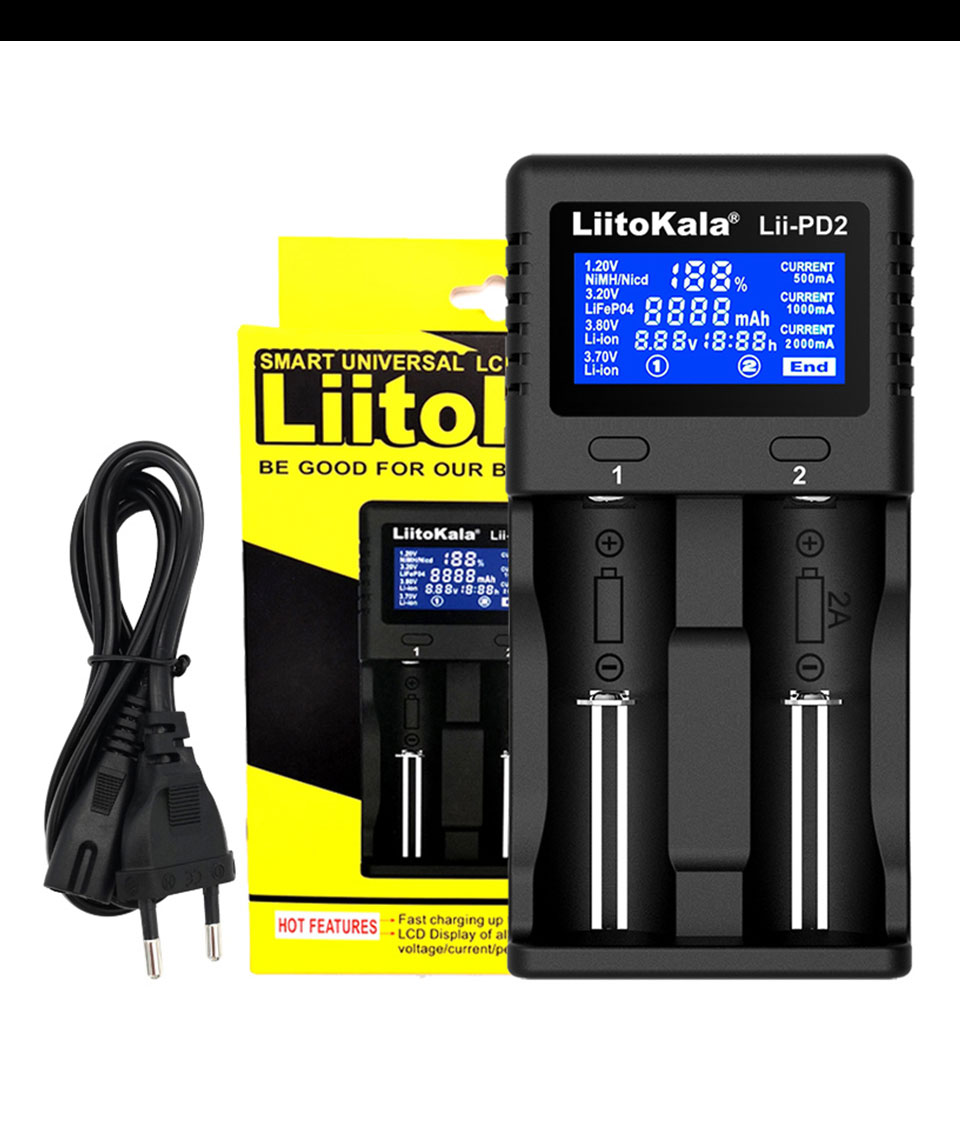

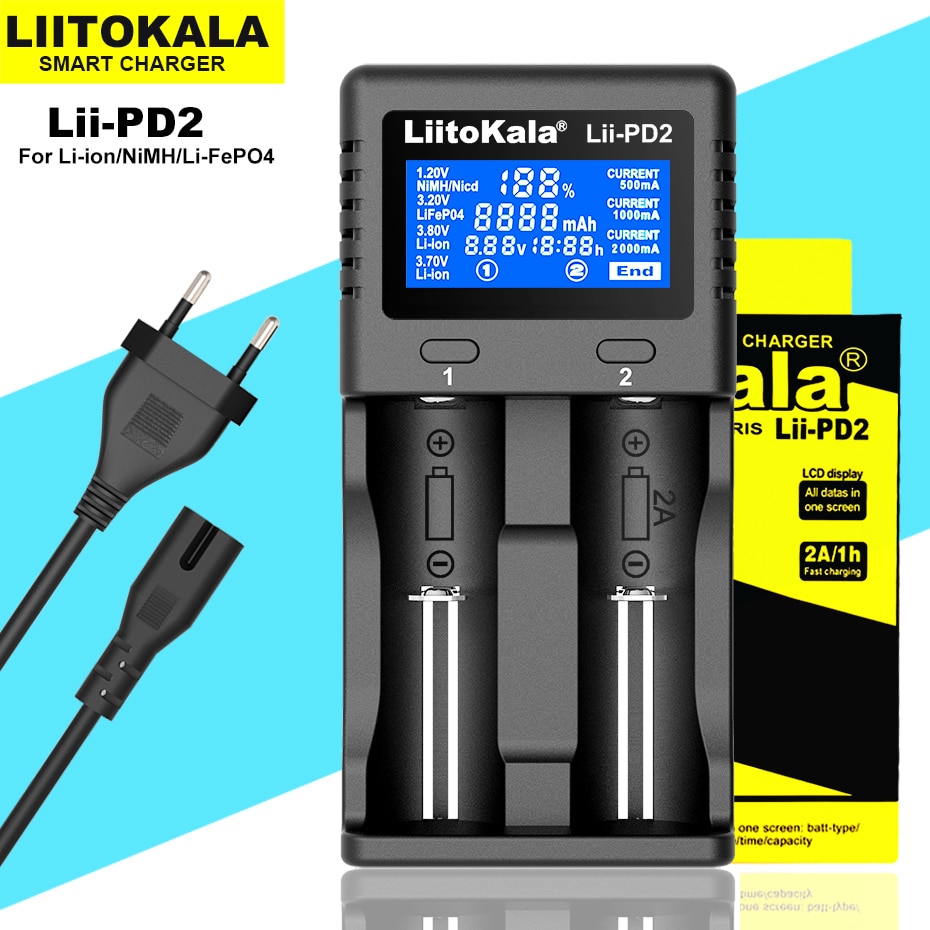

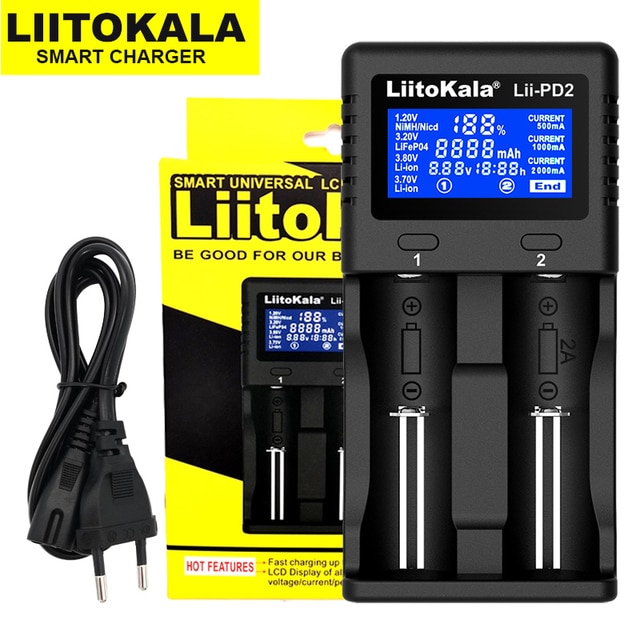

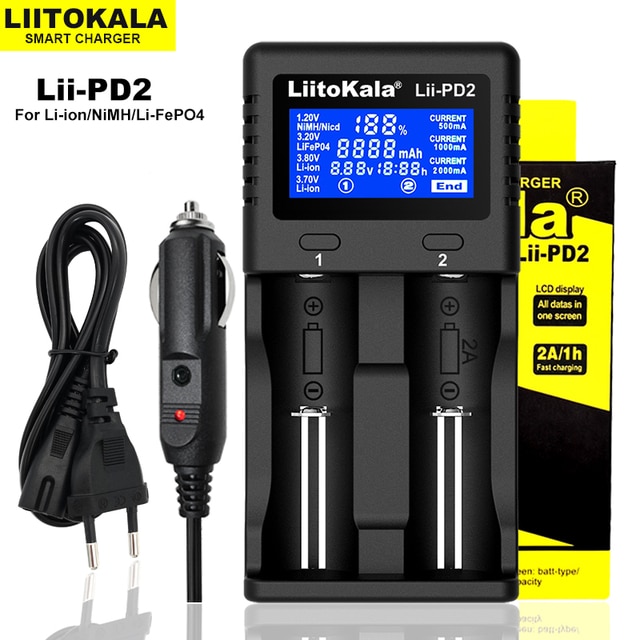

Lii-PD2 Charger Features:
1. Adopt DC12V1A (nominal) input, two-slot independent charging and microcomputer management system;
2. The biggest highlight of this charger is that it can charge the battery regardless of polarity!
3. There are three levels of charging current: 0.5A/1.0A/2.0A, the default charging is 0.5A, you can long press the corresponding button to select the charging current;

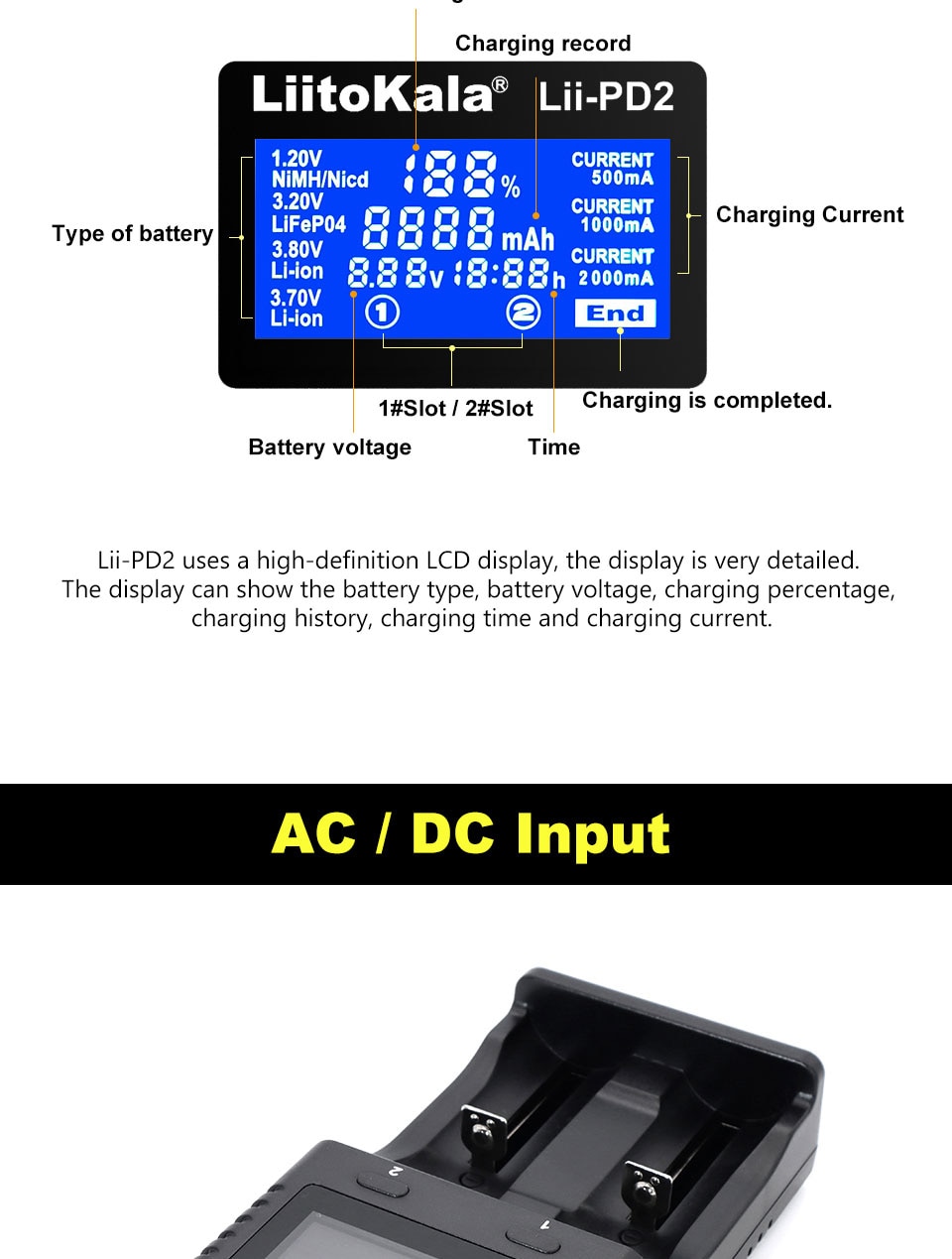

4. When charging, the LCD can display channel CH and the charging current, voltage, time, capacity and battery type of this channel Li-Fe 3.20V /
Li-ion 3.70V /Li-ion 3.85V (IMR); the total charging current of the two slots does not exceed 2A, that is, when one of the slots is charged with 2A current, and then the battery is charged in the other slot, the front 2A current will drop back Charge up to 1A current; when the battery is fully charged, the LCD will display FULL;
5. It can automatically identify lithium battery (Li-Ion 3.70V) battery and nickel-metal hydride (Ni-MH) battery, and manually select lithium iron phosphate battery (3.20V) and Li-Ion 3.85V battery;
6. With 0V voltage activation function, 1.65-2.20V cannot be charged (but there will be activation current trickle charging).
7. There are multiple safety protection functions such as overcharge, overdischarge, short circuit, etc. At the same time, it can intelligently and automatically identify bad batteries;
8. Charging mode: constant current and constant voltage.

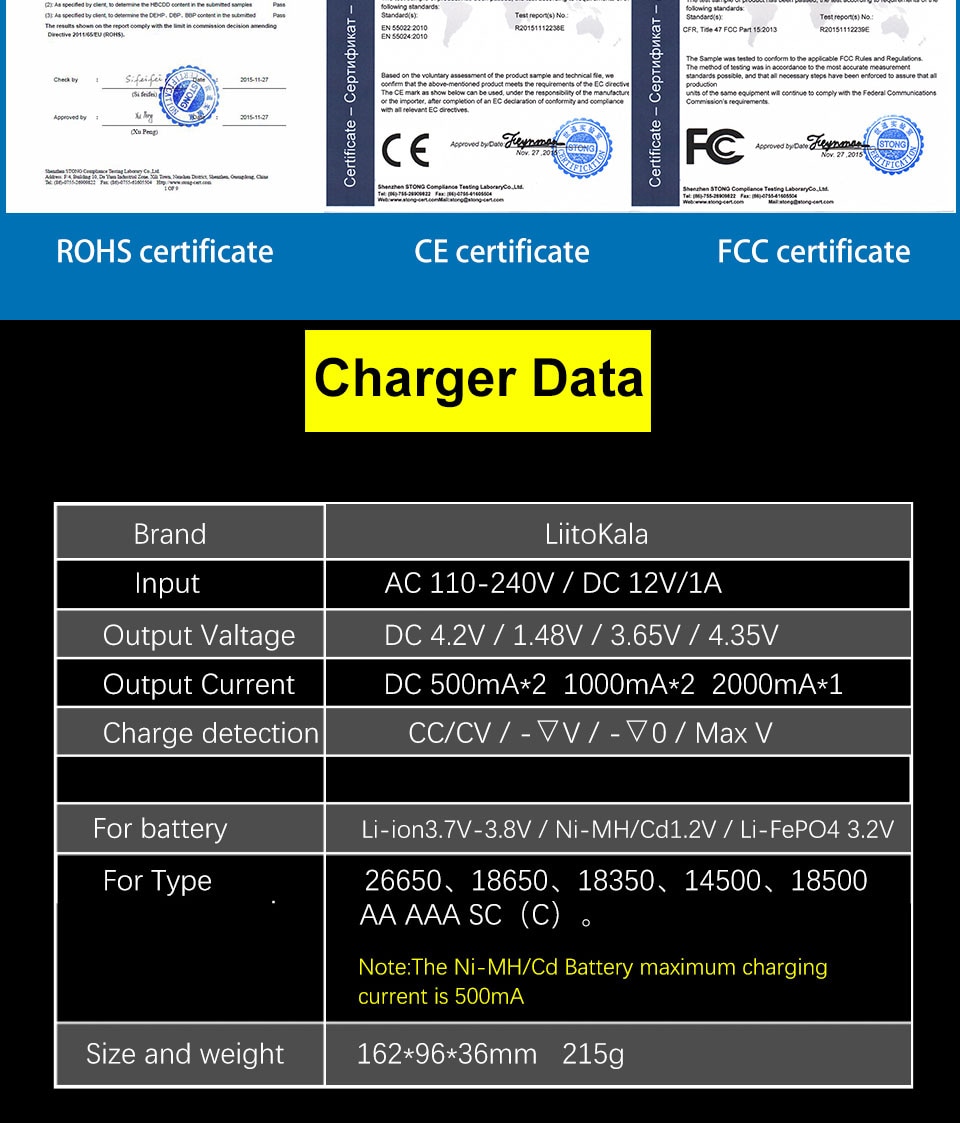

Electrical technical parameters:
1. Input power: DC 12V 1A
2. Output voltage: DC 4.20V for Li-Ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current (optional): Li-Ion/IMR/LiFePO4: 2000mA*1 (only one)/1000mA*2/500mA*2
NiMH/NiCd: 500mA
4. Constant current/constant voltage charging, cut-off current: <100mA;
5. No-load standby current: <15mA;

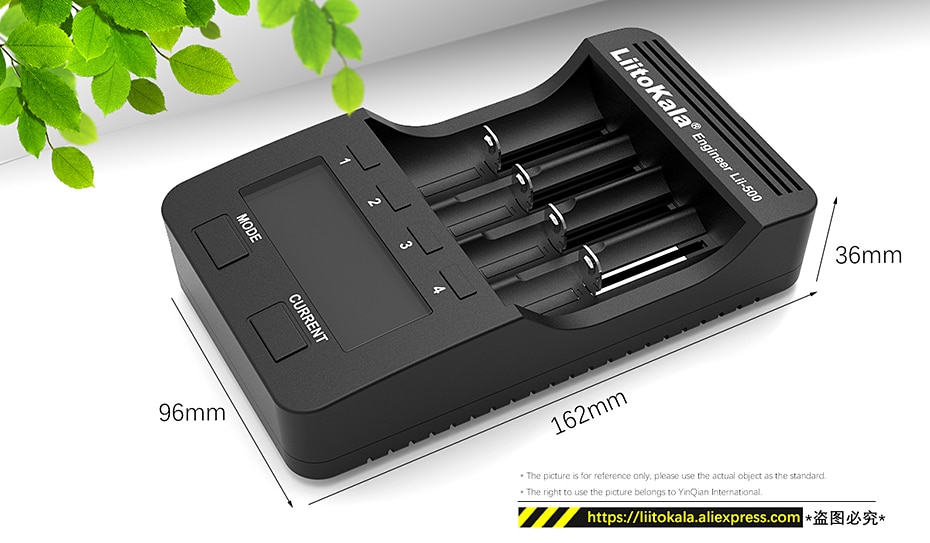

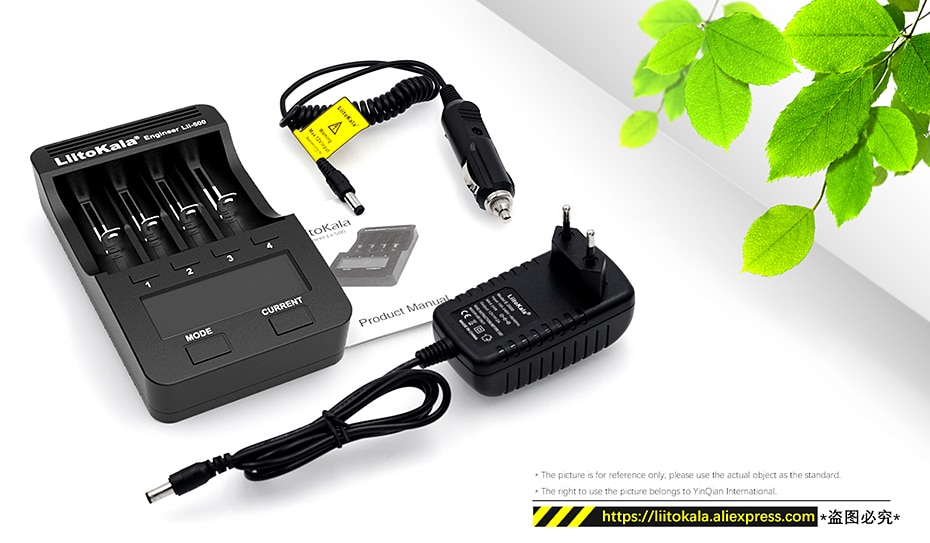

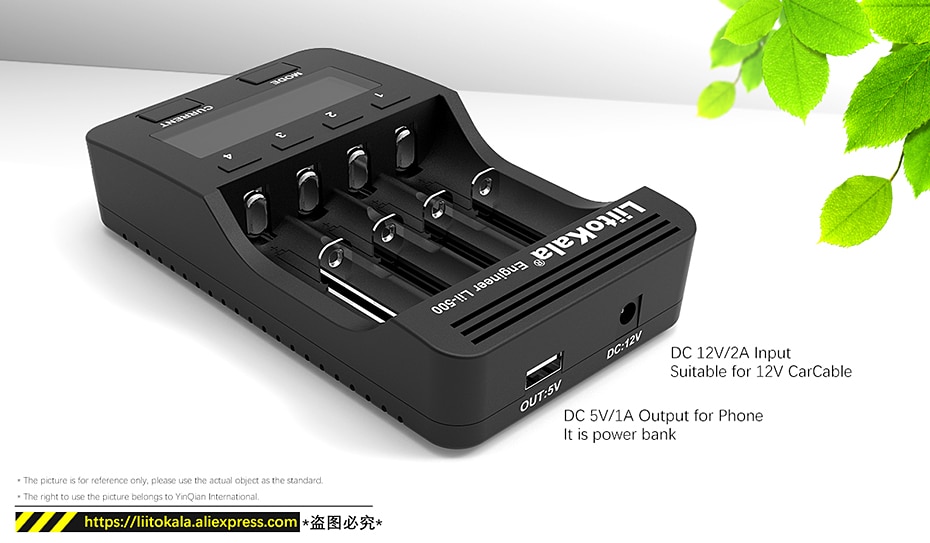

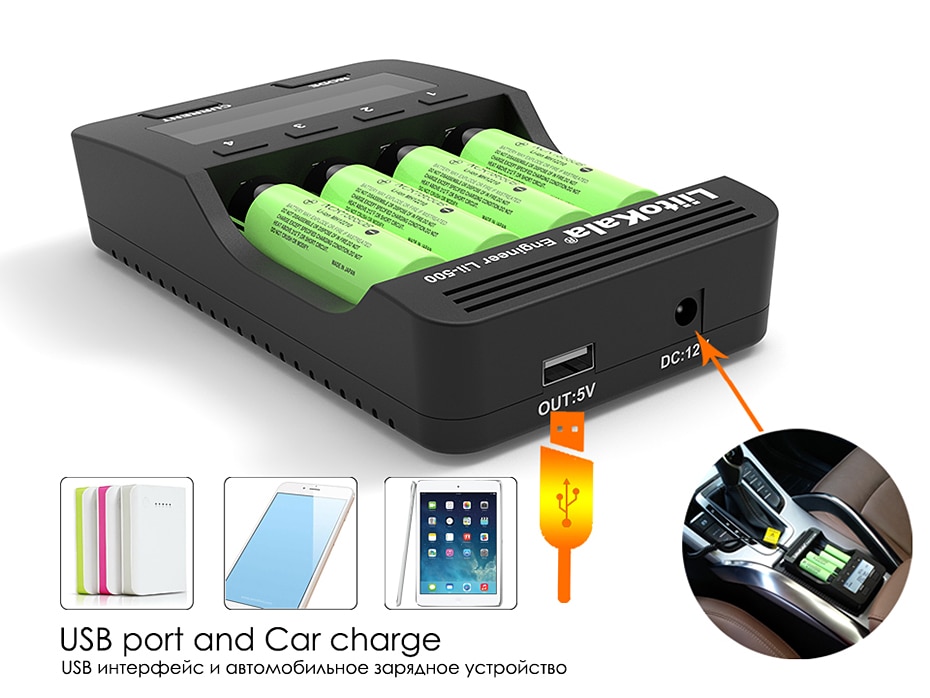

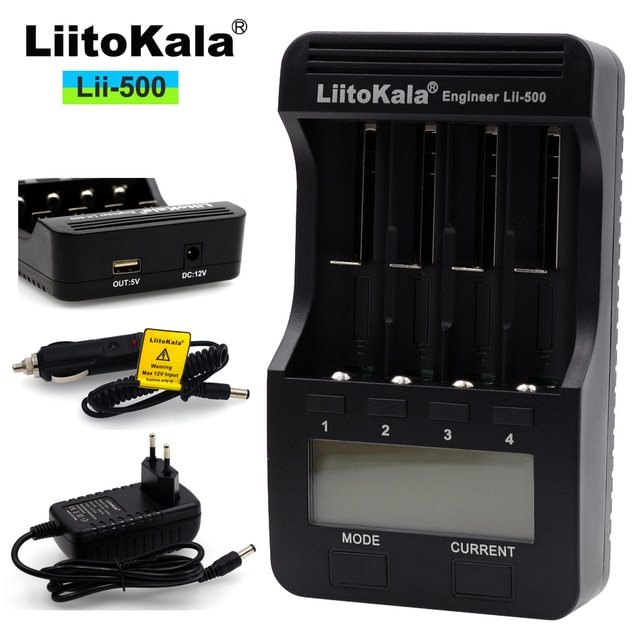

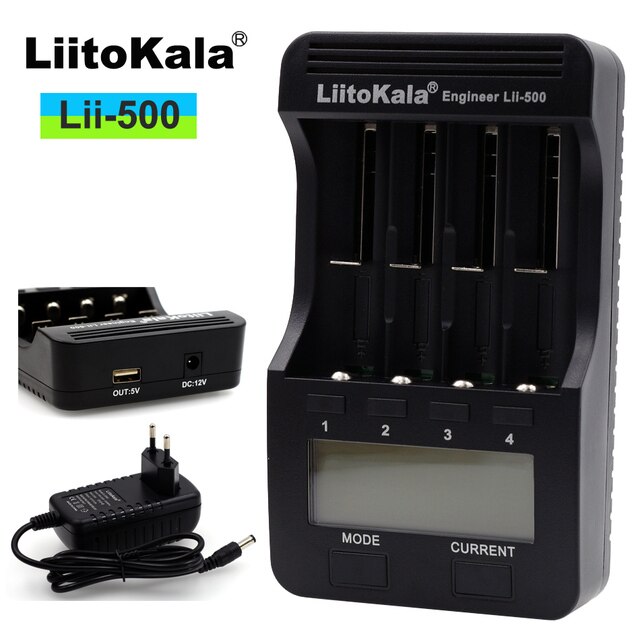

Lii-500 Charger Specifications:
• DC12V/2A input power.
• 4bay independent ports
•Test the battery capacity
• LCD displays show different modes
• 3 modes of worke
• 4 charging current (300,500, 700, 1000 mAh)

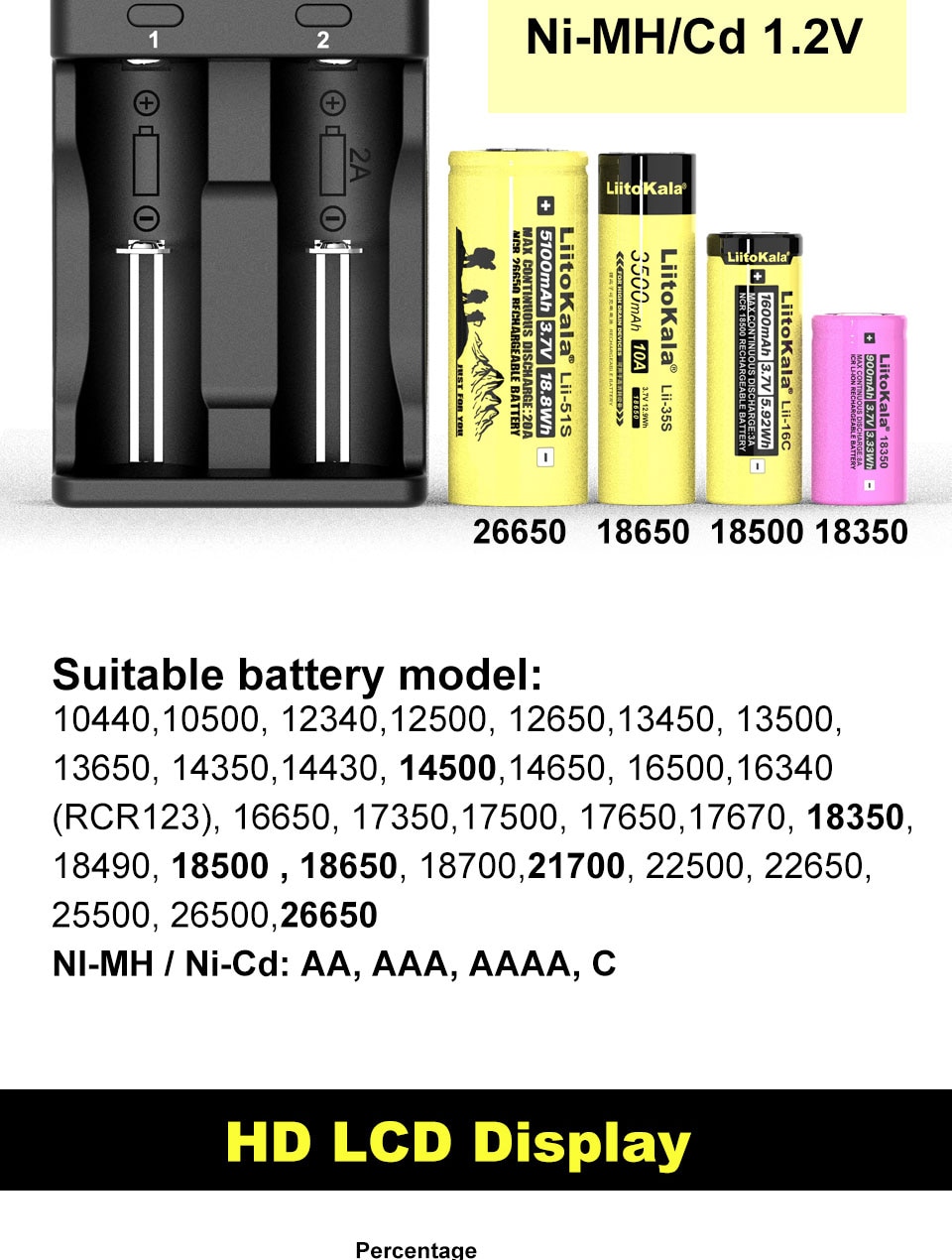

• Supports different battery sizes
• Automatic identification of battery type (Li-ion, Ni-Mh)
•Overcharge protection. Positive and negative reverse connection
protection. Over-temperature protection. NiMH battery negative voltage detection (-dtv).
• battery fault detection

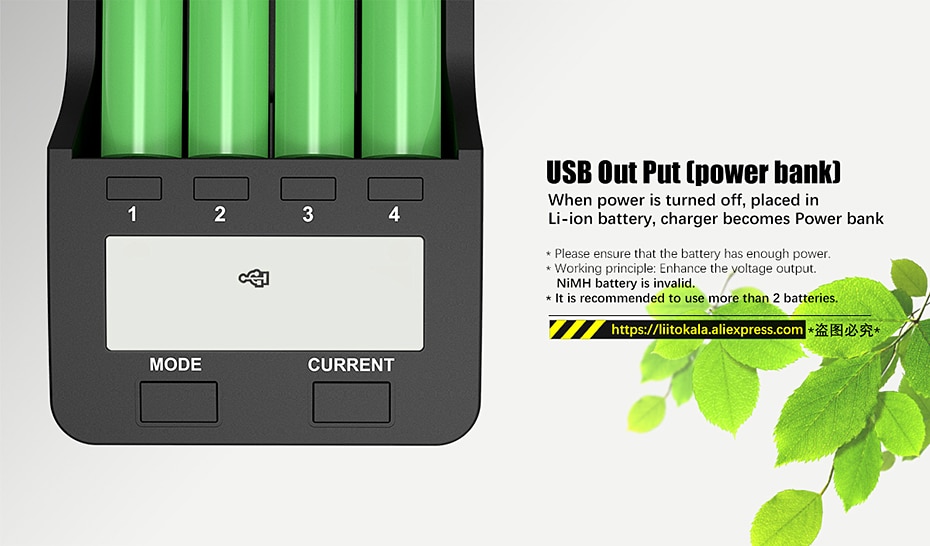

• 5V 1000mAh USB output discharge
• For NiMH / CD AAA / Micro, AA / mignon, c.
Li-Ion 26650, 22650, 18650.18490, 18500,17500, 17355, 16340 (RCR123), 14,500, 10440

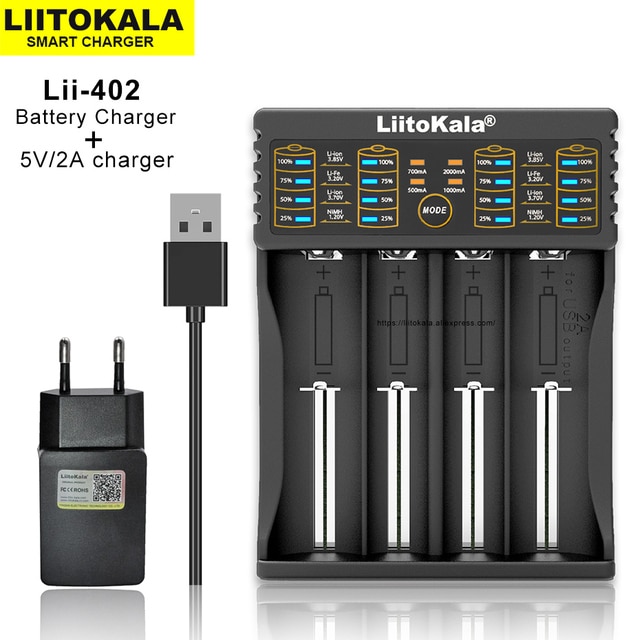

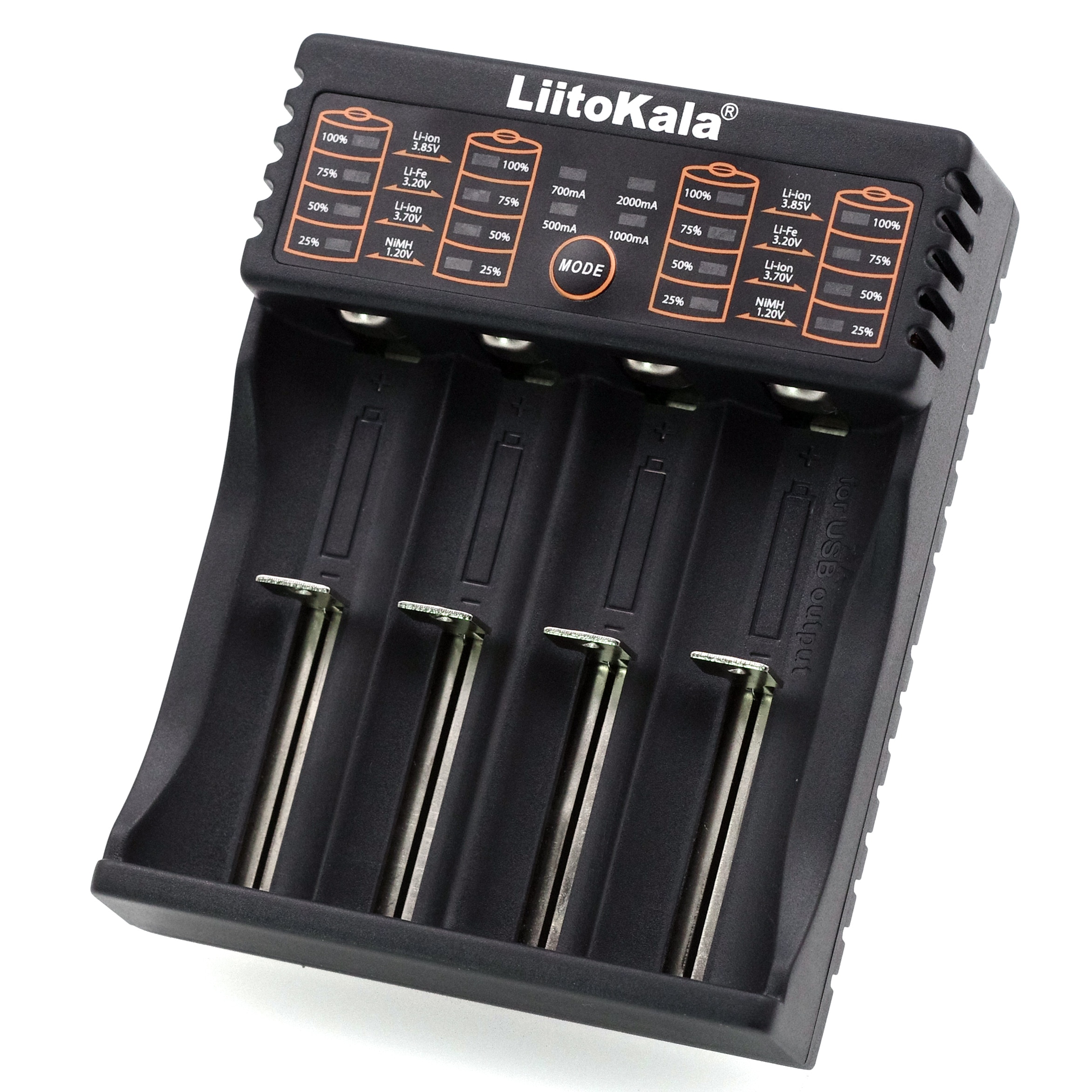

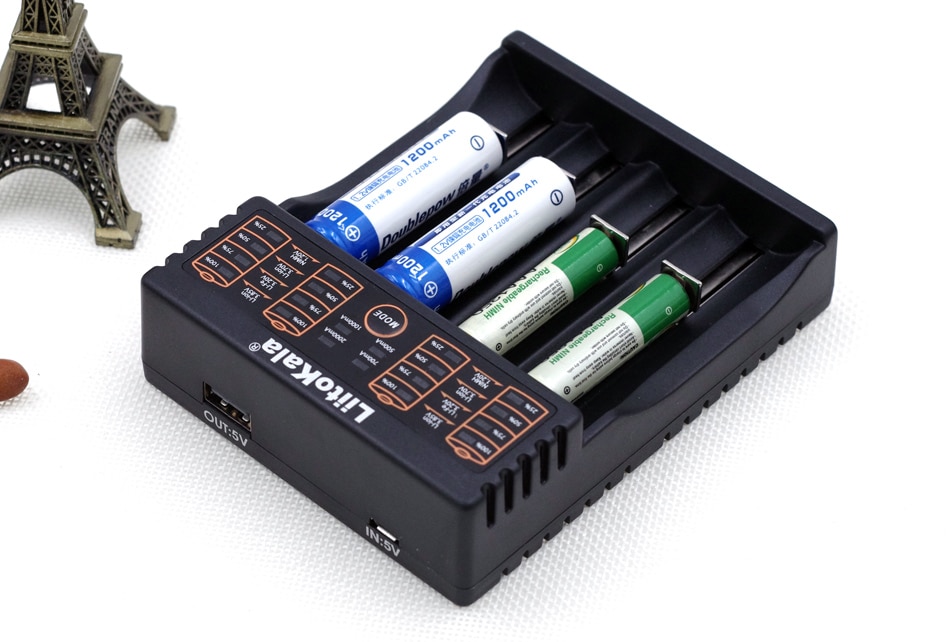

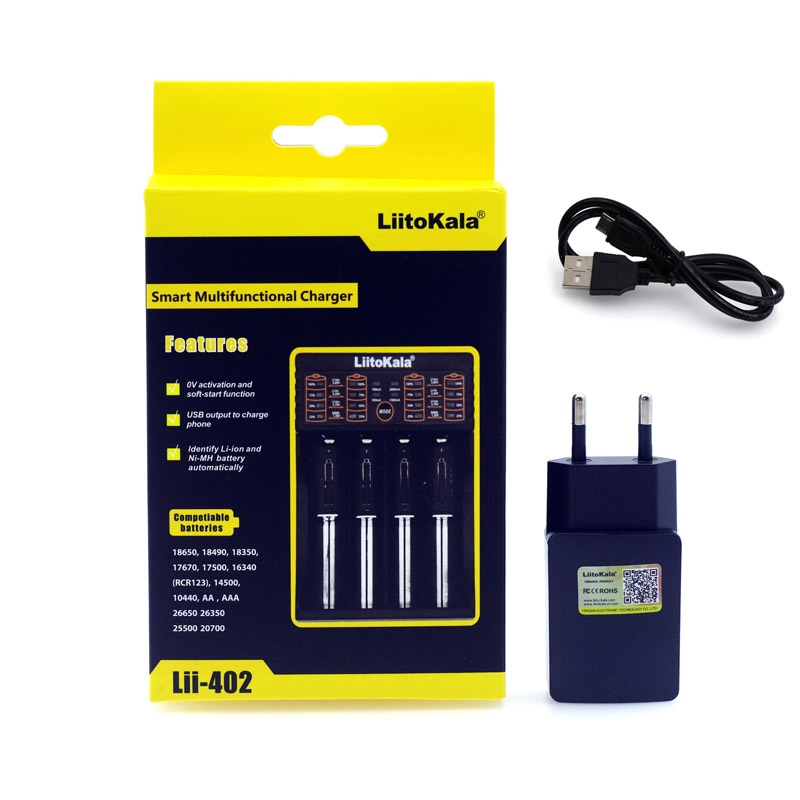

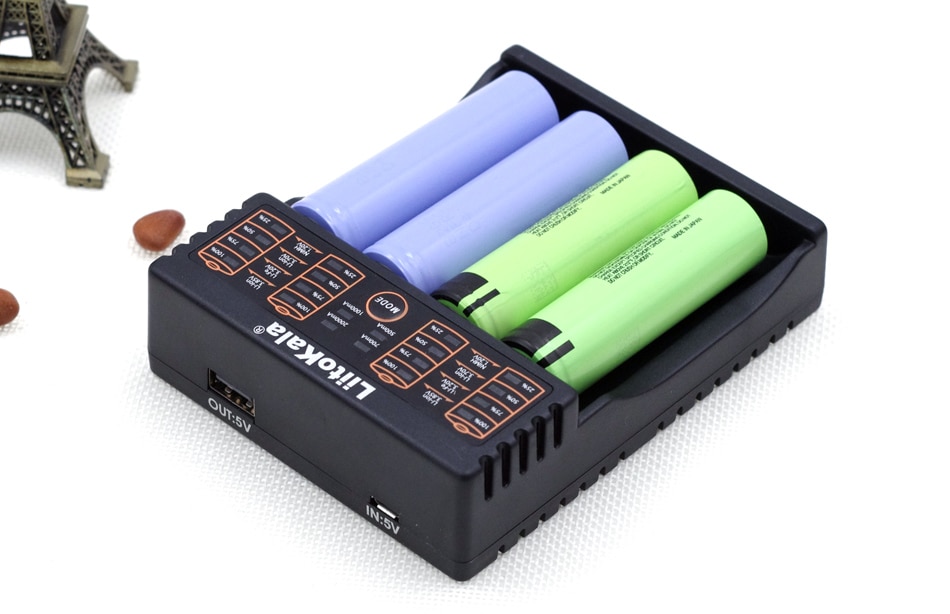

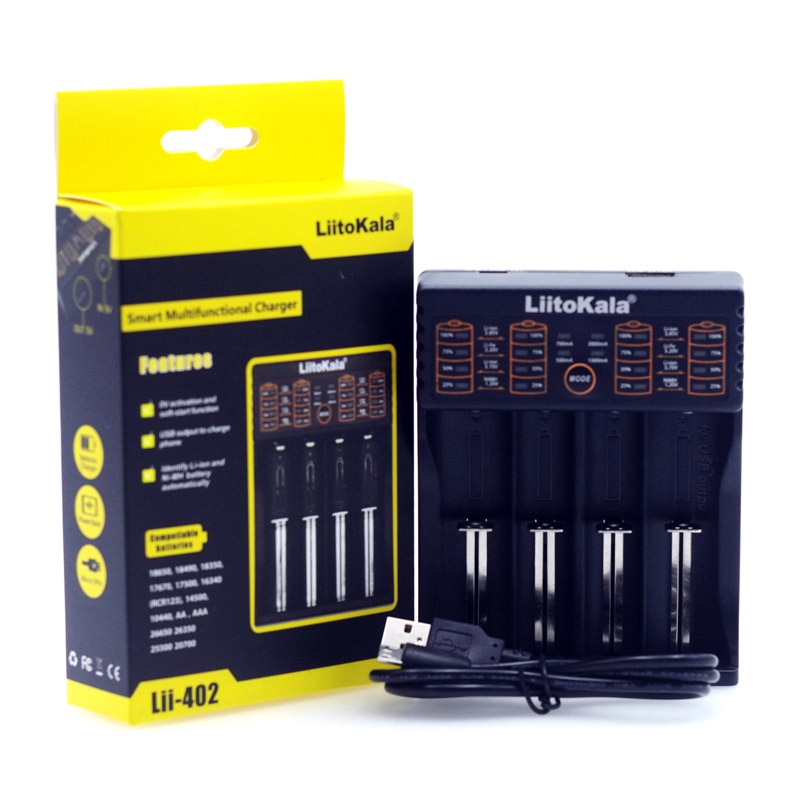

Lii-402 Charger Specification
1, input power: Micro USB DC 5V / 2A
2, the output voltage: 1.42V
4.2V ± 0.05V,
3.65 ± 0.05V
4.35 ± 0.05V
3, the output current: 2000mA * 1 1000mA * 2 700mA * 3 500mA * 4
4, constant voltage charging, cut-off current: <100m A;
5, external power supply standby current: <15.0m A;
USB output function:
1, USB port output no-load voltage: 4.90-5.30V; specify the fourth slot for the USB output
2, the output current: 1000 m A;
3, no-load current: <1m A;
4, load 1000m A current, the port output voltage: 4.75-5.25V;
5, stop output protection voltage: 3.0 ± 0.1V;
6, compatible batteries: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
charger size: 112mm × 90mm × 30mm (length / width / height)
Weight: 173g (+ micro line)

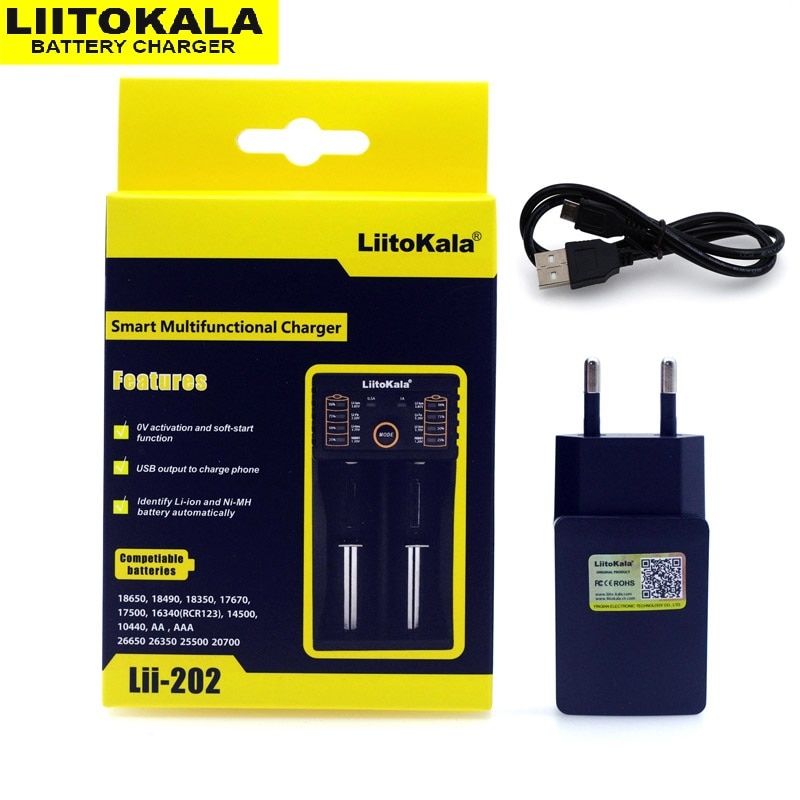

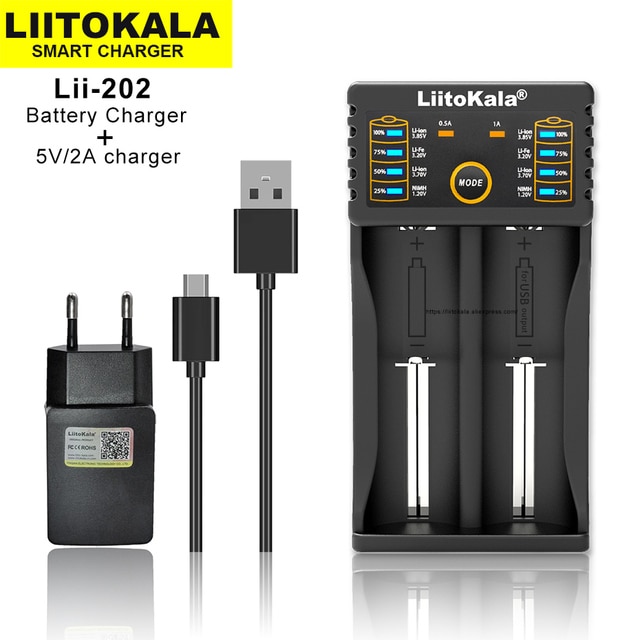

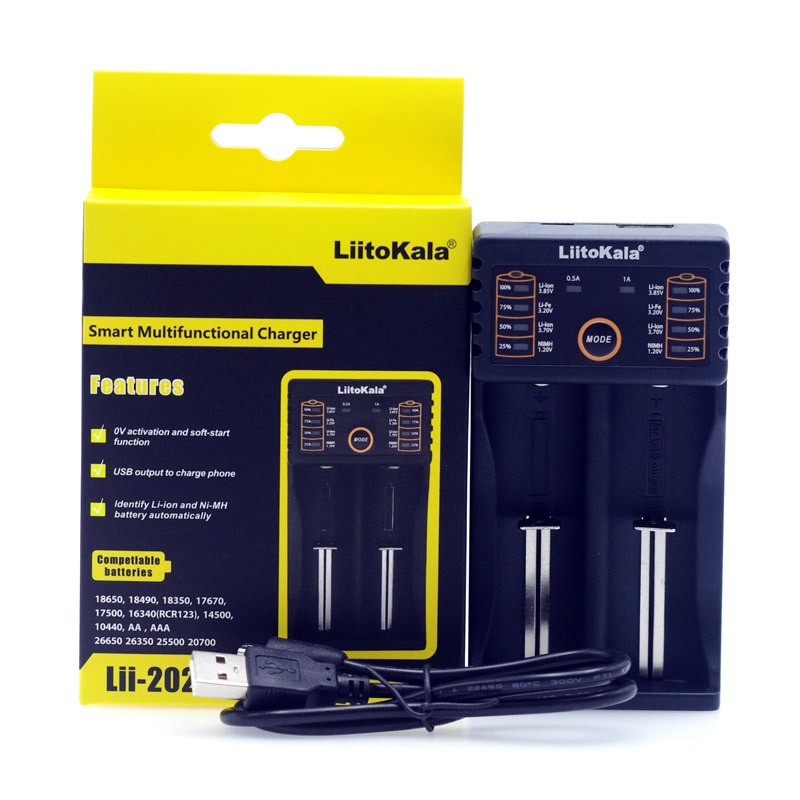

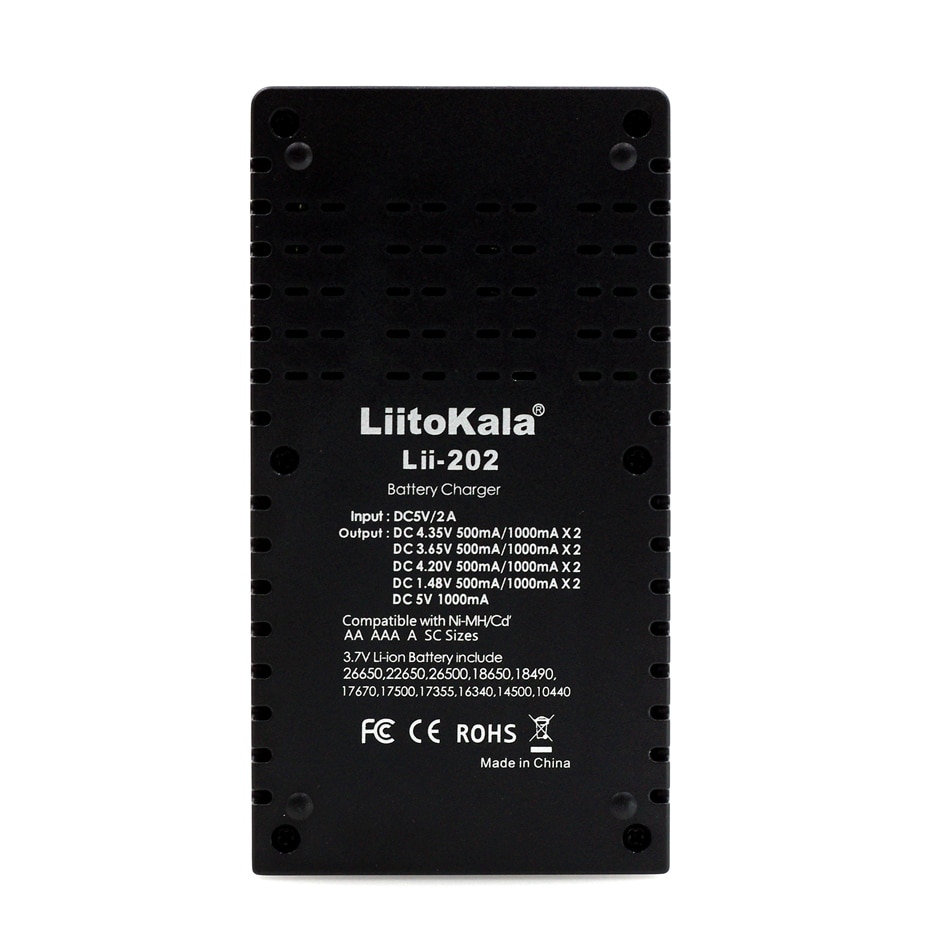

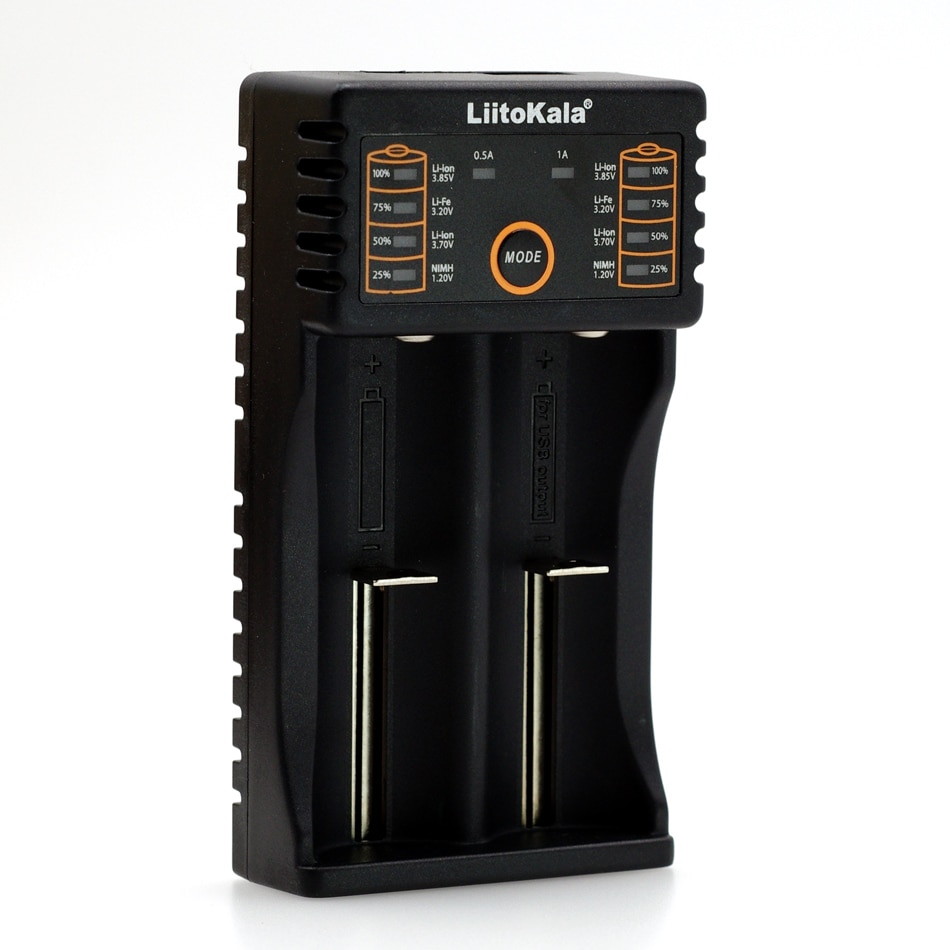

Lii-202 Charger Specification
1.Input: Micro USB DC 5V / 2A
Output: 1.4, 4.2V ± 05, 3.65 ± 05, 4.35 ± 05
Output Current: 500/1000 mAh
constant voltage charging cut-off current: <100 mAh
Standby Current: <15 mAh
2. USB output function
USB output load voltage: 4.90 V-5.30
Output Current: 1000 mAh (1A)
Idle Current: <1 mAh
the output voltage of 4.75 V-5.25 V, when the current 1000 mAh
output over-voltage protection: 3.0 ± 1
3. Compatibility
li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
4. Size
112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable

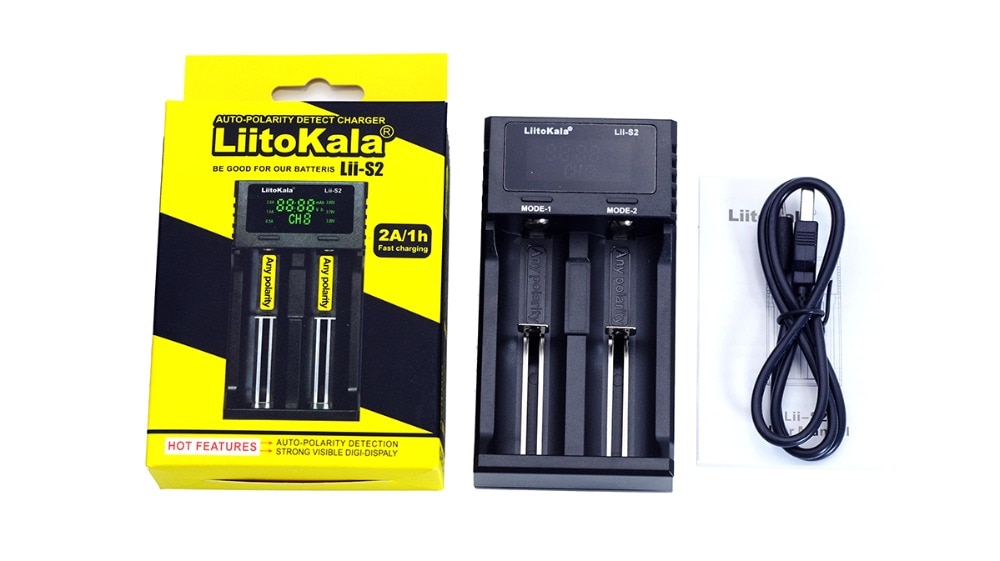

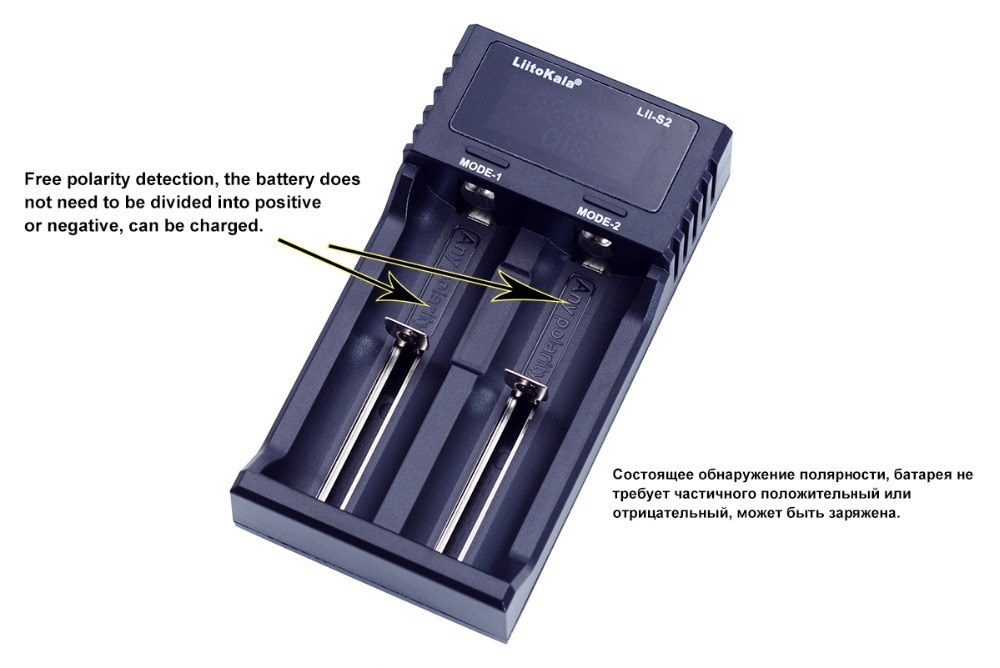

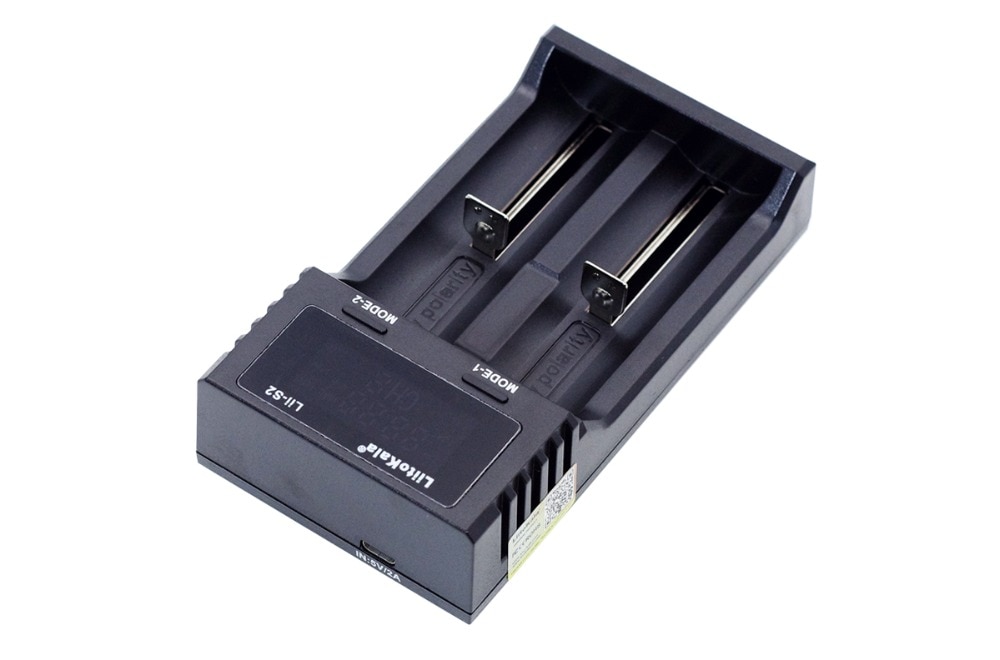

Lii-S2 Charger Electrical Parameters:
Input :DC5V/2A
Output Voltage :DC Li-ion 4.2V / NiMH 1.5V / IMR 4.35V / Li-Fepo4 3.65V
Output Voltage :500mA*2 / 1000mA*2 / 2000mA*1
Compalible with Ni-MH/Cd. AA AAA A SC Sizes
3.7V Li-ion Battery include: 21700,26650,22650,26500,18650,18490,17670,17500,17355,16340,14500,10440
- Read Instruction before use!
- Operate only with the supplied AC adapter!
*LED display graphic reference:
- Data Transmission: No
- Output Interface: USB Output
- Package: Yes
- Use: Standard Battery
- Model Number: LiI-PD2/202/402/S2
- Display screen: Yes
- Intelligent Charge: Yes
- Quick charge: Yes
- Type: Electric,USB
- Brand Name: liitokala
- Origin: Mainland China
- Certification: CE,FCC,RoHS
