NEW ATU-100 PRO HF AUTOMATIC ANTENNA TUNER QRP/QRO DIY OGS-3D

4.8 (4 votes) | 10 orders
Price:
US $ 152.68 / piece

Sorry! This item is out of stock

NEW ATU-100 Automatic Antenna Tuner Shortwave Antenna Tuner Rechargeable For QRP/QRO Radios

Required before purchase.

Support green energy and environmental protection, no longer have any paper instruction book. Please download the document in the URL before you buy and understand it clearly before you decide to buy.

https://docs.google.com/document/d/1WVp16ijOQVdnxe4qXqI1ELvPyv5YnmWB/edit?usp=sharing&ouid=103192493621114576054&rtpof=true&sd=true

Logistics

Cntronic Standard Shipping or Cntronic Saver Shipping is recommended.

Description:

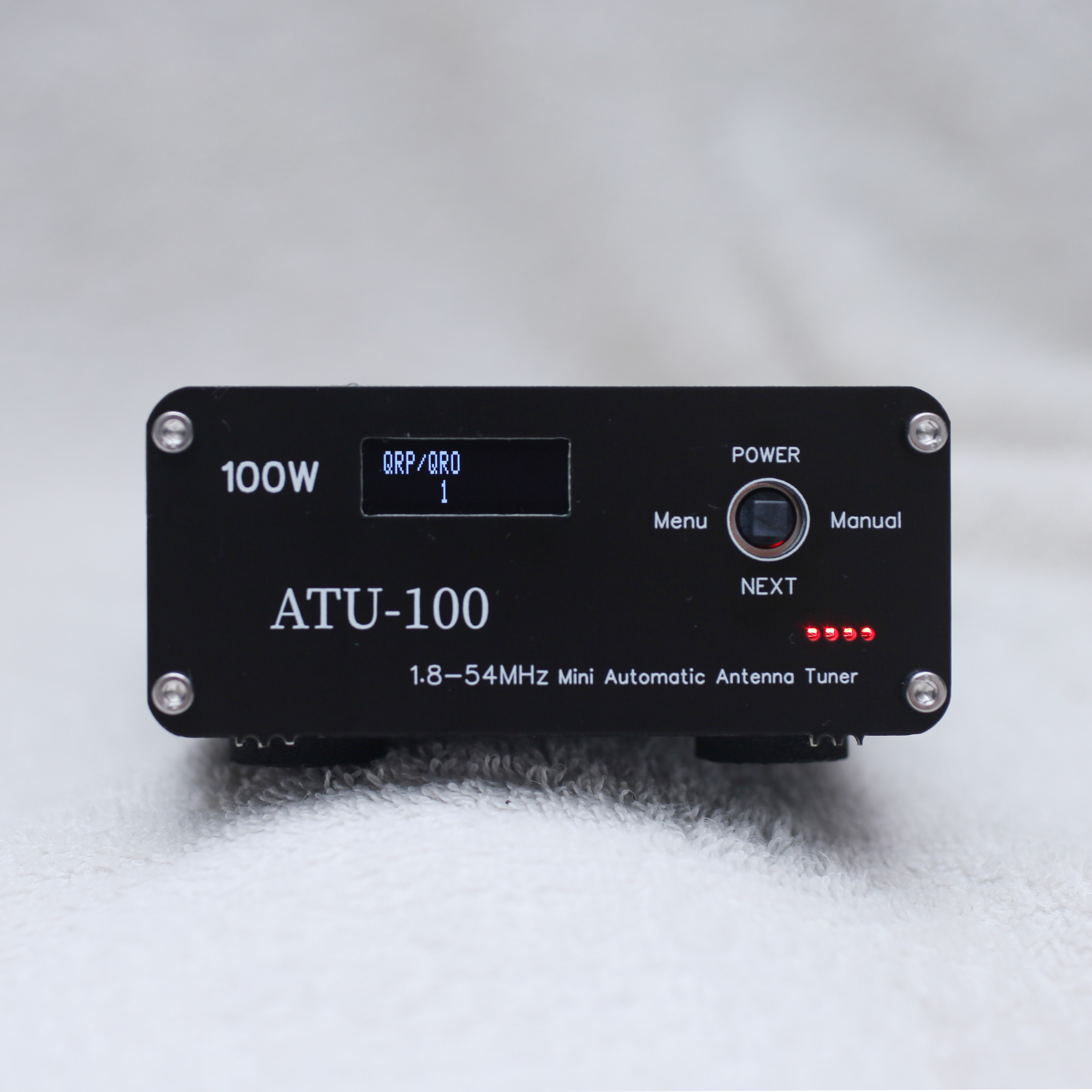

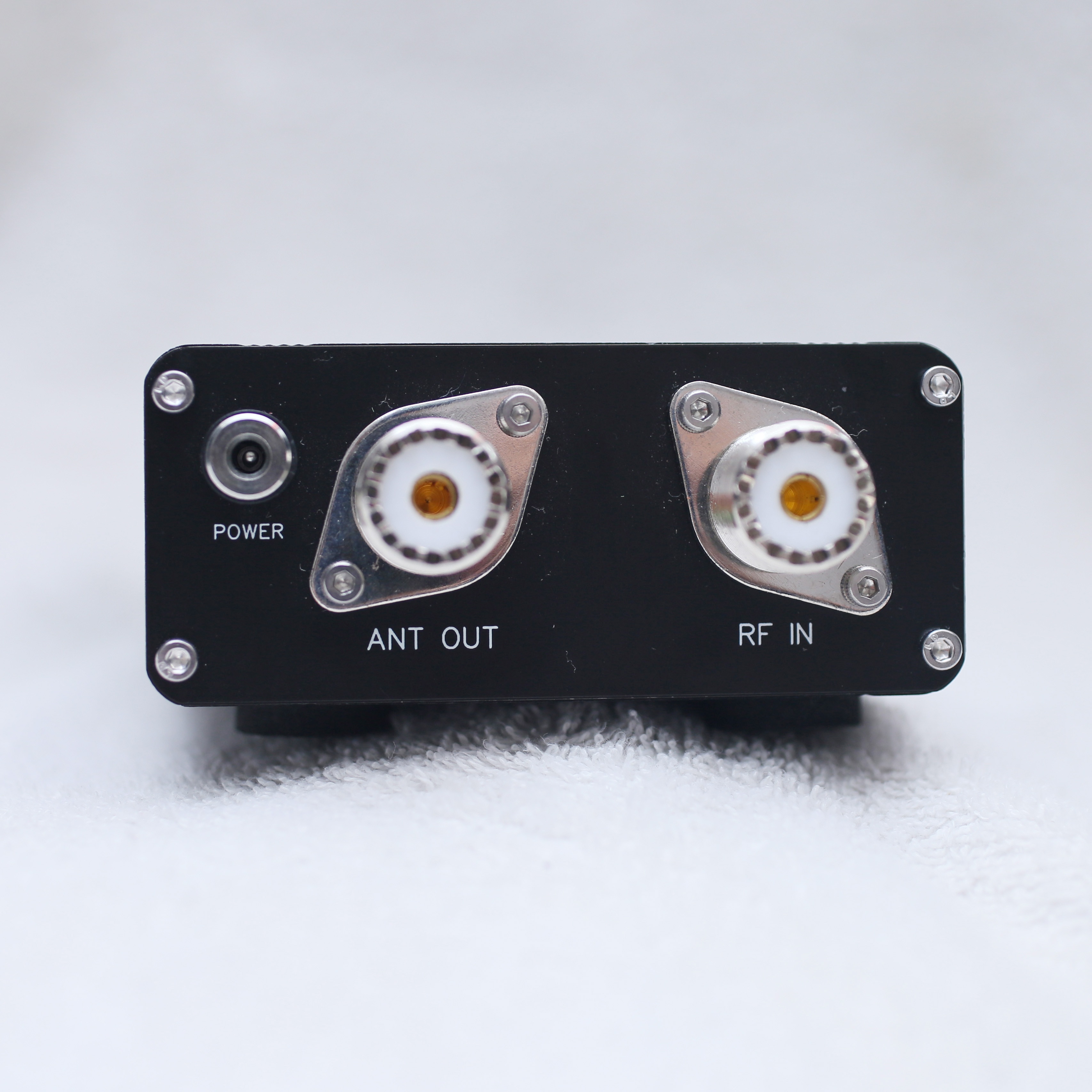

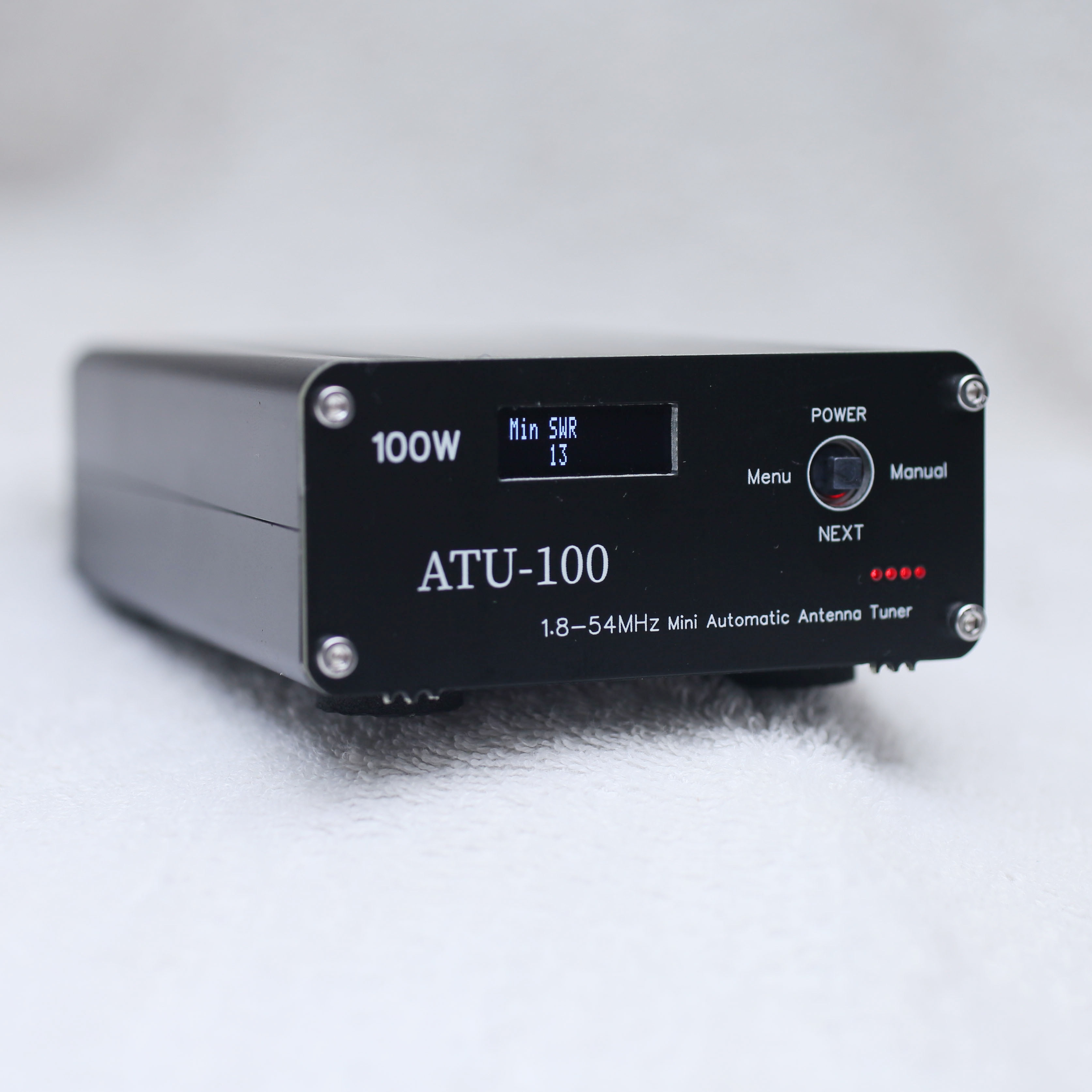

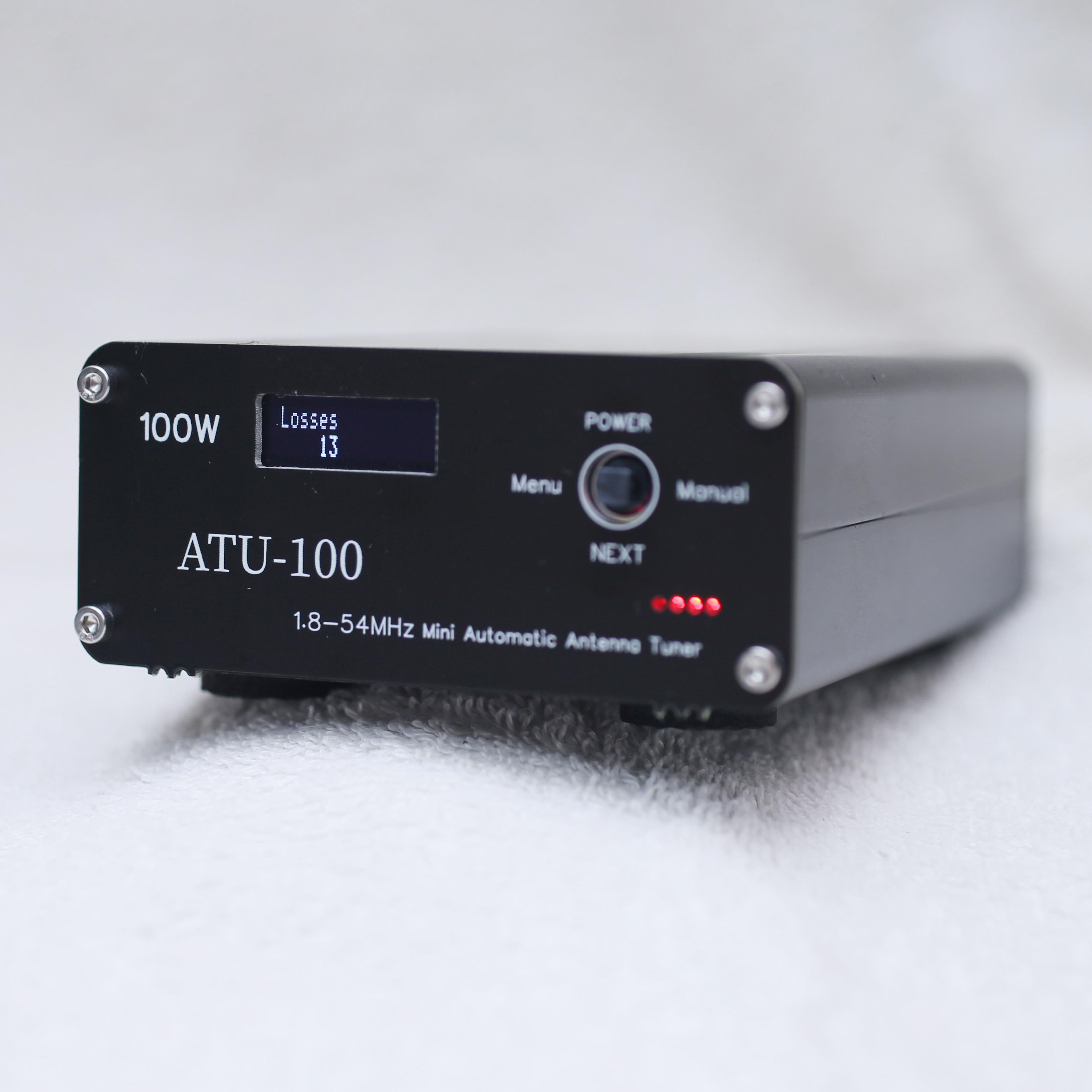

NEW ATU-100 standard version is a rechargeable short-wave automatic tuner. It is suitable for all radio stations without built-in antenna tuning such as 817, 705, 891, 725, 725A. Ultra-wide working voltage makes it dwarf all power supplies. Menu adjustment function is added. You can set QRP mode or QRO mode directly in the menu, and one antenna tuner is suitable for 1W low-power radio stations/100W radio stations. It can be used without a special control line for radio station.

Specifications:

- Firmware version: 5.1

-PIC18F2520 Microcontroller;

- New system settings menu;

- Operating frequency: 1.8Mhz - 50Mhz ( laboratory data, not all antennas of different models may be available);

- Matching antenna impedance: 5-1200Ω;

- Operating voltage: 5V DC;

- Max. current: 400 mA;

- Max. operating power: SSB 100W/FT8 40W;

- Start tuning power: 1-10W (different working modes);

- QRP mode measurement resolution: 0.1W;

- QRO mode measurement resolution: 1W;

- Power measurement accuracy error: ±15%;

- Mounting inductance: 7 groups (0.045uH-8.53uH);

- Mounting capacitance: 7 groups (10-1869pF);

- Standby current 100-200 mA;

-Battery level display;

- Built-in battery: 2000Ma;

Package Included:

- 1 x Set of Antenna Tuner (With a power cord)



  • Brand Name: FSSMGZS
  • Item Type: automatic antenna Tuner
  • Origin: Mainland China
  • Model Number: ATU-100
  • Certification: NONE
