Meshtastic Lora SenseCAP Card Tracker T1000-E, 868mhz 915mhz, antenna, IP65, GPS, nRF52840,BLE 5.0,Thread,Zigbee
4.8 (72 votes) | 900 orders
Price:
US $168.11
Discount Price:
US $
94.13
-44%
- Color
-
-
Features
Multi-Protocol Support: Featuring nRF52840 and LR1110, it supports Bluetooth 5.0, Thread, Zigbee, and LoRa, ensuring compatibility with a wide range of devices and networks.
Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.

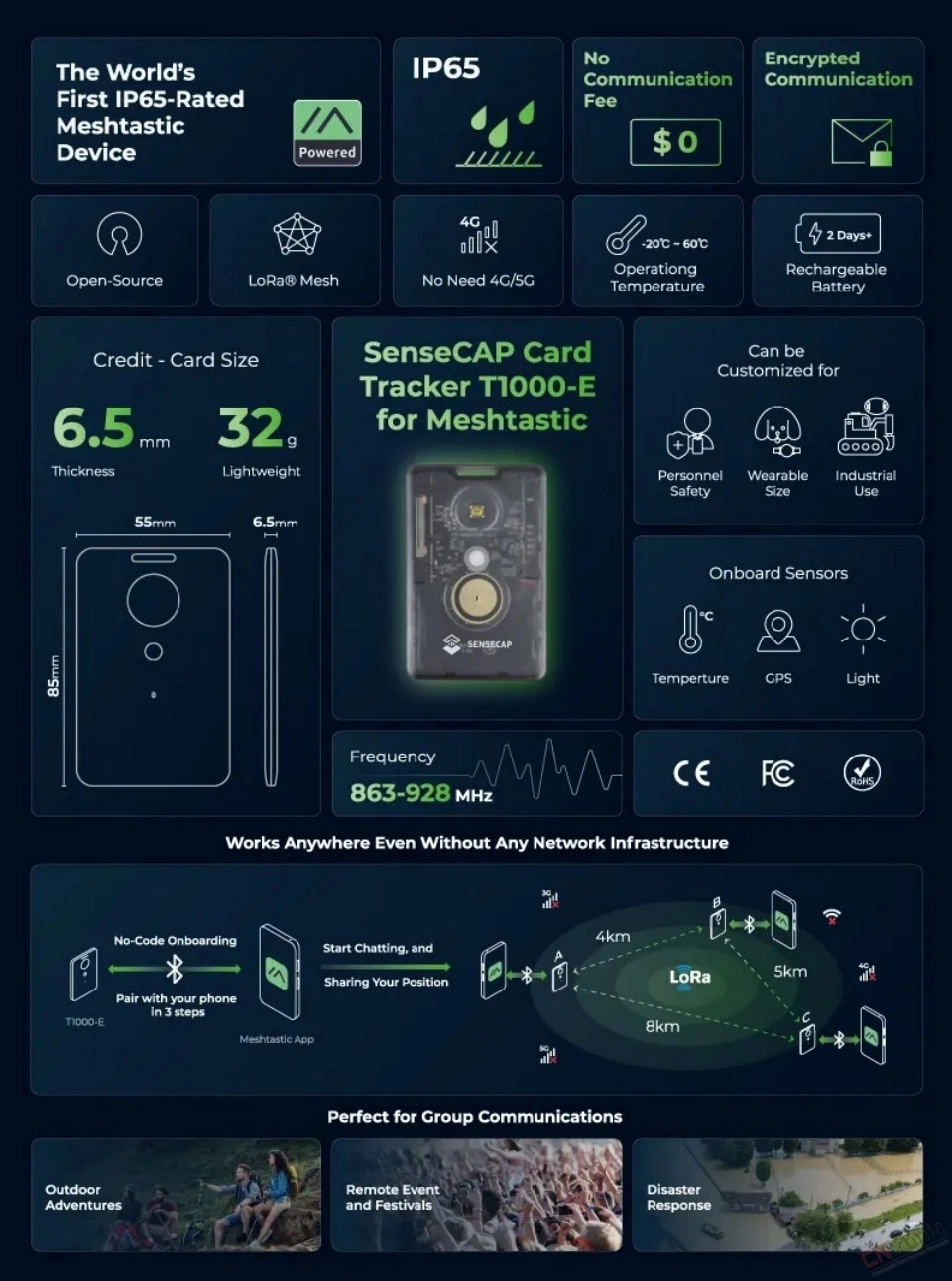

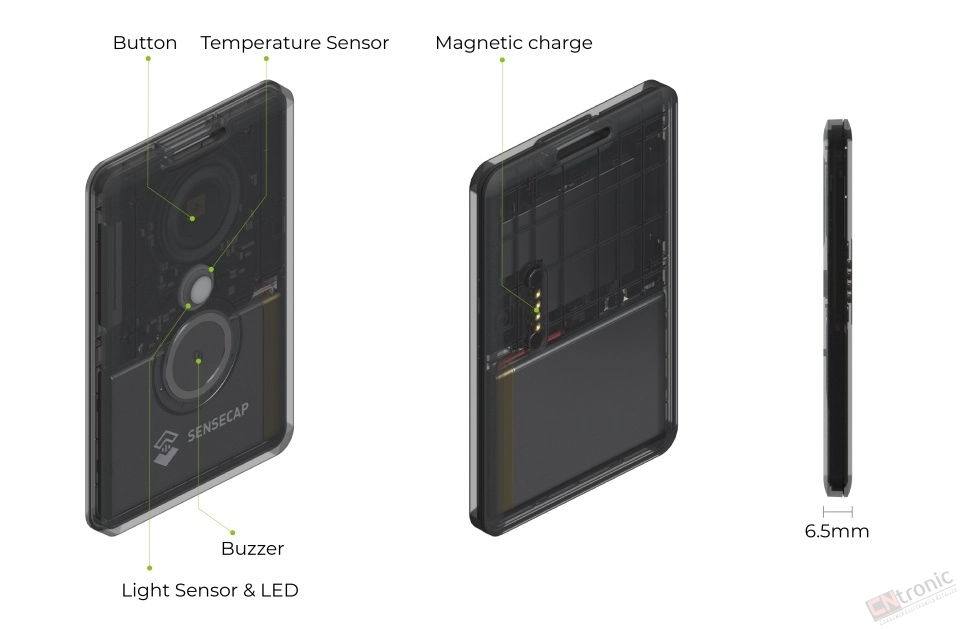

Hardware overview
Application

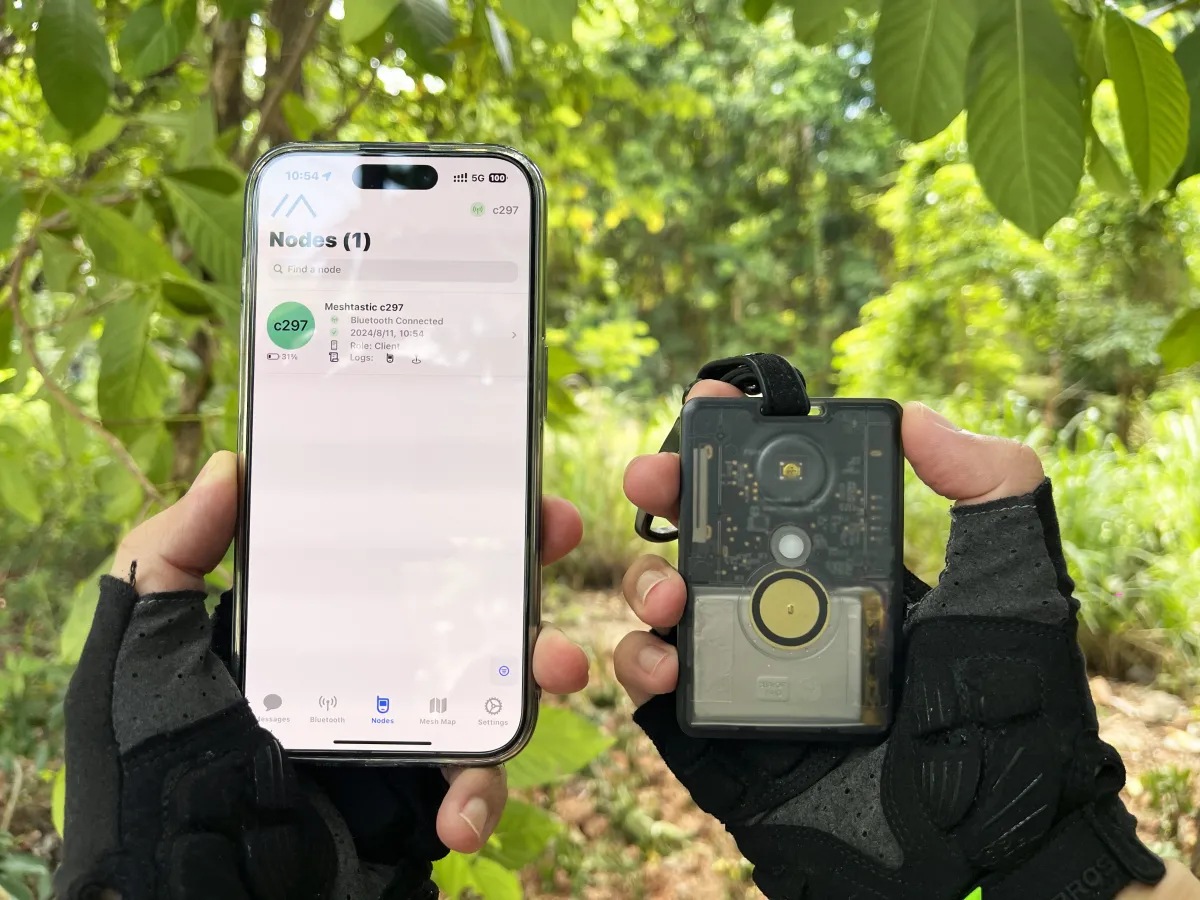

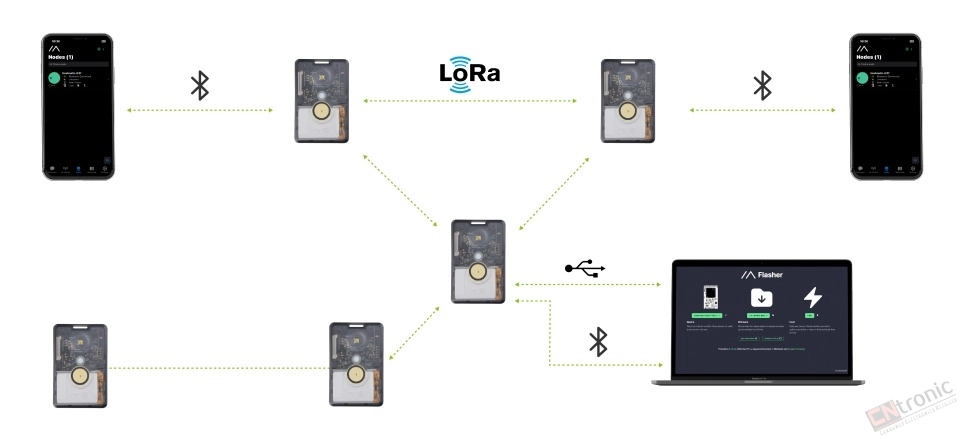

If you've got a IP65 rating Meshtastic device with GPS, temperature, lightness and motion (3-Axis Accelerometer) sensors, numerous potential applications await. Use the Meshtastic APP to communicate with low-power, long-range LoRa® devices via your phone. Connect with nearby nodes, participate in group chats, and share geographic locations—all in areas without cellular coverage.
Recommended Use Cases：

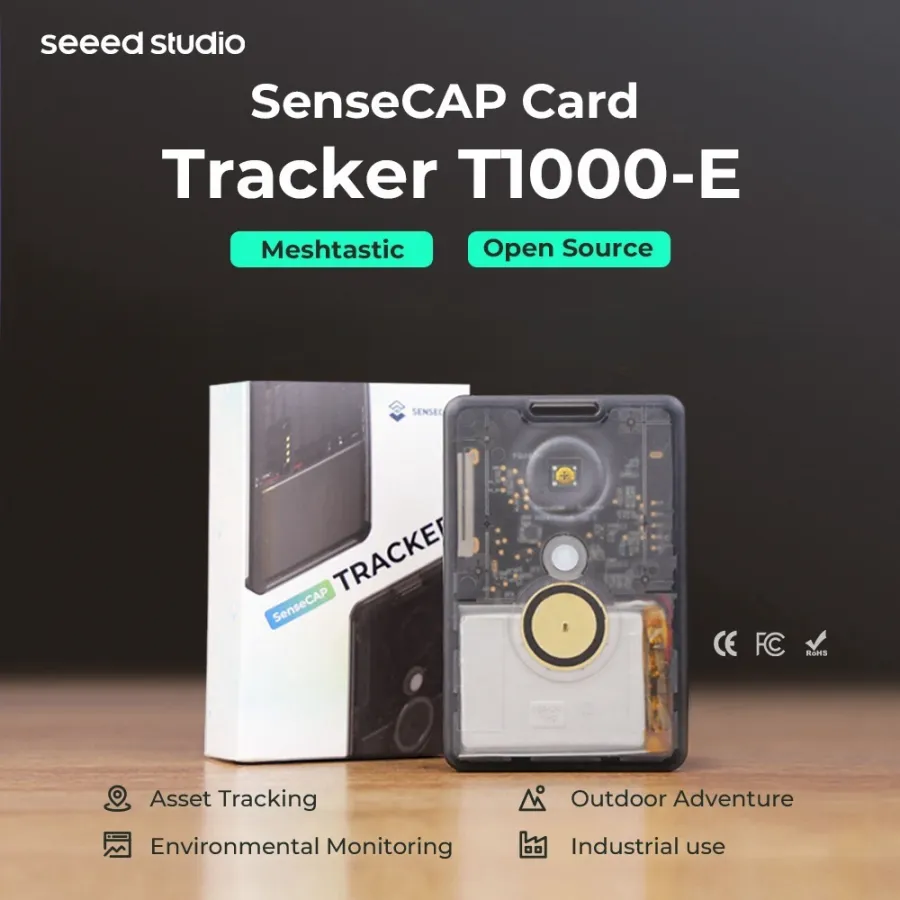

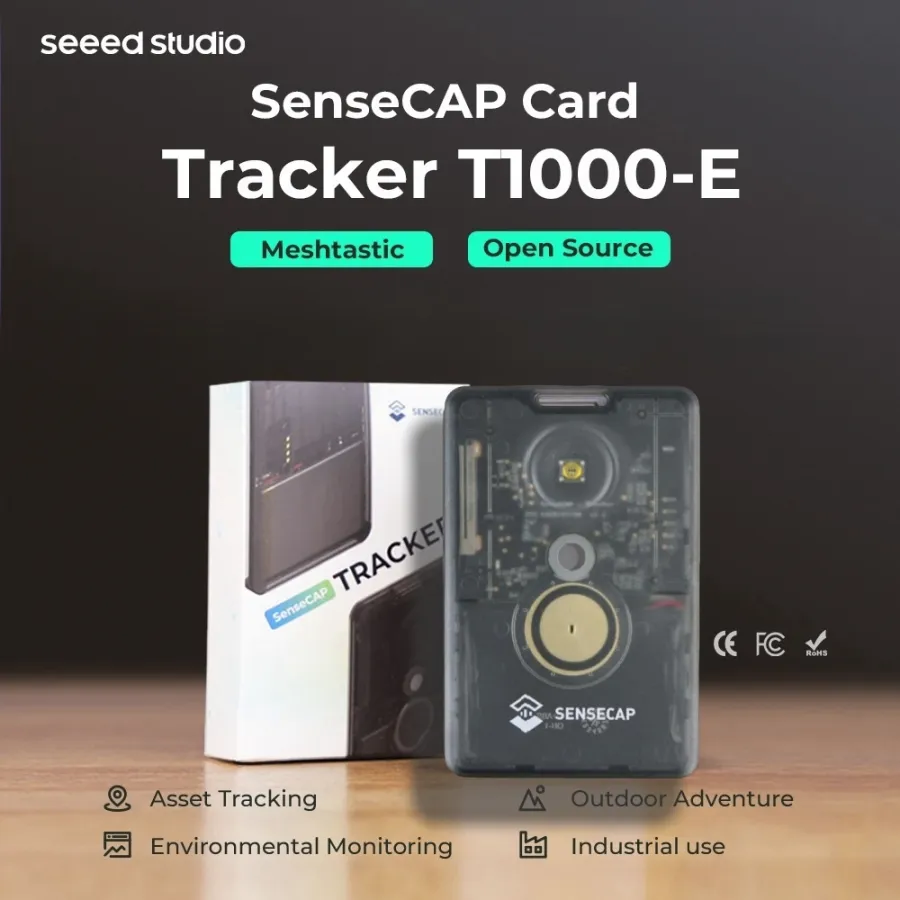

Asset Tracking: Track the movement and location of your assets and monitor environmental and moving conditions in real-time where the asset is located for better management.

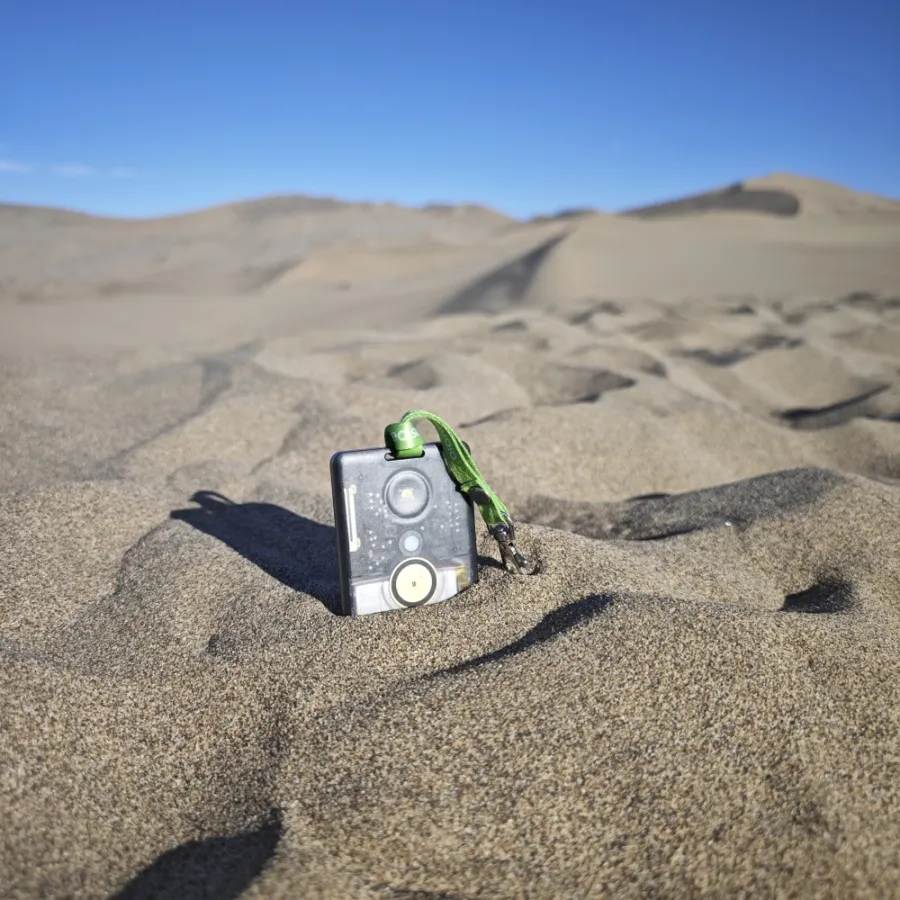

Outdoor Adventure: Use this ready to deploy Meshtastic device for off-grid communication with your hiking or camping group. The GPS can help track locations, while temperature and motion sensors can provide real-time environmental and movement data to ensure safety.
Environmental Monitoring: Collect and transmit environmental data. Deploy the device in remote areas to monitor and log temperature and lightness over time, contributing to local weather data collection. Use the device to track and monitor environmental conditions in wildlife habitats, aiding in research and conservation efforts.
Packaging Details
- Unit Type:
- Package Weight: 0.100
- Package Size: 6x3x9
- Brand Name: seeed studio
- Accessory Type: Sensor
- Battery Included: Yes
- Origin: Mainland China
- Hign-concerned Chemical: None
- Compatible With: Meshtastic
- Network protocol: LoRa, Bluetooth v5.1
- Temperature: Range: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃
- Light: 0 to 100% (0% is dark, 100% is brightest)
- 3-Axis Accelerometer: 3-Axis Accelerometer to detect movement
- LED and Buzzer: 1*LED and 1* buzzer to indicate statu
- Button: 1* Button to operate
- Antenna: Internal (GNSS/LoRa/Wi-Fi/BLE)
- Communication Distance: 2 to 5km (depending on antenna, installation, and environments)

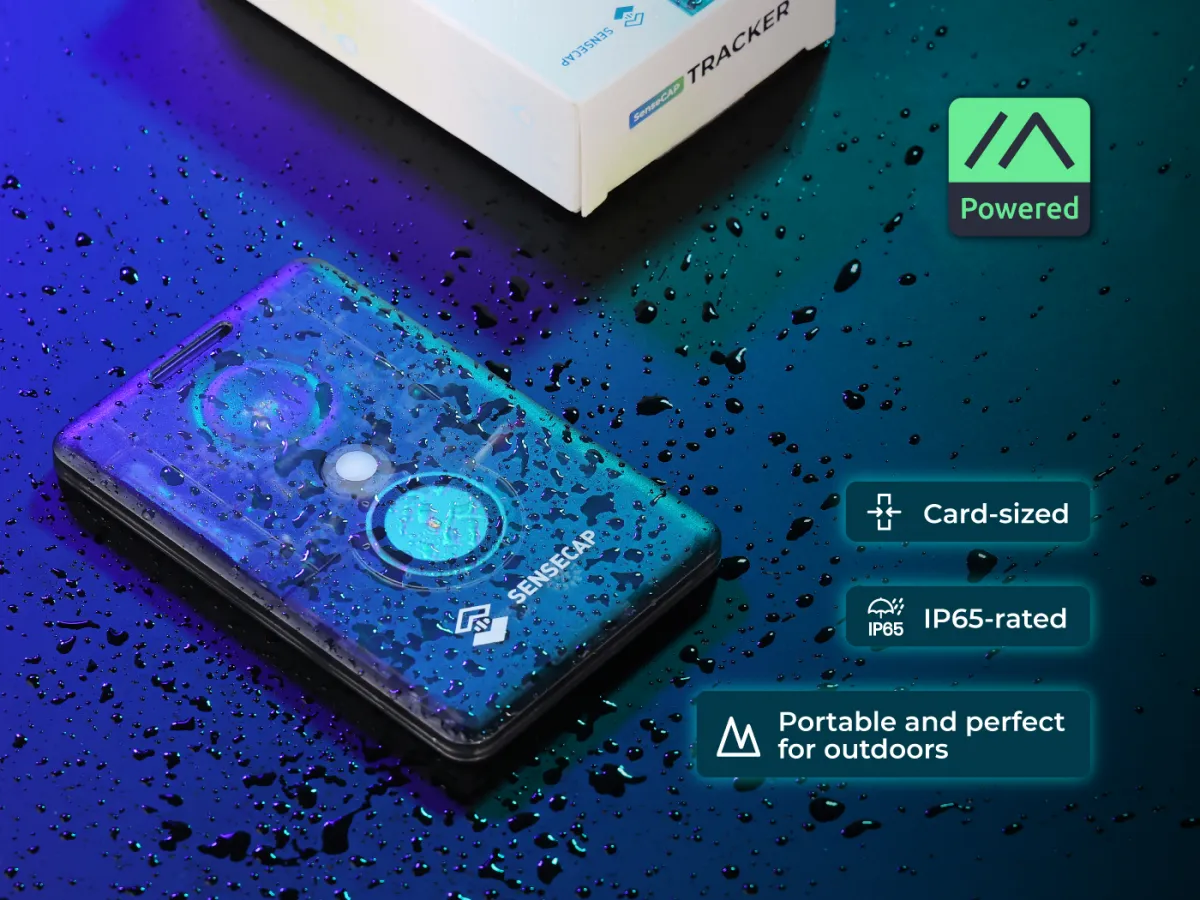

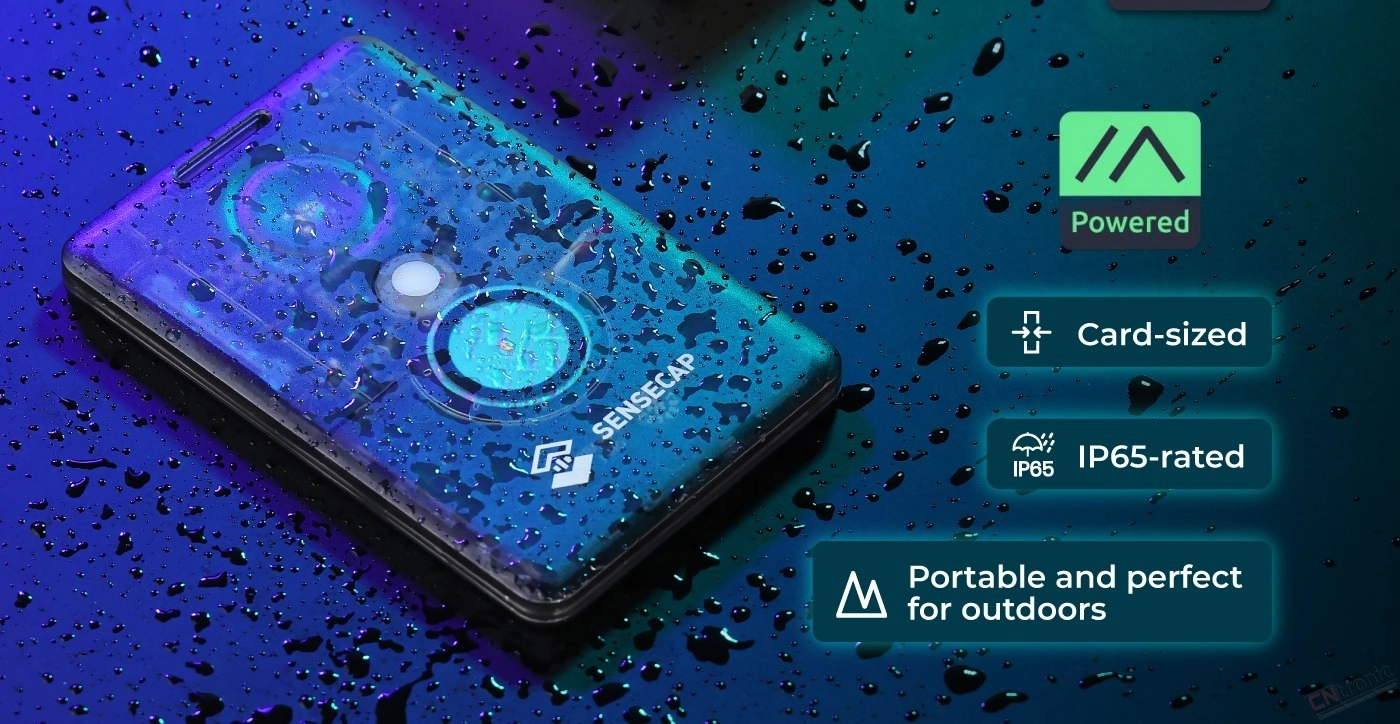

- IP Rating: IP65

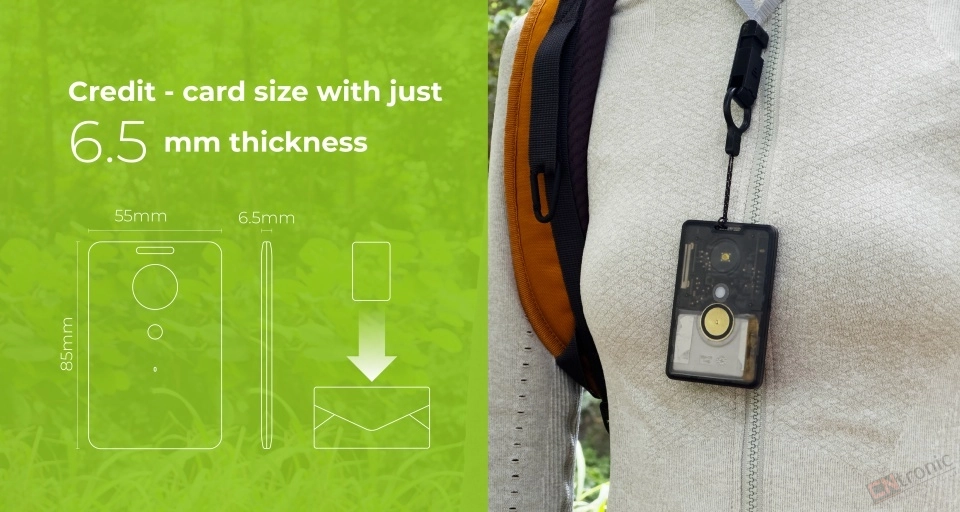

- Dimensions: 85 * 55 * 6.5 mm
- Device Weight: 32g
- Operating Temperature: -20℃ to +60℃
- Operating Humidity: 5% - 95% (No condensation)
- Certification: CE /FCC
- Battey Capacity: Rechargeable lithium battery, 700mAh
- Battery Life Monitoring: Periodic uplink battery level

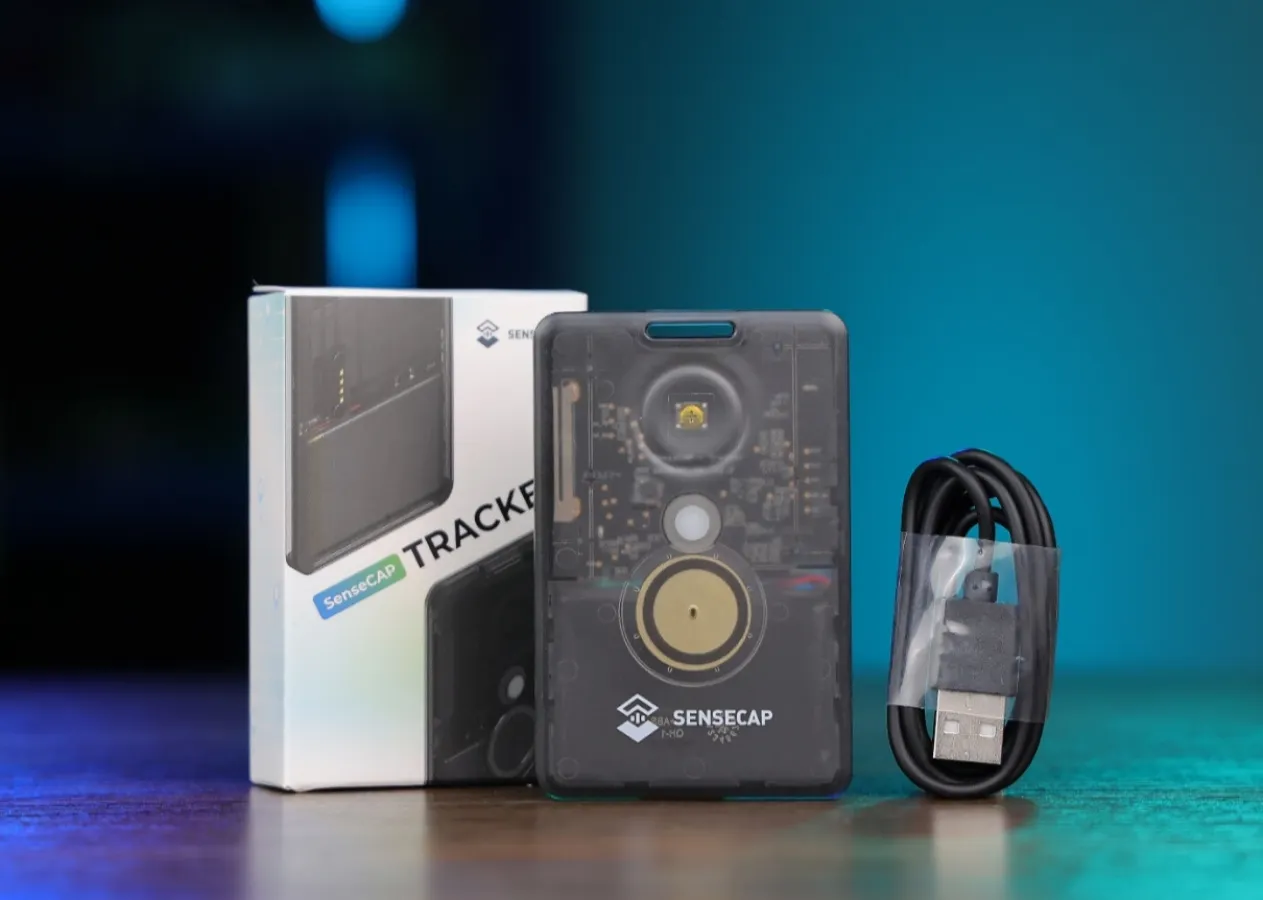

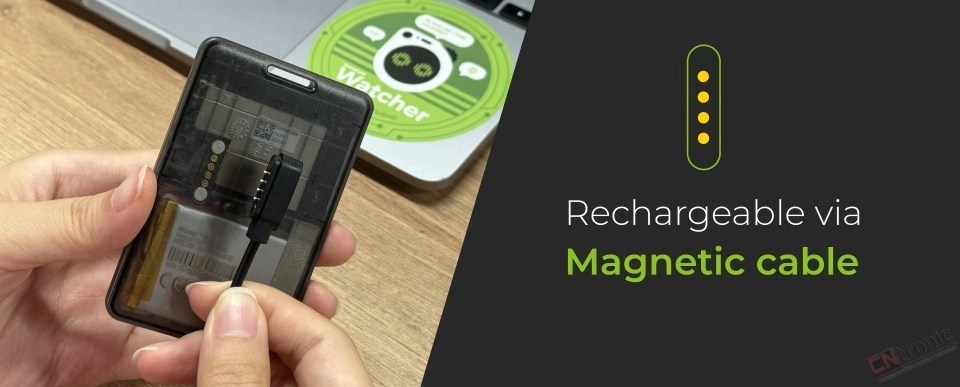

- Charge Cable (Adapter not included): USB magnetic charging cable, 1 meter
- Power Input Voltage: 4.7 to 5.5V DC
- Charging Temperature Limit: 0 to +45℃
