Seeed Studio XIAO ble nRF52840-Seeeduino XIAO BLE- Supports Arduino / CircuitPython- Bluetooth5.0 with Antenna
5.0 (33 votes) | 437 orders
Price:
US $15.42 - 348.88
Discount Price:
US $
15.13 -
173.64
-2%
- Bundle
-
-
Features:
Versatile Microcontroller
Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython.
Wireless Capabilities
Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity
Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management.
Thumb-sized Compact Design

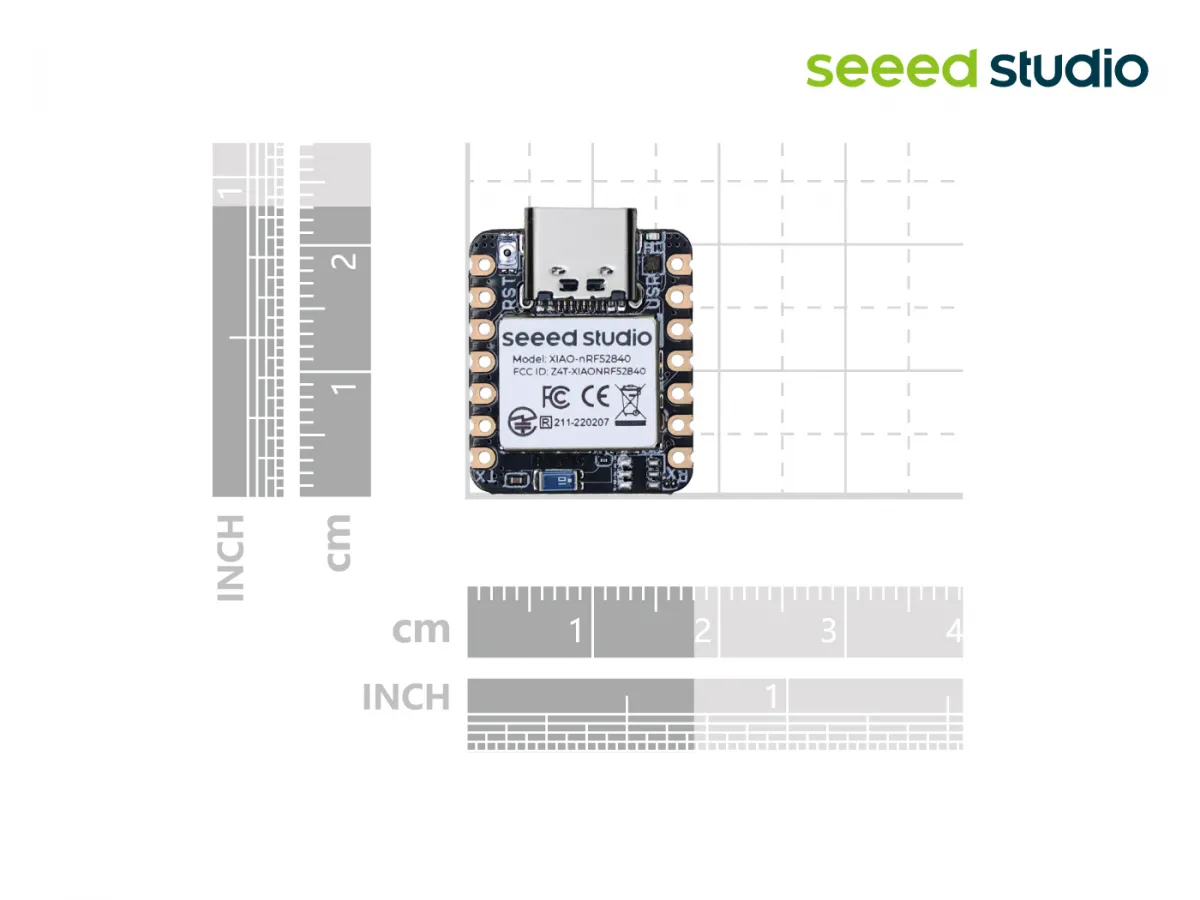

21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices.
Perfect for Production
Breadboard-friendly & SMD design, no components on the back.

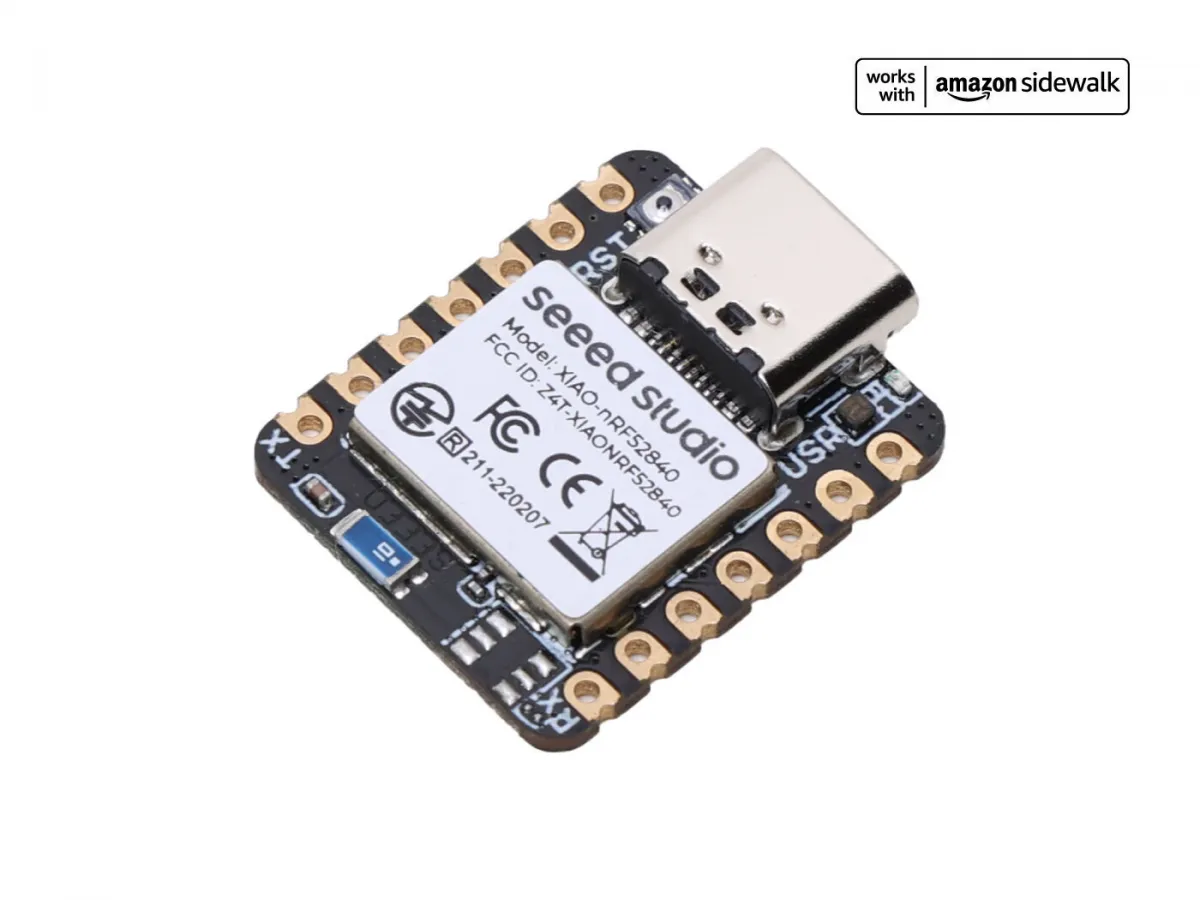

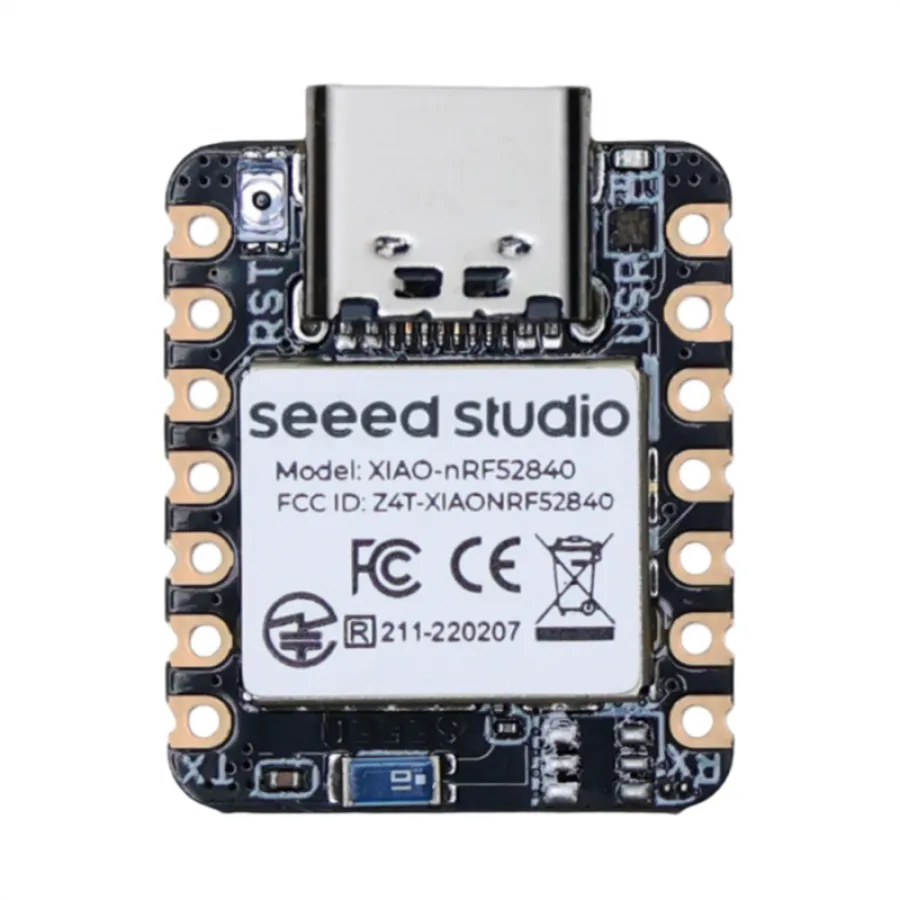

Product Description:
Seeed Studio XIAO nRF52840 has an ultra-low power consumption of only 5 μA in the deep sleep mode, the embedded BQ25101 chip supports battery charge management which prolongs its use time. Moreover, Seeed Studio XIAO nRF52840 supports the USB Type-C interface which can supply power and download code. It also has rich On-chip Memory of 1 MB flash and 256 kB RAM, and an Onboard Memory of 2 MB QSPI flash. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins.
It supports UART, IIC, and SPI all three common serial ports. 1 Reset button, 1 3-in-one LED, 1 Charge LED, and 1 Bluetooth antenna are on board, allowing developers to debug their code very easily.
The powerful performance makes it perfect for machine learning applications.
Notes:
All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.
Application:
Wearable devices
Wireless connect
Embedded machine learning projects
Perfect for mini Arduino projects
Tiny Machine Learning application

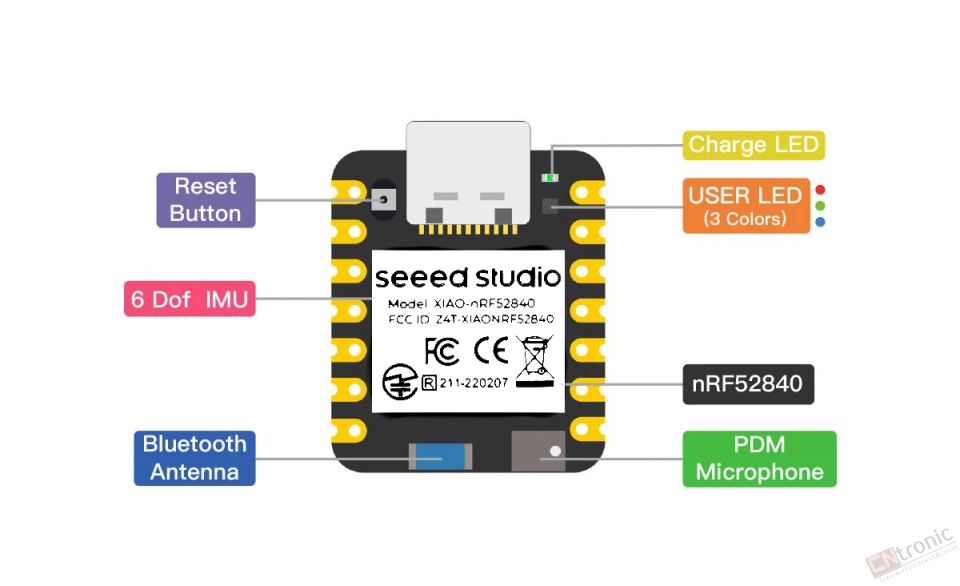

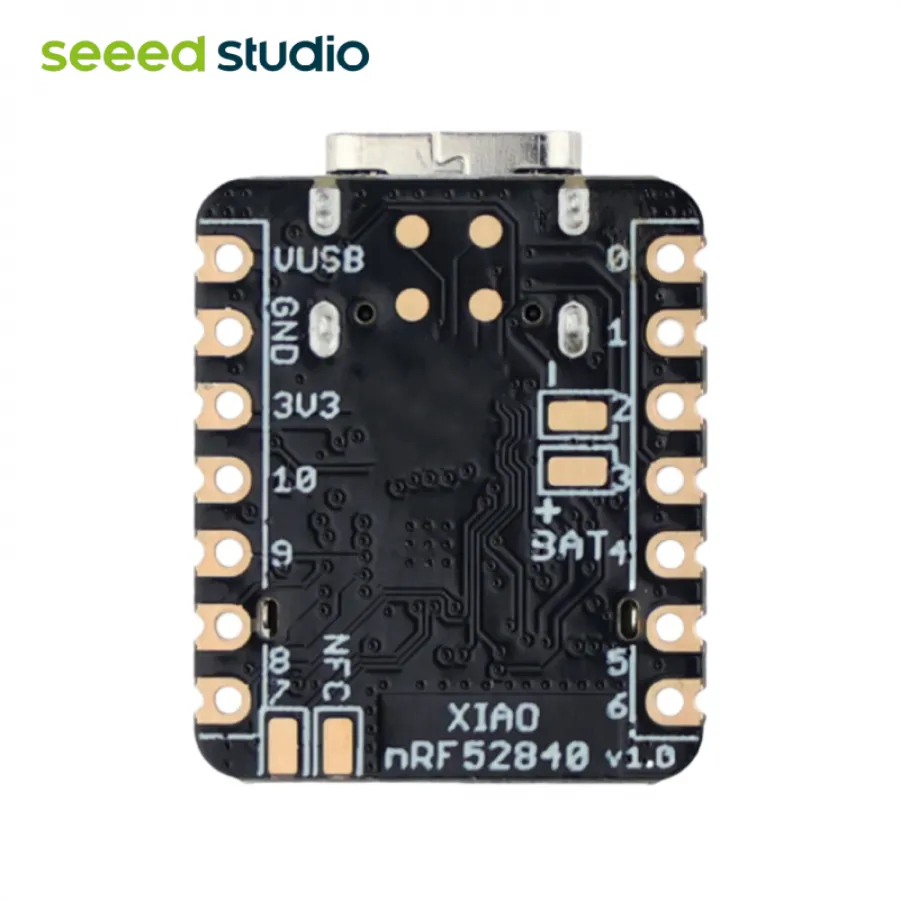

Hardware Overview:

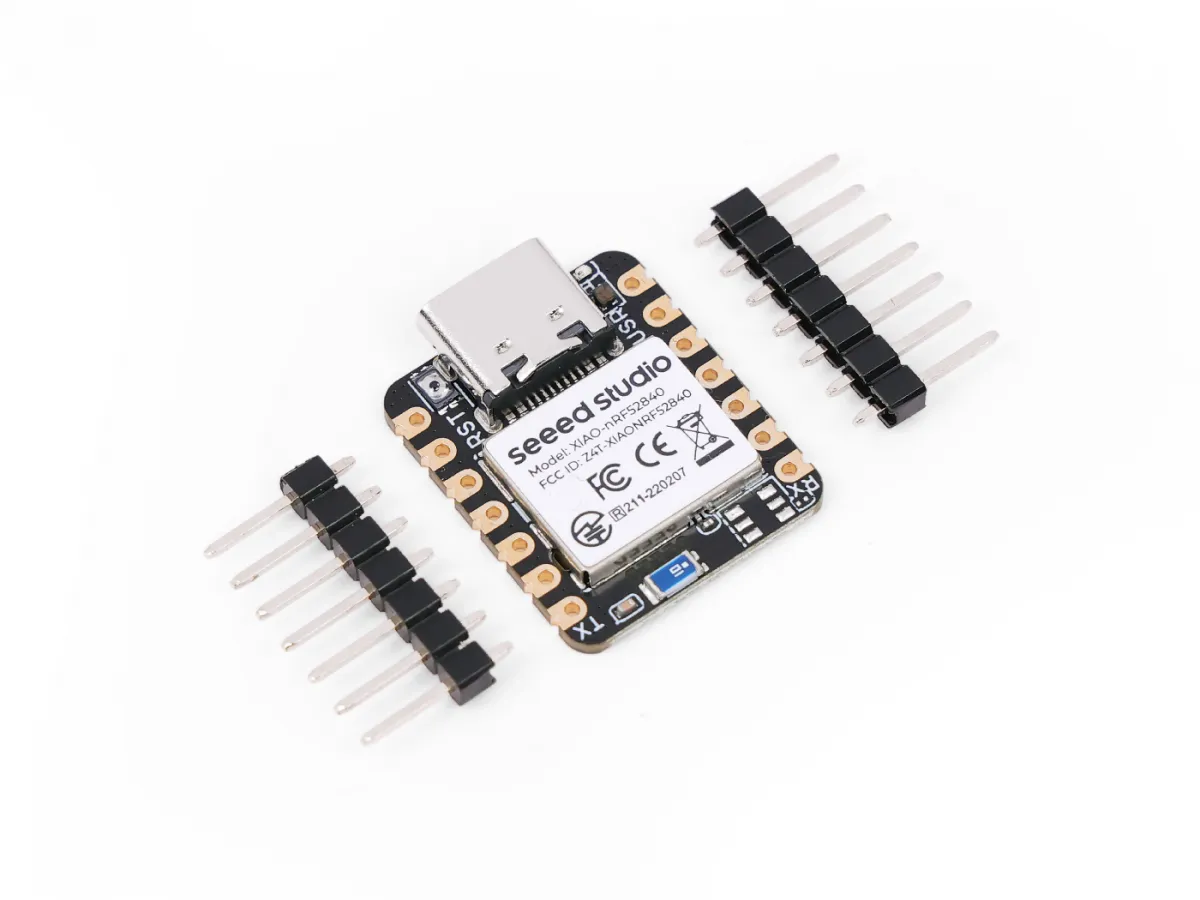

Part List:

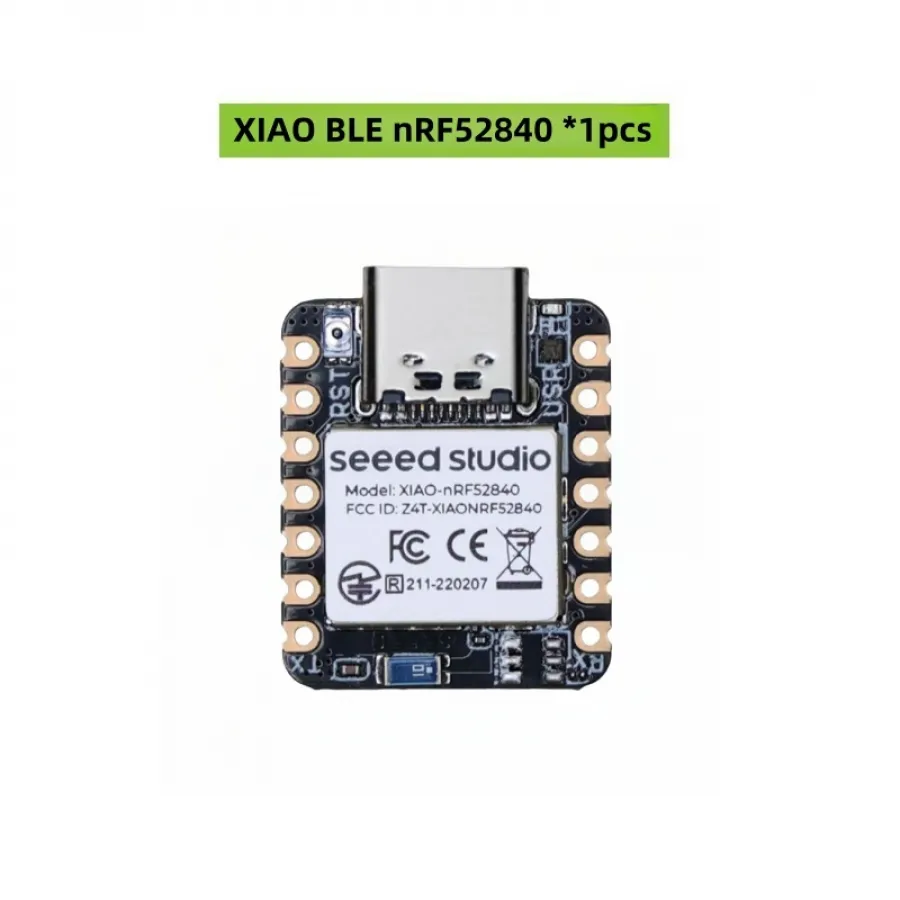

- Seeed Studio XIAO nRF52840x1

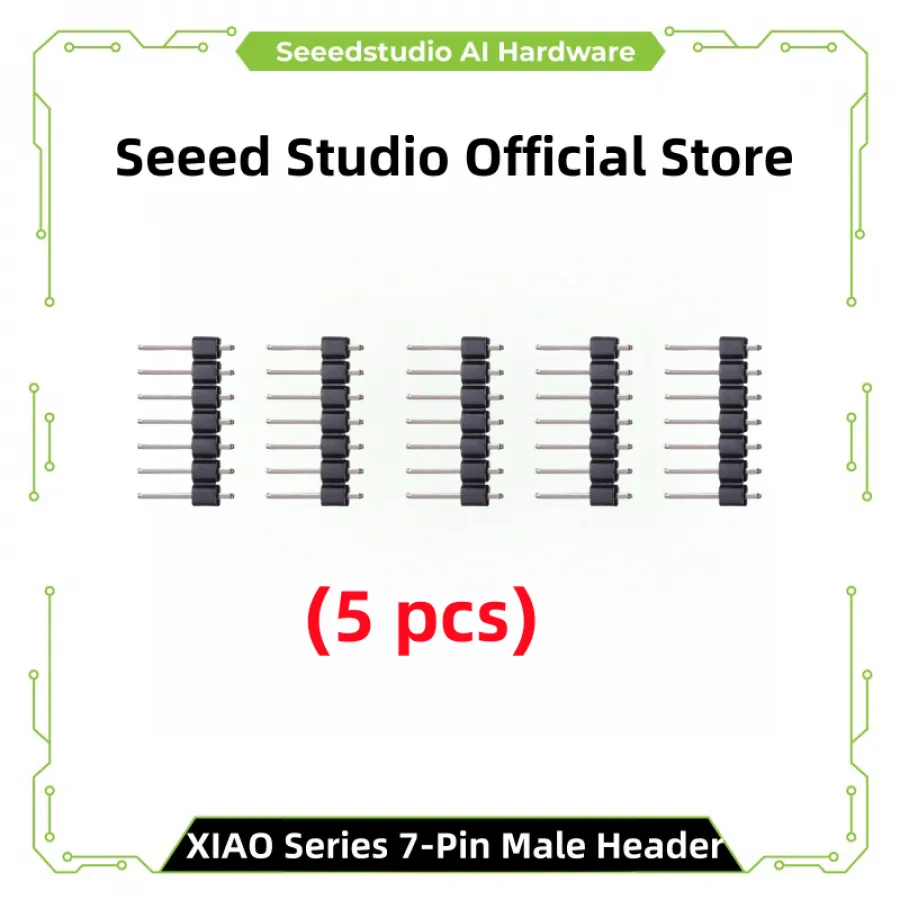

- 7 Pin Header 2
Learn and Documents:
Packaging Details
- Unit Type:
- Package Weight: 0.009
- Package Size: 7x2x10
- Brand Name: seeed studio
- Demo Board Type: ARM
- Hign-concerned Chemical: None
- Battery Included: No
- Origin: Mainland China
- Model Number: Seeed Studio XIAO nRF52840
- Processor: Nordic nRF52840 ARM Cortex M4 with FPU runs up to 64 MHz
- Wireless: Bluetooth 5.0/NFC
- On-chip Memory: 1 MB flash and 256 kB RAM
- Onboard Memory: 2 MB QSPI flash
- Power: Circuit operating voltage: 3.3V Input voltage (VIN): 5V Standby power consumption: <5μAC Charging current: 50mA/100mAh arging current: 50mA/100mA@200mA
