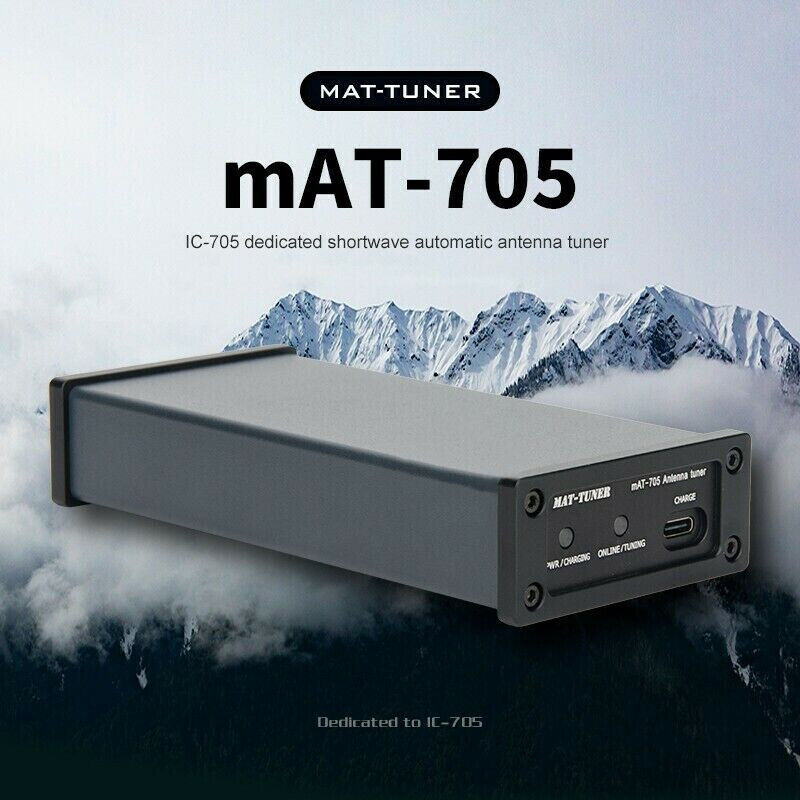

MAT-705PLUS Automatic Antenna Tuner For ICOM IC-705 QRP HAMRADIO POTA SOTA

2.0 (1 votes)
Price: US $505.05 / piece
Discount Price:
US $ 378.92 / piece
-25%
Quantity

MAT-705PLUS Automatic Antenna Tuner For ICOM IC-705 QRP HAMRADIO POTA SOTA

1. The mAT-705Plus tuner is powered by two built-in lithium batteries instead of alkaline batteries. The user no longer has to open the tuner housing to replace the battery.

2. The tuner uses the type USB charging port, so users can easily use the mobile phone charger to charge the tuner.

3. The new version of the tuner eliminates the mechanical power switch. Its power supply is automatically controlled by the transmitter. After connecting the control cable, it will be turned on and off along with the transmitter, no need to manually turn on and off.

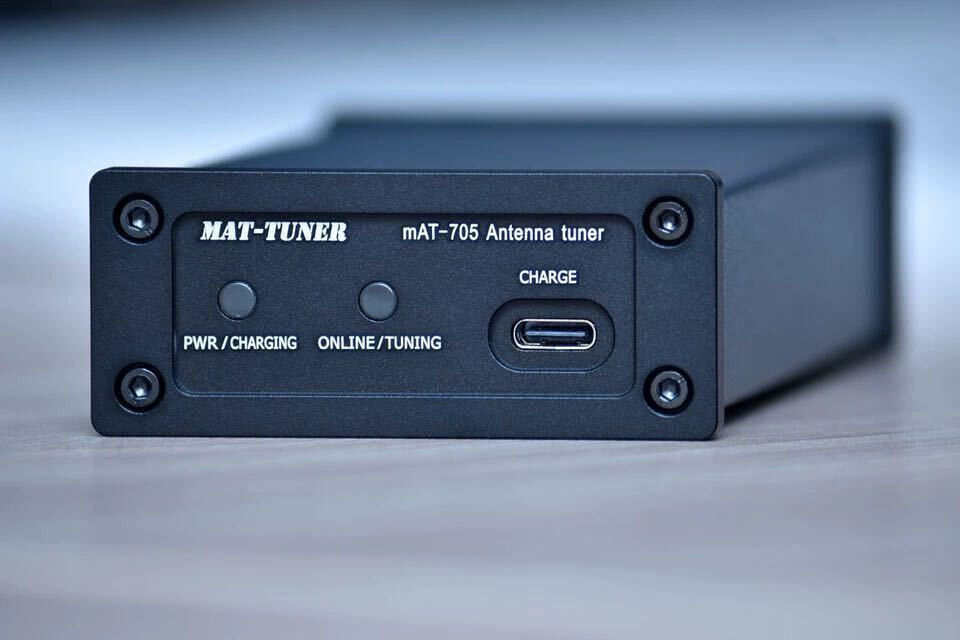

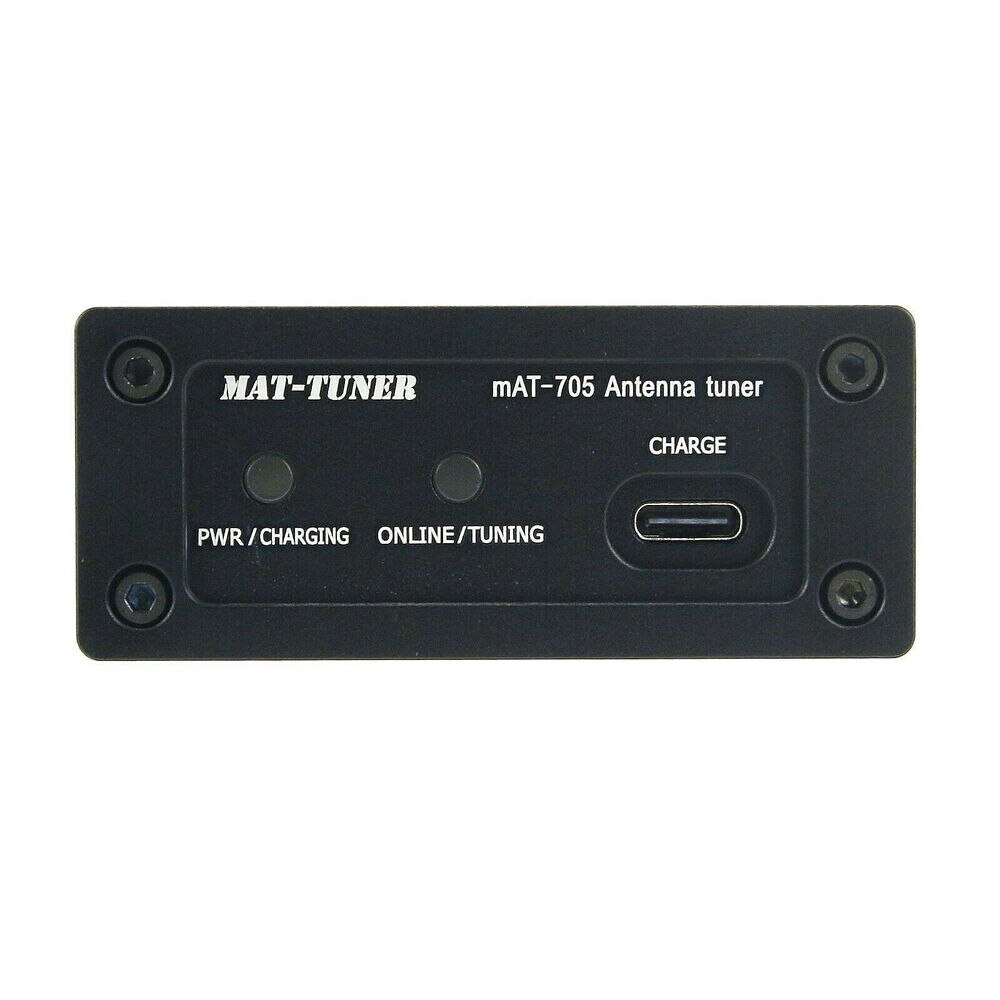

4. The tuner uses a larger LED lens and is mounted on a PCB.

Parameter Information:
- Frequency range: 1.8~54.0MHz
- Impedance range: 5~1500Ω
- Tuning time: 0.1~5 seconds
- Memory space: 16,000 channels
- Applicable antenna: long-line antenna, GP antenna, horizontal dipole antenna, etc.
- Power supply: built-in 2pcs 10440 lithium battery rechargeable battery
- Battery capacity: 1000mAh, 3.7V
- Charging voltage: 4.5~5.5V, Type-c USB charging
- Charging current: 500mA~max700mA, it takes about 1 hour to fully charge
- Operating temperature range: -10℃ to +50℃

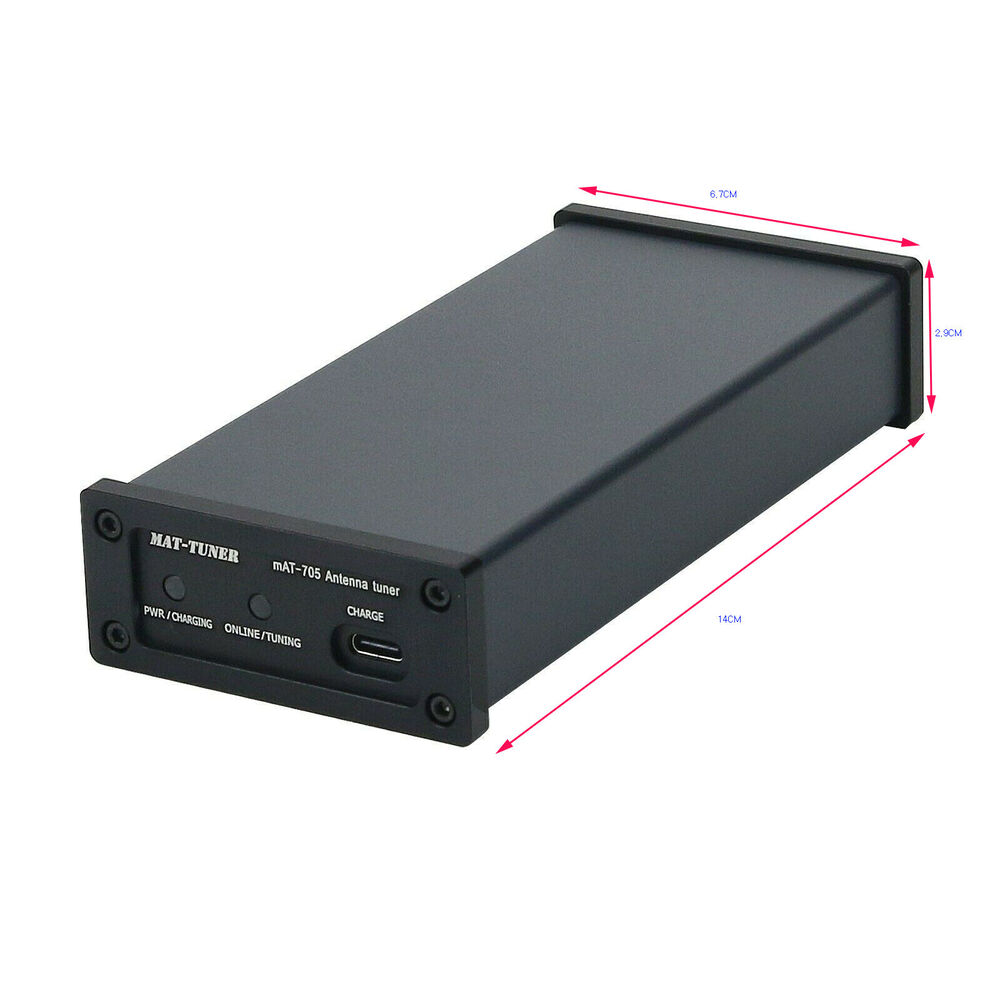

- Product size: 14.0 x 6.7 x 2.8cm (LxWxH) (excluding size of antenna socket)
- Net weight: about 237 grams

Attention:
- This tuning is specially designed for IC-705 transceiver. Please do not use it for other radios to avoid damage to your tuning and radio.

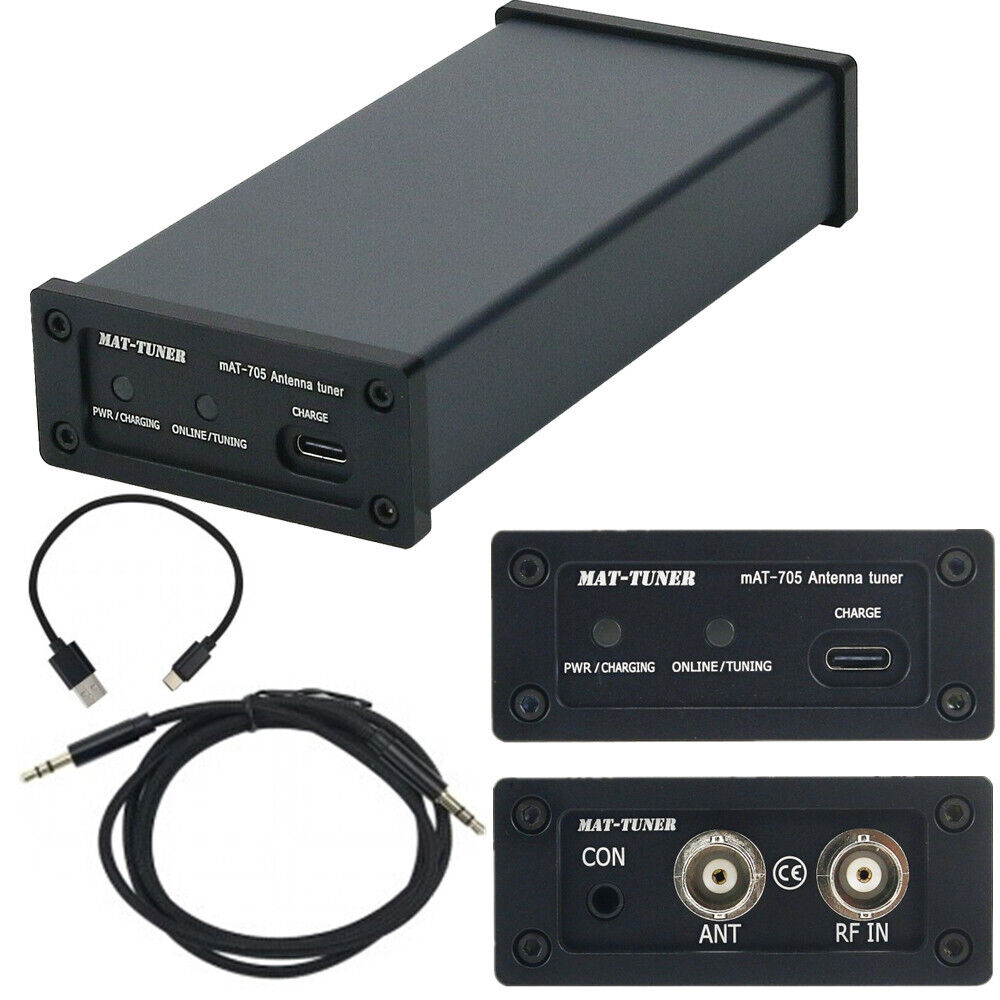

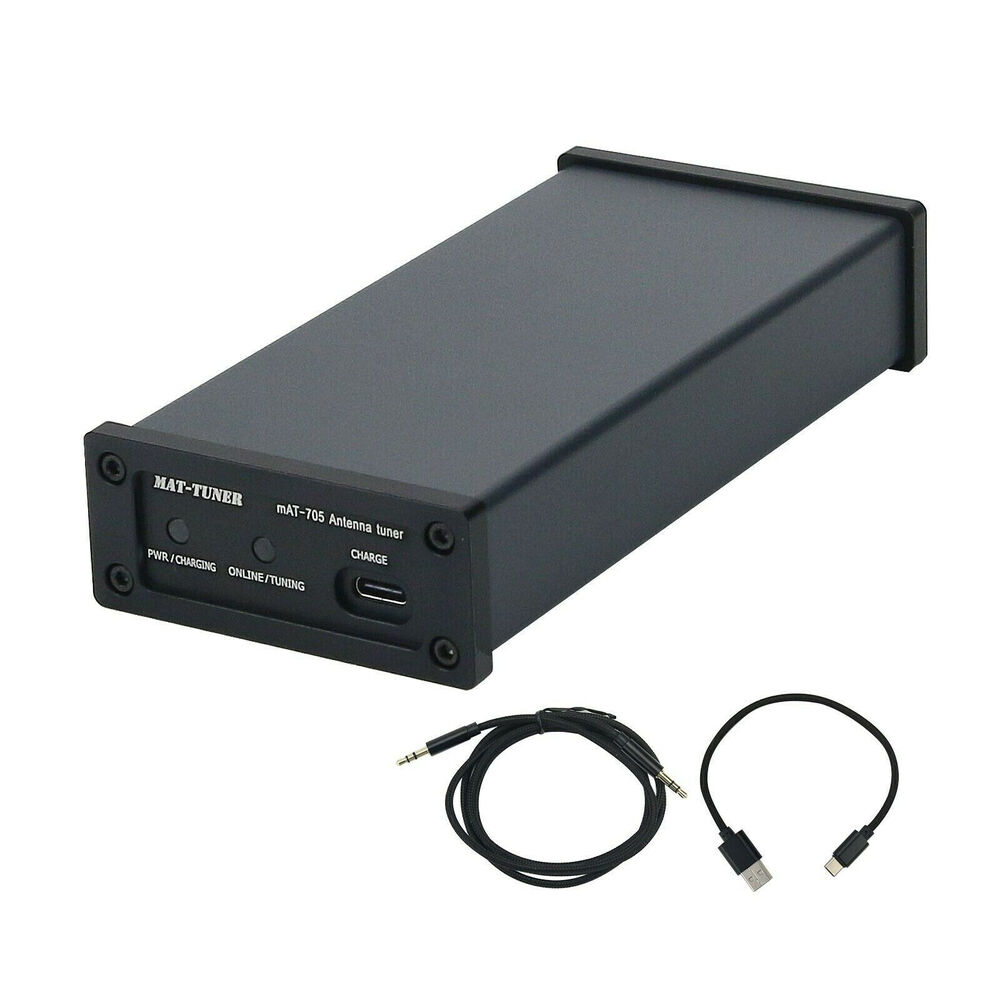

Package Included:
- 1 x Antenna Tuner
- 1 x Tuning Data Cable
- 1 x Type-C Charging Cable
- 1 x Instructions


  • Color: Black
  • Item Type: Tuner
  • Model Number: MAT-705 PLUS
  • Brand Name: PUEKEO
  • Origin: Mainland China
  • Certification: CE
  • Bundle Description: MAT-TUNER is committed to the design and production of automatic
  • Brand: Icom
  • Compatible Brand: For Icom
  • Type: Automatic
  • Compatible Model: MAT-705
  • Band: HF
  • MPN: MAT-705
  • Features: Built-in Antenna
