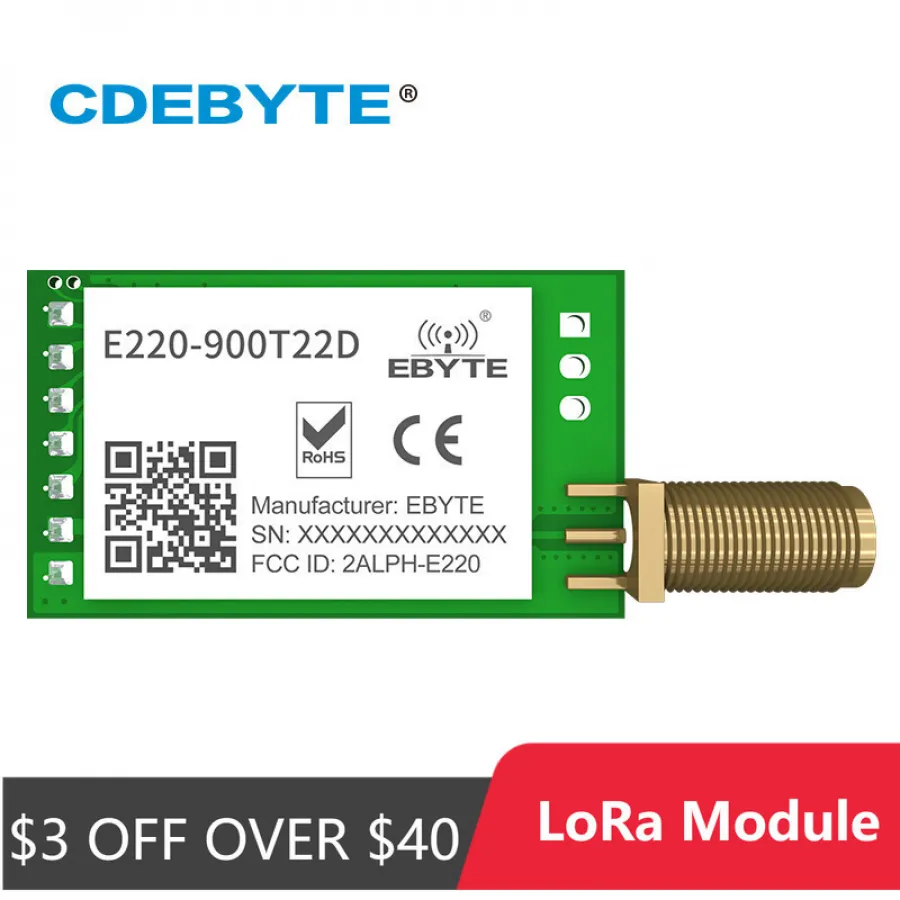

LoRa 868MHz 915MHz LLCC68 Wireless Module 22dBm Long Range 5km CDEBYTE E220-900T22D SMA-K UART RSSI Transmitter Receiver DIP
SALE
NEW
ID: 132994

LoRa 868MHz 915MHz LLCC68 Wireless Module 22dBm Long Range 5km CDEBYTE E220-900T22D SMA-K UART RSSI Transmitter Receiver DIP

4.4 (8 votes) | 112 orders
Price: US $32.64
Discount Price:
US $ 30.76
-6%
Quantity


LoRa 868MHz 915MHz LLCC68 Wireless Module 22dBm Long Range 5km CDEBYTE E220-900T22D SMA-K UART RSSI Transmitter Receiver DIP

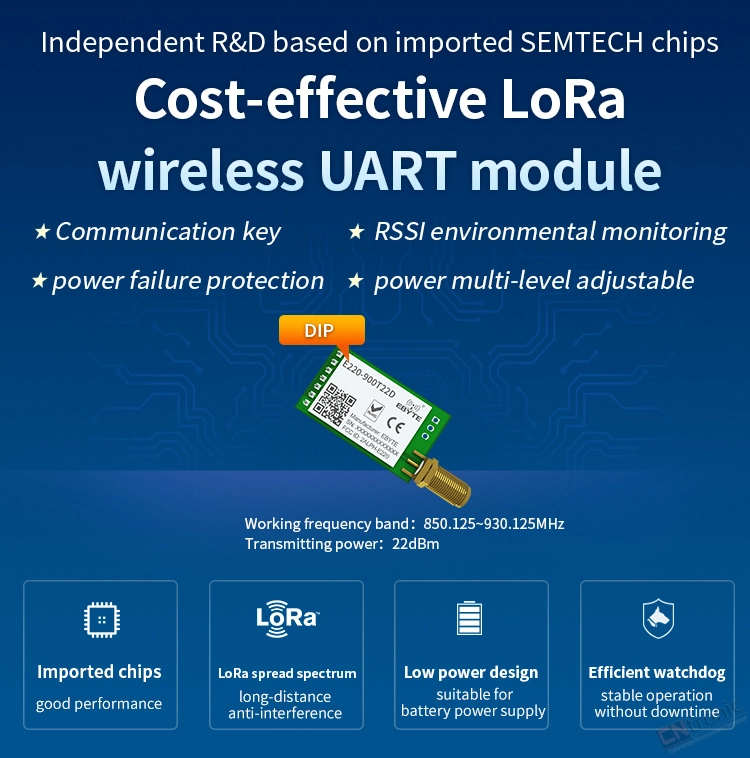

Independent R&D based on imported SEMTECH chips

Cost-effective LoRa wireless UART module

*Communication key

*RSSI environmental monitoring

*Power failure protection

*Power multi-level adjustable

Working Frequency band:850.125~930.125MHZ

Transmitting Power:22dBm

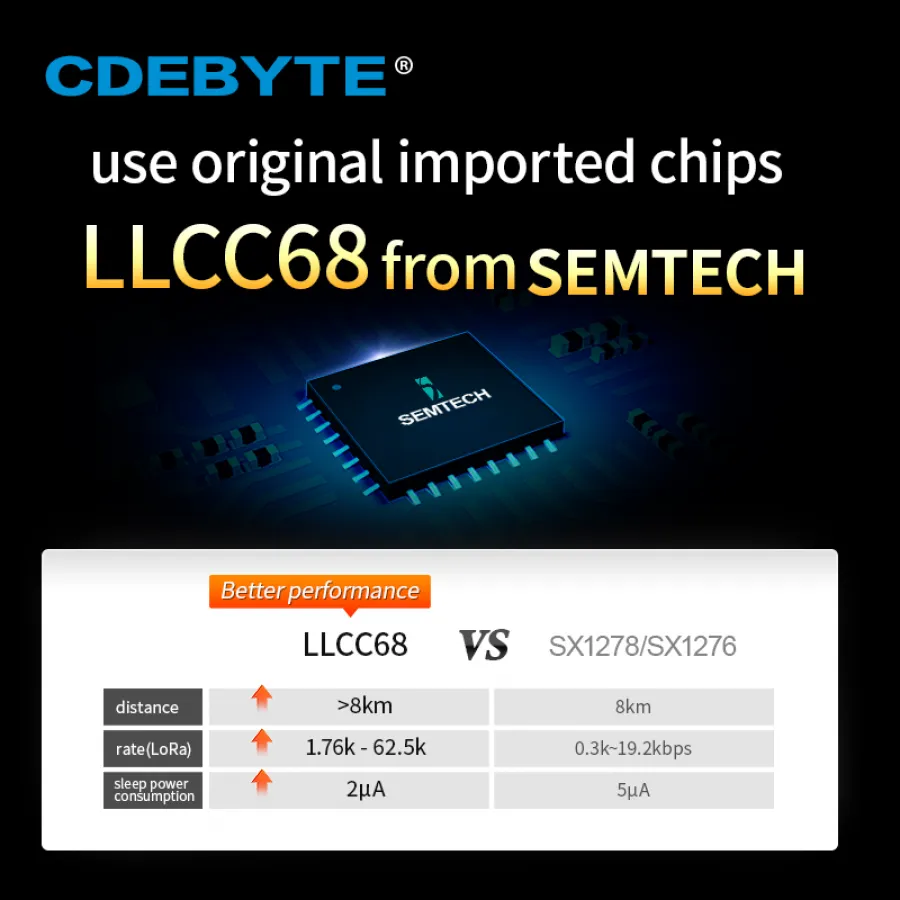

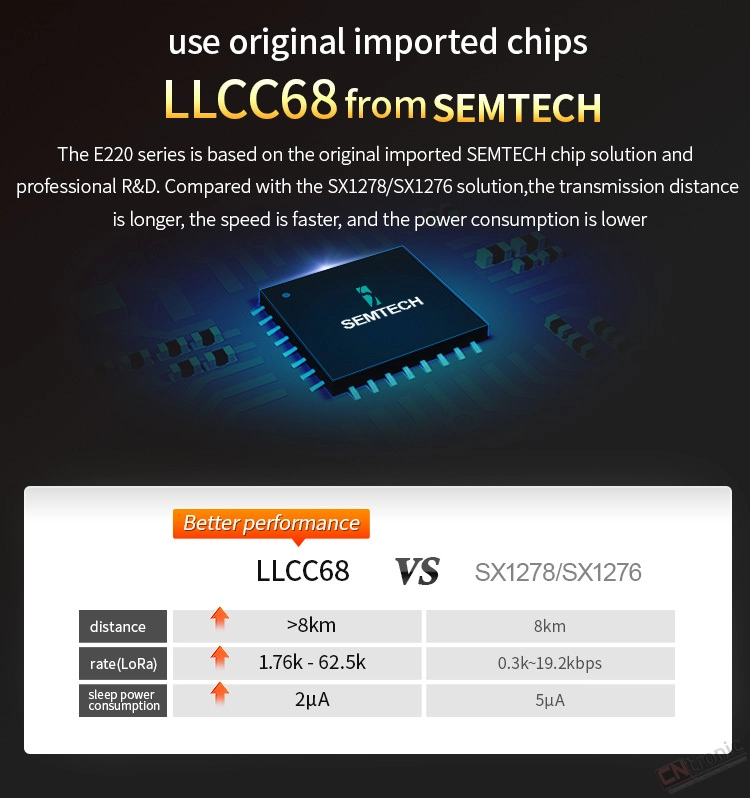

Use original imported chips

LLCC68 from SEMTECH

The E220 series is based on the original imported SEMTECH chip solution and professional R&D.

Compared with the SX1278/SX1276 solution ,

the transmission distance is longer,the speed is faster ,and the power consumption is lower.

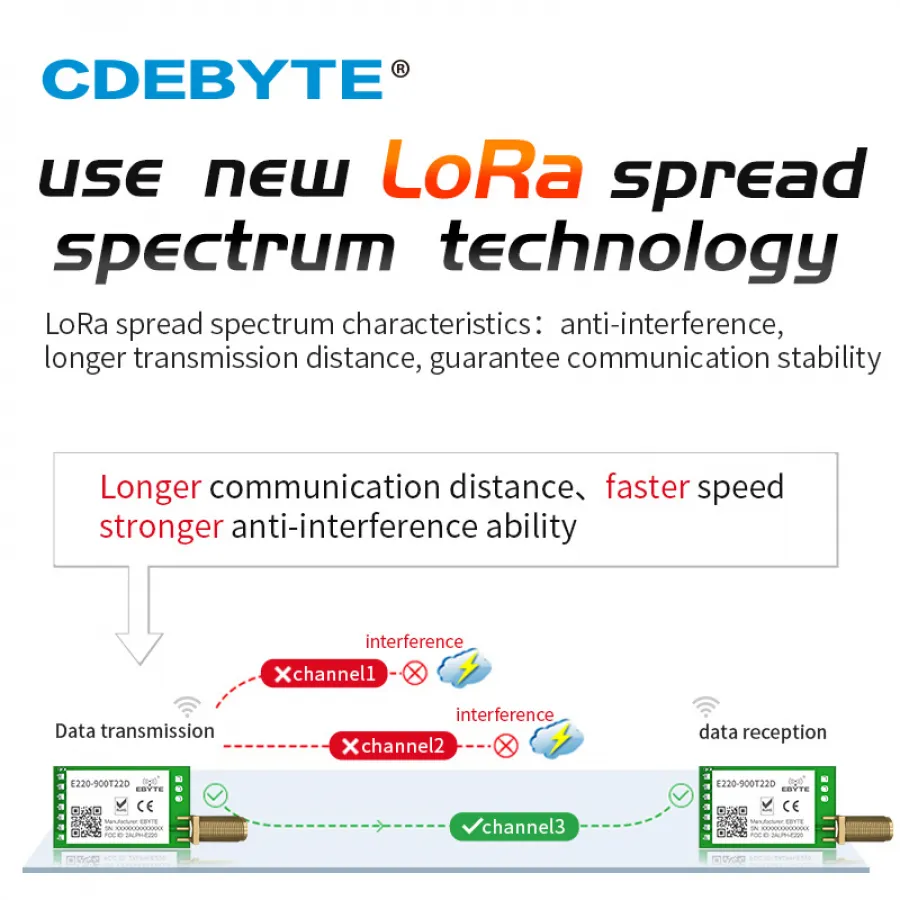

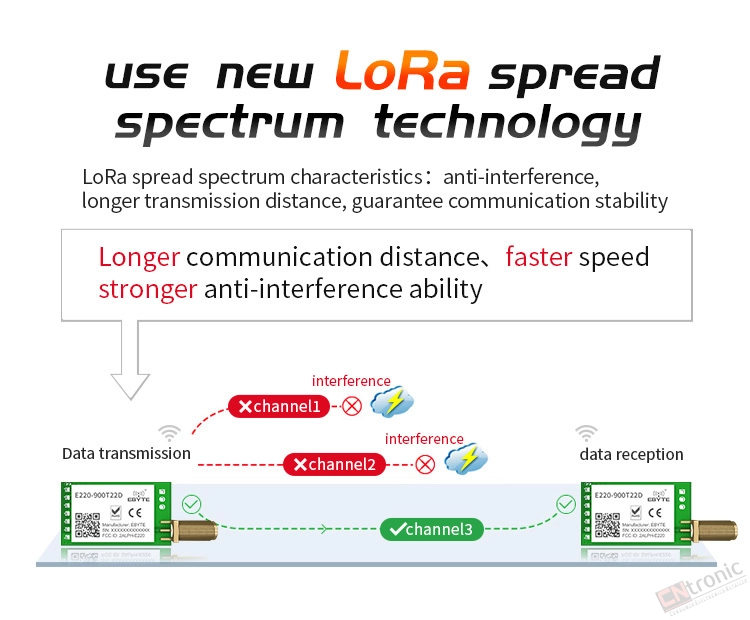

Use new LoRa spread spectrum technology

LoRa spread spectrum technology characteristics:anti-interference,

longer transmission distance,guarantee communication stability.

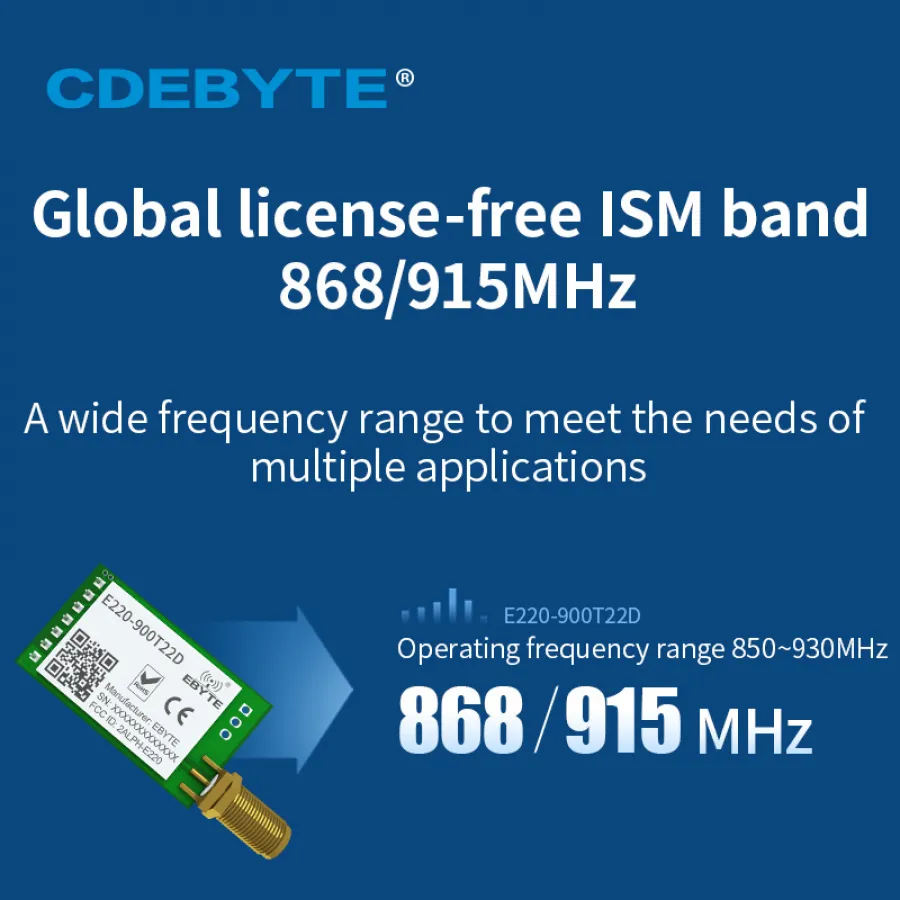

Global license- free ISM band 868/915MHZ

A wide frequency range to meet the needs of multiple applications





Good for ultiple transmission methods

Fixed-point transmission,broadcast transmission,

channel monitoring communication methods according to needs are available.

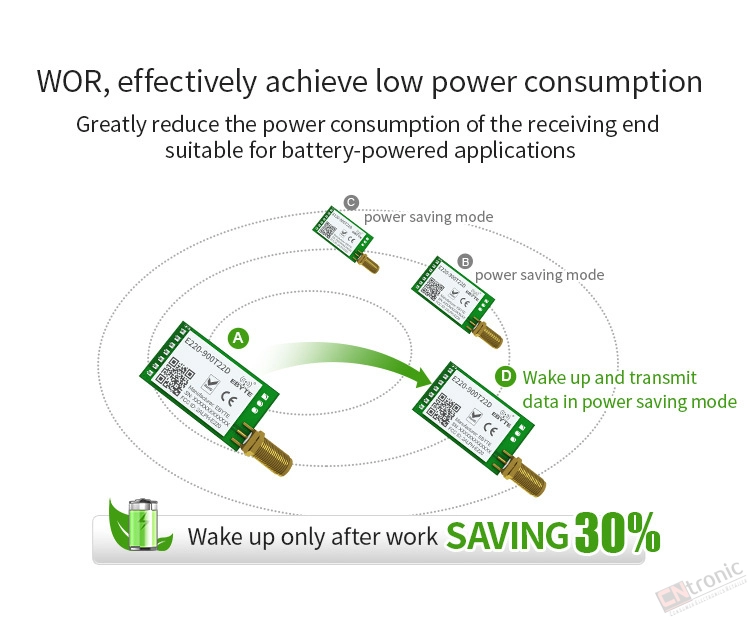

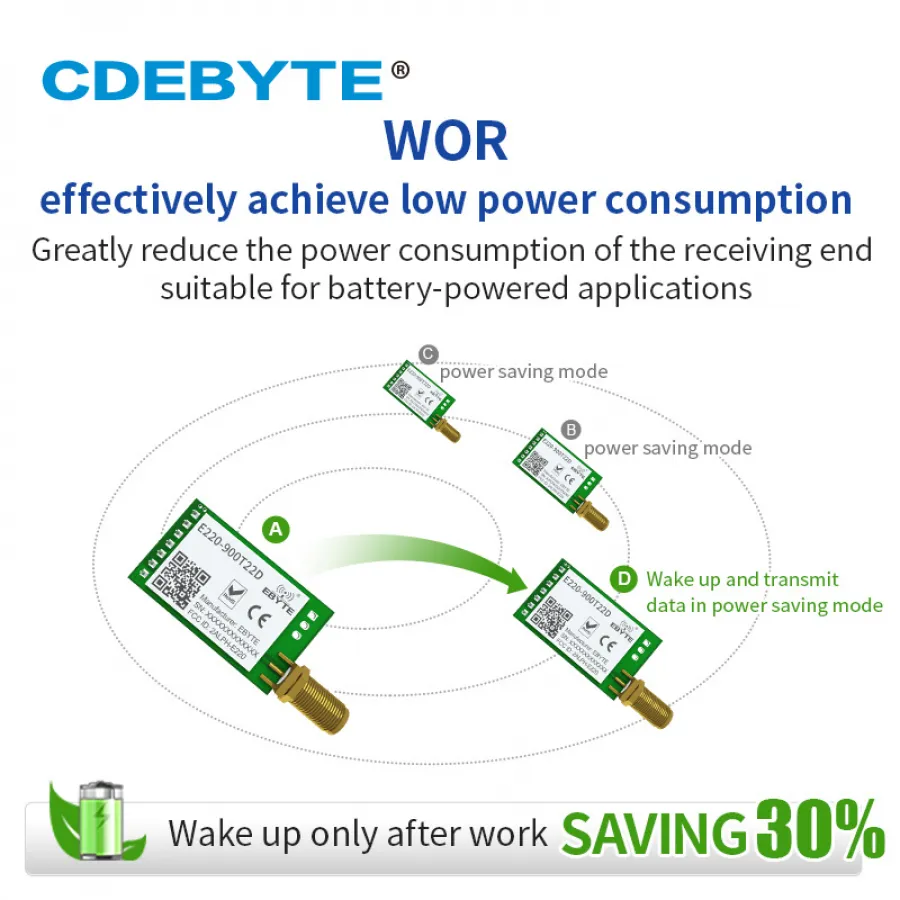

WOR,effectively achieve low power consumption

Greatly reduce the power consumption of the receiving end suitable for battery-powerd applications.

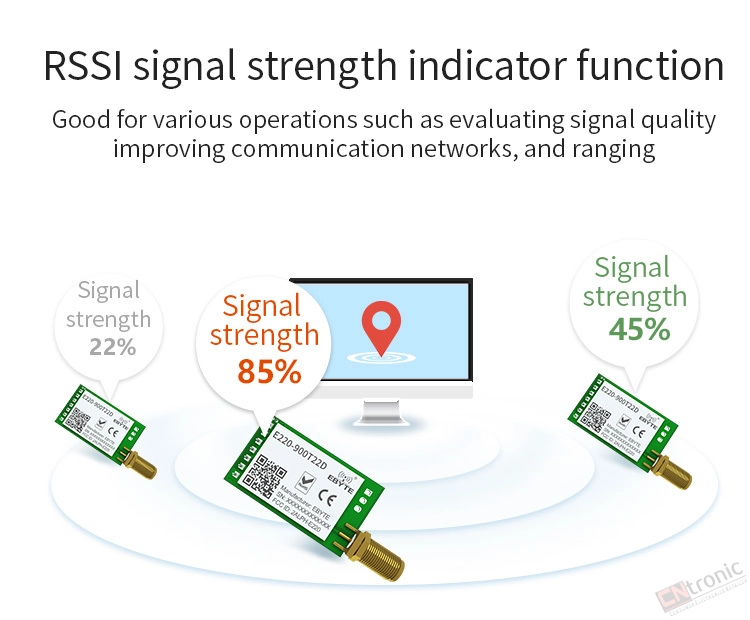

RSSI signal strength indicator function

Good for various operation such as evaluating signal quality improving communication networks,and ranging.





E220 is equipped with efficient watchdog protection

Once an exception occurs,

the module will automatically restart and continue to work according to the current parameter.

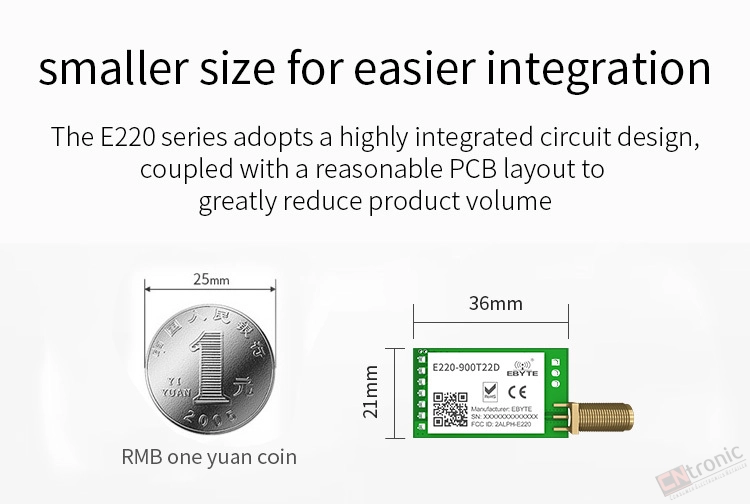

Smaller size for easier integration

The E220 series adopts a highly integrated circuit design,

coupled with a reasonable PCB layout to greatly reduce product volume.





Hardware Features

Equipped with high-quality components to ensure that each product has a better performance.

*Original imported chip solution

SEMTECH

*Dual antennas are optional

IPEX/stamp hole

*Impedance matching

50Ω

*Professional RF shileding

Anti static interference

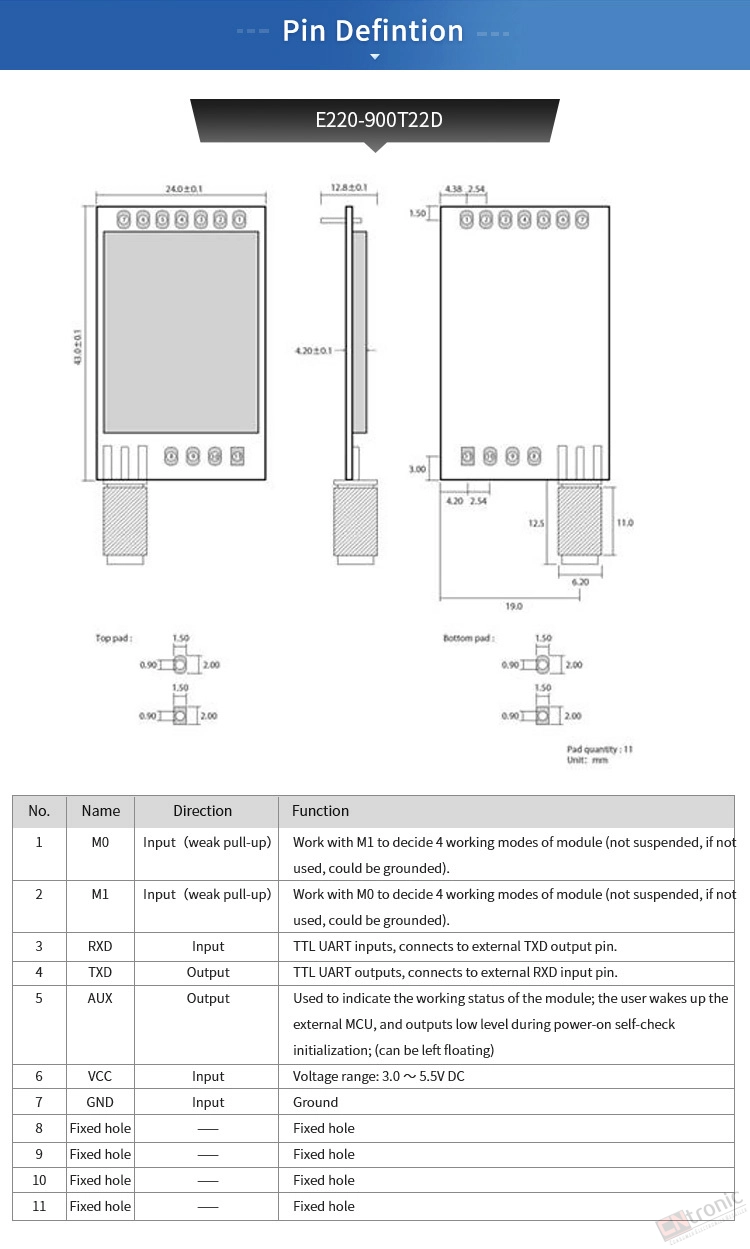

Pin Definition





Application Scenario

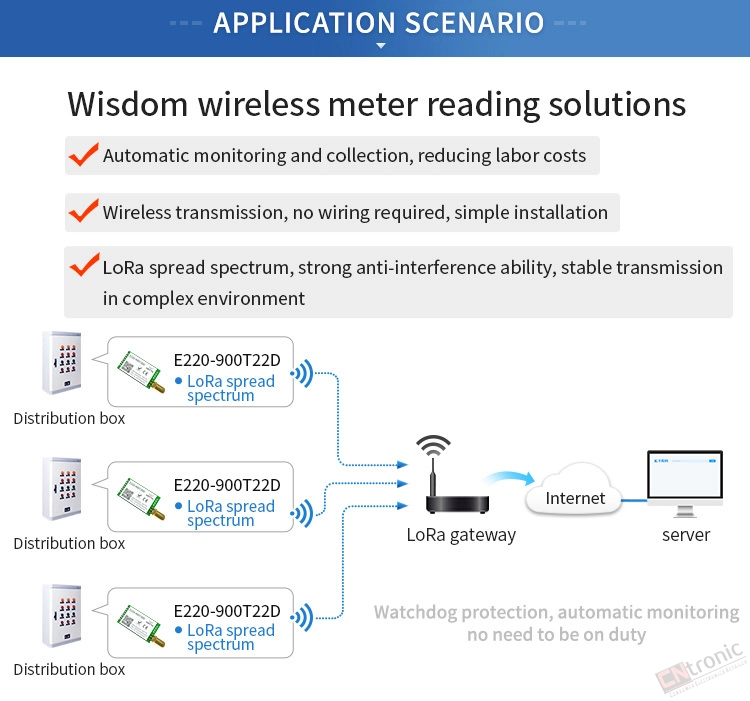

Wisdom wireless meter reading solutions

*Automatic monitoring and collection,reducing labor costs

*Wireless transmission,no writing required,simple installation

*LoRa spread spectrum ,strong anti-interference ability,stable transmission in complex environment





Smart building application case

*Real-time monitoring of equipment information for easy management

*Strong anti-interference ability,stable operation in harsh environment





Factory

8 years of experience in R&D and manufacturing of wireless IoT products

and obtained more than 10 invention patents.





Certifications







Packaging Details

  • Unit Type:
  • Package Weight: 0.100
  • Package Size: 13x6x19

  • Brand Name: CDEBYTE
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS

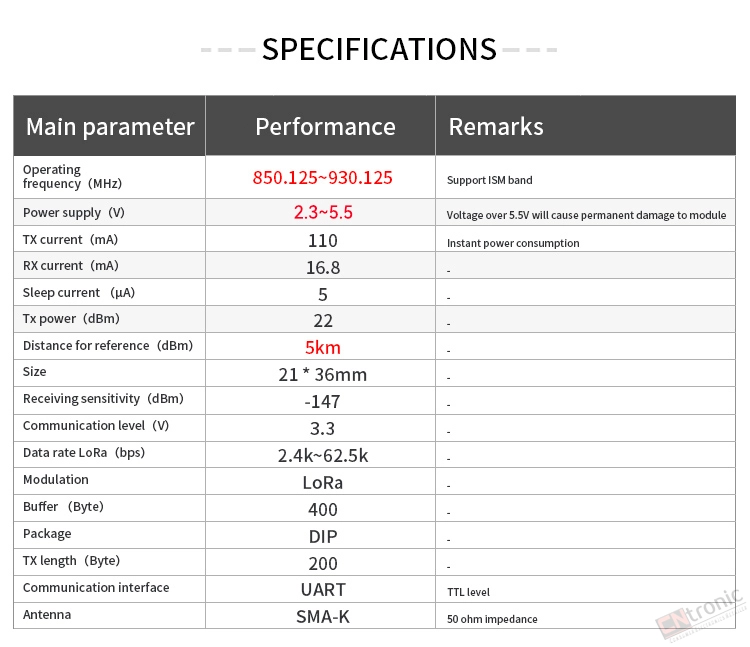

  • Working Frequency: 868MHz 915MHz
  • Model Number: E220-900T22D
  • IC: LLCC68
  • Working Frequency: 850.125~930.125MHz
  • Power: 22dBm
  • Distance: 5km

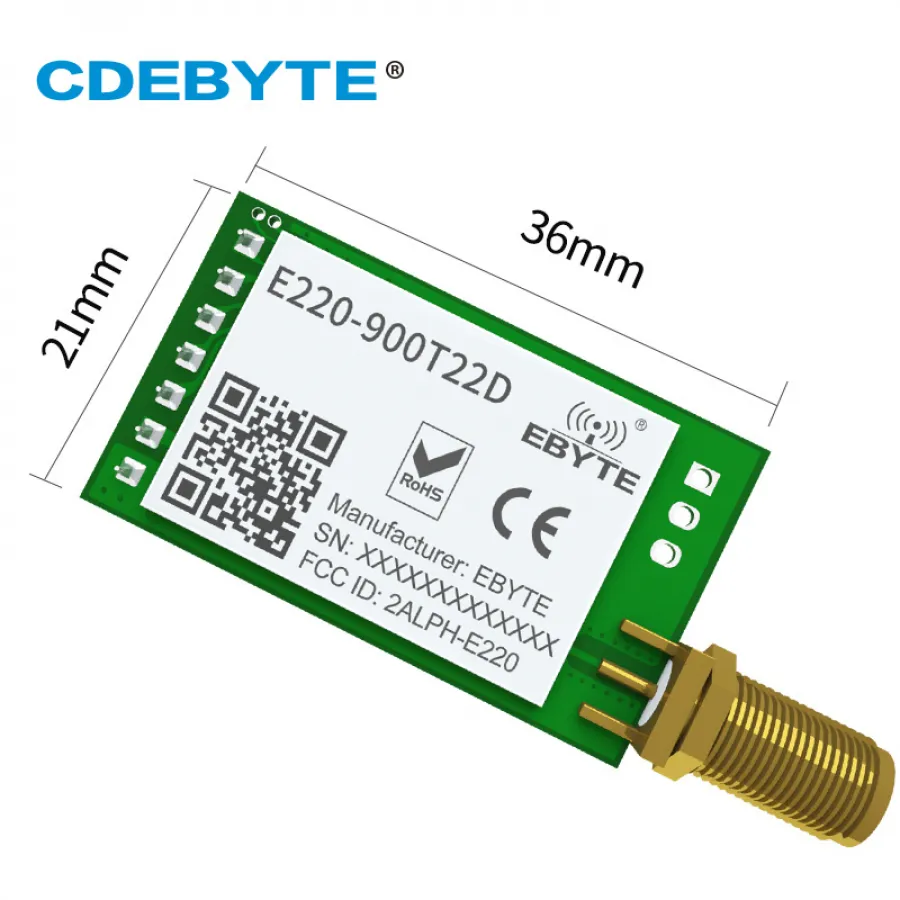

  • Size: 21*36mm
  • Communication Interface: UART
  • Antenna Type: SMA-K
  • Package Type: DIP
