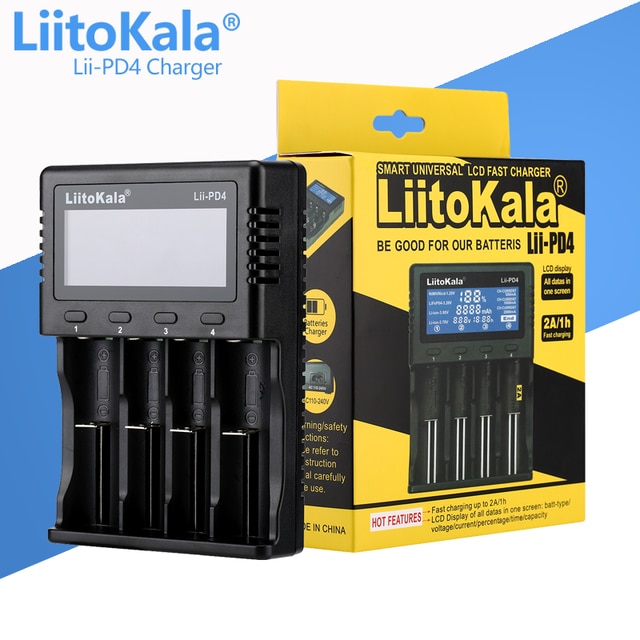

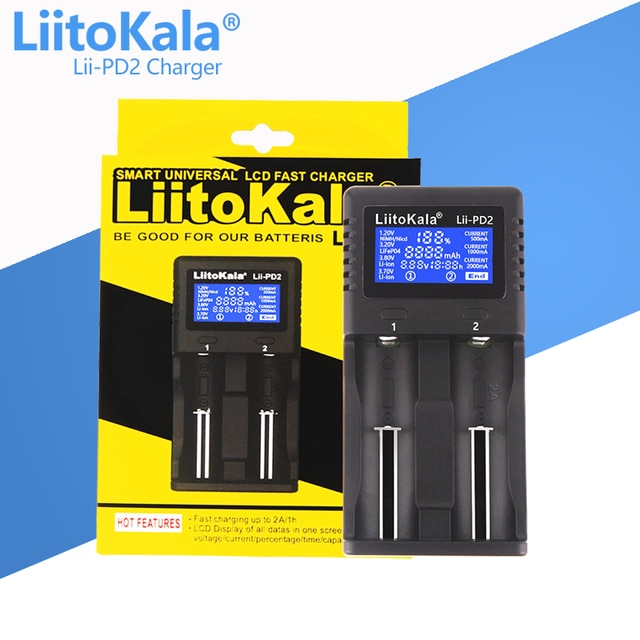

LiitoKala Lii-PD2 Lii-PD4 Lii-S8 Lii-500 Lii-600 Lii-PL2 battery Charger for 18650 26650 21700 AA AAA 3.7V lithium NiMH battery
4.9 (767 votes) | 1565 orders
Price:
US $30.36 - 144.26
/ piece
Discount Price:
US $
17.14 -
77.20
/ piece
-44%
- Ships From
- Color
-
-
Features:
* This charger can only be filled with cylindrical lithium ion battery (3.7V), nickel-hydride/nickel-cadmium (1.2V.
* It Can automatically identify lithium (Li-ion 3.7V) battery and nickel metal hydride (Ni-MH) battery.
* Multiple safety protection functions such as overcharge, over discharge, short circuit, and reverse connection protection can automatically and automatically identify bad batteries.
* AC110-240V (50/60Hz) input (standard built-in power supply), four-slot independent charging and microcomputer management system.
* Charging current is intelligent automatic selection, there are 2 levels (1000mA/2000mA) for you to choose from, 2000mA is designated as the 1 slot.
* LED charging display lamp can display charging state 25%, 50%, 75%, 100%.

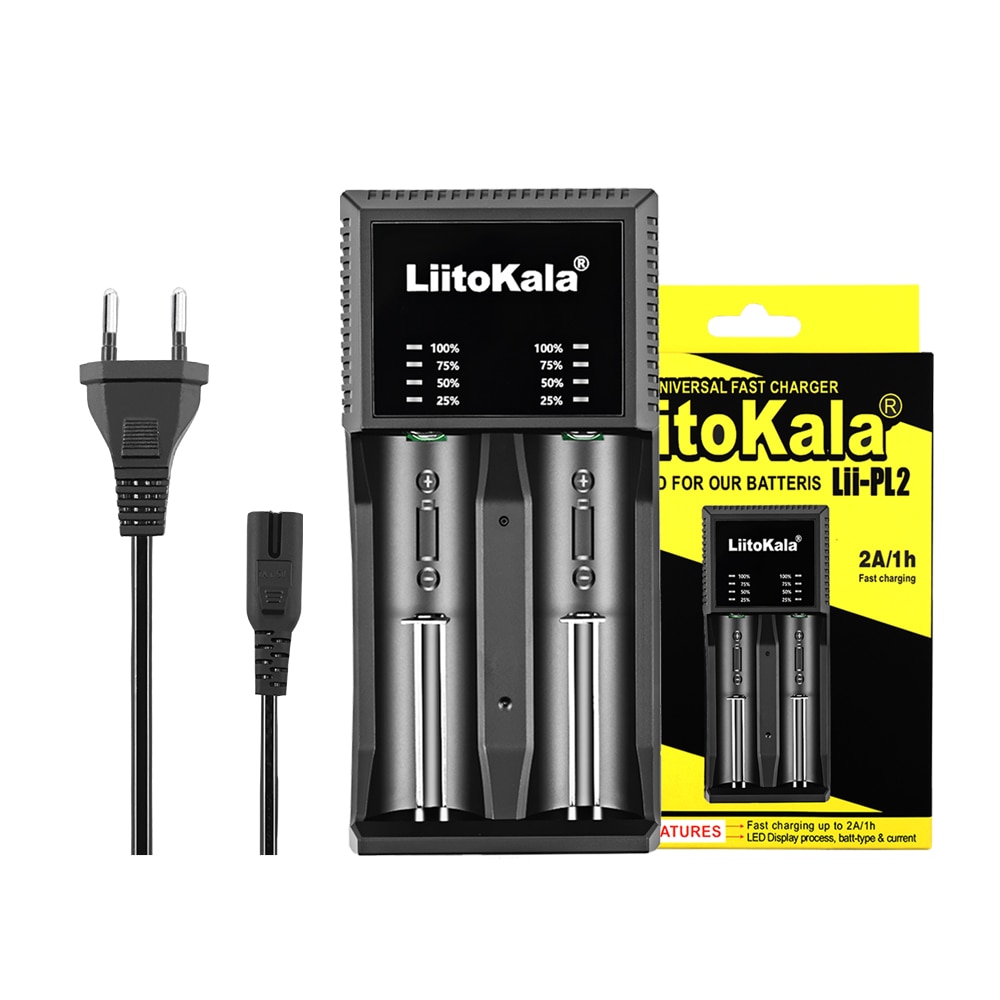

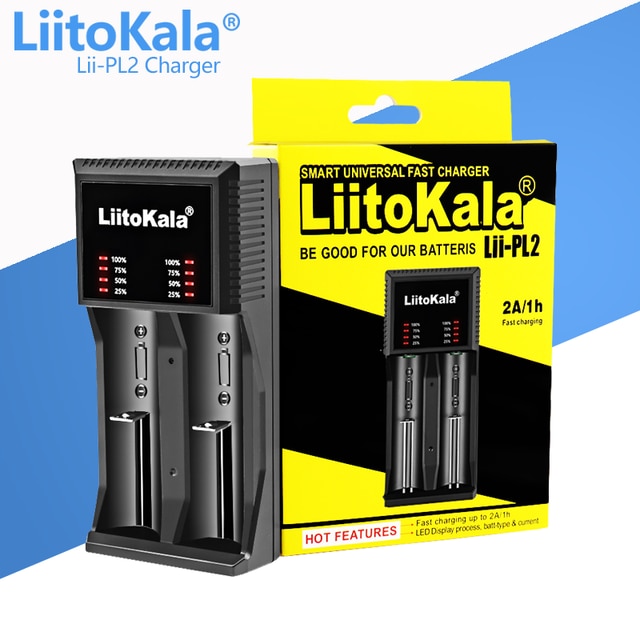

Specifications:
Brand Name: LiitoKala
Model Number: Lii-PL2
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output voltage:
DC 4.2V for Li-Ion
DC 1.48V for NiMH/NI-Cd
Output current:
Li-Ion： 2000mA*1, 1000mA*2
NiMH/NiCd: 700mA*2
Rechargeable battery specifications:
Li-ion: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C
Color: Black
Main Item Size: approx. 144*70*34mm
Main Package Size: approx. 17.8*12*4cm
Main Package Weight: approx. 200g
LED display instructions:
After the charger is connected to the power supply, all the charging display LED lights will be on instantly. If the battery is not put into the charging slot, all the lights will be off.
When the detection of the battery, the power indicator light will flash type light, 4 indicators will also be according to the amount of electricity often appear should be the lamp, 4 lights on full, 4 lights at the same time flash battery abnormality.
Package List:
1 * LiitoKala Lii-PL4 Battery Charger
1 * AC charging line(EU/US/UK Plug)
1 * User Manual (English & Chinese)
1 * Tracking no.
Photo display
Specific parameters:
1. DC Input voltage: 12V / 2.0A
2. LI-ION battery charging current: 4.2 V 300mA / 500mA / 700mA / 1000mA
3. NiMH battery charging current: 1.48 At 300mA / 500mA / 700mA / 1000mA
4. Rechargeable Battery Specifications: 18650.26650, 14500, AA, AAA, and others.
5. Discharge Current: 250mA, 500mA
6. USB Output: 5V --- 1000mA
7. Termination: Intelligent voltage monitoring
8. Size: 162 mm (length) * 96 mm (width) * 36 mm (height).
Characteristics:
1.4 kinds of charging current regulator (mA / 500mA / 700mA / 1000mA);
2.Various specifications (18650/26650 ...... / AA / AAA) into the battery charger;
3.The charger eliminates the use of a separate LCD screen, Voltage (V) Current (MA) time (H) Capacity (mAh) Resistance (MR) Options, E ... view;
4.Under the charge mode, 4 channel work independently, you can select different charging current for charging and hunchong lithium-ion batteries and nickel-metal hydride battery.
5.Under the Quick Test mode, 4 channels can quickly detect battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, work independently. Rapid detection process of the battery capacity (1 category, 2 full) two steps
6.Neither the test mode, battery capacity is usually found three step process of (1 first charged, then discharged 2 and 3 refill), battery capacity detection process;
7.Charging and fast test / no test 3 modes can operate simultaneously; Independent set charge / fast detection capability / Normal capacity of detection;

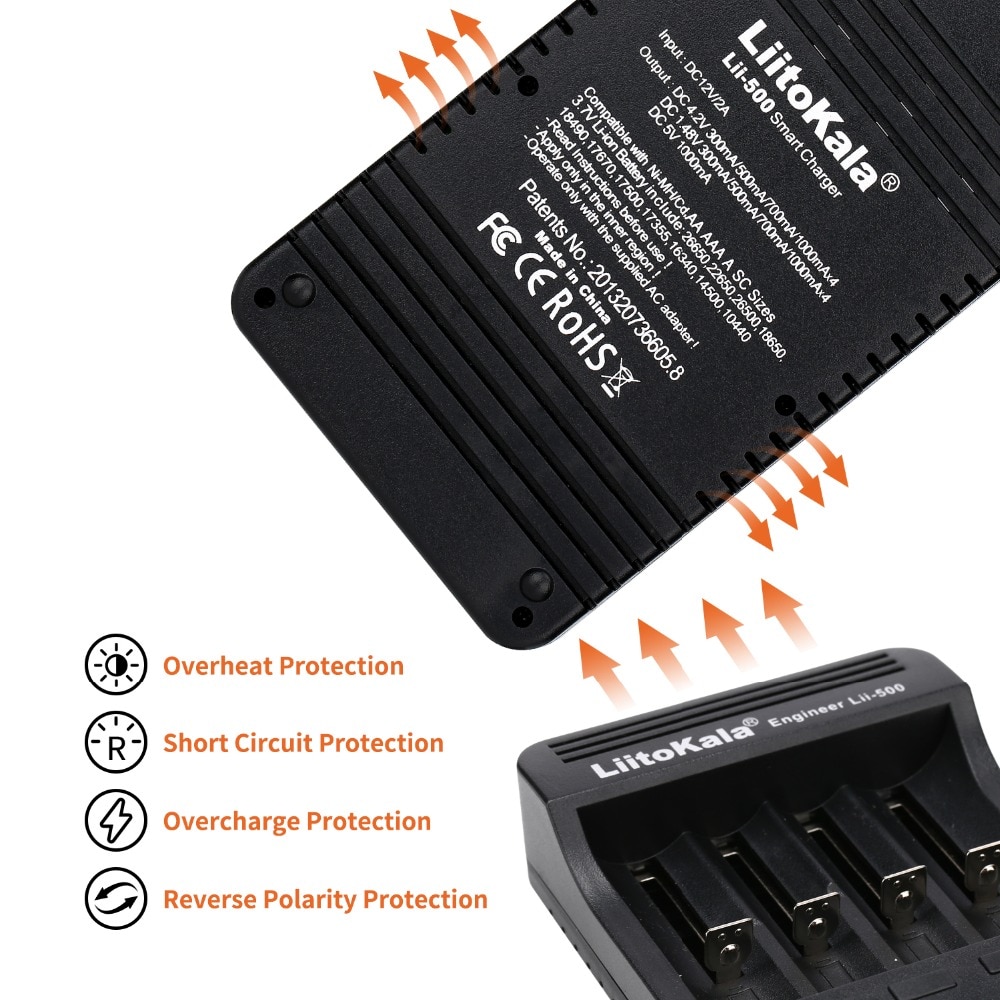

8.Various protection functions: Overload and over discharge, short circuit, temperature, voltage of 0V function is activated, (& Delta; V and 0 & Delta; V), 1.65 B 2.2 B can not be charged, Intelligent recognition bad battery and reverse-battery detection protection.
9.With standard 5V / 1000mA USB output: 1 to 4 lithium batteries Lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.
10.With special power adapter: DC Input voltage: 12V / 2A.
Description of keys:
1.The charger has six buttons, key mode (mode), the current selection key (NAP), and view the data independently selected key (1234), the use of simple and convenient;
2.Hold down the Mode key in any case, and for 3 seconds to change the fee (Free) mode or quick test No test (capacity test) mode, then press again the corresponding function keys can be changed within 8 seconds, Current, Independent , Hunchong, capacity test, the selected function after 8 seconds in a working condition, in working condition can press (1234) To view the current (MA) / Capacity (mAh) / Voltage (V) / Time (H) / Resistance (MR) data reference.
Mode Description:
(Charge mode)
1.When power is on the charger, battery charger all instant full brightness LCD screen when the battery is not placed in the display Null, if it is a bad battery will also be displayed in the Null;
2.Insert the battery charger, battery charger for three seconds or so to measure the internal resistance of the battery, after which the system automatically switches to charging mode (FREE), charger will automatically default charging current "500mA, in 8 seconds for the current selection Key (NAP) Select 300mA, 500mA, 700mA, 1000mA charging current lock system that you select will be charged in eight seconds if within 8 seconds, do not set, then the system will automatically default charging current 500MA, current and other functions in this time will not be changed if you want to change, change the mode of election of the Press;
3.In the charging mode (FREE) Within 8 seconds to change any of independent charging or other current selection, as well as various battery hunchong. Make a simple, 8 seconds, press the corresponding button battery 1234 Press the MODE button to change the mode, press the key to changing the current Independent, Hunchong, detection capacity, chosen after 8 seconds in the operation, attention to choose the size according to the current battery capacity charge, if not faster charging we recommend charging 500MA, This is the safest;
4.Charging Mode by pressing the keys, you can switch to view the 1234 power charge (mAh) / charging time (H) / internal resistance of the battery (MR) / charging current (MA), Voltage (V) 5 kinds of units, the battery is fully charged after the show (End of charge);
The capacity of the detection mode (Quick Test or Test) two types
(A) Quick test (rapid capacity test mode)
1.When the power is turned back into the charger, 8 seconds Touch (Key Mode Mode) Select (quick test quick capacity test mode), then press (current selection key CURREN) Select System 8 seconds after locking your choice to work. Quick Reference Table Capacity test procedure
Quick test - enter selected discharge current battery recharge -
The first battery is low, then the battery is fully charged the batteries, to detect and record the capacity of the battery.
Please note that this product is the power test mode, discharge mode is divided into two types, When you select the charge current (300mA, 500mA), The system will automatically default discharge current of 250mA, When you select the charge current (700mA, 1000mA), The system automatically default discharge current 500mA,
(B) or test (Normal capacity detection mode)
1.No test mode: The first battery is fully charged and then discharge the battery discharge capacities to detect and record the capacity of the battery after the battery is fully automated; The ability to detect a process with reference TABLE II
No test enter selected current battery recharge and discharge -
2. When the power is turned back into the charger, 8 seconds Touch (Key Mode Mode) No test mode is selected, in any mode, press the mode button for 2 seconds, you can enter any test mode;
3.After you enter any test mode, you can select the key (NAP) Select 300mA, 500mA, 700mA for 8 seconds, or 1000 mA current, the current system is locked after selecting 8 seconds if the 8 second, do not make a set, the system will automatically lock mA charge current (When current default charging current is automatically selected when the discharge current of 250 mA discharge), in which for 8 seconds Select 700mA or 1000mA charge current will automatically select the discharge current of 500mA discharge.
4.When the battery is fully charged, the system will automatically discharge, discharge current, the system default (relationships Select the charging current), and writing data to detect the discharge capacity of the battery, when is displayed, Capacity test mode, this setting LCD display the actual battery capacity reference value.
5.Capacity Test Mode finished, the charger will be selected by the current settings again before charging the battery to full.
Five, USB 5 V output

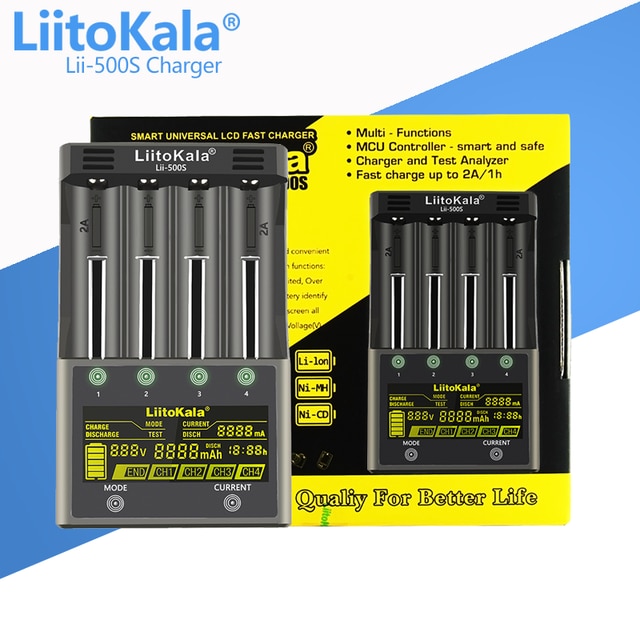

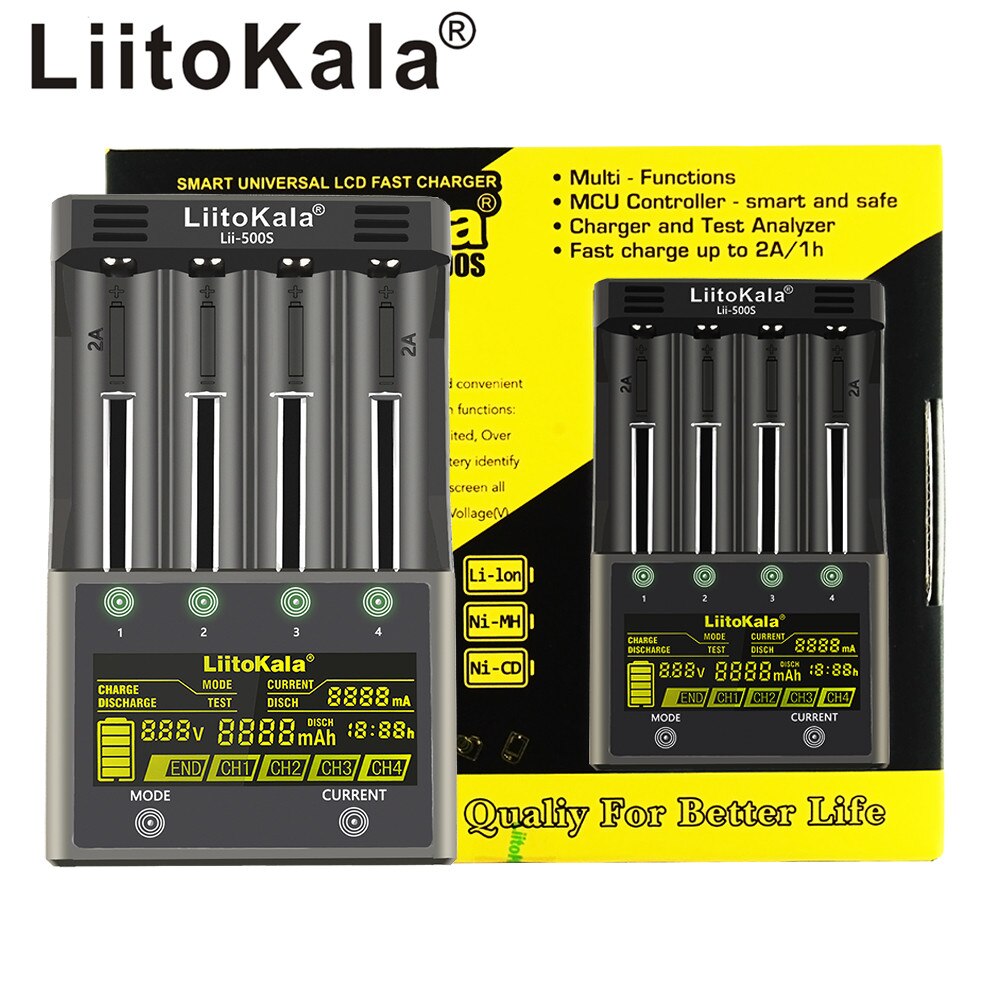

USER MANUAL-Lii-500S
Thank you for buying our company top quality charger model Lii-500S a high-end smart universal LCD fast charger with multi-functions of sense touch buttons /4 independent channel charge/ discharge/ capacity test / anti-reverse protection/ short-circuited protection/ over charge protection/over temperature protection/ USB 5V output / battery zero voltage activation and so on. Meanwhile it can do automatic and real-time monitor on the process of battery charging, discharging and testing.
Lii-500S can charge different types of cylindrical Li-Ion and Ni-MH rechargeable batteries for wide applications of electronic products like strong flashlights, power tools, instrument meters, digital cameras and so on. It has been characterized with high-end generous appearance, easy-to-use, convenient for carrying, strong functions...really good helper for the use at home and tourism.
Outward appearance:
1.Warning:
channels LCD display
Mode button current button
1.1 This charger can be only for cylindrical Li-Ion and Ni-MH batteries. It is not allowed to charge other batteries such asLiFePO4 battery and primary batteries;
1.2 Before use, please read this manual carefully minding the suggesting charge current for the batteries never charge at over-standard current;
1.3 Do not use other brand of power supply adapter;
1.4 It might cause heating during charging and discharging. Mind not be injured;
1.5 Please move off the power cord and all batteries when stop using;
1.6 Only for indoor use;
1.7 It's only for your reference of the testing parameters of this product. For more details, please refer to professional instrument.
2. Features:
2.1 Fire new sense touch buttons;
2.2 Fast charging function with 4 selective current:500mA*4 /700mA*4/1000mA*4 / 2000mA*2
(2000mA only for Li-Ion);
2.3 Professional discharge function with 2 selective current:250mA*4/500mA*4;
2.4 For most sizes of cylindrical Li-Ion and Ni-MH batteries at the same time: 18650/26650....../AA/AAA);
2.5 Fire new design of LCD display with one screen all information: charge/discharge/test(MODE), voltage(V), current(mA), time(h), capacity which are all absolutely clear;
2.6 Under the mode of CHARGE,different selective charge current can be for 4 independent channels with both LI-Ion and Ni-MH batteries;
2.7 Under the mode of DISCHARGE, it can discharge the battery for all the 4 independent channels both Li-Ion and Ni-MH at selective current;
2.8 Under the mode of TEST , it can test the battery capacity with process of 3steps: fully charge-fully discharge-fully charge both for Li-Ion and NI-MH batteries;
2.9 All the 3 modes of CHARGE, DISCHARGE and TEST can work at the same time independently with Individual setting;
2.10 Intelligent and safe with multi-protection functions:over charge and discharge, short-circuited, over temp, OV activation,(-ΔV&0ΔV), intelligent identification of bad battery and anti-reverse protection;
2.11 With 5V/1000 mA USB power supply output function( when the charger is AC power connection); 2.12 Equipped with specified power supply: DC 12V/3A
3. Sense touch button descriptions:
3.1 The charger has total 6 sense touch buttons : MODE, CURRENT, channel 1, 2, 3, 4 ( very easier and convenient for operation)
3.2 MODE: light touch to select between CHARGE(defaulted if no choice), DISCHARGE, TEST(capacity), LCD light-on;
3.3 CURRENT:light touch to select current: 500mA*4 /700mA*4/1000mA*4 /2000mA*2(only for Li-Ion), discharge 250mA*4/500mA*4;3.4 Channel 1/2/3/4:for data control of 1-4 channel independently, LCD light-on;
3.4 Any time long press the MODE touch point with a sound of "DU" indicating to change between CHARGE, DISCHARGE, TEST(CAPACITY), INDEPENDENT(channels), MIX(mixed channels) then within a period of time 8S, light touch any point to change the mode, current and so on after which it starts to work . During the working status, light touch point1, 2,3,4 to track the current(mA)/capacity(mAh)/ voltage(V)/ time(h).
(Note:2000mA only for Li-Ion and 2channels of the 4, if more than 2channels charge, the current will automactically lowered to 1000mA);
4. Mode Instructions:
When the charger powered on with LCD light-on of all information and the channel1,2,3,4 LED flashing between red and green indicating the charger is ready. If this time no battery inserted in, it will display "Null"; if bad batteries, it will display "Err", if normal batteries, the channel red LED permanent lighted on; when fully charged or stop charging, the green channel LED will be permanent lighted on;
4.1 CHARGE MODE
4.1.1 The charger powered on and with normal battery inserted in, if no touch on the MODE button within 8S, the charger system will automatically enter charge mode with default charge current of 500mA; within the 8S before the charger starts, if light touch the current button changing between 500mA*4/ 700mA*4/1000mA*4/2000mA*2( only for Li-Ion) then it will start to charge after end of the time(8S). During the work of charging, the other functions can not be changed( if you want t o change it, you have to long touch the MODE to reset the charge current;
4.1.2 Under CHARGE mode,within 8S easily touch the channel button to make independent setting on the charge current for different channels of batteries, if no change, it will defaults at 500mA; then it will start to work after 8S. Mind the charge current which should be strictly according to the battery
capacity( suggest 500mA if not urgent use);
4.1.3 During working under charge mode, light touch channel button1.2,3,4 to track charge status:capacity(mAh)/time(h)/curent(mA)/voltage(V); when fully charged, it will display"End"; (Note:2000mA only for Li-Ion and 2channels of the 4, if more than 2channels charge, the current will
automactically lowered to 1000mA);
4.2 DISCHARGE MODE
4.2.1 the charger powered on with battery inserted, within 8S light touch the Mode button selecting DISCHARGE mode then within 8S light touch the CURRENT button to select the current 250mA/500mA; If no operation within 8S, it will default as 250mA and start working; During the work of discharging, the other functions can not be changed( if you want t o change it, you have to long touch the MODE to reset the discharge current;
4.2.2 Under DISCHARGE mode,within 8S easily touch the channel button to make independent setting on the discharge current for different channels of batteries, if no change, it will defaults at 250mA; then it will start to work after 8S;
4.2.3 During working under discharge mode, light touch channel button1.2,3,4 to track discharge status:capacity(mAh)/time(h)/curent(mA)/voltage(V); when fully discharged, it will display"End";
4.3 TEST MODE
The battery capacity test process will be as below form: both charge and discharge capacities:
4.3.1 The charger powered on with normal battery inserted, within 8S, light touch the MODE button to select TEST mode, in 8S light touch the CURRENT button to select charge current 500mA*4 /700mA*4 /1000mA*4/2000mA*2( only Li-Ion). If no operation it will default as 500mA and start to work after end of the 8S;
4.3.2 After fully charge the battery, fully discharge it at defaulted current 500mA taking down the discharge data including capacity and so on;
4.3.3 After fully discharge the battery, fully charge it again taking down the charge data including capacity and so on then shows"END" ;
4.3.4 Test Data tracking before the charger powered off or battery removed: light touch the channel button 1, 2,3,4 to track the discharge and charge data;
4.4 Mixed modes for different channels
The charger powered on with batteries inserted (both Li-Ion and Ni-MH), within 8S, select channel then within 8S, select mode between CHARGE/DISCHARGE/TEST, then light touch the current button to select charge current (if no operation it will default as 500mA after 8S;
5. USB 5V output:
FULLY TEST MODE SELECT CHG FULLY DISCHARGE
CURRENT CHARGE (DSG data recorded)
FULLY
CHARGE END (CHG data
recorded)
5.1 5.2
5.3
USB output 5V 1000mA;
Only when the charger with AC powered on, the USB output works as power supply to electronic
products;
The charger without AC powered on and only within battery inserted, there will be no USB output will be invalid.
6. Detailed parameters: 6.1 Input DC12V/3.0A
6.2 Output: Li-Ion: DC4.2V 500mA*4 /700mA*4/1000mA *4/ 2000mA *2 Ni-MH: 1.48V 500mA*4/700mA*4 /1000mA*4
6.3 For cylindrical batteries size: 18650,26650,14500,AA,AAA etc. 6.4 Discharge current: 250mA /500mA
6.5 USB power supply output: 5V 1000mA
6.6 Cutoff method: intelligent voltage monitoring;
6.7 Charger outward dimension: 162mm(L)*100mm(W)*36mm(H).
Lii-600 Operation manual
Thank you for using our smart charger products - Lii - 600, this is a high-end smart quick charger, touch-screen control / 4 channel independent rechargeable battery capacity testing/meter/temperature/short circuit protection, overcharge protection protection and zero volt battery activation function, and can automatically timely monitor the battery charge and discharge and testing process.
Lii-600 can charge various sizes of cylindrical lithium ion batteries and nickel metal hydride batteries, widely used in strong light flashlight, power tools, instrumentation, digital cameras and other electronic products battery charging. Beautiful appearance, safe and easy to operate, easy to carry, powerful function, is your good helper at home.
A, warning,
1. This charger can only charge cylindrical lithium ion battery and nickel metal hydride battery, not charge lithium iron phosphate battery;
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current;
3. Do not use other non-standard power adapter;
4. Chargers may get hot when charging and discharging, so be careful not to burn;
5. When it stops using, please unplug the power and remove the battery;
6. Use only at room temperature and indoors;
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.
Ii. Functional characteristics
1. New touch control function;
2. The four slots work independently;
3. It has two working modes: automatic AUTO and MANUAL; (The default of the system is AUTO AUTO, automatically distributing current)
4. A variety of optional charging current: 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
5. Third-stage discharge current: 250mA/500mA/750mA;
6. Different specifications (18650/26650... /AA/AAA) Charging the battery at the same time;
7. Use a separate LCD display for this product. Contains battery type (Li - ion - 3.7 V, the Ni - MH1.2 V), work (AUTO automatic/MANUAL MANUAL), battery channel (CH1 - CH4), work mode (CHARGE CHARGE/DISCHARGE DISCHARGE models/TEST inspection/REPAIR REPAIR mode), CHARGE and DISCHARGE capacity (mAh), CHARGE and DISCHARGE time (h), CHARGE and DISCHARGE current (mA), battery voltage (V), battery percentage %, battery internal resistance (m Ω) ℃, temperature and other parameters, detailed and clear;
8. In CHARGE mode, 4 channels work independently, and each channel can choose different charging current and test charging capacity;
9. Under DISCHARGE mode, four channels work independently, and each channel can select different DISCHARGE current and detect DISCHARGE capacity;
10.TEST mode: The normal TEST process of battery capacity consists of three steps (1 charge,2 discharge, and 3 recharge) to TEST the battery capacity process;
11. Different channels can be operated with different modes (CHARGE, DISCHARGE, TEST and REPAIR); Independently set charging/discharging capacity testing/normal capacity testing functions;
12. Multiple protection function: the overcharge discharge, short circuit, temperature and activation function, 0 V voltage (- Δ Δ V & 0 V), 1.65 V to 2.2 V cannot charge function, bad battery intelligent recognition and reverse connect battery protection.
Iii. Description of touch points
The charger has 6 touch and contact points, including MODE, CURRENT, independent select and view data point (1234). The 6 touch MODE keys also have the function of lighting LCD backlight, which is simple and convenient to use.
1. MODE (MODE selection) includes CHARGE charging MODE, DISCHARGE MODE, TEST capacity detection MODE and REPAIR REPAIR MODE;
2. The CURRENT touch: (short for the CURRENT selection) including 250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma; Long touch "CHARGE" point, you can choose to work in AUTO or MANUAL mode.
3. Touch points of 1/2/3/4 channels :(corresponding to 1/2/3/4 channels respectively); Short touch can be independently selected and the corresponding channel data can be viewed. Any point of long touch can control the LCD display (normally on or off);
4. In any case a long touch MODE point can change the CHARGE after the sound of "du" (rechargeable) MODE, DISCHARGE (DISCHARGE), TEST (capacity), REPAIR (REPAIR) model, and then touch your corresponding function in 8 seconds touch point can change pattern, the current size, independent, pretend to be, detection capacity, 8 seconds after selected into the working state, in the working status can touch (1/2/3/4) touch point, checking their corresponding, Including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, finally will show "End", the End of this working process.
Iv. Operation Description of the mode:
When the charger plug charger LCD screen instantly full bright full show, at the same time 1/2/3/4 channel LED lights hint red, green, ready to enter, if the battery is not in the will show "Null", light is not bright, if it's bad battery into or the battery reverse connect will display "Err", the battery work normally on red LED lamp, batteries or stop filling the green LED lights normally on accompanied by prompt;
1) CHARGE (charging mode)
1.1 After the charger is installed and the battery is connected to the power supply, the system will enter CHARGE mode automatically. After long contact with the "CHARGE" point, the system will enter into MANUAL MANUAL charging mode. The default charging current of the charger is 1000mA (if there is no long contact with the CHARGE point, the system will be charged by AUTO, and the system will automatically allocate the current according to the charged battery); In flow can be achieved through 8 seconds to get an electric shock the touch point (CURRENT) choose the charging CURRENT size, the system will lock in 8 seconds for charging CURRENT of your choice, if for 8 seconds, not set, then the system automatically default for charging CURRENT at 1000 ma, the electric CURRENT, and other functions will not be able to change again, if need to change, need long touch MODE then re-election;
1.2 Under CHARGE mode, independent charging or different current selection can be changed arbitrarily within 8 seconds, as well as different battery charging mix; Jane operation
Single, 8 seconds touch 1/2/3/4 slot battery corresponding touch points, and then touch MODE change CURRENT MODE, touch the CURRENT point detection, independent, pretend to be, capacity, 8 seconds into the working state after selected, pay attention to choose the charging CURRENT according to battery capacity size, if you don't need fast charging, suggest using 500 ma charge, this is the most appropriate and safe;
1.3 charging mode, through the light touch 1/2/3/4 touch point can switch to view each slot case: including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω) / ℃ temperature parameters, such as battery charge will be displayed after the "End" (charge);
1.4 lithium ion battery charging current can choose 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
1.5 Ni-MH battery charging current is available at 250mA/500mA/1000mA.
1.6 Refer to the following table for charging process:
Go into CHARGE select AUTO or MANUAL select CHARGE current battery CHARGE END
2) DISCHARGE (DISCHARGE mode)
2.1 when the battery charger installed after turning on the power supply, light touch (MODE) choose 8 seconds (DISCHARGE DISCHARGE MODE), and then a long touch CURRENT (CURRENT) make the system into the MANUAL DISCHARGE manually, select the desired CURRENT (250 ma ma / 500/750 ma), if do not select the CURRENT, the system automatically default DISCHARGE CURRENT is 500 ma, stop touching, system will lock in 8 seconds of your choice. If the system is discharged automatically by AUTO, the system will automatically distribute the current according to the condition of the discharged battery. The system will record the discharge data to detect the discharge capacity of the battery.
2.2 through the light touch 1/2/3/4 touch point can switch to view each slot case: including battery type/working mode charge/discharge (mAh)/discharge time (h)/discharge current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, after will show "End" (discharge);
2.3 Refer to the following table for the discharge process:
Enter DISCHARGE END of the battery with DISCHARGE current selected by DISCHARGE
3) TEST(Capacity Detection mode)
TEST mode is to first charge the battery, then discharge the battery and record the discharge quantity and other parameters, then automatically charge the battery and record the charging quantity and other parameters, and finally charge the battery fully. It has both discharge capacity test function and charge capacity test function. The detailed steps are as follows:
Enter TEST selected current charging battery charging battery discharge recharging END
3.1 In any state, the long touch MODE "Du" prompts can enter TEST MODE;
3.2.1 into TEST mode, after 8 seconds long time can touch touch point (CURRENT) select MANUAL manually or AUTO automatic mode, select MANUAL after manually, and choose CURRENT short touch touch point (CURRENT) size, the system will lock in 8 seconds for charging CURRENT of your choice, if there are no make the 8 seconds set, then the system will automatically lock 1000 ma CURRENT charging; If you choose AUTO, the system will automatically distribute the current according to the battery.
3.2.2 When the battery is fully charged, the system will automatically turn to discharge, and the discharge current will be determined according to the charging current (250mA is charged, and 250mA is discharged; When the charge is 500mA or 1000mA, the discharge is 500mA; When the charge is above 1000mA, the discharge is 750mA), and the data during the discharge is recorded, so as to detect the discharge capacity of the battery.
3.2.3 When the battery is discharged, the system will be automatically converted to charging. The charger will charge the battery again according to the previously selected current parameters and record the charging data, so as to detect the charging capacity of the battery. At this point, the system shows "END", stop charging.
4) REPAIR (REPAIR mode)
4.1 MANUAL, this mode is repaired with 250mA current.
4.2 AUTO (automatic adjustment), lithium batteries (Li - ion - 3.7 - v) repair process is according to the current file (250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma), the system automatically for charging current distribution, until full;
4.3 Under AUTO (automatic adjustment), the repair process of ni-MH-1.2V battery is that the system automatically charges with 250mA current, then discharges with corresponding current, and then recharges, after several times, until the repair is full.
Vi. Specific parameters
6.1 DC input voltage: 12.0V/5.0A
Charging current of ni-MH battery: 1.48V 250mA/500mA/1000mA*4
Lithium battery charging current, 4.20 500 V, 250 ma/ma / 1000 ma ma / 1500/2000 ma ma / 2500/3000 ma * 4
6.3 rechargeable battery specifications: 18650,26650,14500, AA, AAA, etc
Discharge current: 250mA*4/500mA*4/750mA*4
6.5 Termination mode: Intelligent voltage monitoring
6.6 External dimension: 165mm(length)*115mm(width)* 40mm (height).
6.7 Weight: g (excluding data cable)
Lii-600 Operation manual
Thank you for using our smart charger products - Lii - 600, this is a high-end smart quick charger, touch-screen control / 4 channel independent rechargeable battery capacity testing/meter/temperature/short circuit protection, overcharge protection protection and zero volt battery activation function, and can automatically timely monitor the battery charge and discharge and testing process.
Lii-600 can charge various sizes of cylindrical lithium ion batteries and nickel metal hydride batteries, widely used in strong light flashlight, power tools, instrumentation, digital cameras and other electronic products battery charging. Beautiful appearance, safe and easy to operate, easy to carry, powerful function, is your good helper at home.
A, warning,
1. This charger can only charge cylindrical lithium ion battery and nickel metal hydride battery, not charge lithium iron phosphate battery;
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current;
3. Do not use other non-standard power adapter;
4. Chargers may get hot when charging and discharging, so be careful not to burn;
5. When it stops using, please unplug the power and remove the battery;
6. Use only at room temperature and indoors;
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.
Ii. Functional characteristics
1. New touch control function;
2. The four slots work independently;
3. It has two working modes: automatic AUTO and MANUAL; (The default of the system is AUTO AUTO, automatically distributing current)
4. A variety of optional charging current: 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
5. Third-stage discharge current: 250mA/500mA/750mA;
6. Different specifications (18650/26650... /AA/AAA) Charging the battery at the same time;
7. Use a separate LCD display for this product. Contains battery type (Li - ion - 3.7 V, the Ni - MH1.2 V), work (AUTO automatic/MANUAL MANUAL), battery channel (CH1 - CH4), work mode (CHARGE CHARGE/DISCHARGE DISCHARGE models/TEST inspection/REPAIR REPAIR mode), CHARGE and DISCHARGE capacity (mAh), CHARGE and DISCHARGE time (h), CHARGE and DISCHARGE current (mA), battery voltage (V), battery percentage %, battery internal resistance (m Ω) ℃, temperature and other parameters, detailed and clear;
8. In CHARGE mode, 4 channels work independently, and each channel can choose different charging current and test charging capacity;
9. Under DISCHARGE mode, four channels work independently, and each channel can select different DISCHARGE current and detect DISCHARGE capacity;
10.TEST mode: The normal TEST process of battery capacity consists of three steps (1 charge,2 discharge, and 3 recharge) to TEST the battery capacity process;
11. Different channels can be operated with different modes (CHARGE, DISCHARGE, TEST and REPAIR); Independently set charging/discharging capacity testing/normal capacity testing functions;
12. Multiple protection function: the overcharge discharge, short circuit, temperature and activation function, 0 V voltage (- Δ Δ V & 0 V), 1.65 V to 2.2 V cannot charge function, bad battery intelligent recognition and reverse connect battery protection.
Iii. Description of touch points
The charger has 6 touch and contact points, including MODE, CURRENT, independent select and view data point (1234). The 6 touch MODE keys also have the function of lighting LCD backlight, which is simple and convenient to use.
1. MODE (MODE selection) includes CHARGE charging MODE, DISCHARGE MODE, TEST capacity detection MODE and REPAIR REPAIR MODE;
2. The CURRENT touch: (short for the CURRENT selection) including 250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma; Long touch "CHARGE" point, you can choose to work in AUTO or MANUAL mode.
3. Touch points of 1/2/3/4 channels :(corresponding to 1/2/3/4 channels respectively); Short touch can be independently selected and the corresponding channel data can be viewed. Any point of long touch can control the LCD display (normally on or off);
4. In any case a long touch MODE point can change the CHARGE after the sound of "du" (rechargeable) MODE, DISCHARGE (DISCHARGE), TEST (capacity), REPAIR (REPAIR) model, and then touch your corresponding function in 8 seconds touch point can change pattern, the current size, independent, pretend to be, detection capacity, 8 seconds after selected into the working state, in the working status can touch (1/2/3/4) touch point, checking their corresponding, Including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, finally will show "End", the End of this working process.
Iv. Operation Description of the mode:
When the charger plug charger LCD screen instantly full bright full show, at the same time 1/2/3/4 channel LED lights hint red, green, ready to enter, if the battery is not in the will show "Null", light is not bright, if it's bad battery into or the battery reverse connect will display "Err", the battery work normally on red LED lamp, batteries or stop filling the green LED lights normally on accompanied by prompt;
1) CHARGE (charging mode)
1.1 After the charger is installed and the battery is connected to the power supply, the system will enter CHARGE mode automatically. After long contact with the "CHARGE" point, the system will enter into MANUAL MANUAL charging mode. The default charging current of the charger is 1000mA (if there is no long contact with the CHARGE point, the system will be charged by AUTO, and the system will automatically allocate the current according to the charged battery); In flow can be achieved through 8 seconds to get an electric shock the touch point (CURRENT) choose the charging CURRENT size, the system will lock in 8 seconds for charging CURRENT of your choice, if for 8 seconds, not set, then the system automatically default for charging CURRENT at 1000 ma, the electric CURRENT, and other functions will not be able to change again, if need to change, need long touch MODE then re-election;
1.2 Under CHARGE mode, independent charging or different current selection can be changed arbitrarily within 8 seconds, as well as different battery charging mix; Jane operation
Single, 8 seconds touch 1/2/3/4 slot battery corresponding touch points, and then touch MODE change CURRENT MODE, touch the CURRENT point detection, independent, pretend to be, capacity, 8 seconds into the working state after selected, pay attention to choose the charging CURRENT according to battery capacity size, if you don't need fast charging, suggest using 500 ma charge, this is the most appropriate and safe;
1.3 charging mode, through the light touch 1/2/3/4 touch point can switch to view each slot case: including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω) / ℃ temperature parameters, such as battery charge will be displayed after the "End" (charge);
1.4 lithium ion battery charging current can choose 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
1.5 Ni-MH battery charging current is available at 250mA/500mA/1000mA.
1.6 Refer to the following table for charging process:
Go into CHARGE select AUTO or MANUAL select CHARGE current battery CHARGE END
2) DISCHARGE (DISCHARGE mode)
2.1 when the battery charger installed after turning on the power supply, light touch (MODE) choose 8 seconds (DISCHARGE DISCHARGE MODE), and then a long touch CURRENT (CURRENT) make the system into the MANUAL DISCHARGE manually, select the desired CURRENT (250 ma ma / 500/750 ma), if do not select the CURRENT, the system automatically default DISCHARGE CURRENT is 500 ma, stop touching, system will lock in 8 seconds of your choice. If the system is discharged automatically by AUTO, the system will automatically distribute the current according to the condition of the discharged battery. The system will record the discharge data to detect the discharge capacity of the battery.
2.2 through the light touch 1/2/3/4 touch point can switch to view each slot case: including battery type/working mode charge/discharge (mAh)/discharge time (h)/discharge current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, after will show "End" (discharge);
2.3 Refer to the following table for the discharge process:
Enter DISCHARGE END of the battery with DISCHARGE current selected by DISCHARGE
3) TEST(Capacity Detection mode)
TEST mode is to first charge the battery, then discharge the battery and record the discharge quantity and other parameters, then automatically charge the battery and record the charging quantity and other parameters, and finally charge the battery fully. It has both discharge capacity test function and charge capacity test function. The detailed steps are as follows:
Enter TEST selected current charging battery charging battery discharge recharging END
3.1 In any state, the long touch MODE "Du" prompts can enter TEST MODE;
3.2.1 into TEST mode, after 8 seconds long time can touch touch point (CURRENT) select MANUAL manually or AUTO automatic mode, select MANUAL after manually, and choose CURRENT short touch touch point (CURRENT) size, the system will lock in 8 seconds for charging CURRENT of your choice, if there are no make the 8 seconds set, then the system will automatically lock 1000 ma CURRENT charging; If you choose AUTO, the system will automatically distribute the current according to the battery.
3.2.2 When the battery is fully charged, the system will automatically turn to discharge, and the discharge current will be determined according to the charging current (250mA is charged, and 250mA is discharged; When the charge is 500mA or 1000mA, the discharge is 500mA; When the charge is above 1000mA, the discharge is 750mA), and the data during the discharge is recorded, so as to detect the discharge capacity of the battery.
3.2.3 When the battery is discharged, the system will be automatically converted to charging. The charger will charge the battery again according to the previously selected current parameters and record the charging data, so as to detect the charging capacity of the battery. At this point, the system shows "END", stop charging.
4) REPAIR (REPAIR mode)
4.1 MANUAL, this mode is repaired with 250mA current.
4.2 AUTO (automatic adjustment), lithium batteries (Li - ion - 3.7 - v) repair process is according to the current file (250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma), the system automatically for charging current distribution, until full;
4.3 Under AUTO (automatic adjustment), the repair process of ni-MH-1.2V battery is that the system automatically charges with 250mA current, then discharges with corresponding current, and then recharges, after several times, until the repair is full.
Vi. Specific parameters
6.1 DC input voltage: 12.0V/5.0A
Charging current of ni-MH battery: 1.48V 250mA/500mA/1000mA*4
Lithium battery charging current, 4.20 500 V, 250 ma/ma / 1000 ma ma / 1500/2000 ma ma / 2500/3000 ma * 4
6.3 rechargeable battery specifications: 18650,26650,14500, AA, AAA, etc
Discharge current: 250mA*4/500mA*4/750mA*4
6.5 Termination mode: Intelligent voltage monitoring
6.6 External dimension: 165mm(length)*115mm(width)* 40mm (height).
6.7 Weight: g (excluding data cable)
Does not contain batteries.
500S+EU500S+USLii-500S 0Lii-500S 2Lii-500S 3Lii-500S 4Lii-500S 5Lii-500S 6
USER MANUAL-Lii-500S
Thank you for buying our company top quality charger model Lii-500S a high-end smart universal LCD fast charger with multi-functions of sense touch buttons /4 independent channel charge/ discharge/ capacity test / anti-reverse protection/ short-circuited protection/ over charge protection/over temperature protection/ USB 5V output / battery zero voltage activation and so on. Meanwhile it can do automatic and real-time monitor on the process of battery charging, discharging and testing.
Lii-500S can charge different types of cylindrical Li-Ion and Ni-MH rechargeable batteries for wide applications of electronic products like strong flashlights, power tools, instrument meters, digital cameras and so on. It has been characterized with high-end generous appearance, easy-to-use, convenient for carrying, strong functions...really good helper for the use at home and tourism.
Outward appearance:
1.Warning:
channels LCD display
Mode button current button
1.1 This charger can be only for cylindrical Li-Ion and Ni-MH batteries. It is not allowed to charge other batteries such asLiFePO4 battery and primary batteries;
1.2 Before use, please read this manual carefully minding the suggesting charge current for the batteries never charge at over-standard current;
1.3 Do not use other brand of power supply adapter;
1.4 It might cause heating during charging and discharging. Mind not be injured;
1.5 Please move off the power cord and all batteries when stop using;
1.6 Only for indoor use;
1.7 It's only for your reference of the testing parameters of this product. For more details, please refer to professional instrument.
2. Features:
2.1 Fire new sense touch buttons;
2.2 Fast charging function with 4 selective current:500mA*4 /700mA*4/1000mA*4 / 2000mA*2
(2000mA only for Li-Ion);
2.3 Professional discharge function with 2 selective current:250mA*4/500mA*4;
2.4 For most sizes of cylindrical Li-Ion and Ni-MH batteries at the same time: 18650/26650....../AA/AAA);
2.5 Fire new design of LCD display with one screen all information: charge/discharge/test(MODE), voltage(V), current(mA), time(h), capacity which are all absolutely clear;
2.6 Under the mode of CHARGE,different selective charge current can be for 4 independent channels with both LI-Ion and Ni-MH batteries;
2.7 Under the mode of DISCHARGE, it can discharge the battery for all the 4 independent channels both Li-Ion and Ni-MH at selective current;
2.8 Under the mode of TEST , it can test the battery capacity with process of 3steps: fully charge-fully discharge-fully charge both for Li-Ion and NI-MH batteries;
2.9 All the 3 modes of CHARGE, DISCHARGE and TEST can work at the same time independently with Individual setting;
2.10 Intelligent and safe with multi-protection functions:over charge and discharge, short-circuited, over temp, OV activation,(-ΔV&0ΔV), intelligent identification of bad battery and anti-reverse protection;
2.11 With 5V/1000 mA USB power supply output function( when the charger is AC power connection); 2.12 Equipped with specified power supply: DC 12V/3A
3. Sense touch button descriptions:
3.1 The charger has total 6 sense touch buttons : MODE, CURRENT, channel 1, 2, 3, 4 ( very easier and convenient for operation)
3.2 MODE: light touch to select between CHARGE(defaulted if no choice), DISCHARGE, TEST(capacity), LCD light-on;
3.3 CURRENT:light touch to select current: 500mA*4 /700mA*4/1000mA*4 /2000mA*2(only for Li-Ion), discharge 250mA*4/500mA*4;3.4 Channel 1/2/3/4:for data control of 1-4 channel independently, LCD light-on;
3.4 Any time long press the MODE touch point with a sound of "DU" indicating to change between CHARGE, DISCHARGE, TEST(CAPACITY), INDEPENDENT(channels), MIX(mixed channels) then within a period of time 8S, light touch any point to change the mode, current and so on after which it starts to work . During the working status, light touch point1, 2,3,4 to track the current(mA)/capacity(mAh)/ voltage(V)/ time(h).
(Note:2000mA only for Li-Ion and 2channels of the 4, if more than 2channels charge, the current will automactically lowered to 1000mA);
4. Mode Instructions:
When the charger powered on with LCD light-on of all information and the channel1,2,3,4 LED flashing between red and green indicating the charger is ready. If this time no battery inserted in, it will display "Null"; if bad batteries, it will display "Err", if normal batteries, the channel red LED permanent lighted on; when fully charged or stop charging, the green channel LED will be permanent lighted on;
4.1 CHARGE MODE
4.1.1 The charger powered on and with normal battery inserted in, if no touch on the MODE button within 8S, the charger system will automatically enter charge mode with default charge current of 500mA; within the 8S before the charger starts, if light touch the current button changing between 500mA*4/ 700mA*4/1000mA*4/2000mA*2( only for Li-Ion) then it will start to charge after end of the time(8S). During the work of charging, the other functions can not be changed( if you want t o change it, you have to long touch the MODE to reset the charge current;
4.1.2 Under CHARGE mode,within 8S easily touch the channel button to make independent setting on the charge current for different channels of batteries, if no change, it will defaults at 500mA; then it will start to work after 8S. Mind the charge current which should be strictly according to the battery
capacity( suggest 500mA if not urgent use);
4.1.3 During working under charge mode, light touch channel button1.2,3,4 to track charge status:capacity(mAh)/time(h)/curent(mA)/voltage(V); when fully charged, it will display"End"; (Note:2000mA only for Li-Ion and 2channels of the 4, if more than 2channels charge, the current will
automactically lowered to 1000mA);
4.2 DISCHARGE MODE
4.2.1 the charger powered on with battery inserted, within 8S light touch the Mode button selecting DISCHARGE mode then within 8S light touch the CURRENT button to select the current 250mA/500mA; If no operation within 8S, it will default as 250mA and start working; During the work of discharging, the other functions can not be changed( if you want t o change it, you have to long touch the MODE to reset the discharge current;
4.2.2 Under DISCHARGE mode,within 8S easily touch the channel button to make independent setting on the discharge current for different channels of batteries, if no change, it will defaults at 250mA; then it will start to work after 8S;
4.2.3 During working under discharge mode, light touch channel button1.2,3,4 to track discharge status:capacity(mAh)/time(h)/curent(mA)/voltage(V); when fully discharged, it will display"End";
4.3 TEST MODE
The battery capacity test process will be as below form: both charge and discharge capacities:
4.3.1 The charger powered on with normal battery inserted, within 8S, light touch the MODE button to select TEST mode, in 8S light touch the CURRENT button to select charge current 500mA*4 /700mA*4 /1000mA*4/2000mA*2( only Li-Ion). If no operation it will default as 500mA and start to work after end of the 8S;
4.3.2 After fully charge the battery, fully discharge it at defaulted current 500mA taking down the discharge data including capacity and so on;
4.3.3 After fully discharge the battery, fully charge it again taking down the charge data including capacity and so on then shows"END" ;
4.3.4 Test Data tracking before the charger powered off or battery removed: light touch the channel button 1, 2,3,4 to track the discharge and charge data;
4.4 Mixed modes for different channels
The charger powered on with batteries inserted (both Li-Ion and Ni-MH), within 8S, select channel then within 8S, select mode between CHARGE/DISCHARGE/TEST, then light touch the current button to select charge current (if no operation it will default as 500mA after 8S;
5. USB 5V output:
FULLY TEST MODE SELECT CHG FULLY DISCHARGE
CURRENT CHARGE (DSG data recorded)
FULLY
CHARGE END (CHG data
recorded)
5.1 5.2
5.3

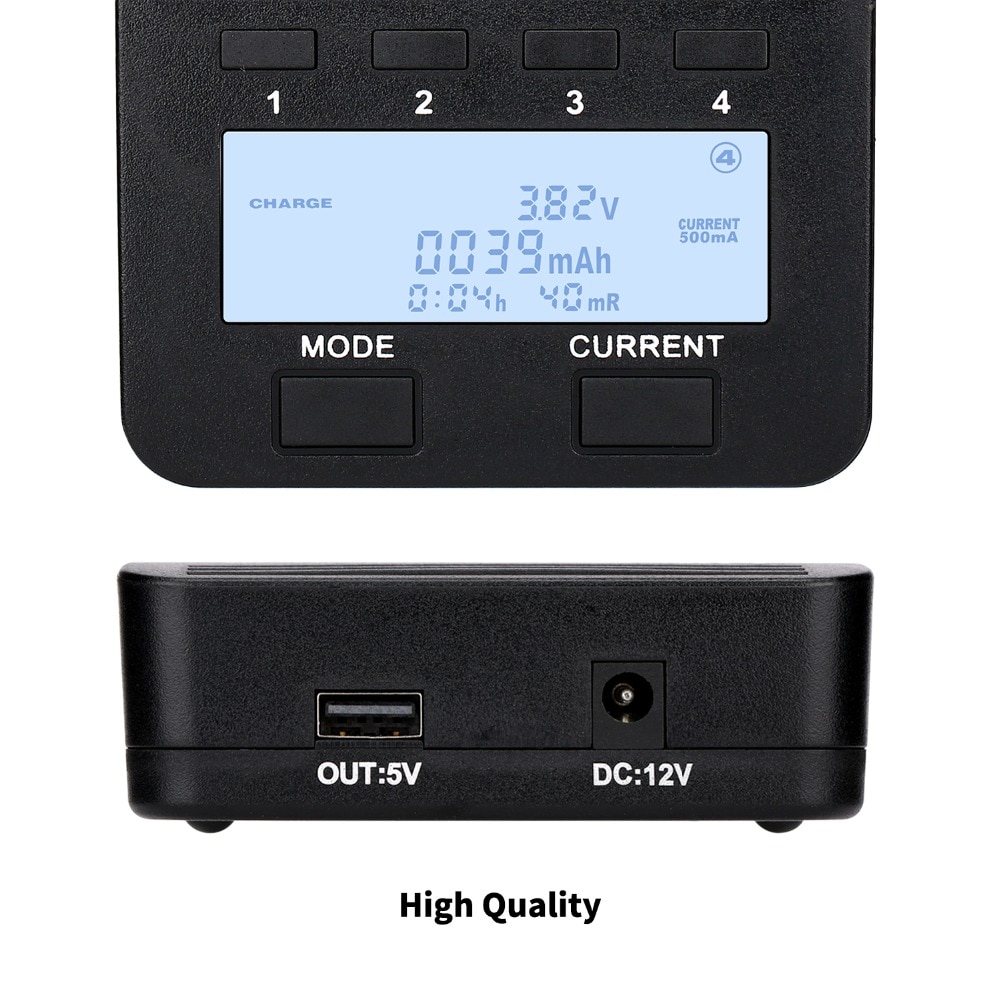

USB output 5V 1000mA;
Only when the charger with AC powered on, the USB output works as power supply to electronic
products;
The charger without AC powered on and only within battery inserted, there will be no USB output will be invalid.
6. Detailed parameters: 6.1 Input DC12V/3.0A
6.2 Output: Li-Ion: DC4.2V 500mA*4 /700mA*4/1000mA *4/ 2000mA *2 Ni-MH: 1.48V 500mA*4/700mA*4 /1000mA*4
6.3 For cylindrical batteries size: 18650,26650,14500,AA,AAA etc. 6.4 Discharge current: 250mA /500mA
6.5 USB power supply output: 5V 1000mA
6.6 Cutoff method: intelligent voltage monitoring;
6.7 Charger outward dimension: 162mm(L)*100mm(W)*36mm(H).
- Brand Name: liitokala
- Origin: Mainland China
- Display screen: No
- Quick charge: Yes
- Type: Electric
- Intelligent Charge: Yes
- Certification: CE,FCC,RoHS
- Package: Yes
- Use: Standard Battery
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
How long does shipping take?
Shipping time varies by location. These are our estimates:
| Location | *Estimated Shipping Time |
|---|---|
| United States | 10-30 Business days |
| Canada, Europe | 10-30 Business days |
| Australia, New Zealand | 10-30 Business days |
| Central & South America | 15-30 Business days |
Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Will my items be sent in one package?
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(60 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
- Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
- Your order did not arrive due to exceptional circumstances outside the control of CNTRONIC Consumer Electronics Retailer (i.e. not cleared by customs, delayed by a natural disaster).
- Other exceptional circumstances outside the control of cntronic.com
*You can submit refund requests within 15 days after the guaranteed period for delivery (60 days) has expired. You can do it by sending a message on Contact Us page
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we authorise you to do so.
LARGE ORDER DEALS
Thank you for your interest doing business with us!
If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.
