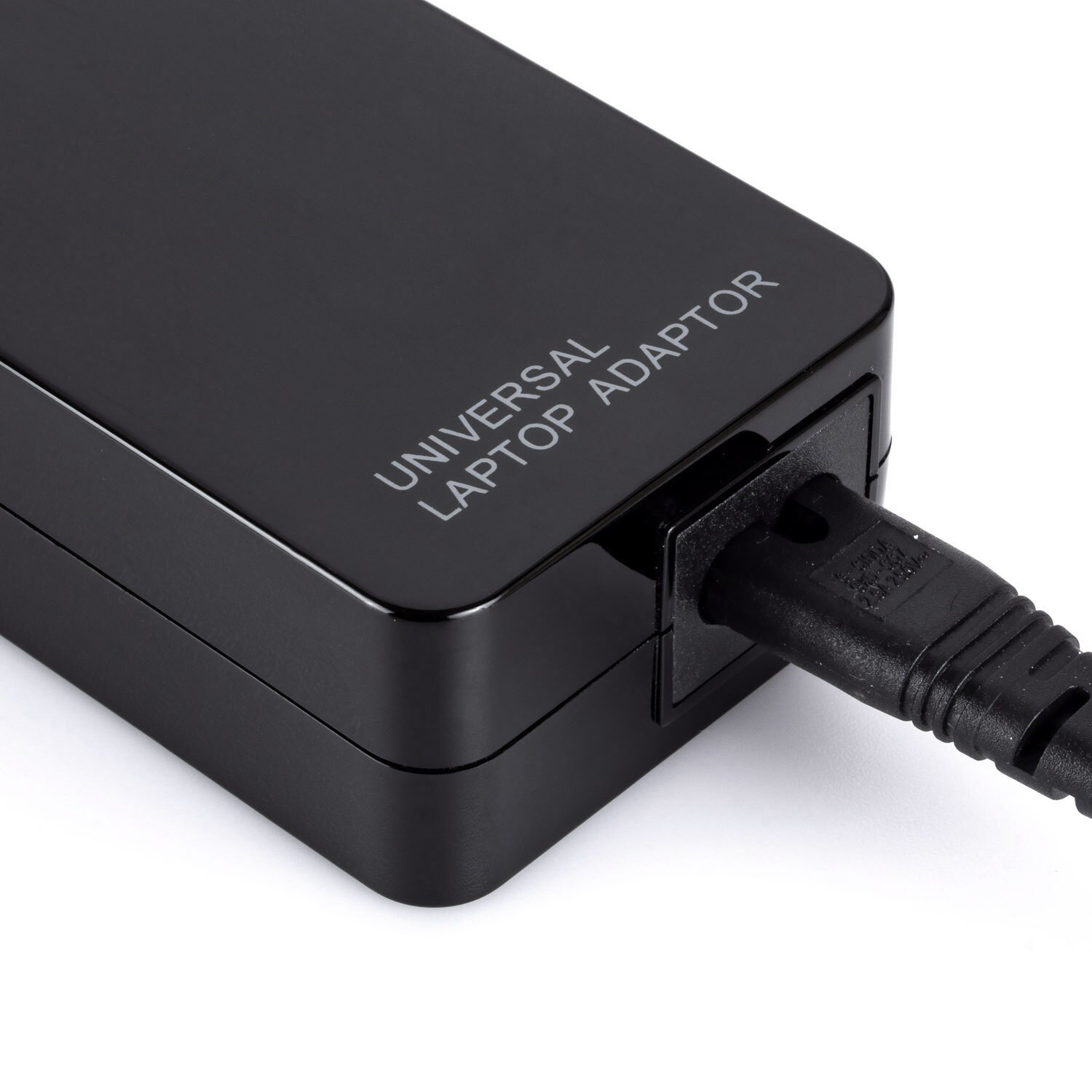

LCD Smart Multifunctional Universal Power Supply Home Travel Tablet Charger Laptop Adapter 90W With USB
0.0 ( votes)
Price:
US $86.33
/ piece
Discount Price:
US $
82.87
/ piece
-4%
- Color
-
-
- Plugs Type

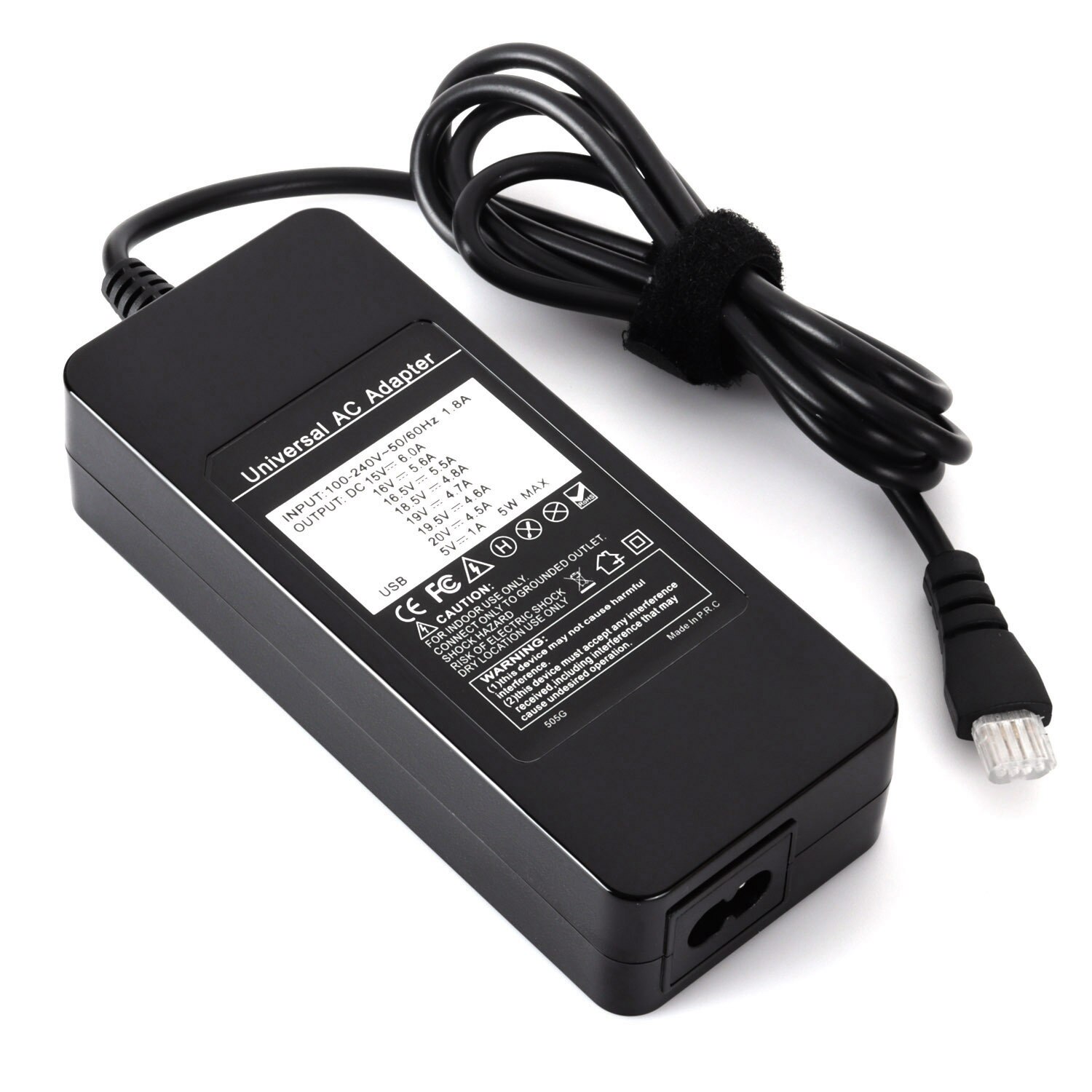

LCD Smart Multifunctional Universal Power Supply Home Travel Tablet Charger Laptop Adapter 90W With USB
Universal power adapter to fit 90% of laptops of different brands, using a wide range.

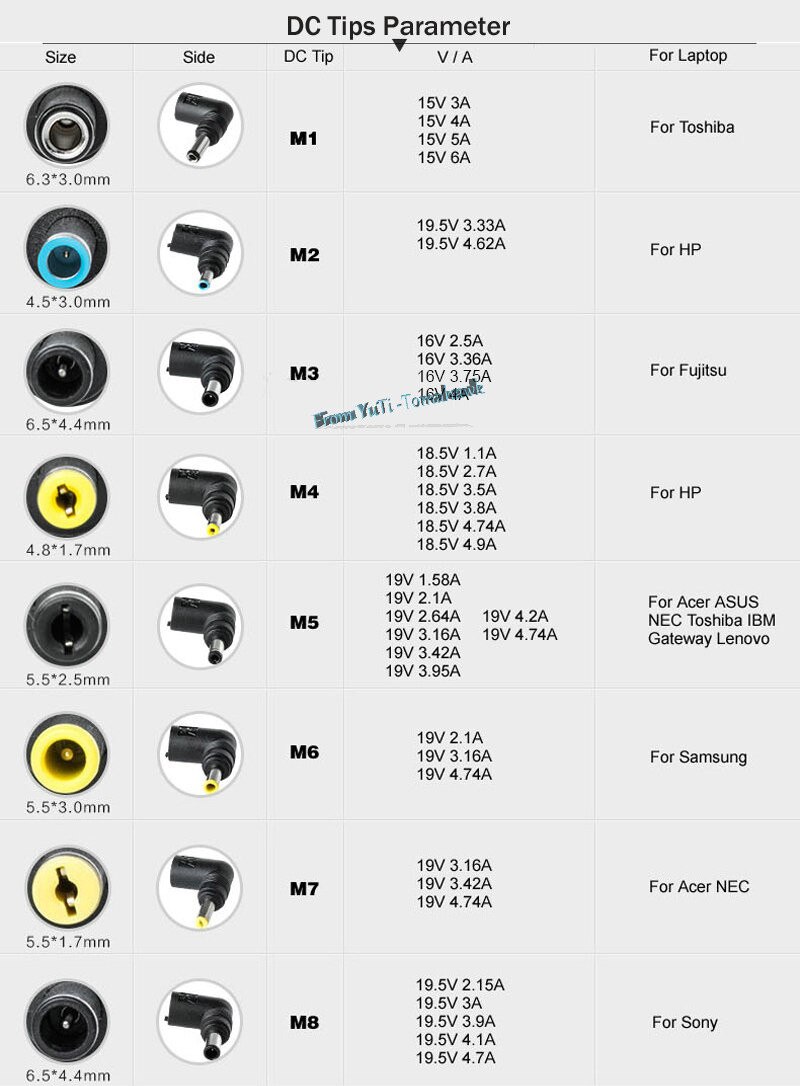

12 DC tip Connector Specification:
M1 | 15V (90W Max) | Φ6.3*3.0mm | for TOSHIBA | 15V 3A , 15V 4A , 15V 5A , 15V 6A ; |
for NEC | 15V 6A , etc | |||
M2 | 19.5V(90W Max) | Φ4.5*3.0mm | for HP / Compaq | 19.5V 3.33A , 19.5V 4.62A , etc |
M3 | 16V (90W Max) | Φ6.5*4.4mm | for Fujitsu | 16V 2.5A , 16V 3.36A , 16V 3.75A ; |
for Sony | 16V 3.36A , 16V 3.75A , 16V 4A , etc | |||
M4 | 18.5V (90W Max) | Φ4.8*1.7mm | for HP / Compaq | 18.5V 1.1A , 18.5V 2.7A , 18.5V 3.5A , 18.5V 3.8A , 18.5V 4.74A , 18.5V 4.9A , etc |
M5 | 19V (90W Max) | Φ5.5*2.5mm | for Acer | 19V 3.42A , 19V 4.74A ; for ASUS 19V 3.42A , 19V 4.74A ; |
for LITEON | 19V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
for Gateway | 19V 2.46A , 9V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
for Hasee | 19V 3.42A , 19V 4.74A ; | |||
for TOSHIBA | 19V 1.58A , 19V 2.1A , 19V 3.42A , 19V 3.95A , 19V 4.74A ; | |||
for NEC | 19V 4.74A ; | |||
for Lenovo | 19V 4.74A ; | |||
for IBM | 19V 3.16A , 19V 4.2A ; | |||
M6 | 19V (90W Max) | Φ5.3*3.0mm | for SAMSUNG | 19V 2.1A , 19V 3.16A , 19V 4.74A , etc |
M7 | 19V (90W Max) | Φ5.5*1.7mm | for Acer | 19V 3.16A , 19V 3.42A , 19V 4.74A ; |
for LITEON | 19V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
for NEC | 19V 3.16A , etc | |||
M8 | 19.5V (90W Max) | Φ6.5*4.4mm | for SONY | 19.5V 2.15A , 19.5V 3A , 19.5V 3.9A , 19.5V 4.1A , 19.5V 4.7A , etc |
Usually on your old power adapter or bottom of the notebook computer has parameters, If you are unsure, please tell us the brand
and model of the laptop, we answer for you.
Power adapter knowledge and Q & A:
Q:What is the output voltage / current and power?
A:The laptop adapter label affixed, usually marked with a voltage / current and power parameters, the unit is voltage ” V “, the current unit is ” A “, for example: 20V4.5A, represents the voltage is ” 20V “, current is ” 4.5A“, This laptop adapter power is: 20V * 4.5A = ” 90W “.
Q:Fluctuation range of the output voltage is the number?
A:In accordance with industry standard laptop adapter output voltage fluctuation range of ± 5%, for example: 20V laptop adapter, its output voltage fluctuation range: between 19V-21V.
Q:My laptop adaper voltage is 19V, 18.5V adapter can use it?
A:Laptop adapter allows the 5% fluctuation, so the laptop can use the 18.05V-19.95V power adapter, 18.5V in this range, it can be used. But volatility can not exceed 5%, such as 19V can not be used 15V equipment .
Q:4.74A compatible 2.1A?
A:Can support high current small current, 5A compatible 4/3/2/1A, 19.5V 4.74A compatible 19.5V 2.1A, not vice versa, a small current is not compatible with a large current, 19.5V 2.1A is not compatible 19.5V 4.74 A, because of lack of power, cause the device to not work properly.
Q:Why are there different DC tips connector?
A:Because each interface standard notebook computer manufacturers to use different, DC connector according to the outer diameter * inner diameter or length * width to distinguish.

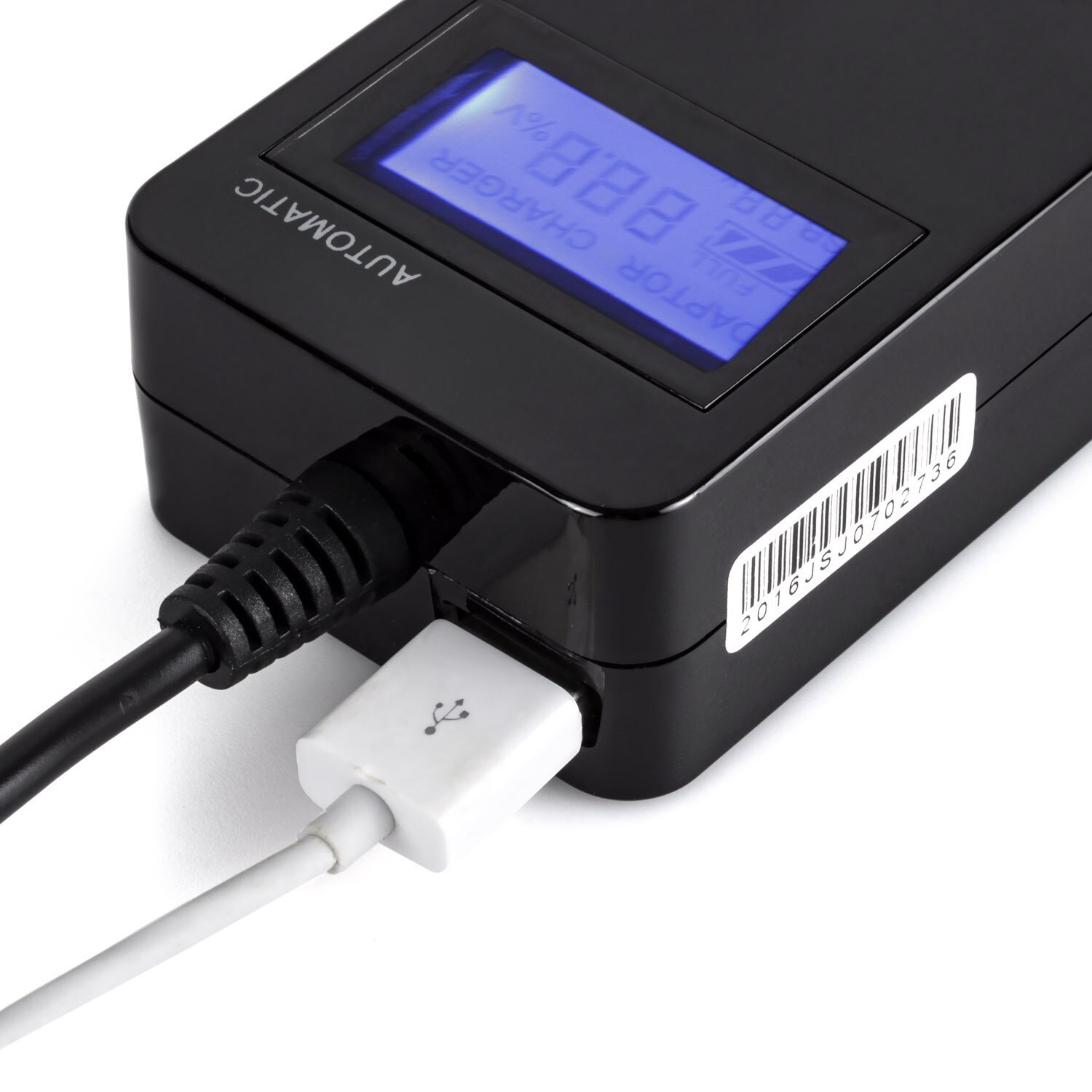

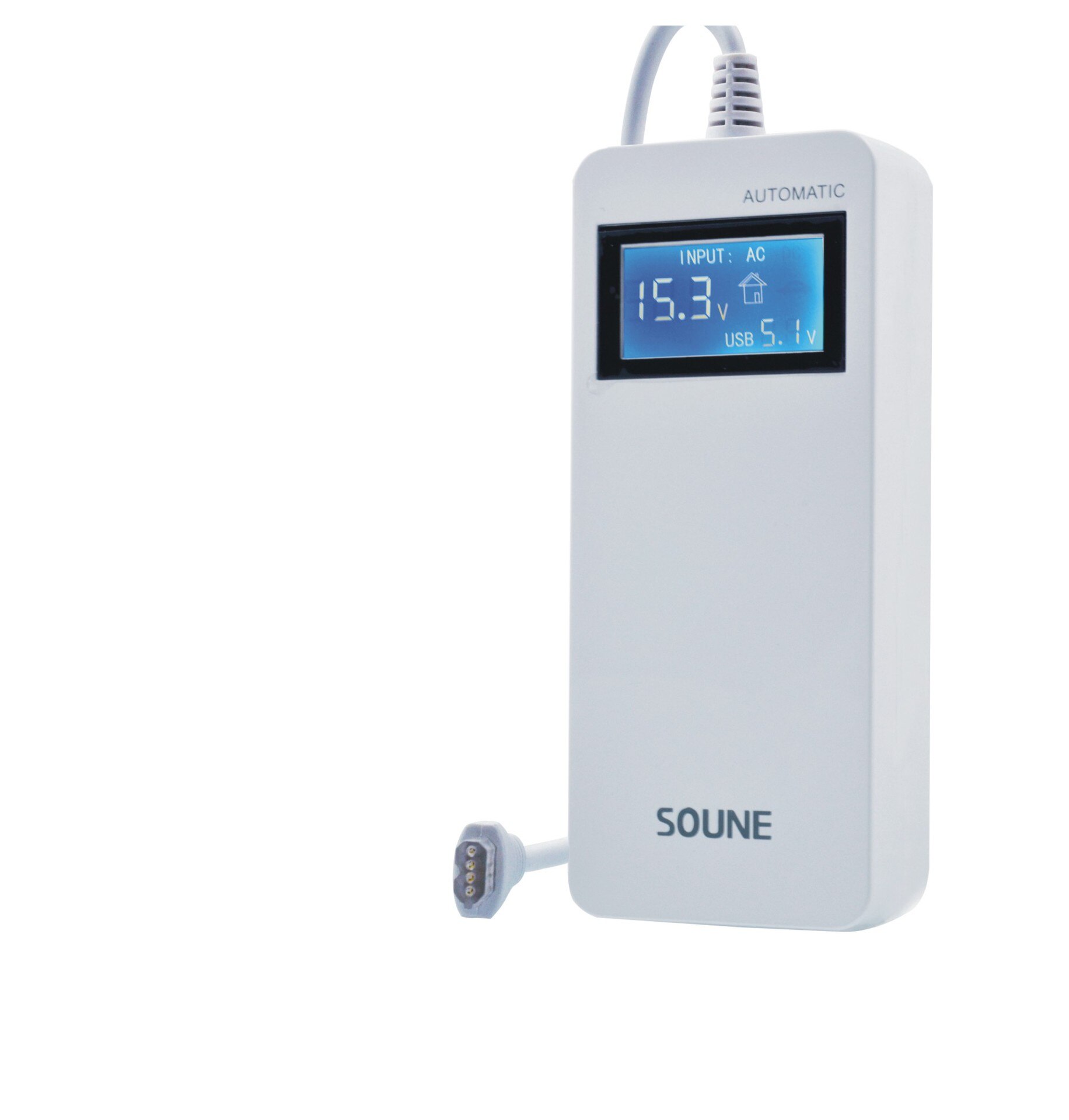

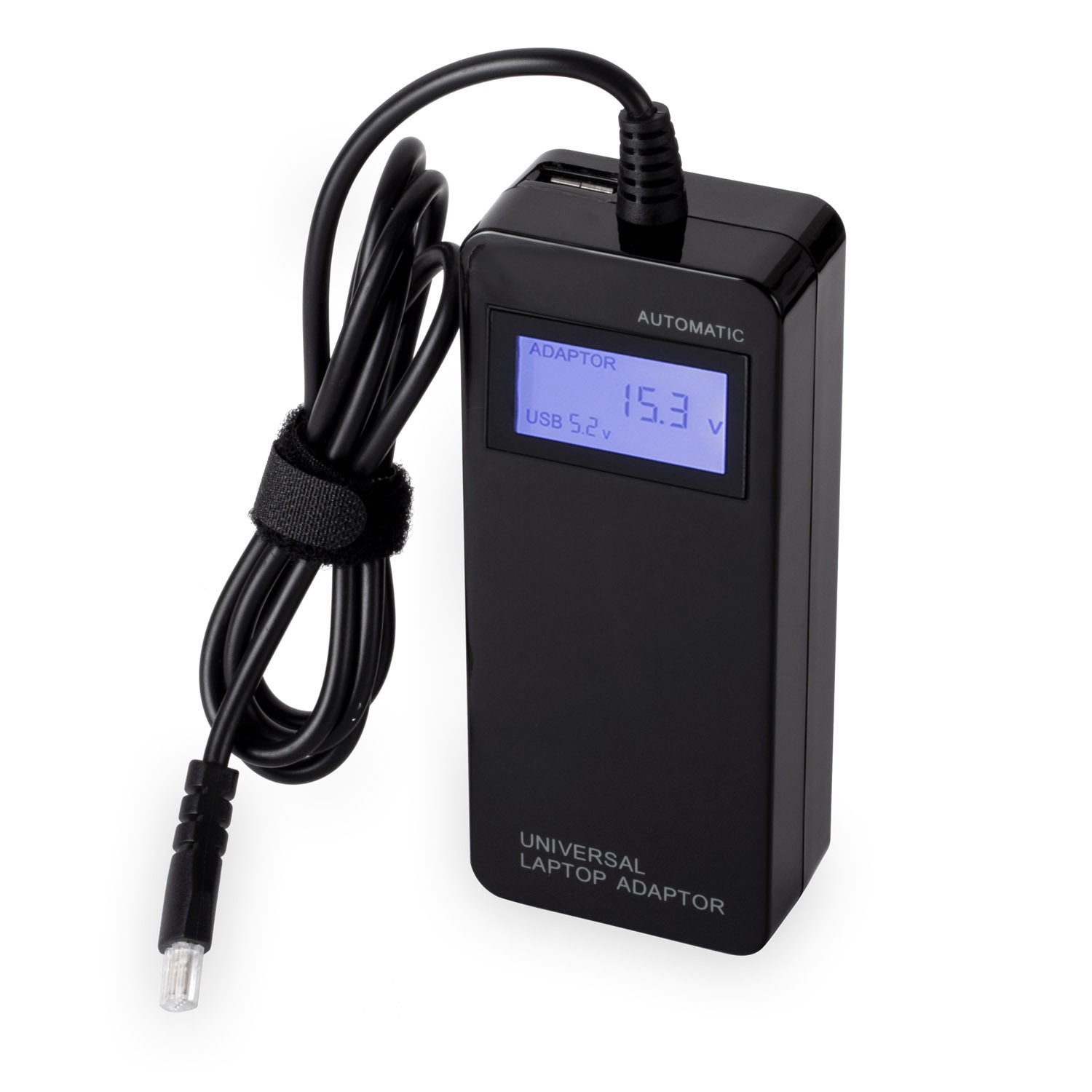

Q:LCD display and DC connector voltage indicated why different?
A:Output voltage fluctuation range of ± 5%. For example: DC M11 labeled 20V, its output voltage fluctuation range is between 19V-21V, the display will show 19V or 20V, does not affect normal use. For example: DC M13 labeled 16V, its output voltage fluctuation range is between 15.2V-16.8V, the display will show 15V or 16V, does not affect normal use.
Q:What protection power adapter?
A:Mainly to prevent over-voltage / prevent over-current / prevent undervoltage / prevent the temperature is too high / protect against short circuits.
Q:Why not recommended laptop adapter on a bed / sofa?
A:Laptop adapter at work, some energy is converted into heat, heat dissipation through the housing, linens / sofa would be detrimental to the heat, and even lead to the laptop adapter starts overtemperature protection, is not conducive to the notebook adapter is working correctly.

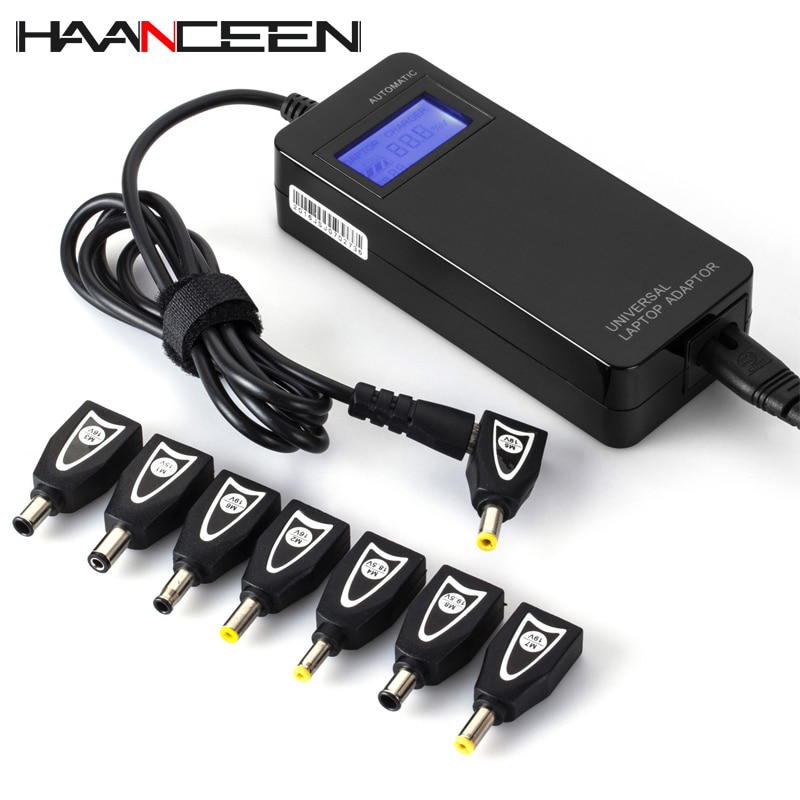

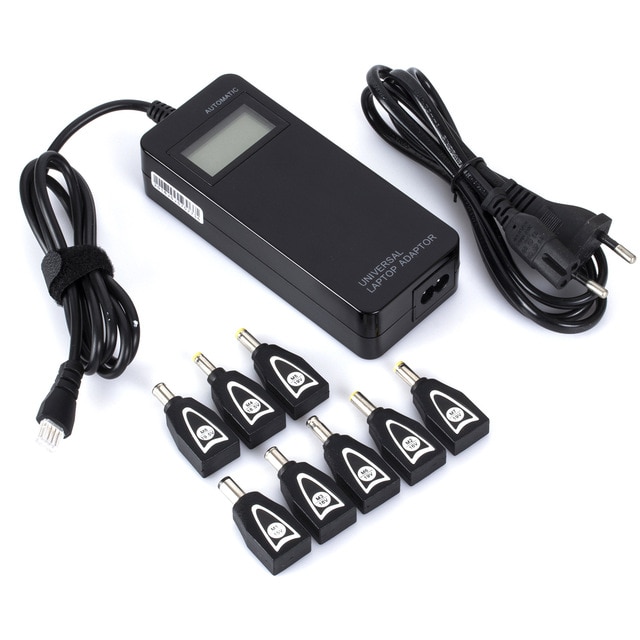

Packing list:
1 * 90W universal power adapter
1 * AC cable
8 * DC (M1-M8)
- Compatible Brand: Universal
- Voltage: 15-20V

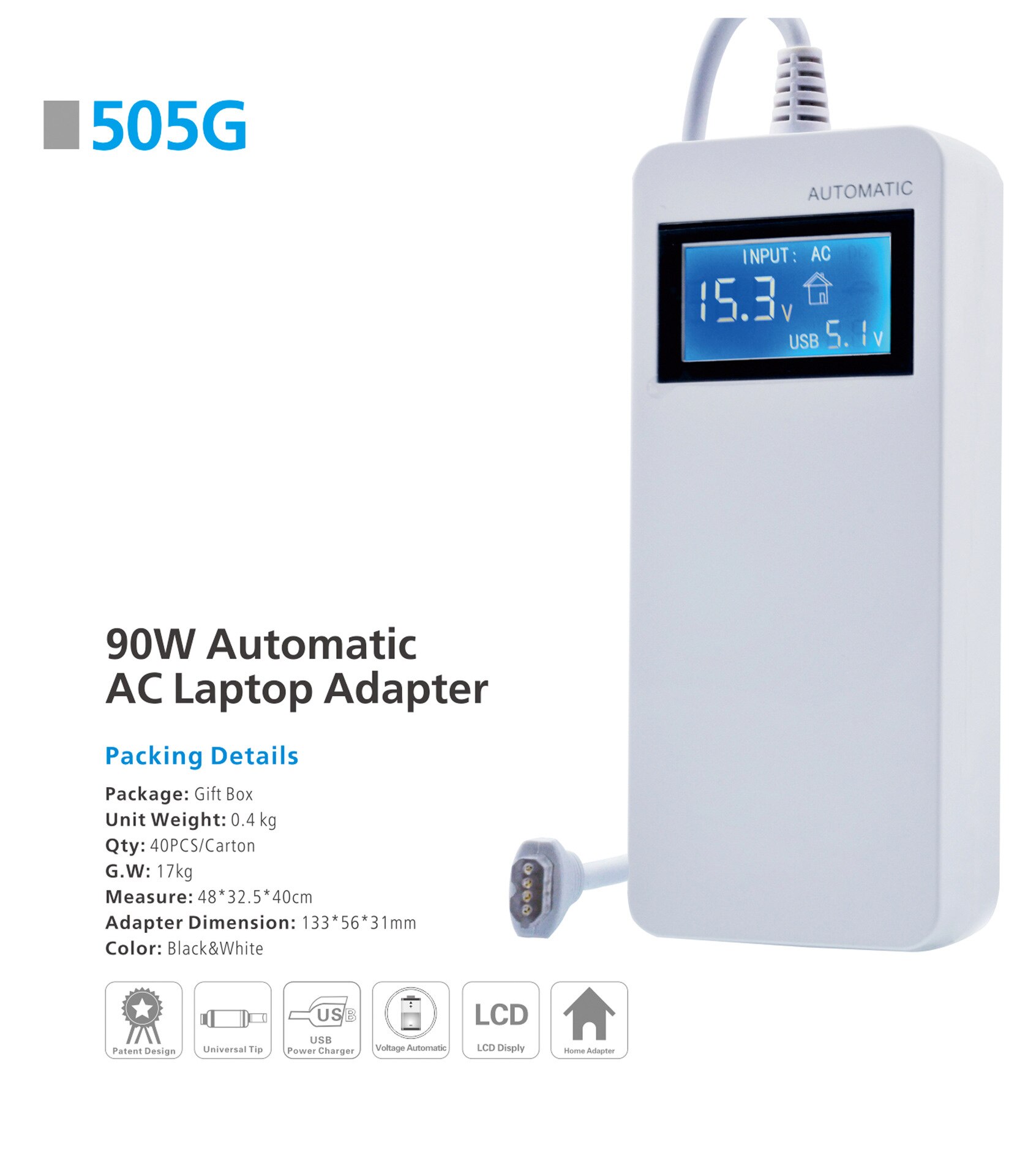

- Model Number: 505G
- Package: Yes
- Brand Name: BMTomahawk
- Origin: Mainland China
- Certification: NONE
- Output current: 4.5A
- The output voltage: 15-20V
- Input Voltage: 100V-240V

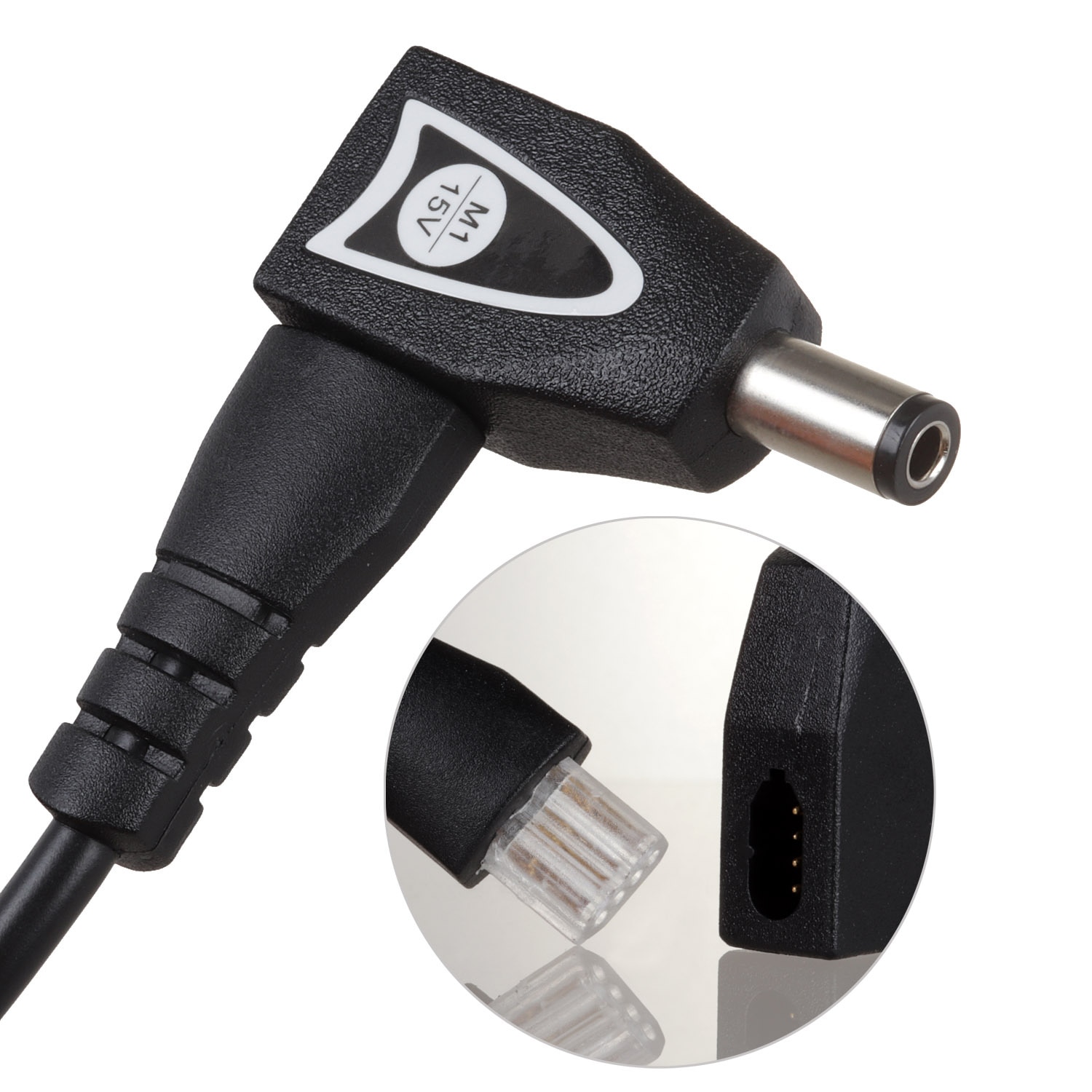

- Working principle: Automatic matching by DC terminals
- DC Tip: ( M1-M8) 8pcs
