KuWFi POE Switch 48V 100Mbps Wifi Smart IP Switch 4/8 Ports POE Standard RJ45 Injector Switcher for IP Camera/Wireless AP/CCTV

Note:

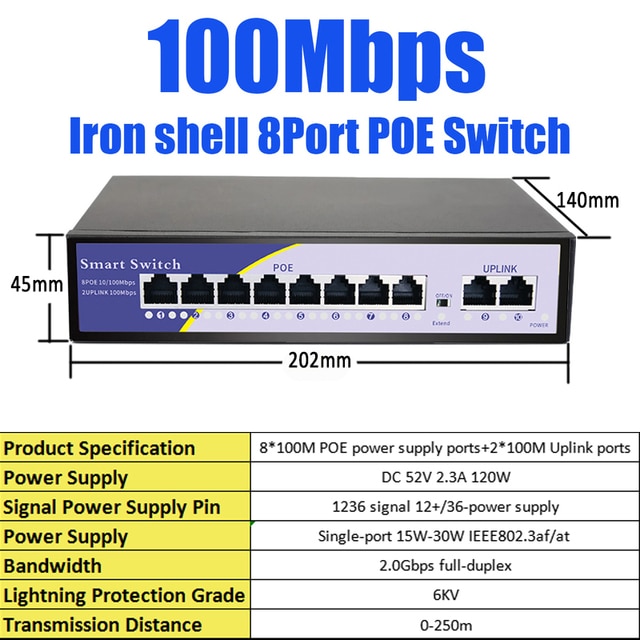

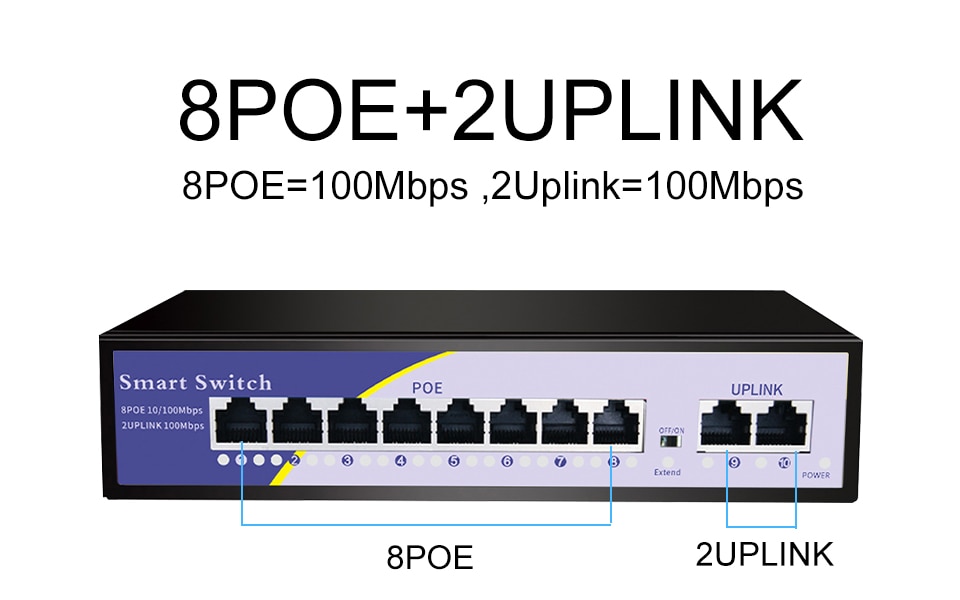

8 Port POE Switch appearance has been changed to purple, please purchase after buyer's confirmation.

High Detail

It can supply power for wireless AP, network camera, and other POE terminal equipment through the network cable, supply the network, simple installation, plug and play

Product Description

1.4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 100/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play

2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.

3.RJ45 hub Switcher can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.

4.Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

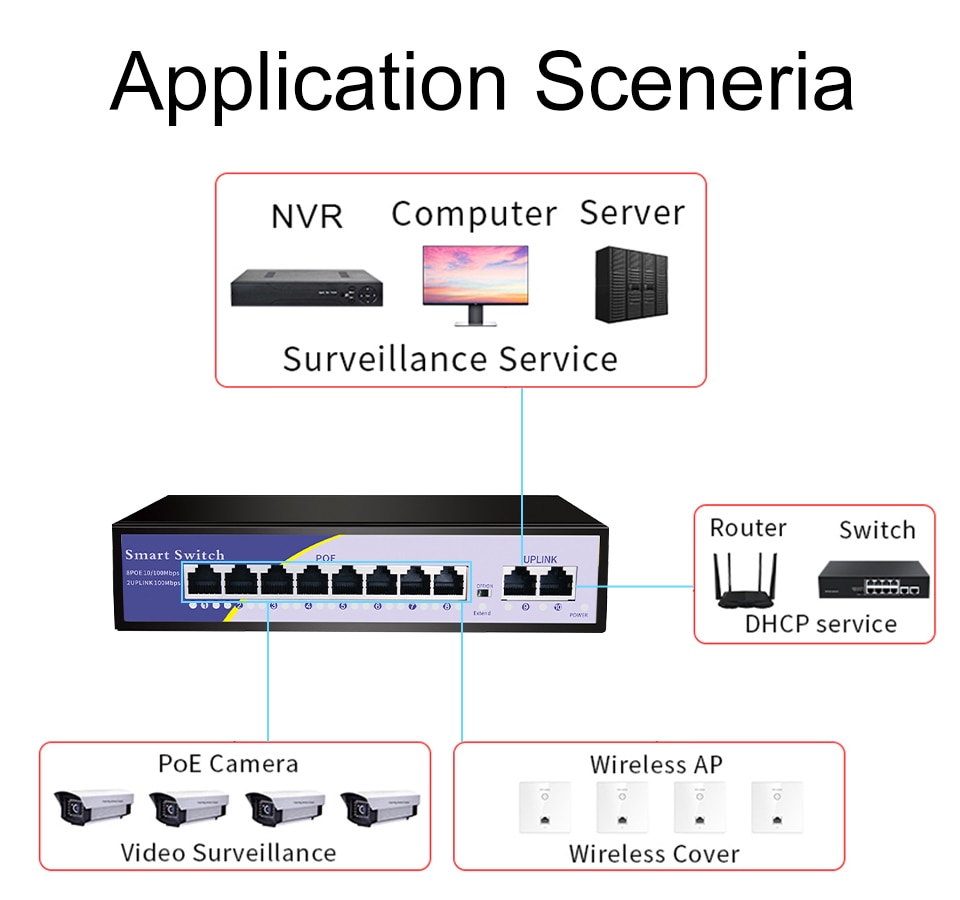

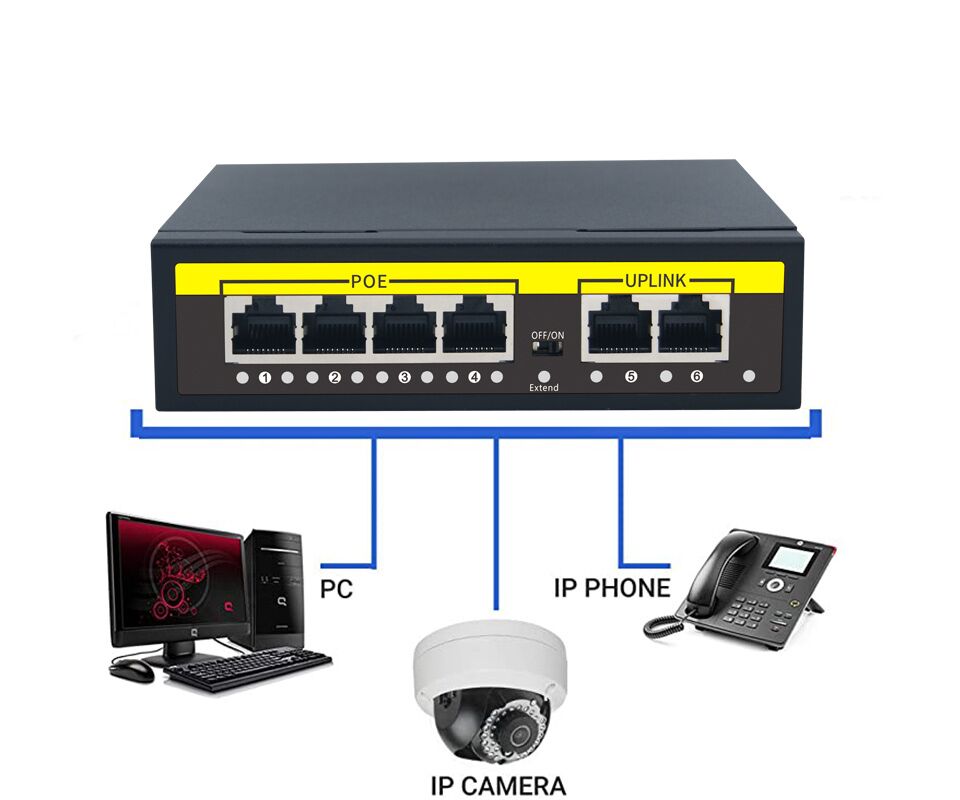

5.PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products

Product Detail

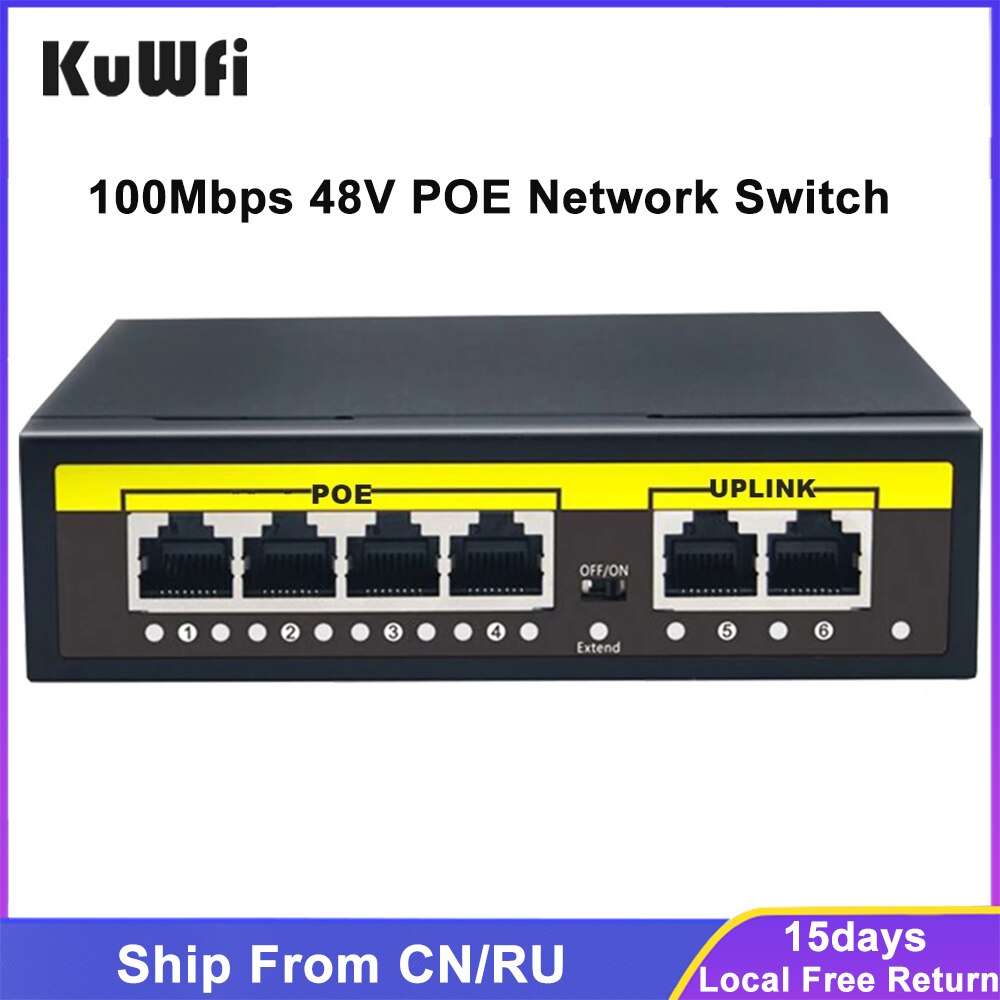

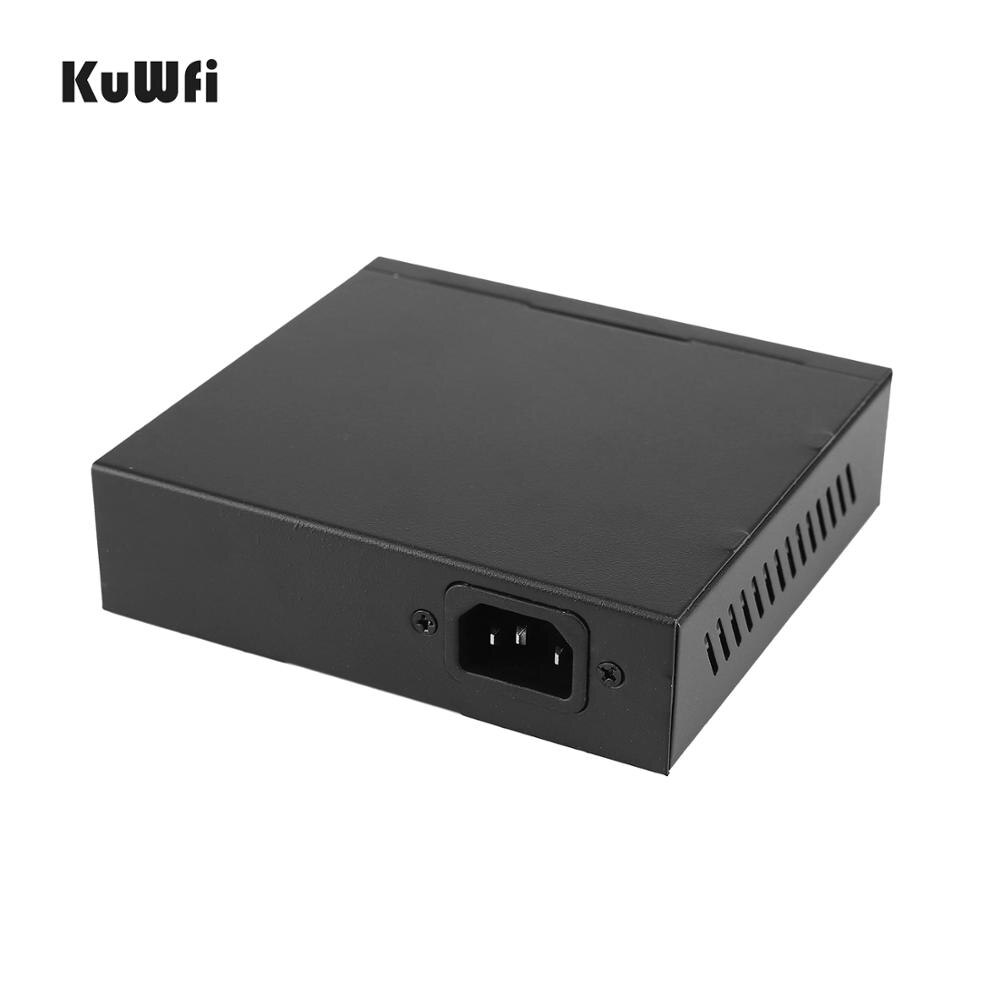

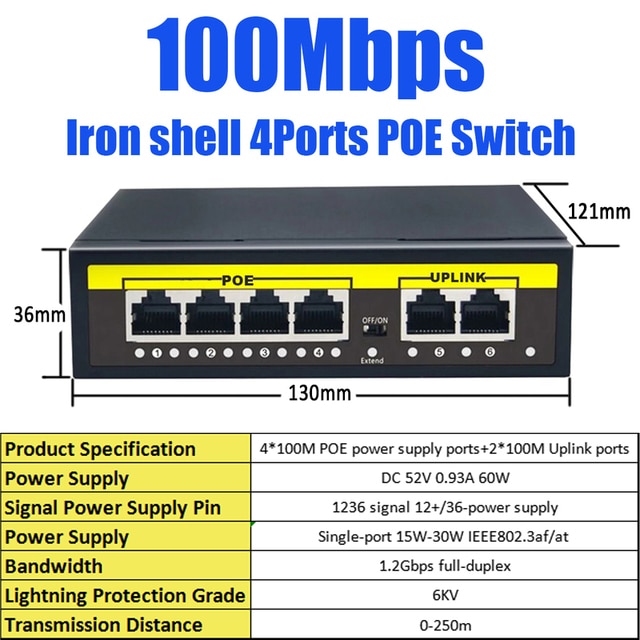

Product Name:4 Port 10/100M ACTIVE POE Switch(4+2)
Data Pin:1/2+,3/6-
Power Supply Type:Build in, 1/2+,3/6-
PoE Output Power:15.4W/30W
Connector:4*10/100mbps POE port,2*10/100mbps uplink port
Network Medium Cat5 (UTP) or more
Network Standards:IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power:15.4W per port(IEEE802.3af).
Wiring: Data & power provided over pairs 1/2 and 3/6
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Buffer memory:48Kb embedded memory per unit
Backboard Bandwidth :1 .2G
Network Latency:Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power Input:52V DC input
PoE power consumption:15.4W per port(IEEE802.af)
LED Indicators System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing

Package Listing

1*48v poe switch
1*DC Power
1*English Manual

Shipping time and tracking

We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .

Warranty time and service

Customer service working hours:Beijing 9:30-18:30

Ship orders within 48 hours (except weekends)

The warranty period of the router is 1 year, and the warranty period of other products is 3 months

FAQ:

Q1: After the computer is directly connected to the router, the Internet can be accessed normally, but the computer cannot access the Internet when it is connected to the router through the network switch?

A1: After connecting to the network switch, the computer cannot access the Internet. The reasons for this may include: unstable physical connection, improper computer settings, etc. Please follow the steps below to eliminate:

1) Replace the network cable between the computer and the switch to ensure that the corresponding indicator light of the switch is on and the local connection is stable. Checking method: Connect two computers to the switch and set them on the same network segment. If they can ping each other, the connection between the computers and the switch is stable.

2) Set the computer's local connection to obtain IP automatically (provided that the front-end router enables the DHCP server), right-click the local connection properties, select Internet Protocol (TCP/IP), and click the Properties button.

3) Check "Obtain an IP address automatically", then OK.

4) When the computer obtains the IP normally, it can surf the Internet normally.

5) If you still cannot access the Internet after obtaining it normally, please check the relevant settings of the front-end router to see if the computer is blocked from accessing the Internet.

6) If the IP address cannot be obtained normally, replace the network cable between the switch and the router.
