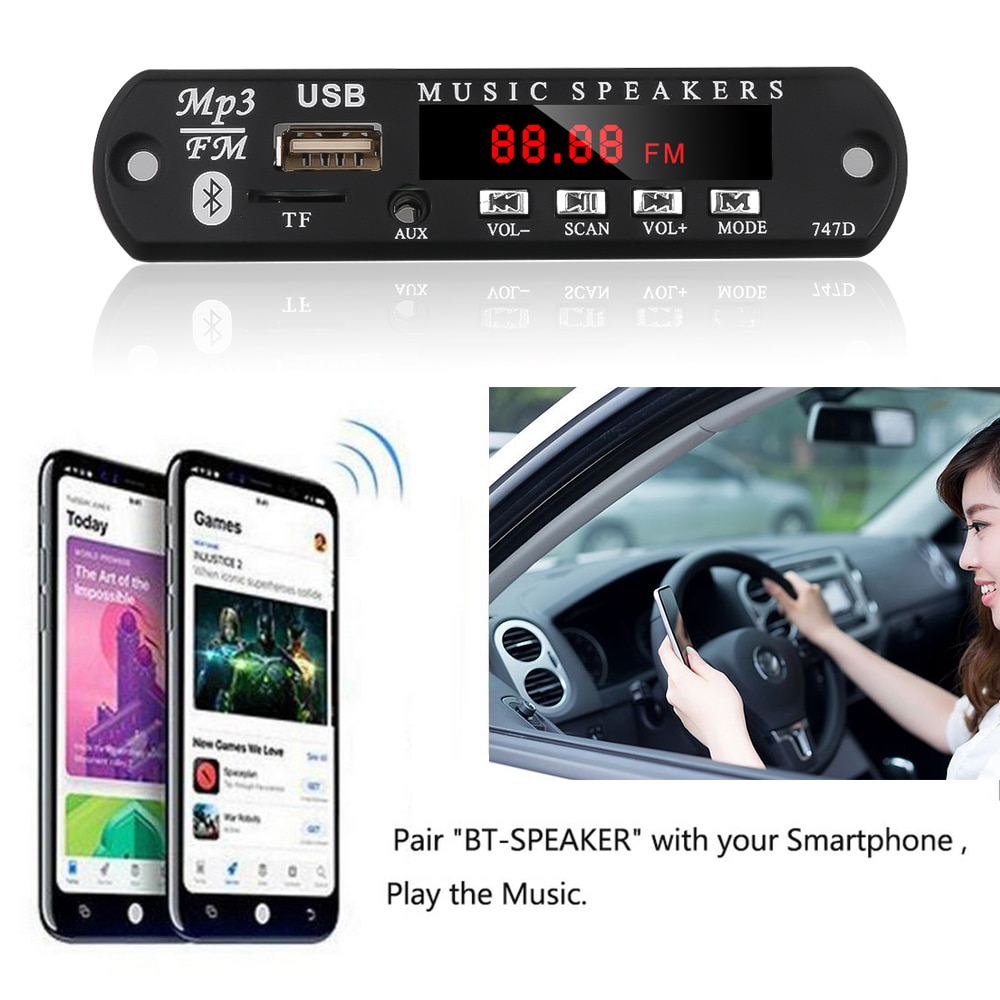

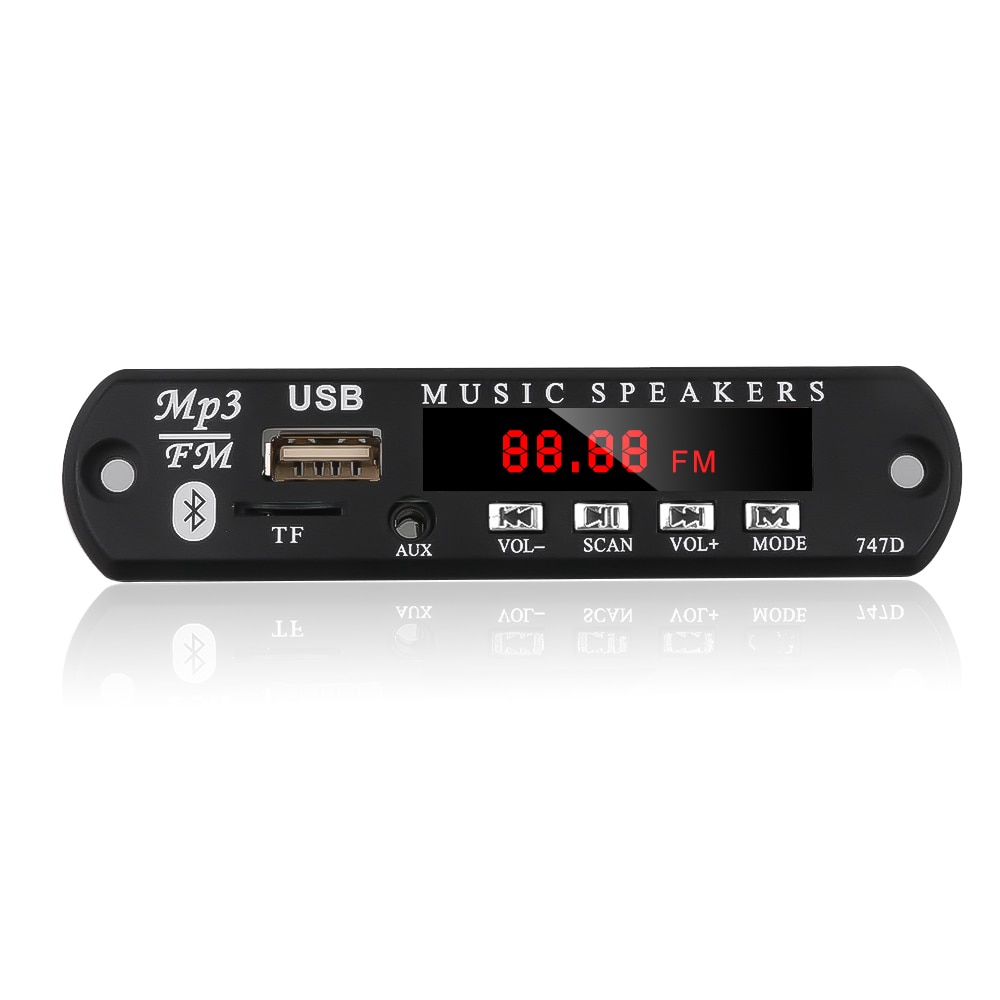

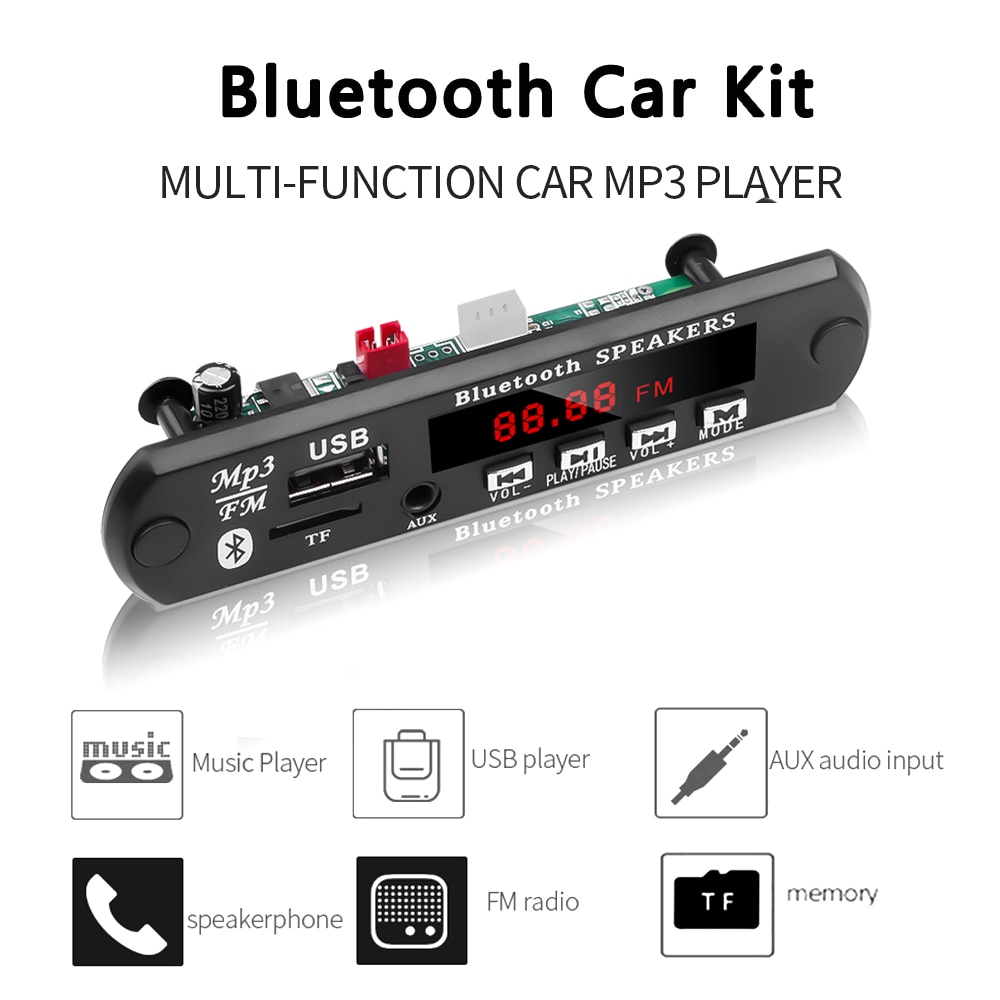

DC 12V Wireless Bluetooth MP3 WMA Decoder Board Audio Module Support USB TF AUX FM Audio Radio Car MP3 Speaker
15.60 13.30 $
* Support signal switch directly. Support USB, TF

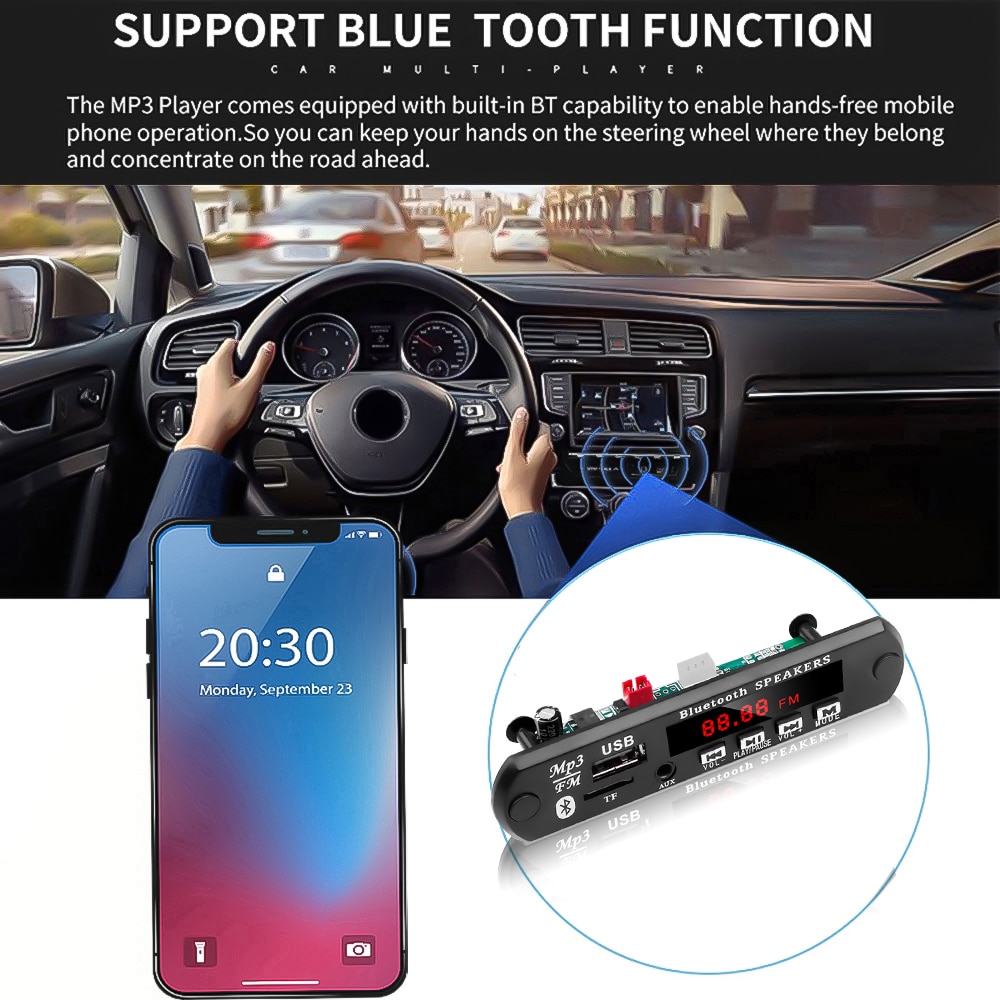

* Support bluetooth (Bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play)
* Support USB / TF / Bluetooth/FM / LINE switch. MP3 / WMA, WAV lossless music decoding chip.
* Support USB / TF card switch, PREV, NEXT, fast forward, fast rewind, volume, EQ, play / pause, stop, single repeat, mute, shutdown and direct election.
* Support Bluetoot PREV, NEXT, volume, EQ, play/pause, mute, turn it off.
* Support FAT16, FAT32 file system. Support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.
* Support power off memory function: memory play songs and volume before power off.
Non-smart phones (android) have to enter the password - 0000
Decoding board play mode instruction:
Decoding board in the absence of memory card or U disk,boot default to //'//'audio input//'//' mode,the screen display LINE
Press //'//'MODE//'//' key on the panel or the remote control switch to bluetooth MODE,the screen shows //'//'BLUE//'//',can open bluetooth search contion at this time
Press //'//'MODE//'//' key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press //'//'PLAY//'//' button automatic searching channel
Press //'//'MODE//'//' key on the panel or the remote control switch to the U disk or memory card //'//'play MODE//'//',the screen displays the time schedule of the song
The remote control instruction:
1. POWER: STANDBY button cannot switch.
2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;
Only U disk: switching sequence for USB→Bluetooth→FM→AUX;
Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;
There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.
3. PREV: In USB/TF / Bluetooth MODE,short press for PREV;
In the USB / SD MODE, long press for fast rewind;In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;
In USB / TF MODE,long press for fast forward;
In FM MODE,short press for next channel,long press for scan search the next channel.
4. VOL + : short / long press for music. VOL - : short/long press for music.
5. REP:In USB / TF MODE,is the switch key between single repeat and whole cycle when play music,boot for all cycle.
6. STOP: In the USB / TF MODE,short press to STOP the music play.
7. MUTE: MUTE,press for MUTE,press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE.The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE;In the FM MODE,long press for searching all channels and save.
Installation pitch: 92 mm wide
Installation hole: 83 x 20 x 38 mm
Overall dimensions: 107 x 25 x 38 mm
(W x H x D)
Input voltage: 5-12V

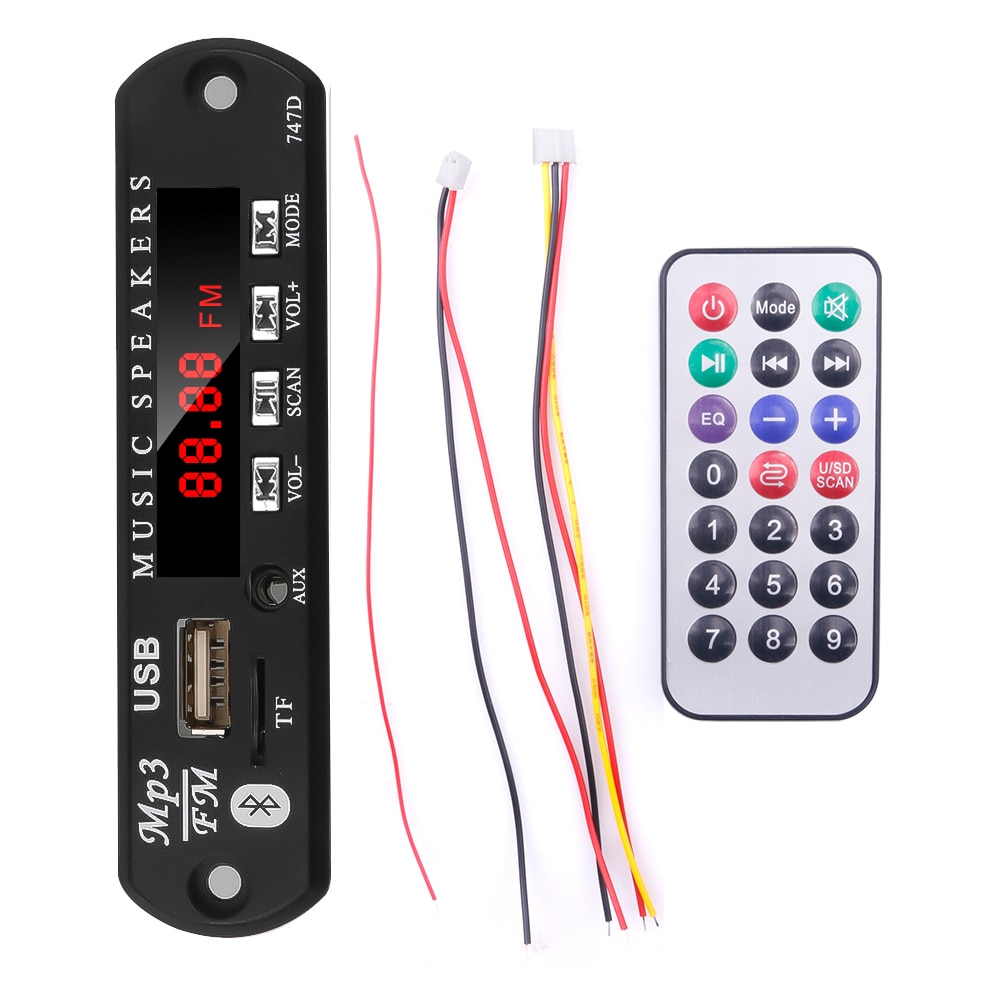

1 X decoding board
1 X remote controls(Without Battery)
