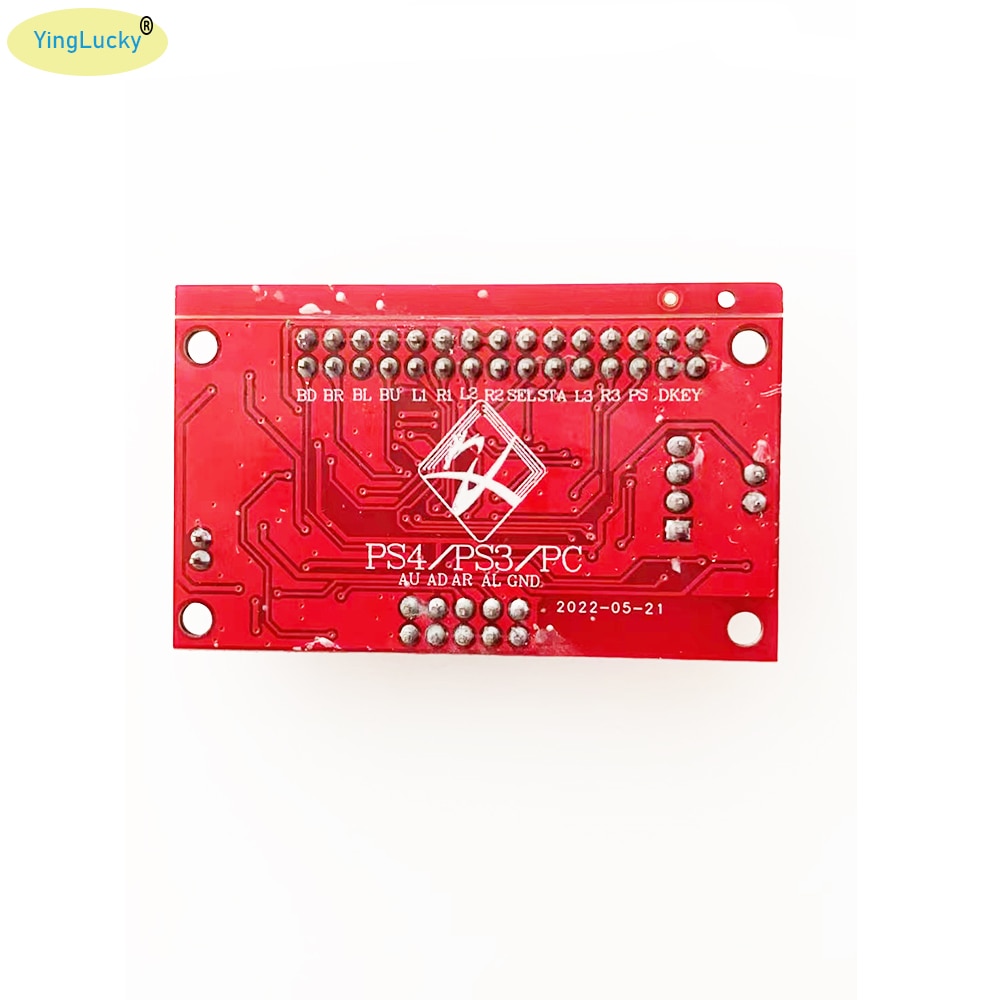

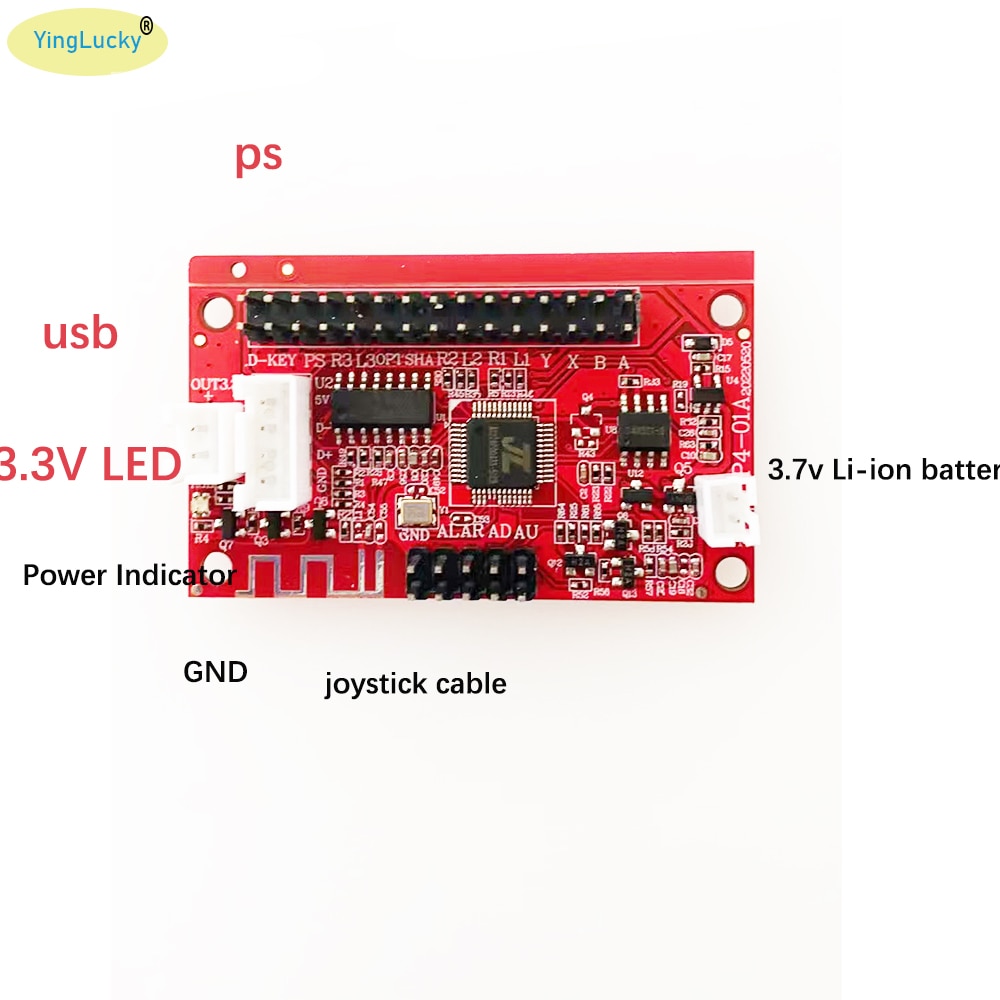

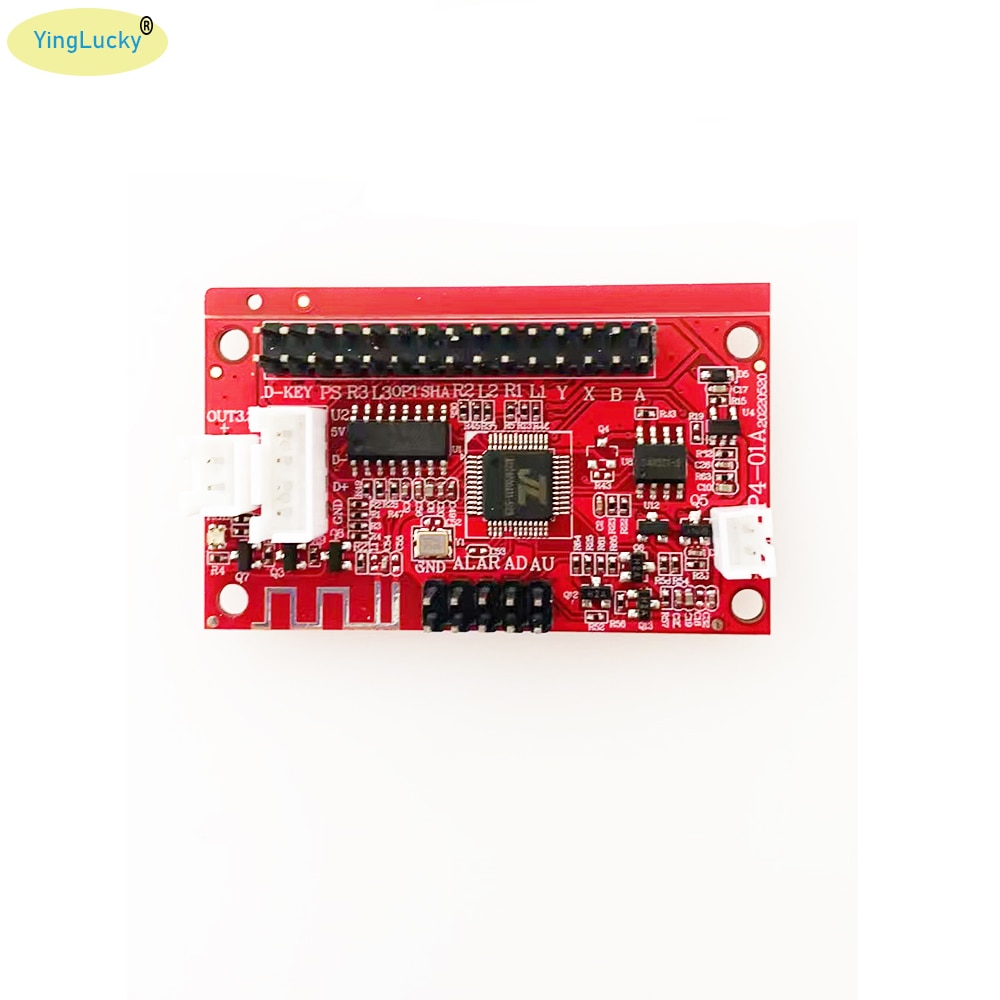

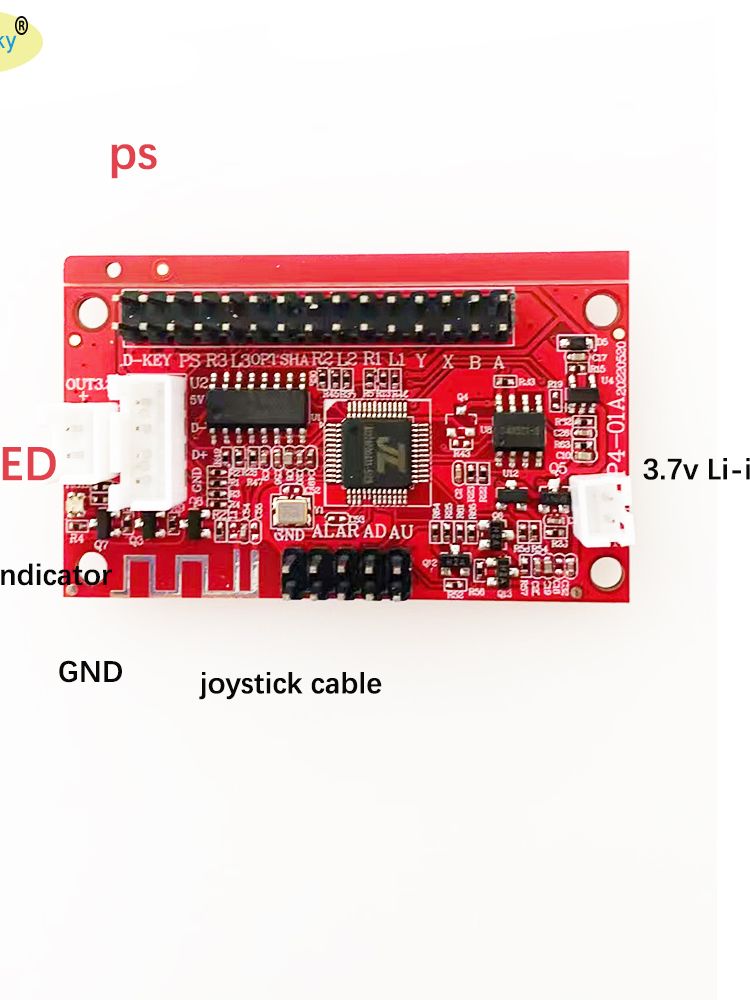

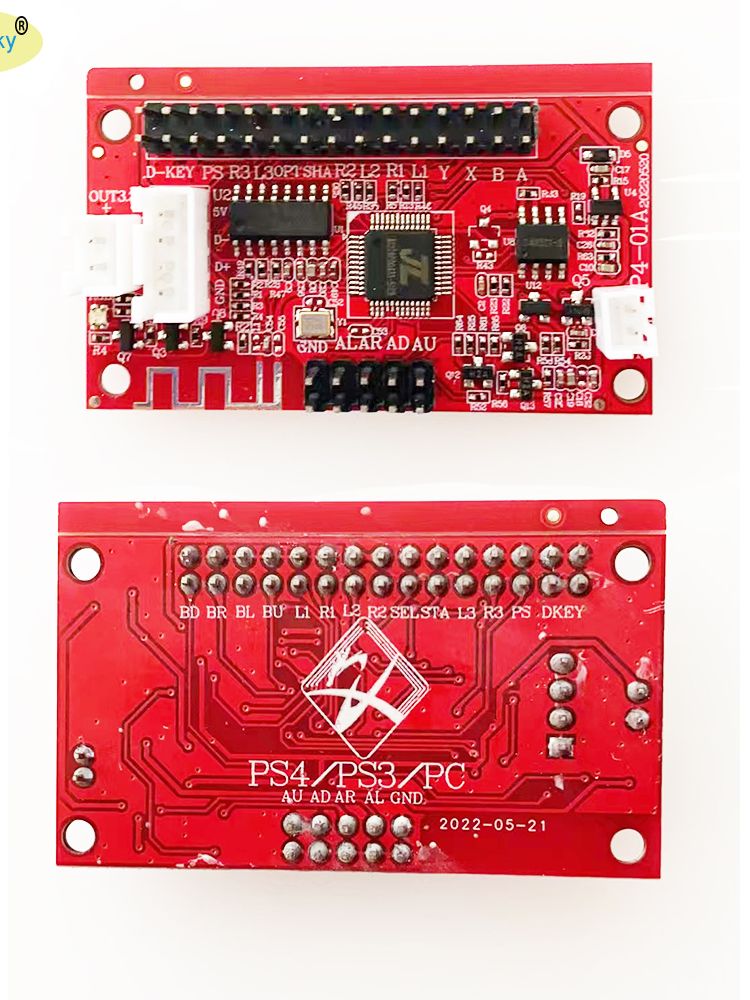

Joystick Encoder PCB Board USB Arcade Zero Delay Controller TO PC PS3 PS4 One Player Wireless Bluetooth With Battery

Wireless bluetooth version without cable

This product does not contain batteries for Bluetooth use. Please use a 3.7 V


lithium battery,


Due to the limitation of shipping and collection of battery products, this


product does not contain batteries. Buyers please buy locally.

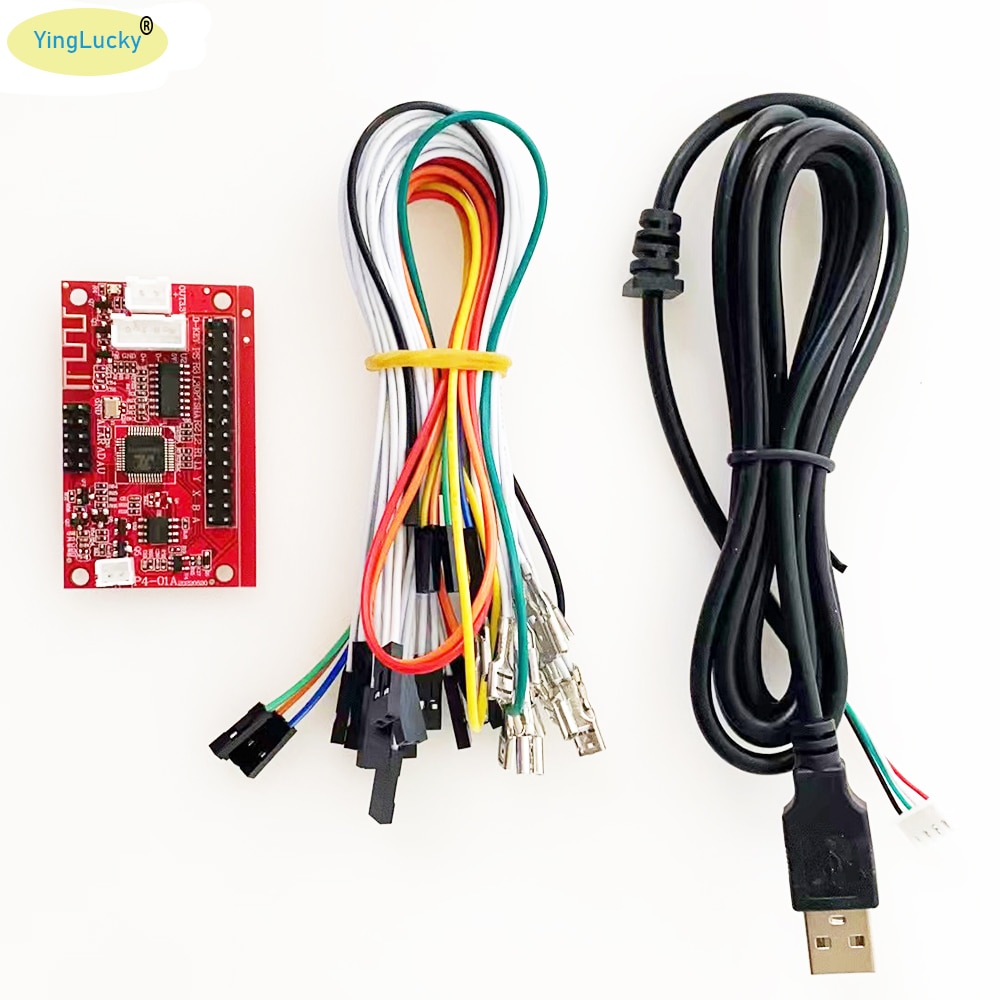

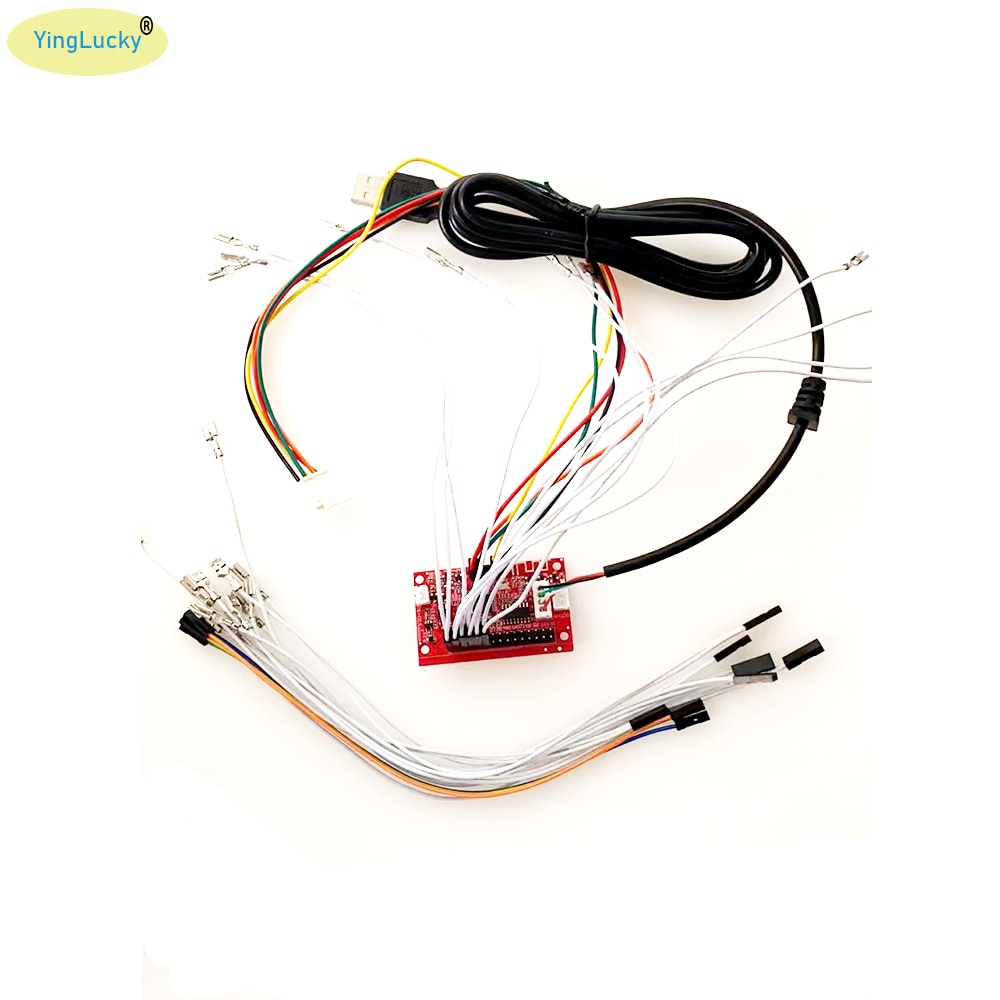

Button joystick cables require additional purchase.

1. Bluetooth mode:

Bluetooth mode connection method: In the off state, long press the HOME+SHARE button, the handle channel light flashes white quickly to enter pairing, select the handle in the device Bluetooth list and click to connect.

(1) Standard Android function, Bluetooth name: WirelessController, Android 10.0 version connects to the touchpad and the mouse will appear.

(2) IOS13 function (support MFI game) Bluetooth name: DUALSHOCK4 WirelessController

(3) PC Bluetooth: It can be directly connected to the PC host through Bluetooth. (The operation method and name are the same as the original handle)

(4) PS4: Up to 4 controllers can be used at the same time, the RGB lights will light up in the order of blue, red, green, and pink, and configure each control

device.

2. Wired mode

PS4 host connection: In the sleep state of the shaker, use the USB cable to connect the host to complete the pairing, and then press the PS button to complete the pairing.

Wireless connection, unplug the cable to control wirelessly.

PS3 host connection: When the shaker is in sleep state, use a USB cable to connect to the host

PC connection: In the sleep state of the shaker, use the USB cable to connect to the host to complete the pairing, and it can be used.



3. Reconnect mode

For the controller that has been paired with the host, press the PS button for 1 second to wake up the controller in the sleep state of the controller, and it will automatically connect to the paired controller after being woken up.

The host is connected back, (in the sleep state of the PS4 host, press the PS button of the handle to wake up the host)

Low battery prompt: When the handle battery is low, the host will prompt the handle to be low, and the handle needs to be charged.

Charging: The handle is plugged into the charging cable and connected to the host computer or charged under DC5.0V. The RGB color LED will display orange when charging when the handle is off.

Color, breathe, fully charged, light off

Press and hold the PS button for more than 1 second to check the remaining battery power on the PS4 console screen.

4. Shutdown and automatic hibernation

Shake off: press and hold the PS button for 10 seconds

When the main unit sleeps, the cradle will automatically sleep

5, RGB light display

1. PS4 host: , the connection is white and flashes slowly, the first controller is successfully paired, the channel light of the shaking table is solid blue, the second one is solid red,

The third one is always green, and the fourth one is pink. The lights are displayed in the order in which the devices are connected.

2. Android and IOS mode: display channel lights according to the color issued by the host device.

3. PC host X-input: Display the channel lights according to the color sent by the PC host.

4. PC host D-input: After the connection is successful on the PC host in D-input mode, the host will not issue a channel light, and the default power-on is orange

Yellow breath.

5. PS3 host: the same as the PS4 shaker connected to the host, the blue light is always on, and the subsequent display will be displayed according to the color issued by the host.

PCX-input mode and PS4 host mode and PS3 host mode, if multiple controllers are connected, the host will issue different color channel lights

(If the description is not accurate, you can try to refer to the original handle to connect the lighting effect)
