Factory CCD Camera Hard Sticker Traffic Signs Vinyl Contour cutter Machine ploter 3M Reflective Sticker Cut Vinyl Cutter Cutting
32,000.00 $
SALE
NEW
ID: 129767
Quantity

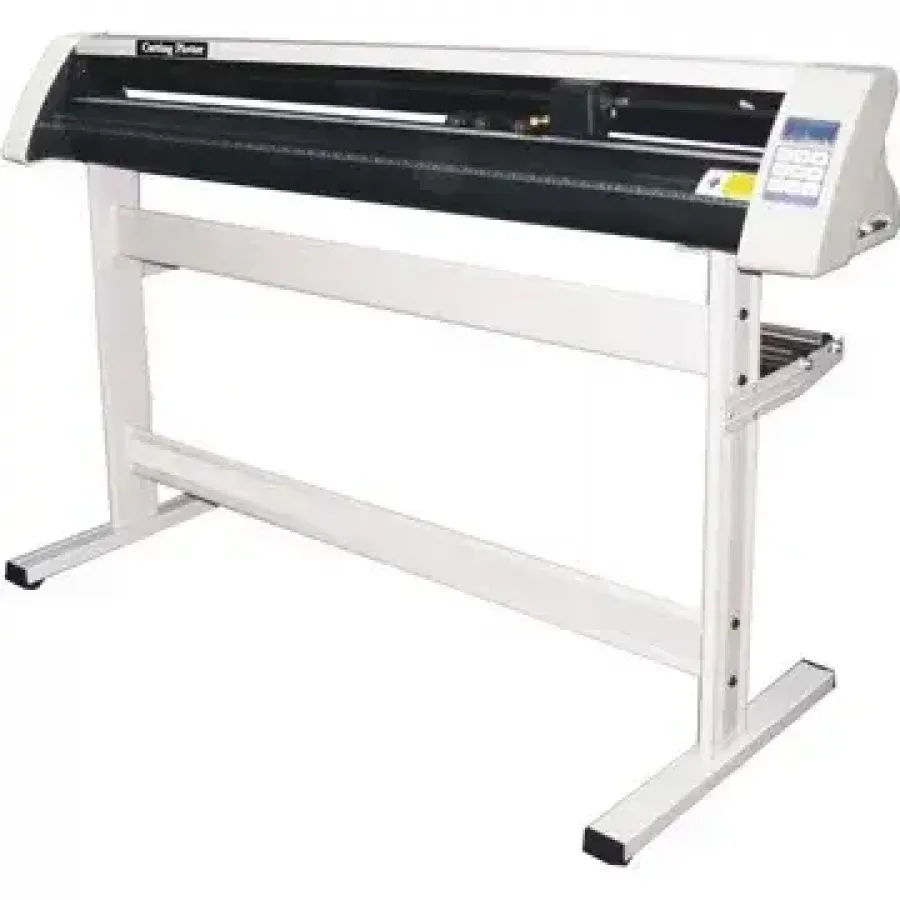

JK1350 Vinyl Cutting Machine Stepper Motor Drive Motor500g Pressure of Engraving Knife 800mm/s Cutting Speed Complimentary Stand
0.0 (1 votes) | 1 orders
Price:
US $1201.10
Discount Price:
US $
1160.00
-3%

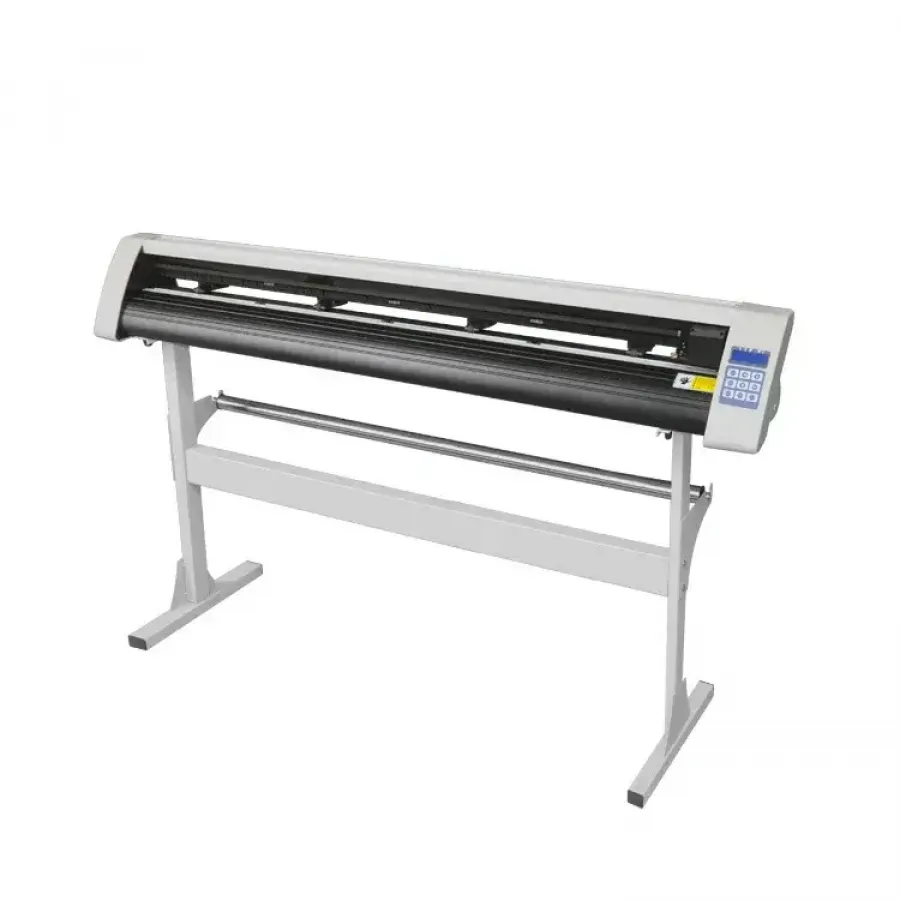

PE Cutting Plotter Supported COM+USB , Vinyl Cutter Machine with Laser Eye Optional, Plotter 800mm Cutting Speed
SPECIFICATION:
| Model | JK-365PE | JK-721PE | JK-871PE | JK-1101PE | JK-1351PE |
| Max.paper width | 360mm | 720mm | 870mm | 1100mm | 1350mm |
| Max.plotting width | 270mm | 630mm | 780mm | 1010mm | 1260mm |
| Gross Weight | 10KG | 19KG | 21KG | 25KG | 28KG |
| Packing Size | 60*34*43CM | 95*34*42CM | 110*34*43CM | 133*34*42CM | 158*34*42CM |
| Max.cutting speed | 800mm/s | ||||
| Max.cutting force | 500g | ||||
| Memory | 1M (4M optional) | ||||
| Interface | COM+USB | ||||
| Power supply | Switch power supply | ||||
| Carriage | single cutter position carriage (laser eye optional) | ||||
| Command set | DMPL&HPGL | ||||
| Working voltage | AC85 ~ 264V / 50 ~ 60 Hz | ||||
| Compatible system | Windows XP / Vista / 7 / 8 (32bit & 64bit) / MAC | ||||
| Stand | Iron stand (JK365PE without stand) | ||||
| Software | Artcut, Anycut, Flexi (purchase optional) | ||||
| Color | white, gray, black | ||||
| MAIN FUNCTION | TEXT & PATTERN CARVING ; SEMI-AUTOMATIC CONTOUR CUTTING WITH LASER EYE |
||||
FEATURES:
*Professionally Integrated circuit with high precision and real time regulation on speed and force, setup the origin point at discretion.
*Advanced aluminum alloying structure excellent workmanship, long lifespan and durability.
*Good quality high speed stepping motor, low noise, cutting more precisely.
*Compatible with many computer operation systems such as Windows XP, Vista, Windows7(32bit&64bit) and MAC system.
DETAILS DISPLAY:
APPLICATION:
KAXING Cutting Plotter Machine is suitable for cutting All adhesive sticer.
Filed: packaging proofing, clothing plate, making car beauty industry, make signs for shop windows, cars and vans, cutting labels, heat pressing logos and slogans onto T-shirts.
Material: vinyl adhesive sticker, craft paper, sandblast menbrane, wall paper, heat transfer film, PET, PP, PVC, PC, etc.(MAX. THICKNESS: LESS THAN 1MM)
SHIPPIND & PACKAGE:
(1) FedEx/DHL/UPS/TNT for samples, Door-to-Door,
(2) By Air or by Sea for batch goods, for FCL/LCL; Airport/ Port receibing;
(3) Customers specifying freight forwarders or negotiable shipping methods;
(4) Delvery Time: 3-7 days for samples; 7-20 days for batch goods.
Packaging Details
- Unit Type:
- Package Weight: 40.000
- Package Size: 35x42x160
- Brand Name: BMAD
- Hign-concerned Chemical: None
- Origin: Mainland China
- Max Paper Siz: 1350MM
- Cutting Speed: 800mm/s
- Interface Type: USB
- Driver: Stepper Motor
- Size: 1351mm
- Model Number: JK1351
- Cutting Length: Limitless
- Repeat Cutting: Yes
- Voltage: AC85 ~ 264V / 50 ~ 60 Hz
- Type: Laser
- Cache Capacity: 1M(4M optional)
- Paper Feed Width: 1350mm
- Certification: CE
- Certification: RoHS
- Cutter Pressure: 500g
- Cutting Width: 1350mm
- Place of Origin: Anhui, China
- Brand Name: Jinka ,Goldcut
- Model Number: JK1351
- Cache Capacity: 1M(4M optional)
- Paper Feed Width: 1350mm
- Cutter Pressure: 500g
- Cutting Width: 1350 mm
- Cutting Speed: 800mm/s
- Driver: Stepper Motor
- Cutting Length: Limitless
- Repeat Cutting: YES/0.127MM
- Size: 158*34*42CM
- Color: White, Gray, Black
- Stand: Iron / Aluminum stand
- Carriage: laser eye optional
- Interface: COM+USB
- Compatible system: Windows XP / Vista / 7 / 8 (32bit & 64bit) / MAC
- Command set: DMPL&HPGL
- Certification: CE/ROSH
- Warranty: 1 Year
- Keywords: cutting plotter
