ID: 5430

Industrial pc Intel Corei7 8565U i5 8250U Desktop 5250U Win10 Linux i3 Minipc Intel NUC 4K HD RS232 RS485 Personal Portable PC

0.0 ( votes) | 1 orders
Price:
US $ 565.05 - 1741.52 / piece

Sorry! This item is out of stock

Industrial pc Intel Corei7 8565U i5 8250U Desktop 5250U Win10 Linux i3 Minipc Intel NUC 4K HD RS232 RS485 Personal Portable PC

Processors Performance

Core i3 4005U: 22 nmCPU Haswell 1.70 GHz 2 Core 4 thread Intel HD Graphics 4400 200 MHz-950 MHz

Core i3 4200U: 22 nmCPU Haswell 1.70 GHz 2 Core 4 thread Intel HD Graphics 4400 200 MHz-950 MHz

Core i7 4500U: 22 nmCPU Haswell 1.80 GHz-3.00 GHz 2 Core 4 thread Intel HD Graphics 4400 200 MHz- 1.10 GHz

Core i3 5005U: 14 nmCPU Broadwell 2.00 GHz 2 Core 4 thread Intel HD Graphics 5500 300MHz-850GHz

Core i5 5250U: 14 nmCPU Broadwell 1.60 GHz-2.70 GHz 2 Core 4 thread Intel HD Graphics 6000 300MHz-950GHz

Core i3 7020U: 14nm CPU Kaby Lake 2.3GHz 2 Core 4 thread intel HD Graphics 620 300MHz-1GHz

Core i5 7200U: 14nm CPU Kaby Lake 2.3GHz 2 Core 4 thread intel HD Graphics 620 300MHz-1GHz

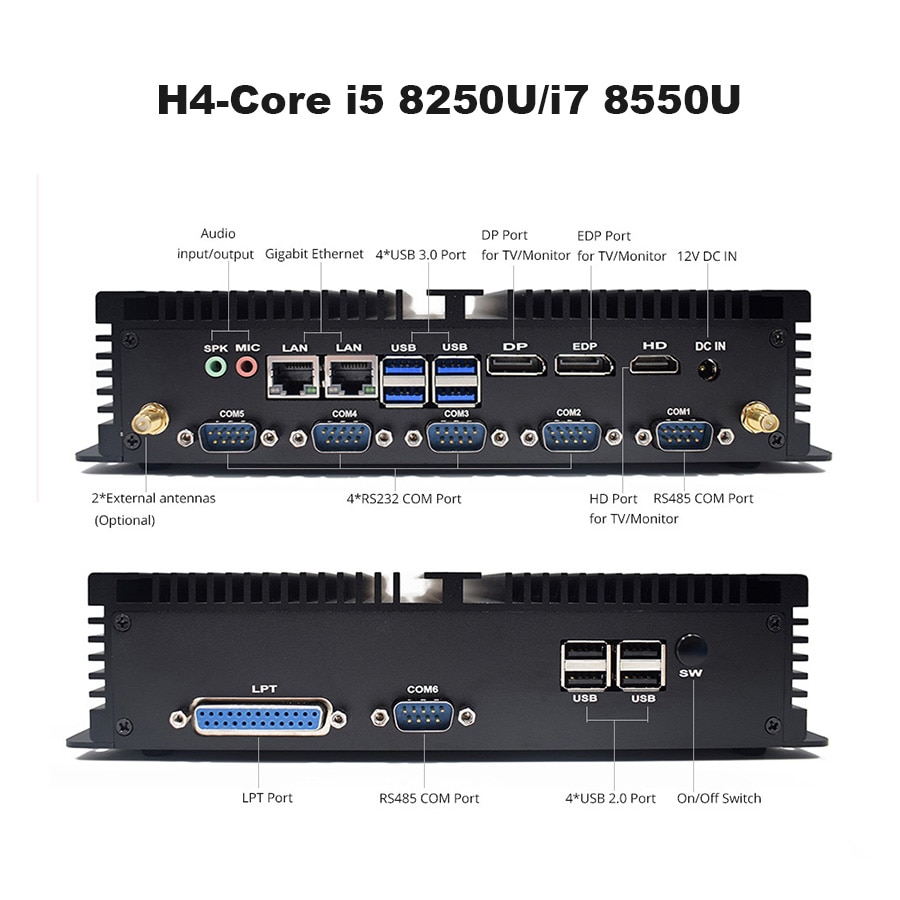

Core i5 8250U: 14nm CPU Kaby Lake R 1.6-3.4GHz 4 Core 8 thread intel UHD Graphics 620 300MHz-1.1GHz
Core i7 8550U: 14nm CPU Kaby Lake R 1.8-4.0GHz 4 Core 8 thread intel UHD Graphics 620 300MHz-1.15GHz

Features:

1. Support Windows 8/10, Linux, Ubuntu OS, and more;

2. Support two hard disk, one mSATA SSD and one 2.5 inch HDD/SSD, and we free send 2.5 inch SATA cables;

3. Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers;

4. Support Wake-on-LAN, Automatically power on when power failure, support virtualization.

5. Extensive connectivity, 1x Gigabit LAN, 2x RS232, 4x USB 3.0 ports , 3x USB2.0,Combo audio;

6. Support WiFi connected to network; 10. Aluminum case & Fanless passive cooling offer you zero noise experience.

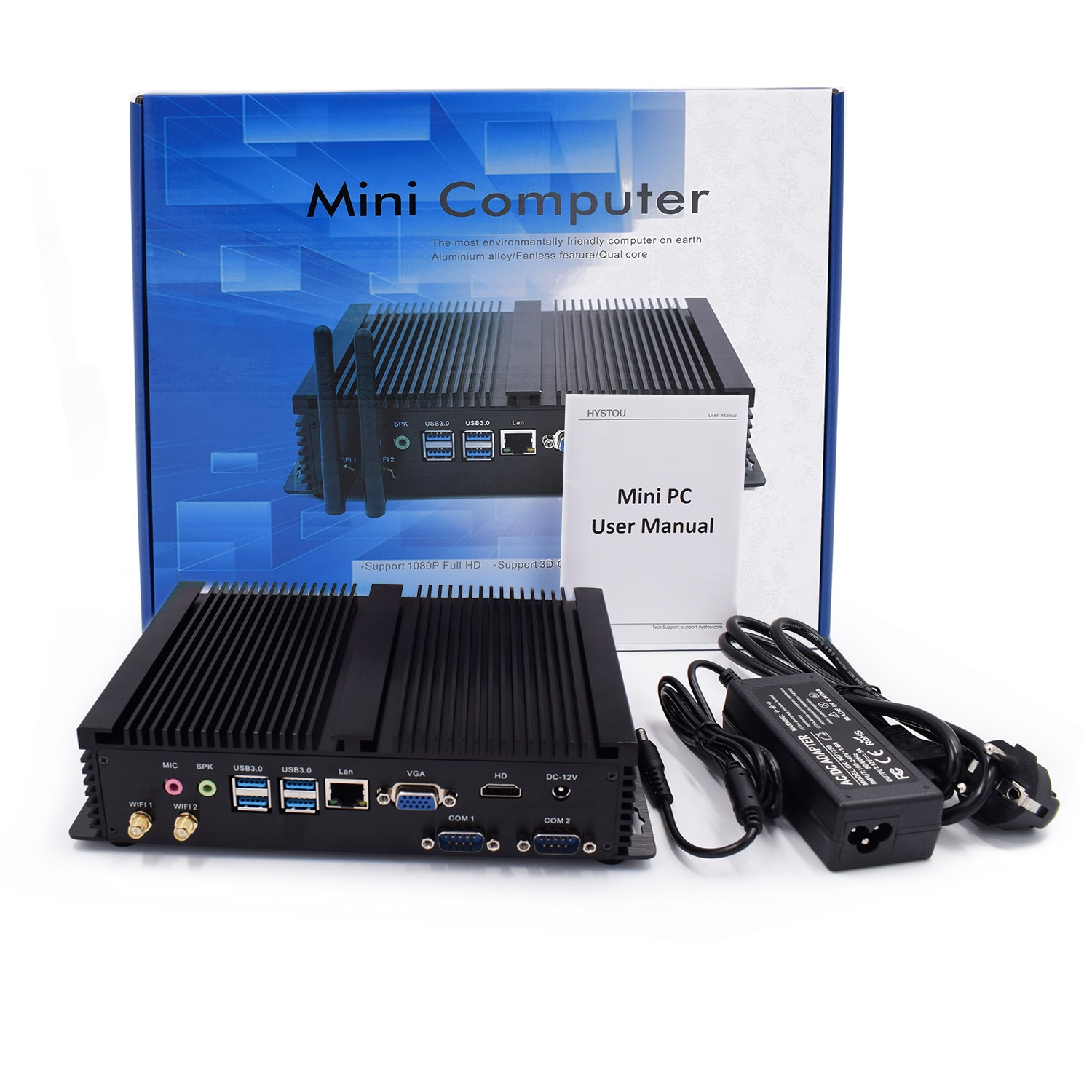

What In The Package

1x Mini PC

1x AC adapter ( we ship correct power plug base on buyer's address )

1x Power cord 1x WiFi module and antennas ("NO SSD NO RAM" bundle package without WiFi module and antennas )

1x SATA Power cable & data cable

1 x User manaul & warranty card

Buyer's Guide

1) Buyer please select processor from " Color " option, and select memory capacity and hard drive capacity from " Bundle " option ; If you need other combination, please leave us message and we will offer quotation.

2) Windows7/8/10 English for free, other languages can be selected. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need.

3) Buyer select DHL/Fedex shipping method, should be sure your address is belong to normal delivery area, otherwise there will be extra cost for delivery, if your address is remote area, our salesman will inform you asap; or we will ship out by other shipping method;

4) All items price NOT include destination custom taxes and VAT.


Specifications:

Key Features

CPU

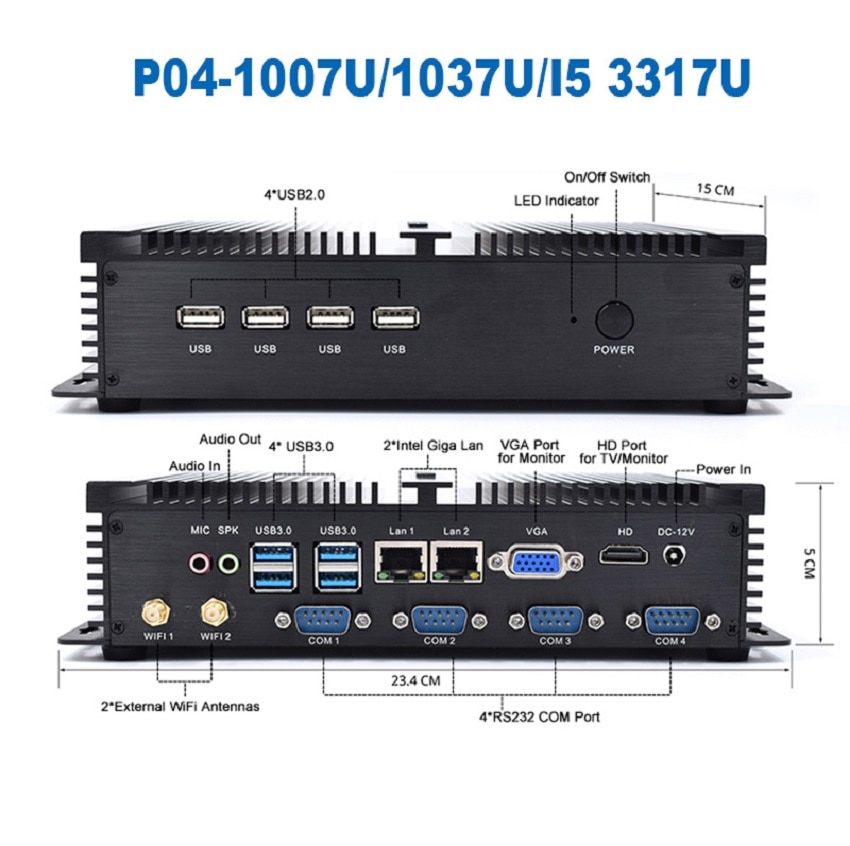

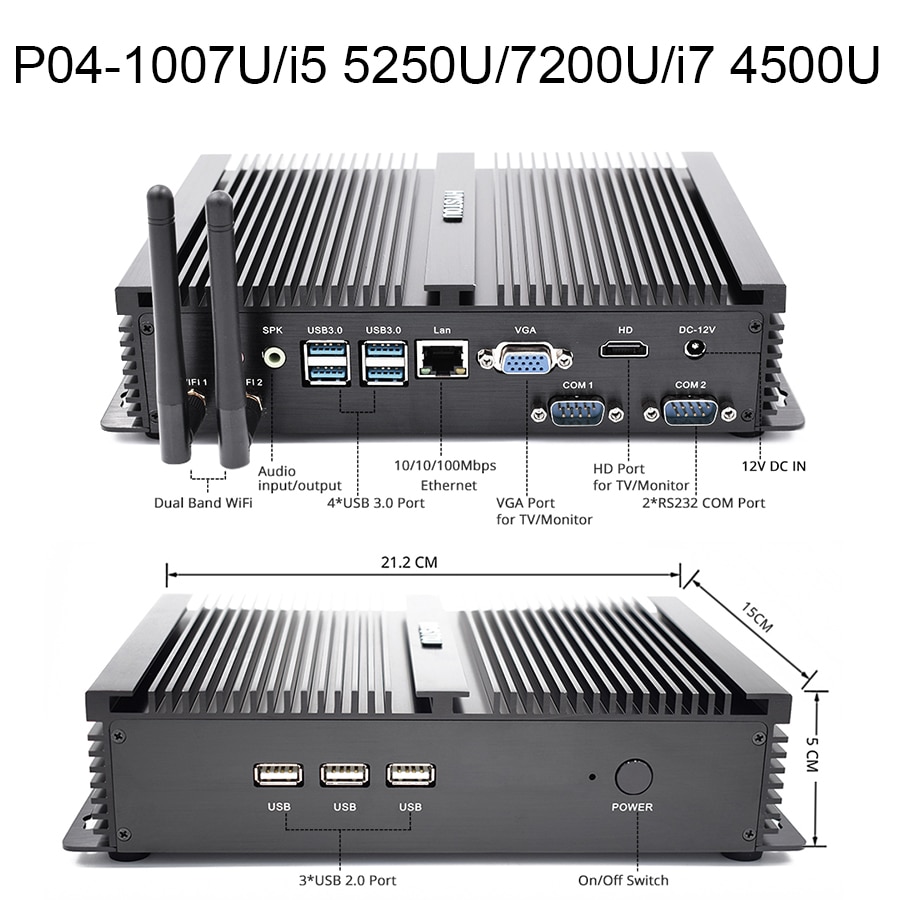

celeron 1007u.core i3 4005u/i5 4200u/5250u/8250u/i7 4500u

RAM

P04 module Support 2G / 4G / 8G / 16G /32GB

DDR3L-1333/1600MHz and LPDDR3-1333/1600MHz SO-DIMM Notebook memory

DDR4-2133/2400/2666MHz SO-DIMM Notebook memory

PS: 1007U module just support  max 1*8GB DDR3L RAM

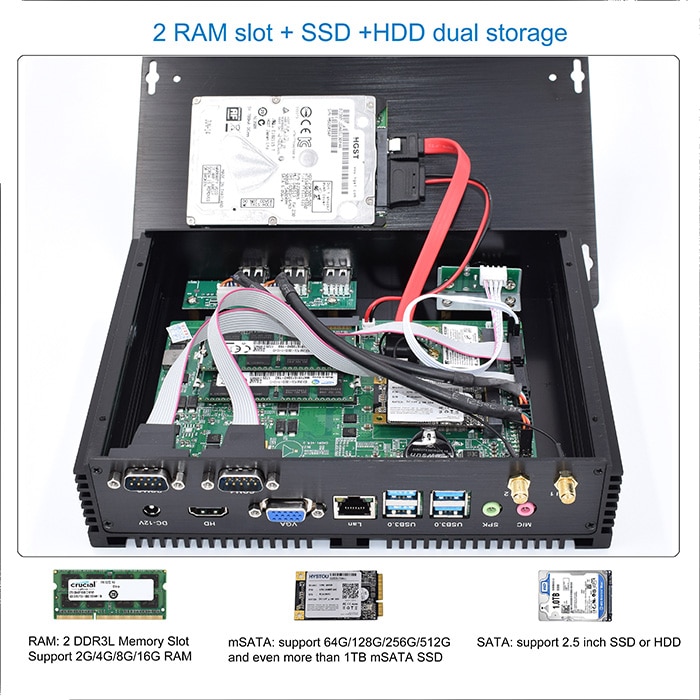

Storage

P04 Support mSATA SSD and 2.5 inch laptop HDD/SSD;

can install maximum 1 HDD (2.5 inch) +1 SSD (mSATA 3.0) together

BIOS

AMI BIOS, ACPI supported, support call-on function automatically, Wake-on-LAN

I/O

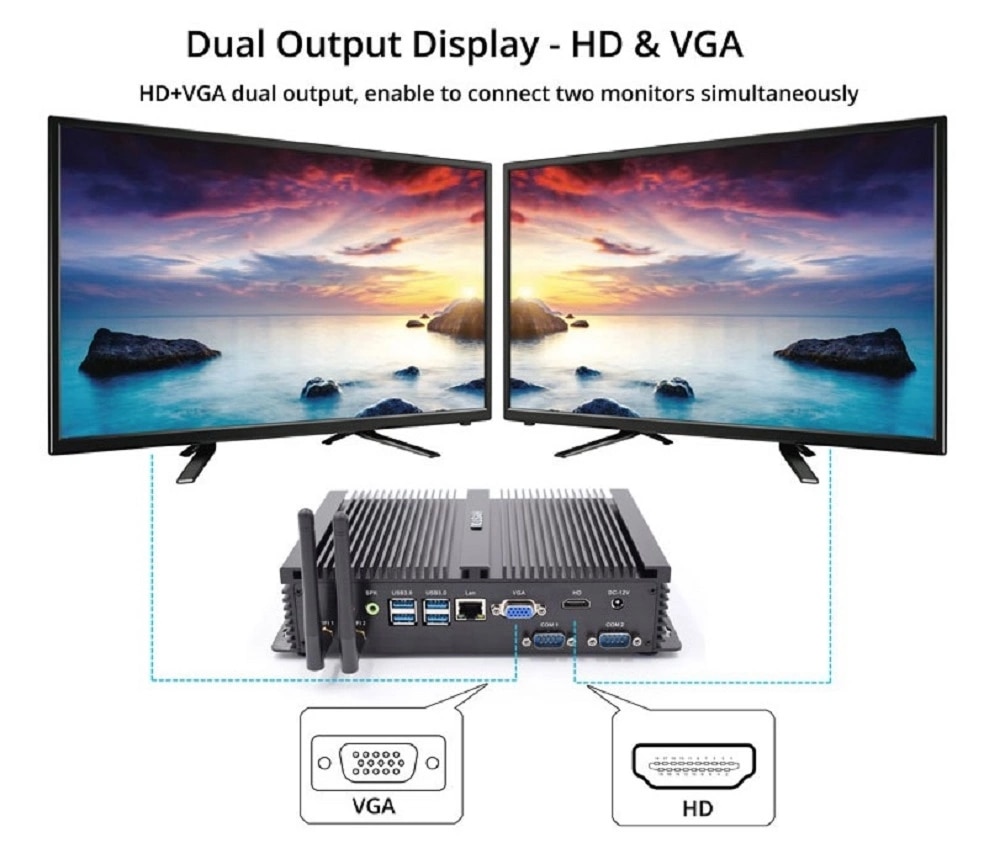

Mic;Speaker;4 USB 3.0 port;3 USB 2.0 port;1 RJ45 Gigabit LAN Port; 2*RS232 COM, 1 VGA;1 HDMI;1 DC12V In;

Operating System

Windows 7 / 8 / 10, Linux Compatible,suggest OpenELEC for no less than 16GB SSD,Win7 or Win8 for up to 32GB storage

BIOS

AMI BIOS, ACPI supported, support call-on fuction, automatically Wake-on-LAN

Audio Cards

Adopting ALC892 chip 6 channel sound card

USB port

4 USB 3.0+4 USB 2.0

Wireless

300MB dual band Wifi module(Built-in) with 2 Antennas

Ethernet

10/100/1000 BaseT LAN

Network Card

RTL8168E PCIE Gigabit ethernet NIC

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~3A/5A

Operating Temperature

0/70 Centigrade (32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Support Virtualization technology

Hyper-threading

Support Hyper-Threading

Consumption

15W~28W

Physical Properties

Material

Brushed Aluminum Alloy

Weight

NW:1.6Kg   GW:2.6Kg

Package Content

1 Mini PC; 1  power adapter(Power acord according to the buyer's country); 2  Antennas, SATA cables, 1 HDMI cable

Warranty

30 days free defective replacement and 3 years free repair

1. Normally we'll write a suitable lower deslare value(like $60) of item to reduce the tariff for customers, because buyersare responsible for paying tax involved, such as import tax, VAT, etc.

2. If you have special requirement of the value, please leave a message to us when you make order.

3. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for you cooperation.

1. We provide one year warranty period, repair or replace for free; the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our bestto deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down, please contact us.




  • Brand Name: HYSTOU
  • Processor Model: Intel Core i5 7200U/Core i7 4500U/Core i3 6006U/Core i3 7100U
  • Use: Household
  • Memory Capacity: ≤ 128MB
  • Certification: CE,FCC,RoHS
  • Hard Drive Capacity: ≤ 40GB
  • Type: Mini Desktop
  • Origin: Mainland China
  • Model Number: FMP04/H5/P12
  • Processor Main Frequency: According to the CPU
  • Processor Brand: Intel
  • Graphics Card Type: Integrated Card
  • Type: MINI PC
  • Operating System: Default Cracked OEM Windows 7/Windows 10
  • WiFi: With dual antennas, 802.11.b/g/n(150M or 300M)
  • Ethernet port: 1*RJ45 10/100/1000 Mbps Adaptive

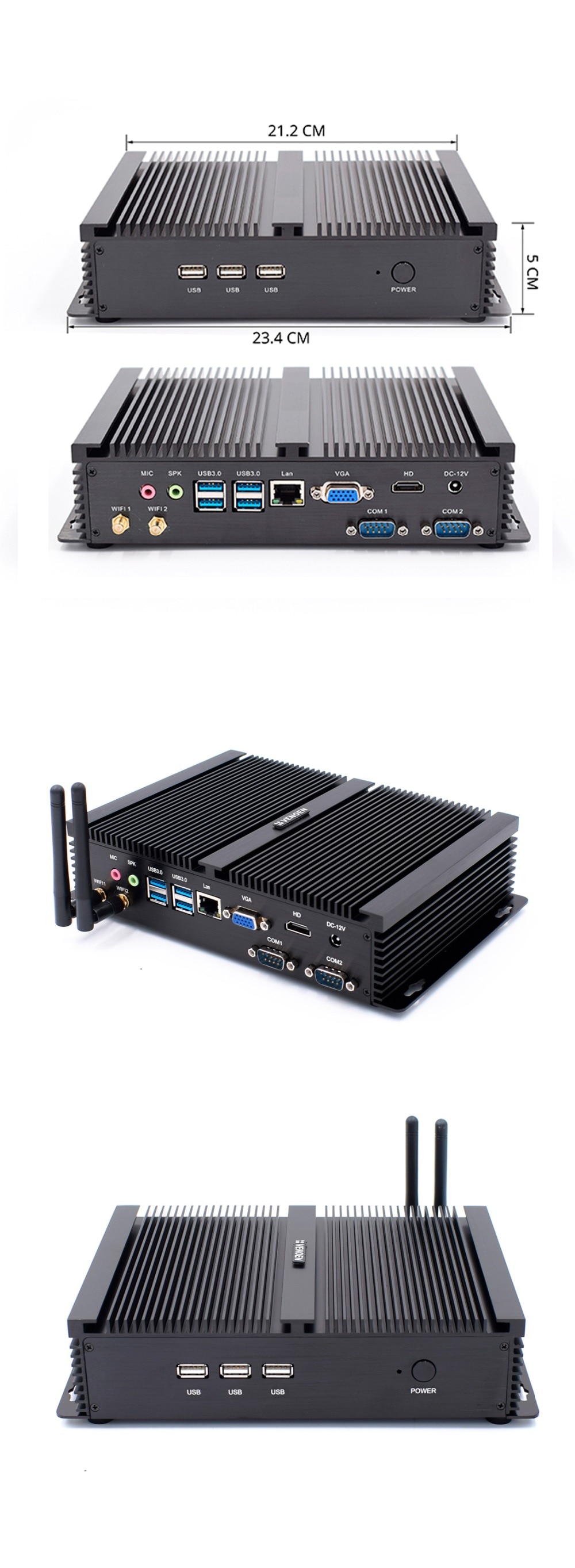

  • PC Size: 200*235*53mm
  • Warranty: 7Days Free Replacement and 3 Years Free repair
  • RAM Slot: 2RAM channel, support Maximum 16GB memory
  • Network Card: RTL8168E PEIE Gigabit Ethernet NIC
  • Case Material: All Aluminium Alloy case
  • Audio-Cards: Adopting ALC892 chip 6Channel sound
