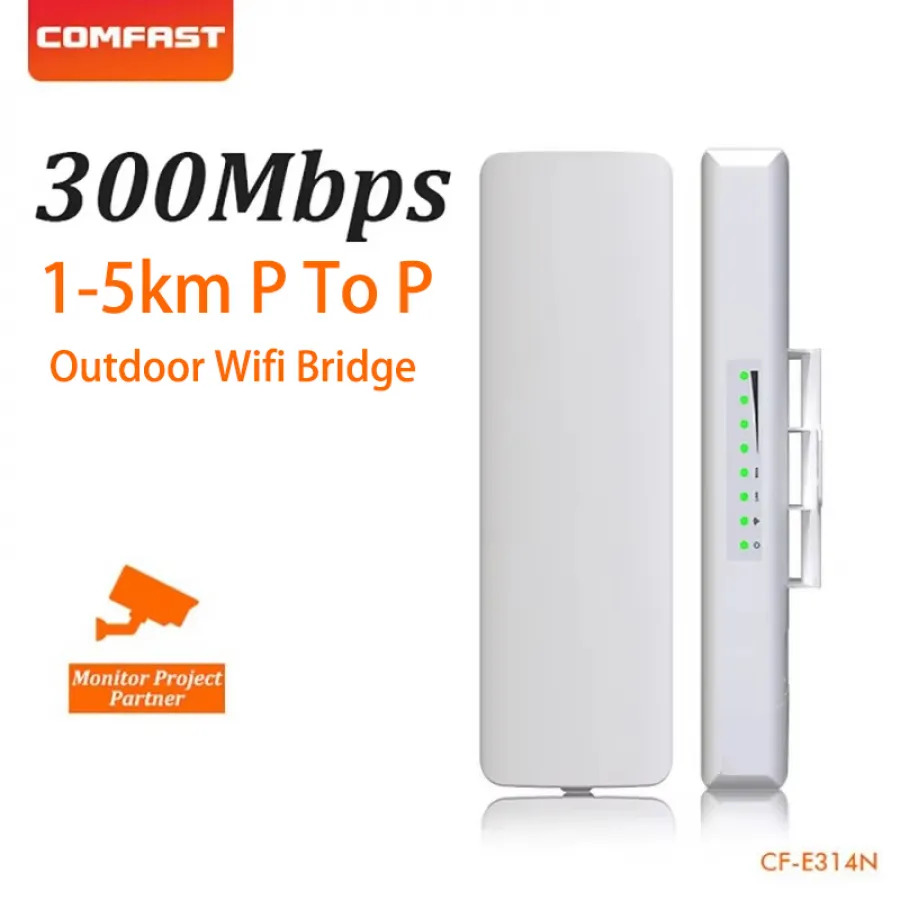

COMFAST Outdoor WiFi Bridge 3-5KM Long Rang Network Monitoring CPE Client Receive WIFI Signal Extender Transmission CF-E314N V2
Product Description
CF-E314N V2 wireless network bridge is designed for outdoor long-distance transmission
1.QCA9531 650Mhz Chipset
2.Built-in power amplifier PA to provide high-speed transmission
3.Can provide up to 300Mbps wireless speed
4.2.4G working frequency, long transmission distance
5.Built-in 2*14dBi gain antenna, wide transmission acceptance rate
6.High-quality 48VPOE power supply
7.The signal strength indicator can intuitively understand the working status of the equipment
It is widely used in point-to-point, point-to-multipoint and other outdoor surveillance coverage applications. At the same time, its professional structure design is suitable for any harsh climate. Therefore, it is an ideal choice for long-distance outdoor Wi-Fi transmission.
Suggestion
The distance "3-5KM" mean 2pcs CPE based on point to point bridge mode.
There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!
It is suitable for the transmission of wireless signals in security monitoring projects; the transmission of monitoring projects such as scenic spots, ports, oil fields, and construction sites.
Any more quesitons ,please kindly message us ! Thanks a lot !

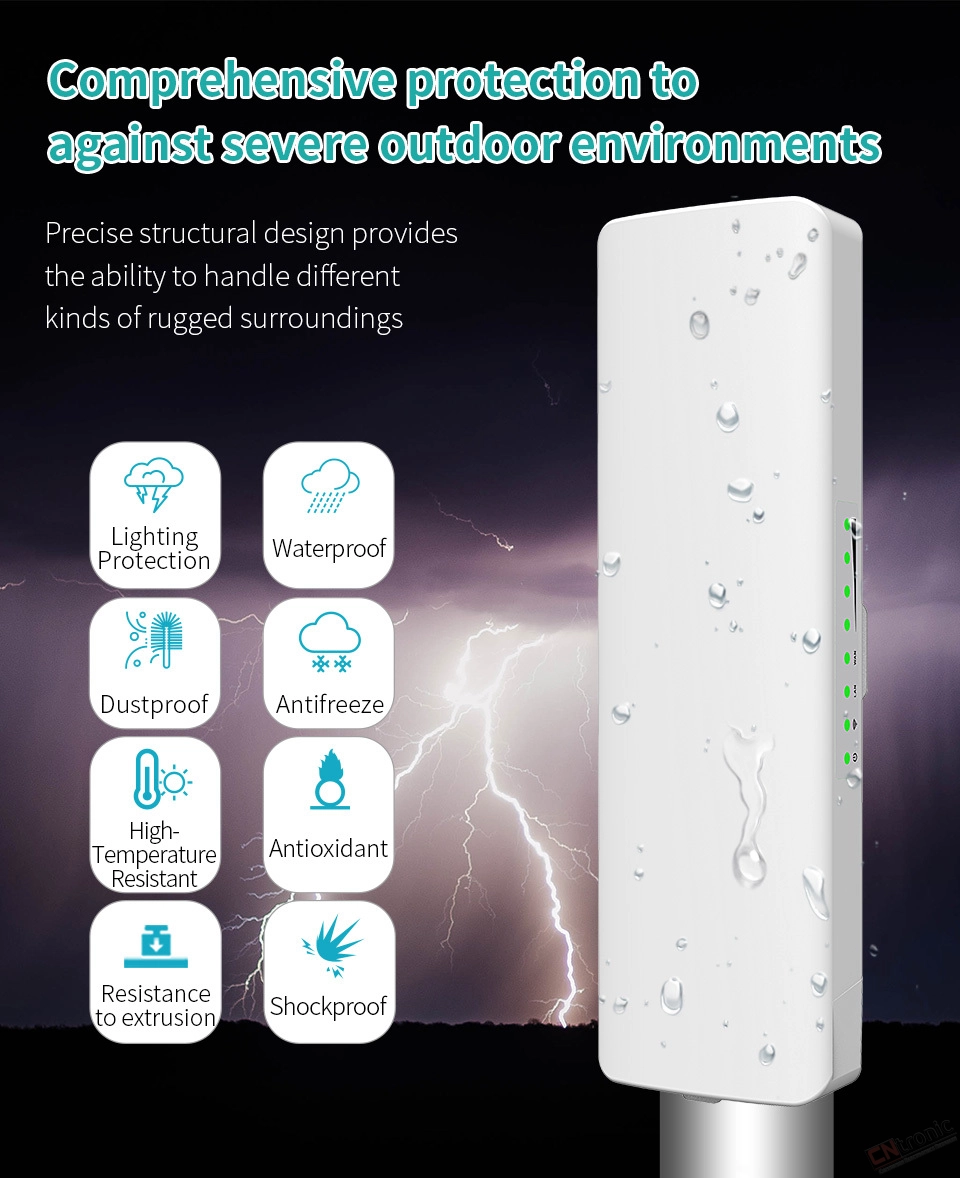

Comprehensive protection to against severe outdoor environnments
Precise structural design provides the ability to handle different kinds of rugged surroundings
Lighting Protection & Waterproof & Dustproof & Antifreeze & High Temperature & Antioxidant Resistant & Resistance to extrusion Shockproof

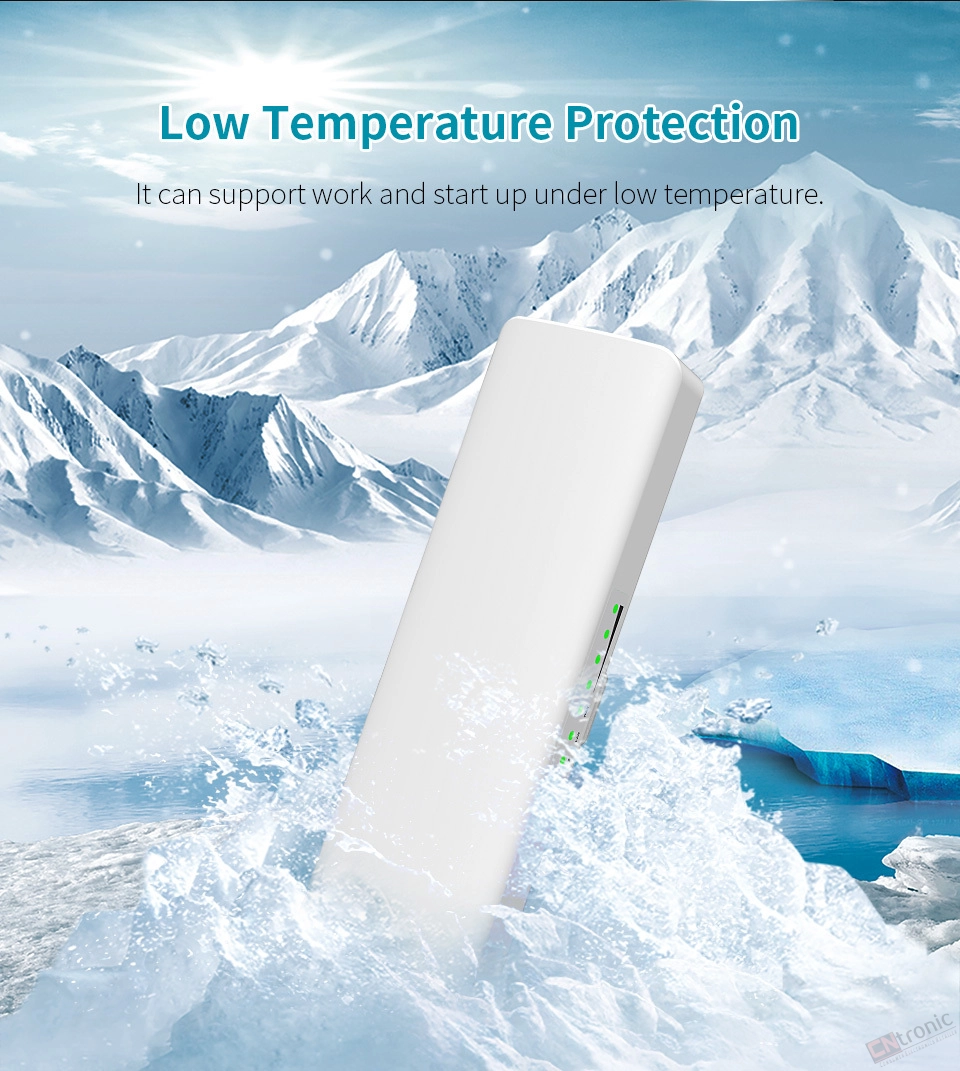

Low Temperature Protection
It can support work and start up under low temperature
Qualcomm chip Perfect Performance
As Qualcomm's global strategic partner , COMFAST products all use Qualcomm chipset , because we believe that QUALCOMM holds the high performance highland around the world

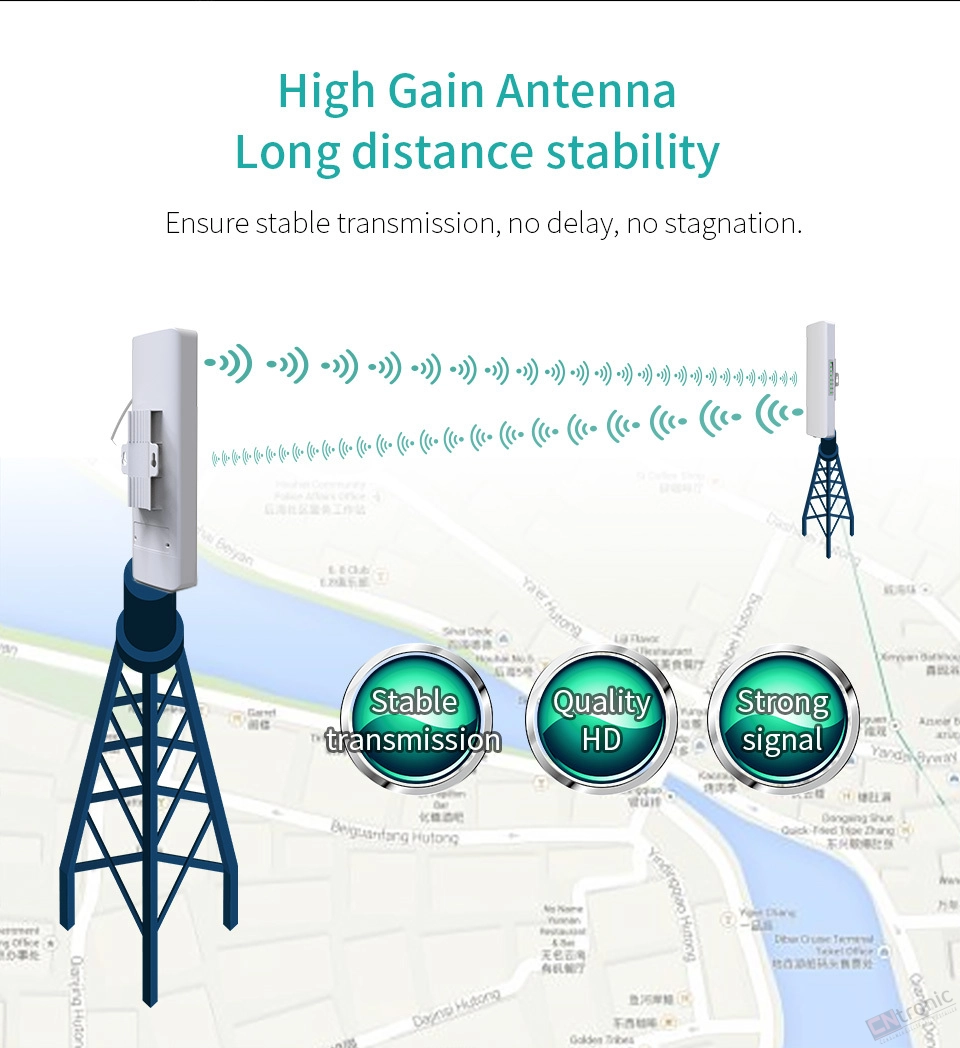

High Gain Antenna Long distance stability
Ensure stable transmission , no delay , no stagnation

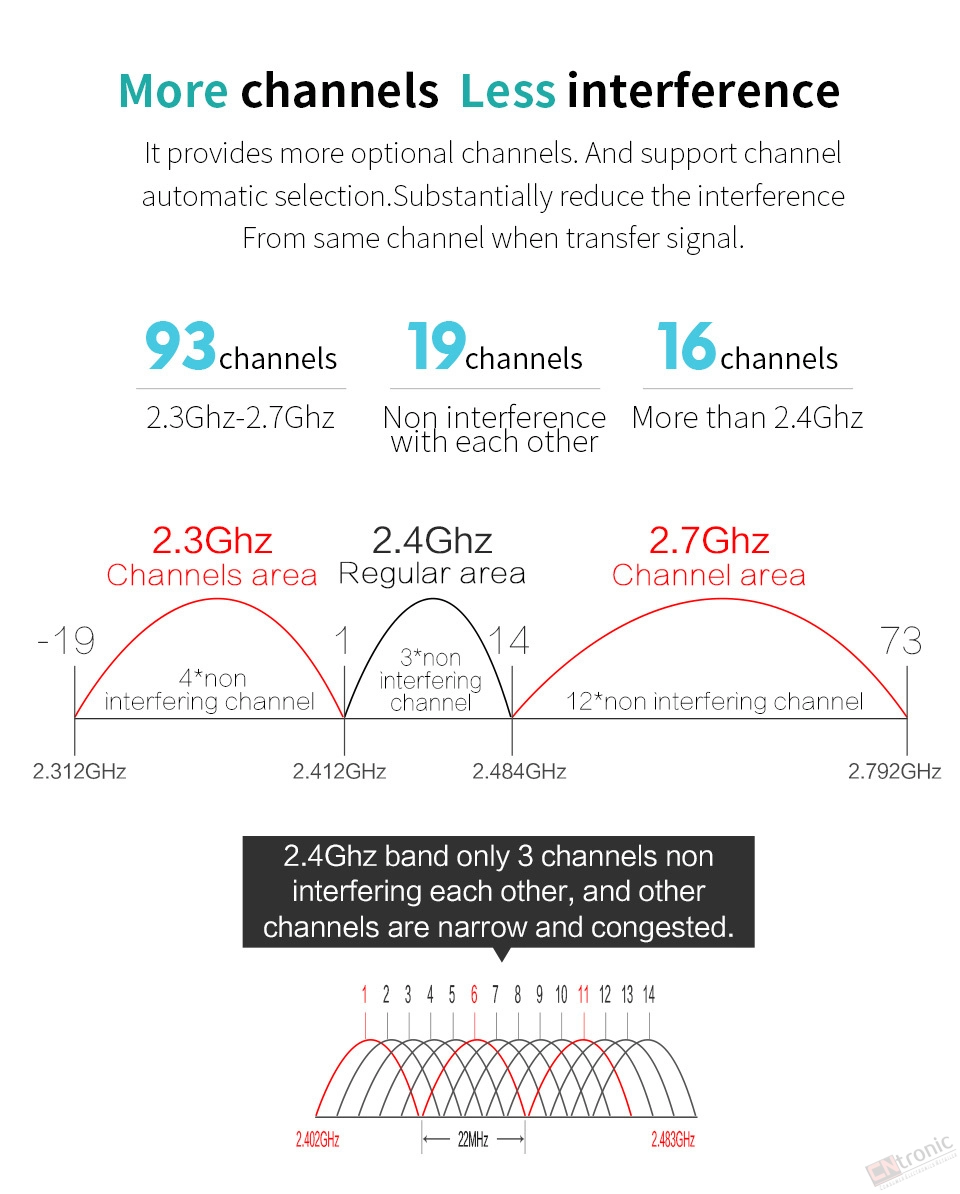

More channels Less interference
It provides more optional channels And support channel automatic selection. Substantially reduce the interference. From same channel when transfer signal

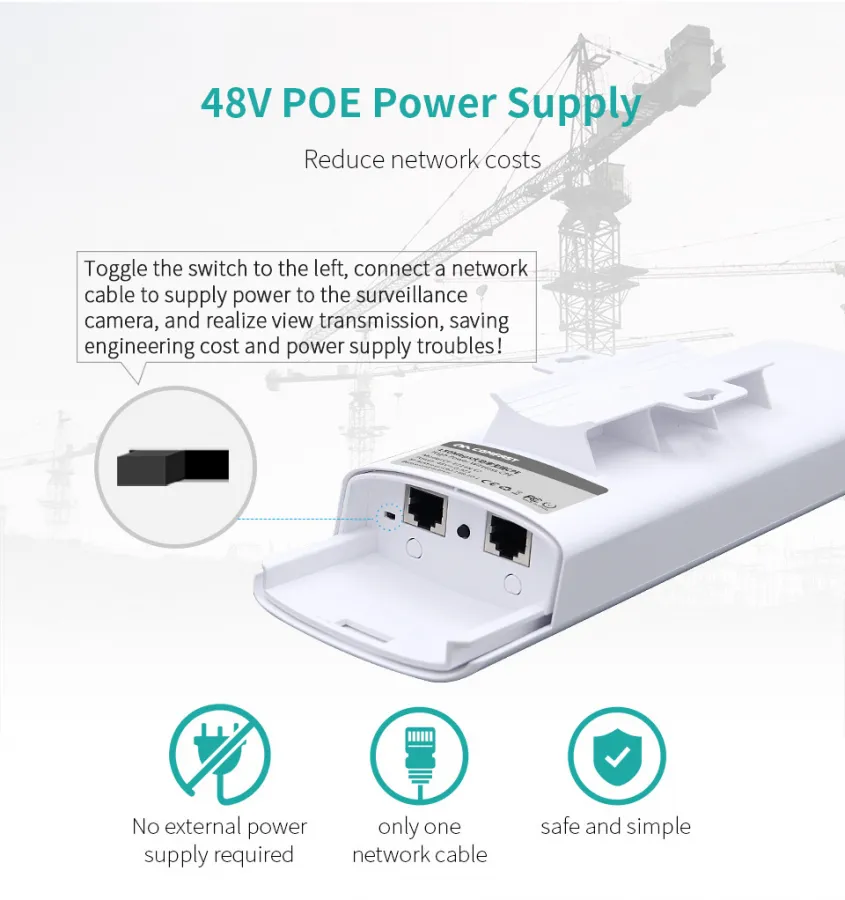

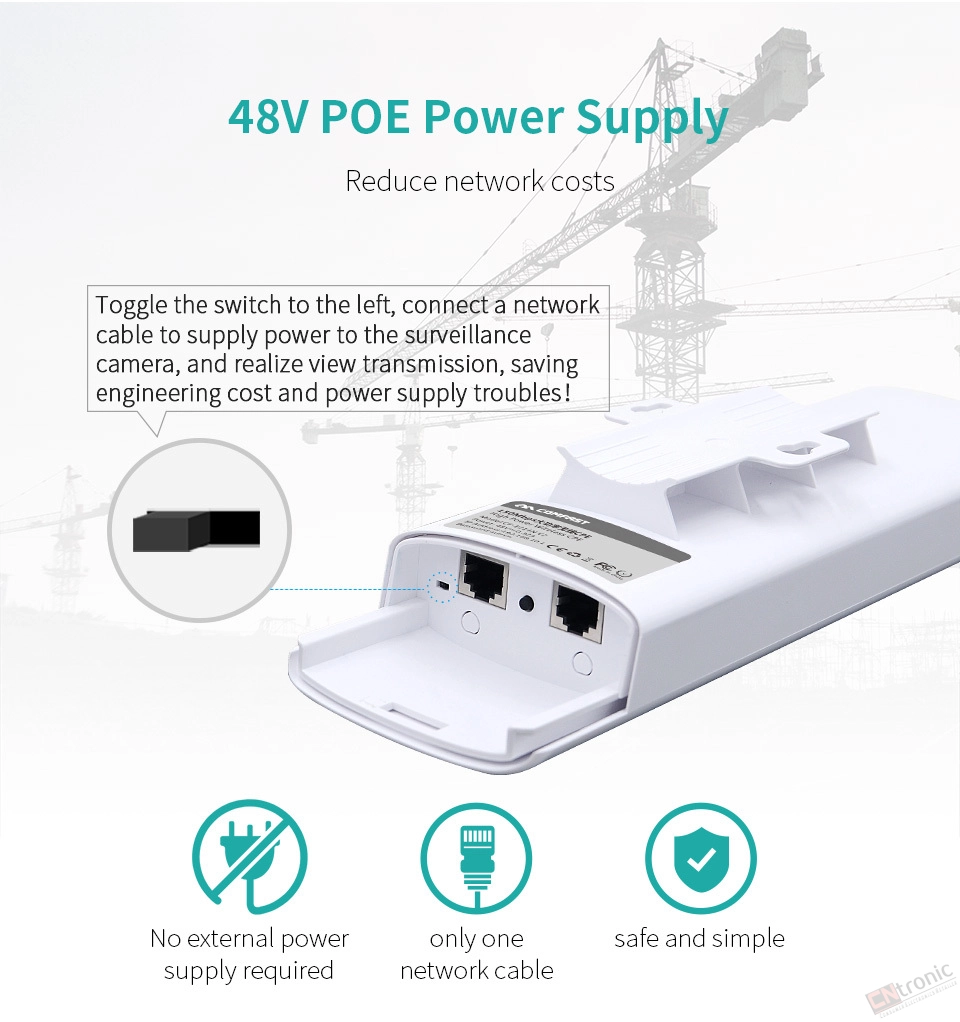

48V POE Power Supply ,Reduce network costs
Toggle the switch to the left , connect a network cable to supply power to the surveillance camera , and realize view transmission , saving engineering cost and power supply troubles
Hidden SSID Safety Wifi
Support SSID hiding , solve network problems,and ensure project stability

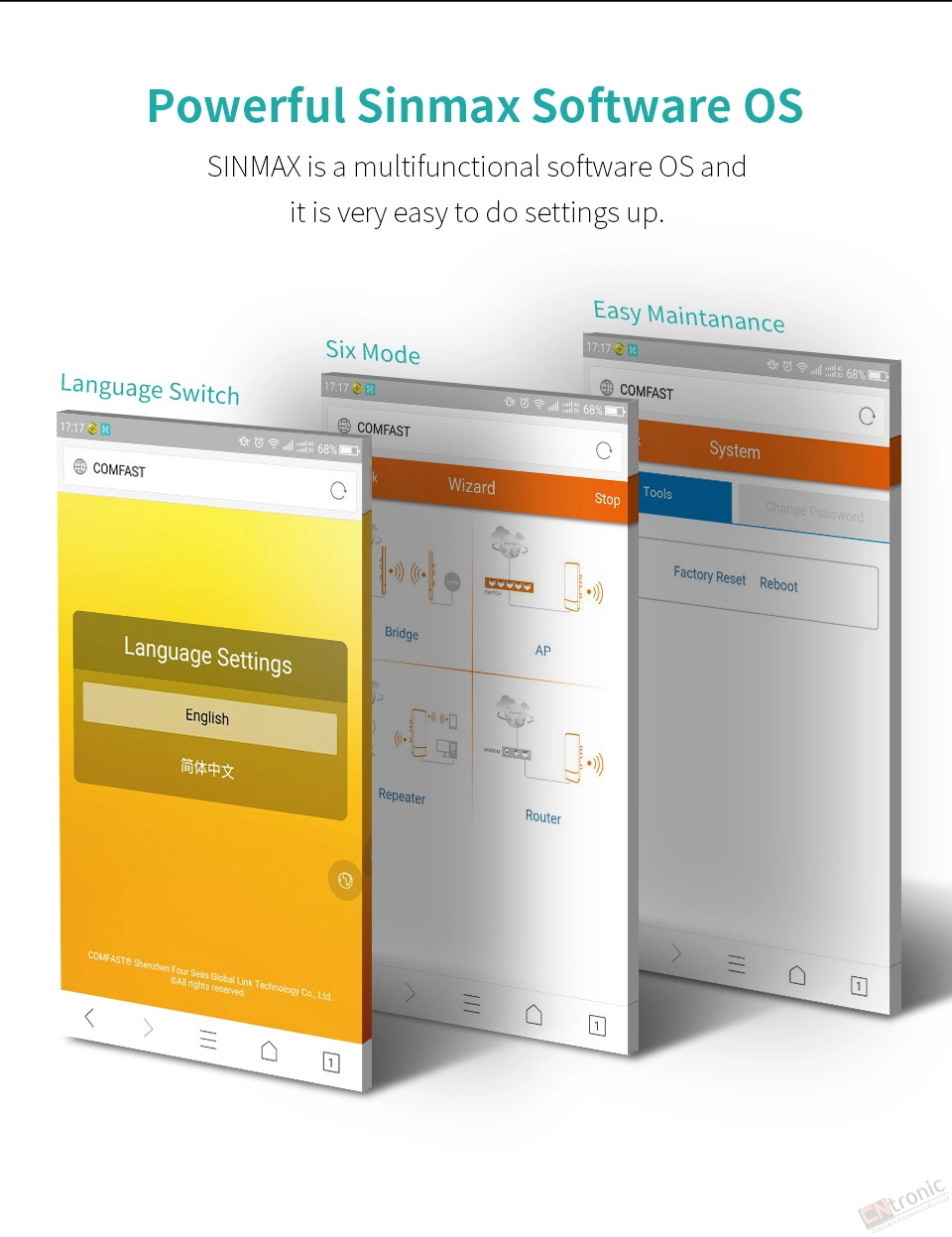

Powerful Sinmax Software OS
SINMAX is a multifunctional software OS and it is very easy to do settings up
Applicable scene
Elevator & Community & Driving school
Factory & Scenic spot & Site

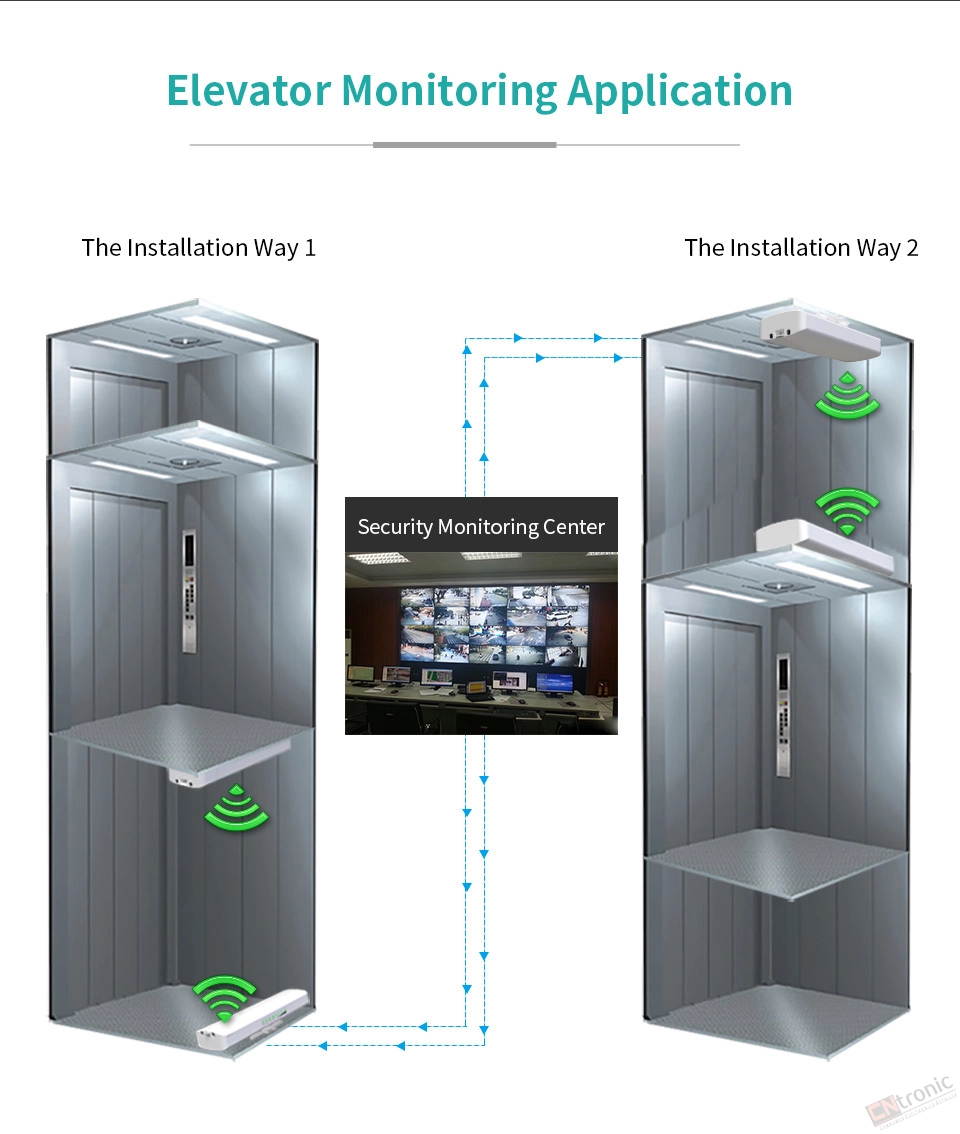

Elevator Monitoring Application
Connect Application Diagram

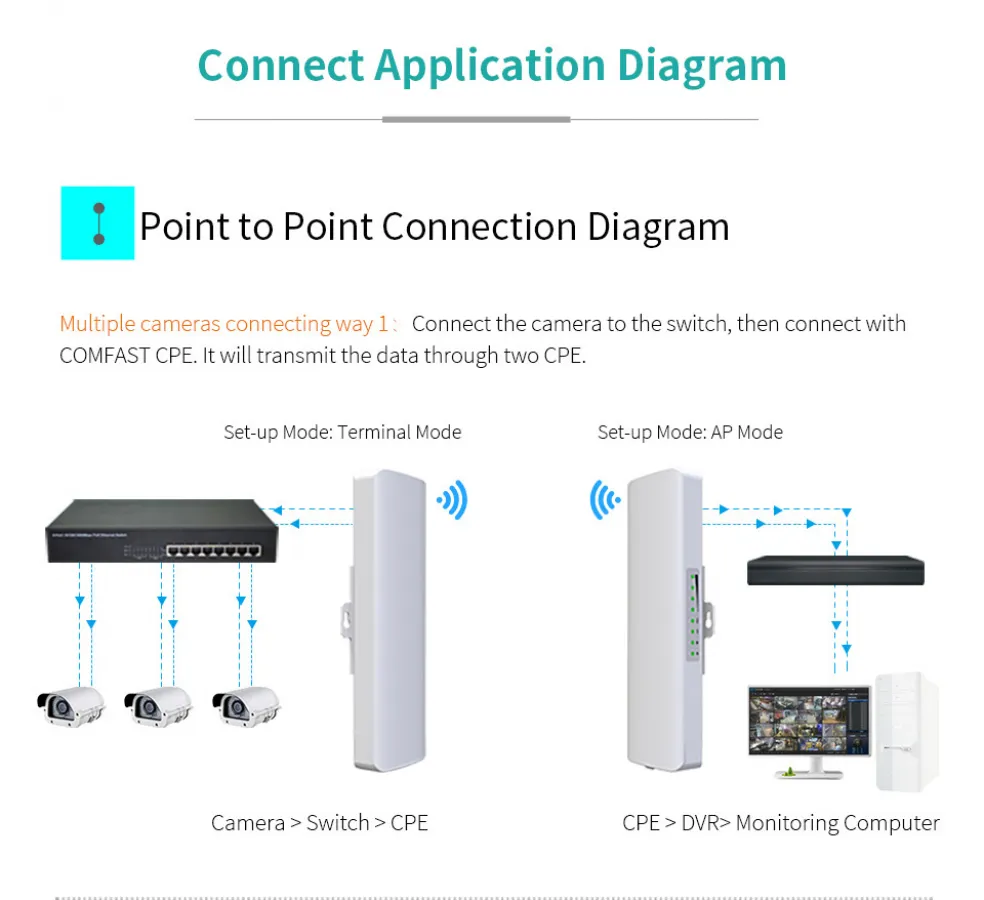

Point to Point Connection Diagram
Multiple cameras connecting way 1 : Connect the camera to the switch , then connect with COMFAST CPE It will transmit the data through two CPE

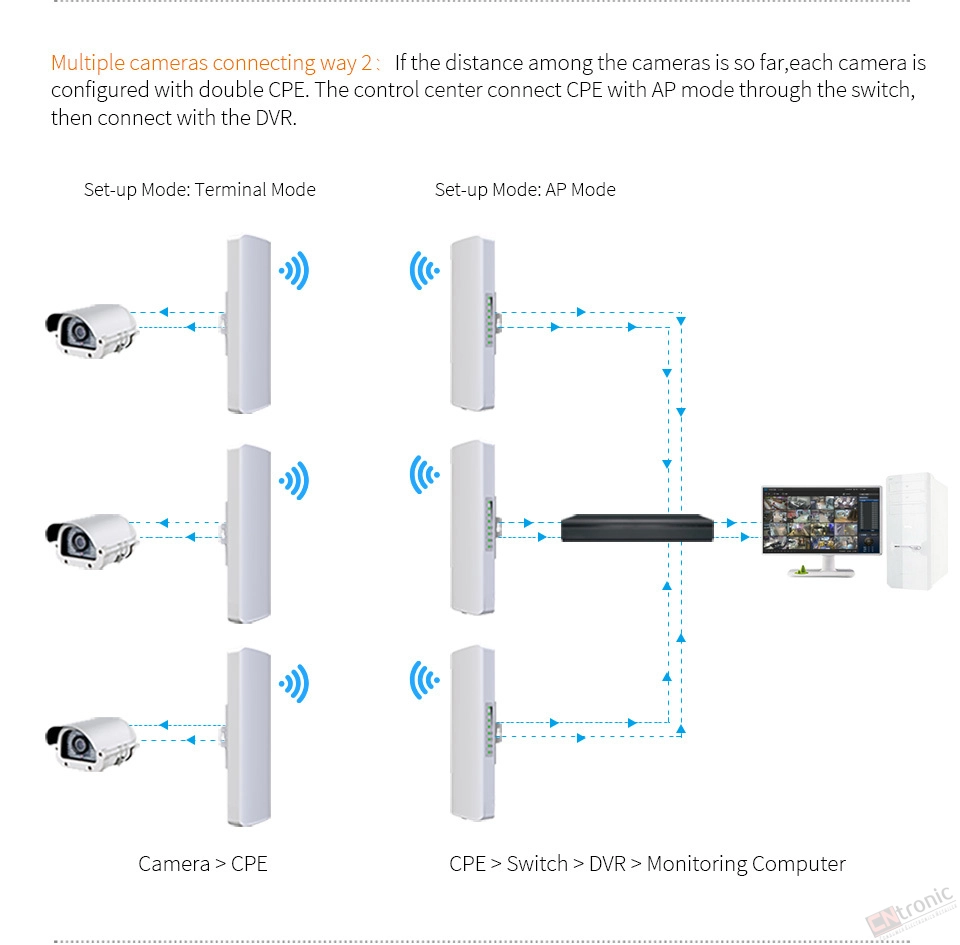

Multiple cameras connecting way 2 : If the distance among the cameras is so far , each camera is configured with double CPE . The control center connect CPE with AP mode through the switch ,then connect with the DVR

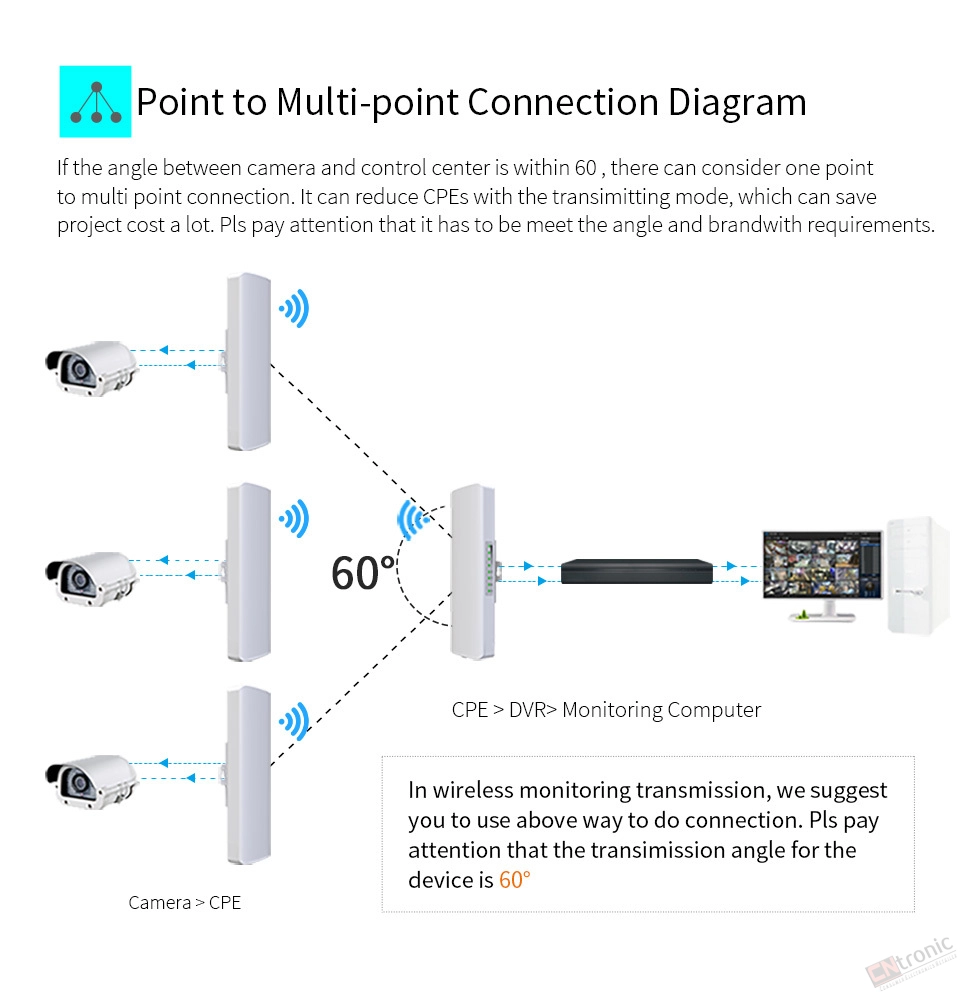

Point to Multi-point Connection Diagram
If the angle between camera and control center is within 60 , there can consider one point to multi point connection . It can reduce CPES with the transimitting mode , which can save project cost a lot . Pls pay attention that it has to be meet the angle and brandwith requirements

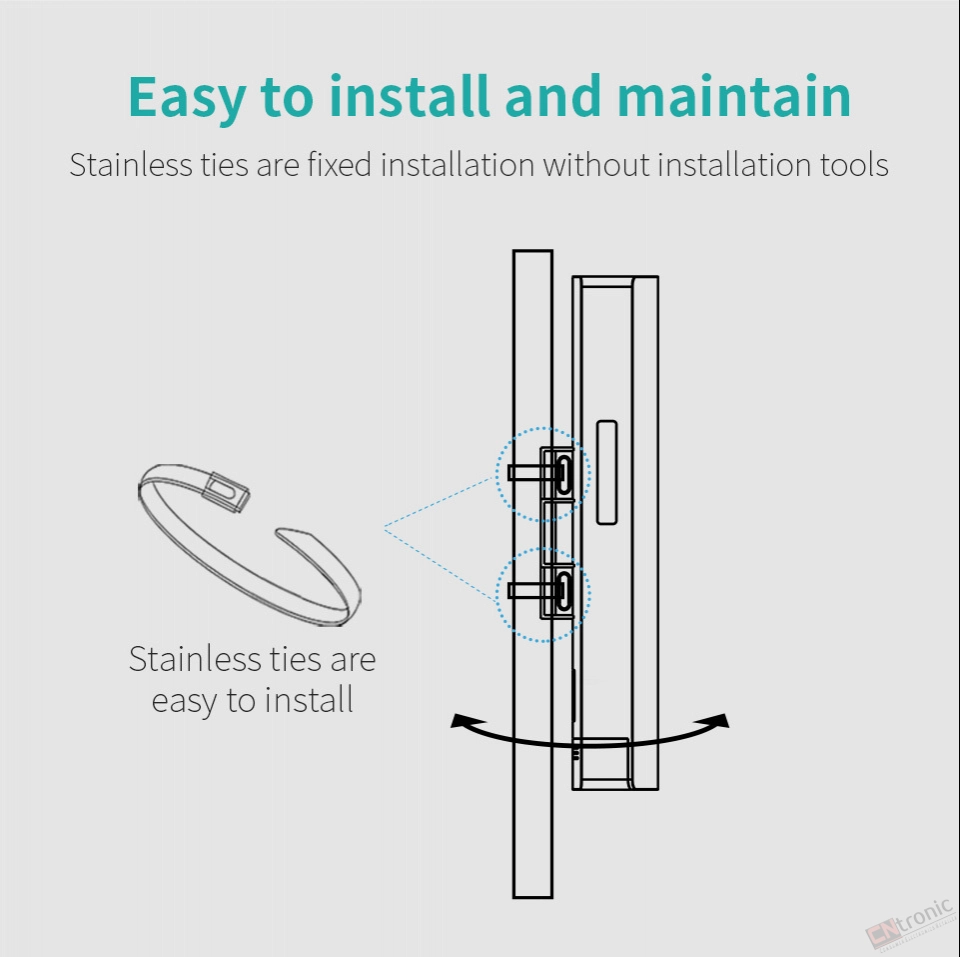

Easy to install and maintain

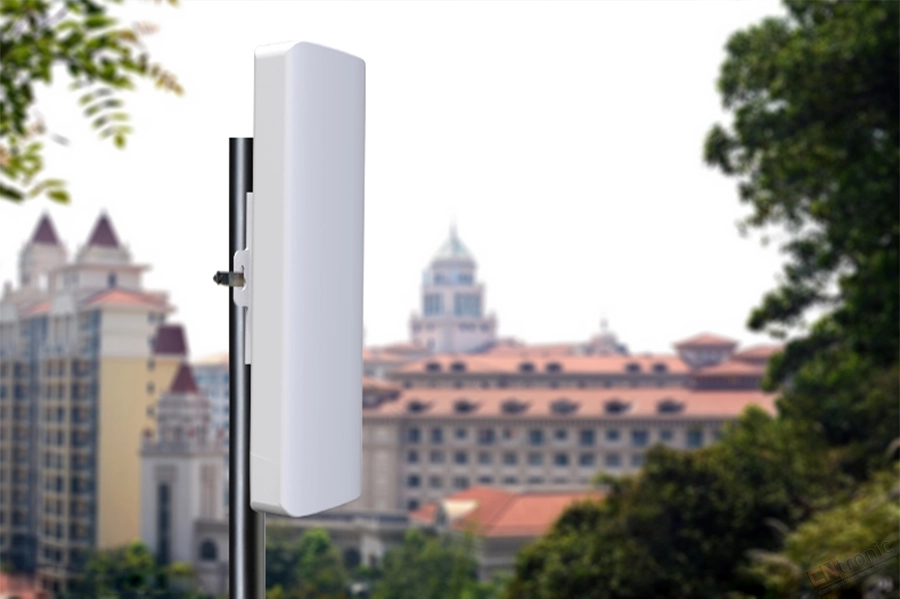

Stainless ties are fixed installation without installation tools

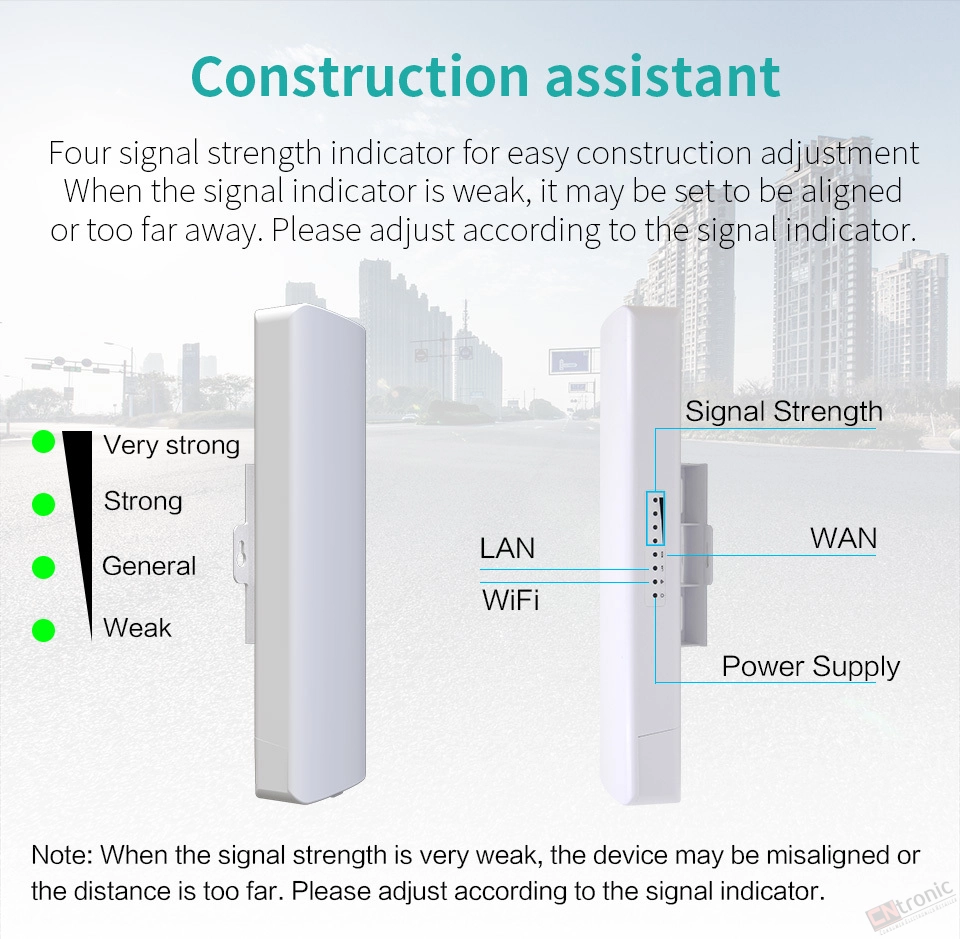

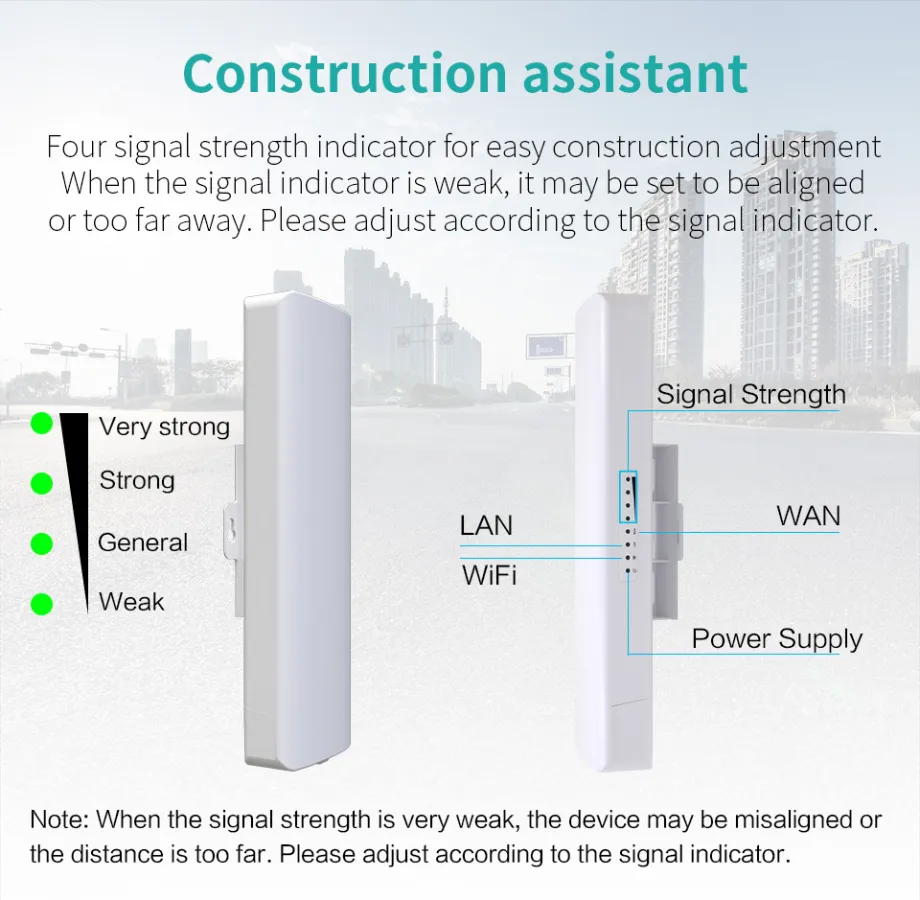

Construction assistant
Four signal strength indicator for easy construction adjustment.When the signal indicator is weak , it may be set to be aligned or too far away . Please adjust according to the signal indicator
Note : When the signal strength is very weak , the device may be misaligned or the distance is too far . Please adjust according to the signal indicator .
Do you usually meet below questions when you are intalling camera ?
01 How can you supply power to camera?
02 If your device is standard with power source , you stil cant use it .Because the camera is several kilometers away outside and there is no power outlet for your power source

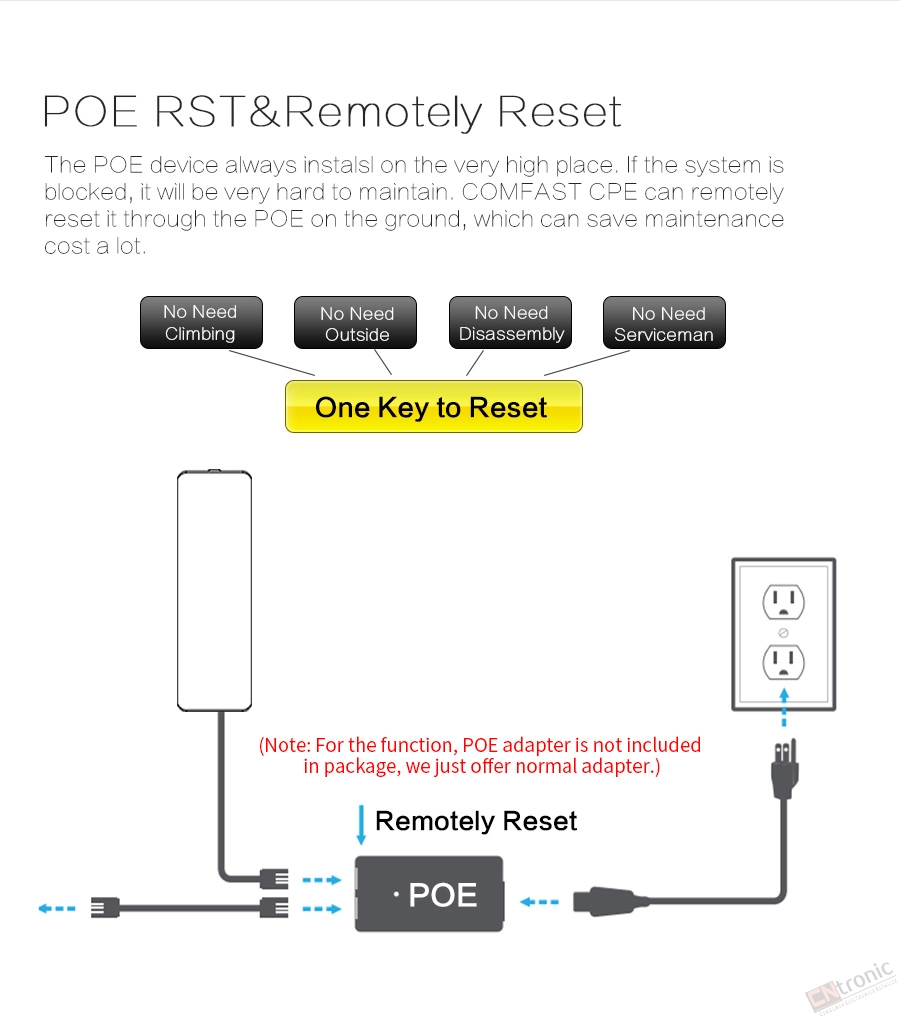

POE RST & Remotely Reset
The POE device always install on the very high place . If the system is blocked , it will be very hard to maintain . COMFAST CPE can remotely reset it through the POE on the ground , which can save maintenance cost a lot.

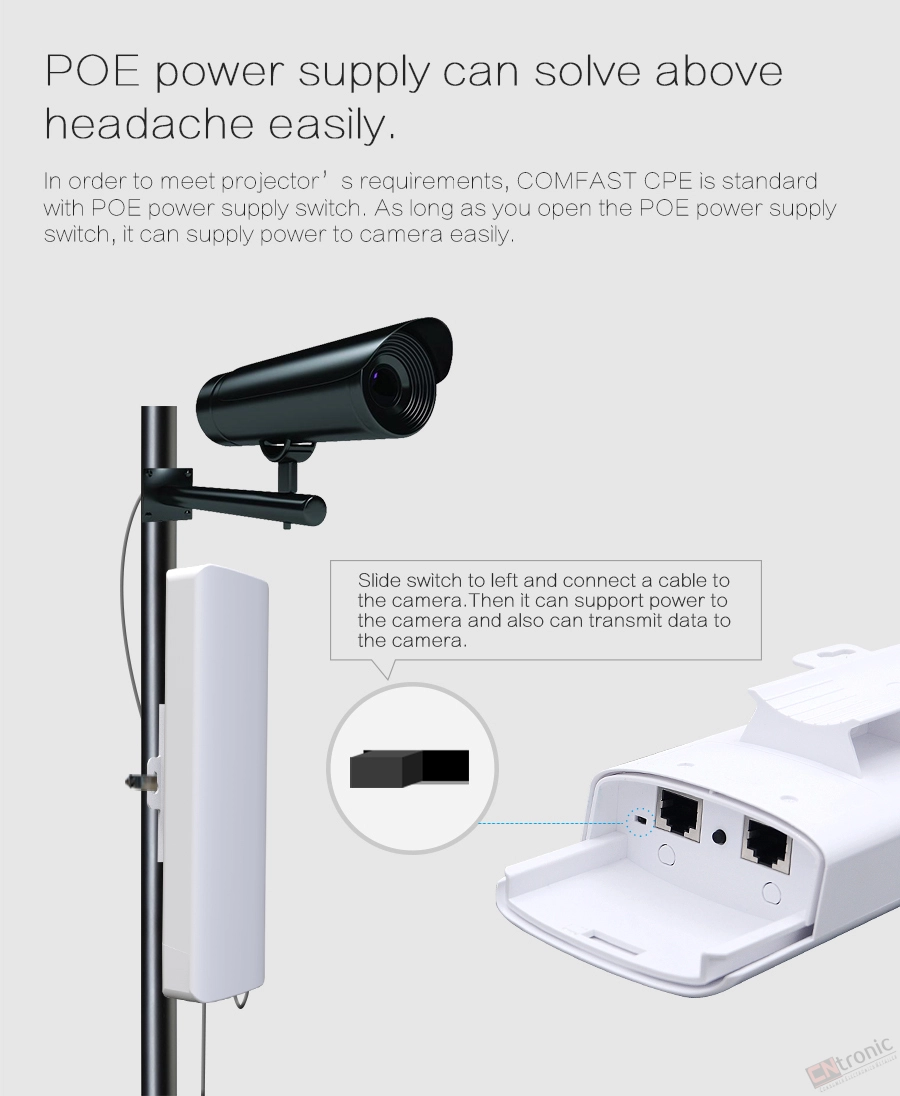

POE power supply can solve abovehe adache easily
In order to meet projector s requirements , COMFAST CPE is standard with POE power supply switch . As long as you open the POE power supply switch , it can supply power to camera easily
How to connect

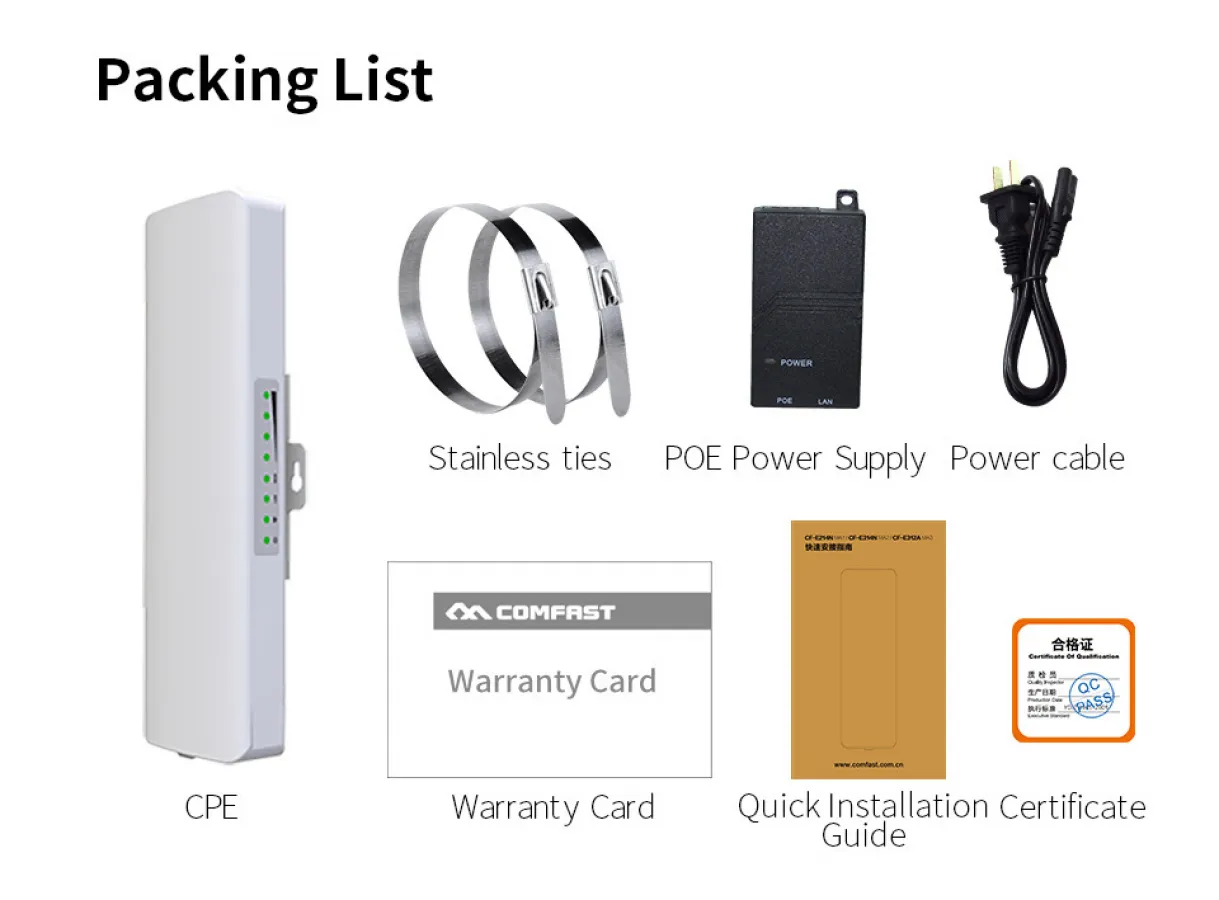

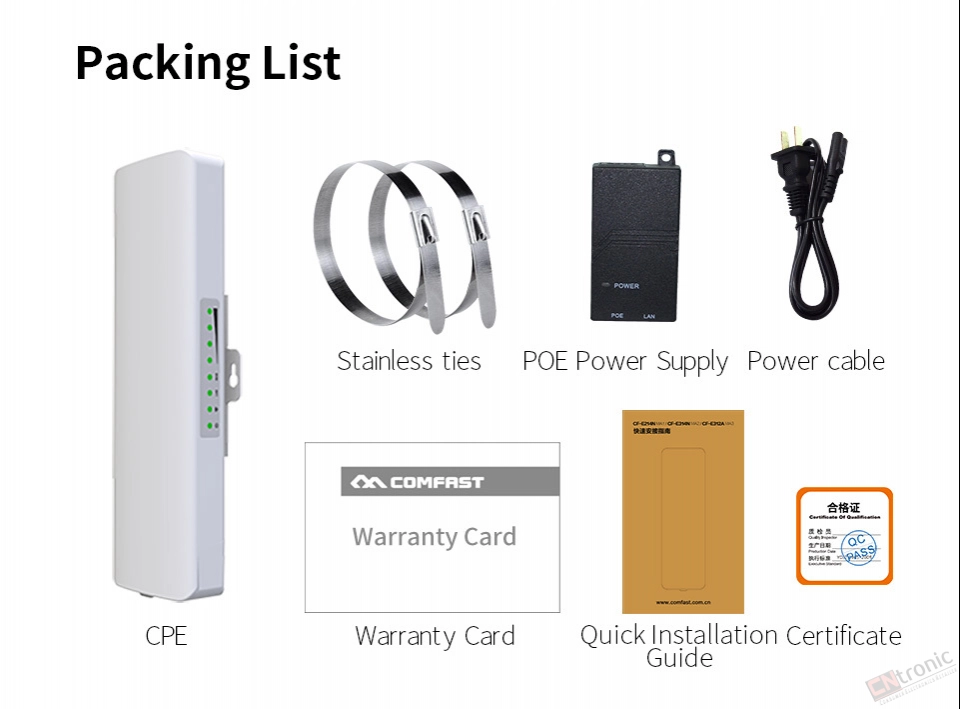

Packing List
1*CPE
2*Stainless Tie
1*POE Power Adapter
1*Power cable
1*Warranty Card
1*Quick Installation Guide
1*Certificate
Dear customer, if you have any questions you can contact us at any time, please contact us before raising any disputes or leaving any neutral/negative feedback, we will try our best to solve it for you, your satisfaction is always our first priority.
Q1: How long Range is the wifi transmission distance of this device?
When 2 bridges are paired, the maximum point-to-point transmission distance is about 3-5KM (without obstacles).
Q2: What is the frequency of this device? What is the transfer rate?
2.4Ghz, 300Mbps
Q3: What scenario is this device used for?
It is suitable for security monitoring projects, monitoring project transmission in scenic spots, ports, oil fields, construction sites, etc. It also suitable for long range wifi transmission .
Q4: Is it possible to accept internet from home router via WiFi and transmit further?
Yes, the router WiFi can be used as the transmitter or as the receiver (for reference only, the specific application needs to be combined with the actual situation)
Q5: What scenario is this device used for?
Yes, a device can be set to AP mode and repeater mode, but the transmission distance of WiFi is the same as the normal relay and AP coverage. If you use one device, it is recommended to set AP mode.
Packaging Details
- Unit Type:
- Package Weight: 0.900
- Package Size: 10x7x32
- Brand Name: comfast
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Package: Yes
- Model Number: CF-E314N V2
- Wireless Protocol: 802.11n
- outdoor wifi bridge Frequency: 802.11b/g/n:2.3GHz-2.7GHz
- Transmission Rate: 300mbps
- WAN port: 1
- LAN port: 1
- 720P Cameras support: 720P*8
- 960P Cameras support: 960P*6
- 1080P Cameras support: 1080P*4
- Outdoor router Range: 1-3km in without obstacle situation
- Outdoor wifi signal Antenna: Built-in 2*14dBi Antenna
- Siganl booster Amplifier Chipset: QCA9531 650Mhz
- Wireless Standard: IEEE802.11b/g/n
- Power Adapter: 48V POE Power Adapter
- IP Index: 2KV Lightning Protection; IP65
- Installation Way: Wall-mounted/Pole-mounted/Rack-mounting
- outdoor wifi bridge: long range wifi repeater
- Point to Point CPE: extend wifi signal
- point to point 1-2km cpe router: outdoor 300mbps wireless cpe router
- security monitoring: wifi transmission
- wifi Bridge Client: outdoor wifi coverage;
- wifi amplifier: Wireless AP Router For IP Camera
- Siganl booster Amplifier Power Adapter: Outdoor Wireless Wifi Bridge
- Outdoor wifi signal: Outdoor Wireless Wifi Bridge
- 2.4Ghz Outdoor CPE: Outside WiFi Transmission
- 300Mbps Outdoor Bridge: Siganl booster Amplifier
- Choice: yes
- semi_Choice: yes
