High Precision FC-6S Fiber Optic Cleaver 36,000 Times Fiber Optic Cutting Tool

5.0 (2 votes) | 31 orders
Price: US $34.54 / piece
Discount Price:
US $ 32.45 / piece
-6%
Color
Quantity

1.Description

Sumitomo FC-6S Fiber Cleaver

-fiber cutter

-Same as Sumitomo FC-6S optical fiber cleaver

-fiber cleaver for sumitomo fusion splicer

-blade life of 36,000 cleaves


The Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest Sumitomo cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.



Model

FC-6M

FC-6M-C

FC-6S

FC-6S-C





Applicable
Fiber

Fiber diameter

125um

Fiber count / size

Single fiber (0.25 & 0.9mm)
and up to 12-fiber ribbon

Single fiber
(0.25 & 0.9mm)

Cleave length

10mm

9 ~16mm (0.25)
10~16mm (0.9 )

Typical cleave angle

0.5°

Dimensions / Weight

63(W) x 76(D) x 63(H)mm / 430g (FC-6M/FC-6S)
100(W) x 81(D) x 63(H)mm / 480g (FC-6M-C/FC-6S-C)

Blade life

36,000fibers
(1,000fibers x 12 edge positions x 3-step edge height)

Option

Adapter for single fiber : AP-FC6M
(Standard installation with the FC-6S/FC-6S-C)
Offcut collector : CU-FC6
(Standard installation with the FC-6M-C/FC-6S-C)

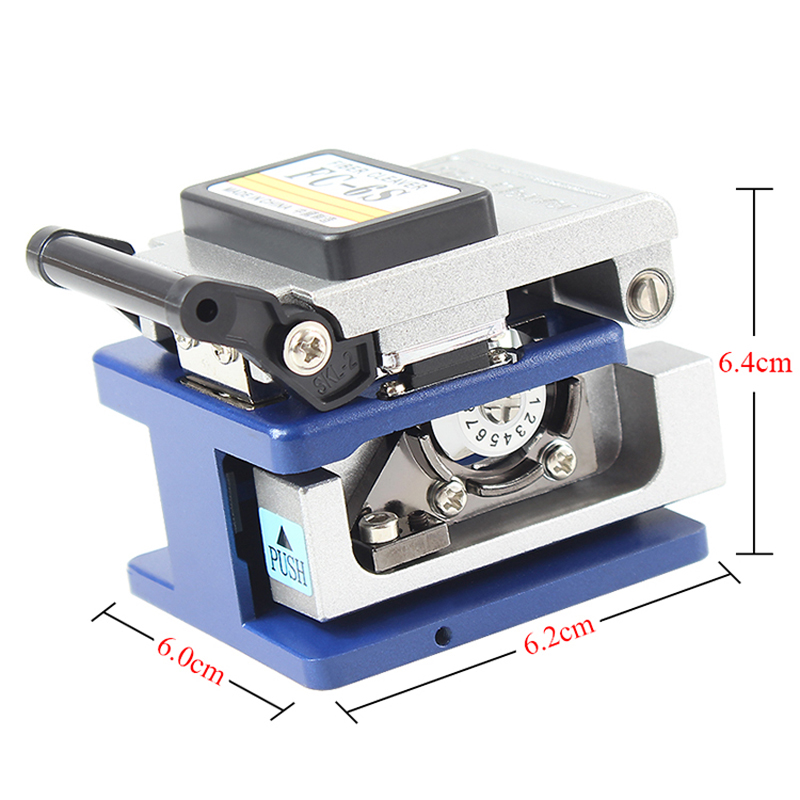

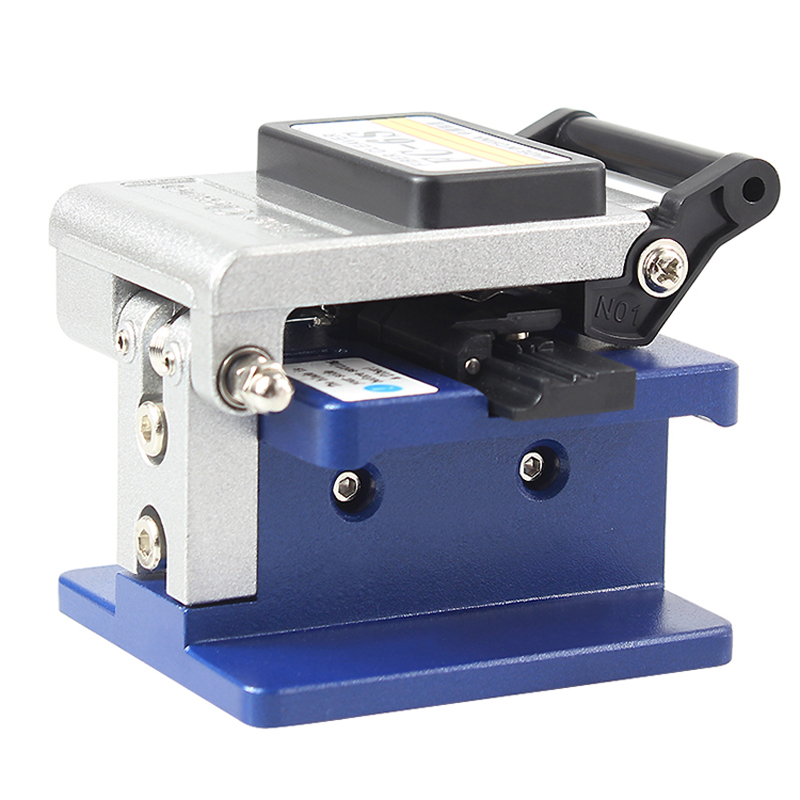

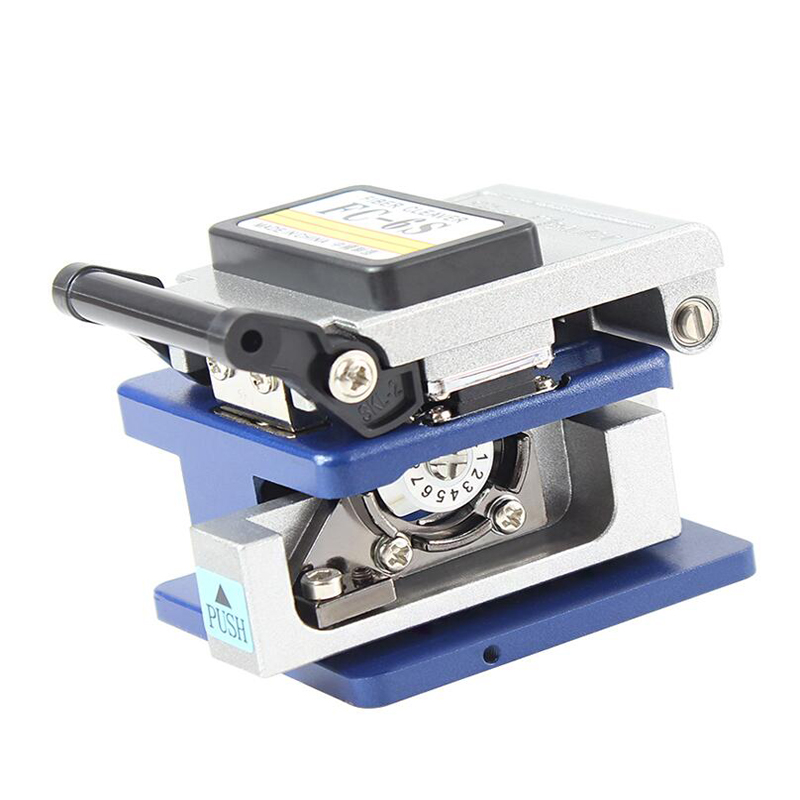

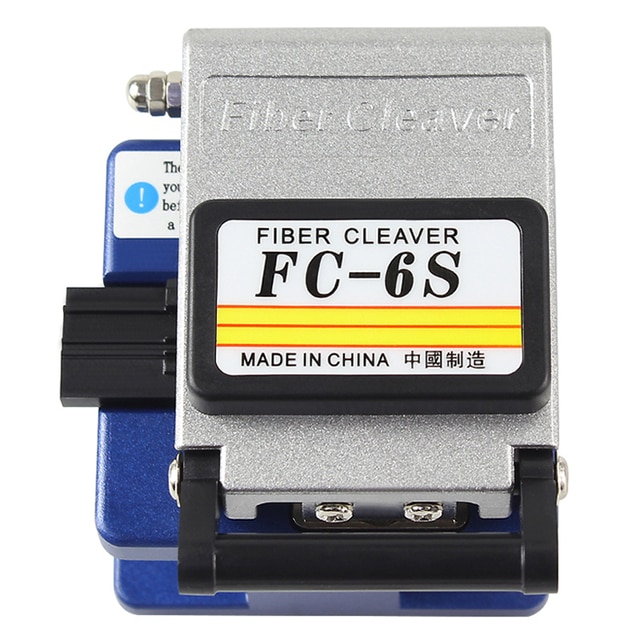

2.Pictures

3.Internation order

The buyer is responsible for any applicable import duties and local taxes. Please verify with your customs before making your purchase.

4.Shipping & Handling

I ship within 3 business day after receipt of the payment. Each item is packed carefully to make sure it gets to you in excellent condition.
Ship to worldwide takes about 16-28 working days with tracking number for free.

We will ship this item by HONGKONG POST,Normally it takes about 15-30 business days to Destination ,we also can ship this item by EMS, DGM,SGP,CPAP to wordwide.Of course ,we can comply to customer request,ship goods by other ways,but the freight should be paid by customer .


5.Resend and Refund range :

If you not receive the parcel beyond 35 days or you receive a defective item or wrong item, pls contact me via mail service, and I promise once the situation is confirmed, we will resend or refund you.
It is customers responsibility to pay for the Return shipping fee under any circumstance. And we will not accept the return application when it is beyond 14 days after you received the parcel. And pls guarantee that the return item should be on its original condition.

6.Contact Me

Our company is a professional manufactory in fiber optic equipment more than seven years,we are confident our products will satisfy u.

I will be here to solve your any problems,so welcome to contact me anytime. And I promise, I will reply you in 24 working business hours.
Our goal is to satisfy you as a customer and in return maintain our excellent reputation.



  • Fiber Type: Single Mode
  • Connector Type: Hybrid
  • Model Number: FC-6S
  • Brand Name: ZHWCOMM
  • Origin: Mainland China
  • Certification: CE,FCC
  • Coating Diameterk: 0.25mm - 0.9mm (Single)
  • Fiber Diameter: 125um
  • Typical Cleave Angle: 0.5 Degrees
  • Typical Blade Life: 36 000 Fiber Cleaves
  • Blade Adjustments: Rotational & Height
  • Cleave Length: 9 - 16mm (0.25mm Coating) 10 - 16mm (Single Fiber - 0.9mm Coating)
