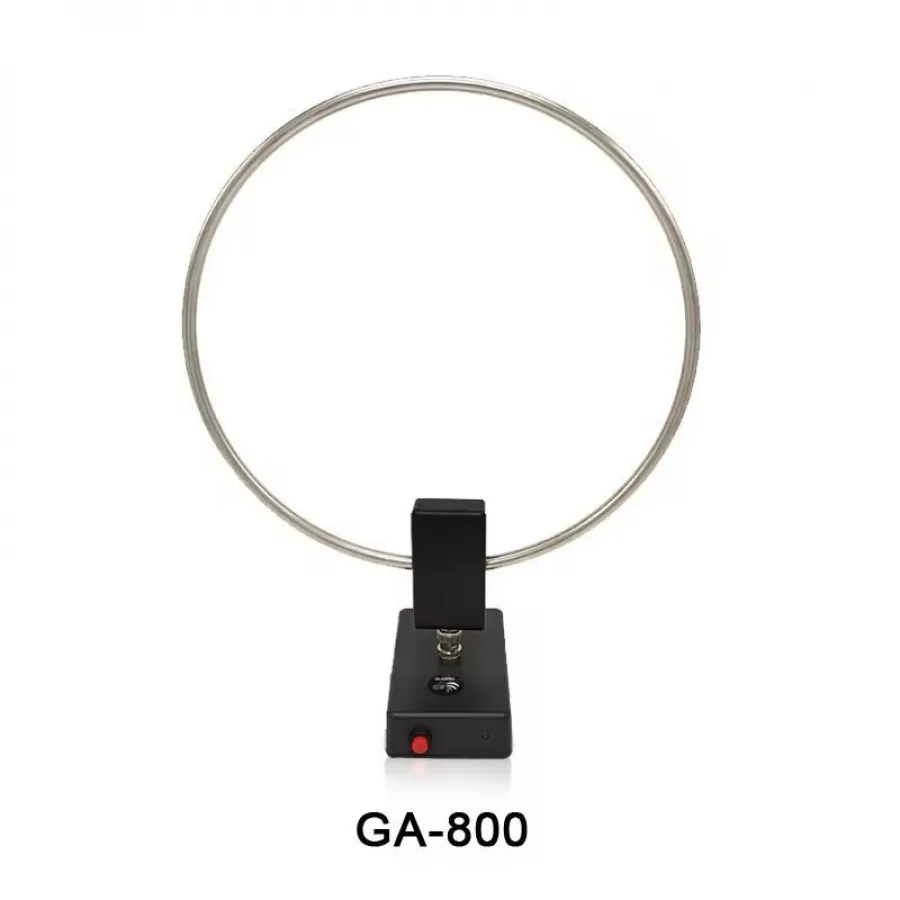

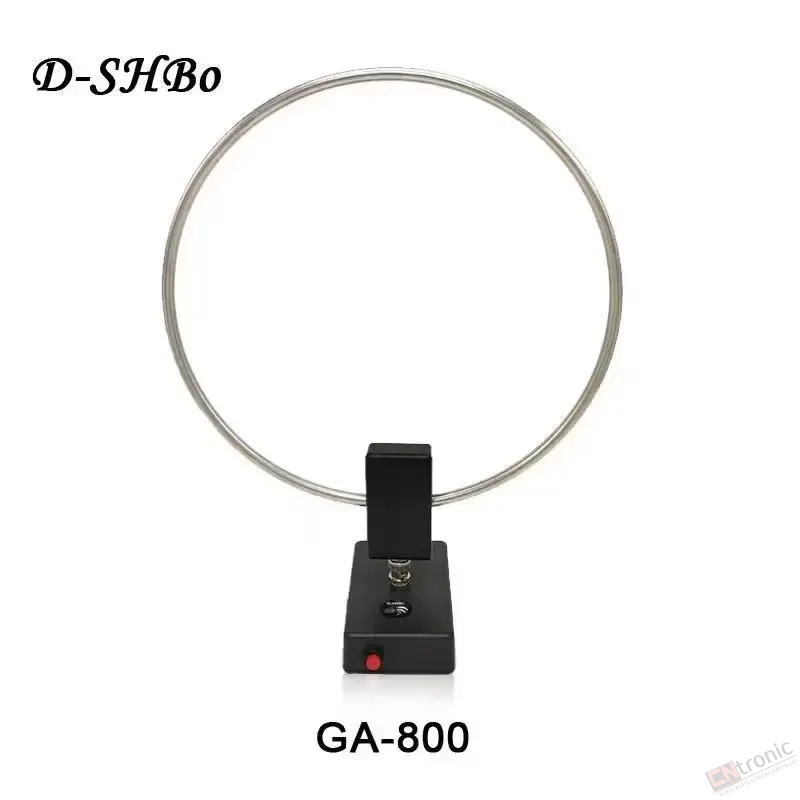

GA800 Active Loop Antenna 10KHz-159MHz HF Short Wave Small Loop Antenna MW Shortwave SSB Aviation Band Reception
3.4 (7 votes) | 50 orders
Price:
US $514.00
Discount Price:
US $
170.68
-67%
- Color
-
-
Material: high-grade plastic shell stainless steel ring built-in 18650 lithium battery: 2600 mA

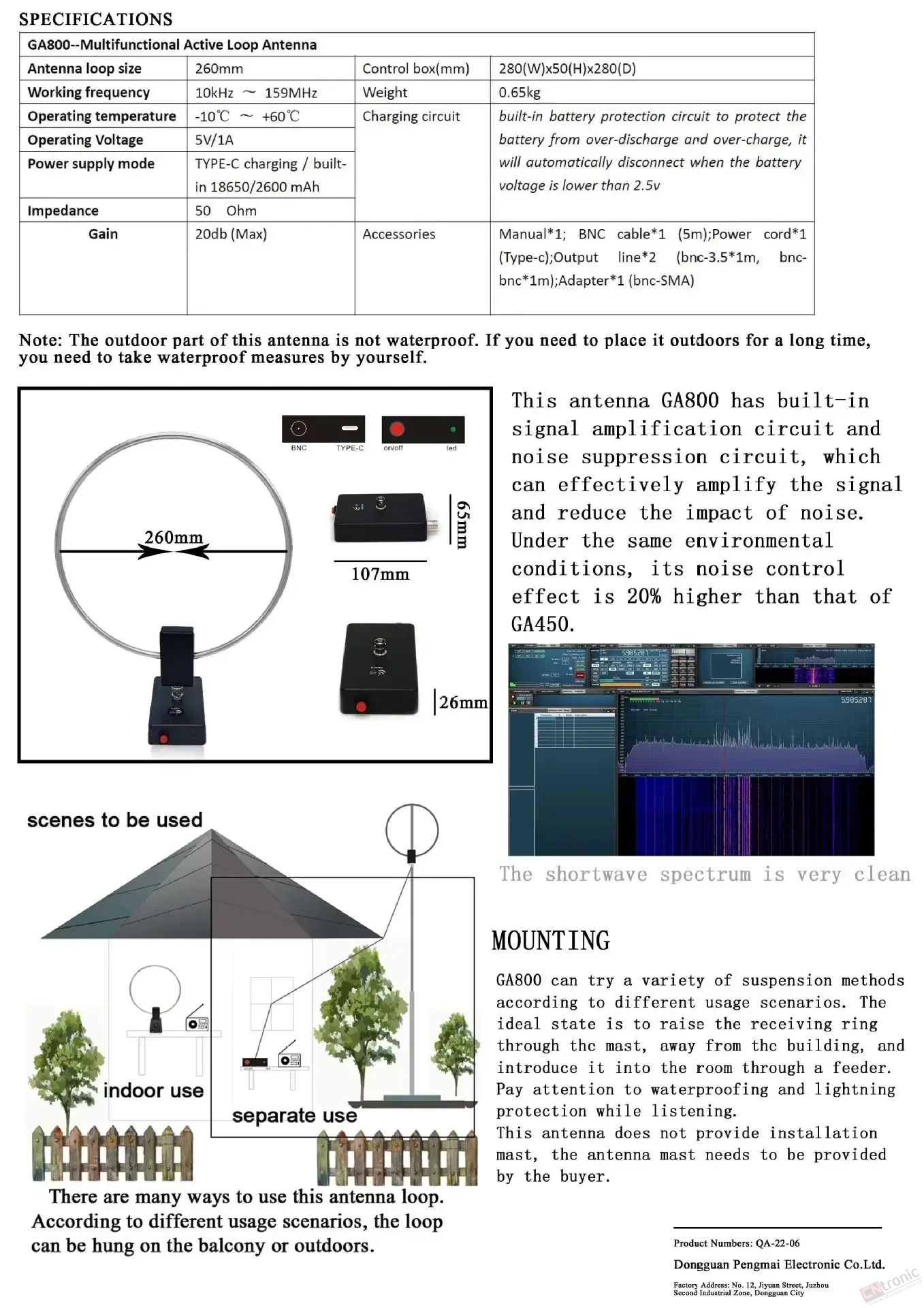

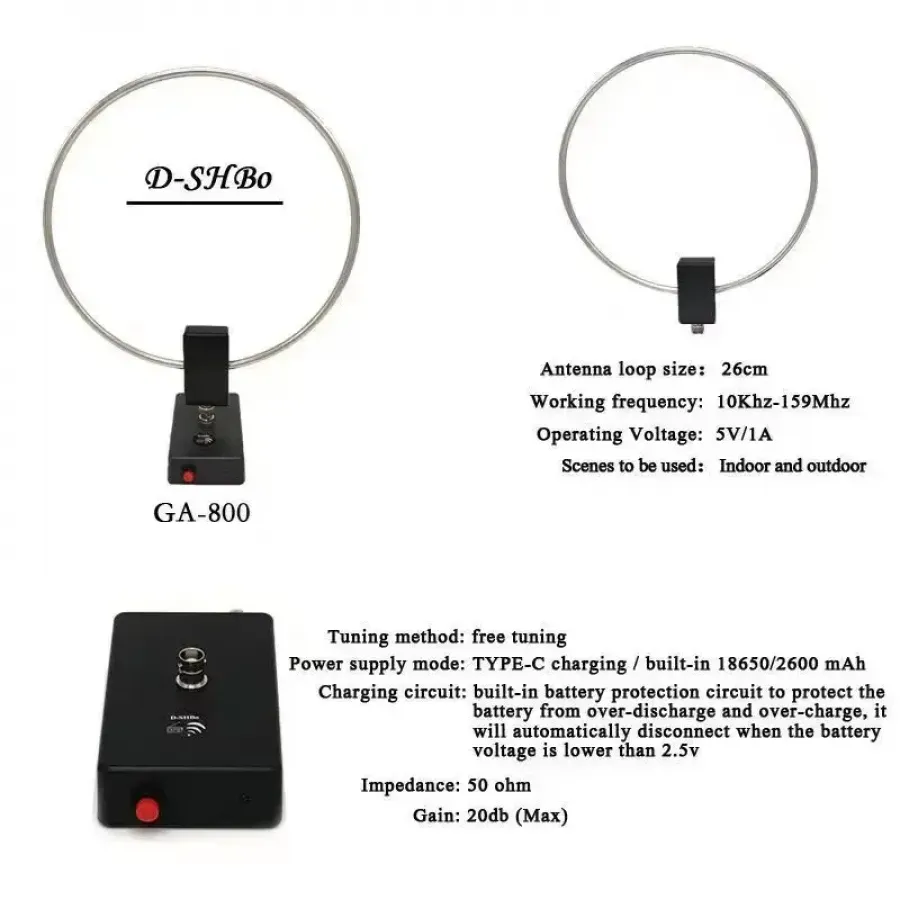

Specifications:

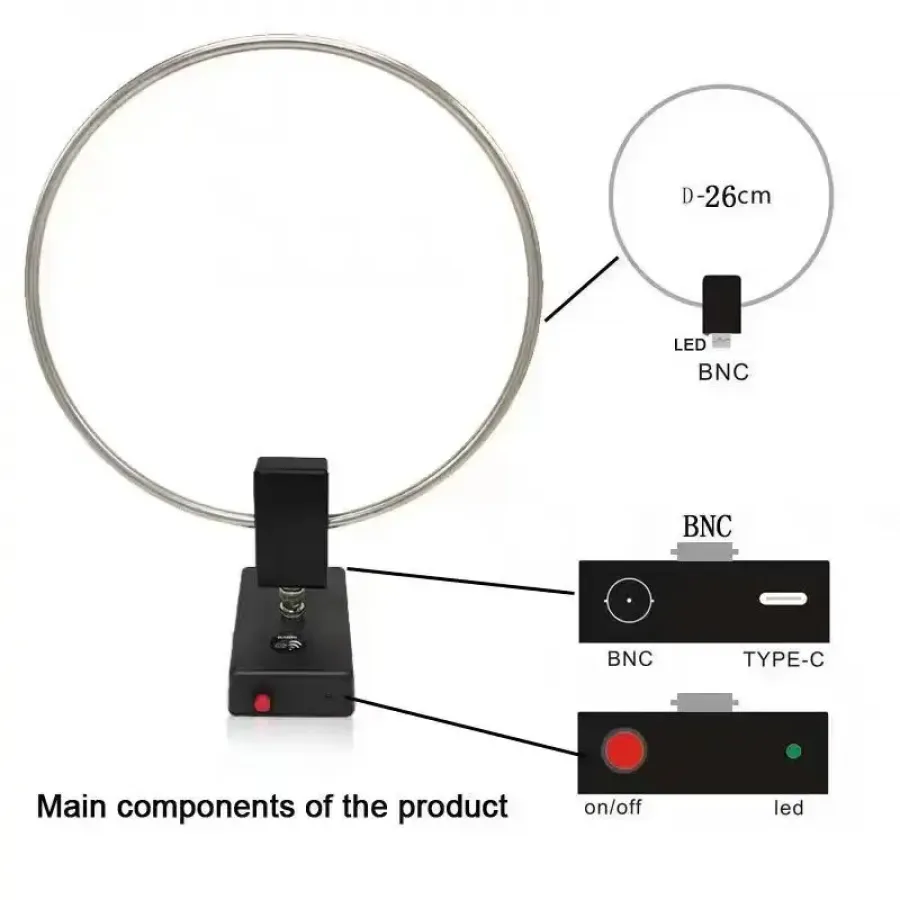

-Antenna ring size: 260mm/10.2 "(inner diameter)
-Control box: 107 x 65 x 26mm/4.2 x 2.6 x 1"
-Working frequency:%
-Operating Temperature:-10 ℃ to 60 ℃
-Operating voltage: 5V/1A
-Power supply mode: TYPE-C charging/built-in 18650/2600mAh
-Impedance: 50Ohm
-Gain: 20db (Max)
-Charging circuit: Built-in battery protection circuit to protect the battery from over-discharge and over-charging.Automatic disconnection when the battery voltage is lower than 2.5V

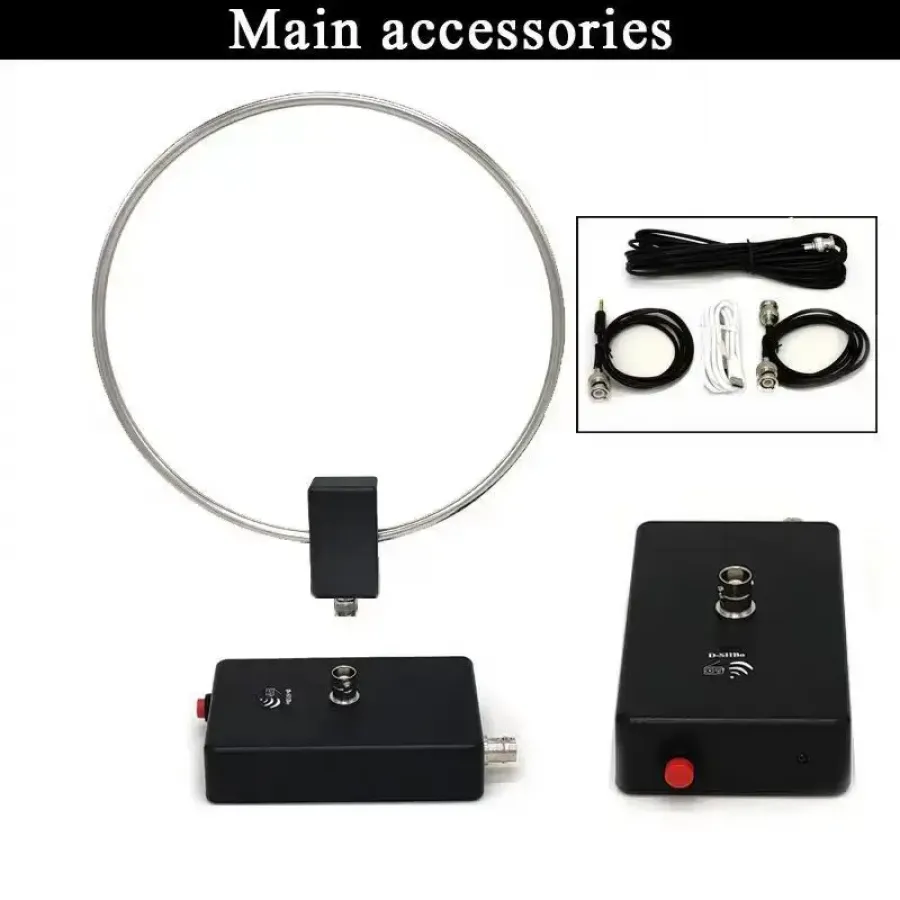

The package includes:
-1 x antenna with control box
-1 x Manual
-1 x BNC cable (5m/16.4ft)
-1 x power cord (Type-c)
-2 x output cable (BNC-3.5 * 1m/3.3ft; BNC-BNC * 1m/3.3ft)
-1 adapter (BNC-SMA)

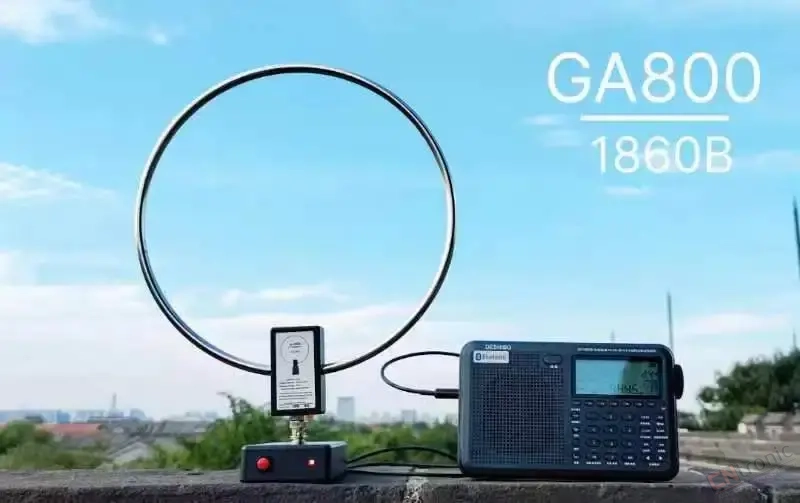

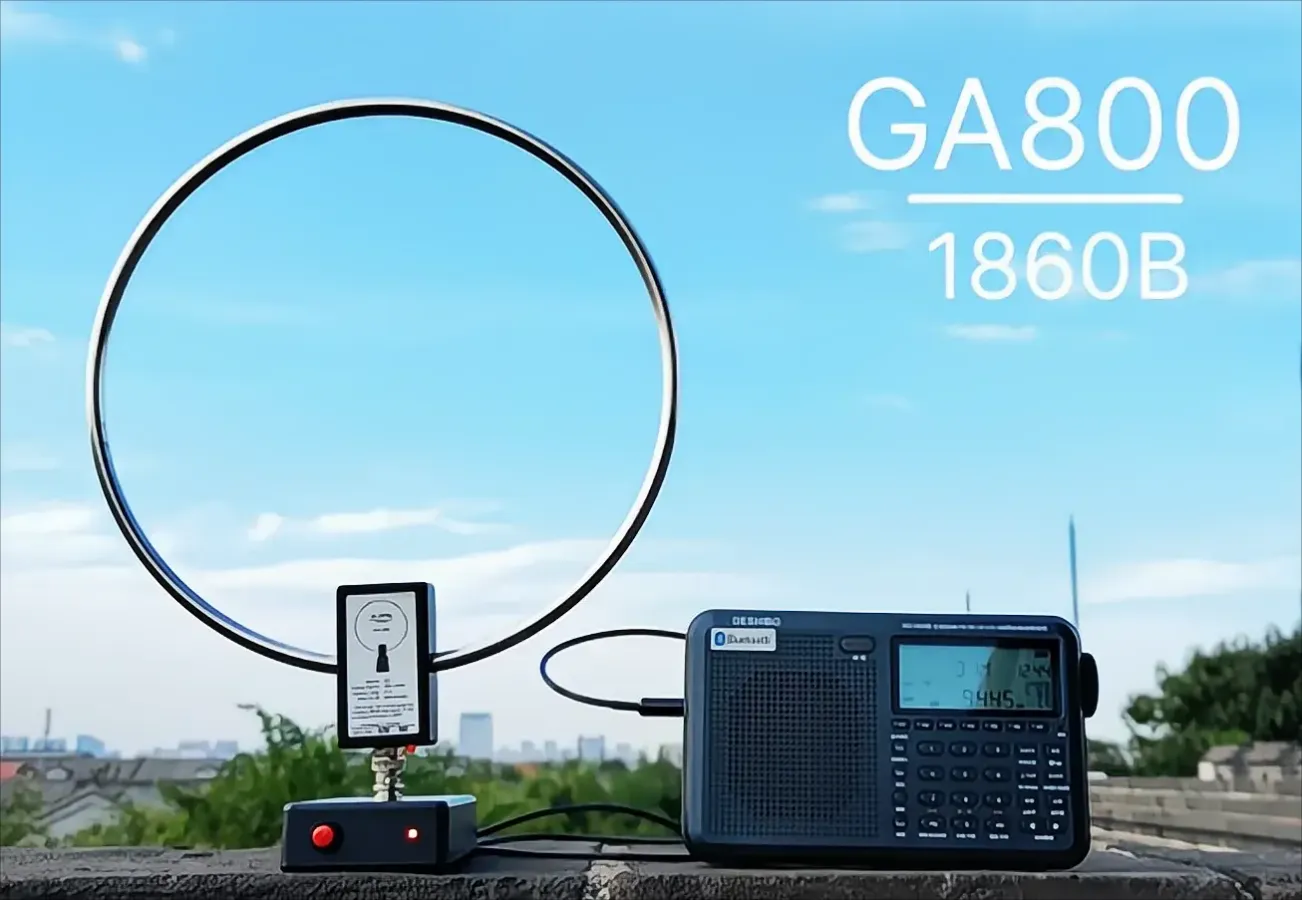

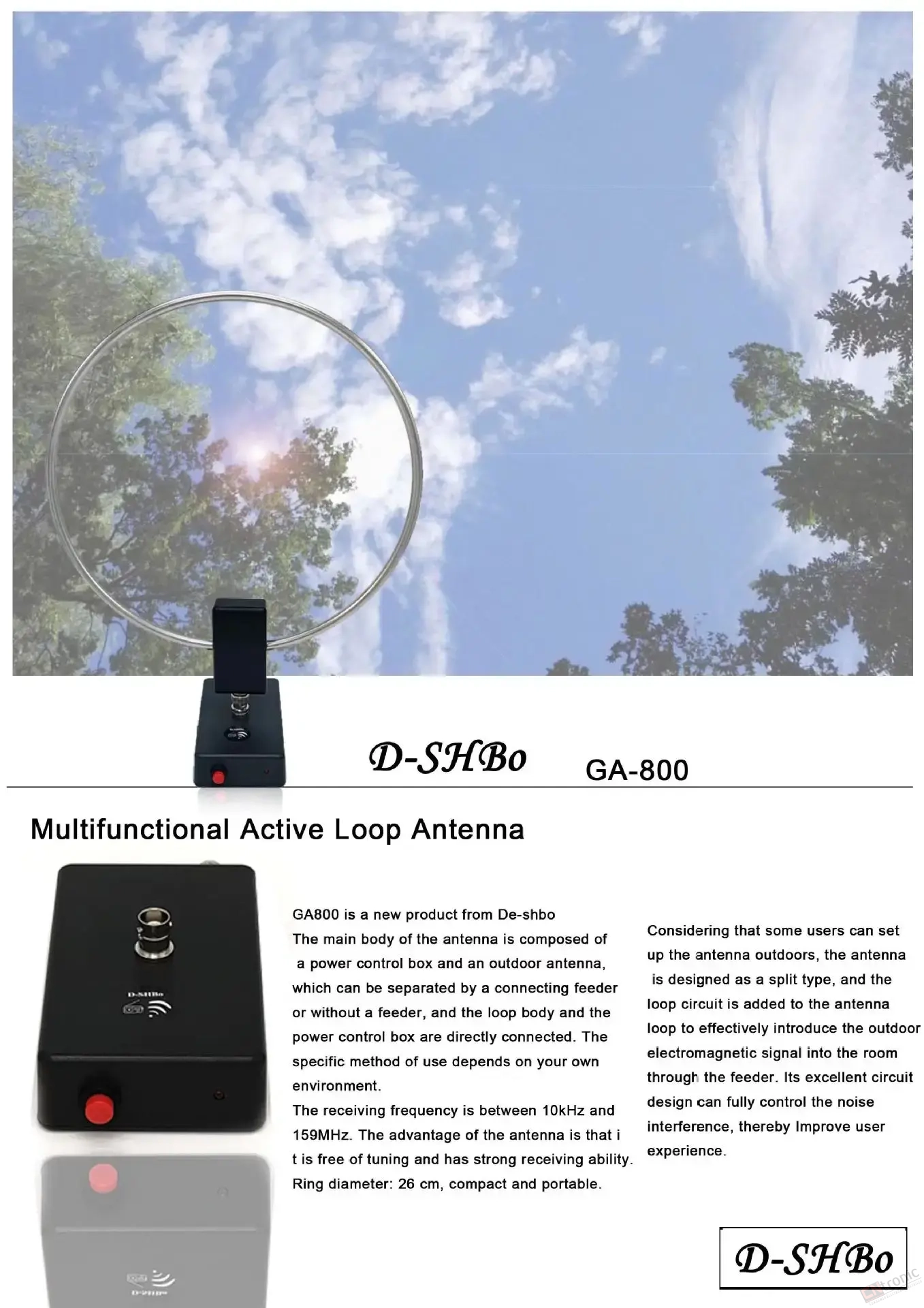

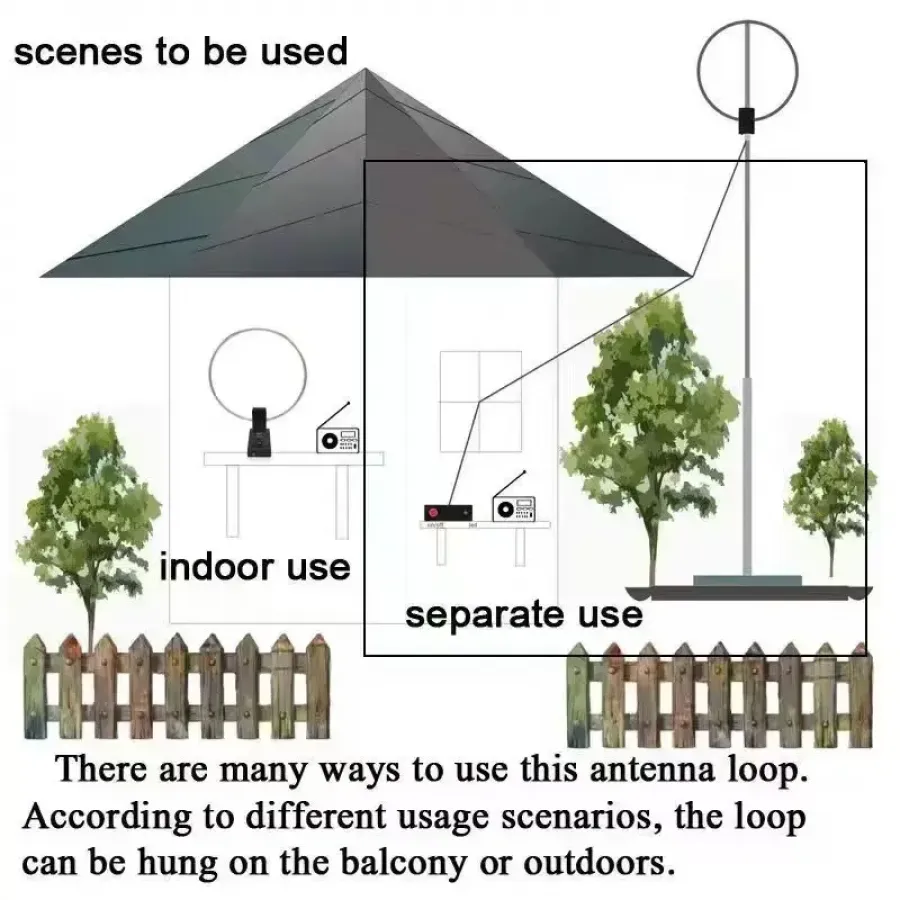

GA800 antenna mainly focuses on low noise and high frequency (frequency modulation, aviation, even U/V segment, etc.) reception. It is recommended to turn off the power supply. At the beginning of the design, it was designed according to passive antenna, the ideal state is to set up the ring outdoors. Short wave and medium wave need to turn on the power switch. This design scheme is to save electricity and low noise.
Packaging Details
- Unit Type:
- Package Weight: 0.716
- Package Size: 29x6x29
- Brand Name: YEKZTAK
- Item Type: Antenna
- Wireless function: No
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: GA800
- Certification: None
- Choice: yes
