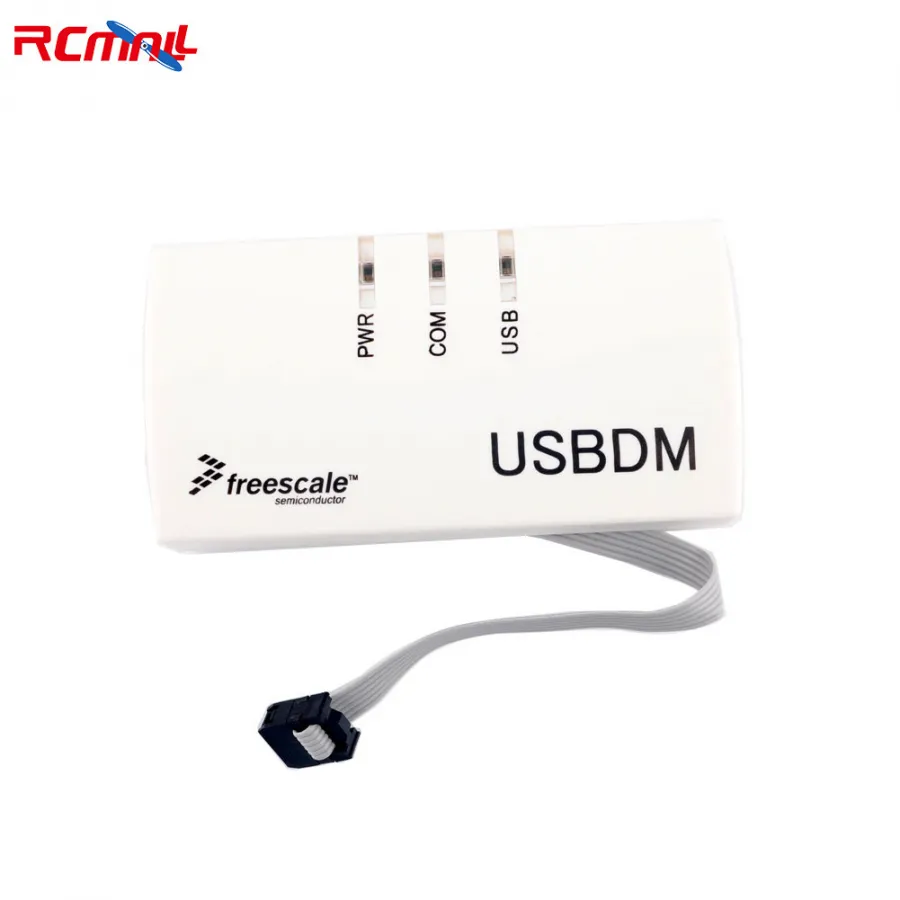

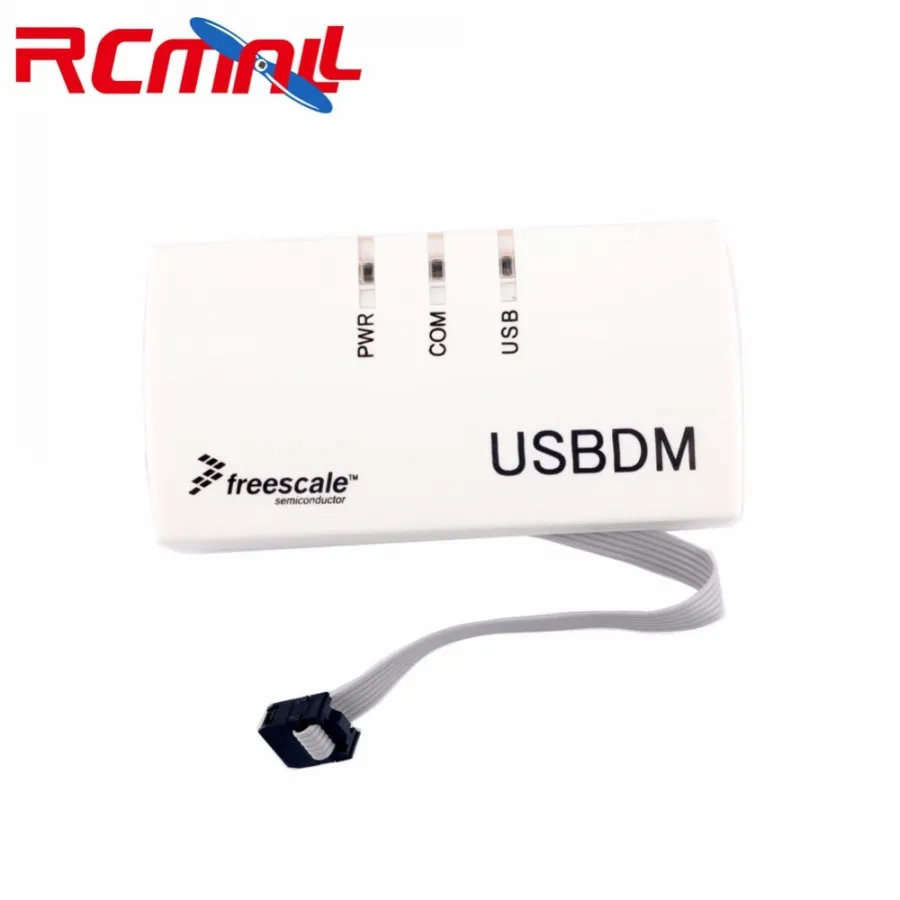

For Freescale USBDM Programmer JS16 BDM/OSBDM OSBDM Download Debugger Emulator Downloader 48MHz USB2.0 V4.12 RCmall FZ0622C
5.0 (9 votes) | 29 orders
Price:
US $
35.68
/ piece
- Color
-
-

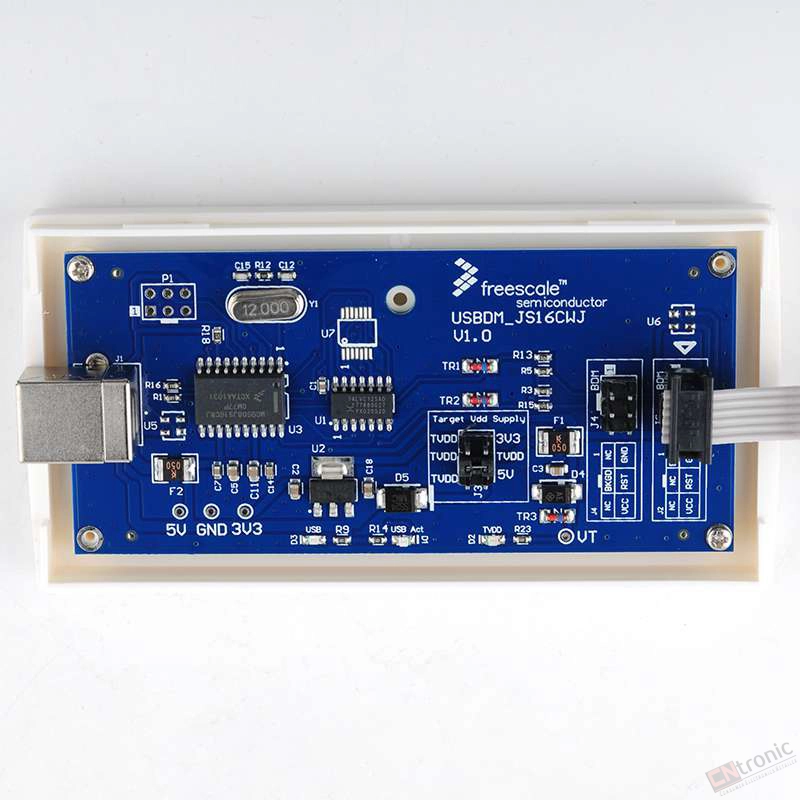

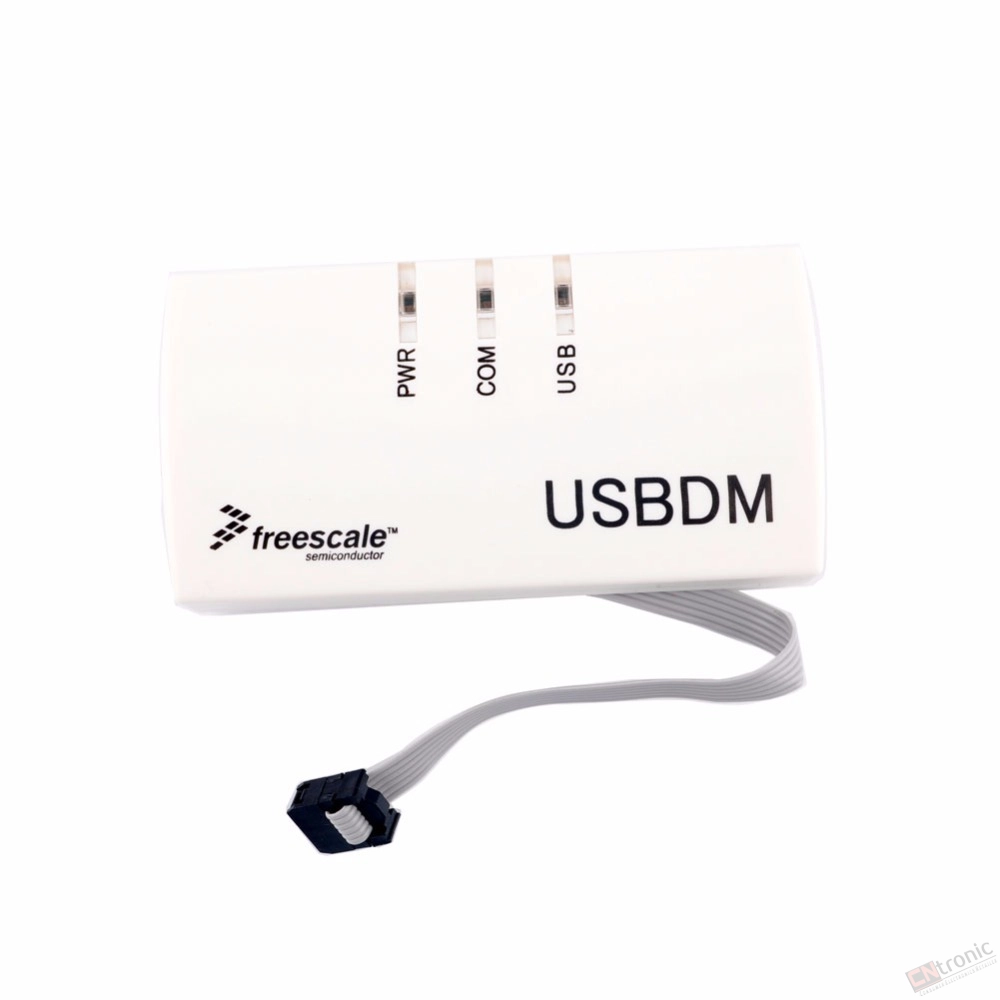

For Freescale JS16USBDM Programmer BDM/OSBDM OSBDM Download Debugger Emulator Downloader 48MHz USB2.0 RCmall FZ0622C
Tips:
1. CodeWarrior software must be installed on the default installation directory path,not allowed to change, because the driver is installed by default to the drive C default installation directory.
2. Installation Steps:
Step 1: Install the required software IDE
Step 2: Install USBDM driver software;
Step 3: Connect BDM to computer via USB cable;
Step 4: Manually install BDM equipment;
Step 5: Congratulations, you can use the target board.
Description:

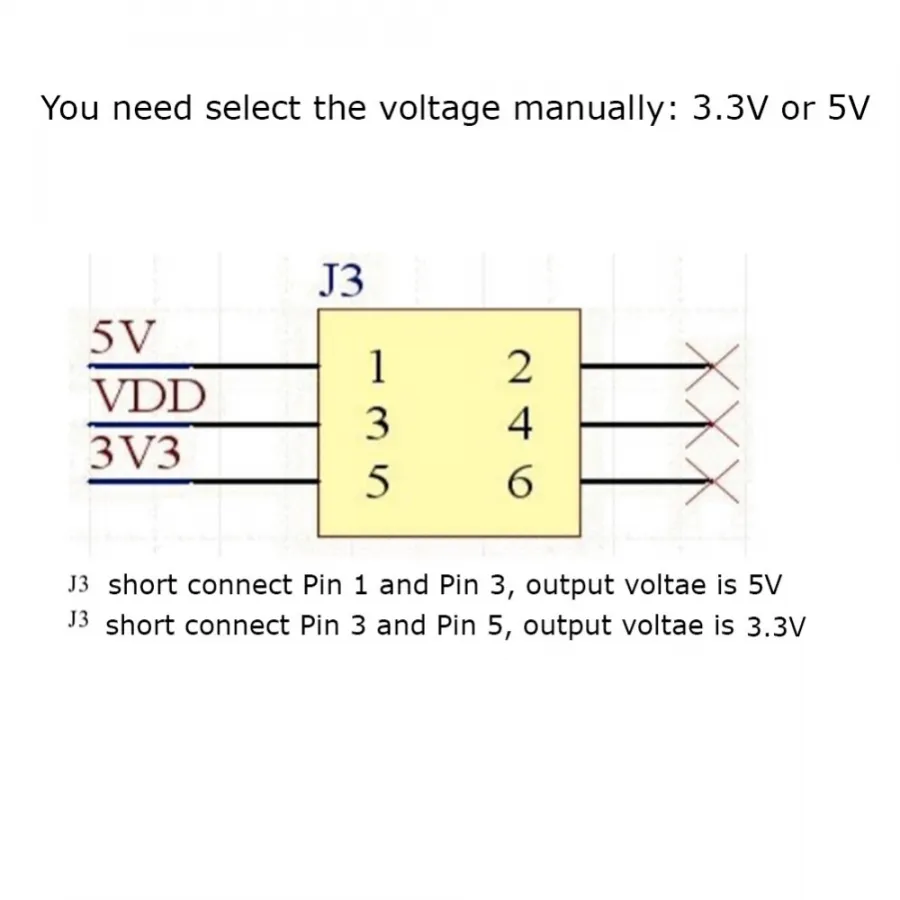

The target board to manually select 3.3V/5.0V power supply (target board power supply: 3.3V 500mA/5.0V 500mA);
Online download, single-step debugging and emulation, observed values of all registers and global variables;
CPU 48MHz clock speed, USB2.0 interface;
Support chips:
8-bit microcontroller: HCS08 Series;
16-bit microcontroller: the HCS12 to (including those without the SYNC feature (eg 9S12DP256B) series;
32: Coldfire V1 microcontrollers;
USBDM support three breakpoint debugging;
Can be developed in the following software development IDE (old and new versions of CW takes all!):
Codewarrior V10.2 (Eclipse version)
Codewarrior V10.1 (Eclipse version)
CodeWarriorLegacy versions
Codewarrior Development Studio for HCS12 (X) V5.1 &
CW for Microcontrollers V6.3 (RS08 is not supported)
Initial support for CodeSourcery Lite forColdfire
The protection circuit emulator:
USB port with ESD protection circuitry, 500mA resettable fuse;

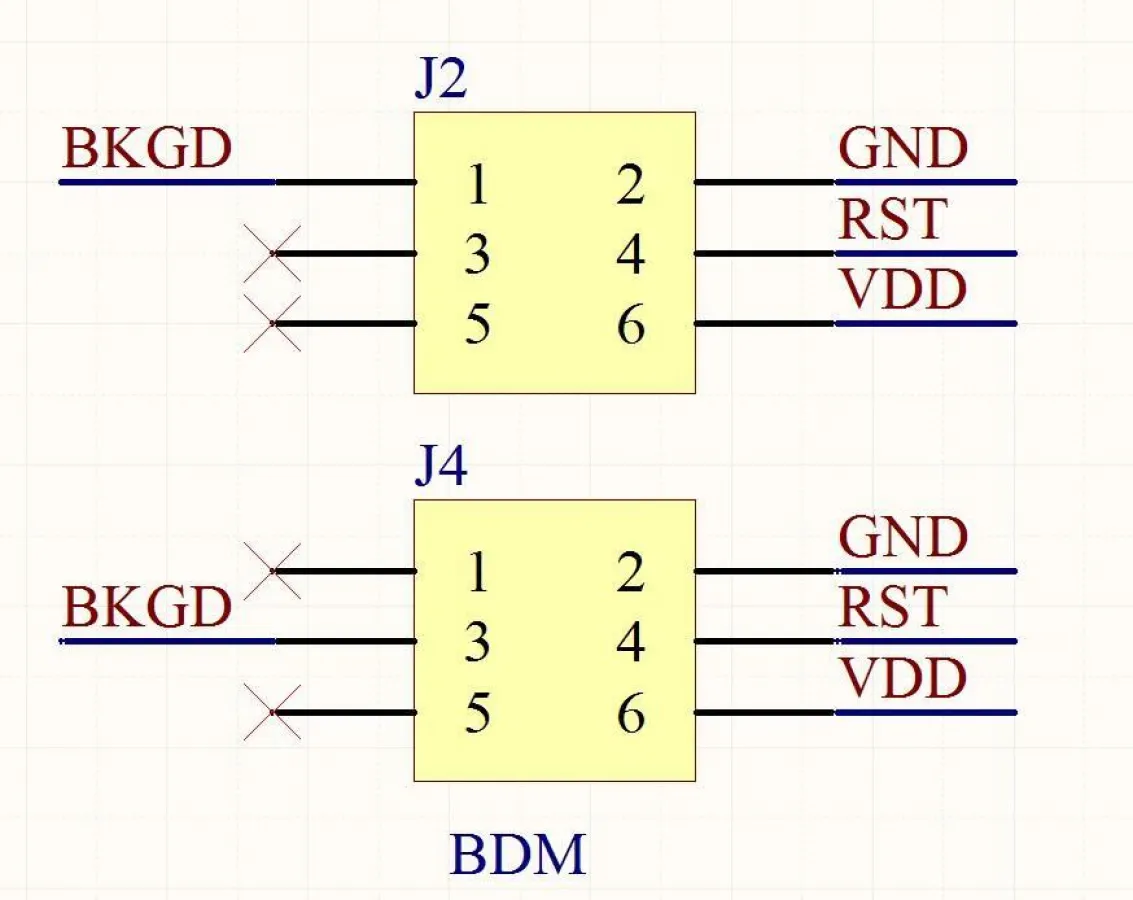

BDM output data lines each plus overvoltage protection ESD protection;
BDM output port power foot plus TVS, overvoltage protection;
Self-powered use 500mA resettable fuse;
The emulators support for the chip list:
MC9S08AC128, MC9S08AC16, MC9S08AC32, MC9S08AC48, MC9S08AC60, MC9S08AC8, MC9S08AC96, MC9S08AW16, MC9S08AW16A, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08AW8A
MC9S08DE32, MC9S08DE60, MC9S08DN16, MC9S08DN32, MC9S08DN48, MC9S08DN60, MC9S08DV128, MC9S08DV16, MC9S08DV32, MC9S08DV48, MC9S08DV60, MC9S08DV96, MC9S08DZ128, MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08DZ96
MC9S08EN16, MC9S08EN32
MC9S08EL16, MC9S08EL32
MC9S08GB32, MC9S08GB32A, MC9S08GB60, MC9S08GB60A, MC9S08GT16, MC9S08GT16A, MC9S08GT32, MC9S08GT32A, MC9S08GT60, MC9S08GT60A, MC9S08GT8A
MC9S08JM16, MC9S08JM32, MC9S08JM60, MC9S08JM8
MC9S08JR12
MC9S08LC36, MC9S08LC60
MC9S08QA4, MC9S08QD2, MC9S08QD4, MC9S08QE128, MC9S08QE16, MC9S08QE32, MC9S08QE32, MC9S08QE4, MC9S08QE64, MC9S08QE8, MC9S08QE96, MC9S08QG4, MC9S08QG8
MC9S08RC16, MC9S08RC32, MC9S08RC60, MC9S08RC8, MC9S08RD16, MC9S08RD32, MC9S08RD60, MC9S08RD8, MC9S08RE16, MC9S08RE32, MC9S08RE60, MC9S08RE8, MC9S08RG32, MC9S08RG60
MC9S08SG16, MC9S08SG32, MC9S08SG4, MC9S08SG8
MC9S08SH16, MC9S08SH32, MC9S08SH4, MC9S08SH8
MC9S08SL16, MC9S08SL8
MC9S12A128B, MC9S12A256B, MC9S12A32, MC9S12A64, MC9S12A512
MC9S12B64, MC9S12B128
MC9S12C32, MC9S12C64, MC9S12C96
MC9S12D32, MC9S12D64, MC9S12DB128A, MC9S12DB128B, MC9S12DG128B, MC9S12DG256B, MC9S12DJ128B, MC9S12DJ256B, MC9S12DJ64, MC9S12DP256B, MC9S12DJ64, MC9S12DP256B, MC9S12DP512, MC9S12DT128B, MC9S12DT256, MC9S12DT256B
MC9S12E32, MC9S12E64, MC9S12E128, MC9S12E256
MC9S12G96, MC9S12G128
MC9S12GC16, MC9S12GC32, MC9S12GC128
MC9S12H128, MC9S12H256, MC9S12HN64, MC9S12HZ64, MC9S12HZ128, MC9S12HZ256
MC9S12HA32, MC9S12HA48, MC9S12HZ64
MC9S12HY32, MC9S12HY48, MC9S12HY64
MC9S12I32, MC9S12I128
MC9S12KC64, MC9S12KC128, MC9S12KG64, MC9S12KG128, MC9S12KG256, MC9S12KL64, MC9S12KL128, MC9S12KT128, MC9S12KT256
MC9S12NE64
MC9S12P32, MC9S12P64, MC9S12P96, MC9S12P128
MC9S12Q32, MC9S12Q64, MC9S12Q96, MC9S12Q128
MC9S12T64
MC9S12UF32
MC9S12XA128, MC9S12XA256, MC9S12XA512
MC9S12XB128, MC9S12XB256
MC9S12XD64, MC9S12XD128, MC9S12XD256, MC9S12XDG128, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512
MC9S12XEG128, MC9S12XEP100, MC9S12XEP768, MC9S12XEQ384, MC9S12XEQ512, MC9S12XET256
MC9S12XFR128
MC9S12XHY128, MC9S12XHY256
MC9S12XS64, MC9S12XS128, MC9S12XS256
Compatible IDEs
Codewarrior V10.x(Eclipse version)
Tested on Windows-XP-32bit,Windows-XP-64bit,
Windows-7-64bit,Windows-7-32bit
Tested on Ubuntu-32-bit
CodeWarriorLegacy versions
Codewarrior Development Studio for HCS12(X) V5.1(HCS12 ),V5.2
Tested on Windows-XP-32bit,Windows-XP-64bit,
Tested on Windows-7-64bit,Windows-7-32bit
CW for Microcontrollers V6.3(RS08 is not supported)
Tested on Windows-XP-32bit,
Initial support for CodeSourcery Lite for Coldfire
Tested on Windows-XP-32bit
Package Included:

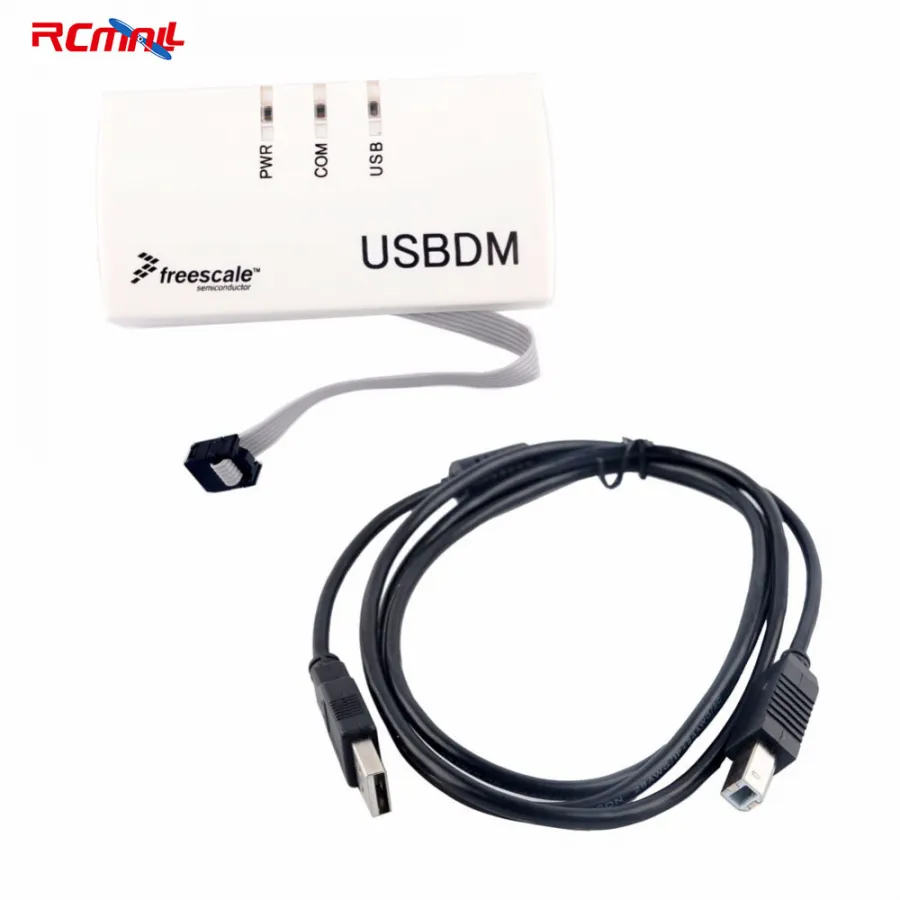

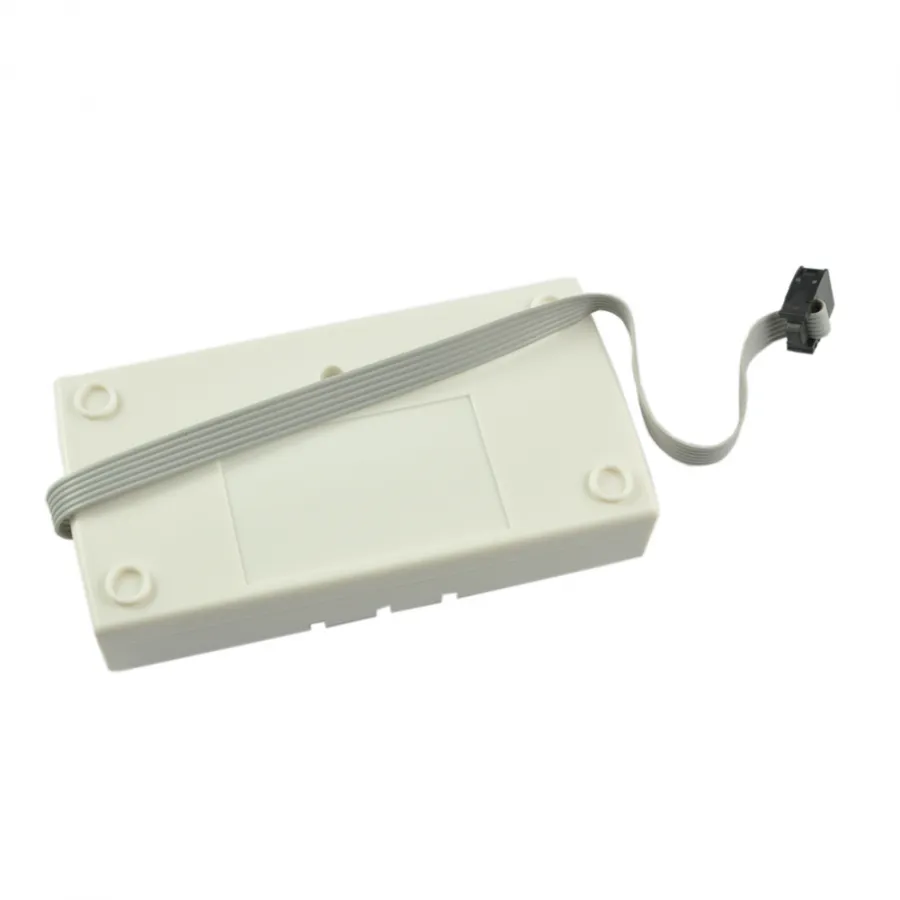

1 X USB-BDM Host
1 X Driver link (please kindly contact with us for it)
Packaging Details
- Unit Type: piece
- Package Weight: 0.100
- Package Size: 5x2x10
- Brand Name: RCmall
- Origin: Mainland China
- Model Number: FZ0622C
- Certification: None
- Drones Accessories Type: GPS
- Name: USBDM OSBDM
- SKU: FZ0622C
- Version: V4.12
- Note: USB Print Cable not included
