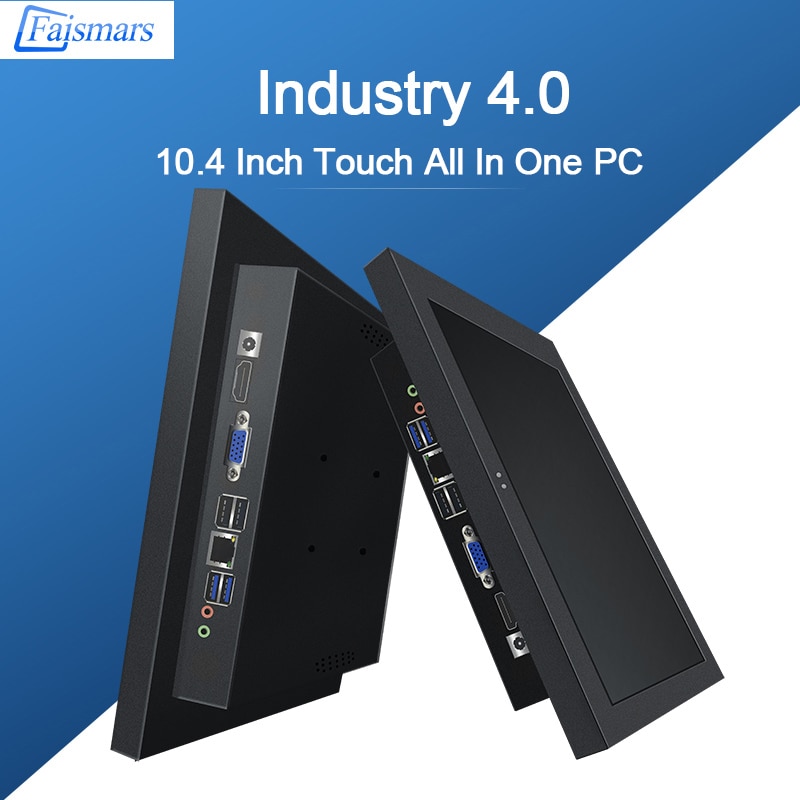

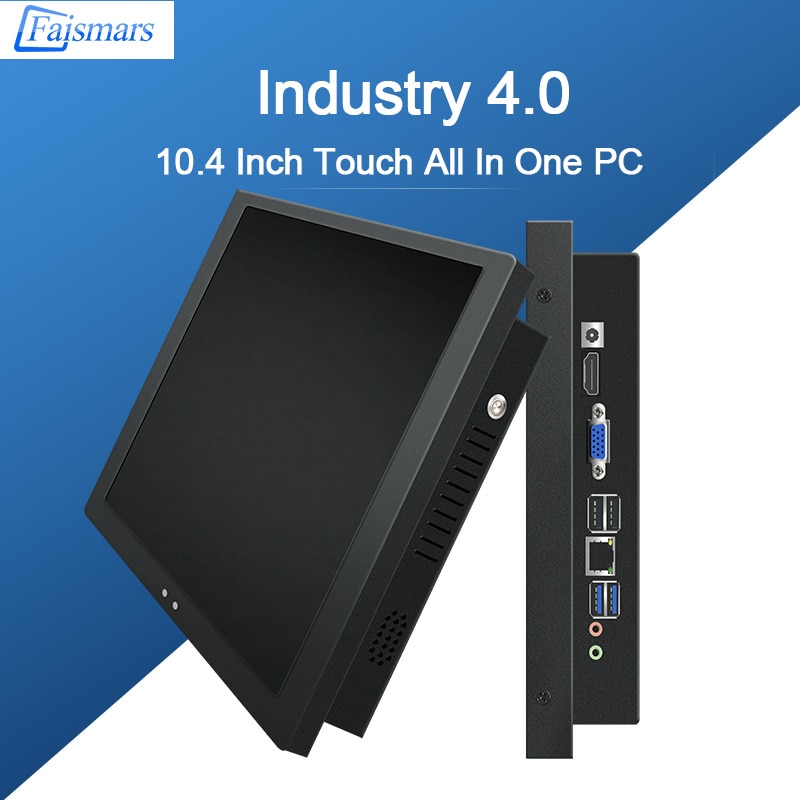

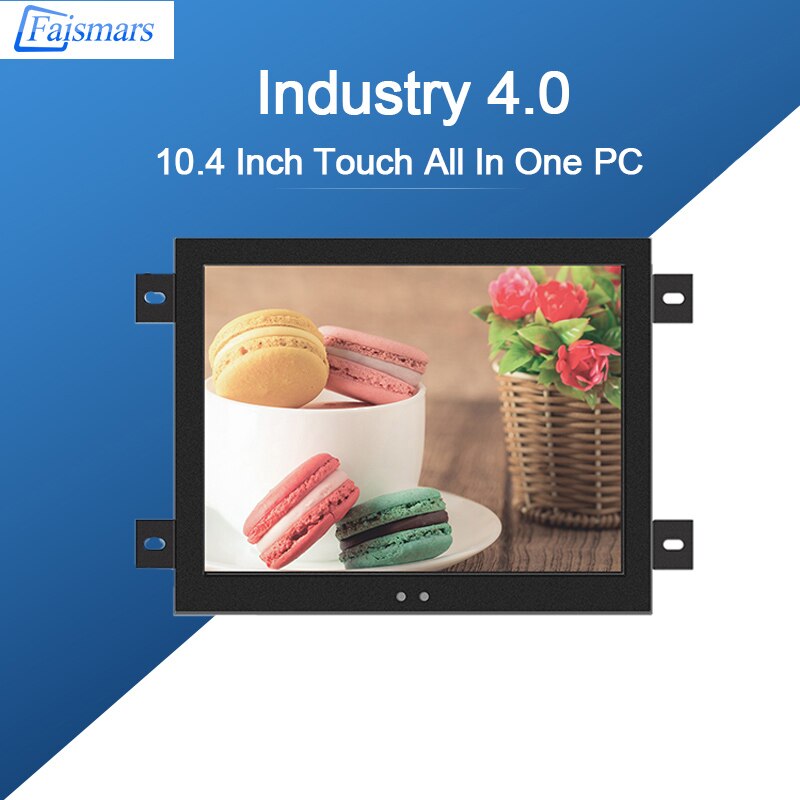

Faismars 10.4 inch 1024x768 Intel J1900 2.0GHz All In One PC Capacitive/ Resistive Touch Industrial Panel PC Desktop Computer
SALE
ID: 12566

Faismars 10.4 inch 1024x768 Intel J1900 2.0GHz All In One PC Capacitive/ Resistive Touch Industrial Panel PC Desktop Computer

0.0 (8 votes) | 1 orders
Price: US $1019.98 - 1399.98 / piece
Discount Price:
US $ 775.18 - 1063.98 / piece
-24%
Quantity

11



1.Provide Custom Design Services;

2.QTY>5, Contact Us To Get Best Price;

3.Provide Low consumption TDP, J1800 to I7 8th gen CPU, matches your all requsts.

Buy with confidence! 3 Years long warranty for Motherboard!

Faismars 10.4 inch 1024x768 Intel J1900 2.0GHz All In One PC Capacitive/ Resistive Touch Industrial Panel PC Desktop Computer

About-Specification

10.4-inch touch Industrial Panel PC

Mechanical

Front Panel: Aluminum frame(Capacitive)/ Metal Frame(Resistive)
Chassis: Heavy steel chassis
Dimensions: Attached dimensions
Mounting: Panel Mounting
Color: Matt Black
Weight: About 6Kgs

System Data

CPU: Intel Celeron Processor J1900 (4 cores, 2M Cache, up to 2.41 GHz,10w)
BIOS: AMI BIOS
Graphic: IntelHD Graphics
Memory: 4GB DDR3 System Memory    (8GB optional)
Storage: 32G SSD      (64G/128G/256G optional)
System: WIN7/WIN8/WIN10

LCD

LCD Size: 10.4"  TFT LCD
Aspect Ratio: 4:3
Resolution: 1024 x 768
Luminance: 300cd/m2
Contrast Ratio: 400:1
Colors: 16.2M colors

Touch screen

Touchscreen Type: Industrial Grade Capacitive/ Resistive Touchscreen
Touchscreen Interface: USB
Light Transmission: 80%
Life Time: 35millions times

Rear I/O

LAN: 1 x RJ45
VGA: 1 x VGA
HDMI: 1 x HDMI
Audio: 1 x Audio (MIC & line-out)
USB: 4 x USB 2.0
Power In: 1 x DC In
Power Button: 1 x ATX Power Button

Power

System Power Requirement: +12V DC Power Input
Power Adapter: Input: 100 ~ 250VAC, 50/60Hz
Output: 60W Adapter (12V @ 5A )

Environment

Operating Temp: -10°C ~ 60°C
Relative Humidity: 0% ~ 90% Relative Humidity, Non-condensing

Options

CPU: I3/I5/I7 optional
WIFI: WIFI optional



Rack Mount Capacitive PC is optional, if need, pls don’t hesitate to contact us.

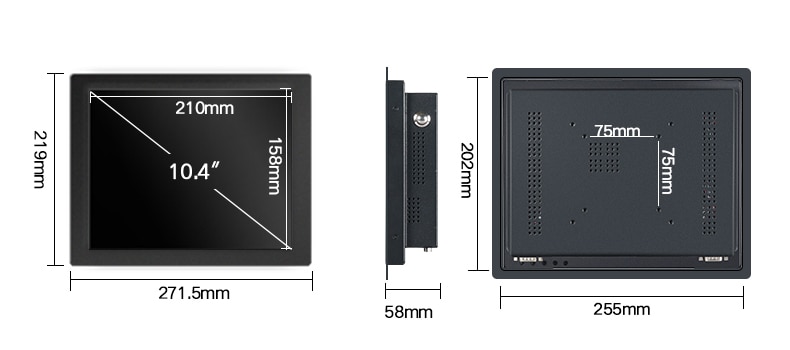

About Dimensions

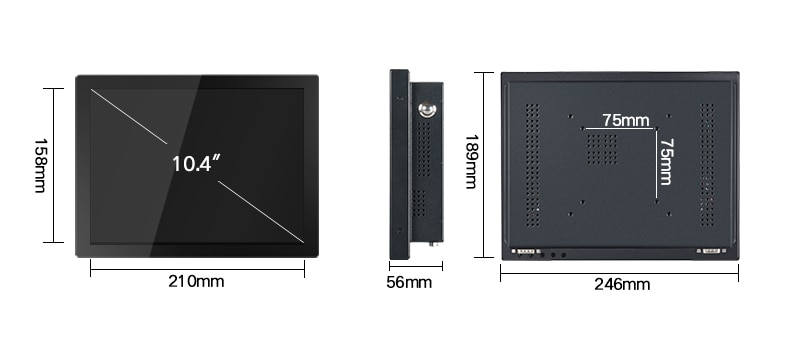

Embedded Frame Capacitive Touch Dimensions

Faismars All In One PC Desktop Panel PC (3)

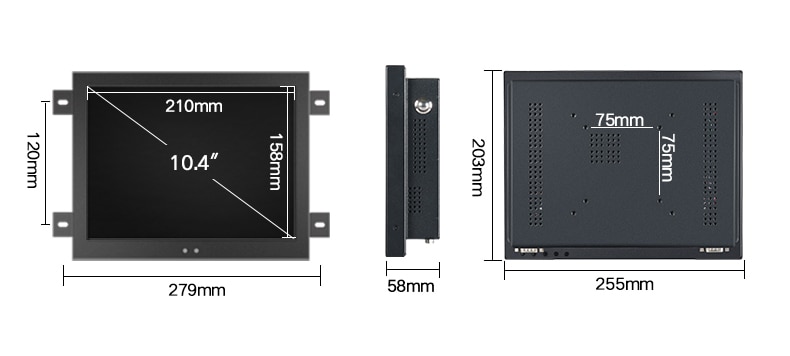

Embedded Frame Dimensions

Faismars All In One PC Desktop Panel PC (4)

Embedded Rack Mount Dimensions



Faismars All In One PC Desktop Panel PC (5)

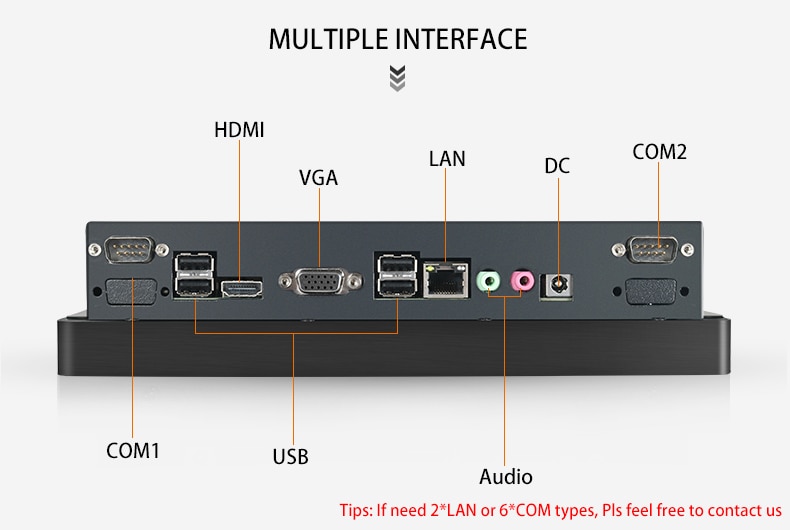

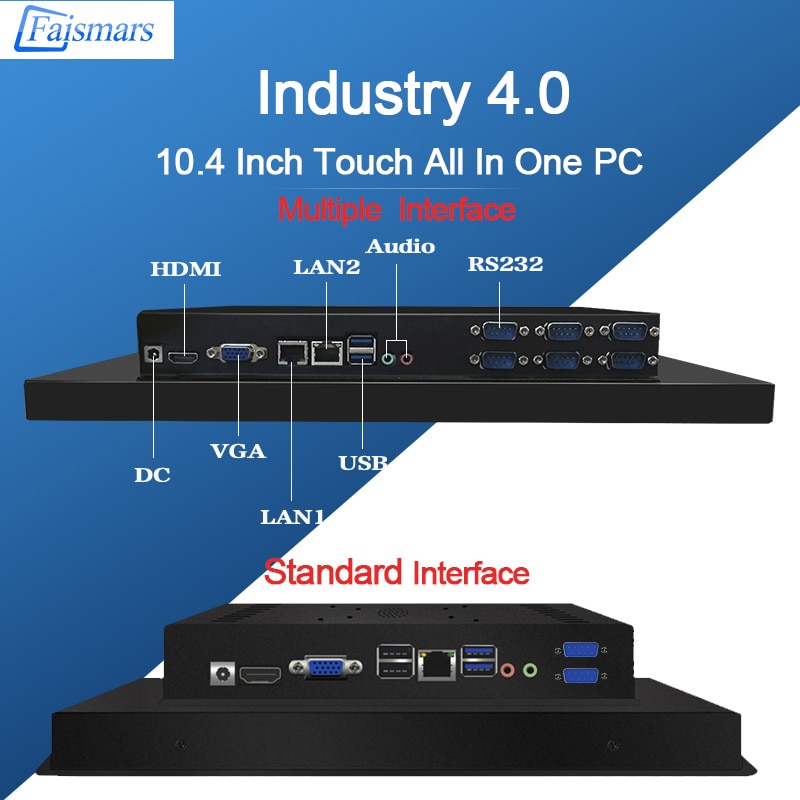

Rich Interfaces

Rich Interfaces

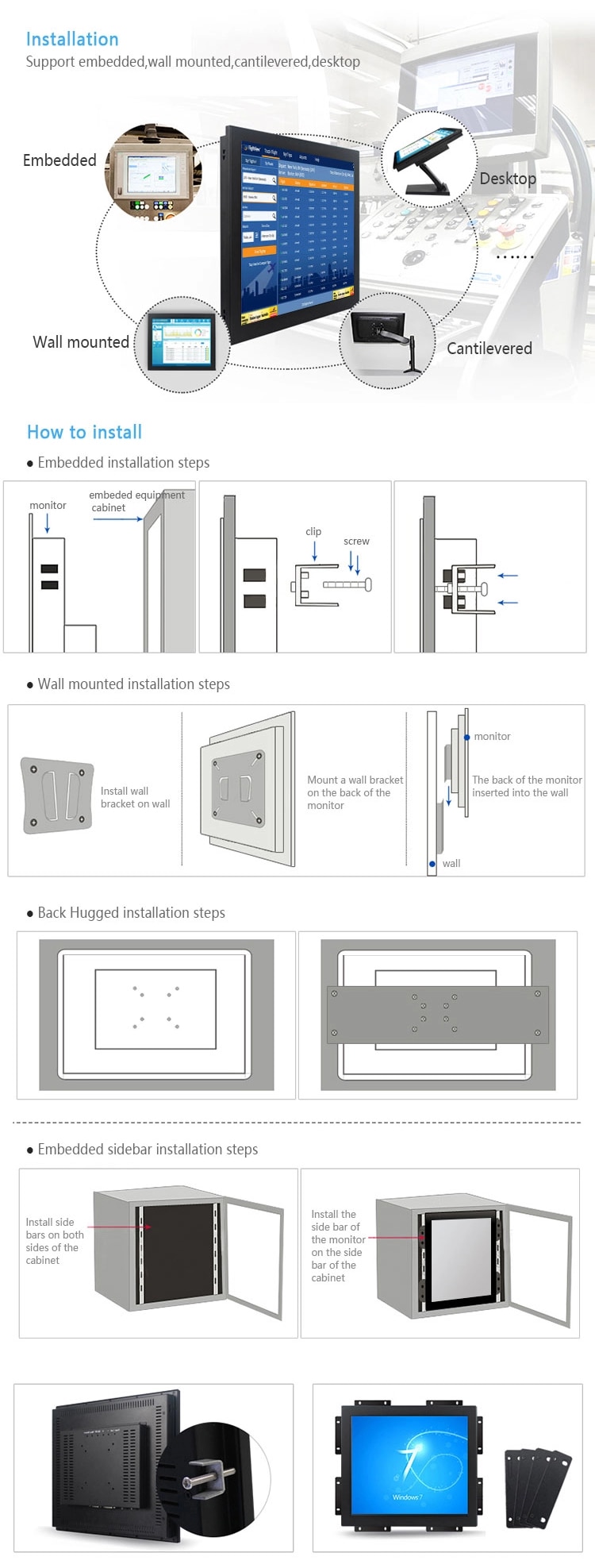

installationinstallation

applicationApplication1



OPERATING-SYSTEM

Free Operating System: Default installed our trial OEM windows 10/8/7 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install.  Other systems we can install free are like Linux Ubuntu etc if you need. Seller is not responsible for trial OEM system.

Accessories as RAM, SSD, we use famous brand:  samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison, Longsys etc, What brand we use depends on our test and our stock.OS



About-Company

Faismars established in 2013, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems and computer-related accessories.

Compny Feature



shipment

packing



1. We send to the Buyer's address specified on Cntronic. Please check your address/city/ post code, making sure it's matched with your shipping address.


2. We can't control the delivery time because it is processed by Third-party service. If the parcel has not arrived within expected time, please contact us, we will extend the delivery date before opening dispute.


3. Normally we ship for free by faster delivery mode such as DHL, EMS, Fedex, our express agent special line, etc. It depends on different countries and different cases. But for those remote areas, we have to ship for free by registered postal mail, it will be slower than EMS, DHL, Fedex, etc. You can also add extra fees for DHL, EMS, Fedex, etc. faster shipment ways, thanks for understanding. All goods will be packed well to make sure they arrive in high condition.



Tax

1. Normally we declare item as "ALL IN ONE PC" or "PANEL PC" with real value, the Buyers are fully responsible for paying fees involving such as dispatching fees, storage costs, brokerage, taxes or VAT etc.


2. If you have special requirement of the value, please leave a message to us after you make order.


3. Due to the tax problem, the Buyer refuse to receive the goods, the Buyer need to be fully responsible for the freight back and forth.Thank you for your cooperation.



  • Brand Name: Faismars
  • Port: VGA RJ-45 COM USB HDMI
  • Hard Drive Capacity: 32GB
  • Memory Capacity: 4GB
  • Weight: 6KG
  • Memory Capacity: 4GB
  • Model Number: M104-AC01
  • Origin: CN(Origin)
  • Processor Model Number: J1900
  • Graphics Card Chipset: HD Graphics
  • Type: All-In-One
  • HDD Rotation Speed: SSD
  • Display Size: 10.4
  • Processor Series: Intel Celeron
  • Chipset Type: J1900
  • Video Memory Type: GDDR3
  • Max Boost Speed: 2.41GHz
  • Mouse & Keyboard: No
  • Processor Main Frequency: 2
  • Operating System: Windows7/8/10
  • Bundle: Bundle 1
  • Graphics Card Type: Integrated Card
  • Dispaly Ratio: 4:3
  • Power: 30w
  • Drive Type: No CD ROM
  • Processor Core: Quad Core
  • RAM Type: DDR3
  • Display Type: Touch Screen
  • Display resolution: 1024x768
  • Name: 10.4 inch All in one Touch screen PC
  • Working temperature: -10~70 ℃
  • Advantage: Cheap price/new parts/OEM
  • Installation: desktop/wall hanging/embedded/ Rack Mount
  • CPU: intel Celeron J1900 2.0GHz
  • Availability of product: Stocked
  • Packing: individual package
  • Material: Aluminum frame(Capacitive)/ Metal Frame(Resistive)
  • Touch type: Capacitive touch/ Resistive Touch
  • Warranty: 1 year
