EDP LCD LED Controller Board kit monitor FOR N173FGE-E23 N173FGE-E13 1600X900 17.3
ID: 48576

EDP LCD LED Controller Board kit monitor FOR N173FGE-E23 N173FGE-E13 1600X900 17.3" panel Screen HDMI-compatible VGA KIT

0.0 (2 votes) | 4 orders
Price: US $43.51 / piece
Discount Price:
US $37.85 / piece

EDP LCD LED Controller Board kit monitor FOR N173FGE-E23
N173FGE-E13 1600X900 17.3" panel Screen HDMI VGA KIT

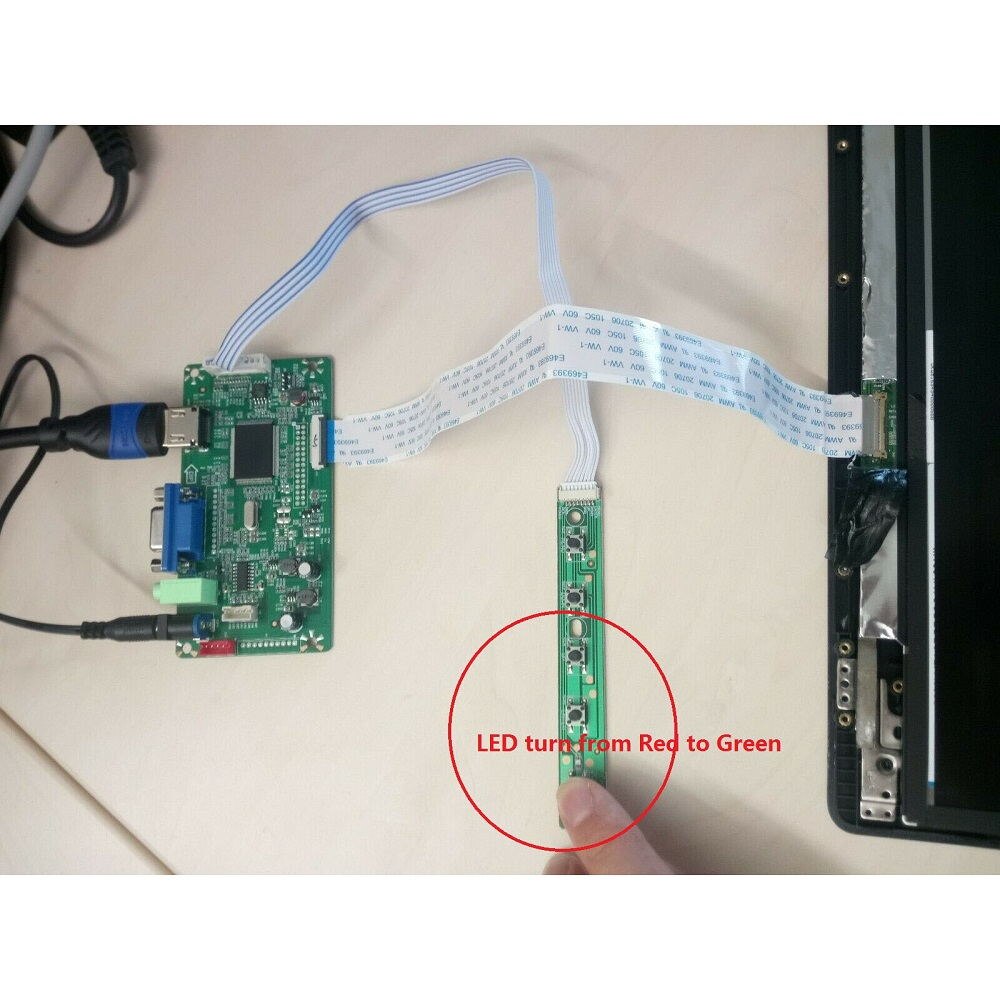

Note :The demonstrate Video is the 14 inch Panel Connect to the Controller board.

Note :
When you make the order ,Please make sure your LCD model is
N173FGE-E23 N173FGE-E13
So that I will send the right drive board to you
Send items with tracking number
Work power is 12V-3A or 12V-4A DC port is 2.5MM and 5.5MM inner + outside -
LCD Controller Board Feature
VGA HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
DC port:2.5MM and 5.5MM inter+ outside -
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI
Audio Output: small speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size:82mm x 60mm x 5mm
Compatible Work With:

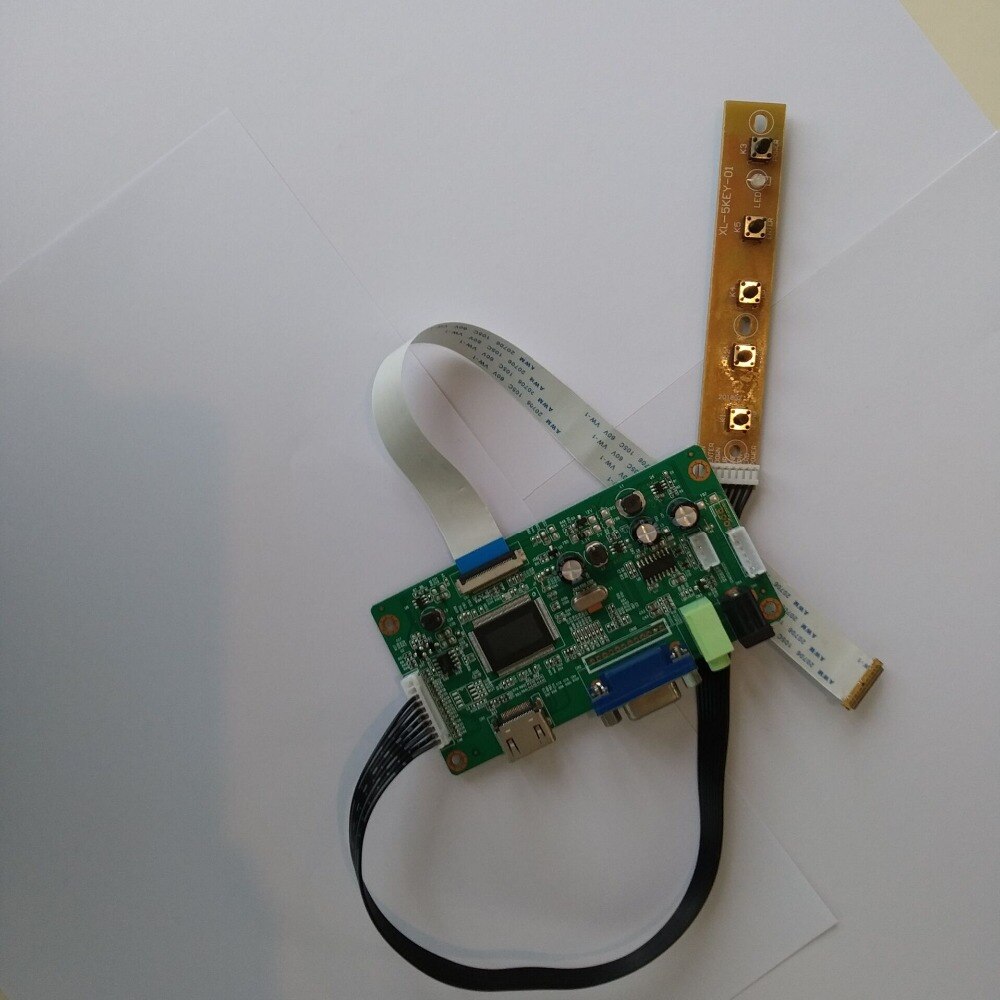

Packing list :
1× HDMI EDP LCD Controller board
1× Signal Cable
1× Keyboard With Cable
If you want to buy the adapter, speaker or the box of the controller board ,please click below:

If your panel is below LCD model ,please let me know that with thanks
11.6inch 1920x1080:
13.3inch 1920x1080:
14inch 1920x1080:
B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3
15.6inch 1920x1080:
B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP N156HGE-EA1 NV156FHM-N31 NV156FHM-N41
LTN156HL01 LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401  LTN156HL02-201
17.3inch 1920x1080:
N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1 LP173WF4-SPD1 LP173WF4-SPF1
LP173WF4-SPF2 LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401

  • Brand Name: OPLY
  • Series: PAVILION
  • Origin: CN(Origin)
  • Item Condition: New
  • Compatible Brand: ASUS
  • Certification: RoHS
  • Model Number: EDP-9877PIIYYUBYTB
  • For N173FGE-E23 Screen FHD: Work For N173FGE-E13
  • For EDP Screen LED: Work for display Full monitor
