Dual-Q M2-USB3.0 USB to M.2 Dev kit MH2US V2 design for Sierra wireless EM919x EM7690 Telit FN990 Thales MV31
4.8 (26 votes) | 134 orders
Price:
US $
82.62
- Color
-
-

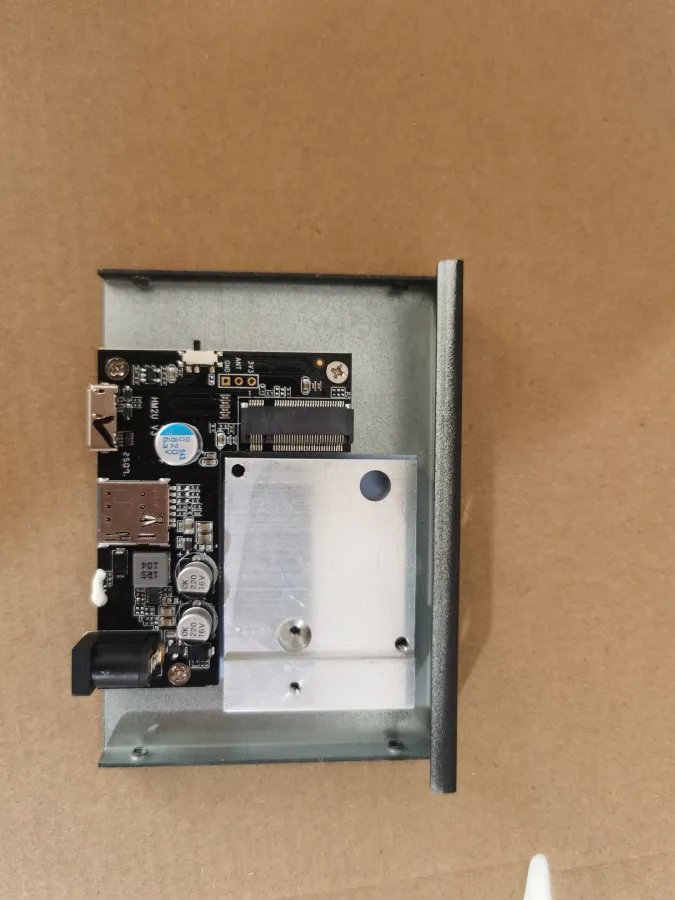

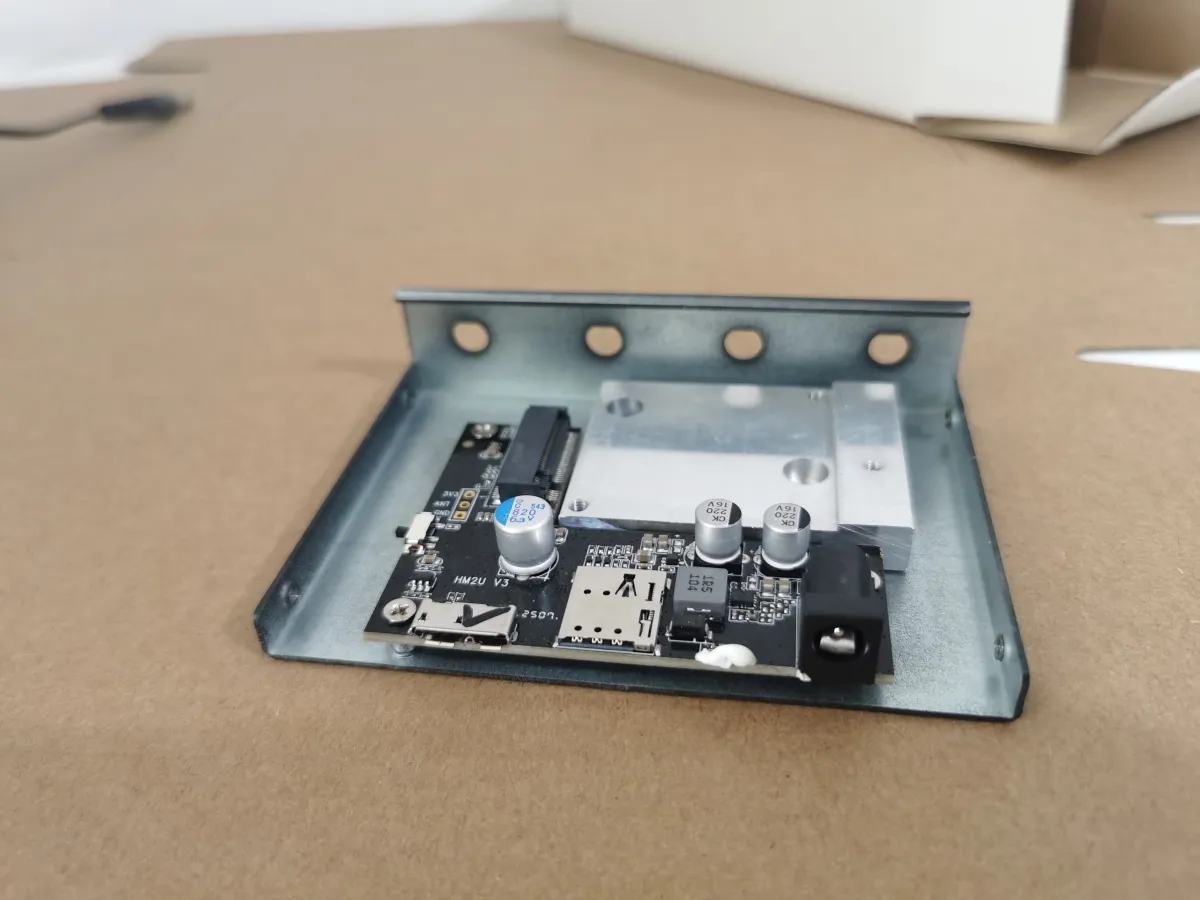

V3 version no change in board, bodycase do some change , use new heatsink and Galvanized steel sheet ,The heat from the modem is transferred to the unpainted housing through the heat sink.
Total New design for latest 5Gnr M.2 Modem Sierra wireless EM9190 EM9191 EM7690; Telit FN980 ; Thales MV31-W,Quectel & Simcom Modem.

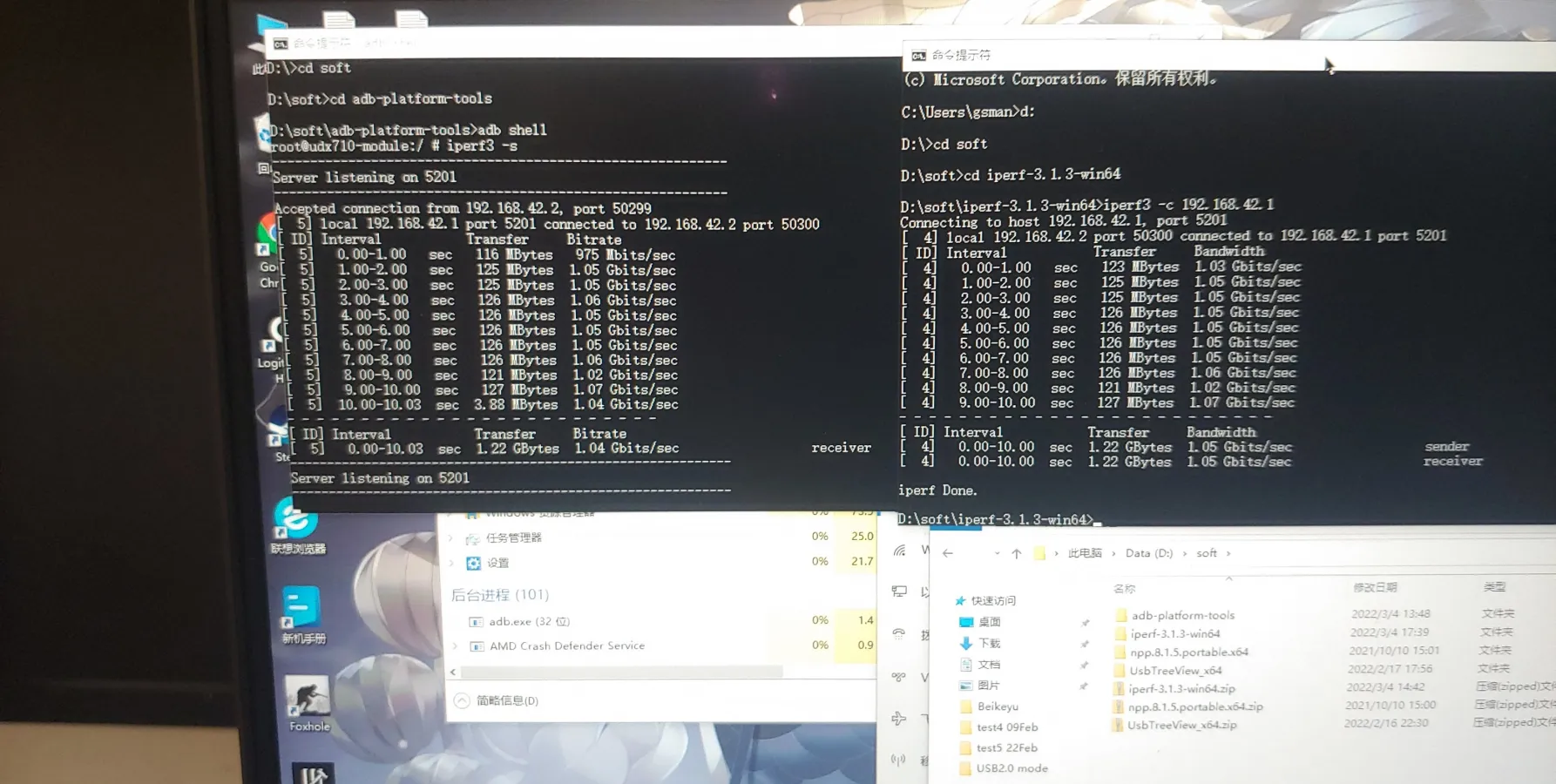

I use Quectel RM500U-CN internal iperf3 test Throughput can get over 1Gbits/s
New feature:
A, Support 52mm,50mm,42mm length three size of 5Gnr M.2 Modem.(new heatsink has delete 50mm length screw hold)

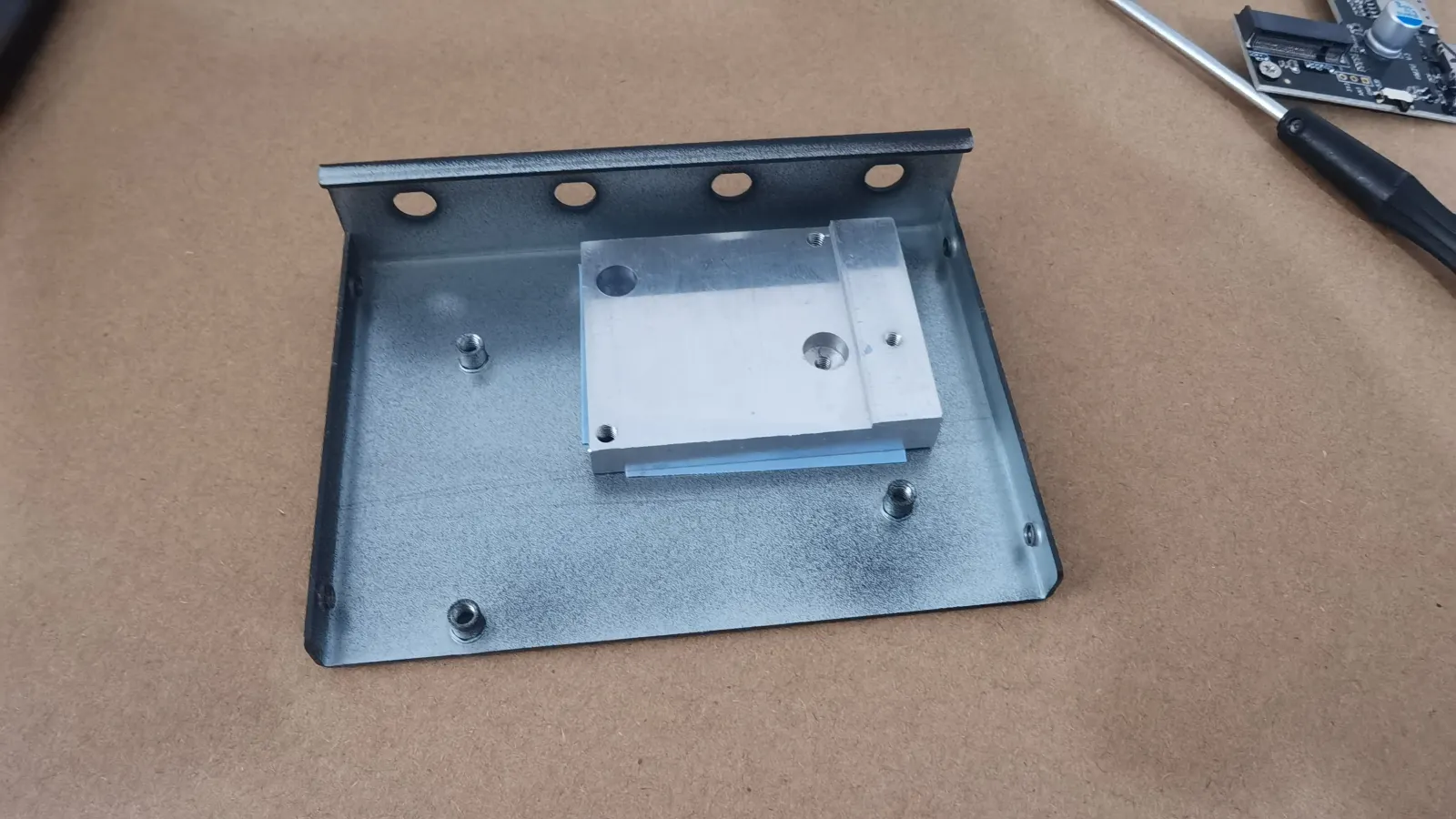

B, Introduce integrated aluminum heat sink，make your 5G modem always cool.
C,Add New switch for Sierra Wireless EM9190 EM9191 EM7690, switch will let modem work at USB mode(sierra new 5G modem default work at PCIE)
D, 2 Step electric capacity at Output side,(input 16V 220μF,output 16V 220μF+6.3V 820μF)
E, Adjust output to 3.7V. Prevent voltage drop when high data transfer .
F, Add 5V DC AUX port, Max support 5V 4A power adapter, provider 20W power for 5G modem.
G,Use Nano sim card slot , support hot swap simcard.
H,ESD prtection at USB and SIM slot.
No include internal Modem,no include AUX power & antenna.
adapter + EM9190(52mm length) speedtest:https://youtu.be/lwUBTPN3hZg
install telit FN980 (50mm legth modem) https://youtu.be/9dyhbFG3cpg
install Thales MV31-W (42mm length modem) https://youtu.be/nvbKd06rTJY
inlcude:
MH2U V2 adapter,
1x 45cm length USB3.0 A Micro B Cable
4x 10cm MHF4 to SMA cable.
1x 3x3.5x0.15 Silicone pad
1x 3x3x0.02 Silicone pad
1x support column for 50mm length modem

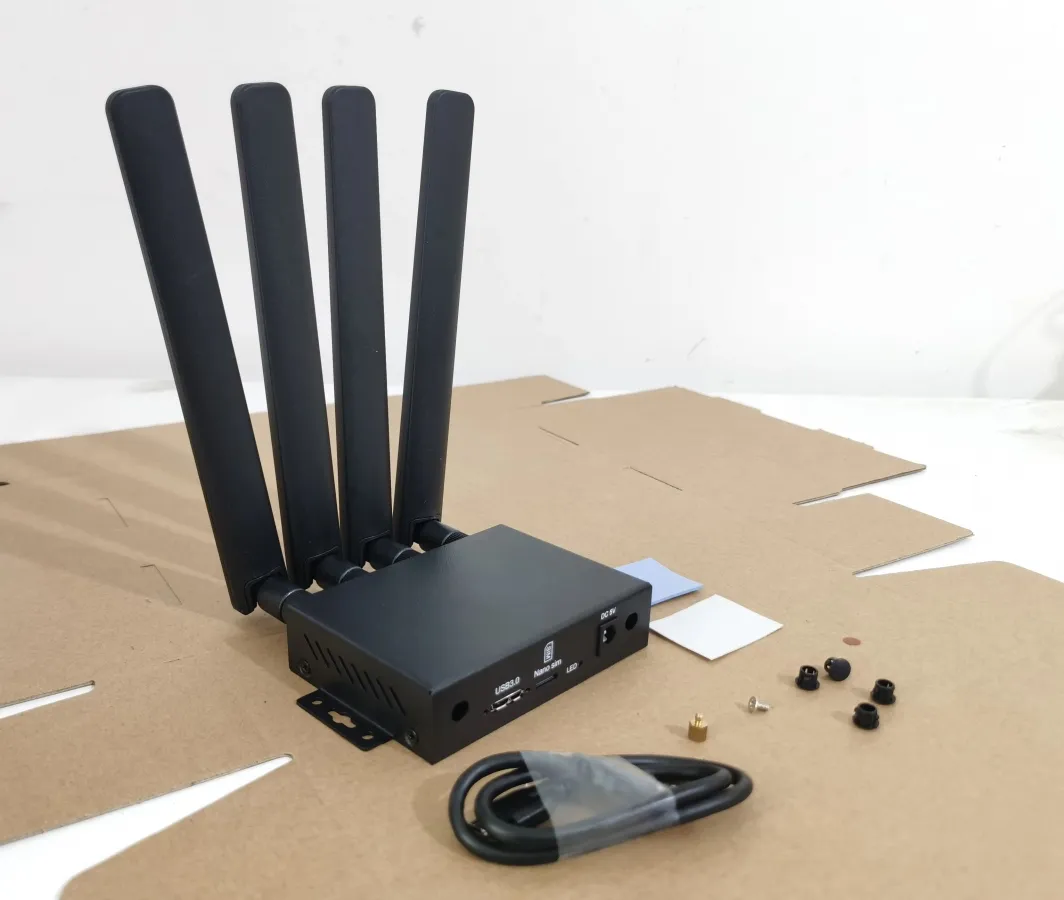

MH2U V2 adapter + 4x YE007A 5Gnr antenna(bundle sell):
4x YE007A 5Gnr antenna
1x 45cm length USB3.0 A Micro B Cable
4x 10cm MHF4 to SMA cable.
1x 3x3.5x0.15 Silicone pad
1x 3x3x0.02 Silicone pad
1x support column for 50mm length modem

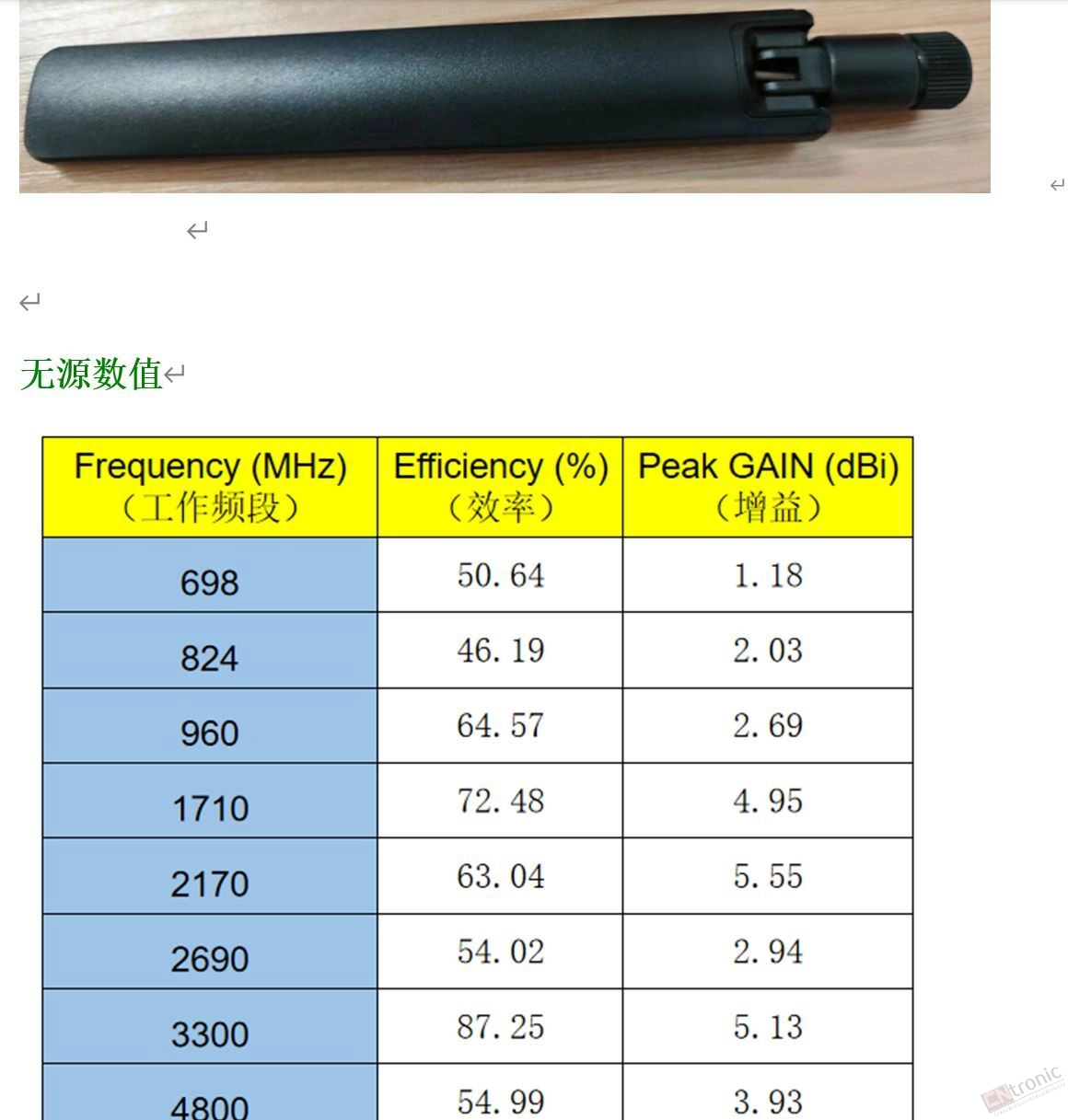

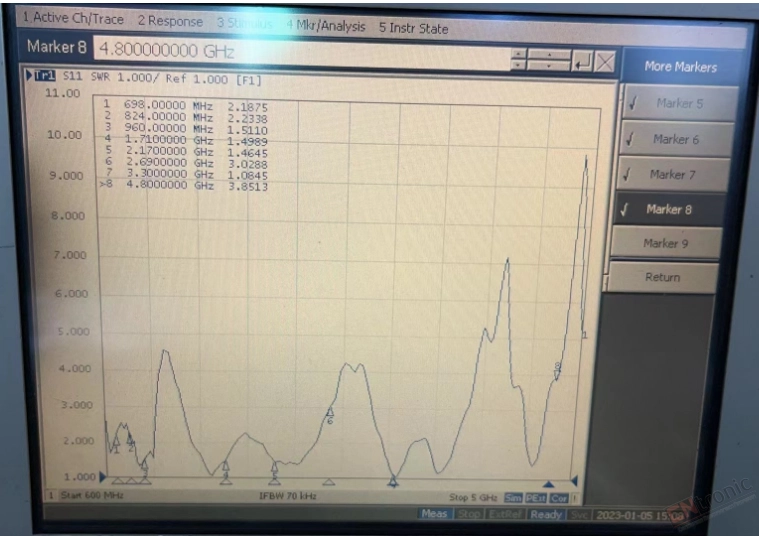

YE007A 5Gnr antenna VSWR test and efficiency & gain
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 15x4x20
- Brand Name: DIXSG
- Item Type: MH2US
- Wireless function: No
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: MH2US V3
- Certification: None
