baofeng walkie talkie uv-5r dualband two way radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with earpiece
56.66 $
SALE
ID: 117112
Quantity
Baofeng Walkie Talkie UV-5R Dualband Two Way Radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with Earpiece
4.7 (140 votes)
Price:
US $84.51 - 85.54
/ piece
Discount Price:
US $
47.50 -
48.09
/ piece
-44%

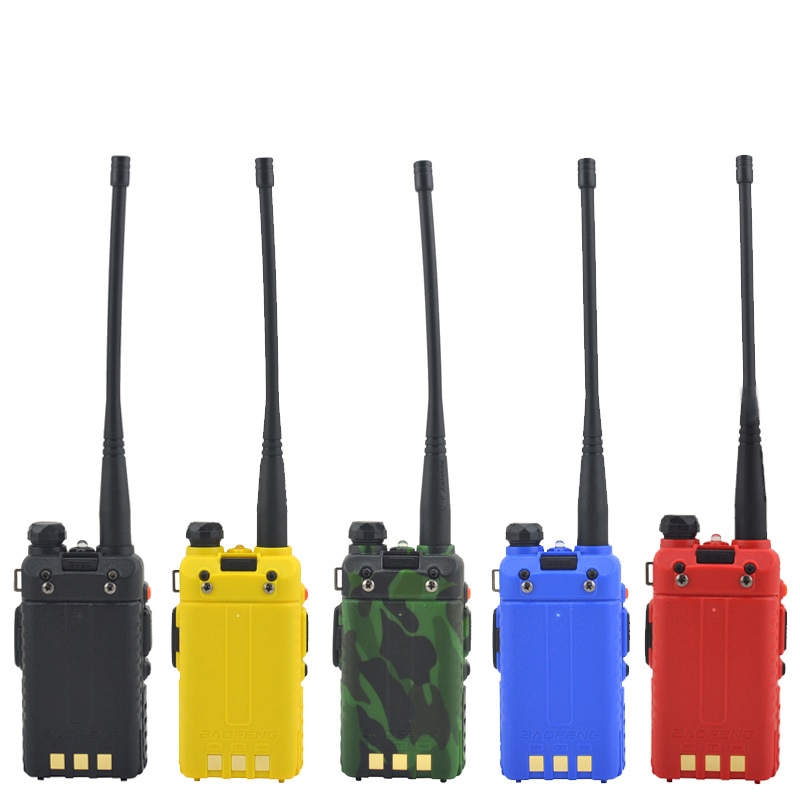

- Color
-
-
- Plug standard
baofeng walkie talkie uv-5r dualband two way radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with earpiece
Features:
Frequency Range:136-174 & 400-520MHz
Dual Band, Dual Display, Dual Frequency,Dual Standby
Output Power:5/1Watt
128 Storage Channels
50 CTCSS and 104 CDCSS
Buit-in Vox Function
1750Hz Brust Tone
FM Radio(65.0MHz-108.0MHz)
LED Flashlight
Larger LCD Display
High/Low RF Power Switchable
25KHz/12.5KHz Switchtable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step:2.5/5/6.25/10/12.5/25KHz
PC Programming
Specifications:
Dual band, dual display | A/B band independent operation |
128 groups channels storage | Shortcut menu operation mode |
VFO & Memory channels scan | Emergency Alarm |
Tri-color background light selectable | 0~9 grades VOX selectable |
PTT & ANI ID | FM radio and 25 stations storage |
1750Hz Brust Tone | Time-out Timer |
Channel Monitor | Battery Saver |
Keypad Lock | Channel Step: 2.5/5/6.25/10/12.5/25KHz |
Low Battery Alert | ROGER SET |
Emergency Alert | 25KHz/12.5KHz Switchable |
FM Radio (65.0MHz-108.0MHz) | Large LCD Display |
LED Flashlight | Hight /Low RF Power Switchable |
Voice companding | 50 CTCSS/ 104DCS coder & tone searching |
dual standby | PC programmable |
Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
High/Low TX power selectable | Busy channel lock-out(BCLO) |
Specifications | |
General | |
Frequency Range | 65-108MHz(FM Receive only) |
136-174MHZ and 400-520MHZ (TX/RX) | |
Channel No. | 128 |
Frequency Stability | ±2.5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50Ω |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Dimension(W x H x D) | 100 x 52 x 32 mm |
Weight | 250g(including battery, antenna) |
Antenna : | SMA -Female |
Earpiece / mic type : | Kenwood Plug type |
Transmitter | |
Output power | 5W / 1W (Max 5W) |
Modulation Mode | 16kΦF3E / 11kΦF3E |
Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
Spurious Radiation | 7μW |
Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | ≤1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
Intermediation distortion | ≤10% |
Package Contain:
1× UV-5R (VHF136-174 & UHF 400-520Mhz)
1× 7.4V 1800mah Li-ion Battery Pack
1× Dual Band Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Earpiece
1× Handstrap

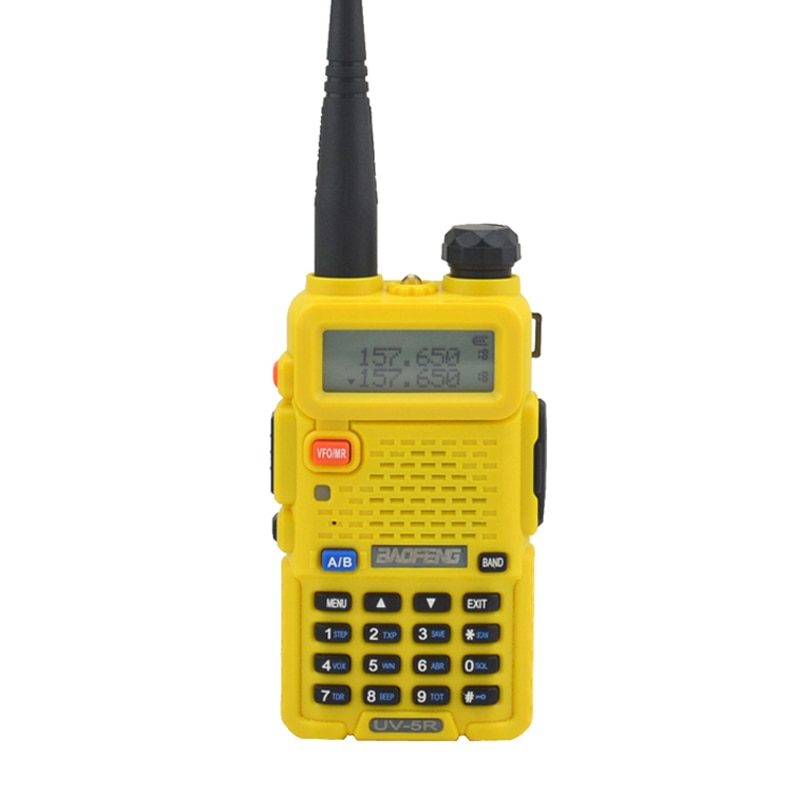

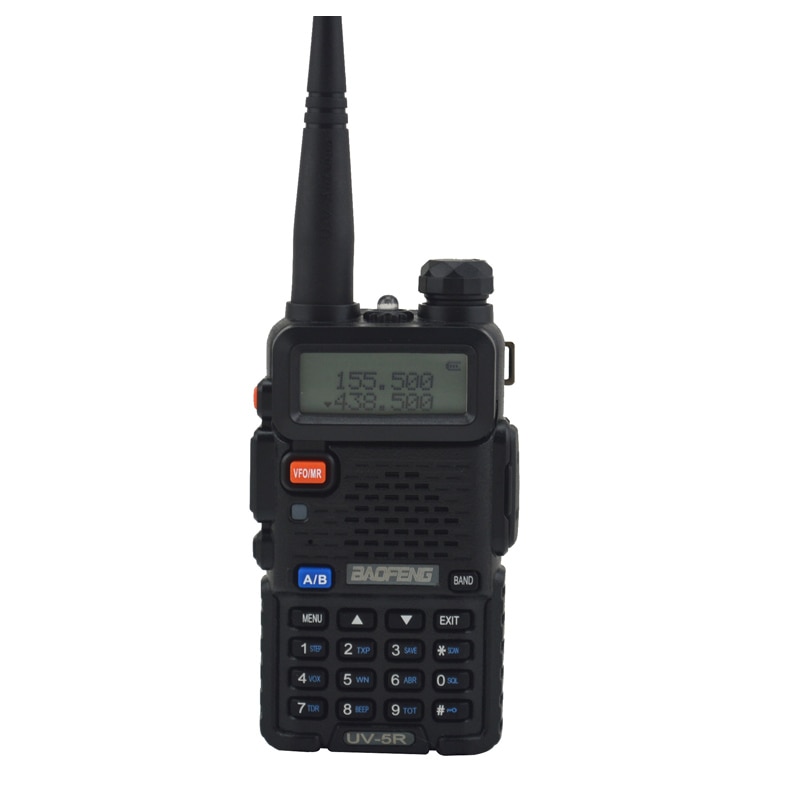

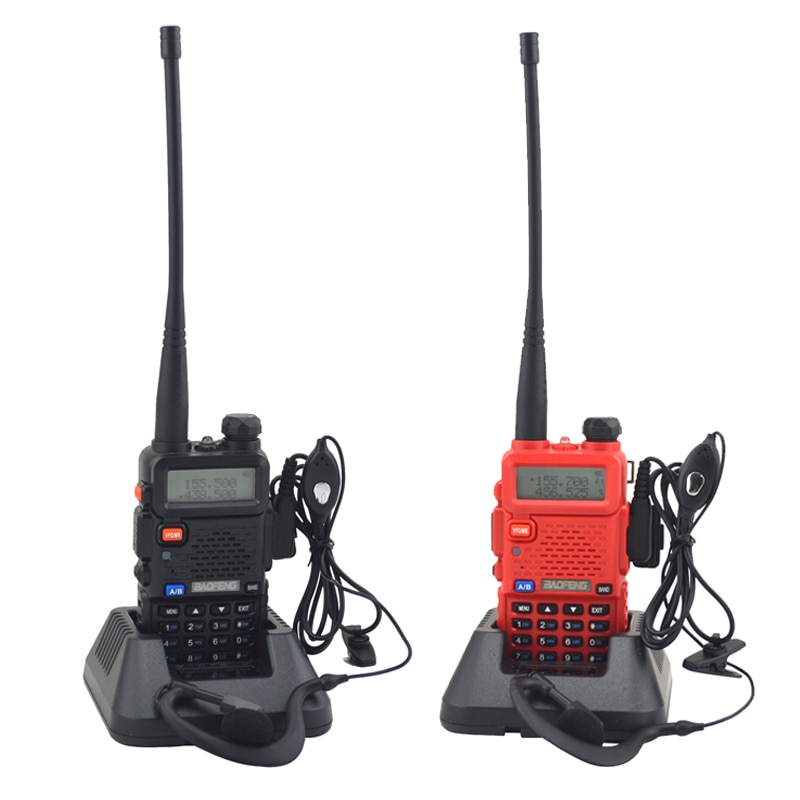

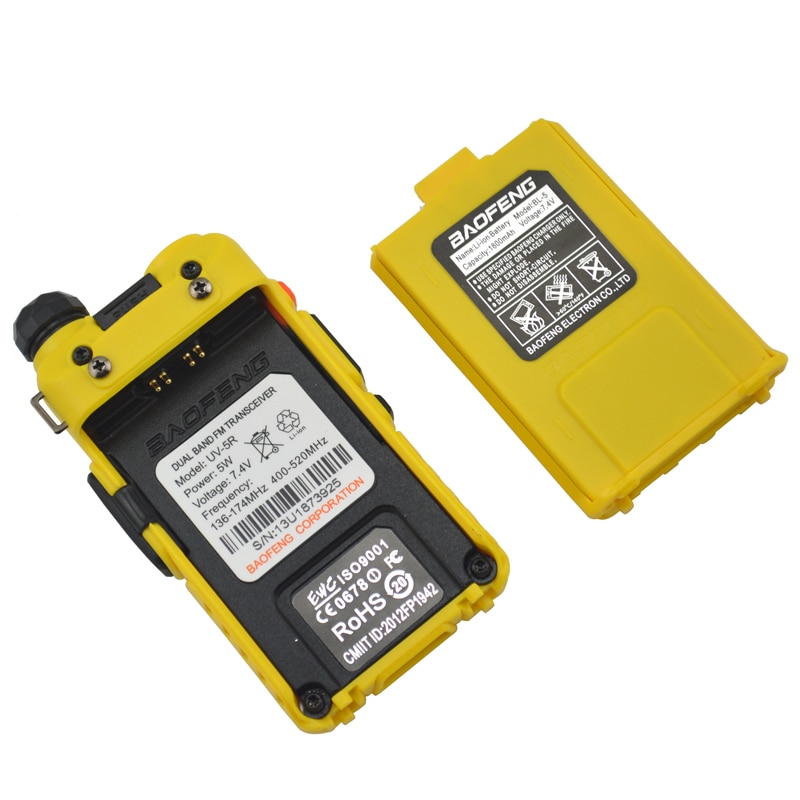

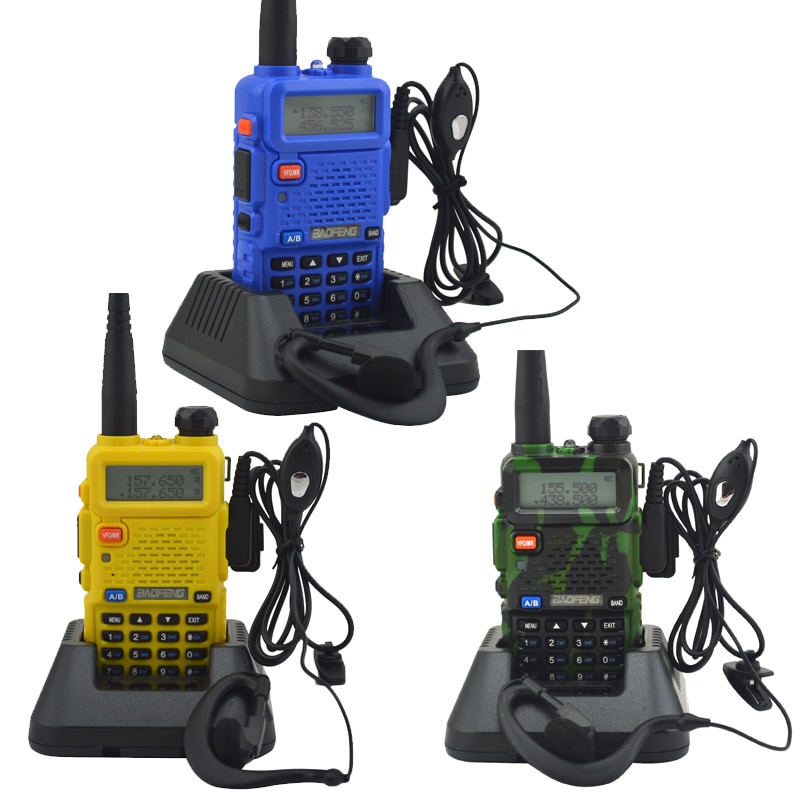

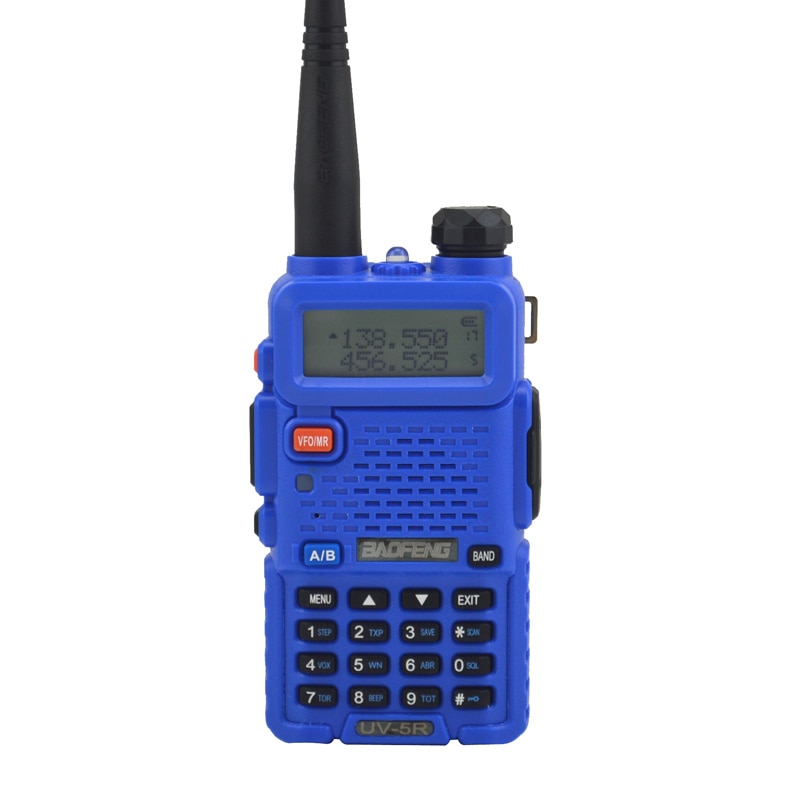

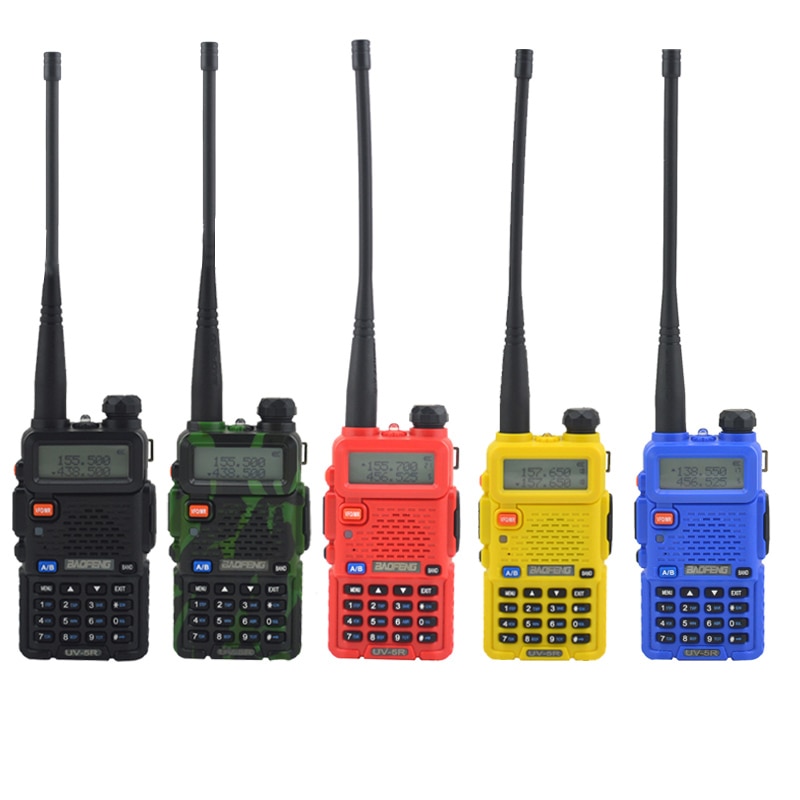

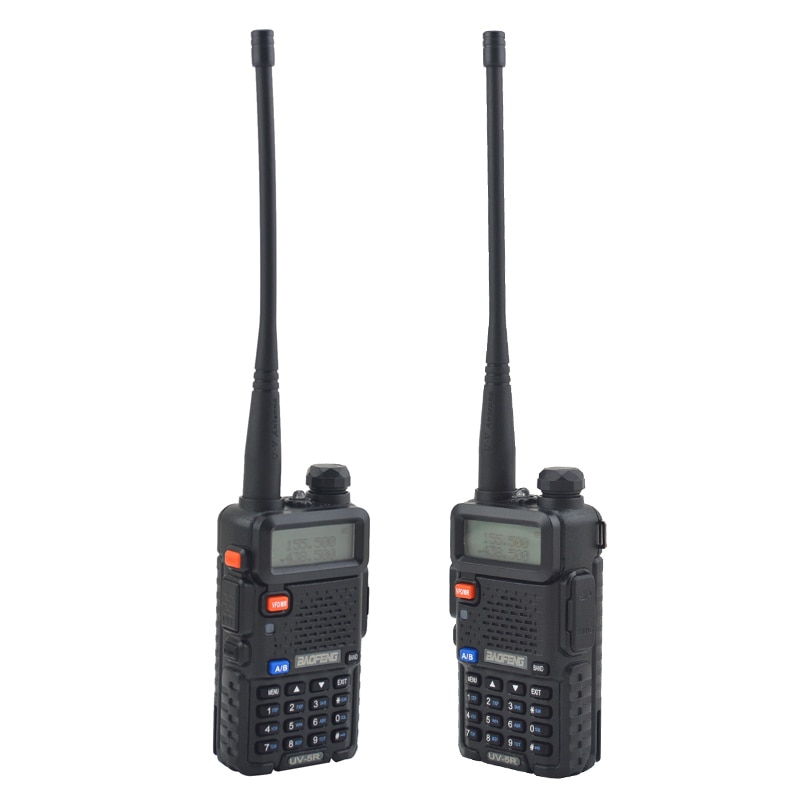

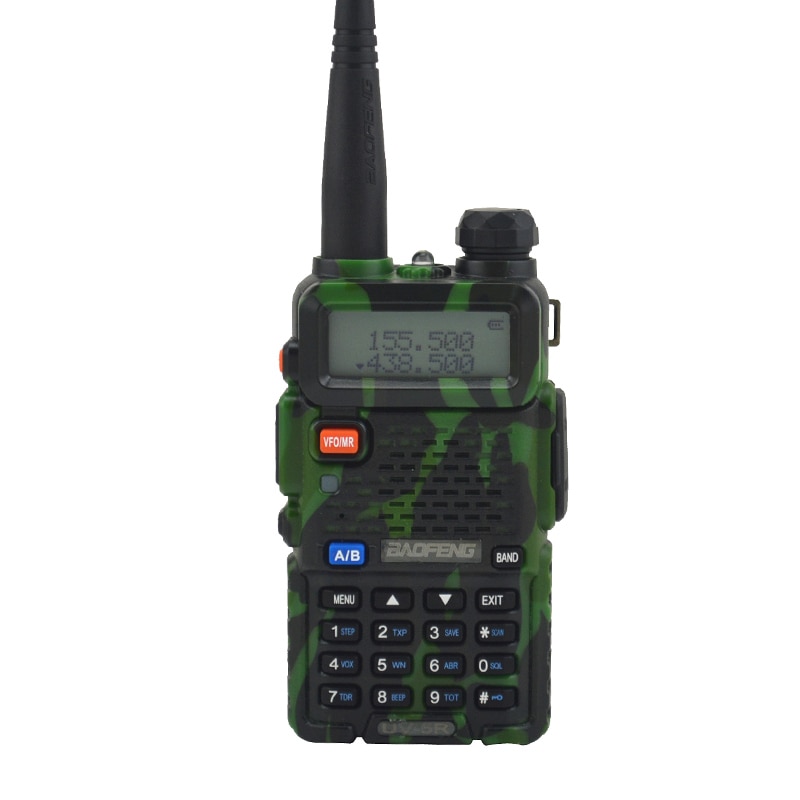

Item Picture:
- Output Power(w): 3w-5w
- Battery Capacity(mAh): 1800
- Waterproof / Water-Resistant: No
- Material: Plastic
- Storage Channel: 128
- Frequency Range: Dual Band 136-174MHz & 400-520MHz
- Dimensions: 109.5x 59.5x 34.3mm
- Model Number: UV-5R
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
