CC2652P Wireless Module ZigBee Bluetooth 2.4Ghz 20dBm SoC Ebyte E72-2G4M20S1E Transceiver and Receiver PCB/IPX Antenna
14.04 12.64 $
100% brand new,high quality
1.Support Maximum coverage area is 200 square meters.( Depend on the area condition)
2. One indoor antenna only use for about 30-100 square meters in open space. (The indoor and outdoor antenna quality depends on the indoor signal coverage area.)
3.If want to make all use of 200 square meters which the host supports,
Need to add more indoor antennas and power divider / splitter.
A, Small regions of signal or weak signal blind area, such as underground or semi-underground place of business, basements, underground parking, etc.;
B, Complaints from small-scale hot-signal areas, such as conference rooms, a small supermarket, small shopping malls, the office and small public areas, etc.;
C, Traffic and social influence of large areas, such as bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, etc.;
D, Elevator, lift wells in particular, not in the lift cables laid;
E, Home, office, luxury yachts, private cars, public security system and road safety management, etc.
Voltage : 110-220V AC or DC5V 1A
Frequency range : 900MHz--915MHz ( UPLINK )
935MHz--960MHz ( DOWNLINK )
Gain: Uplink: 55dBi Donwlink: 60dbi
Power: -70 ~ -40dBm/FA (1.23MHz)
Output power : Uplink: 17dbm Donwlink: 17dbm
Seclusion : >65db
Ambient temperature: -10C-50C
Configuration: 5V/ 1A prower
Impedance: 50 Ohm
Steps that describe the work of Repeater:
1) The outside antenna receives the signal from the nearest mobile base station.
2) The outside antenna sends the received signal through the coax cable to
The installed Repeater.
3) The Repeater accepts the low signal and improves it.
4) The improved signal goes to the inside antenna through the connection coax cable.
5) The inside antenna send the improved good signal to your mobile phone.
1) Fix up outdoor antenna reception on housetop
Or outside the window and point it to the signal tower.
2) Connect outdoor antenna to BTS port in repeater machine through cable.
3) Connect indoor antenna(s) to MOBILE port in repeater machine through cable also.
4) Plug power adaptor into AC power socket and finish installation.

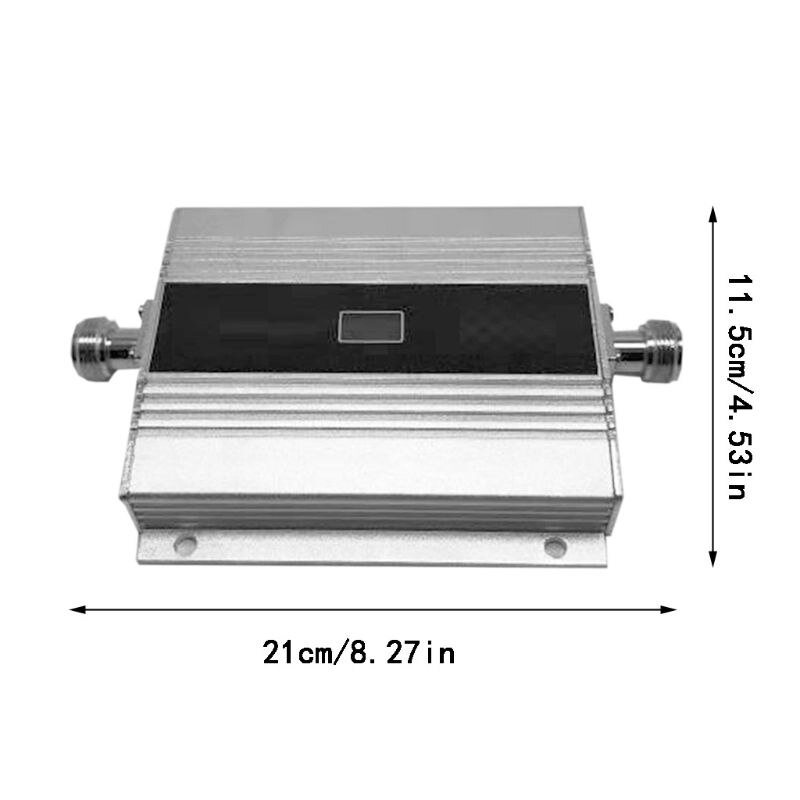

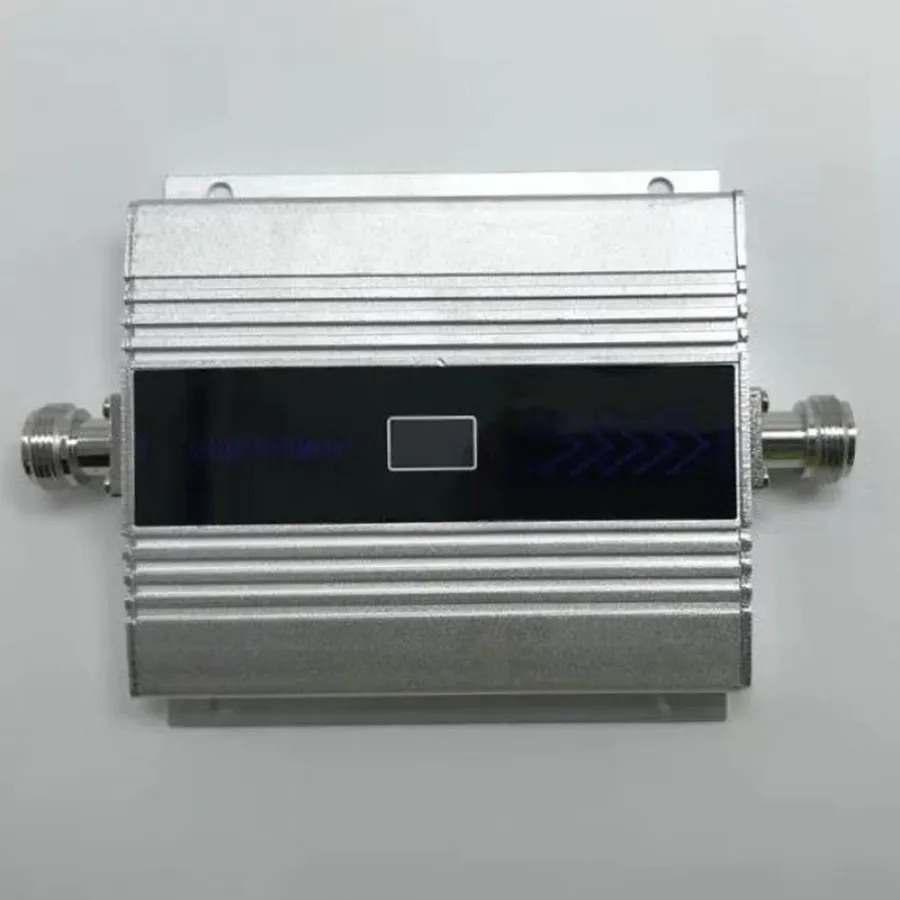

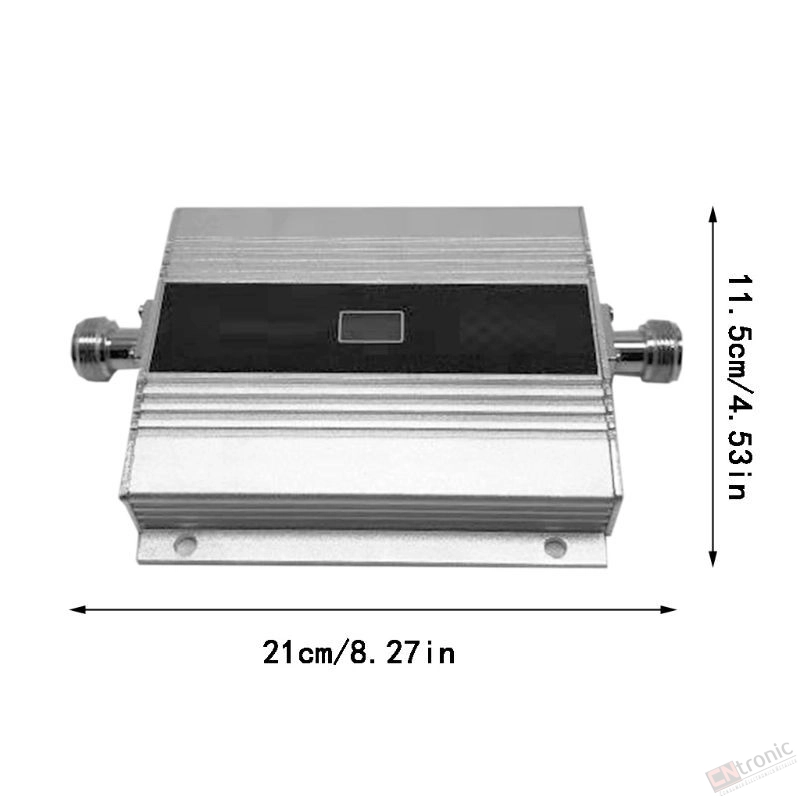

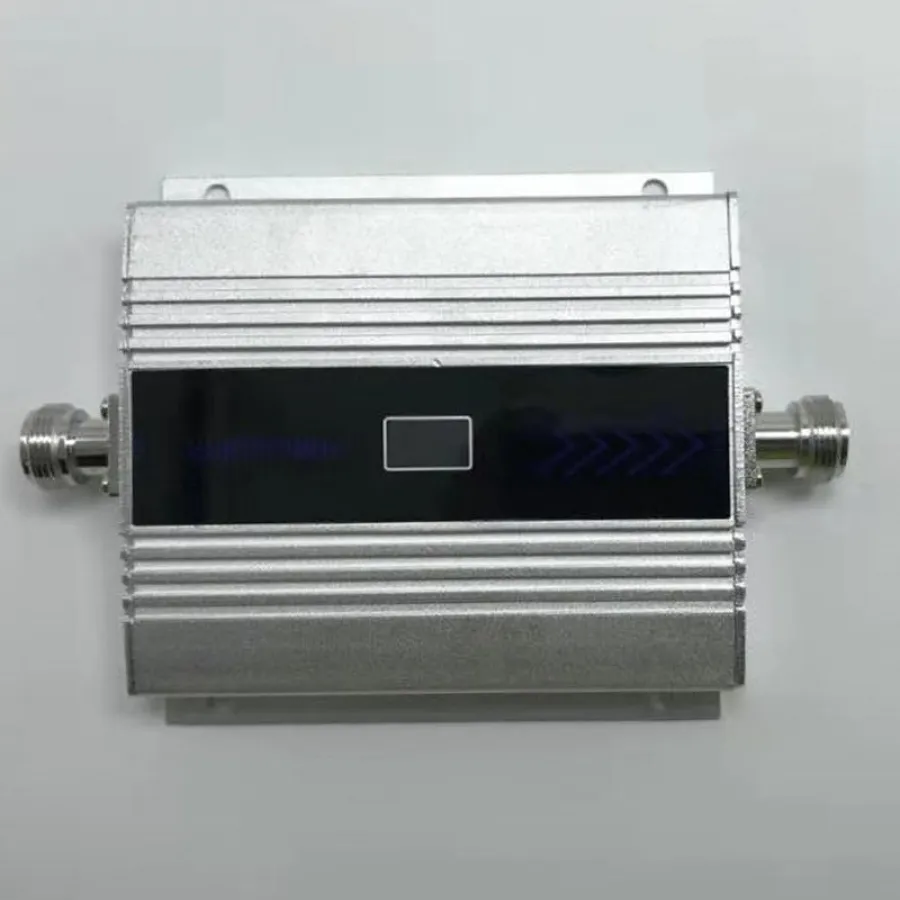

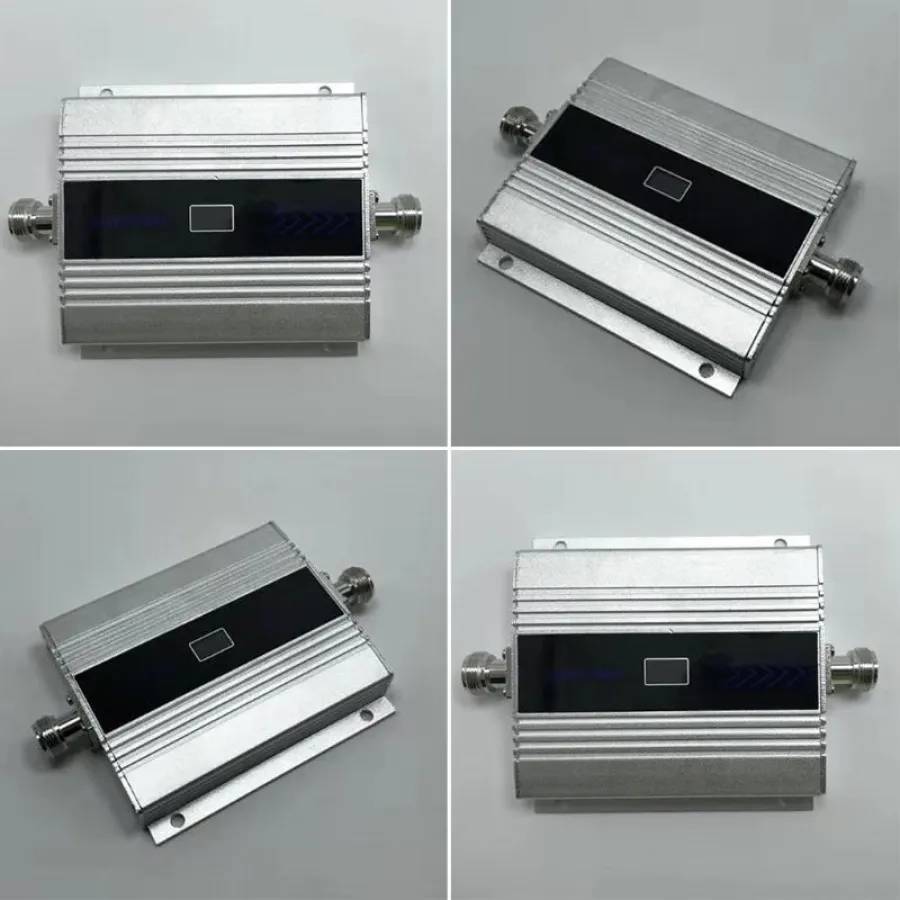

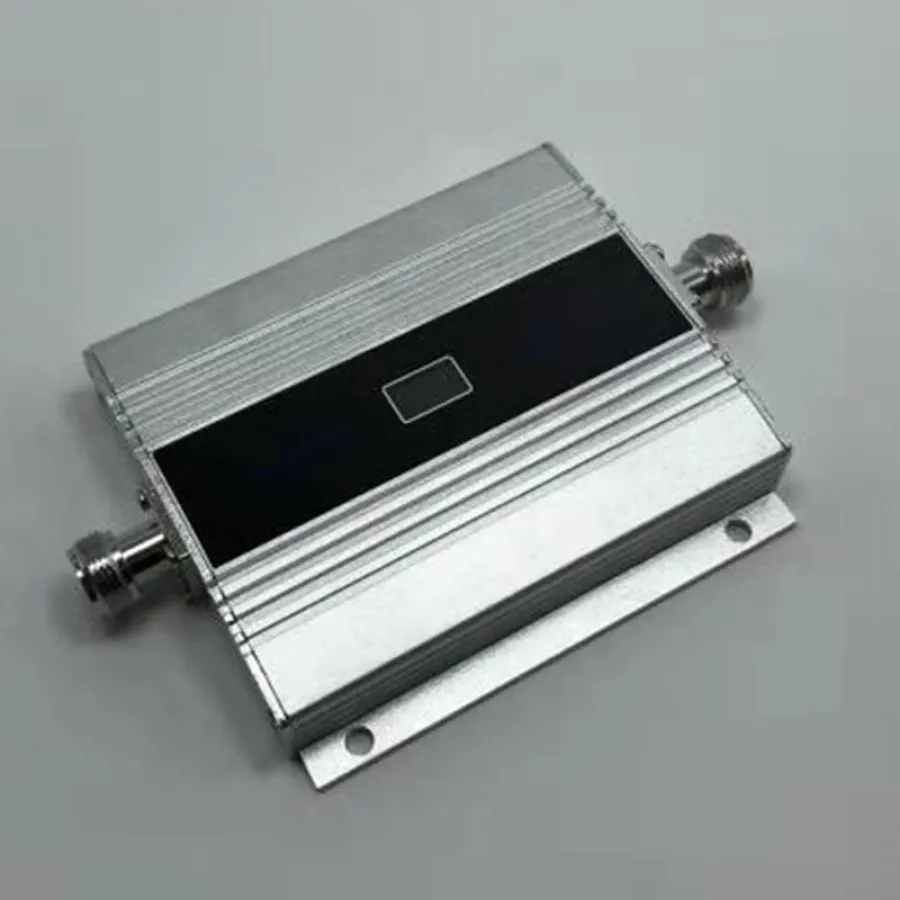

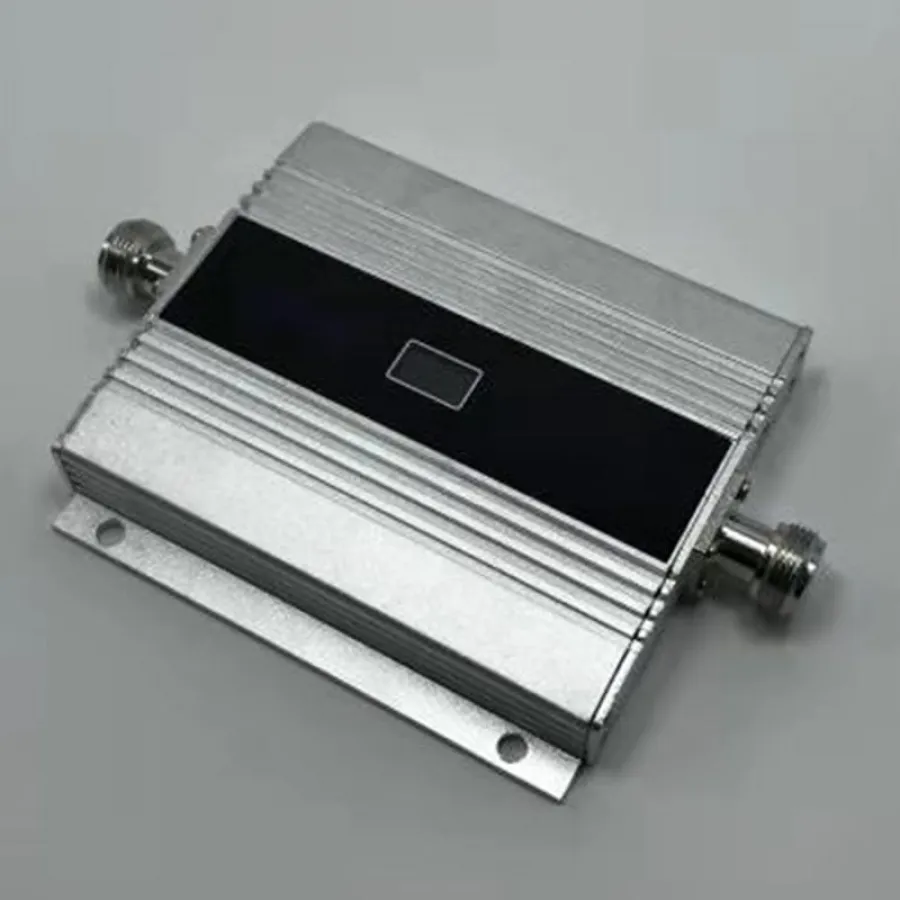

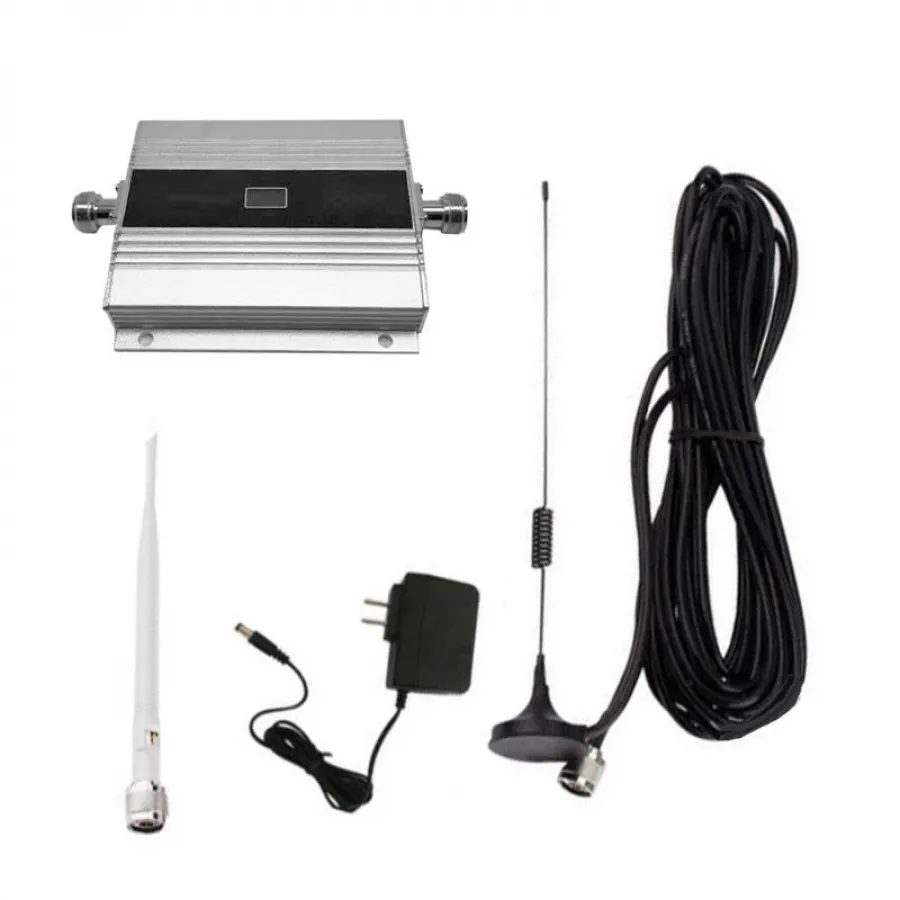

1x 900MHz booster
1x indoor antenna N male
1x outdoor antenna N male with 10M cable
1x user manual
