500W 220V Incubator heater Thermostatic-Insulated PTC ceramic air heater heating element Electric heater 140*50mm
5.0 (5 votes) | 42 orders
Price:
US $30.91
/ piece
Discount Price:
US $
23.79
/ piece
-23%
- Ships From
>>Ships From: Russian Federation<<
* Moscow-----2-4 days delivery
* Areas around Moscow-----7-15 days delivery
Item Description
Power Consumption:500W
Voltage:220V
Dimension:140 x 50.5 x 26mm
Dimension of Fin:96 x 51mm
Dimension of Mounting hole:120 x 42mm
Remarks:with 150 degrees normally closed thermostat protector
Specifications
1.give out heating quickly and constant
2.longer life time
3.self-control temperature
4.keep stable power
5.small sound
PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.
PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air.
The large surface area of the aluminum fins ensures a homogeneous heat transfer adjusting the air volume flow.
This system allows an automatic regulation of the heating power within certain ranges.
Due to the features, there are many application possibilities. In addition to the standard types, special versions for specific applications are available.

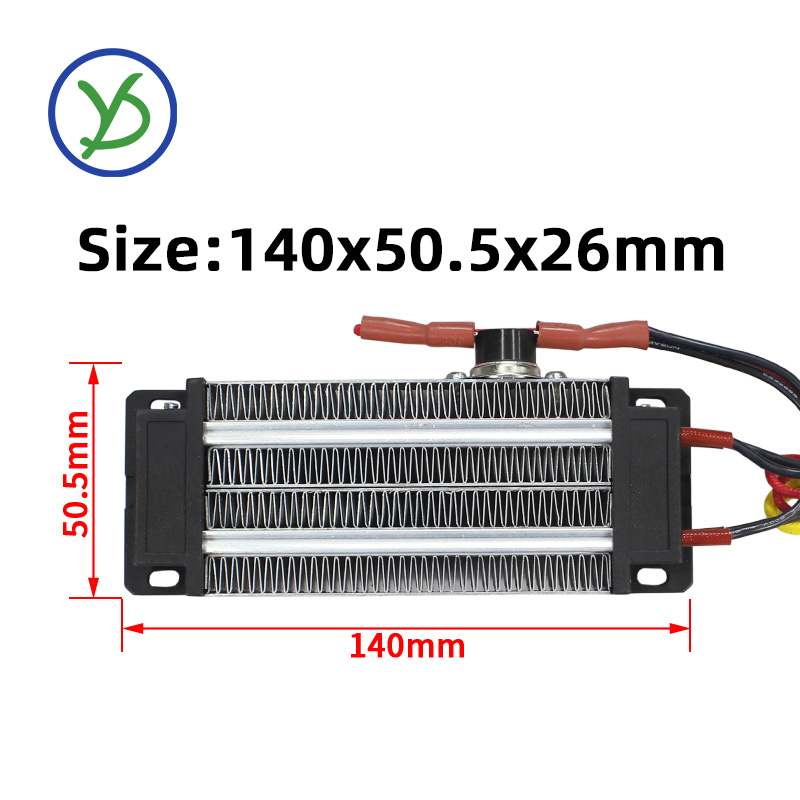

Item Size

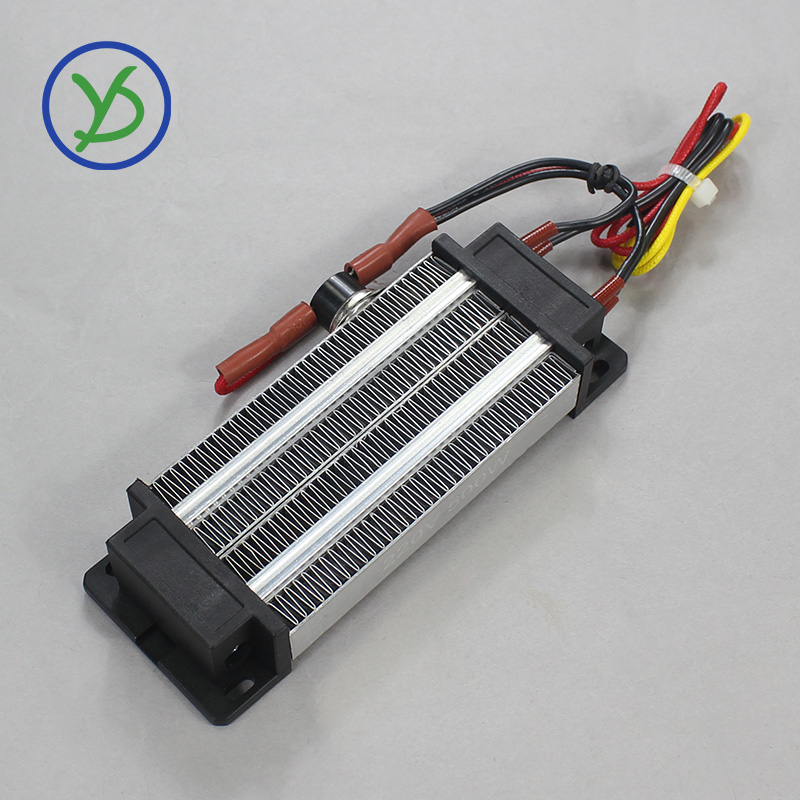

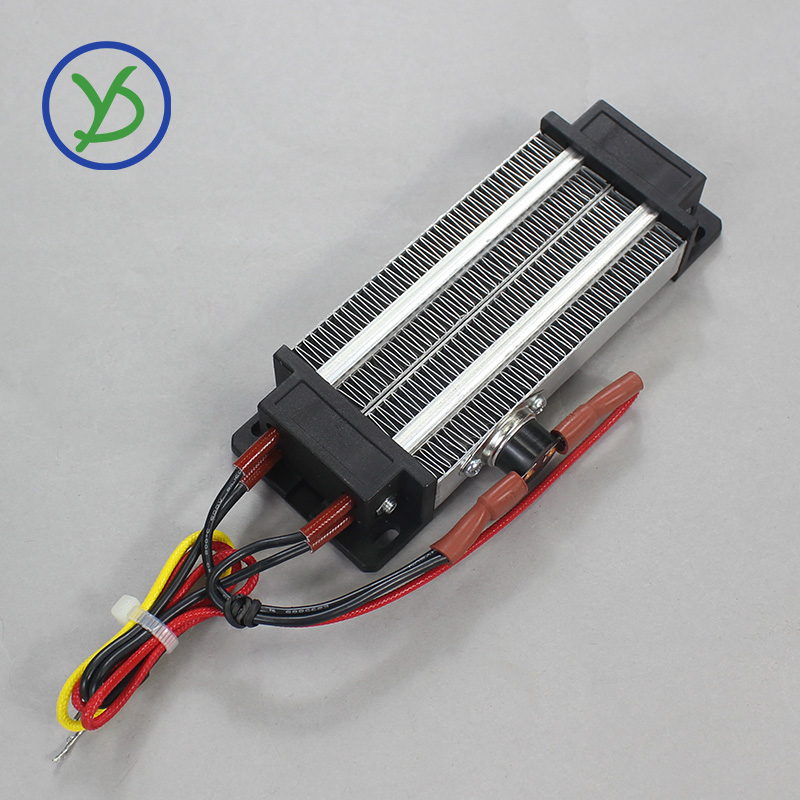

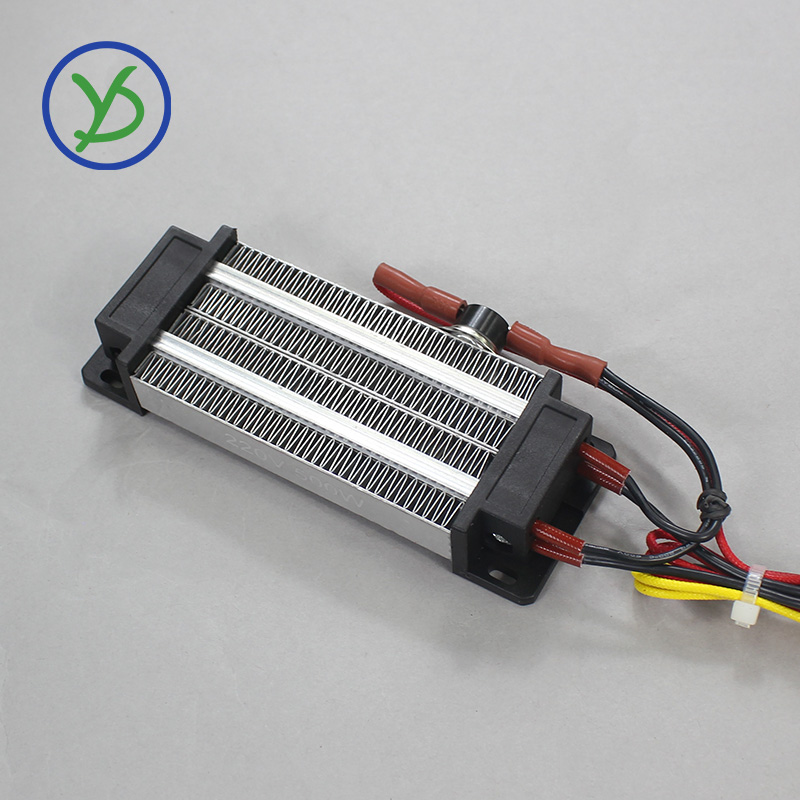

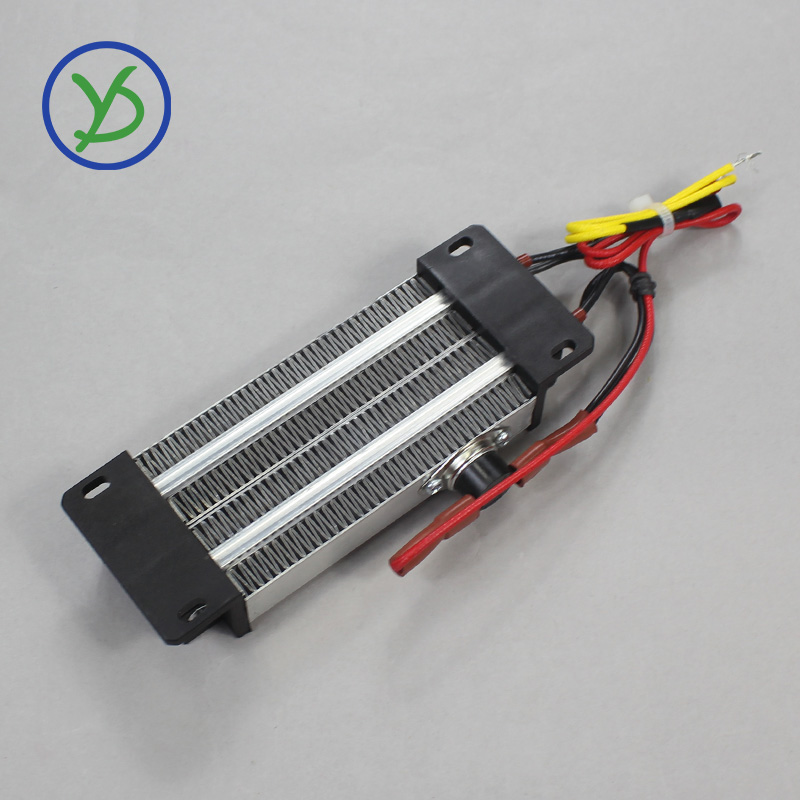

Item Show
Instruction manual(PTC Air Heater 500W 220V):
1. The power line does not distinguish between positive and negative, you can freely link power 220V.
2. When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3. Can be placed under a wet environment, but can not be placed in water.
4. For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5. Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6. Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8. Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please understand!
9. Life: about: 3--5 years.

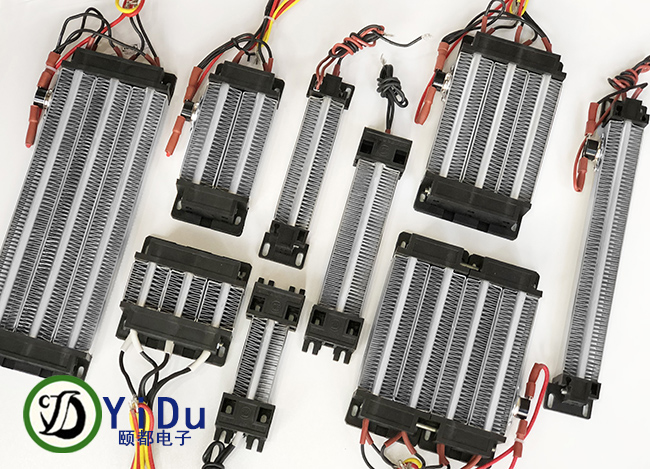

we have different power and size to choose
Application

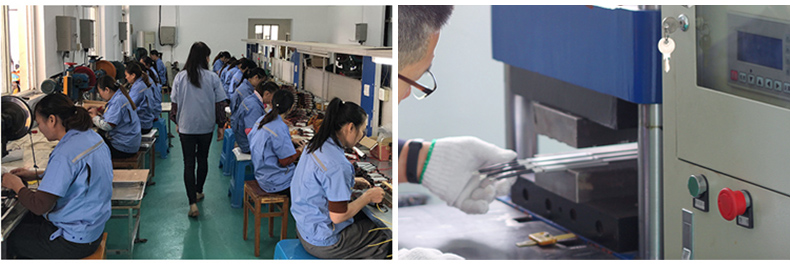

Our Company
Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.
Packing & Delivery

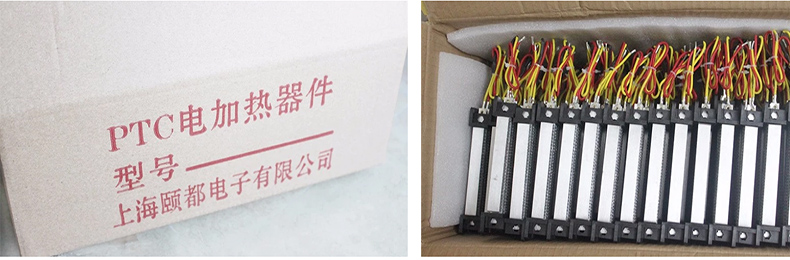

Packing Details : Packing, 50pcs/carton
Delivery Details : 1-3 days after order
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question,please send us your RFQ.
- Model Number: MZ45-96A2-500-220
- Brand Name: PTCYIDU
- Origin: Mainland China
- Type: Electric Heater Parts
