32 42 47 50 55 65 inch wall touch interactive lcd tft hd TV lg panel cctv monitor display Ad 3g 4g wifi ad signage
SALE
ID: 28724

32 42 47 50 55 65 inch wall touch interactive lcd tft hd TV lg panel cctv monitor display Ad 3g 4g wifi ad signage

0.0 ( votes) | 1 orders
Price: US $9694.14 / piece
Discount Price:
US $ 3336.40 / piece
-66%
Quantity

32 42 47 50 55 65 inch wall touch interactive lcd tft hd TV lg panel cctv monitor display Ad 3g 4g wifi ad signage

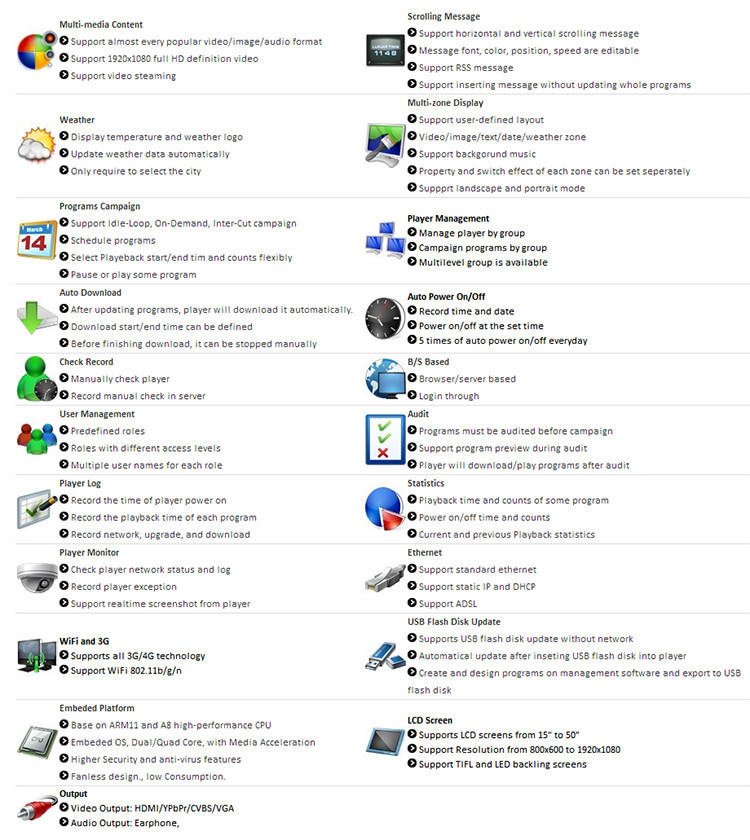

Software Function


User-Defined Layout

  • User can design different layouts according to different content;
  • Take the layout template or design layout;
  • It supports backround image and music;
  • Time zone can display current time and date;
  • Weather zone display weather type, time, text and logo in 24 hours/48 hours/72 hours;
  • Image zone can be set as static image or select various kinds of image switch effect, including scrolling, cut-in, gird effect, etc;
  • Message zone can be set as static or scrolling text, supports news and RSS;
  • Display logo on the specific location on screen, and logo can overlay other image;
  • There are mutltiple ways to display scrolling message;
  • Set one zone as main playback zone, and the program will end at the end of this zone;
  • According to program, it can set layout size, including landscape and portrait mode.


Playback Content

  • Playback content includes video, image, audio, message, sustitle, time, date, weather, news, etc;
  • Video formats include WMV, MPG2/4, RMVB, DAT, VOB, XVID, DIVX, AVI, TS, H.263/H.264, MOV, FLV, etc in 1080P decode;
  • Image formats include almost all of image formats, such as BMP, JPG, GIF, PNG, etc;
  • Message can set font, size, color, and background color or transparant background;
  • Time and date in Chinese, English and other formats, it sync with server and is accurated by minute;


Content Management

  • Content can be managed and classified by category;
  • Category type is similar to Windows explorer;
  • Create/delete/rename a category on server;
  • Upload content to a category according to different classifications;
  • Upload different content from local hard disk or network folder;
  • Support continuous upload from breakpoint;
  • Set download time of player content to avoid busy hour and keep system stability;


Program and Compaign

  • Contain Idel-Loop campaign, On-Demand campaign and Inter-Cut campaign;
  • Play or pause a program if you want and the pause program will not be deleted from player;
  • The priority of campaign: Inter-Cut campaign>On-Demand campaign>Idle-Loop campaign;
  • The Idle-Loop campaign can be repeated every several days, for example the reperated days are a week, and it will display different programs everyday;
  • Inter-Cut time, end time, playback counts of Inter-Cut campaign are optional;
  • On-Demand campaign is triggered by hardware or software command, and displays one or several programs as the set count;

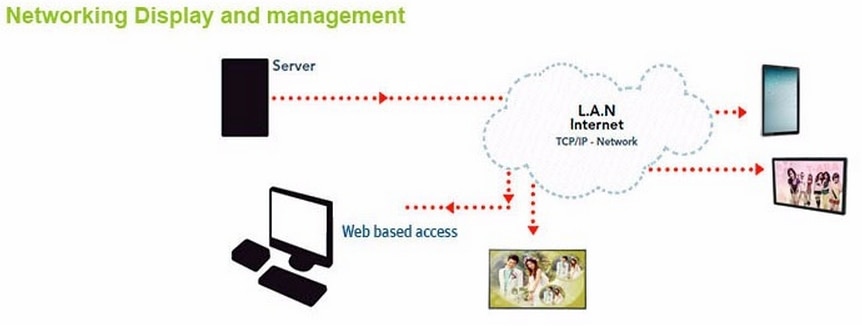

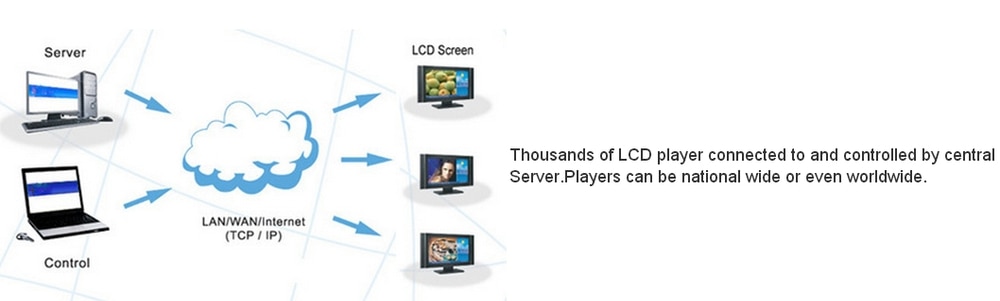

Group Management

  • User management players by group according to the details, for example location, network, commercial, player model, etc;
  • According to setting player group and campaigning programs, it can satisfy various complcated requirements of clients;
  • Grouping is in tree-directory structur, allows multilevel group, easy to manage and understand;
  • Without specific command, all of settings and content of players are same in the same group, such as playback content, hardware configurations, download time, etc;
  • User can send specific configuration to one or several player in the same group according to the details.


Security

  • Strict audit system to manage playback content and avoid mistake;
  • According to manage content in details, such as preview uploaded content and audit them, approve/refuse current campaign, user can manage player;
  • Manage the access level of users by defining the users’roles;
  • Admin can set up users, and select roles to different user;
  • User login server through IP address via web browser, input user name and passwor and then manage the system;
  • Default user name and password are availble.


Player Configuration

  • Get rid of manual work and increase player life cycle through setting power on/off time; Select network connection way and set network configuration, set DHCP/Static IP address, WiFi authentication/encryption method, 3G account, etc;
  • Set video output and resolution, such as CVBS, VGA, HDMI, YpbPr, 1080P, 720P, 480P, etc;
  • Adjust volume at different time;
  • Upgrade firmware through requirements.


Playback Monitoring

  • Playback monitoring function make user learn the current and history situation of player without going to installation place;
  • When there is something wrong with the player or network of player, it will inform the related administrator to let them know well about system;
  • Remote check player network status, including on/offline status and recent hearbeat time, etc;
  • Check the history hearbeat time of some player;
  • Check system log, such as power on time, download start/end time, etc;
  • Get player online rate directly;
  • Auto alarm when player has been offline for a long time, or improper power on/off, etc;
  • Check palyback status by taking screenshot.


Statistics

  • Statistics function make users get the plaback information and offer reliable data to study system;
  • Check the playback list during certain time and in some group, including playback counts,playback start/off time, etc;
  • System will get the playback counts and time of some file automatically;
  • Check statistics by player name and file name;
  • Get player availability ratio, means that how much percent normal working time of a player of a group player take in gross time during certain time.


Live News

  • Player realizes to display real-time message through the interface connection with server;
  • Switch real-time content from server;
  • Convert real-time message to form, image and other stypes to increase message arrival rate, more advanced than traditional mode.

Touch Support

  • Set touch zone and area
  • Set touch action

65inches Highly stable lcd touch screen smart tv player



65inches Highly stable lcd touch screen smart tv player

 The fast development of the education led the updates of educational tools. More smart,More modernized,More convenient,More Green,More functional,More healthy new educational tools takes over the position of the traditional tools. Our interactive whiteboard smart tv is the one who have been a trusted and helper to our teachers and trainers

1. Standard Size: 58"/65"/70"/75"/84"/98"
2. Resolution: 1920*1080(58"/65"/70"/75"), 3840*2160(84"/98")
3. Infrared touch frame: Front load/6 dots
4. Support OPS PC(CPU:I3/I5/I7 Main board: H61/H81 RAM:4G/8G  Hard disk:500G/1T  SSD:128G optional)
5. Android TV board: MSTAR core
                                 (Standard input interfaces: RJ45*1/SD*1/TV-USB2.0*2/TV-USB3.0*1/HDMI*3/
                                  VGA*1/PCAUDIO*1/RS232*1/MINI-AV*1/MINI-YPBPR*1/RF*1/TOUCH-USB*1
                                   Standard output interfaces: MINI-AVOUT*1/Coaxial*1/EARPHONE*1
                                   Scalable input interfaces: HDMI*1/VGA*1/PCAUDIO*2
                                   Scalable output interfaces: VGA*1)
6.Case material: Aluminium alloy

75 inch interactive whiteboard smart tv





Specifications
Screen Parameter Model AMW750B/Interactive whiteboard smart tv
Screen T750QVN01.0
Display Area 1650.24(H)x928.26(V)
Resolution 1920x1080
Color 1.07Billion
Pixel Pitch 0.143(H)×0.429(V)
Brightness 350cd/m2
Contrast 4000:1
Viewing Angle ±178°
Response Time 8ms
TV System(Optional) Android OS Adopt MSTAR MSD628VX kernel main chip,CPU Clock Speed:1.2GHz,Ram:1G,4G Storage Space onboard,Android4.4 OS
standard input interface RJ45×1,SD×1,TV-USB2.0×2,TV-USB3.0×1,HDMI×3(1 built-in HDMI),VGA×1,PCAUDIO×1,RS232×1,MINI-AV×1,MINI-YPBPR×1,RF×1,TOUCH-USB×1(D Type)
standard output interface MINI-AVOUT×1,coaxial×1,EARPHONE×1
Front USB Above 58 inch :Andorid TV-USB×2,PC-USB ×1
Others TOUCH-USB 2pcs (Built-in PC TOUCH1 and 1× TOUCH2(D type Socket)for external PC;
Audio and Video Features 3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filters; built two plastic box speakers, maximum output power of speaker is 15 watts; optional support for the installation of the Bluetooth 2.4G wireless digital receiver module, through 2.4G wireless microphone directly use integrated built-in speaker amplifier
Touch System Integrated approach:embedded under 58 inch,Frontal take-apart above 58 inch;Touch technology:optical or IR touch;Touch object :Opaque objects (like finger, pen, etc.)Effective touch size≥ Ø5mm
Front load infrared touch module
Response Time:5ms;Positioning Accuracy:±1.5mm;Touch Resolution:32768×32768;Communication way:Full Speed USB);PC response:System Auto recognition
Other Features standard equipped:Auto power-off,One Button Switch,Remote Switch-on and off PC;Intelligent protect Eye technology(Dual System Standard equiped);
Above 58 inch:Auto Adjust Brightness;PPT(Turn to Next page)optional;One Button to Unlock(Optional)
Outdoor IP rate:IP65/68;Tempered Glass:GB/T thickness:4mm
OSD Language:Chinese/English(Multi-languages)
Optional Function
OPS PC OPS Slut Standard Interl 80 pin Slut
CPU Intel Core i7/i5 /i3 /Pentium dual-core
Ram DDR3 1333Mhz 2G/4G/8G
HDD SATA 320G(Option 500G/ 1TB Ect.),Support SSD
Interface HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1
Network Card 10/100/1000Mbps self-adaptive   Realtek RTL8111E
Audio Realtek HD ALC662
Video Intel HD Video(It depends on CPU),independent Graphic Card (GT730-2G) is optional
Support WIFI 802.11b/g/n
Working Tem Temperature:-20~60   Humidity:0~85%RH
Size 180mm×195mm×40mm
Dimension(mm) 1775*1075*127(Including hanging size:27mm)
Outer carton(mm) 1907*1268*225
Gross weight 105KG
Net weight 85KG
Lifespan >60000 Hours
Resolution 480P/720P/1080P
Power Supply AC100~240V 50 /60 HZ
Max consumption 300W
Standby Consumption <1W
Shape Color:Black/customizable;Package:Carton Box;Installation:Floor Standing/Wall Mounted;
Temperature Working Temperature:0~50; Storage Temperature:-20~60; Working humidity:85%; Storage Humidity:85%








LCD Specification

Model:

ABV-1911I

ABV-2211I

ABV-3211I

ABV-4211I

ABV-4711I

QBV-5511I

MBV-6511I

LCD Size:

19 Inches

22 Inches

32 Inches

42 Inches

47 Inches

55 Inches

65 Inches

Display Resolution:

1024*768

1280x1024

1366*768

1920*1080

Aspect Ratio:



16:9

Brightness:

250 cd/m2



250 cd/m2

450cd/m2

350 cd/m2

3500 cd/m2

320 cd/m2

350 cd/m2

Display Area:

409.8(W)* 230(H)

476.3(W) * 268(H)

699.6(W) * 393.6(H)

930(W) * 523(H)

1040(W) * 585(H)

1210(W) * 682(H)

1428*803.5

Backlight Type:

CCFL

Contrast:

1000:1

3000:1

3000:1

3000:1

3000:1

4000:1

5000:1

Color:

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Response Time:

5ms

6ms

5ms

5ms

5ms

5ms

5ms

Life Cycle:

≥60,000 hours

Viewing Angle:

178°/ 178°

Function

Color System:

PAL/NTSC/SECAM

Menu Language:

Chinese, English, multi-language menu

Operating Mode :

The remote, function key

Power

Power Input:

AC100-240V,50 /60HZ

Power Consumption :

25W

30W

70W

100W

150W

200W

300W

Standby Consumption :

3W

5W

3W

3W

3W

3W

3W

Working Enviroment

Working Temperature

0°C~50°C

Working Humidity:

10%~90%

Storage Temperature:

-20°C~60°C

Storage Humidity:

10%~90%

Others

Dimension:

466*286*44.5 mm

534*326.0*44.0 mm

782.4*476.8*50.5 mm

1015*608*51.5mm

1136*682*68.5mm

1312.8*782*75.9 mm

1513*906*70.5

Net Weight:

4.4Kg

5.8Kg

15Kg

25.5Kg

\

40Kg

\

Housing:

Metal

Color:

Black

Installation Method:

Wall-Mount/Desktop

Certificates:

ISO9001, 3C, etc



Touch  Options

Mode

 Multipoint

Transmittance

  >95%

Minimum touch object

 5mm

Accuracy

 2mm

Life

 >60,000,000






  • Memory Capacity: 2GB
  • Port: All in one PC
  • Type: All-In-One
  • Hard Drive Capacity: 120GB
  • Brand Name: GXST
  • Processor Model Number: All in one PC
  • Model Number: AM6443656
  • Processor Series: Intel Core i3

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

REFUNDS & RETURNS POLICY

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.

If you did not receive the product within the guaranteed time(60 days not including 2-5 day processing) you can request a refund or a reshipment.

If you received the wrong item you can request a refund or a reshipment.

If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of CNTRONIC Consumer Electronics Retailer (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of cntronic.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (60 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

LARGE ORDER DEALS

Wholesale

Thank you for your interest doing business with us!

If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.

You may also like these products
