19pcs/set FTTH Tool Kit Fiber Optic Cleaver FC-6S Power Meter -70~+10dBm Fiber Stripping Pliers CFS-3 Visual Fault Locator 10mW
ID: 103736

19pcs/set FTTH Tool Kit Fiber Optic Cleaver FC-6S Power Meter -70~+10dBm Fiber Stripping Pliers CFS-3 Visual Fault Locator 10mW

0.0 ( votes) | 1 orders
Price:
US $ 107.76 / piece
Ships From

Sorry! This item is out of stock
  Welcome to One Square Manufacture Technology Co., LTD

We assure that we provide you with qualified products and the best service.


Orders payment successfully,Most items will be shipped within 24 working hours.


All of our products have 1 year-warranty.


We are having all kinds of fiber optic products. Please contact our customer service,

if you couldn't find the products online of what you want.

p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
span.s1 {font: 12.0px '.PingFang SC'}p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
span.s1 {font: 12.0px '.PingFang SC'}p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
p.p2 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'; min-height: 14.0px}
span.s1 {font: 12.0px '.PingFang SC'}

We assure that we provide you with qualified products and the best service. All of our products guarantee 1 year. We ensure to ship the products with fast and safe way for you. If you have any questions or problem on products after receiving the product, please don't hesitate to contact our customer service, we will offer the most satisfactory result. Thank you.


FTTHToolKitsAccessoriesList

No.

Quantity（pcs）

Product

1

1

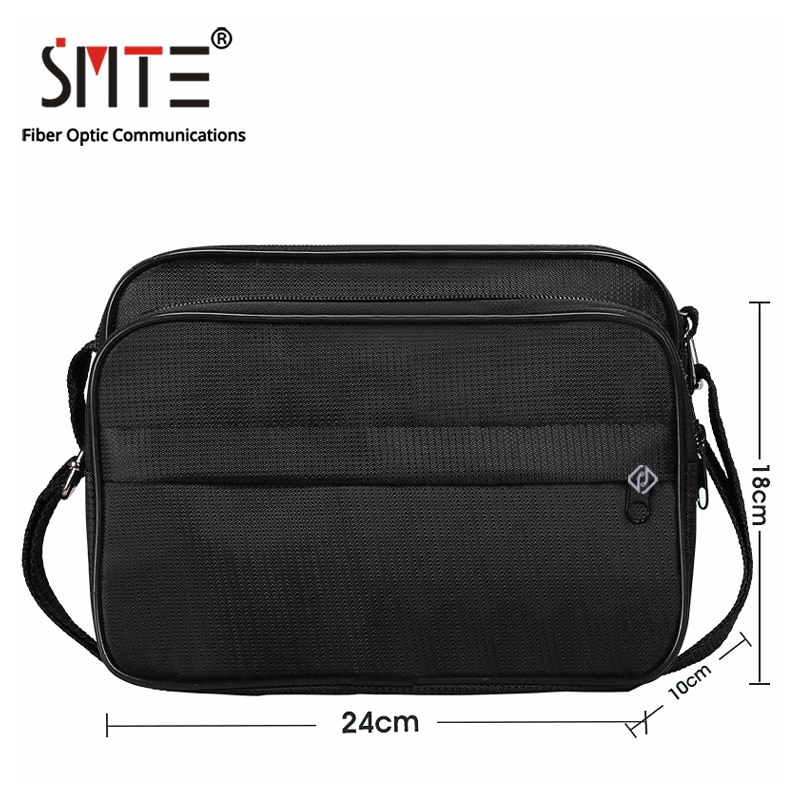

Carrying Bag of whole kits

2

1

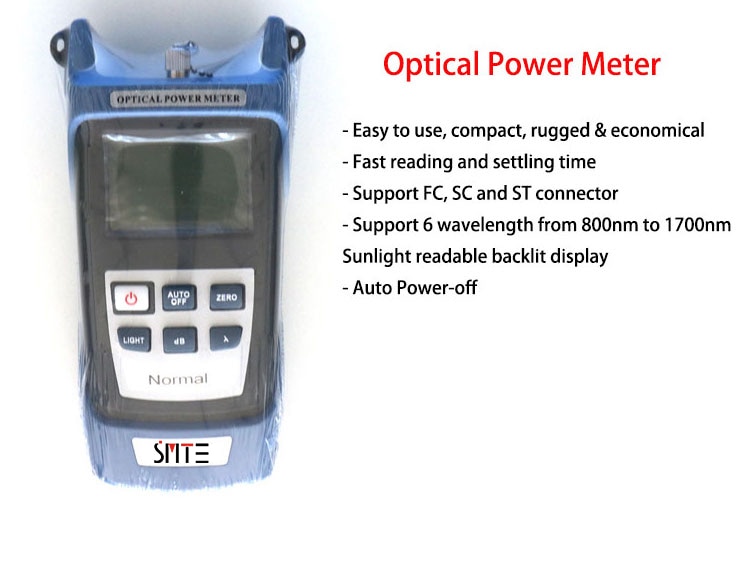

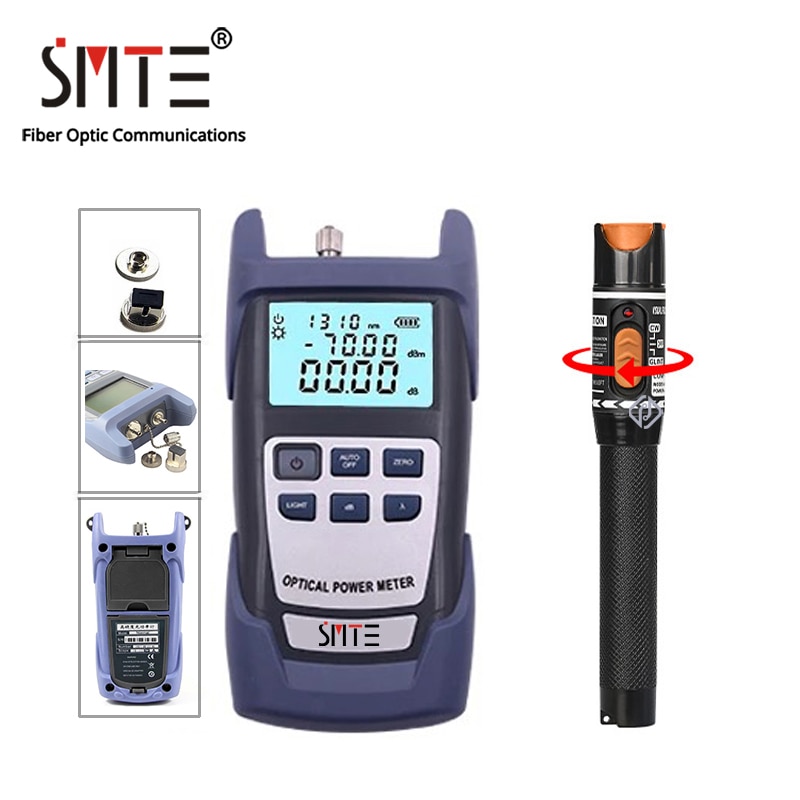

Optical Power Meter

3

1

SC transfer connector for power meter

4

1

Protected Bag for Locator

5

1

1mw Laser pointer Visual Fault Locator 10mW

6

1

Fiber Cleaver FC-6S

7

1

Bag for cleaver

8

1

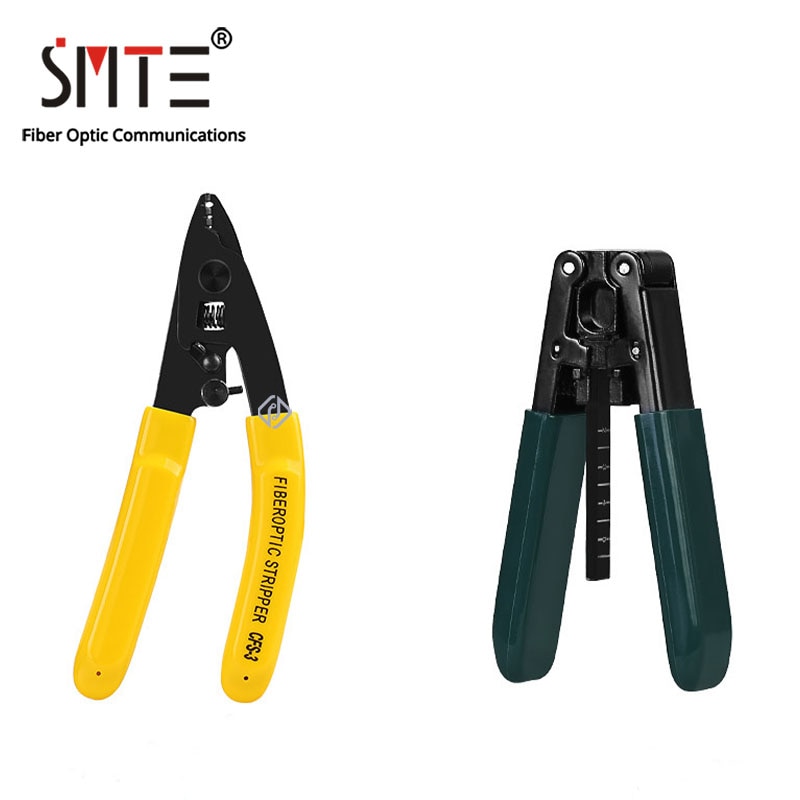

CFS-3 Fiber Optic Cable Stripper

9

1

FTTH Drop Cable Stripper

10

1

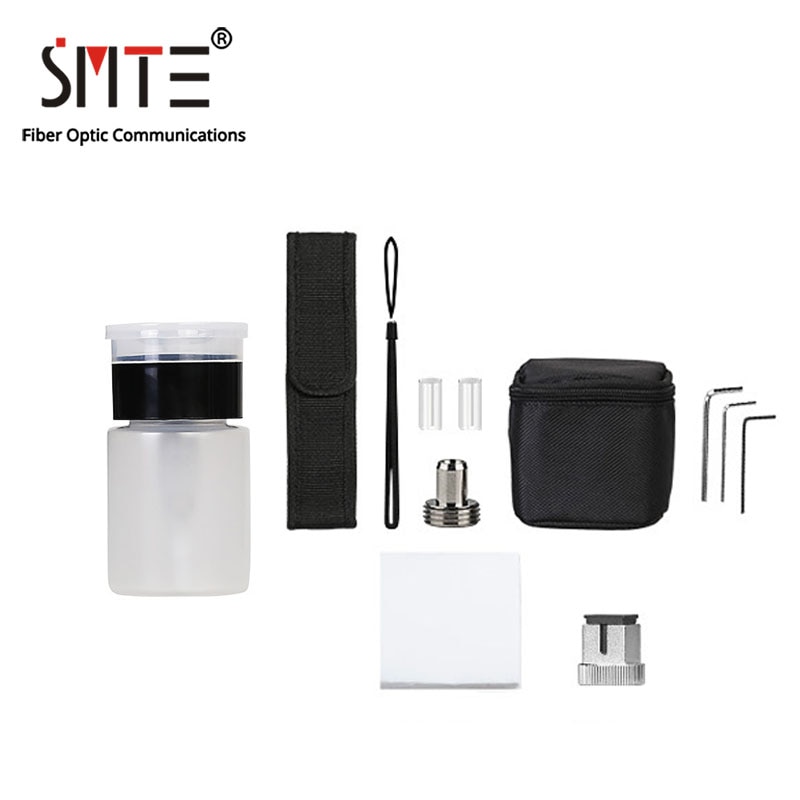

Alcohol bottle

11

1

Fixed length rail

12

3

Small Allen Wrench

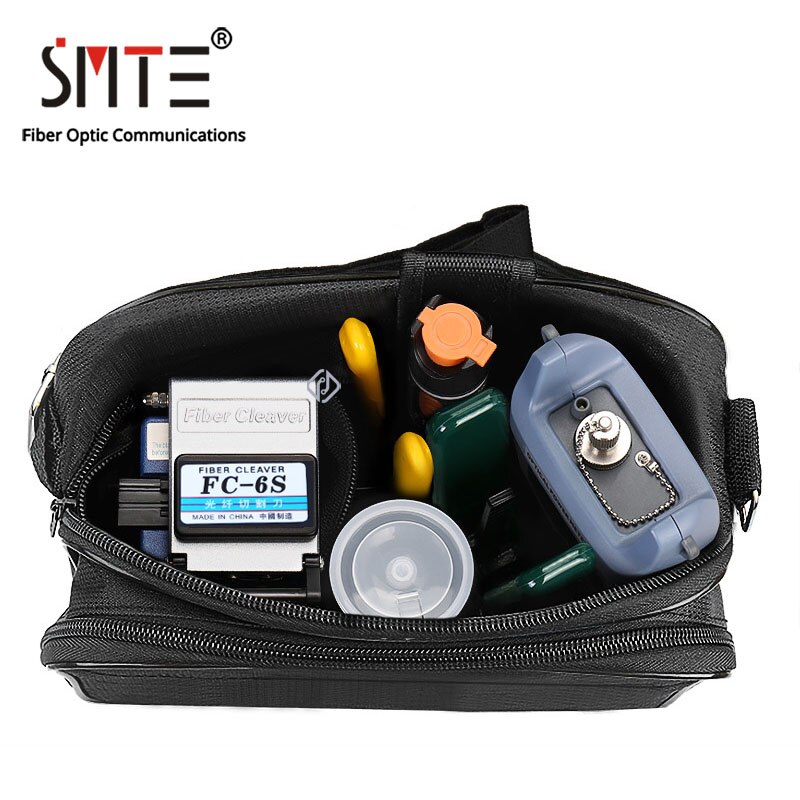

FTTH Fiber Optic Tool Kit

Visual Fault Locator Specification


Type

Data

Output Power

>10mW 10KM

Wavlength

650nm

2Hz

Yes

Connetor

Universal Connector

Battery

AA2

Storage Temperature

-20---+70

Working Temperature

-10---+60

Laser Type

LD

Weight

178g

Dimensions

168mm27mm



FC-6S Fiber Cleaver


Specification

Model

FC-6S Optical Fiber Cleaver

Applicable fibers

Singlemode

Fiber Diameter

125um

Coating Diameter

250um ~ 900um

Typical Cleave Angle

Within 1 Degrees

Cleave Length

9 - 18mm (Single Fiber - 0.25mm Coating)
10 - 18mm (Single Fiber - 0.9mm Coating)

Blade Life Time

36,000 cleaves (3,000 per blade position)

Cleaver Dimensions

63 x 68x 63mm

Weight

380g





  Thank you for choosing One Square Manufacture Technology Co., LTD


Payment/Escrow Service

If you have some questions about payment or problem on products, please don't hesitate to contact our customer service, we will offer the most satisfactory result. Thank you.


1. Please double check your address before completing the payment. If you want to make any change, please kindly contact us.

2. A tracking number will be update on Cntronic once your item is shipped.

We are not responsible for any customs charges, tax or fees which are from your country. For more details please contact your local customs office or us.

3. If you wouldn't receive your parcel within 30 days, please contact us immediately for help. We will reply with 24 hours.

p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
span.s1 {font: 12.0px '.PingFang SC'}


1. We maintain high standards of excellence and strive for 100% customer satisfaction.

2. Your five-star positive feedback is extremely important to us. Please do contact us immediately if you are not satisfied on our product or service, we will offer the best way to solve the problem.

3. If you did not hear from us within 24 hour, please check your messages in your mail box. And try to contact us via Trade Manager, Email, or phone. We are always here to do our best for you. Let us build a healthy, positive and prosperous Ali community together.




p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
span.s1 {font: 12.0px '.PingFang SC'}p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
span.s1 {font: 12.0px '.PingFang SC'}p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
p.p2 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'; min-height: 14.0px}
span.s1 {font: 12.0px '.PingFang SC'}p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'}
p.p2 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Helvetica Neue'; min-height: 14.0px}
span.s1 {font: 12.0px '.PingFang SC'}


  • Brand Name: SMTE
  • Certification: CE,FCC,RoHS
  • Item Type: FTTH Fiber Optic Tool Kit
  • Origin: Mainland China
  • Model Number: FTTH Fiber Optic Tool Kit 19pcs/set FC-6S
  • Fiber Cleaver: FC-6S
  • Power Meter: (-70)-(+10)dBm
  • Visual Fault Locator: 10MW
  • Fiber Stripping Pliers: Three Hole Stripper Plier For Miller
