【First-level Authorized Agency】 Milk-V Duo RISC-V Linux Board CV1800B 1G RAM-DDR2-64MB Compatible with Raspberry Pi Pico Port
5.0 (25 votes) | 142 orders
Price:
US $
9.95
- Bundle
-
-
【MILK-V Duo Recommend】
【First-level Authorized Agency Certificate】
【Note】
[] The PCB Color shipped Randomly. Do not Order if you mind.
[] This is a Linux Board , You can not run it On Raspberry Pi Pico IED
[] This board only refers to the GPIO pin layout of RPi PICO to be Compatible with PICO expansion boards.
It is different from PICO and cannot share PICO software.”
【Overview】

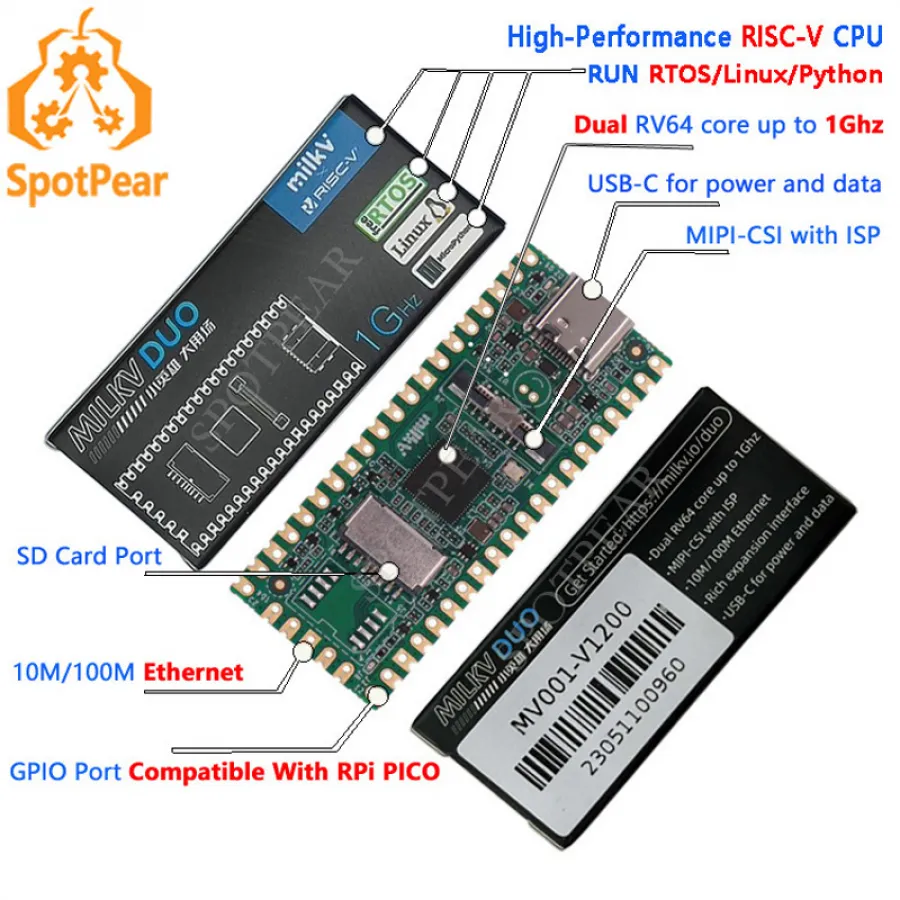

[] Milk-V Duo is an ultra-compact embedded development platform based on the CV1800B chip. It can run Linux and RTOS, providing a reliable, low-cost, and high-performance platform for professionals, industrial ODMs, AIoT enthusiasts, DIY hobbyists, and creators.
【Specification】
[] Processor : CVITEK CV1800B (C906@1Ghz + C906@700MHz)
[] Memory : DDR2 64MB
[] Storage : 1x Mirco SD slot,1x SD NAND solder pad
[] USB : 1x Type-C for data and Power,1x USB2 solder pad
[] Camera : 1x 16P FPC connector (MIPI CSI 2-lane)
[] GPIO : up to 26 Pins available for general purpose I/O（GPIO）
[] Size : 21mm*51mm
【Features】
Processor
[] 1GHz and 700MHz RISC-V C906 processors
[] Integrated CVITEK TPU for smart detection Like neural networks hardware accelerators, AI image recognition.
[] Supports H.264/H.265 video encoding, up to 2880x1620@20fps.
[] Compatible with high-definition CMOS sensors.
[] Programmable frequency output for sensor clock.
[] Comprehensive ISP features for image optimization.
[] Partial OpenCV library support with CV hardware acceleration.
[] 16-bit audio codec with built-in mic input and output functions.
[] Flexible network configurations with 1 Ethernet PHY.
CSI-2 (MIPI serial camera)
[] Features a 16-pin FPC interface for 2-lane MIPI camera input.
[] Operates I2C, CLK, and RST signals at a 1.8V voltage level.
Ethernet
[] Milk-V Duo includes CV1800B chip with a 100Mbps PHY.
[] PHY is linked to a 5-pin solder pad.

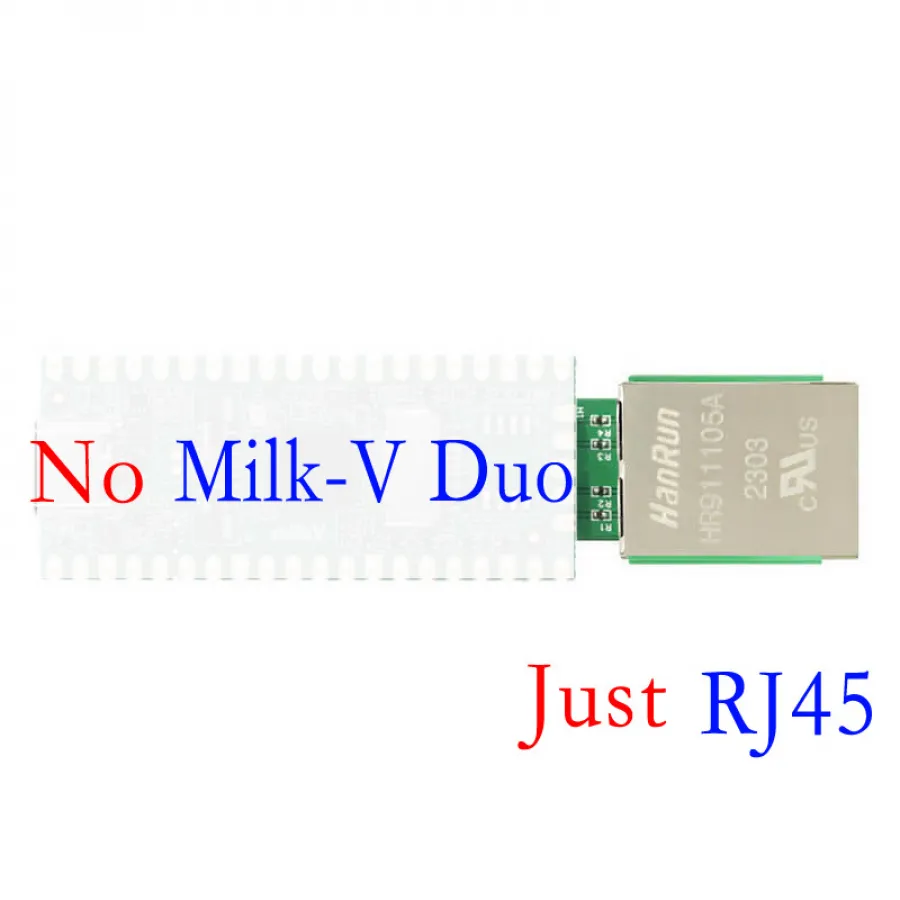

[] External transformer and RJ45 socket are needed for Ethernet use.
USB
[] USB 2.0 compliant, backward compatible with USB 1.1.
[] Supports various speed modes, Host/Device functionality, and transfer protocols.
[] Expandable interfaces via USB Hub (up to 127 devices).
[] Power-saving mode, supports HID devices.
[] Functions as USB slave device with configurable software.
[] USB Type-C for storage media access.
Micro SD
[] SDIO0 is compatible with Secure Digital Memory (SD 3.0) protocol.
GPIO
[] Up to 26 GPIO pins on the MilkV-Duo 40-pin header provide access to internal peripherals such as SDIO, I2C, PWM, SPI, J-TAG, and UART.
[] Up to 3x I2C
[] Up to 5x UART
[] Up to 1x SDIO1
[] Up to 1x SPI
[] Up to 2x ADC
[] Up to 7x PWM
[] Up to 1x RUN
[] Up to 1x JTAG
Board Specifications
[] Single-sided PCB

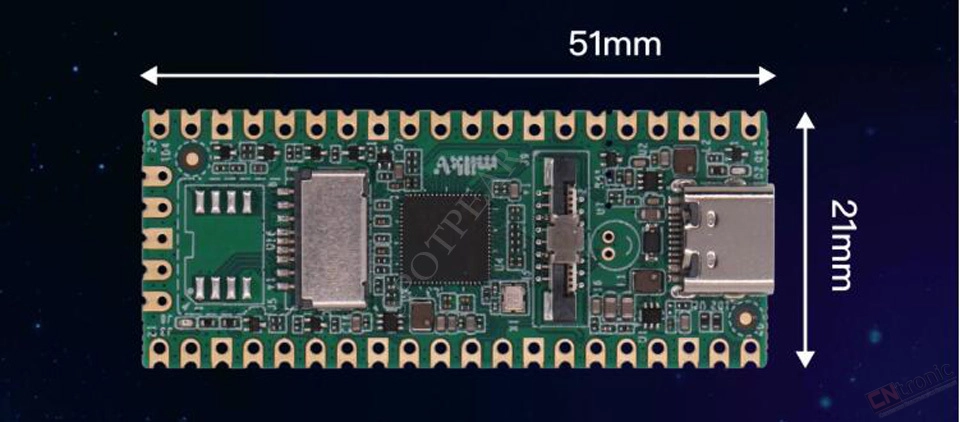

[] Dimensions: 51×21mm
[] Thickness: 1mm
[] Type-C port located on the top edge
[] Dual castellated/through-hole pins around the remaining edges
[] Can be used as a surface mount module or in Dual Inline Package (DIP) format
[] 40 main user pins on a 2.54mm (0.1") pitch grid with 1mm holes
[] Compatible with veroboard and breadboard

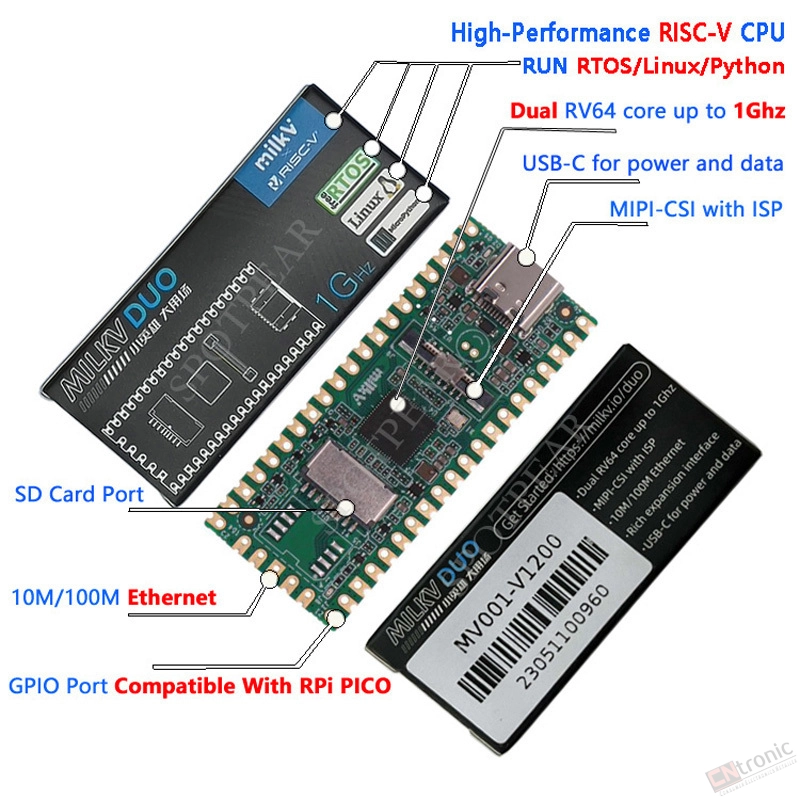

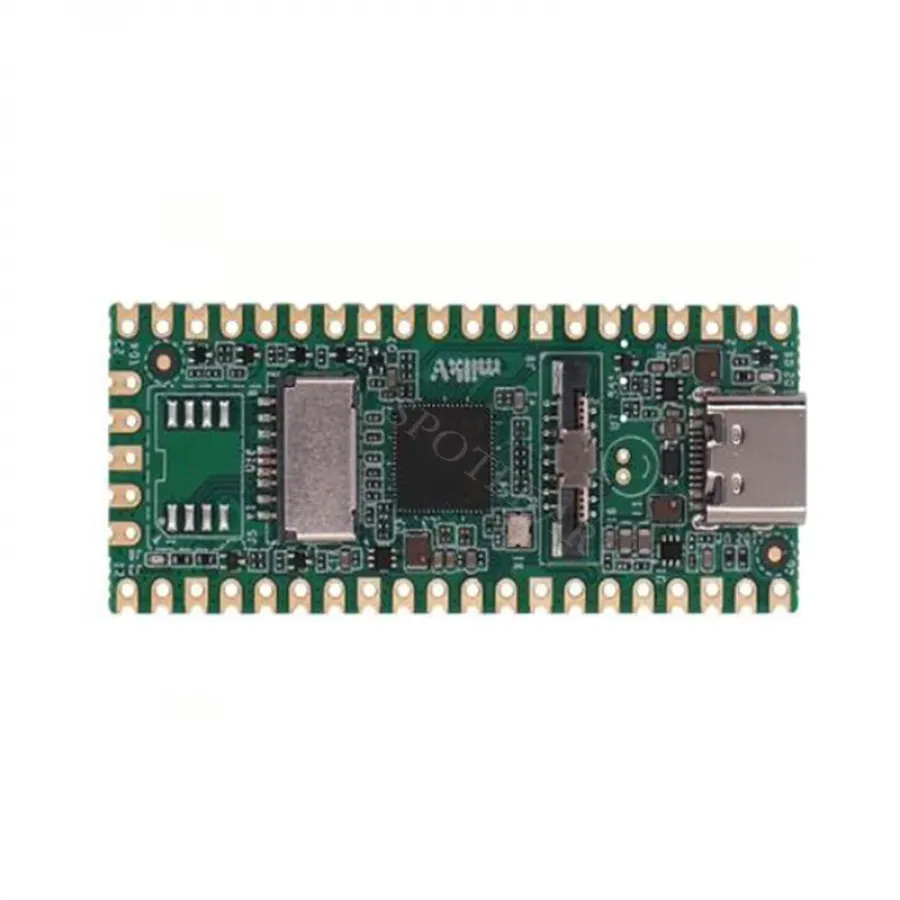

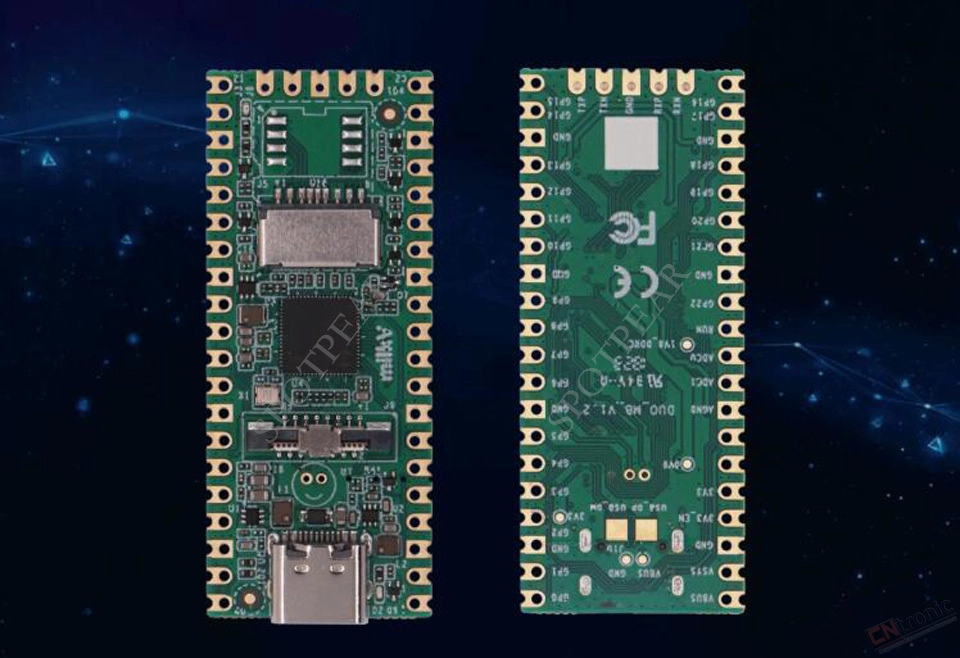

【Product Show】

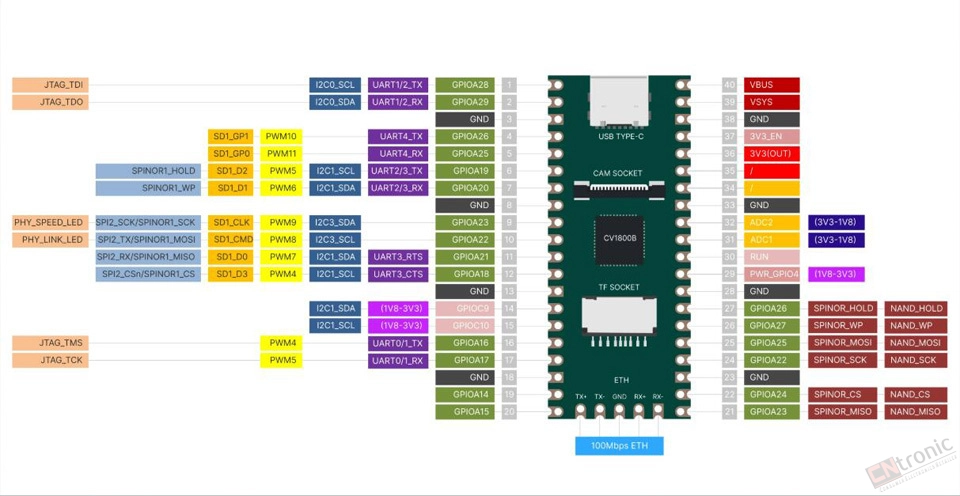

【Pin Definition】
【Application Examples】
【Outline Dimensions】
Package Contains

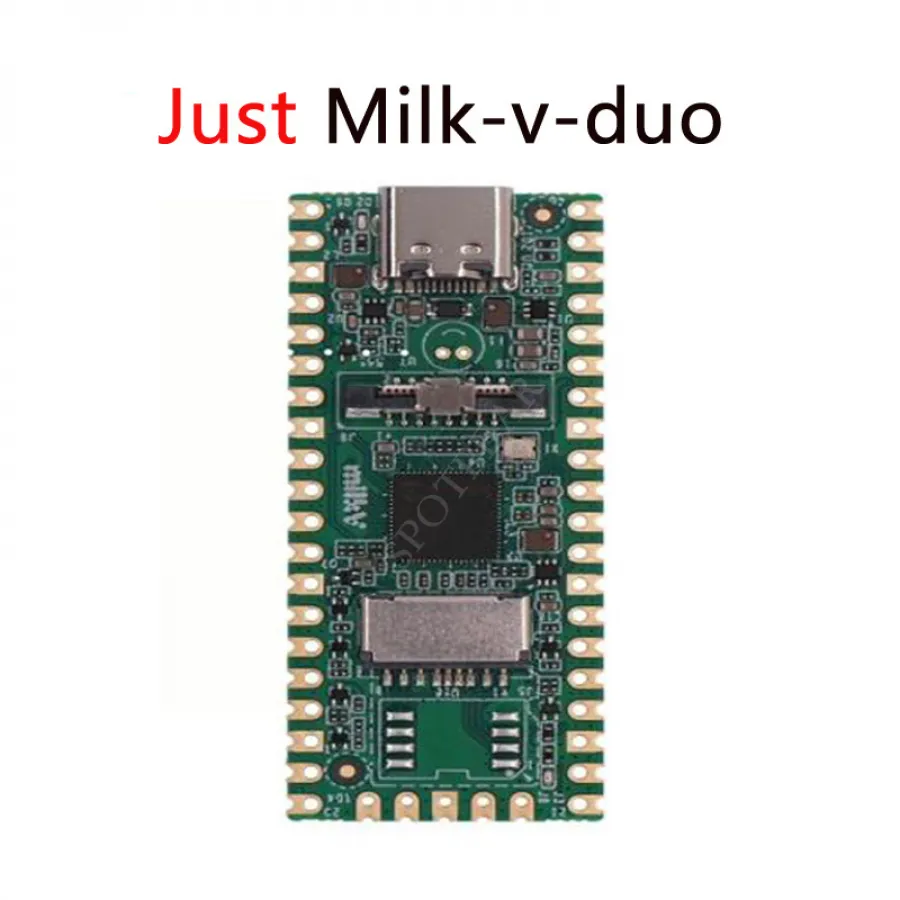

[] Milk-V-Duo-64M x1

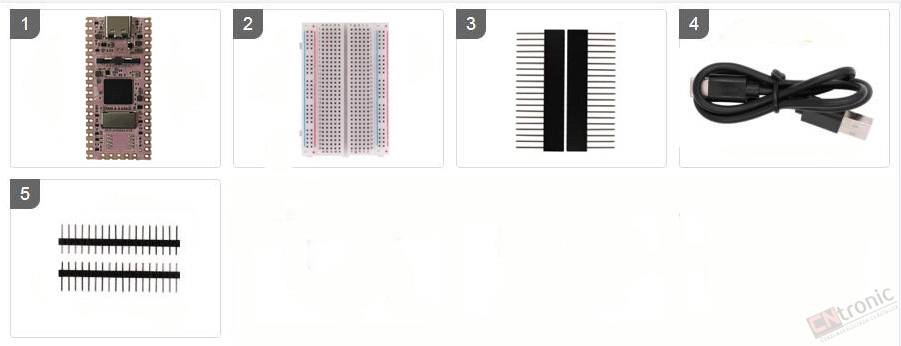

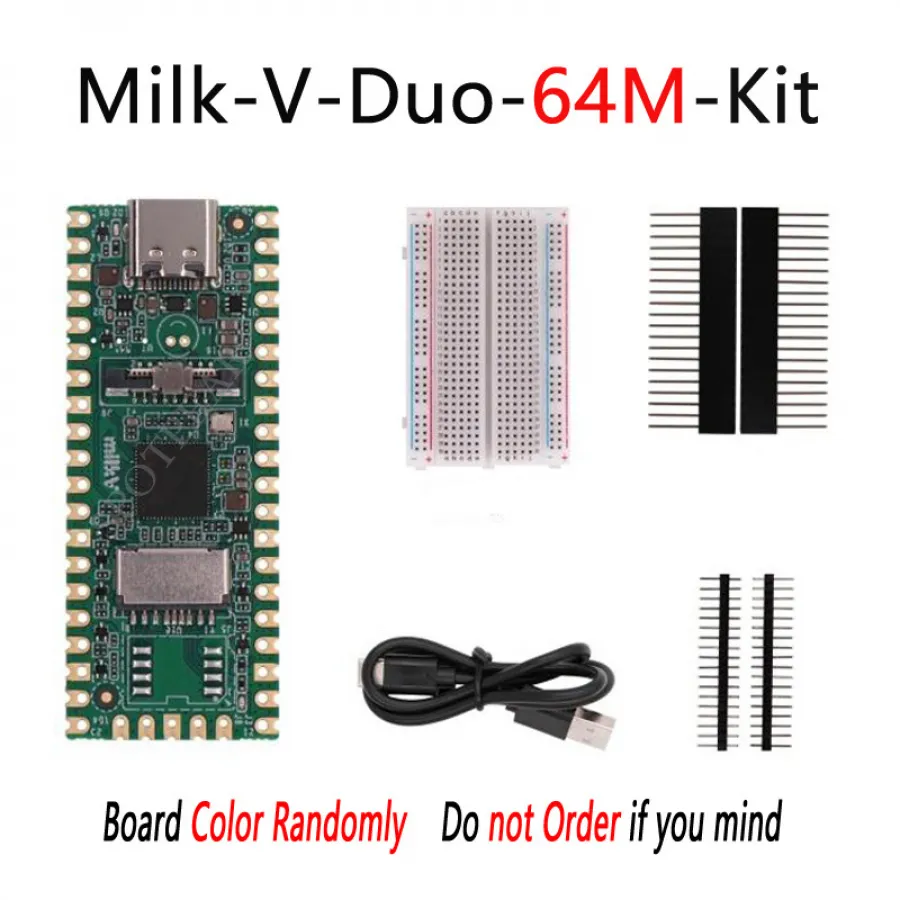

[] Milk-V-Duo-64M-Kit
1. Milk-V-Duo-64M x1
2. bread board x1
3. PIN2 x2
4. Cable x1
5. PIN x2
[] Just Milk-V-Duo-256M x1

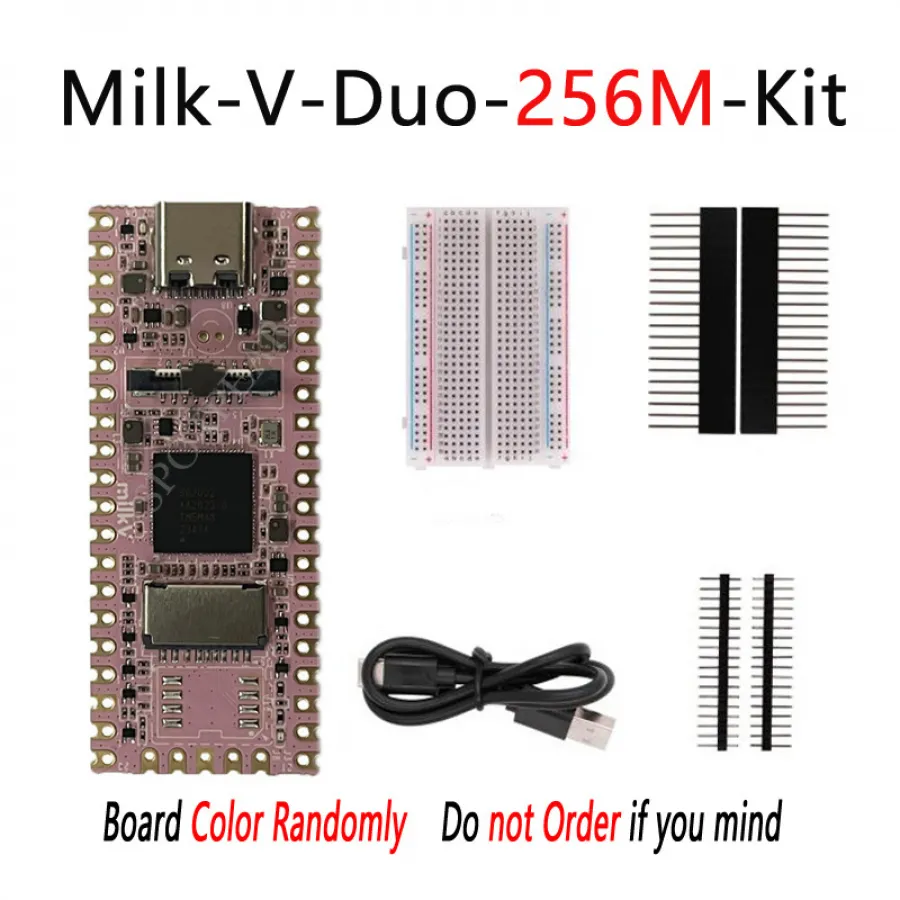

[] Milk-V-Duo-256M-Kit
1. Milk-V-Duo-256M x1
2. bread board x1
3. PIN2 x2
4. Cable x1
5. PIN x2
Packaging Details
- Unit Type:
- Package Weight: 0.160
- Package Size: 6x5x10
- Brand Name: spotpear
- Demo Board Type: ARM
- Hign-concerned Chemical: None
- Battery Included: No
- Origin: Mainland China
- Certification: CE
- Choice: yes
- semi_Choice: yes
