【First-level Authorized Agency】LuckFox Pico Linux board RV1103 Rockchip AI Board ARM Cortex-A7 better than Raspberry Pi Pico
4.8 (93 votes) | 344 orders
Price:
US $
17.39
- Bundle
-
-
【Luckfox Pico Recommend】
【First-level Authorized Agency Certificate】
【Note】

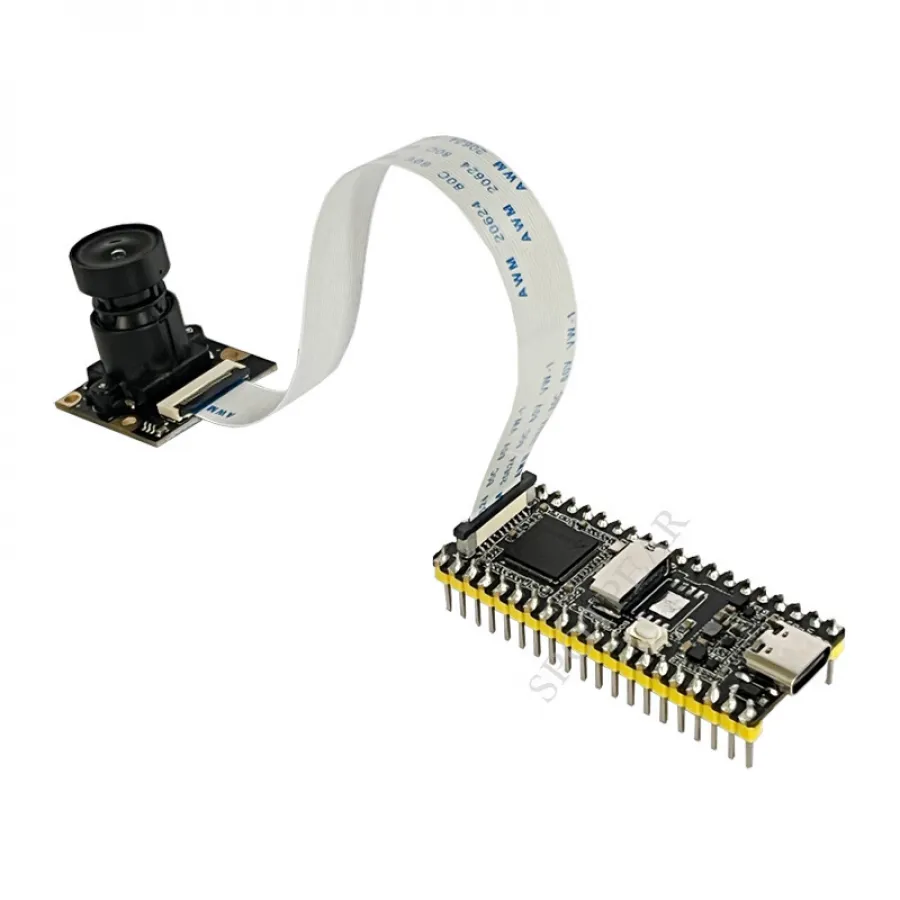

[] Do not include Camera Module
[] 'Plus Version' Onboard 1Gb SLC NAND FLASH
【Overview】
[] LuckFox Pico Plus is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.

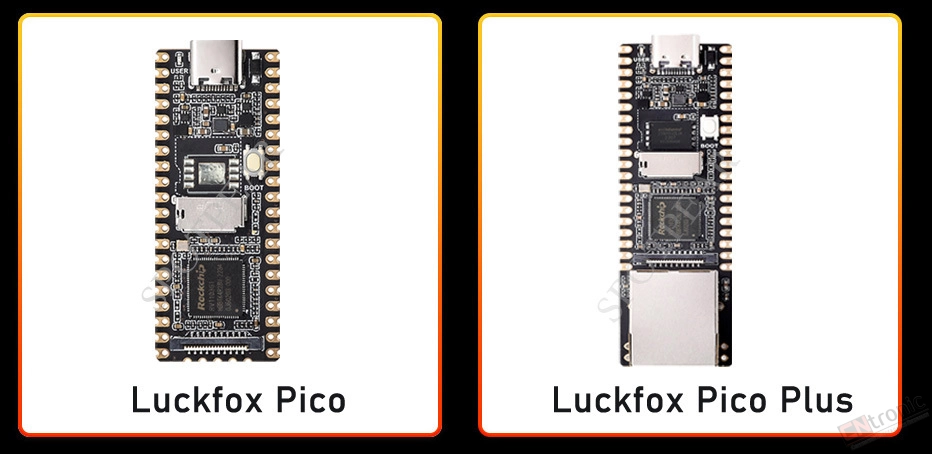

【Ethernet Port Version Option】
【Specifications】
[] Processor : Cortex A7@1.2GHz + RISC-V
[] NPU : 0.5TOPS, supports int4, int8 and int16
[] ISP : Input 4M @30fps (Max)
[] Memory : 64MB
[] USB : USB 2.0 Host/Device
[] Camera : MIPI CSI 2-lane
[] GPIO : 25 × GPIO pins
[] Ethernet port : 10/100M Ethernet controller and embedded PHY
[] Luckfox-Pico：Micro SD Slot
[] Luckfox-Pico-Plus：SPI NAND FLASH (1Gb)

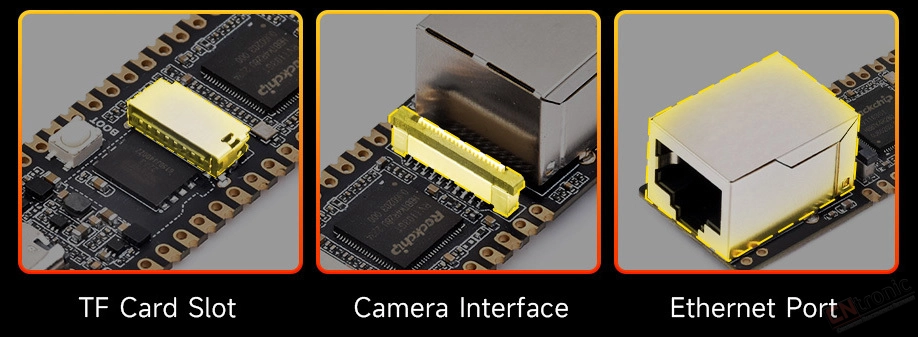

【Easier To Develop】
[] Luckfox-Pico Integrates TF Card Slot, Camera Interface
[] Luckfox-Pico-Plus Integrates TF Card Slot, Camera Interface And Ethernet Port
【Suitable For More Application Examples】
[] Luckfox-Pico
[] Luckfox-Pico-Plus
【Introduction Resources】

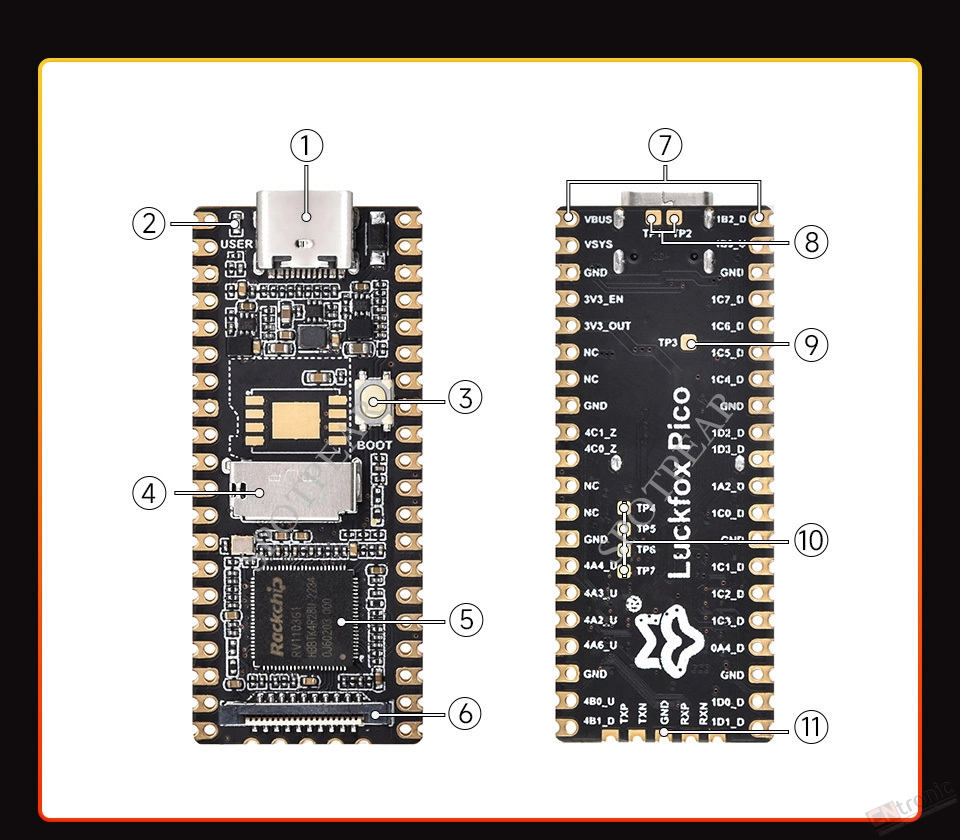

[] Luckfox-Pico
1. USB Type-C connector
2. ACT-LED
3. BOOT button : Press it when powering on to enter download mode
4. TF card slot
5. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core
6. CSI camera interface : MIPI CSI 2-lane
7. GPIO header
8. USB test pads
9. BOOT test pad
10. Microphone test pads
11. Ethernet interface pads

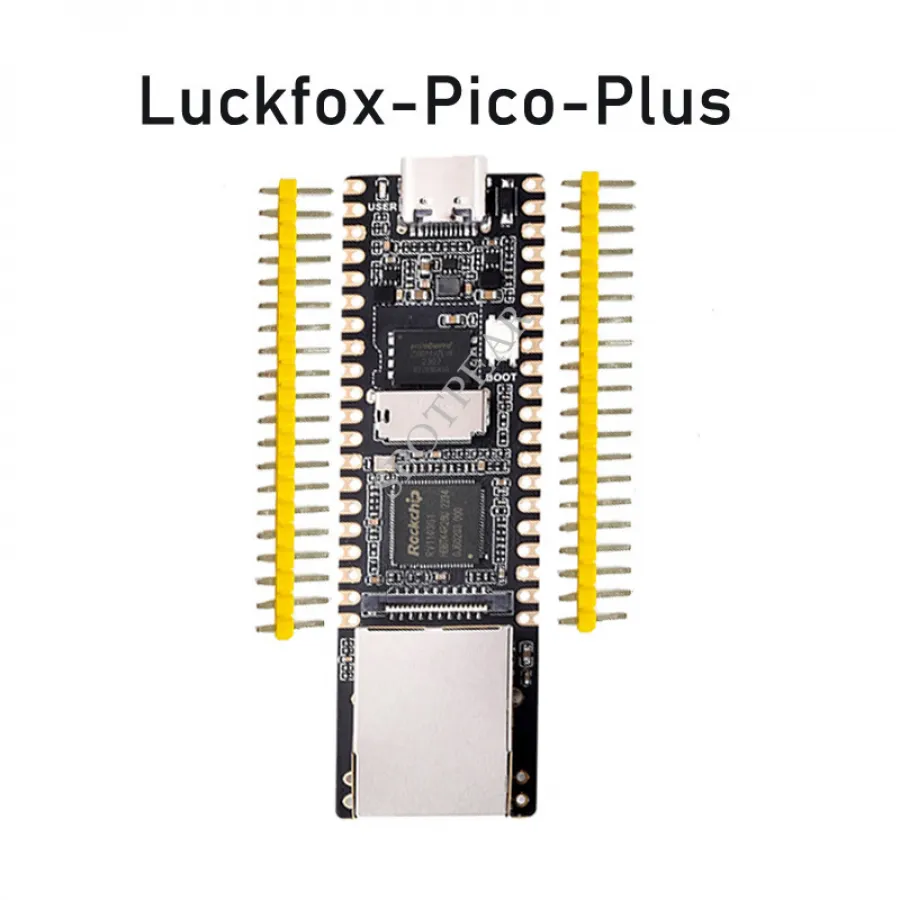

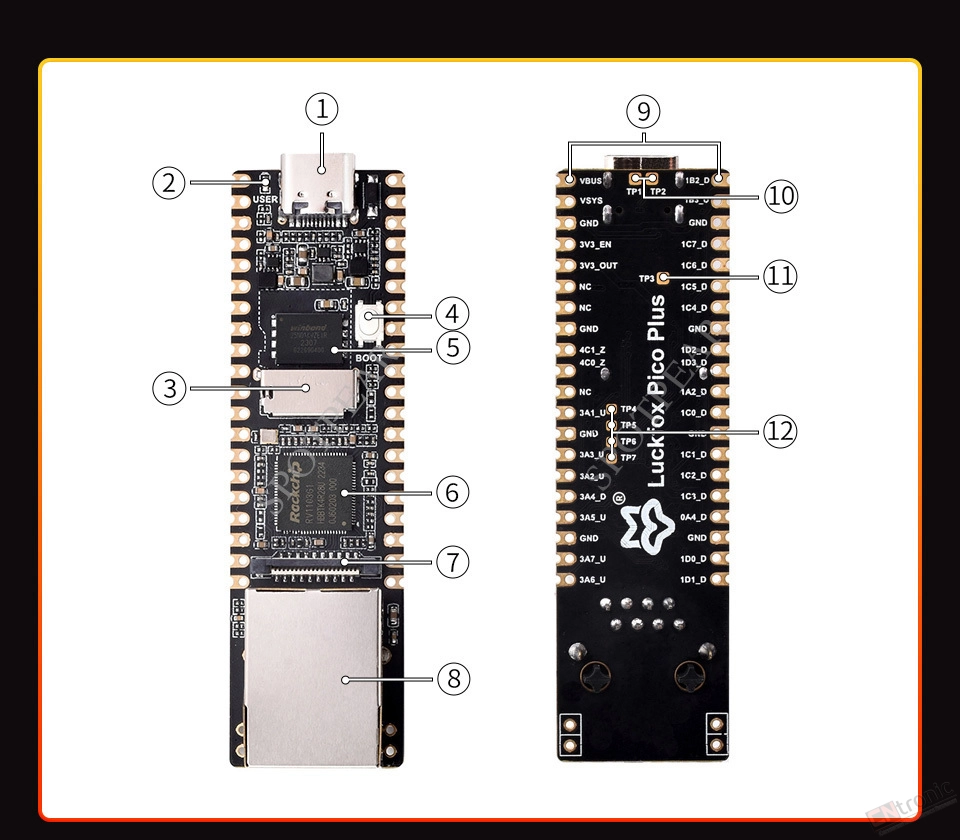

[] Luckfox-Pico-Plus
1. USB Type-C connector
2. ACT-LED
3. TF card slot
4. BOOT button : Press it when powering on to enter download mode
5. W25N01GV : 1Gb SLC NAND FLASH
6. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core
7. CSI camera interface : MIPI CSI 2-lane
8. RJ45 Ethernet port
9. GPIO header
10. USB test pads
11. BOOT test pad
12. Microphone test pads

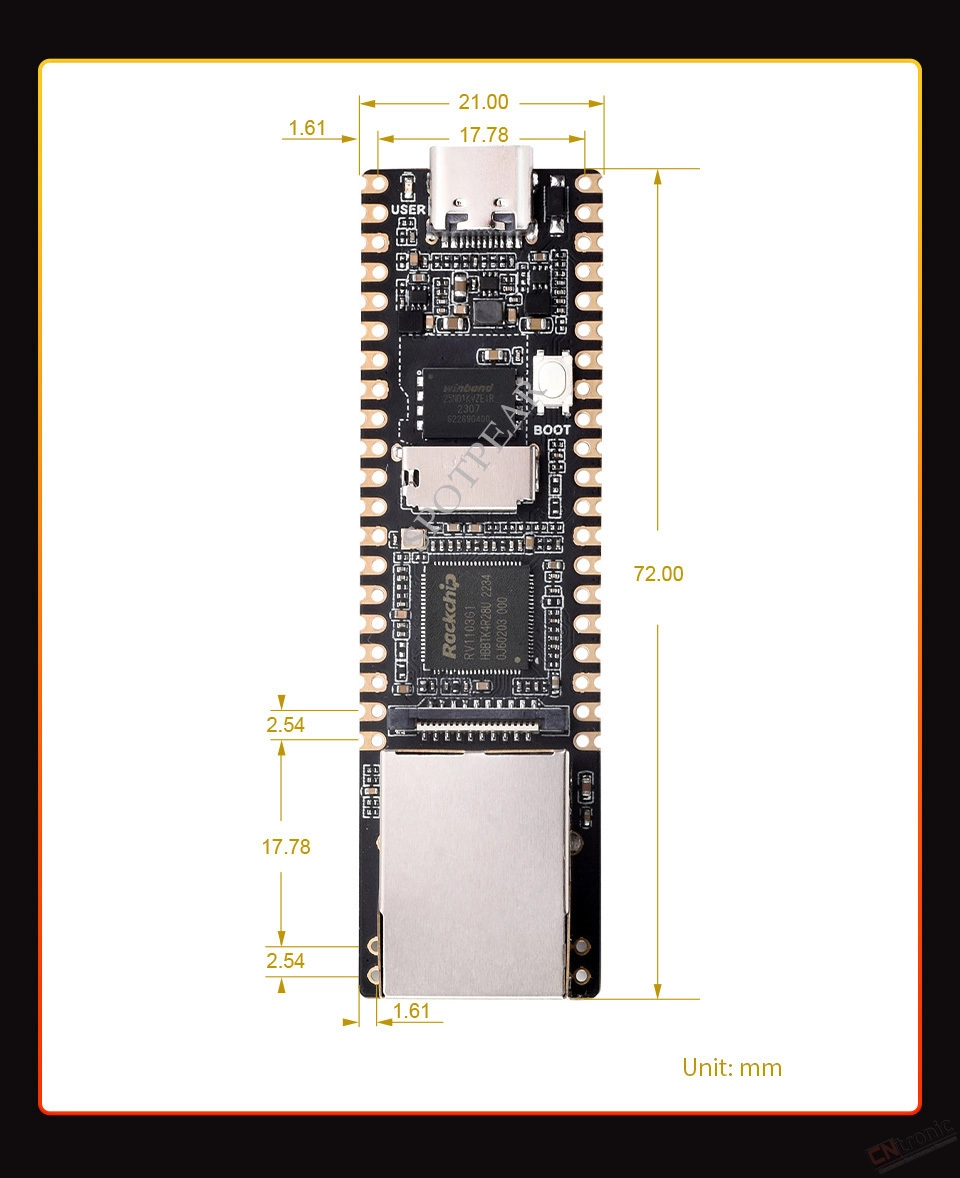

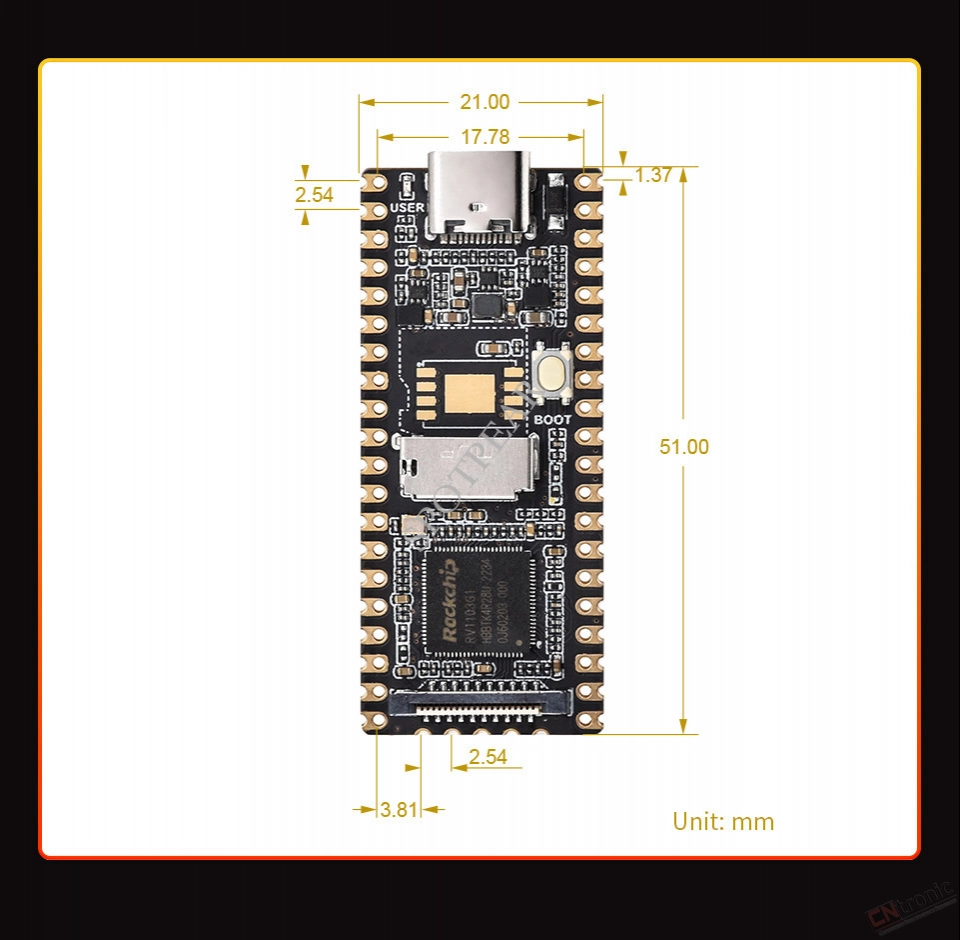

【Outline Dimensions】
[] Luckfox-Pico
[] Luckfox-Pico-Plus

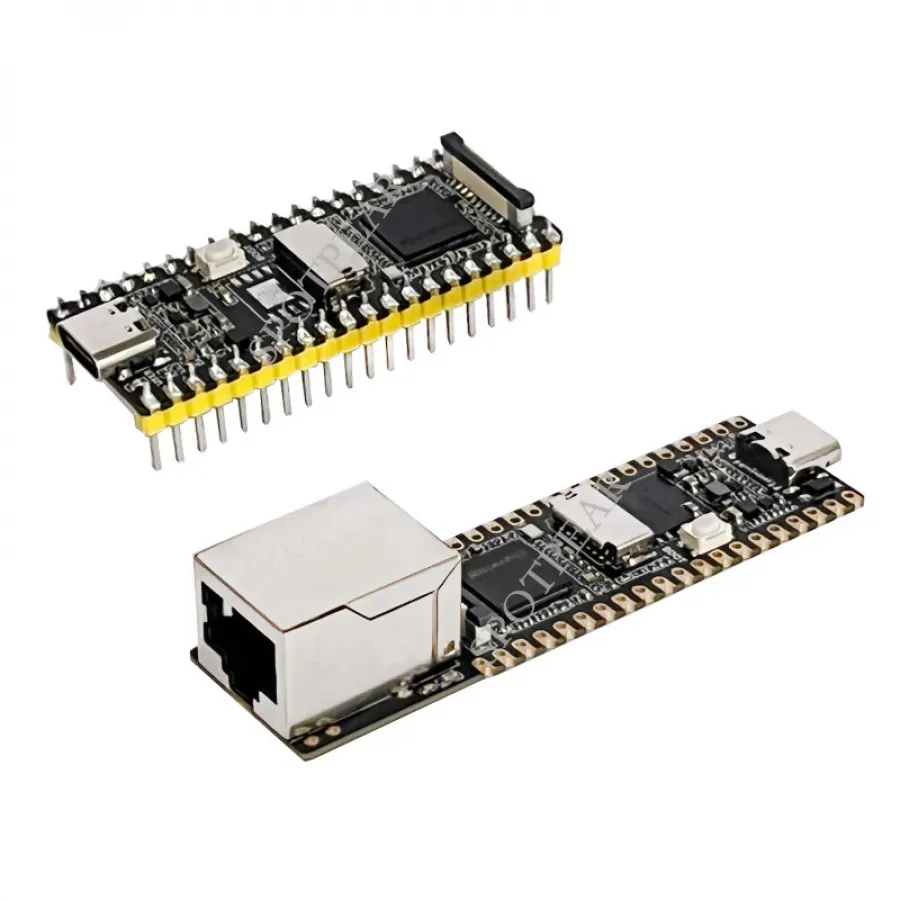

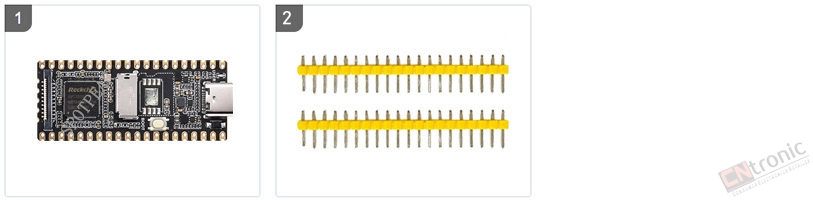

Package Contains

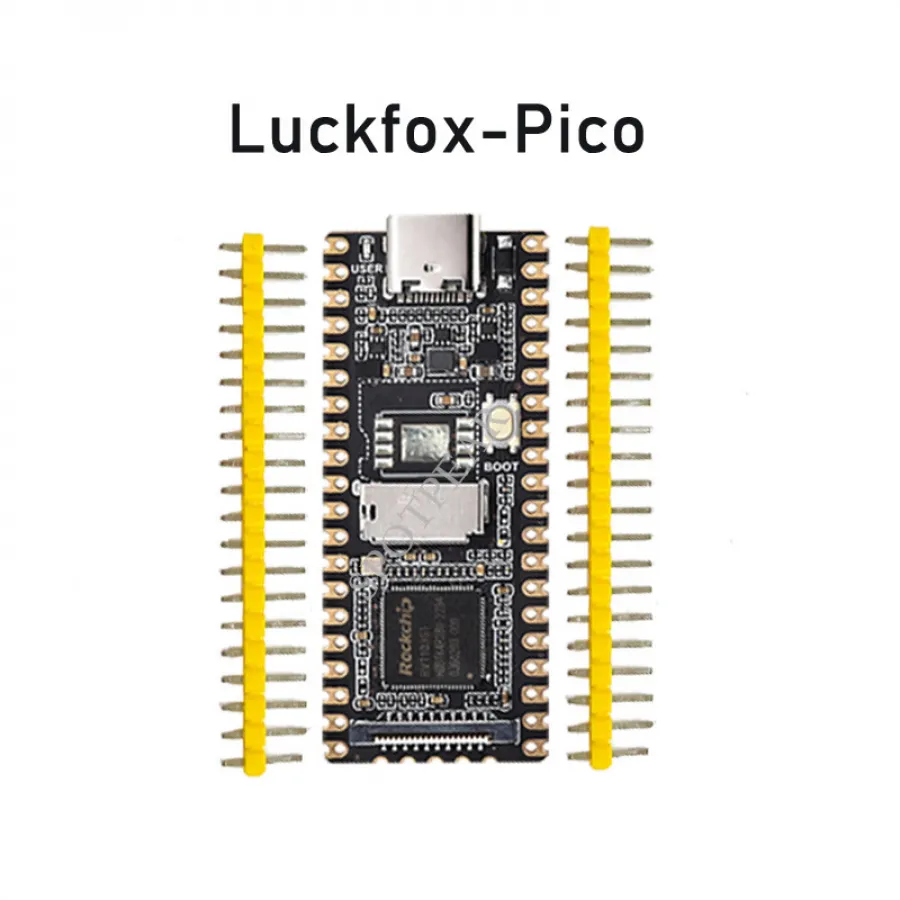

[] Luckfox-Pico

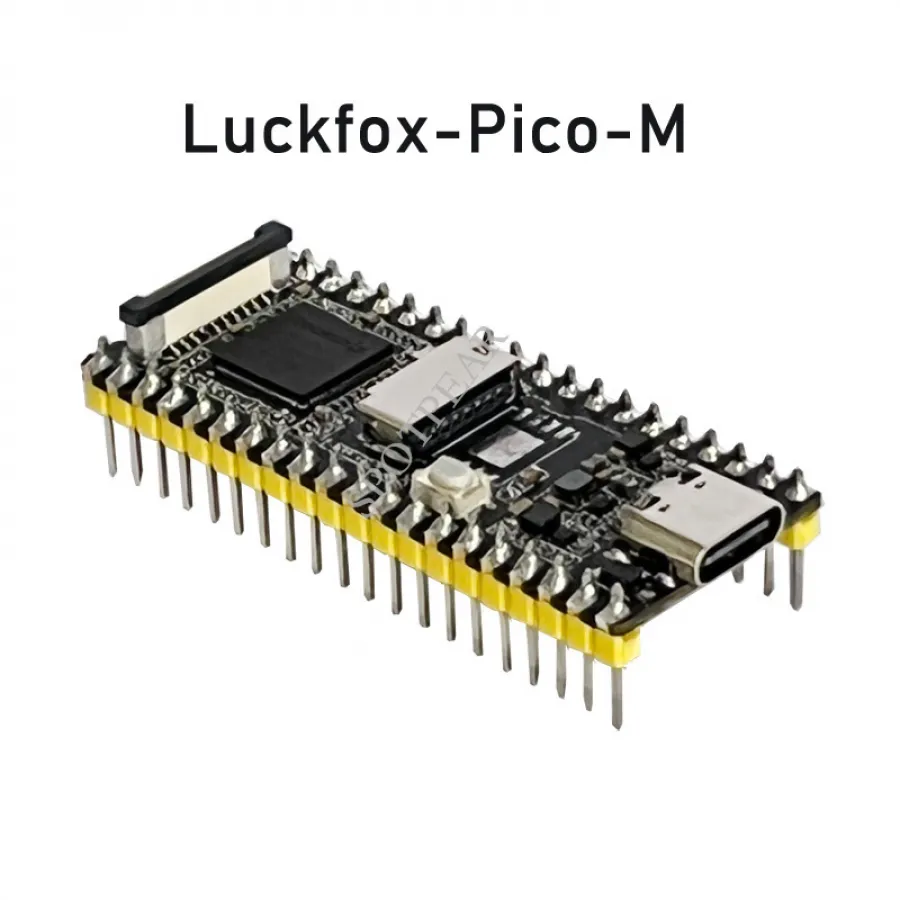

[] Luckfox-Pico-M
[] Luckfox-Pico-Plus

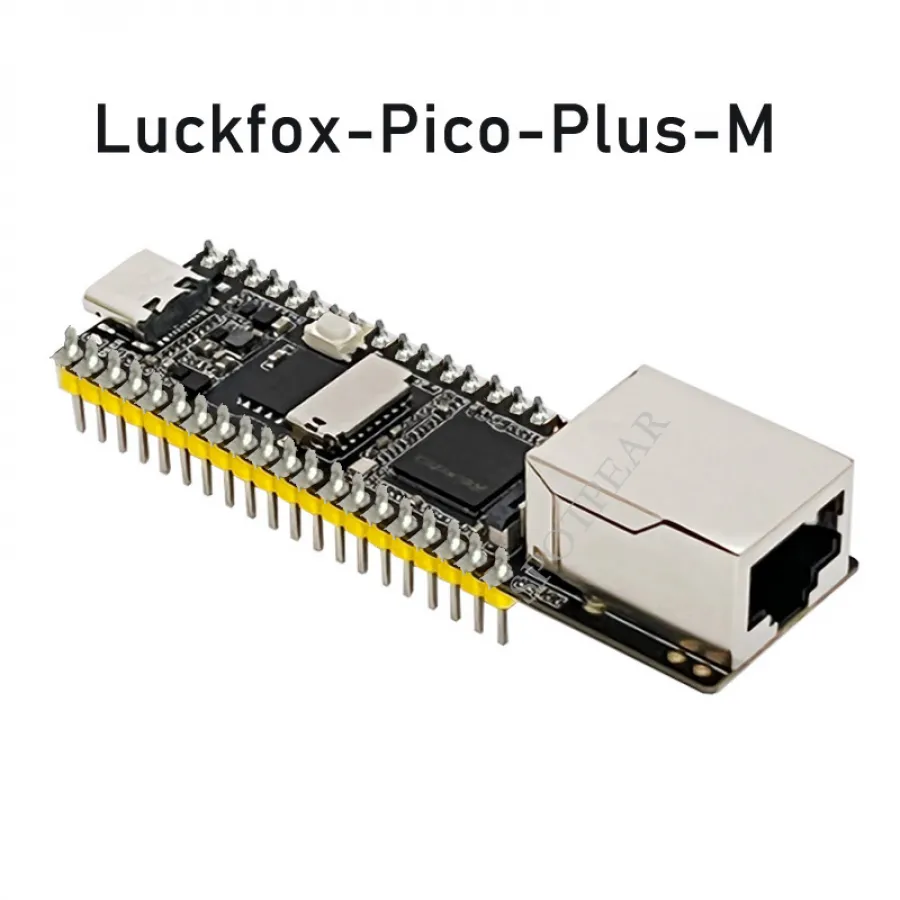

[] Luckfox-Pico-Plus-M
Packaging Details
- Unit Type:
- Package Weight: 0.140
- Package Size: 6x5x10
- Brand Name: spotpear
- Demo Board Type: ARM
- Hign-concerned Chemical: None
- Battery Included: No
- Origin: Mainland China
- Certification: CE
- Choice: yes
- semi_Choice: yes
