Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython / Micropython
Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands.
Dual-core communication: It supports both Bluetooth and LoRa dual modes, enabling cross-domain interconnection.

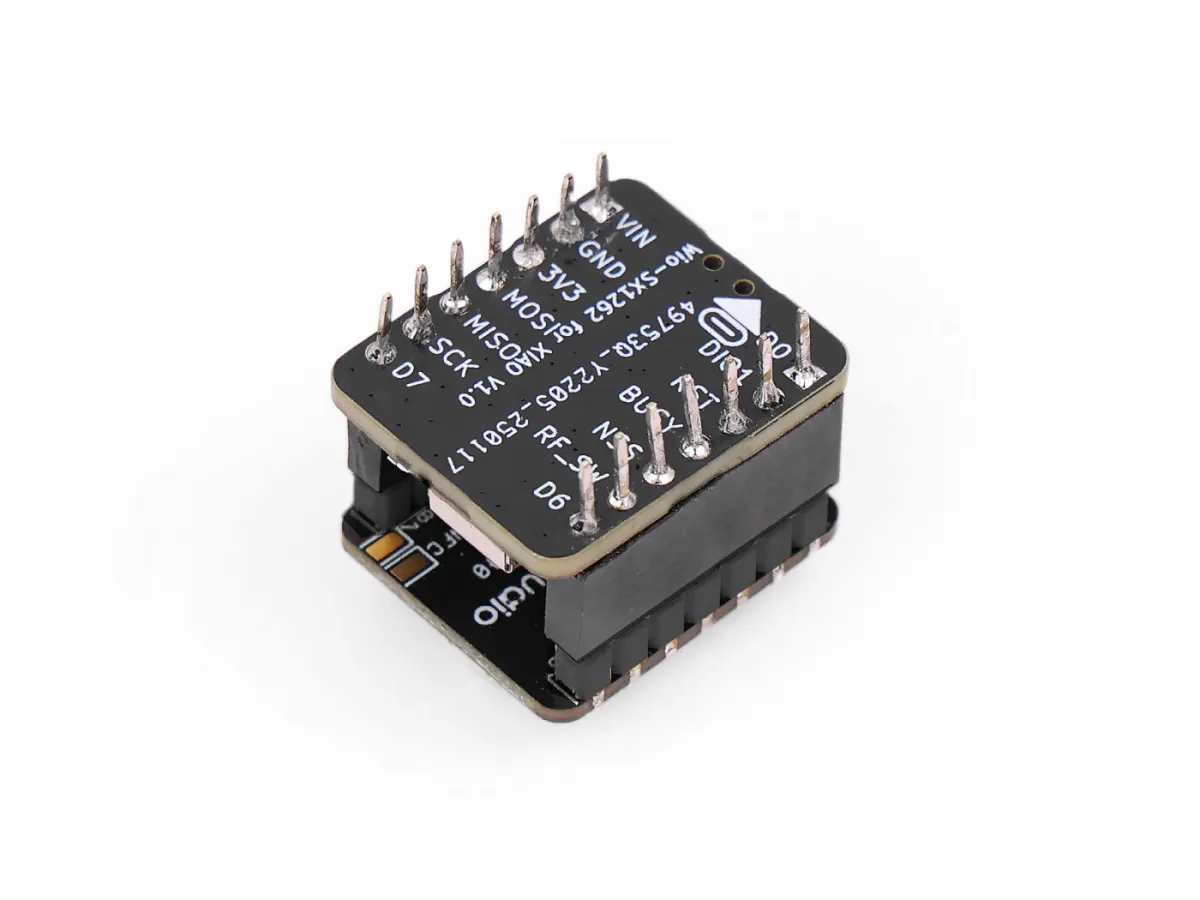

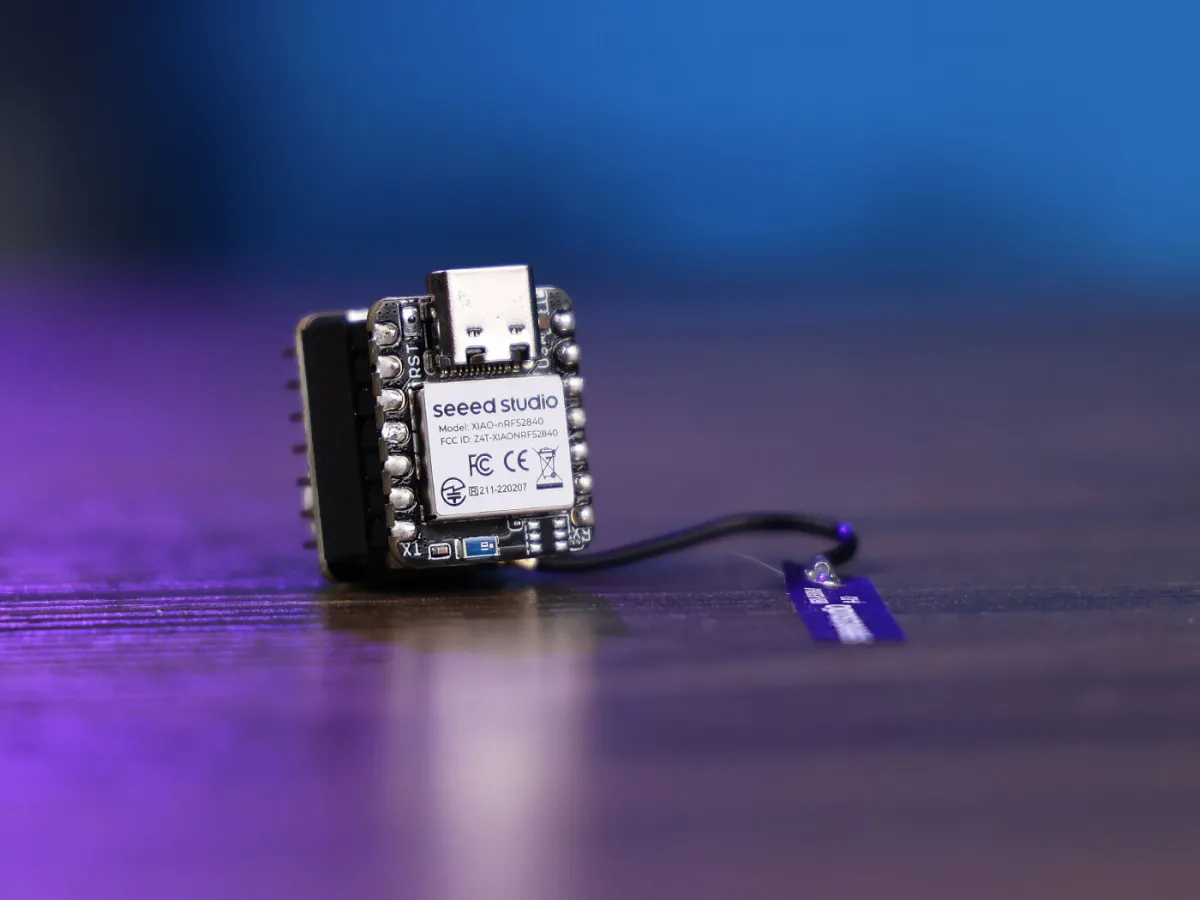

With dimensions of only 8mm × 22mm × 23mm, it features an integrated antenna design.
XIAO nRF52840 | Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
Wio-SX1262 | Based on Semtech SX1262, supports 862-930MHz |
Wireless | Bluetooth 5.0/NFC |
Interface | XIAO nRF52840:1x UART, 1x IIC, 1x SPI(connect to SX1262),1x NFC, 1x SWD, 11x GPIO(PWM), 6x ADC |
Wio-SX1262: 1xUser button, 1xSPI(connect to XIAO nRF52840) | |
Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
Charging battery current: 50mA/100mA | |
Standby power consumption: <5uA | |
Working Temperature | -40°C ~ 65°C |
Dimensions | 21 x 17.8mm |

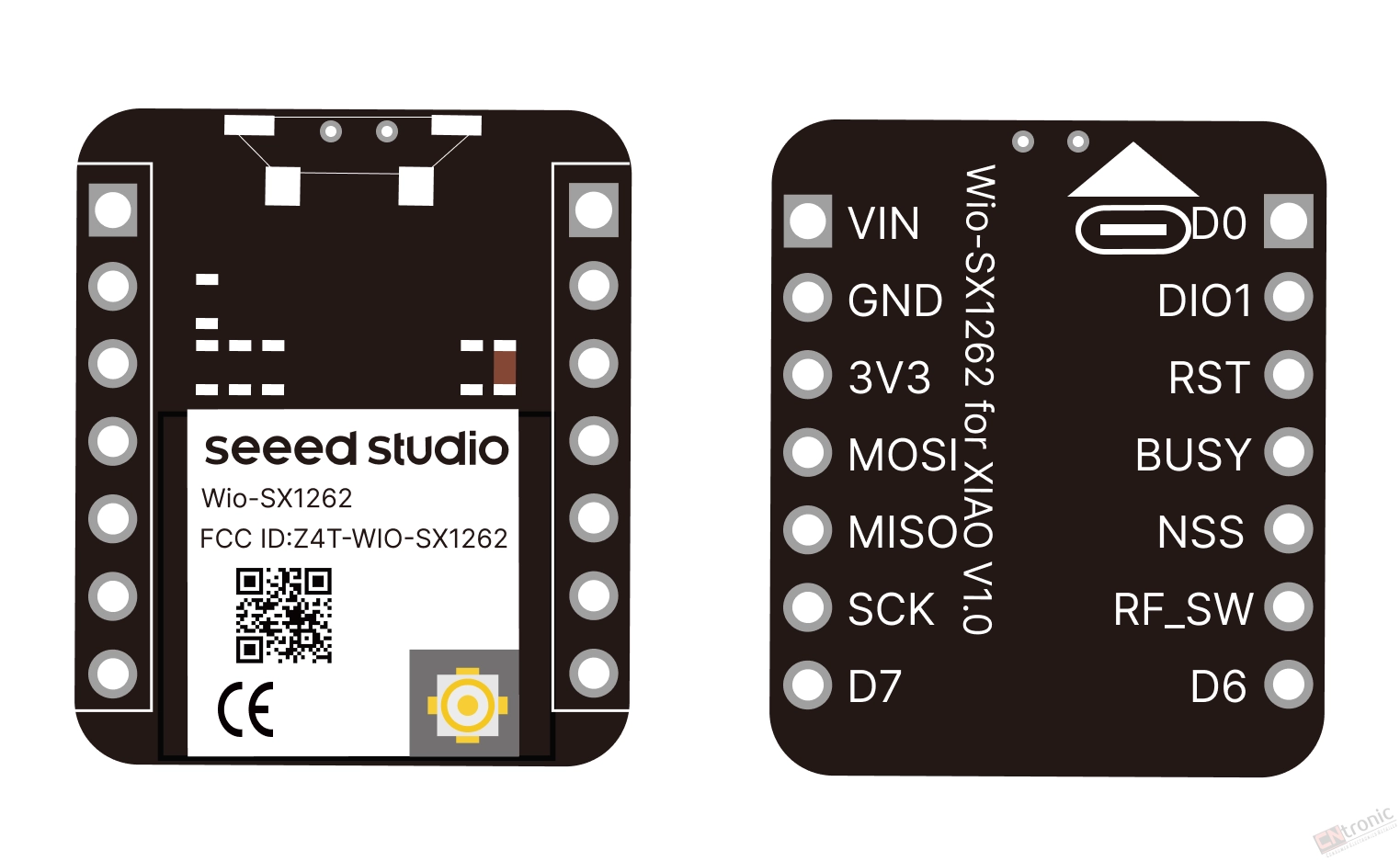

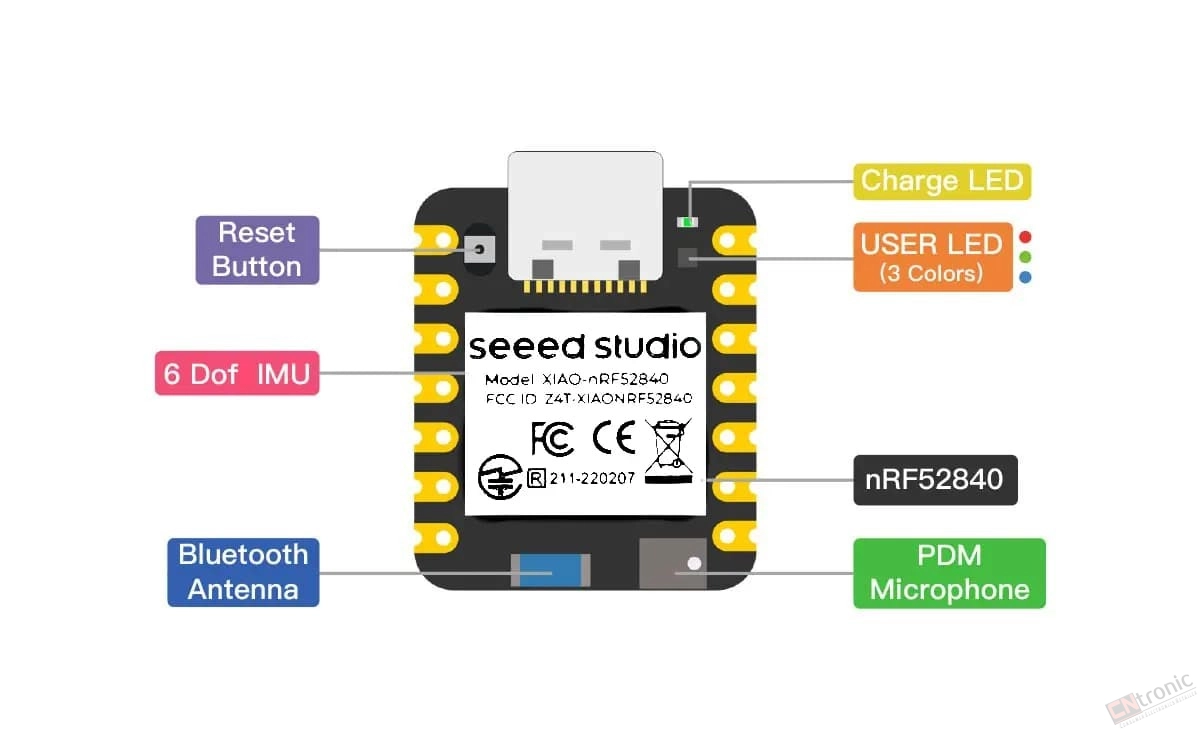

Onboard

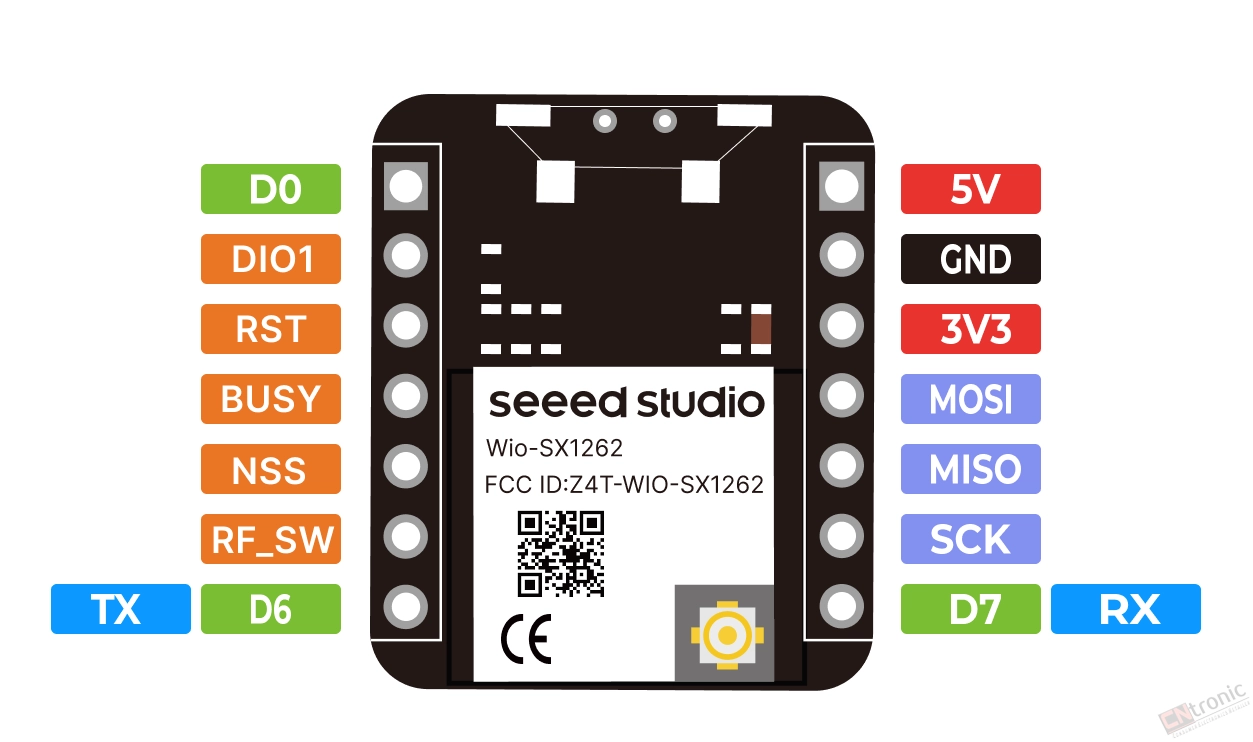

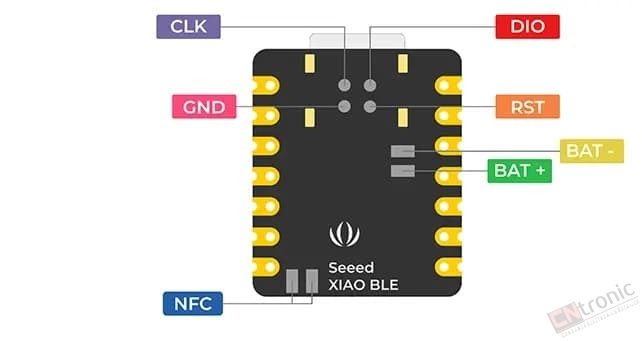

PinOutWio-SX1262

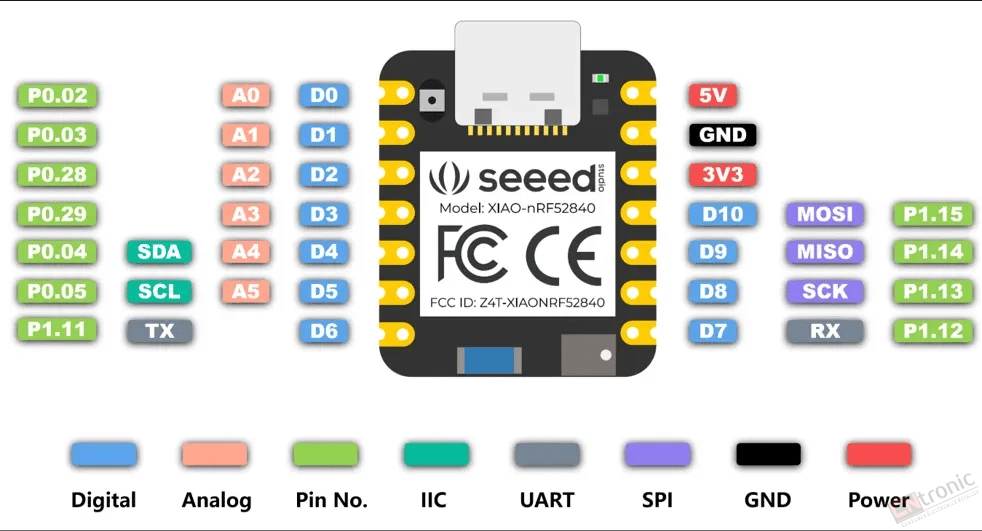

OnboardPinOut
Application
Meshtastic Node&Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.

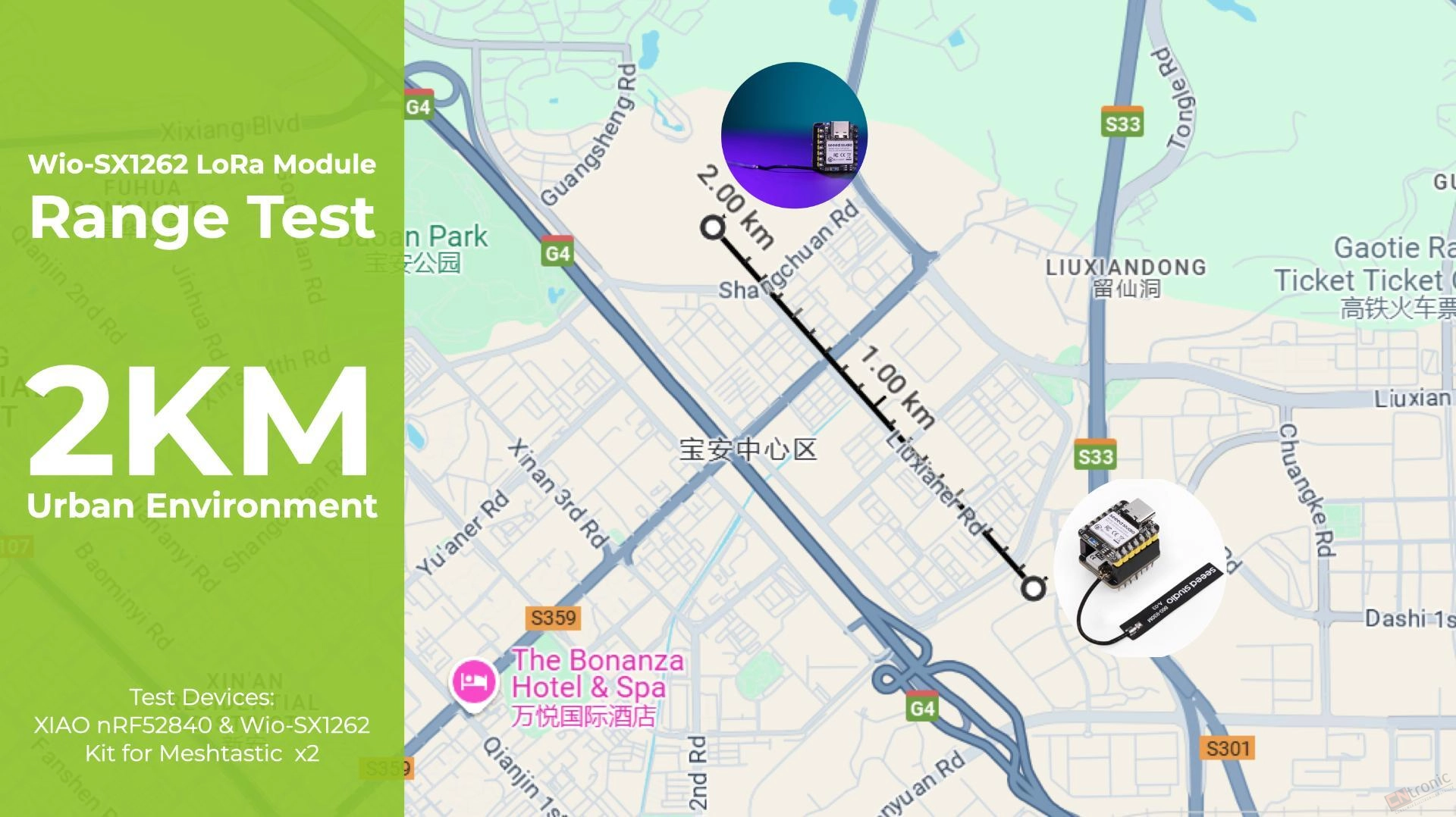

The distance between the two nodes can reach up to 2KM (subject to the environment). Documents
