WisMesh Ethernet Gateway |The MQTT Gateway for Meshtastic
5.0 (1 votes) | 47 orders
Price:
US $
245.29
Model1-With Enclosure
Model2-Without Enclosure
Type1-Without PoE Module RAK19018
Type2-With PoE Module RAK19018
800MHz for EU868/IN865/RU864
900MHz for US915/AU915/KR920/AS923
Build your ideal Meshtastic node with Meshtastic Designer. This online tool helps you select the right WisBlock modules and enclosures for Meshtastic Client, Tracker, or Router roles in your LoRa mesh network.
What Is WisMesh Ethernet MQTT Gateway?
The WisMesh Ethernet MQTT Gateway is the solution to connect your Meshtastic devices with the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or to your own MQTT Broker. Whether you want to send sensor data, location information, or even text messages to the cloud, this device is the one you need.

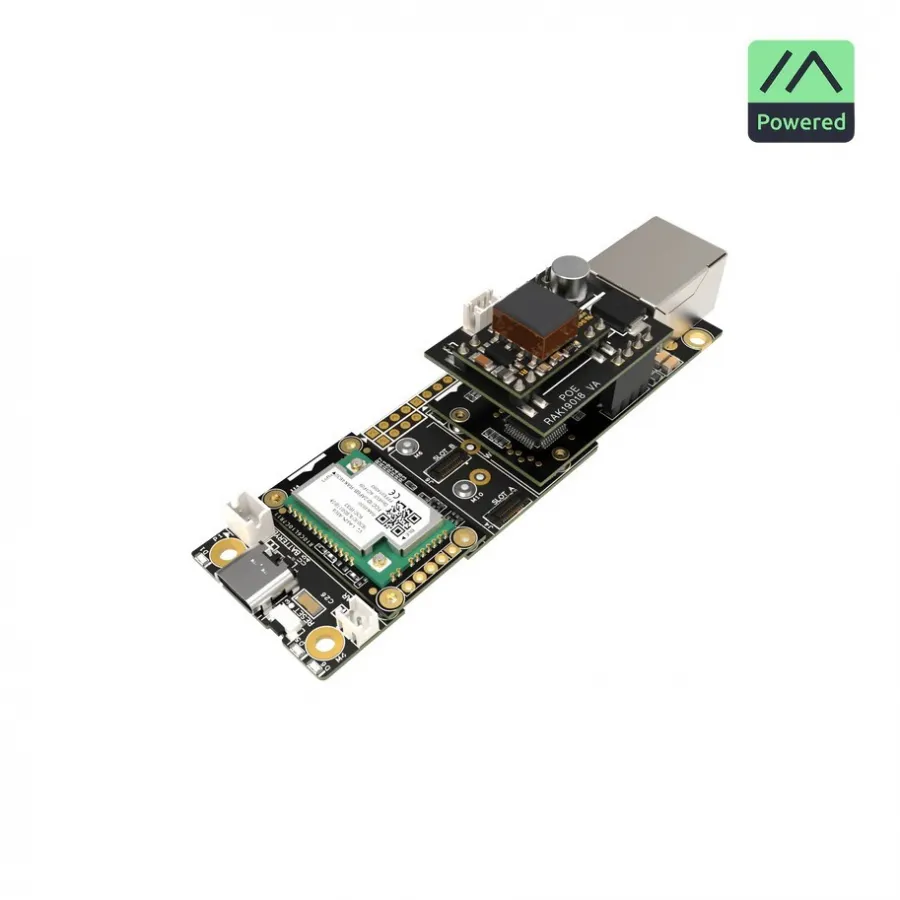

This Meshtastic MQTT PoE Gateway uses our WisBlock RAK4631 Core module, which is pre-flashed with the Meshtastic firmware. Besides the LoRa connectivity, it uses our RAK13800 Ethernet module to connect to the internet and is placed on our RAK19007 Base Board.
The RAK19018 PoE module is an optional accessory that allows the gateway to be powered through the Ethernet cable.
Select your preferred configuration:
Ethernet Only for basic connectivity.
Ethernet + PoE for a streamlined setup with Power over Ethernet support.

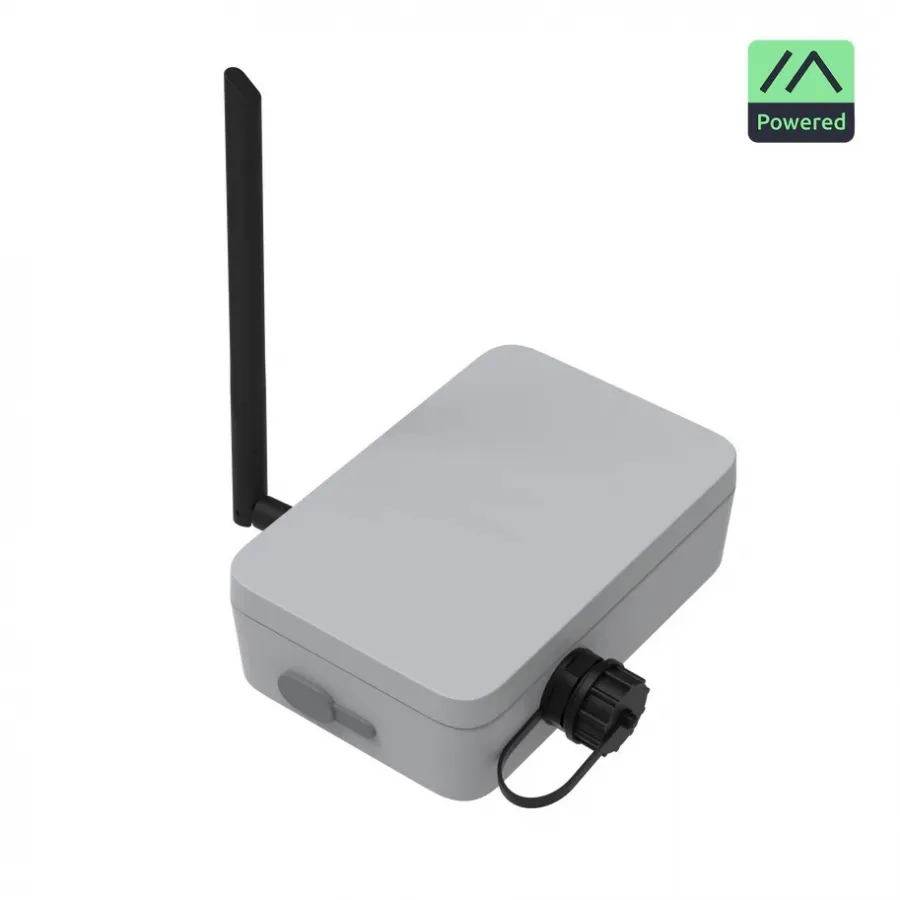

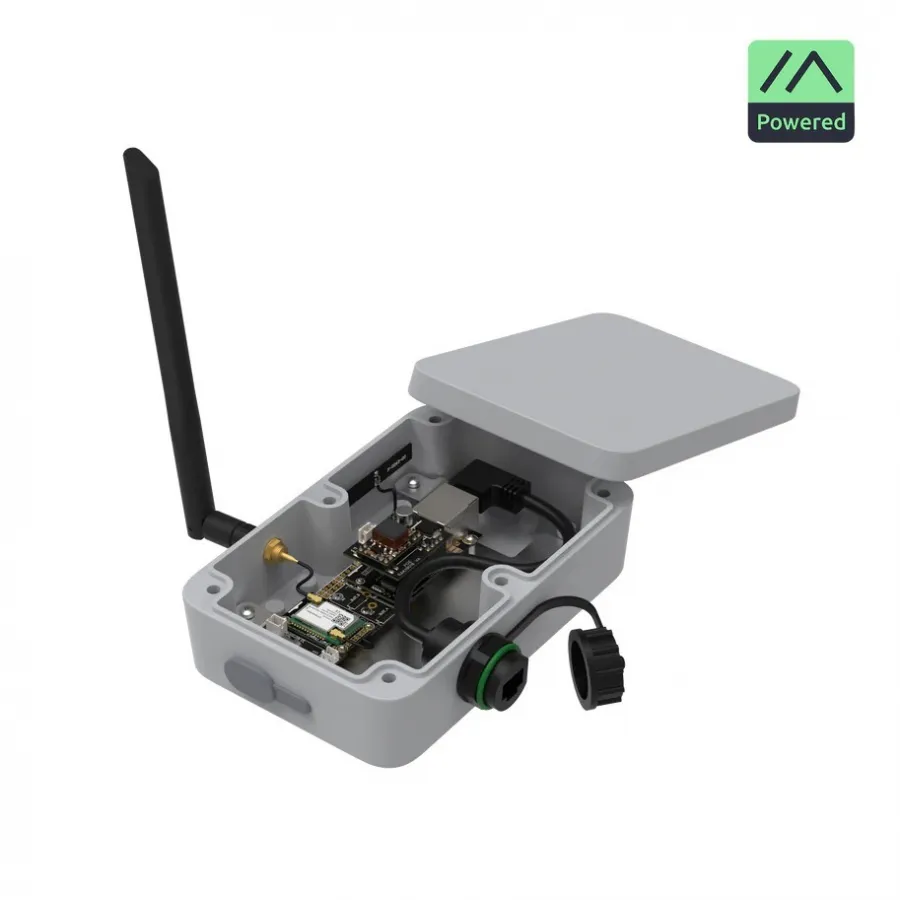

Both bundles are pre-assembled and ready to deploy for immediate use. It comes assembled in our Unify Enclosure 150 mm x 100 mm x 45 mm with an external LoRa antenna and waterproof Ethernet connector.
The WisMesh Ethernet MQTT Gateway comes pre-assembled and pre-flashed with the original Meshtastic firmware-RAK4631_eth_gw, which supports JSON over MQTT.
Everything required to start is to set up our Ethernet Gateway with the Meshtastic app for mobile through BLE.
Why You Need WisMesh Ethernet Gateway
The WisMesh Ethernet MQTT Gateway is the ideal solution for connecting your Meshtastic network to the cloud with a stable, wired connection. Designed for reliability, it seamlessly integrates with MQTT brokers, enabling efficient data transmission for sensor readings, location tracking, and text communication over Ethernet.
Why it’s useful:
Reliable wired connectivity – Ensures a stable connection between your Meshtastic network and an MQTT broker via Ethernet.
Efficient data transmission – Supports JSON over MQTT for streamlined communication of sensor data, messages, and GPS locations.
Pre-assembled & ready to use – Comes pre-flashed with Meshtastic firmware, so you can deploy it immediately.
PoE option available – Can be powered via Ethernet with the optional RAK19018 PoE module, reducing cable clutter.
Seamless integration – Works with the RAK13800 Ethernet module and RAK19007 Base Board for a complete connectivity solution.
Key Features of WisMesh Ethernet MQTT Gateway
Nordic nRF52850 WisBlock Core module, pre-flashed with the Meshtastic firmware
Bluetooth Low Energy 5.0 protocol stack
Nordic nRF52840:
Ultra-low-power MCU
32-bit ARM® Cortex-M4F CPU
64 MHz CPU clock
1 MB Flash, 256 KB RAM
Semtech SX1262:
Low power high range
LoRa® transceiver
30 mm x 60 mm with 4 sensor slots and 1 IO slot
USB Type C debug port
1 slot for WisBlock Core MCU
Based on WIZnet W5100S-L chip
Support 4 independent SOCKETs simultaneously
Support SOCKET-less command
WisBlock RAK19018 PoE module (optional)
Based on Silvertel Ag9905MT
IEEE802.3af compliant
Input voltage range: 36V to 57V
Black high-performance LoRa antenna
High efficiency
Omnidirectional
Vertically polarized
9xx MHz variant
Frequency Range: 902~928 MHz
VSWR: ≤ 1.5
8xx MHz variant
Frequency Range: 863~870 MHz
VSWR: ≤ 1.3
Key Benefits of WisMesh Ethernet MQTT Gateway
The WisMesh Ethernet MQTT Gateway delivers a low-latency, interference-free connection, making it ideal for industrial applications, large-scale sensor deployments, and mission-critical IoT networks.
Consistent and low-latency data transmission: Eliminates Wi-Fi instability with a direct Ethernet connection for real-time IoT data flow.
Reliable power options: Supports Power over Ethernet (PoE) and DC input, ensuring continuous operation in remote or hard-to-reach locations.
Use Case #1
In disaster-stricken areas where traditional communication infrastructures are compromised, the WisMesh Ethernet MQTT Gateway enables first responders to maintain real-time communication, coordinating rescue efforts effectively.
Use Case #2
For industrial IoT applications, the gateway integrates remote sensors monitoring equipment health, allowing maintenance teams to receive timely alerts and perform predictive maintenance, reducing downtime.
What’s in the Box
With Unify Enclosure 150 mm x 100 mm x 45 mm
1 pc WisMesh Ethernet Gateway
1 pc WisMesh Blade Antenna
1 pc USB Cable
Without Enclosure
1 pc WisBlock RAK19007 Base Board
1 pc WisBlock RAK4631 Core Module
1 pc WisBlock RAK13800 Ethernet Module
1 pc WisBlock RAK19018 PoE Module (Optional)
1 pc PCB Antenna for LoRa
1 pc BLE Antenna
1 pc USB Cable
1 set Screw
How to Get Started with WisMesh Ethernet MQTT Gateway
Frequently Asked Questions
How to Select the Right Bundle for Your Meshtastic PoE Build?
Use Case | Recommended Bundle | Included Modules | Key Features |
Send sensor data, location information, or even text messages to the Cloud | Ethernet Only | RAK13800 | Stable internet connectivity via Ethernet. Requires an external power source. |
Meshtastic PoE Build | Ethernet + PoE | RAK13800 + RAK19018 | Includes Power over Ethernet (PoE) for simplified installation and power supply through Ethernet. |
Packaging Details
- Unit Type:
- Package Weight: 0.560
- Package Size: 14x15x5
- Brand Name: RAK
- Hign-concerned Chemical: None
- Type: Wireless
