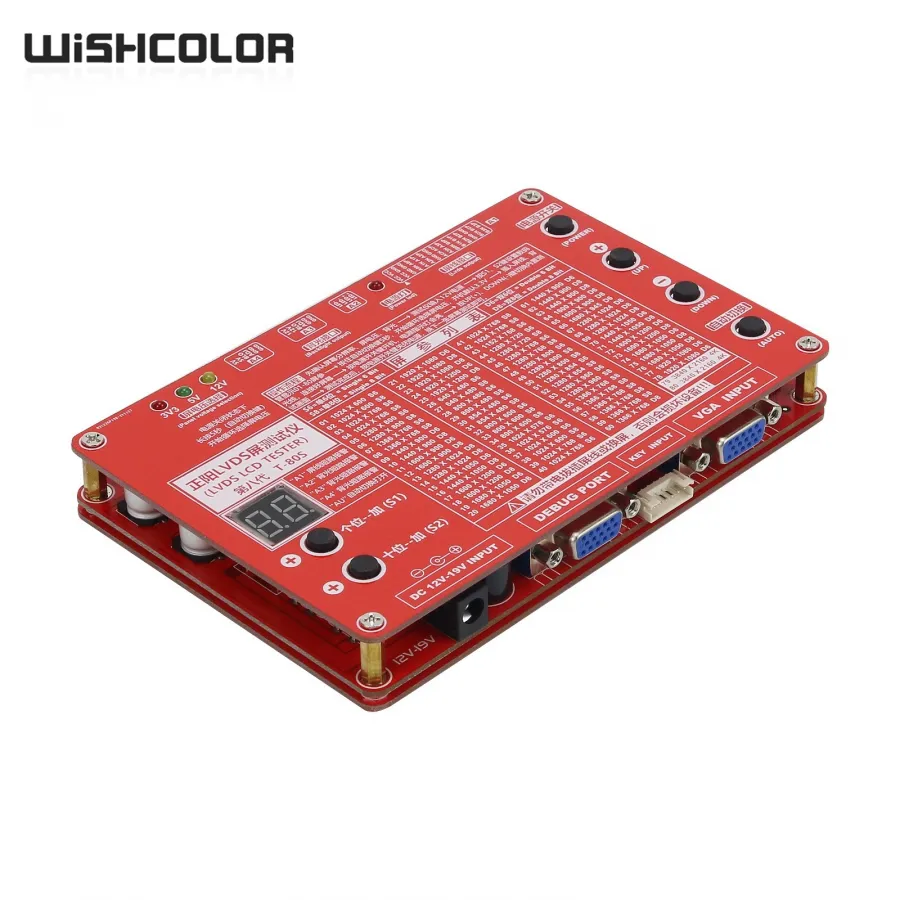

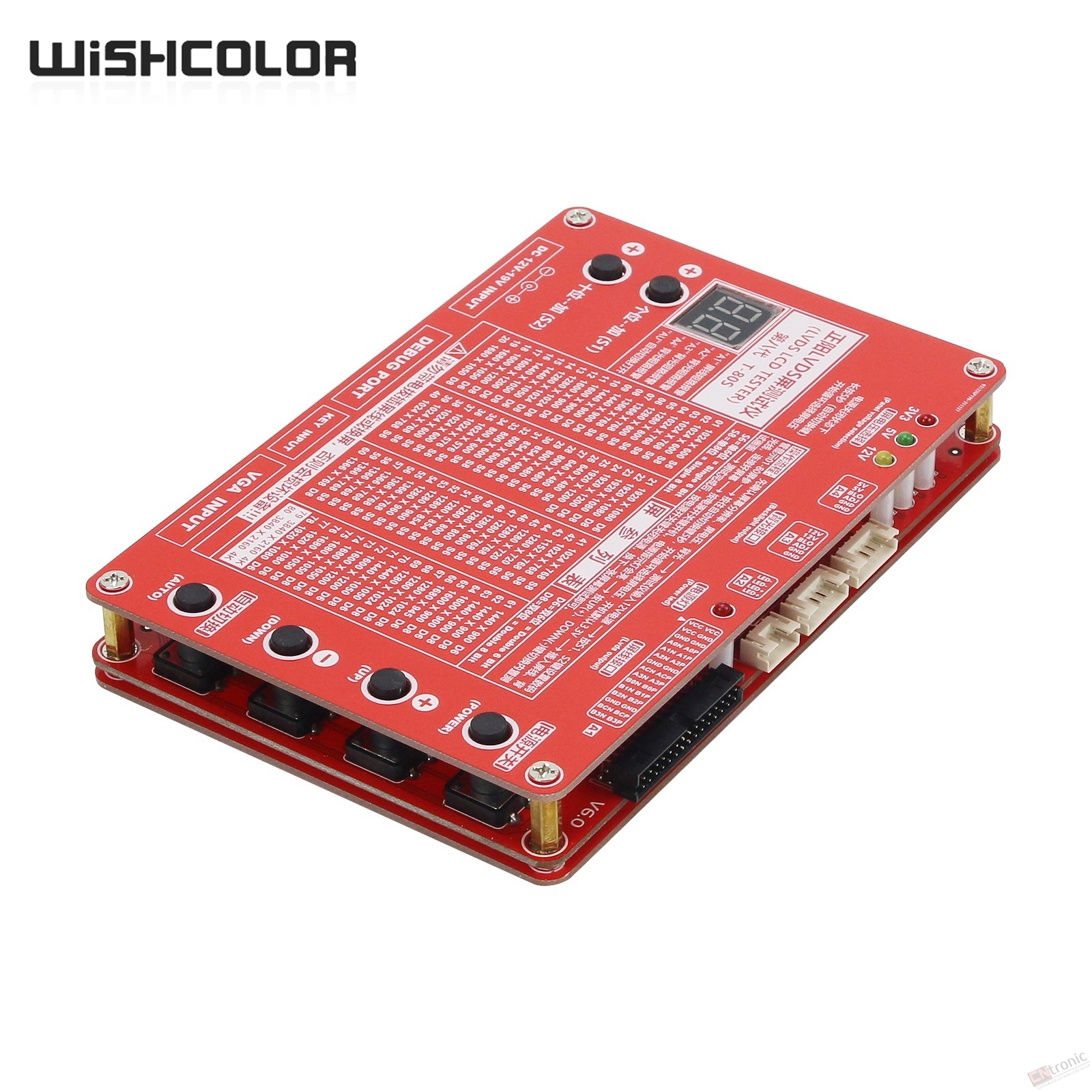

Wishcolor 4K 2K LVDS LCD Tester LCD LED Panel Tester w/ 4K Adapter Board Max 2048x1536 For TV Laptop Screen
0.0 ( votes) | 3 orders
Price:
US $256.25
Discount Price:
US $
172.01
-33%
- Color
-
-
Wishcolor 4K 2K LVDS LCD Tester LCD LED Panel Tester w/ 4K Adapter Board Max 2048x1536 For TV Laptop Screen
NOTE:EDP screen is not supported
Features:

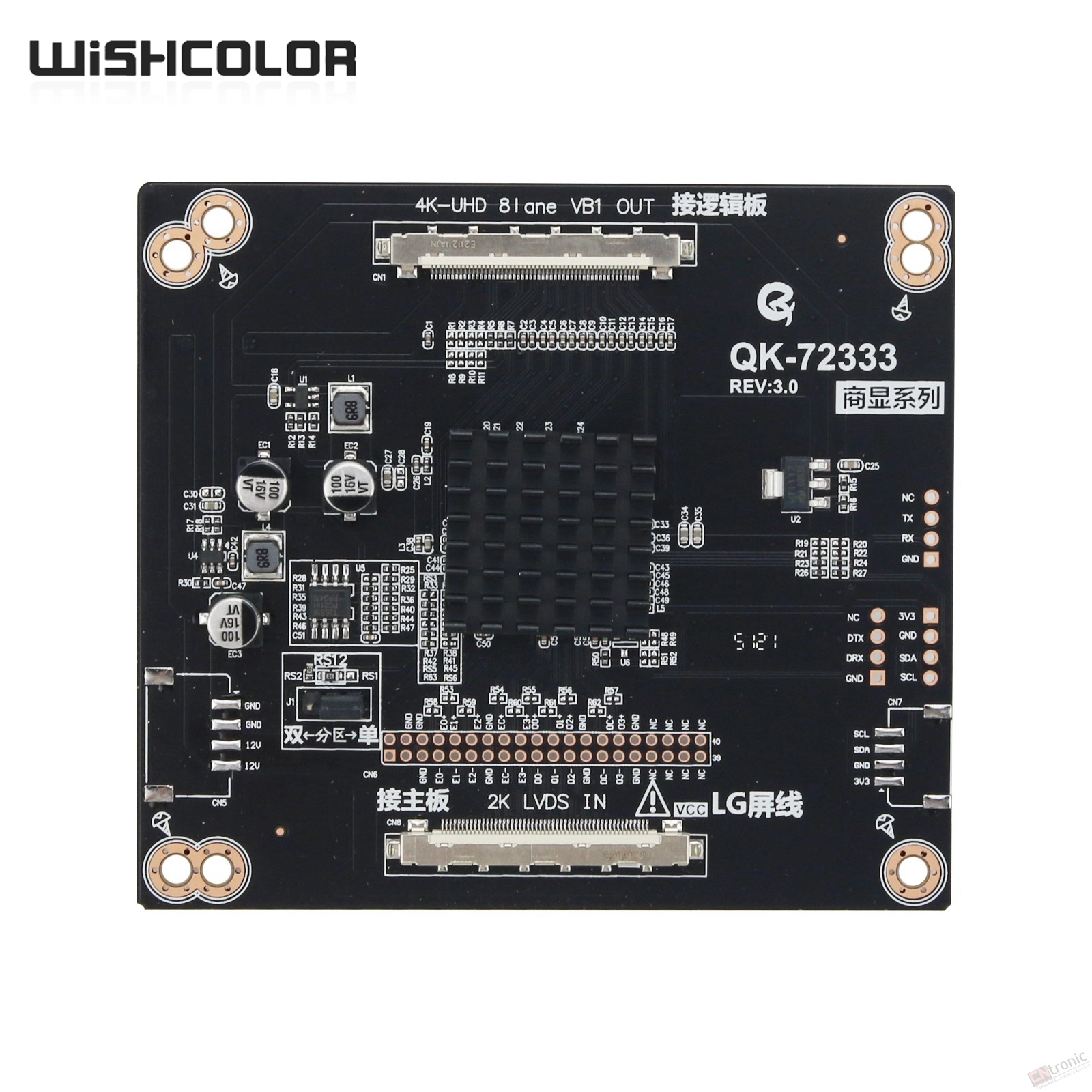

- Comes with 4K adapter board.
- 6th generation of LCD/LED tester.

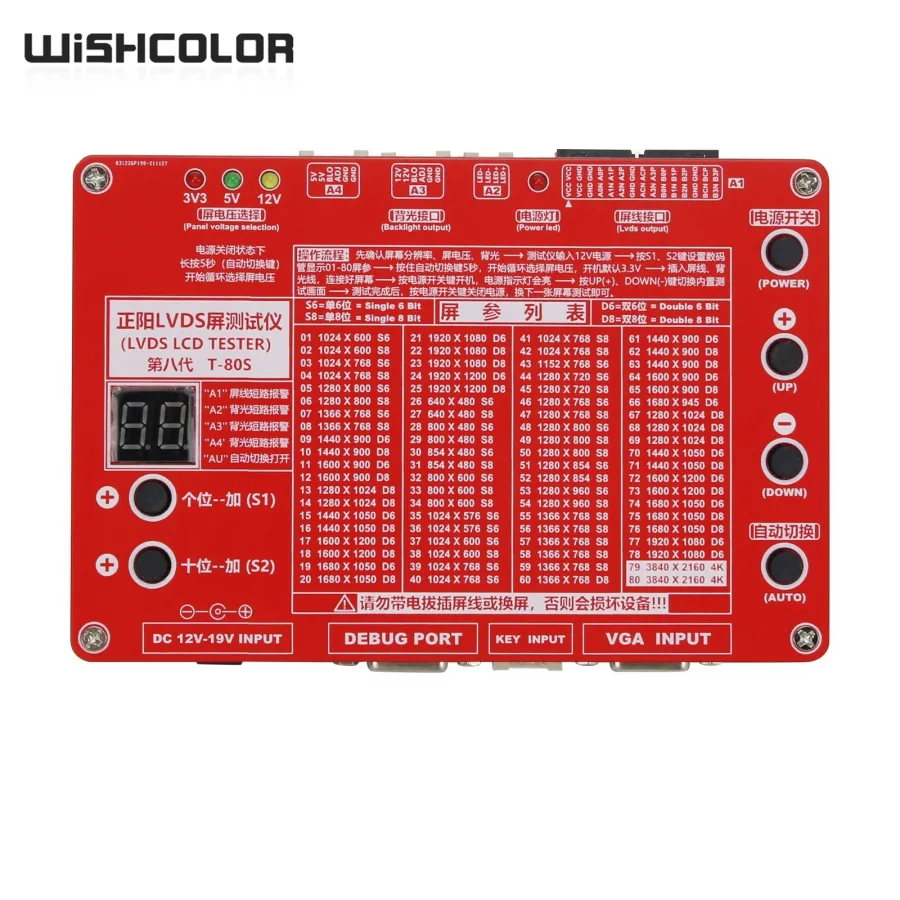

- With 60 kinds of real screen parameters.
- Minimum resolution 640x480 and maximum resolution 2048x1536.
- Built-in 14 kinds of professional testing pictures.
- Adjustable Resolution Code: You can adjust resolution code when it is turned on, and signal source chip will automatically reset. Adjust units digit and tens digit separately by S1/S2 buttons.
- With LED boost board, i.e. constant current board, which outputs voltage up to 35V and current up to 120mA.
- There are professional slots for LVDS screen cables' interfaces, enabling plugging and unplugging.
- All interfaces with short-circuit protection. It protects screen cables, high-voltage board and boost board from short-circuit. Different codes correspond to different short-circuit interfaces. When there is short-circuit, alarm will sound and digital tubes will display the code, implicating which interface is short-circuited.
- Fast to set screen parameters and the parameters are automatically saved.
- It fits our latest developed LVDS to 4K adapter board and LVDS to EDP adapter board.
- Premium PCB Board: Built with military-grade circuit board, solid capacitors & sealed inductors.
- Support square screens, wide screens, horizontal screens and vertical screens.
- One set of 15pcs screen cables is included.

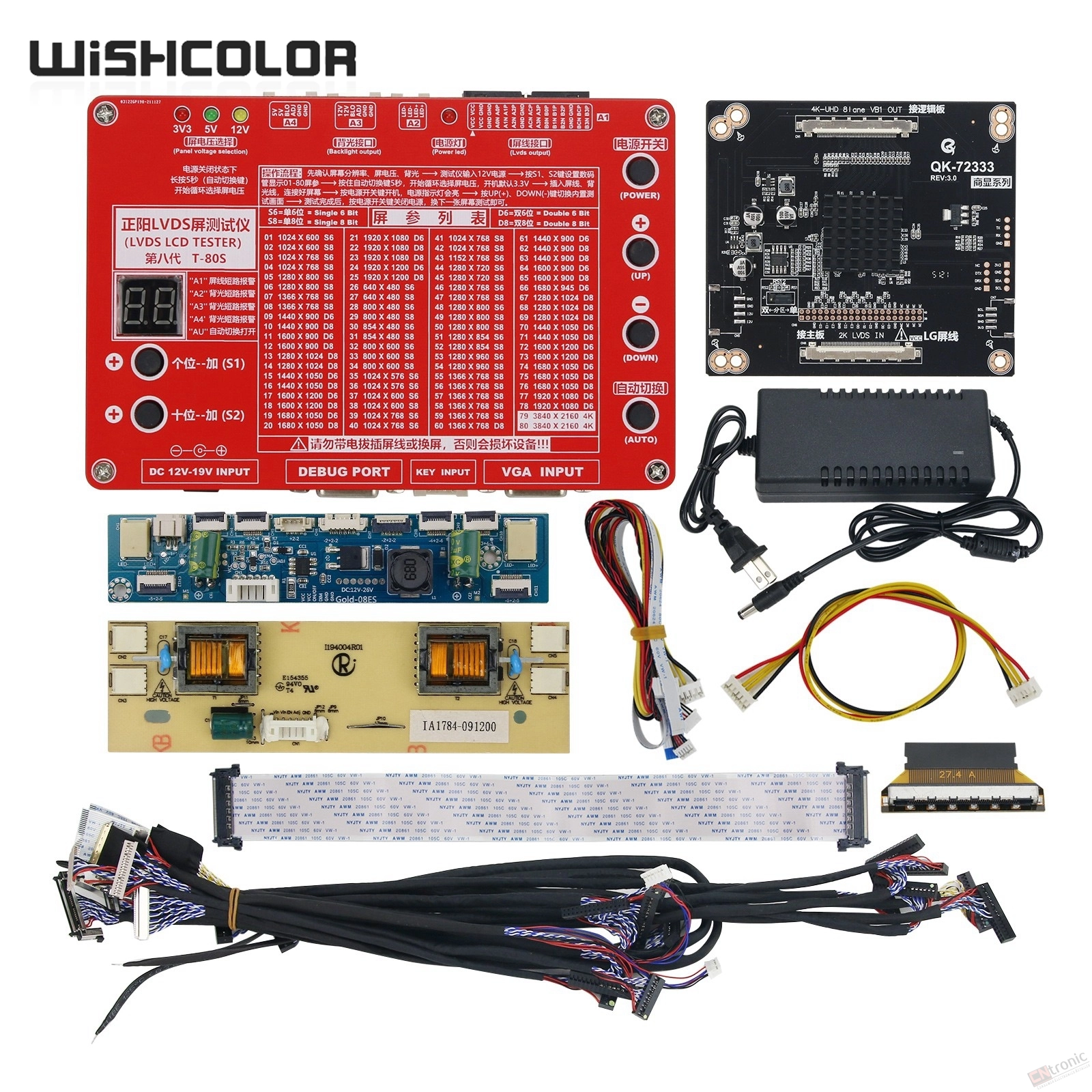

1- With AccessoriesPackage Included:
- 1 x LVDS Screen Tester
- 1 x 4K Adapter Board
- 1 x HD Screen Cable
- 1 x Set of 15pcs Screen Cables
- 1 x 12V 5A Power Adapter

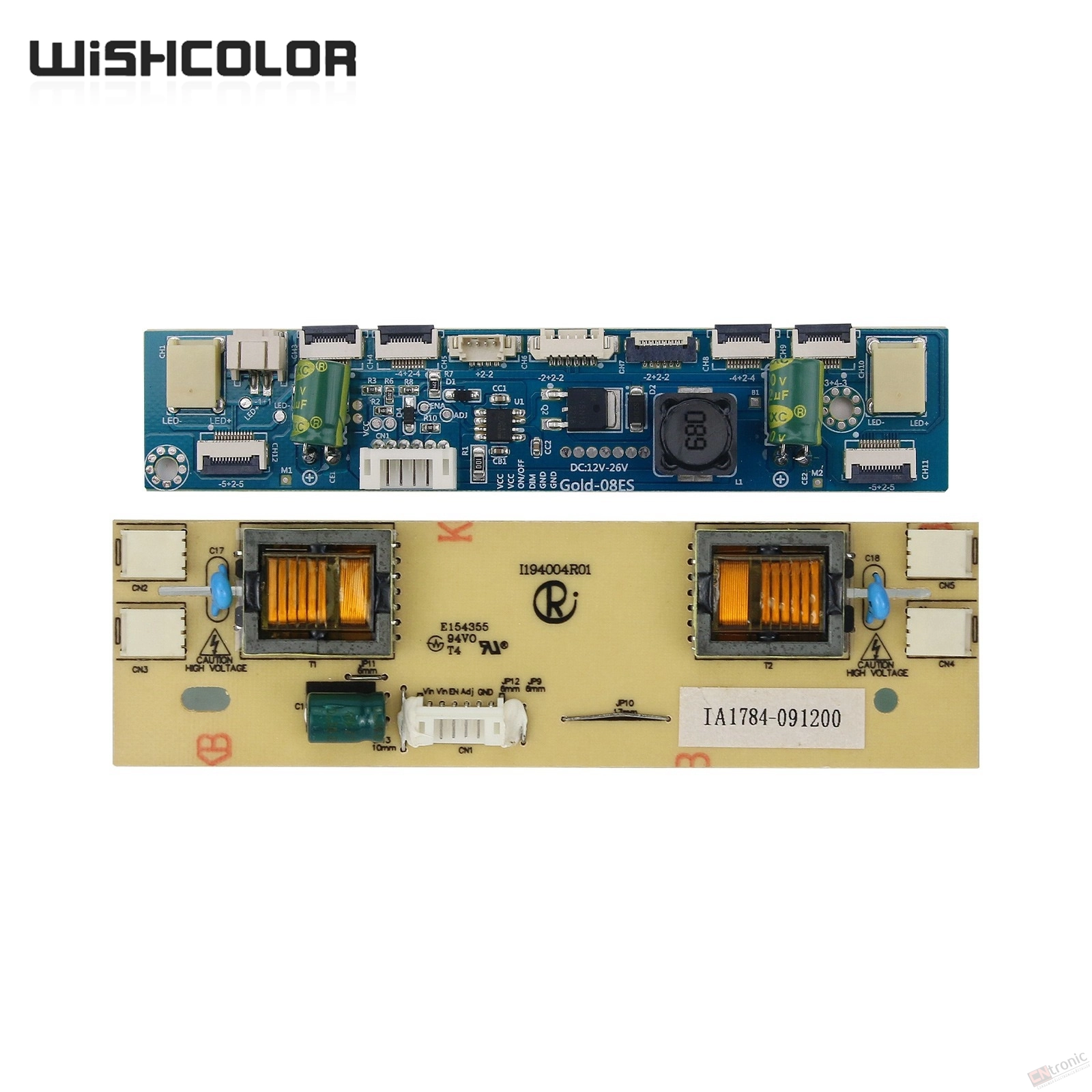

- 1 x LED Constant Current Board
- 1 x LCD High-Voltage Bar

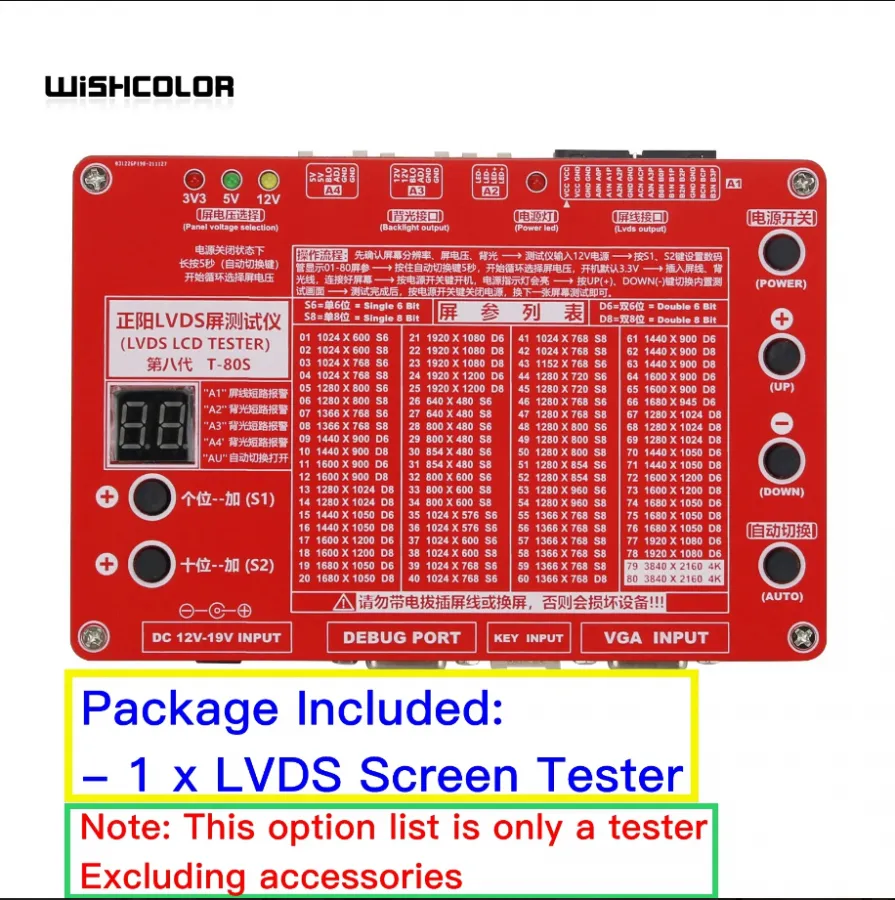

2- NO Accessories Package Included:
- 1 x LVDS Screen Tester
NOTE :Please check whether the purchased product includes accessories when ordering to avoid misunderstandings. Thank you
How to use it:
Step 1: Confirm the screen resolution,screen voltage and backlight
Step 2: Input 12V power supply
Step 3: Press S1,S2 key to set the tube display screen parameter at 01-60
Step 4: Press the automatic switch for 5 seconds to choose the screen voltage (default power on voltage is 3.3V)
Step 4: Connect screen cable,backlight cable and connect it to screen
Step 5: Press power on button,the power indicator will power on
Step 6: Press UP(+),DOWN(-) to switch the built in test screenshot
Step 7: When test finished, P{ress power ON/OFF key turn of the power
Please do not connect or discnnect the screen when power to avoid the damage of the screen
LED backlight default output current is 120mA

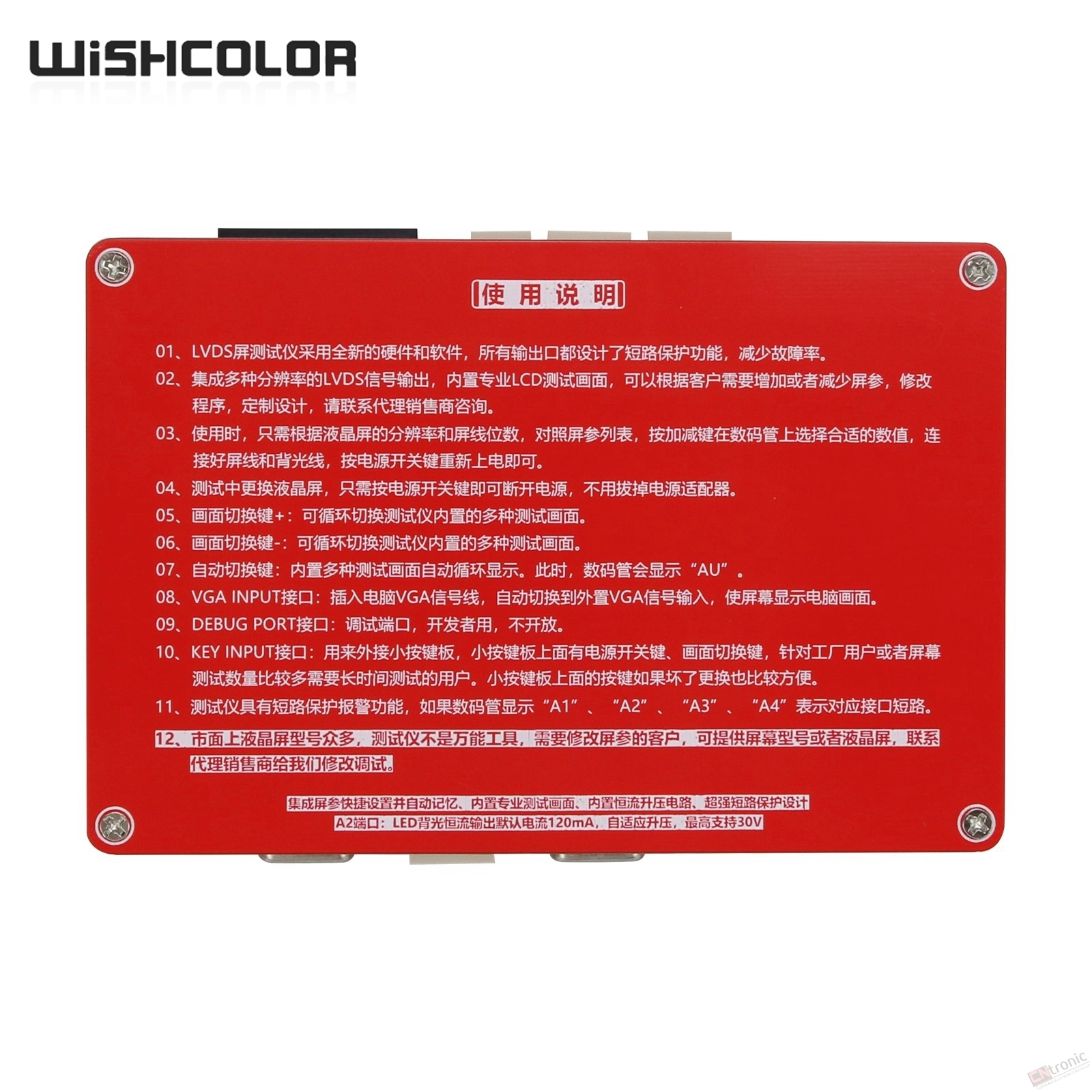

Instructions for use
01、The LVDS screen tester is equipped with new hardware and software, all outputs are designed with short circuit protection to reduce the failure rate.
02. Integrated LVDS signal output for various resolutions, built-in professional LCD test screen, can increase or decrease the screen reference, modify the program and customize the design according to the customer's needs, please contact the agent for consultation.
03、To use, simply select the appropriate value on the digital tube according to the resolution of the LCD and the number of bits of the screen line, press the plus or minus key, connect the screen line and backlight, and press the power switch to reapply power.
04, test to replace the LCD screen, just press the power switch key to disconnect the power, without unplugging the power adapter.
05. Screen switch key +: can cycle to switch the tester built-in a variety of test screen.
06.Screen switch key -: can cycle through the various test screens built into the tester.
07.Auto switch key:The built-in multiple test screens are displayed in a cycle automatically. At this time, the digital tube will display "AU".
08.VGA INPUT interface: Plug in the computer VGA signal cable, automatically switch to the external VGA signal input, so that the screen displays the computer screen.
09、DEBUG PORT interface: debug port, for developers, not open.
10, KEY INPUT interface: used for external small keypad, small keypad above the power switch key, screen switch key, for factory users or screen test the number of users who need to test a long time. If the keys on the small keypad are broken, it is convenient to replace them.
11, the tester has a short circuit protection alarm function, if the digital tube shows "A1", "A2", "A3", "A4" that the corresponding interface short circuit.
12、There are many models of LCD screens on the market, the test is not a universal tool, to modify the screen reference customers, you can provide the screen model or LCD screen, contact
Agent sales to us to change the debugging
Integrated screen bone quick settings and automatic memory, built-in professional testers blood, built-in constant current boost circuit, super short circuit protection design
A2 port: LED backlight constant current output 120mA, adaptive boost, up to 30V
Packaging Details
- Unit Type:
- Package Weight: 1.000
- Package Size: 10x5x15
- Brand Name: TZT
- Origin: Mainland China
- Power Source: Other
- Power Source: Other
- Hign-concerned Chemical: None
- Inbox adaptor: No
- Hard Disk Capacity: < 100GB
- Certification: None
- Model Number: T-80S
- Resolution: 3840x2160
- S: 63455
- Features 1: Comes with 4K adapter board
- Features 2: 6th generation of LCD/LED tester
- Features 3: With 60 kinds of real screen parameters
- Features 4: Built-in 14 kinds of professional testing pictures
- Features 5: One set of 15pcs screen cables is included
- Features 6: It fits our latest developed LVDS to 4K adapter board and LVDS to EDP adapter board
- Eighth generation: LVDS LCD TESTER
