VEVOR 53"/34"/28" 4MB Semi-Automatic Cutter Vinyl Cutting Plotter Machine Laser Positioning 3 Interface W/ SIGNMASTER Software
4.0 (1 votes)
Price:
US $1309.96 - 1971.96
/ piece
Discount Price:
US $
785.98 -
1183.18
/ piece
-40%
- Ships From
Product Description
Features & Details
- 【CUTTING CAPACITY】- With maximum paper feed of 1350 mm (53.1"), maximum cutting width of 1260 mm (49.6"), cutting precision of +/-0.01 mm (0.0004") and paper feed precision of 3 m (118").
- 【STRONG STABILITY】- With ARM motherboard and 4M high speed cache memory. Double spring pinch-rollers, and roughened steel roller ensure that the paper feed will not deviate by long distance.
- 【DIGITAL CONTROL】- Cutting pressure with 20-500g adjustable, cutting speed with 20-800 mm per second adjustable. Backlight LCD for more intuitive operation.
- 【HIGH COMPATIBILITY】- Available with COMPIM, USB and U-Disk interface. DM/PL, HP/GL language. Works with your installed Fonts, including Dingbat/Wingding Fonts. Import various file formats, including SVG and PDF.
- 【WIDELY USED】- Can be used in advertisement field, various decoration, handcraft, supplementary for heat transfer, label & sign making, etc.
User Manual is included in the attached USB flash disk.
Key Features

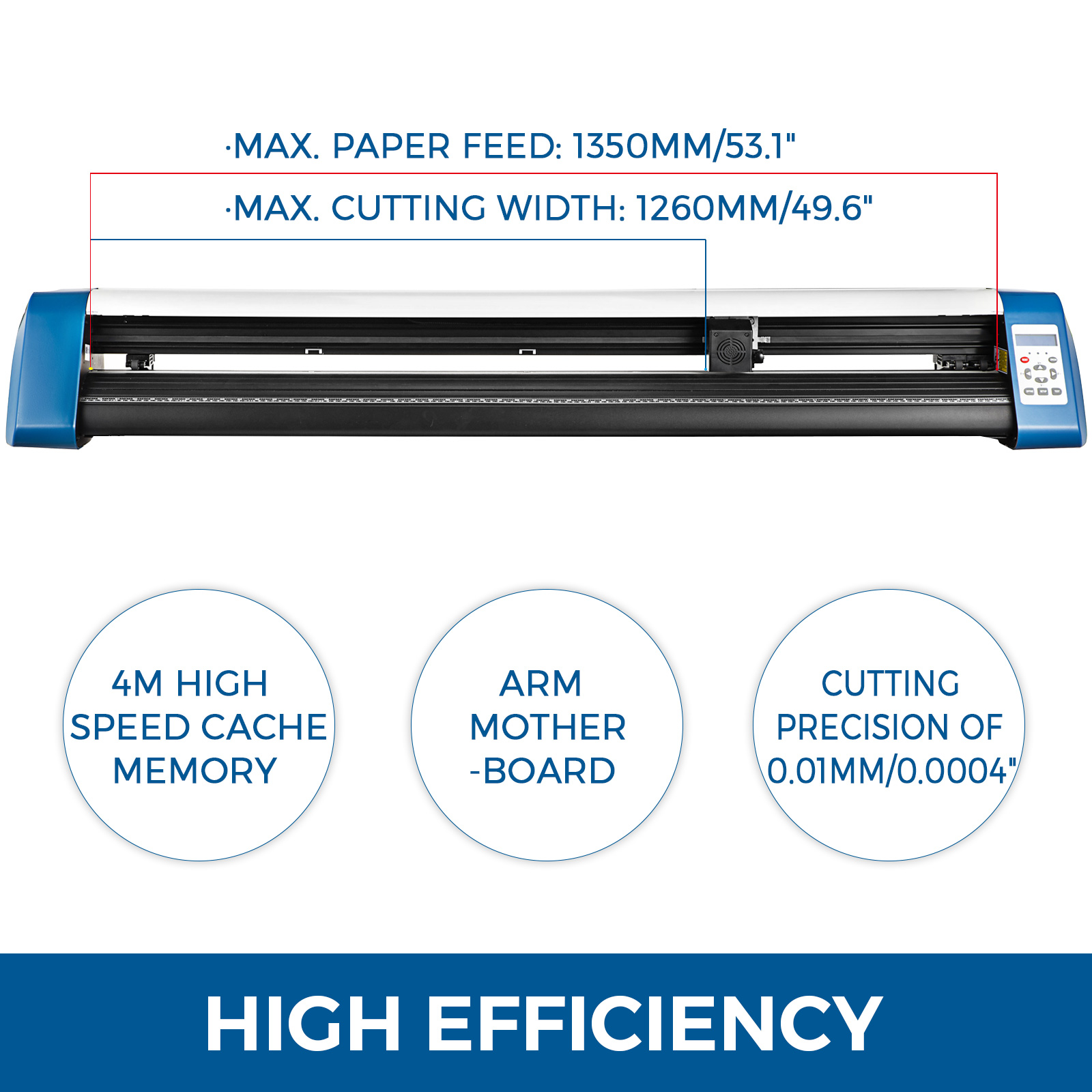

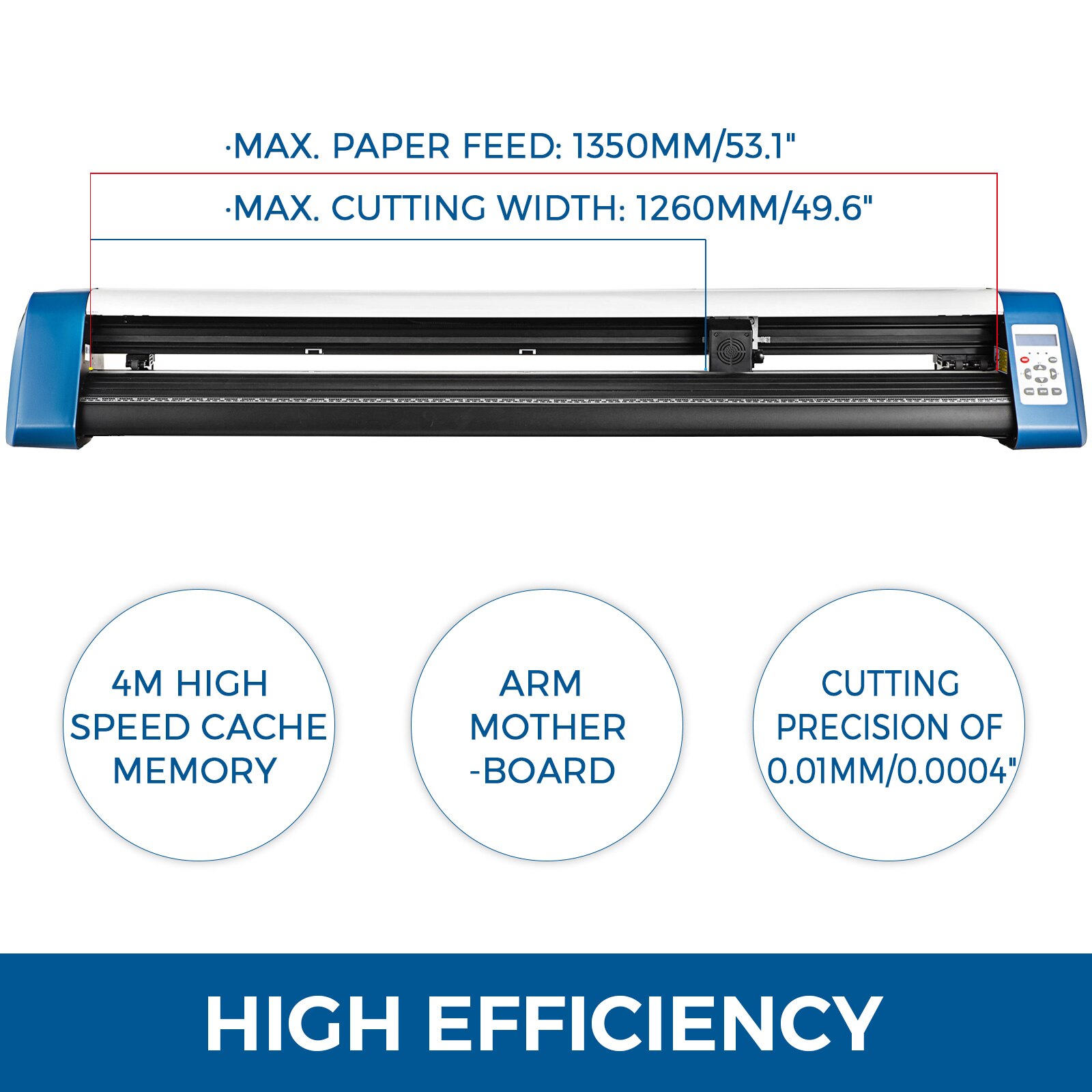

High Efficiency
The maximum paper feed is 1350 mm (53.1"), and the maximum cutting width is 1260 mm (49.6"). With ARM motherboard and stepper motors, cutting precision of +/-0.01 mm (0.0004"), and paper feed precision of 3 m (118"). With 4M high speed cache memory, DM/PL, HP/GL language.

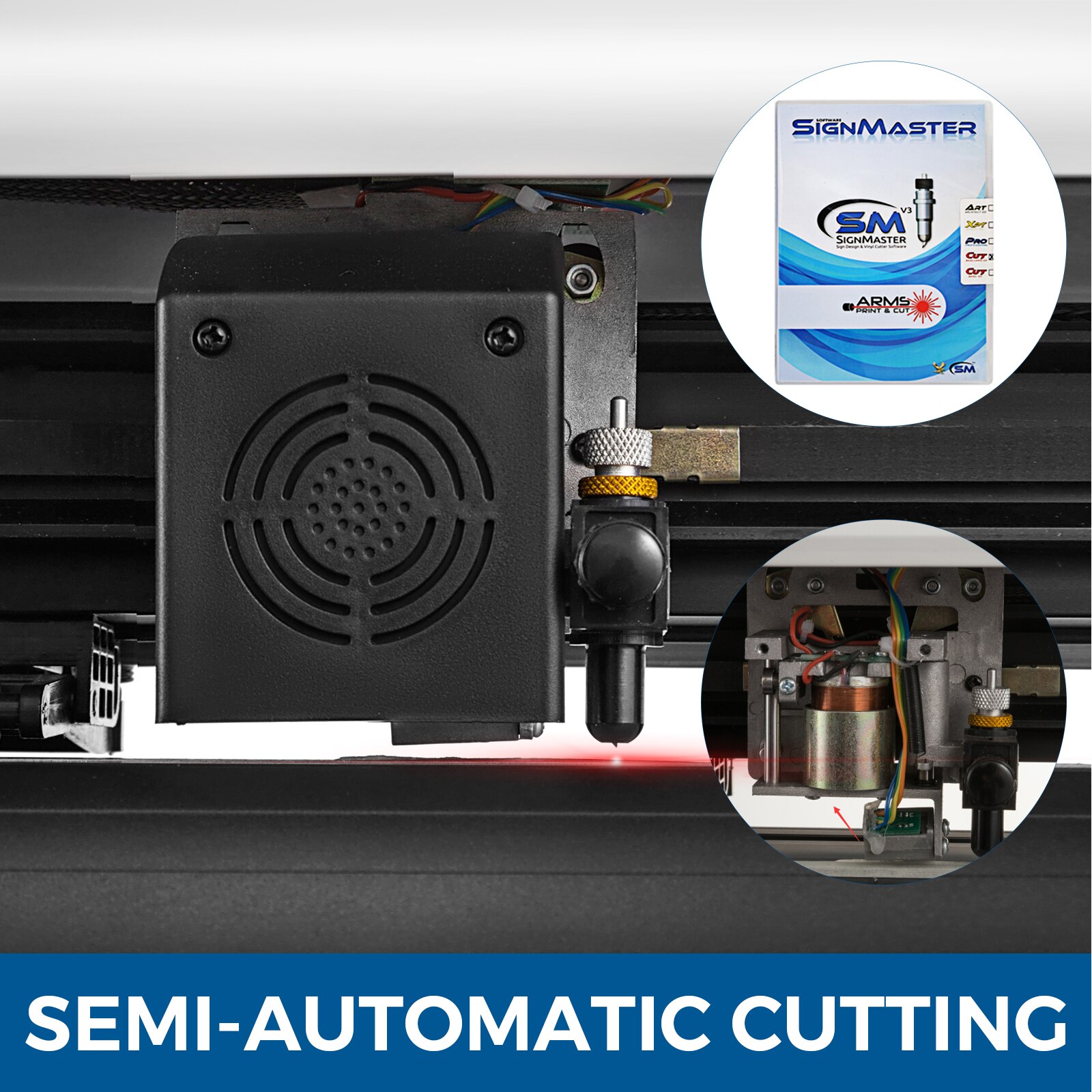

Semi-automatic Cutting
Laser pointer’s direct red light is beneficial to assist in positioning. Casting pressure carriage supports semi-automatic contour cutting, which calls for manual positioning. With Signmaster software, it can achieve more accurate and high-quality cutting.

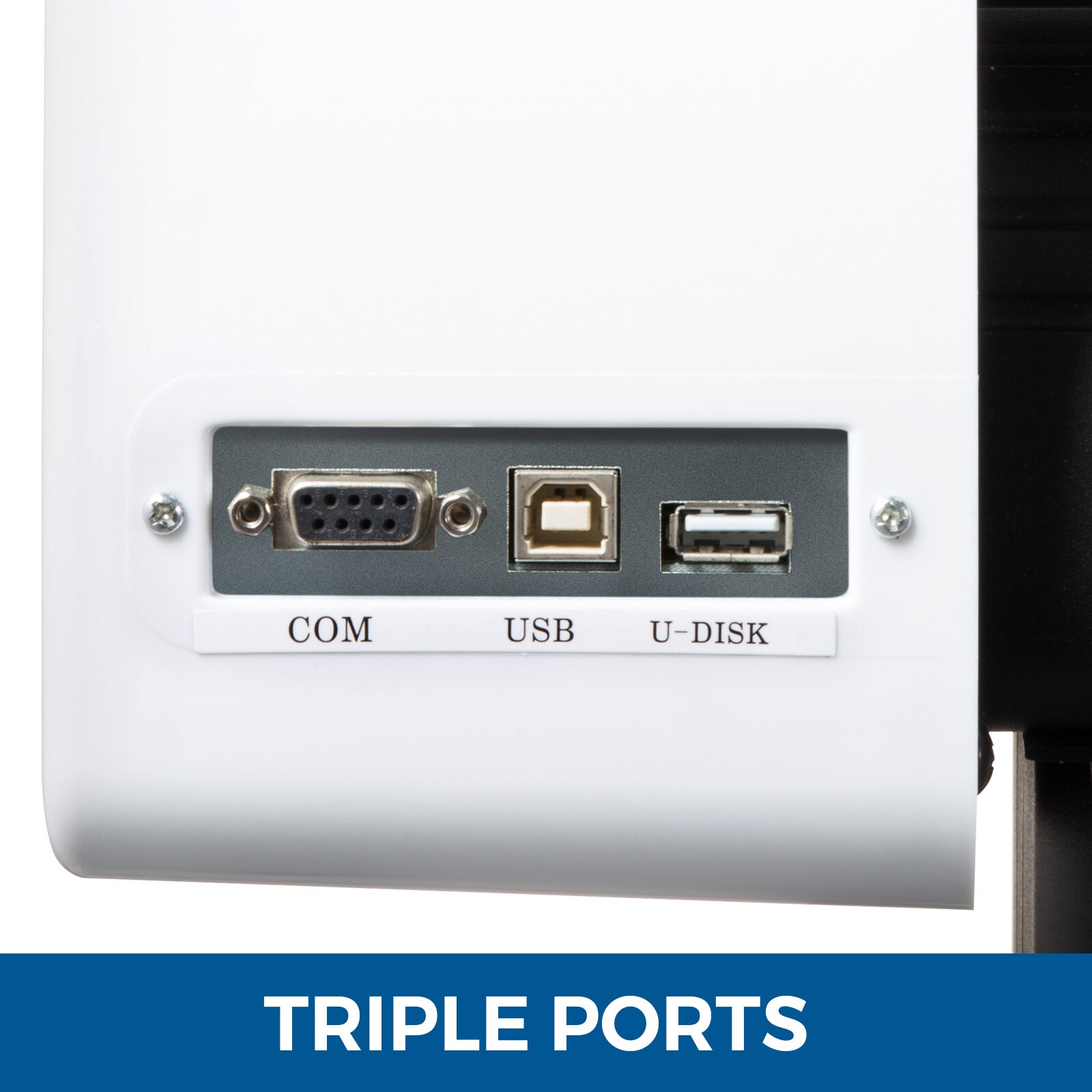

Triple Ports
COMPIM, USB and U-Disk available. Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. Supports offline processing with USB disk.
Adjustable Force & Speed
Digital control panel allows adjustment of cutting force and speed. Cutting pressure with 20-500g adjustable, and cutting speed with 20-800 mm/s adjustable. With backlight LCD for directly display of working process.

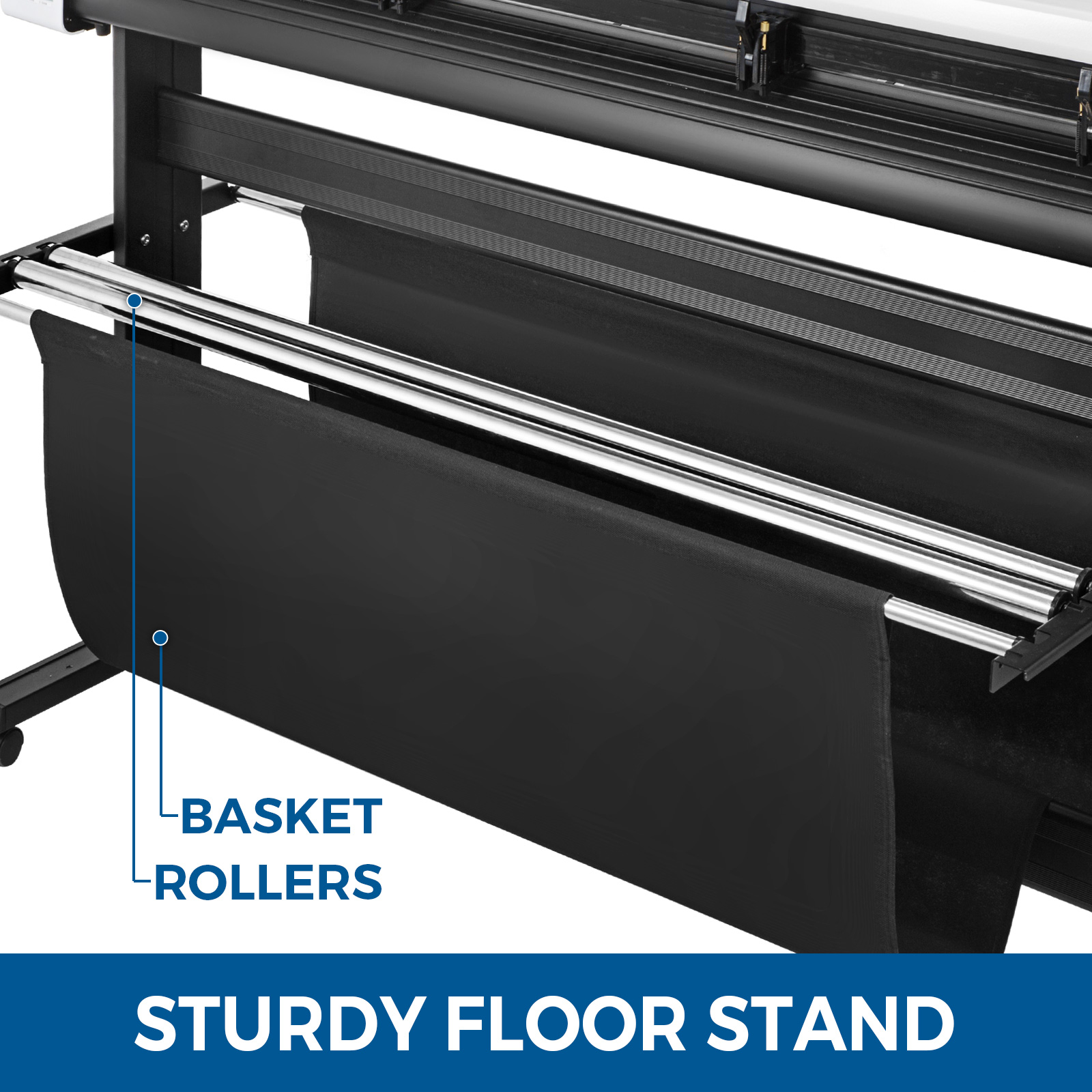

Sturdy Floor Stand
Structured with heavy-duty sheet metal floor stand, featuring 2 rollers which can hold the paper. Also, with a paper basket for preventing the material from falling to the ground.

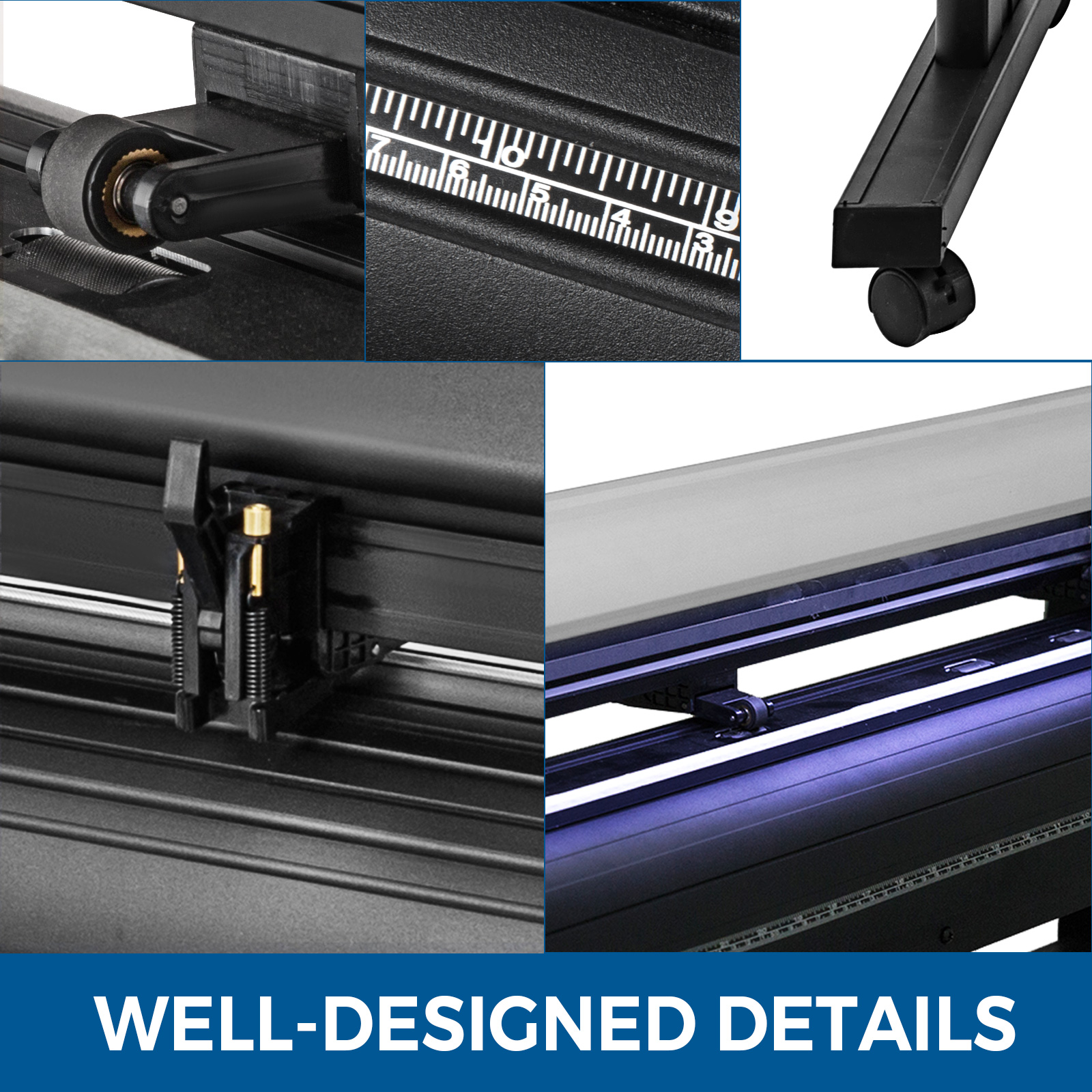

Well-Designed Details
4 adjustable double spring pinch-rollers and high precision pressing wheels ensure the anti-deviation of paper feed by long distance. With scale line for intuitive and accurate operation, LED strip lights for illuminating and caster wheels for convenient movement.

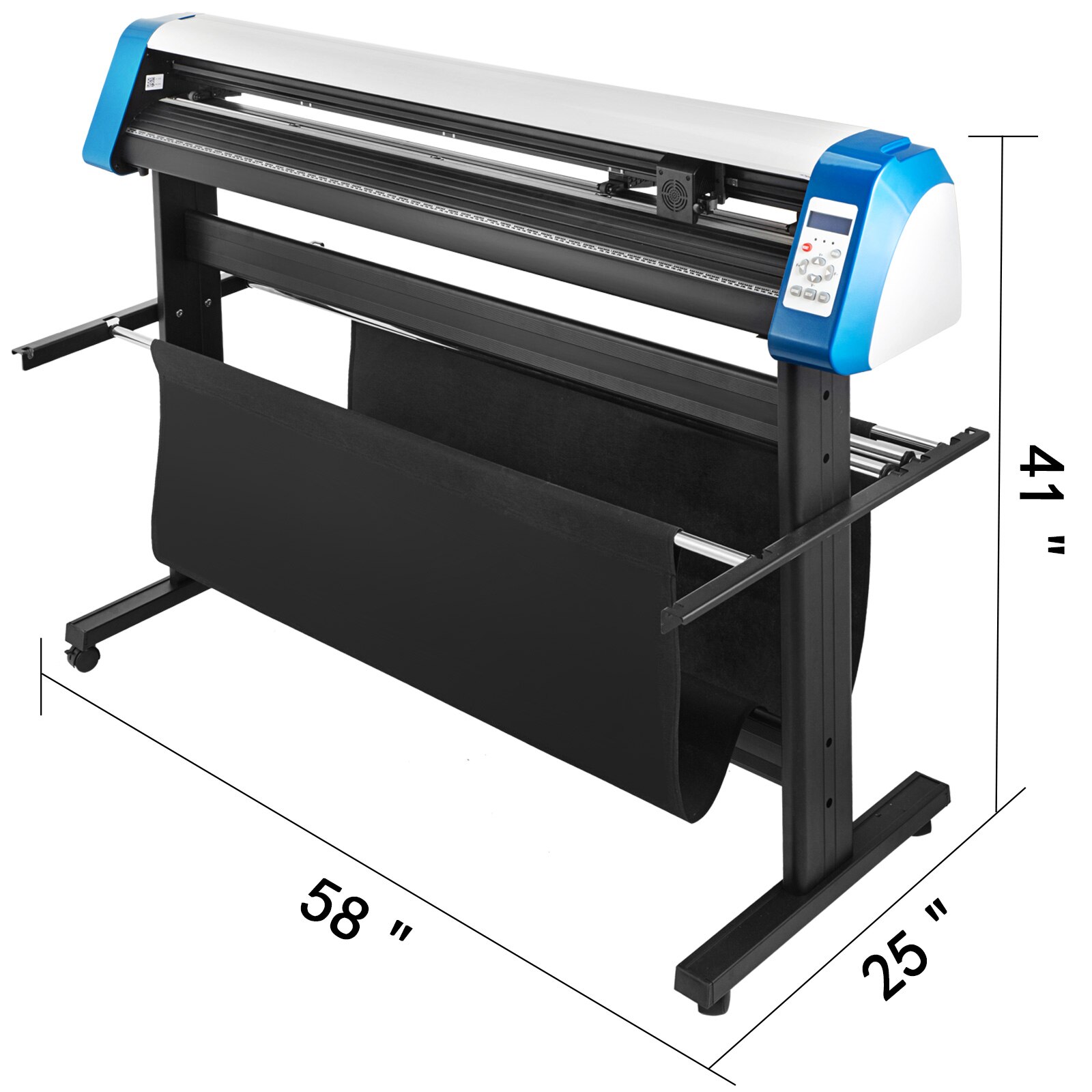

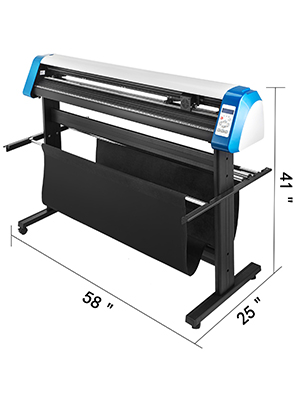

53-Inch Semi-Automatic Contour Vinyl Cutter Plotter
This 53" Professional Vinyl Cutting Plotter with floor stand comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes! NOT compatible with IOS system！
- Cutting Capacity
- Strong Stability
- Digital Control
- High Compatibility
Specifications
- Max Paper Feed: 53.1" (1350 mm)
- Max Cutter Width: 49.6" (1260 mm)
- Cutting Accuracy: ± 0.0004" (0.01 mm)
- Temperature: 5-35℃
- Relative Humidity: 30%-50%
- Gross Dimensions: 65"x13"x16.5" (165x33x42 cm)
- Memory: 4 MB
- Spring Pinch-Rollers: 4 Adjustable Rollers

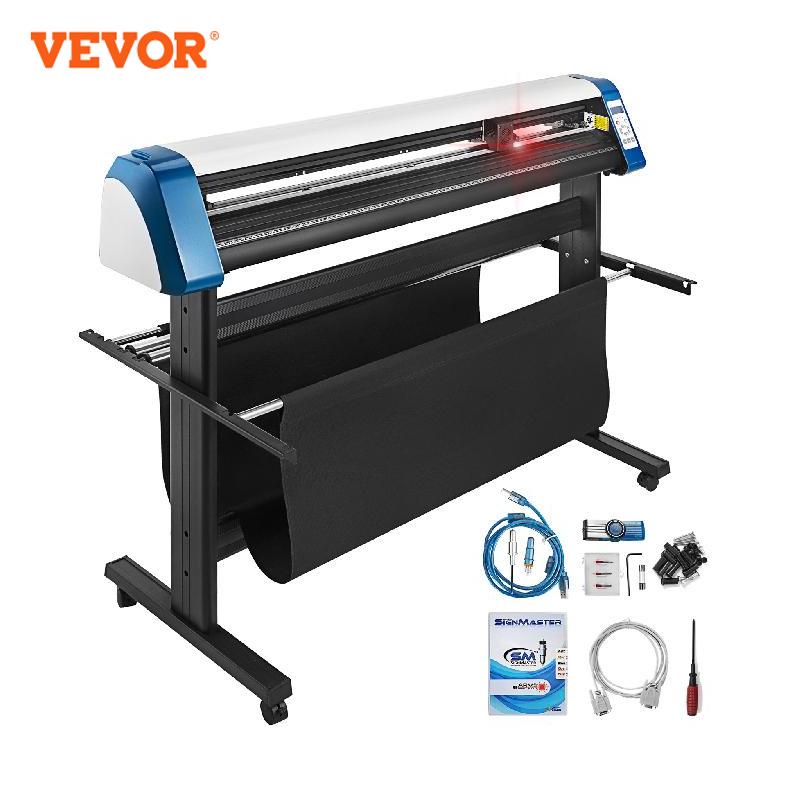

- 1 x 53" Cutter Plotter Machine Set
- 1 x Signmaster Software
- 1 x Floor Stand
- 2 x Cables (USB & Serial)
- 1 x Power Cord
- 1 x USB Flash Disk
- 1 x User Manual

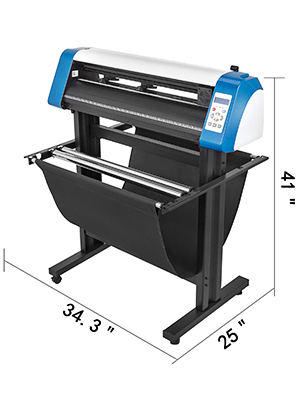

34-Inch Semi-Automatic Contour Vinyl Cutter Plotter
This 34" professional plotter cutter machine with floor stand comes with an easy-to-use design and SIGNMASTER software. It allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork, and draw your shapes! NOT compatible with IOS system!
- Trusted Performance
- Strong Stability
- Digital Precise Control
- High Compatibility
Specifications
- Max Paper Feed: 34.3" (870 mm)
- Max Cutter Width: 30.7" (780 mm)
- Cutting Accuracy: ± 0.0004" (0.01 mm)
- Temperature: 5-35 ℃
- Relative Humidity: 30%-50%
- Gross Dimensions: 46.5" x 13.4" x 16.5" (118 x 34 x 42 cm)
- Memory: 4 MB
- Spring Pinch-Rollers: 2 Adjustable Rollers
Package Content
- 1 x 34" Cutter Plotter Machine Set
- 1 x Signmaster Software
- 1 x Floor Stand
- 2 x Cables (USB & Serial)
- 1 x Power Cord
- 1 x USB Flash Disk
- 1 x User Manual
28-Inch Semi-Automatic Contour Vinyl Cutter Plotter
This 28" Professional Vinyl Cutting Plotter with floor stand comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes! NOT compatible with IOS system！
- Cutting Capacity
- Strong Stability
- Digital Control
- High Compatibility
Specifications
- Max Paper Feed: 28.3" (720 mm)
- Max Cutter Width: 24.8" (630 mm)
- Cutting Accuracy: ± 0.0004" (0.01 mm)
- Temperature: 5-35℃
- Relative Humidity: 30%-50%
- Gross Dimensions: 40.6"x13.4"x16.5" (103x34x42 cm)
- Memory: 4 MB
- Spring Pinch-Rollers: 3 Adjustable Rollers
- 1 x 28" Cutter Plotter Machine Set
- 1 x Signmaster Software
- 1 x Floor Stand
- 2 x Cables (USB & Serial)
- 1 x Power Cord
- 1 x USB Flash Disk
- 1 x User Manual
- Brand Name: VEVOR
- Origin: Mainland China
- Certification: CE
- Type: Cutting
- Carriage: Casting Pressure Carriage
- Material: Aluminum
- Fill Light: LED Strip Light
- Motherboard: ARM
- Interface: Serial Port & USB 2.0 & U-Disk
- Model: 53"/34"/28" Vinyl Cutter(Semi-automatic model)
- Language: DM/PL, HP/GL
- Product: Vinyl Cutter
- System: Windows XP/Vista/7/8/10(32& 64)
- Software: Signmaster
- Max Paper Feed: 53.1" (1350mm)/34.3" (870mm)/28.3" (720mm)
- Max Cutter Width: 49.6" (1260mm)/30.7" (780mm)/24.8" (630mm)
- Cutting Accuracy: ± 0.0004" (0.01mm)
- Cutter Pressure: 20-500g
- Cutting Speed: 20-800mm/s
- Relative Humidity: 30%-50%
- Number of Pinch Roller: 4/2/3
- Memory: 4M
- Driving Method: Stepper Motor
- Positioning: Semi-Automatic
